◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 10631 - FVR-LHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-01 - PROPELLER SHAFT ▶
4-01 — PROPELLER SHAFT (#1264) — 363 parça

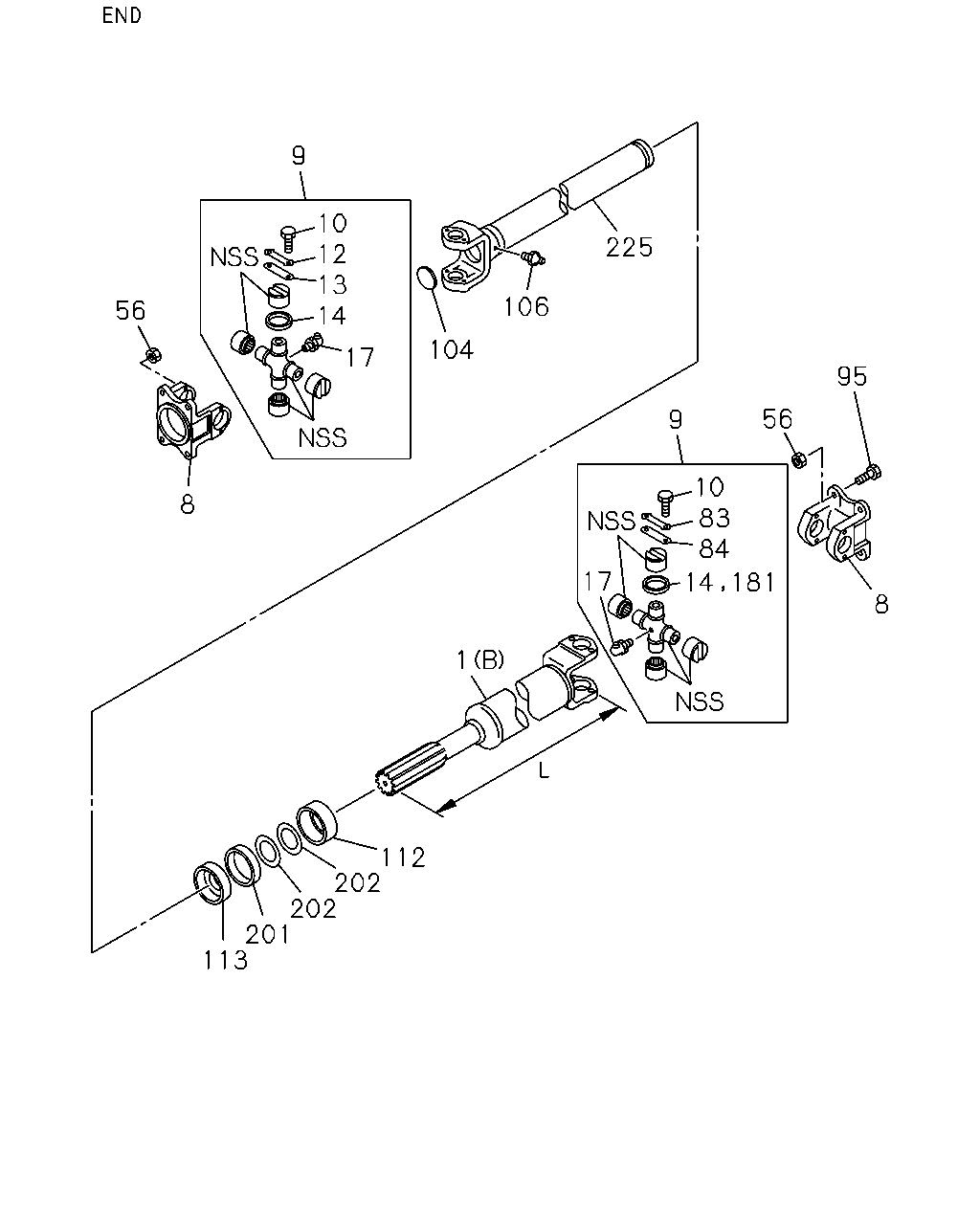

çizim 92190
9 10 12 13 14 225 106 56 104 17 95 56 9 10 83 84 8 17 181 8 1 112 202 202 201 113 14
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (A) 1ST L=670 		1-37117-331-0 01 1 9202- ●
1 SHAFT; PROP
MLD6E M/T(X5R) (A) 1ST L=670 		1-37117-331-0 01 1 9202- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (B) END L=1091 		1-37131-261-0 01 1 9202- ●
1 SHAFT; PROP
(B) END L=1136 		1-37123-263-0 01 1 9202- ●
1 SHAFT; PROP
FINAL GEAR 39/8 17" EATON(W5B),FINAL GEAR 37/717" EATON(W5C),FINAL GEAR 39/7 17" EATON(W5D) ,FINAL GEAR 35/6 17" EATON(W5E) P60 PROP SHAFT(C2M) (B) END L=1136 		1-37123-263-0 01 1 9202- ● ●
1 SHAFT; PROP
MLD6E M/T(X5R) (A) 1ST L=735 		1-37123-522-0 01 1 9202- ●
1 SHAFT; PROP
MLD7R M/T(X5L) (A) 1ST L=640 		1-37151-200-0 01 1 9202- ●
1 SHAFT; PROP
(B) END L=781 		1-37131-262-0 01 1 9202- ●
1 SHAFT; PROP
MLD6A M/T(X5N) (A) 1ST L=1145 		1-37123-472-0 01 1 9202- ● ●
1 SHAFT; PROP
MLD6E M/T(X5R) (A) 1ST L=1130 		1-37116-879-0 01 1 9202- ● ●
1 SHAFT; PROP
6HE1 STD ENG(46L) MLD7R M/T(X5L) (A) 1ST L=1045 		1-37116-877-0 01 1 9202- ● ●
1 SHAFT; PROP
6SA1 STD ENG(06L) MLD7R M/T(X5L) (A) 1ST L=1035 		1-37151-189-0 01 1 9202- ● ●
1 SHAFT; PROP
MLD6A M/T(X5N) (A) 1ST L=680 		1-37151-286-0 01 1 9202- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (A) 1ST OR 2ND L=800 		1-37151-199-0 01 1 9202- ●
1 SHAFT; PROP
6SA1 STD ENG(06L) MLD7R M/T(X5L) (A) 1ST OR 2ND L=800 		1-37151-199-0 01 1 9202- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (A) 2ND L=783 		1-37123-619-0 01 1 9212-9305 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (A) 2ND L=783 		1-37123-619-0 01 1 9306-9307 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (A) 2ND L=1073 		1-37151-379-0 01 1 9308- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (A) END L=1127 		1-37131-253-0 01 1 9212-9305 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (A) 2ND L=1073 		1-37151-379-0 01 1 9306-9307 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (A) 2ND L=783 		1-37123-619-0 01 1 9308- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (A) 1ST L=673 		1-37117-387-0 01 1 9306-9307 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (A) 1ST L=463 		1-37151-485-0 01 1 9308-9504 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 1ST L=463 		1-37151-485-0 01 1 9505- ●
1 SHAFT; PROP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P90 PROP SHAFT(C5T) (A) 1ST L=563 		1-37152-023-0 01 1 9505- ●
1 SHAFT; PROP
6HE1 STD ENG(46L) MLD7R M/T(X5L) (A) 1ST L=580 		1-37151-283-0 01 1 9202- ●
1 SHAFT; PROP
6SA1 STD ENG(06L) MLD7R M/T(X5L) (A) 1ST L=570 		1-37117-332-0 01 1 9202- ●
1 SHAFT; PROP
FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q) P60 PROP SHAFT(C2M) (B) END L=1156 		1-37123-356-0 01 1 9202- ● ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (B) END L=1142 		1-37123-785-0 01 1 9306- ● ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (A) 2ND L=1070 		1-37123-616-0 01 1 9202- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (A) 1ST L=463 		1-37151-485-0 01 1 9306-9307 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (A) 1ST L=673 		1-37117-387-0 01 1 9308-9504 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 1ST L=673 		1-37117-387-0 01 1 9505- ●
1 SHAFT; PROP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P90 PROP SHAFT(C5T) (A) 1ST L=778 		1-37117-724-0 01 1 9505- ●
1 SHAFT; PROP
6HE1 STD ENG(46L) MLD6A M/T(X5N) (A) 1ST L=910 		1-37117-621-0 01 1 9202- ●
1 SHAFT; PROP
6HE1 STD ENG(46L) MLD7R M/T(X5L) (A) 1ST L=810 		1-37151-288-0 01 1 9202- ●
1 SHAFT; PROP
6SA1 STD ENG(06L) MLD6A M/T(X5N) (A) 1ST L=900 		1-37117-726-0 01 1 9202- ●
1 SHAFT; PROP
(B) END L=1126 		1-37123-200-0 01 1 9202- ●
1 SHAFT; PROP
(A) 2ND L=1340 		1-37123-612-0 01 1 9202- ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37211-040-0 02 1 9202- ● ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37211-040-0 01 1 9202- ● ● ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37211-040-0 01 1 9202- ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37211-050-1 04 1 9212-9406 ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37211-050-1 01 1 9407- ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37211-050-1 02 1 9407- ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-040-0 03 1 9202- ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37300-004-0 AR 1 9202- ● ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (A) 		1-37300-082-0 AR 1 9212- ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37300-085-0 AR 1 9212- ● ●
10 BOLT; UJT
M8X20 		9-09802-702-0 AR 1 9202- ● ● ● ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		9-37356-007-0 AR 1 9202- ● ● ● ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P90 PROP SHAFT(C5T) 		9-37356-006-1 AR 1 9212- ● ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37355-011-0 AR 1 9202- ● ● ● ● ● ●
13 COVER; FRT UJT,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37355-003-1 AR 1 9212- ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) 		9-37352-023-0 AR 1 9202- ● ● ● ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) 		1-37249-130-0 AR 1 9212- ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5? 		9-09031-110-0 AR 1 9202- ● ● ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) PT1/8 ELBOW 		9-09031-210-0 AR 1 9306- ● ●
56 NUT; YOKE
M16 FLANGE 		1-09449-065-0 08 1 9202- ● ● ● ● ● ●
83 PLATE; LK,UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		9-37356-007-0 AR 1 9202- ● ● ● ● ● ●
83 PLATE; LK,UJT,PROP SHAFT
P90 PROP SHAFT(C5T) 		9-37356-006-1 AR 1 9212- ● ●
84 COVER; UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37355-011-0 AR 1 9202- ● ● ● ● ● ●
84 COVER; UJT,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37355-003-1 AR 1 9212- ● ●
84 COVER; UJT,PROP SHAFT 9-37352-023-0 04 1 9407- ●
95 BOLT; YOKE,FINAL
M16X48 		1-09000-383-0 04 1 9202- ● ● ● ● ● ●
104 PLUG; SLEEVE YOKE
P60 PROP SHAFT(C2M) 		9-09860-507-0 01 1 9202- ● ● ● ● ● ●
104 PLUG; SLEEVE YOKE
P90 PROP SHAFT(C5T) 		1-09600-067-0 01 1 9212- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 9202- ● ● ● ● ● ●
112 RETAINER; FELT RING 9-37248-013-0 01 1 9202- ●
113 RETAINER; OIL SEAL,SLEEVE
P60 PROP SHAFT(C2M) 		9-37248-013-0 01 1 9202- ● ● ● ● ●
181 COVER; BRG,PROP SHAFT 9-37352-023-0 04 1 9407- ●
201 RING; FELT,SLEEVE
P60 PROP SHAFT(C2M) 		9-09922-121-0 01 1 9202- ● ● ● ● ● ●
202 RING; FELT SEAL,SLEEVE
P60 PROP SHAFT(C2M) 		9-37249-105-0 02 1 9202- ● ● ● ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37241-100-0 01 1 9202- ● ● ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37241-097-0 01 1 9212- ● ●
çizim 92404
174 177 173 70 69 66 51 172 63 21 22 20 23 24 46 21 56 49 9 25 1 10 12 13 45 60 64 14 74 17 71 8
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (A) 1ST L=670 		1-37117-331-0 01 1 9202- ●
1 SHAFT; PROP
MLD6E M/T(X5R) (A) 1ST L=670 		1-37117-331-0 01 1 9202- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (B) END L=1091 		1-37131-261-0 01 1 9202- ●
1 SHAFT; PROP
(B) END L=1136 		1-37123-263-0 01 1 9202- ●
1 SHAFT; PROP
FINAL GEAR 39/8 17" EATON(W5B),FINAL GEAR 37/717" EATON(W5C),FINAL GEAR 39/7 17" EATON(W5D) ,FINAL GEAR 35/6 17" EATON(W5E) P60 PROP SHAFT(C2M) (B) END L=1136 		1-37123-263-0 01 1 9202- ● ●
1 SHAFT; PROP
MLD6E M/T(X5R) (A) 1ST L=735 		1-37123-522-0 01 1 9202- ●
1 SHAFT; PROP
MLD7R M/T(X5L) (A) 1ST L=640 		1-37151-200-0 01 1 9202- ●
1 SHAFT; PROP
(B) END L=781 		1-37131-262-0 01 1 9202- ●
1 SHAFT; PROP
MLD6A M/T(X5N) (A) 1ST L=1145 		1-37123-472-0 01 1 9202- ● ●
1 SHAFT; PROP
MLD6E M/T(X5R) (A) 1ST L=1130 		1-37116-879-0 01 1 9202- ● ●
1 SHAFT; PROP
6HE1 STD ENG(46L) MLD7R M/T(X5L) (A) 1ST L=1045 		1-37116-877-0 01 1 9202- ● ●
1 SHAFT; PROP
6SA1 STD ENG(06L) MLD7R M/T(X5L) (A) 1ST L=1035 		1-37151-189-0 01 1 9202- ● ●
1 SHAFT; PROP
MLD6A M/T(X5N) (A) 1ST L=680 		1-37151-286-0 01 1 9202- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (A) 1ST OR 2ND L=800 		1-37151-199-0 01 1 9202- ●
1 SHAFT; PROP
6SA1 STD ENG(06L) MLD7R M/T(X5L) (A) 1ST OR 2ND L=800 		1-37151-199-0 01 1 9202- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (A) 2ND L=783 		1-37123-619-0 01 1 9212-9305 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (A) 2ND L=783 		1-37123-619-0 01 1 9306-9307 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (A) 2ND L=1073 		1-37151-379-0 01 1 9308- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (A) END L=1127 		1-37131-253-0 01 1 9212-9305 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (A) 2ND L=1073 		1-37151-379-0 01 1 9306-9307 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (A) 2ND L=783 		1-37123-619-0 01 1 9308- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (A) 1ST L=673 		1-37117-387-0 01 1 9306-9307 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (A) 1ST L=463 		1-37151-485-0 01 1 9308-9504 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 1ST L=463 		1-37151-485-0 01 1 9505- ●
1 SHAFT; PROP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P90 PROP SHAFT(C5T) (A) 1ST L=563 		1-37152-023-0 01 1 9505- ●
1 SHAFT; PROP
6HE1 STD ENG(46L) MLD7R M/T(X5L) (A) 1ST L=580 		1-37151-283-0 01 1 9202- ●
1 SHAFT; PROP
6SA1 STD ENG(06L) MLD7R M/T(X5L) (A) 1ST L=570 		1-37117-332-0 01 1 9202- ●
1 SHAFT; PROP
FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q) P60 PROP SHAFT(C2M) (B) END L=1156 		1-37123-356-0 01 1 9202- ● ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (B) END L=1142 		1-37123-785-0 01 1 9306- ● ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (A) 2ND L=1070 		1-37123-616-0 01 1 9202- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (A) 1ST L=463 		1-37151-485-0 01 1 9306-9307 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (A) 1ST L=673 		1-37117-387-0 01 1 9308-9504 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 1ST L=673 		1-37117-387-0 01 1 9505- ●
1 SHAFT; PROP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P90 PROP SHAFT(C5T) (A) 1ST L=778 		1-37117-724-0 01 1 9505- ●
1 SHAFT; PROP
6HE1 STD ENG(46L) MLD6A M/T(X5N) (A) 1ST L=910 		1-37117-621-0 01 1 9202- ●
1 SHAFT; PROP
6HE1 STD ENG(46L) MLD7R M/T(X5L) (A) 1ST L=810 		1-37151-288-0 01 1 9202- ●
1 SHAFT; PROP
6SA1 STD ENG(06L) MLD6A M/T(X5N) (A) 1ST L=900 		1-37117-726-0 01 1 9202- ●
1 SHAFT; PROP
(B) END L=1126 		1-37123-200-0 01 1 9202- ●
1 SHAFT; PROP
(A) 2ND L=1340 		1-37123-612-0 01 1 9202- ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37211-040-0 02 1 9202- ● ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37211-040-0 01 1 9202- ● ● ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37211-040-0 01 1 9202- ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37211-050-1 04 1 9212-9406 ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37211-050-1 01 1 9407- ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37211-050-1 02 1 9407- ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-040-0 03 1 9202- ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37300-004-0 AR 1 9202- ● ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (A) 		1-37300-082-0 AR 1 9212- ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37300-085-0 AR 1 9212- ● ●
10 BOLT; UJT
M8X20 		9-09802-702-0 AR 1 9202- ● ● ● ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		9-37356-007-0 AR 1 9202- ● ● ● ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P90 PROP SHAFT(C5T) 		9-37356-006-1 AR 1 9212- ● ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37355-011-0 AR 1 9202- ● ● ● ● ● ●
13 COVER; FRT UJT,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37355-003-1 AR 1 9212- ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) 		9-37352-023-0 AR 1 9202- ● ● ● ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) 		1-37249-130-0 AR 1 9212- ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5? 		9-09031-110-0 AR 1 9202- ● ● ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) PT1/8 ELBOW 		9-09031-210-0 AR 1 9306- ● ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37510-099-1 01 1 9202- ● ● ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37510-099-1 01 1 9202- ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37510-094-3 02 1 9212- ● ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) D=120 		1-09625-126-0 02 1 9202- ● ● ● ● ● ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) D=120 		1-09625-126-0 02 1 9202- ● ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) D=120 		1-09625-127-0 04 1 9212- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) 		1-37516-053-0 01 1 9202- ● ● ● ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) 		1-37516-053-0 01 1 9202- ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) 		1-37516-048-2 02 1 9212- ● ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) 		9-00090-292-0 01 1 9202- ● ● ● ● ● ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) 		9-00090-292-0 01 1 9202- ● ● ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) 		9-00090-256-0 02 1 9212- ● ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) 		1-37529-039-0 01 1 9202- ● ● ● ● ● ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) 		1-37529-039-0 01 1 9202- ● ● ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) 		1-37529-041-0 02 1 9212- ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 9202- ● ● ● ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 9202- ● ● ●
45 WASHER; PL,RET TO BRKT
P60 PROP SHAFT(C2M) ID=12.5 OD=26 		9-09164-612-0 04 1 9202- ● ● ● ● ● ●
45 WASHER; PL,RET TO BRKT
P90 PROP SHAFT(C5T) ID=17 		1-09503-241-0 02 1 9212- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) 		1-37245-051-0 01 1 9202-9408 ● ● ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) 		1-37245-051-0 01 1 9202-9408 ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) 		1-37245-283-1 01 1 9409- ● ● ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) 		1-37245-283-1 01 1 9409- ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) 		1-37245-052-0 02 1 9212-9408 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) 		1-37245-271-1 02 1 9409- ● ●
49 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 9202- ● ● ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) M33 		1-09449-001-0 01 1 9202- ● ● ● ● ● ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) M33 		1-09449-001-0 01 1 9202- ● ● ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) M39 		1-09440-035-0 02 1 9212- ● ●
56 NUT; YOKE
M16 FLANGE 		1-09449-065-0 08 1 9202- ● ● ● ● ● ●
60 WASHER; PL,RET TO BRKT
P90 PROP SHAFT(C5T) ID=17 		1-09503-241-0 02 1 9212- ● ●
60 WASHER; PL,RET TO BRKT
ID=12.5 OD=26 		9-09164-612-0 04 1 9202-9211 ● ● ●
60 WASHER; PL,RET TO BRKT
P60 PROP SHAFT(C2M) ID=12.5 OD=26 		9-09164-612-0 04 1 9212- ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) M12X30 W/LK WASHER 		0-50041-230-0 04 1 9202- ● ● ● ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) M12X30 W/LK WASHER 		0-50041-230-0 04 1 9202- ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) M16X45 		1-09042-030-0 04 1 9212- ● ●
64 NUT; RET TO BRKT
P60 PROP SHAFT(C2M) M12 FLANGE 		0-91150-112-0 04 1 9202- ● ● ● ● ● ●
64 NUT; RET TO BRKT
P60 PROP SHAFT(C2M) M12 FLANGE 		0-91150-112-0 04 1 9202- ● ● ●
64 NUT; RET TO BRKT
P90 PROP SHAFT(C5T) M16 SLOTTED 		9-99116-516-0 04 1 9212- ● ●
66 WASHER
P60 PROP SHAFT(C2M) 		1-09509-001-0 01 1 9202- ● ● ● ● ● ●
66 WASHER
P60 PROP SHAFT(C2M) 		1-09509-001-0 01 1 9202- ● ● ●
69 WASHER; LK,SPLINED
P60 PROP SHAFT(C2M) ID=6.1 		9-09150-606-0 03 1 9202- ● ● ● ● ● ●
69 WASHER; LK,SPLINED
P60 PROP SHAFT(C2M) ID=6.1 		9-09150-606-0 03 1 9202- ● ● ●
70 SCREW; FLANGE,SPLINED
P60 PROP SHAFT(C2M) M6X18 		9-03460-618-0 03 1 9202- ● ● ● ● ● ●
70 SCREW; FLANGE,SPLINED
P60 PROP SHAFT(C2M) M6X18 		9-03460-618-0 03 1 9202- ● ● ●
71 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 9202- ● ● ● ● ● ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 04 1 9202- ● ● ● ● ● ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 04 1 9202- ● ● ●
74 BOLT; YOKE,TRANS
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P90 PROP SHAFT(C5T) M16X48 		1-09000-383-0 04 1 9202- ● ●
172 BRACKET; CENTER BRG
P60 PROP SHAFT(C2M) H=210 		1-37515-116-0 01 1 9202- ● ● ●
172 BRACKET; CENTER BRG
P60 PROP SHAFT(C2M) H=230 		1-37515-117-0 01 1 9202- ● ● ●
172 BRACKET; CENTER BRG
P60 PROP SHAFT(C2M) H=170 		1-37515-115-0 01 1 9202- ●
173 BOLT; BRKT
P60 PROP SHAFT(C2M) M12X30 W/LK WASHER 		0-50041-230-0 04 1 9202- ● ● ● ● ●
173 BOLT; BRKT
P60 PROP SHAFT(C2M) M12X30 W/LK WASHER 		0-50041-230-0 04 1 9202- ● ●
174 NUT; BRKT
P60 PROP SHAFT(C2M) M12 		9-99110-412-0 04 1 9211-9304 ● ● ● ●
174 NUT; BRKT
P60 PROP SHAFT(C2M) M12 		9-99110-512-0 04 1 9305- ● ● ● ●
177 NUT
P60 PROP SHAFT(C2M) M12 		9-99110-512-0 04 1 9211- ● ● ●

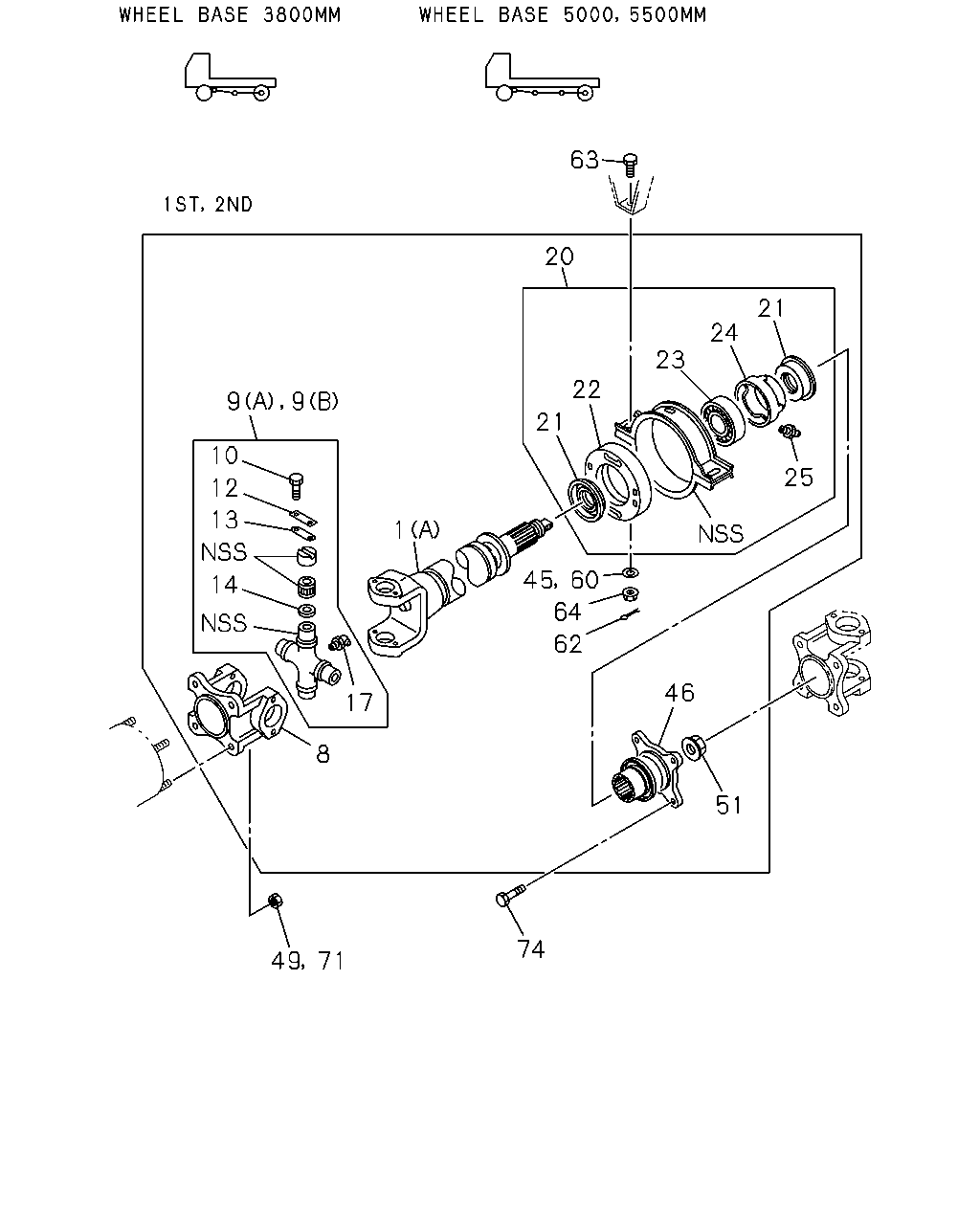

çizim 92414
63 20 21 24 23 22 9 9 21 10 25 12 13 1 45 60 14 64 62 17 46 8 51 74 49 71
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (A) 1ST L=670 		1-37117-331-0 01 1 9202- ●
1 SHAFT; PROP
MLD6E M/T(X5R) (A) 1ST L=670 		1-37117-331-0 01 1 9202- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (B) END L=1091 		1-37131-261-0 01 1 9202- ●
1 SHAFT; PROP
(B) END L=1136 		1-37123-263-0 01 1 9202- ●
1 SHAFT; PROP
FINAL GEAR 39/8 17" EATON(W5B),FINAL GEAR 37/717" EATON(W5C),FINAL GEAR 39/7 17" EATON(W5D) ,FINAL GEAR 35/6 17" EATON(W5E) P60 PROP SHAFT(C2M) (B) END L=1136 		1-37123-263-0 01 1 9202- ● ●
1 SHAFT; PROP
MLD6E M/T(X5R) (A) 1ST L=735 		1-37123-522-0 01 1 9202- ●
1 SHAFT; PROP
MLD7R M/T(X5L) (A) 1ST L=640 		1-37151-200-0 01 1 9202- ●
1 SHAFT; PROP
(B) END L=781 		1-37131-262-0 01 1 9202- ●
1 SHAFT; PROP
MLD6A M/T(X5N) (A) 1ST L=1145 		1-37123-472-0 01 1 9202- ● ●
1 SHAFT; PROP
MLD6E M/T(X5R) (A) 1ST L=1130 		1-37116-879-0 01 1 9202- ● ●
1 SHAFT; PROP
6HE1 STD ENG(46L) MLD7R M/T(X5L) (A) 1ST L=1045 		1-37116-877-0 01 1 9202- ● ●
1 SHAFT; PROP
6SA1 STD ENG(06L) MLD7R M/T(X5L) (A) 1ST L=1035 		1-37151-189-0 01 1 9202- ● ●
1 SHAFT; PROP
MLD6A M/T(X5N) (A) 1ST L=680 		1-37151-286-0 01 1 9202- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (A) 1ST OR 2ND L=800 		1-37151-199-0 01 1 9202- ●
1 SHAFT; PROP
6SA1 STD ENG(06L) MLD7R M/T(X5L) (A) 1ST OR 2ND L=800 		1-37151-199-0 01 1 9202- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (A) 2ND L=783 		1-37123-619-0 01 1 9212-9305 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (A) 2ND L=783 		1-37123-619-0 01 1 9306-9307 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (A) 2ND L=1073 		1-37151-379-0 01 1 9308- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (A) END L=1127 		1-37131-253-0 01 1 9212-9305 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (A) 2ND L=1073 		1-37151-379-0 01 1 9306-9307 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (A) 2ND L=783 		1-37123-619-0 01 1 9308- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (A) 1ST L=673 		1-37117-387-0 01 1 9306-9307 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (A) 1ST L=463 		1-37151-485-0 01 1 9308-9504 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 1ST L=463 		1-37151-485-0 01 1 9505- ●
1 SHAFT; PROP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P90 PROP SHAFT(C5T) (A) 1ST L=563 		1-37152-023-0 01 1 9505- ●
1 SHAFT; PROP
6HE1 STD ENG(46L) MLD7R M/T(X5L) (A) 1ST L=580 		1-37151-283-0 01 1 9202- ●
1 SHAFT; PROP
6SA1 STD ENG(06L) MLD7R M/T(X5L) (A) 1ST L=570 		1-37117-332-0 01 1 9202- ●
1 SHAFT; PROP
FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q) P60 PROP SHAFT(C2M) (B) END L=1156 		1-37123-356-0 01 1 9202- ● ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (B) END L=1142 		1-37123-785-0 01 1 9306- ● ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (A) 2ND L=1070 		1-37123-616-0 01 1 9202- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (A) 1ST L=463 		1-37151-485-0 01 1 9306-9307 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (A) 1ST L=673 		1-37117-387-0 01 1 9308-9504 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 1ST L=673 		1-37117-387-0 01 1 9505- ●
1 SHAFT; PROP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P90 PROP SHAFT(C5T) (A) 1ST L=778 		1-37117-724-0 01 1 9505- ●
1 SHAFT; PROP
6HE1 STD ENG(46L) MLD6A M/T(X5N) (A) 1ST L=910 		1-37117-621-0 01 1 9202- ●
1 SHAFT; PROP
6HE1 STD ENG(46L) MLD7R M/T(X5L) (A) 1ST L=810 		1-37151-288-0 01 1 9202- ●
1 SHAFT; PROP
6SA1 STD ENG(06L) MLD6A M/T(X5N) (A) 1ST L=900 		1-37117-726-0 01 1 9202- ●
1 SHAFT; PROP
(B) END L=1126 		1-37123-200-0 01 1 9202- ●
1 SHAFT; PROP
(A) 2ND L=1340 		1-37123-612-0 01 1 9202- ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37211-040-0 02 1 9202- ● ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37211-040-0 01 1 9202- ● ● ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37211-040-0 01 1 9202- ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37211-050-1 04 1 9212-9406 ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37211-050-1 01 1 9407- ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37211-050-1 02 1 9407- ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-040-0 03 1 9202- ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37300-004-0 AR 1 9202- ● ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (A) 		1-37300-082-0 AR 1 9212- ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37300-085-0 AR 1 9212- ● ●
10 BOLT; UJT
M8X20 		9-09802-702-0 AR 1 9202- ● ● ● ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		9-37356-007-0 AR 1 9202- ● ● ● ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P90 PROP SHAFT(C5T) 		9-37356-006-1 AR 1 9212- ● ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37355-011-0 AR 1 9202- ● ● ● ● ● ●
13 COVER; FRT UJT,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37355-003-1 AR 1 9212- ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) 		9-37352-023-0 AR 1 9202- ● ● ● ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) 		1-37249-130-0 AR 1 9212- ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5? 		9-09031-110-0 AR 1 9202- ● ● ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) PT1/8 ELBOW 		9-09031-210-0 AR 1 9306- ● ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37510-099-1 01 1 9202- ● ● ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37510-099-1 01 1 9202- ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37510-094-3 02 1 9212- ● ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) D=120 		1-09625-126-0 02 1 9202- ● ● ● ● ● ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) D=120 		1-09625-126-0 02 1 9202- ● ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) D=120 		1-09625-127-0 04 1 9212- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) 		1-37516-053-0 01 1 9202- ● ● ● ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) 		1-37516-053-0 01 1 9202- ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) 		1-37516-048-2 02 1 9212- ● ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) 		9-00090-292-0 01 1 9202- ● ● ● ● ● ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) 		9-00090-292-0 01 1 9202- ● ● ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) 		9-00090-256-0 02 1 9212- ● ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) 		1-37529-039-0 01 1 9202- ● ● ● ● ● ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) 		1-37529-039-0 01 1 9202- ● ● ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) 		1-37529-041-0 02 1 9212- ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 9202- ● ● ● ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 9202- ● ● ●
45 WASHER; PL,RET TO BRKT
P60 PROP SHAFT(C2M) ID=12.5 OD=26 		9-09164-612-0 04 1 9202- ● ● ● ● ● ●
45 WASHER; PL,RET TO BRKT
P90 PROP SHAFT(C5T) ID=17 		1-09503-241-0 02 1 9212- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) 		1-37245-051-0 01 1 9202-9408 ● ● ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) 		1-37245-051-0 01 1 9202-9408 ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) 		1-37245-283-1 01 1 9409- ● ● ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) 		1-37245-283-1 01 1 9409- ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) 		1-37245-052-0 02 1 9212-9408 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) 		1-37245-271-1 02 1 9409- ● ●
49 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 9202- ● ● ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) M33 		1-09449-001-0 01 1 9202- ● ● ● ● ● ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) M33 		1-09449-001-0 01 1 9202- ● ● ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) M39 		1-09440-035-0 02 1 9212- ● ●
60 WASHER; PL,RET TO BRKT
P90 PROP SHAFT(C5T) ID=17 		1-09503-241-0 02 1 9212- ● ●
60 WASHER; PL,RET TO BRKT
ID=12.5 OD=26 		9-09164-612-0 04 1 9202-9211 ● ● ●
60 WASHER; PL,RET TO BRKT
P60 PROP SHAFT(C2M) ID=12.5 OD=26 		9-09164-612-0 04 1 9212- ● ● ●
62 PIN; SPLIT,BRKT,PROP SHAFT
P90 PROP SHAFT(C5T) OD=3.7 L=25 		9-08114-025-0 04 1 9212- ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) M12X30 W/LK WASHER 		0-50041-230-0 04 1 9202- ● ● ● ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) M12X30 W/LK WASHER 		0-50041-230-0 04 1 9202- ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) M16X45 		1-09042-030-0 04 1 9212- ● ●
64 NUT; RET TO BRKT
P60 PROP SHAFT(C2M) M12 FLANGE 		0-91150-112-0 04 1 9202- ● ● ● ● ● ●
64 NUT; RET TO BRKT
P60 PROP SHAFT(C2M) M12 FLANGE 		0-91150-112-0 04 1 9202- ● ● ●
64 NUT; RET TO BRKT
P90 PROP SHAFT(C5T) M16 SLOTTED 		9-99116-516-0 04 1 9212- ● ●
71 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 9202- ● ● ● ● ● ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 04 1 9202- ● ● ● ● ● ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 04 1 9202- ● ● ●
74 BOLT; YOKE,TRANS
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P90 PROP SHAFT(C5T) M16X48 		1-09000-383-0 04 1 9202- ● ●

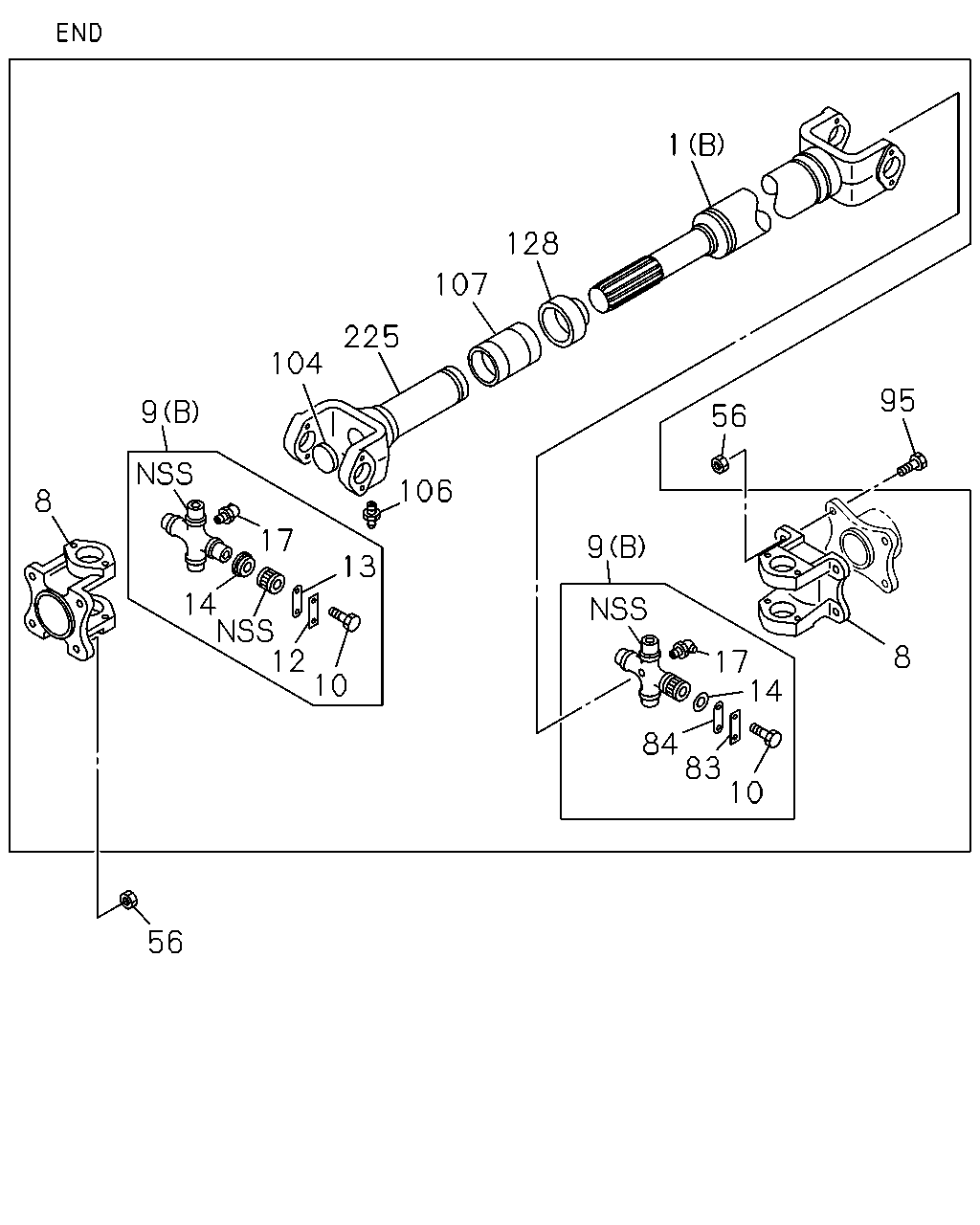

çizim 95742
1 128 107 225 104 95 9 56 106 8 17 9 13 14 12 10 8 17 14 84 83 10 56
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (A) 1ST L=670 		1-37117-331-0 01 1 9202- ●
1 SHAFT; PROP
MLD6E M/T(X5R) (A) 1ST L=670 		1-37117-331-0 01 1 9202- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (B) END L=1091 		1-37131-261-0 01 1 9202- ●
1 SHAFT; PROP
(B) END L=1136 		1-37123-263-0 01 1 9202- ●
1 SHAFT; PROP
FINAL GEAR 39/8 17" EATON(W5B),FINAL GEAR 37/717" EATON(W5C),FINAL GEAR 39/7 17" EATON(W5D) ,FINAL GEAR 35/6 17" EATON(W5E) P60 PROP SHAFT(C2M) (B) END L=1136 		1-37123-263-0 01 1 9202- ● ●
1 SHAFT; PROP
MLD6E M/T(X5R) (A) 1ST L=735 		1-37123-522-0 01 1 9202- ●
1 SHAFT; PROP
MLD7R M/T(X5L) (A) 1ST L=640 		1-37151-200-0 01 1 9202- ●
1 SHAFT; PROP
(B) END L=781 		1-37131-262-0 01 1 9202- ●
1 SHAFT; PROP
MLD6A M/T(X5N) (A) 1ST L=1145 		1-37123-472-0 01 1 9202- ● ●
1 SHAFT; PROP
MLD6E M/T(X5R) (A) 1ST L=1130 		1-37116-879-0 01 1 9202- ● ●
1 SHAFT; PROP
6HE1 STD ENG(46L) MLD7R M/T(X5L) (A) 1ST L=1045 		1-37116-877-0 01 1 9202- ● ●
1 SHAFT; PROP
6SA1 STD ENG(06L) MLD7R M/T(X5L) (A) 1ST L=1035 		1-37151-189-0 01 1 9202- ● ●
1 SHAFT; PROP
MLD6A M/T(X5N) (A) 1ST L=680 		1-37151-286-0 01 1 9202- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (A) 1ST OR 2ND L=800 		1-37151-199-0 01 1 9202- ●
1 SHAFT; PROP
6SA1 STD ENG(06L) MLD7R M/T(X5L) (A) 1ST OR 2ND L=800 		1-37151-199-0 01 1 9202- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (A) 2ND L=783 		1-37123-619-0 01 1 9212-9305 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (A) 2ND L=783 		1-37123-619-0 01 1 9306-9307 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (A) 2ND L=1073 		1-37151-379-0 01 1 9308- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (A) END L=1127 		1-37131-253-0 01 1 9212-9305 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (A) 2ND L=1073 		1-37151-379-0 01 1 9306-9307 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (A) 2ND L=783 		1-37123-619-0 01 1 9308- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (A) 1ST L=673 		1-37117-387-0 01 1 9306-9307 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (A) 1ST L=463 		1-37151-485-0 01 1 9308-9504 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 1ST L=463 		1-37151-485-0 01 1 9505- ●
1 SHAFT; PROP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P90 PROP SHAFT(C5T) (A) 1ST L=563 		1-37152-023-0 01 1 9505- ●
1 SHAFT; PROP
6HE1 STD ENG(46L) MLD7R M/T(X5L) (A) 1ST L=580 		1-37151-283-0 01 1 9202- ●
1 SHAFT; PROP
6SA1 STD ENG(06L) MLD7R M/T(X5L) (A) 1ST L=570 		1-37117-332-0 01 1 9202- ●
1 SHAFT; PROP
FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q) P60 PROP SHAFT(C2M) (B) END L=1156 		1-37123-356-0 01 1 9202- ● ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (B) END L=1142 		1-37123-785-0 01 1 9306- ● ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (A) 2ND L=1070 		1-37123-616-0 01 1 9202- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (A) 1ST L=463 		1-37151-485-0 01 1 9306-9307 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (A) 1ST L=673 		1-37117-387-0 01 1 9308-9504 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 1ST L=673 		1-37117-387-0 01 1 9505- ●
1 SHAFT; PROP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P90 PROP SHAFT(C5T) (A) 1ST L=778 		1-37117-724-0 01 1 9505- ●
1 SHAFT; PROP
6HE1 STD ENG(46L) MLD6A M/T(X5N) (A) 1ST L=910 		1-37117-621-0 01 1 9202- ●
1 SHAFT; PROP
6HE1 STD ENG(46L) MLD7R M/T(X5L) (A) 1ST L=810 		1-37151-288-0 01 1 9202- ●
1 SHAFT; PROP
6SA1 STD ENG(06L) MLD6A M/T(X5N) (A) 1ST L=900 		1-37117-726-0 01 1 9202- ●
1 SHAFT; PROP
(B) END L=1126 		1-37123-200-0 01 1 9202- ●
1 SHAFT; PROP
(A) 2ND L=1340 		1-37123-612-0 01 1 9202- ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37211-040-0 02 1 9202- ● ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37211-040-0 01 1 9202- ● ● ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37211-040-0 01 1 9202- ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37211-050-1 04 1 9212-9406 ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37211-050-1 01 1 9407- ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37211-050-1 02 1 9407- ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-040-0 03 1 9202- ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37300-004-0 AR 1 9202- ● ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (A) 		1-37300-082-0 AR 1 9212- ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37300-085-0 AR 1 9212- ● ●
10 BOLT; UJT
M8X20 		9-09802-702-0 AR 1 9202- ● ● ● ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		9-37356-007-0 AR 1 9202- ● ● ● ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P90 PROP SHAFT(C5T) 		9-37356-006-1 AR 1 9212- ● ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37355-011-0 AR 1 9202- ● ● ● ● ● ●
13 COVER; FRT UJT,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37355-003-1 AR 1 9212- ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) 		9-37352-023-0 AR 1 9202- ● ● ● ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) 		1-37249-130-0 AR 1 9212- ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5? 		9-09031-110-0 AR 1 9202- ● ● ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) PT1/8 ELBOW 		9-09031-210-0 AR 1 9306- ● ●
56 NUT; YOKE
M16 FLANGE 		1-09449-065-0 08 1 9202- ● ● ● ● ● ●
83 PLATE; LK,UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		9-37356-007-0 AR 1 9202- ● ● ● ● ● ●
83 PLATE; LK,UJT,PROP SHAFT
P90 PROP SHAFT(C5T) 		9-37356-006-1 AR 1 9212- ● ●
84 COVER; UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37355-011-0 AR 1 9202- ● ● ● ● ● ●
84 COVER; UJT,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37355-003-1 AR 1 9212- ● ●
84 COVER; UJT,PROP SHAFT 9-37352-023-0 04 1 9407- ●
95 BOLT; YOKE,FINAL
M16X48 		1-09000-383-0 04 1 9202- ● ● ● ● ● ●
104 PLUG; SLEEVE YOKE
P60 PROP SHAFT(C2M) 		9-09860-507-0 01 1 9202- ● ● ● ● ● ●
104 PLUG; SLEEVE YOKE
P90 PROP SHAFT(C5T) 		1-09600-067-0 01 1 9212- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 9202- ● ● ● ● ● ●
107 COVER; RET,SLEEVE
P90 PROP SHAFT(C5T) 		1-37249-039-1 01 1 9212- ● ●
128 SEAL; SLEEVE
P90 PROP SHAFT(C5T) 		1-37247-016-0 01 1 9212- ● ●
225 YOKE; SLEEVE,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37241-100-0 01 1 9202- ● ● ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37241-097-0 01 1 9212- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
