Sayfa 3-58 - Isuzu EPC

3-58 — FIXING PARTS; OIL PIPING (#126399) — 181 parça

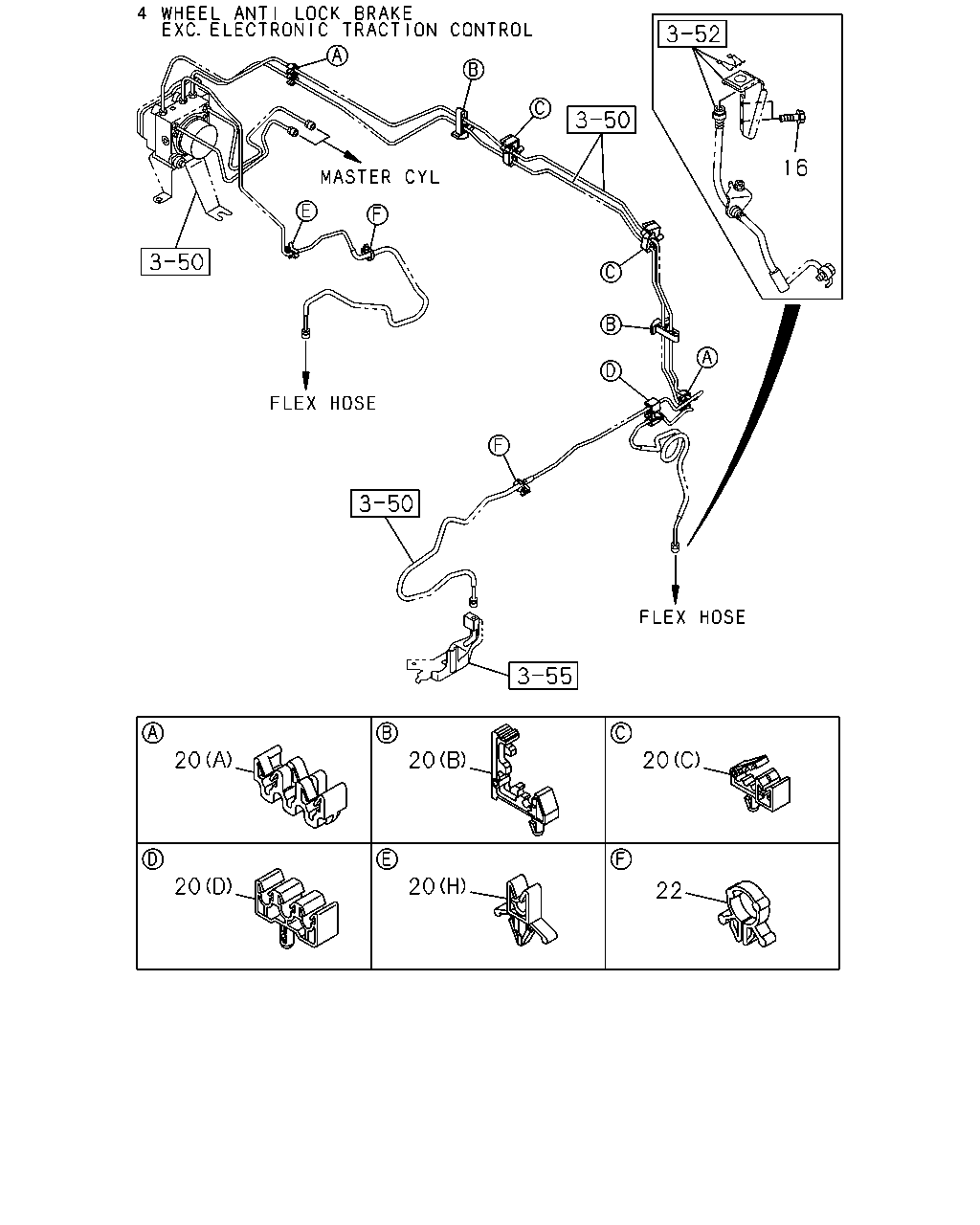

16 20 20 20 22 20 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
16	BOLT; BRKT TO FRAME HIGH RIDE SUSPENSION<7YC> M8X20 FLANGE THA	0-28650-820-0	04	1	1310-1311	●	●
16	BOLT; BRKT TO FRAME M8X20 FLANGE THA	0-28650-820-0	04	1	1310-1311			●	●
16	BOLT; BRKT TO FRAME HIGH RIDE SUSPENSION<7YC> M8X20 FLANGE THA	0-28650-820-0	04	1	1312-	●	●
16	BOLT; BRKT TO FRAME M8X20 FLANGE THA	0-28650-820-0	04	1	1312-			●	●	●
20	CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (A) ID=4.8X3 THA	8-94487-369-0	02	1	1310-	●	●	●	●
20	CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (B) ID=4.76X3 THA	8-98113-388-0	02	1	1310-	●	●	●	●
20	CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.76X3 & 6.35X1 OR 10X1 THA	8-98113-389-0	02	1	1310-	●	●	●	●
20	CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (D) ID=4.76 OR 6.8X3 THA	8-98113-396-0	01	1	1310-	●	●	●	●
20	CLIP; BRK PIPE (F) ID=10 & 6.8X2 OR 8.4X3 THA	8-97249-906-1	01	1	1310-1311	●	●	●	●		●
20	CLIP; BRK PIPE (F) ID=10 & 6.8X2 OR 8.4X3 THA	8-97249-906-1	01	1	1312-	●	●	●	●	●	●
20	CLIP; BRK PIPE (G) ID=6.8X2 THA	8-97251-124-0	04	1	1310-1311	●	●	●	●		●
20	CLIP; BRK PIPE (G) ID=6.8X2 THA	8-97251-124-0	04	1	1312-	●	●	●	●	●	●
20	CLIP; BRK PIPE (H) ID=4.76 THA	8-97300-443-0	01	1	1310-1311	●	●	●	●		●
20	CLIP; BRK PIPE (H) ID=4.76 THA	8-97300-443-0	01	1	1312-	●	●	●	●	●	●
20	CLIP; BRK PIPE (I) ID=6.8X2 & 8.4 OR 10X2 & 12 OR 14X1 THA	8-98113-394-0	02	1	1310-1311	●	●	●	●		●
20	CLIP; BRK PIPE (I) ID=6.8X2 & 8.4 OR 10X2 & 12 OR 14X1 THA	8-98113-394-0	02	1	1312-	●	●	●	●	●	●
20	CLIP; BRK PIPE HIGH RIDE SUSPENSION<7YC> (E) ID=4.76X3 THA	8-97216-721-1	03	1	1310-1311	●	●
20	CLIP; BRK PIPE (E) ID=4.76X3 THA	8-97216-721-1	03	1	1310-1311			●	●
20	CLIP; BRK PIPE HIGH RIDE SUSPENSION<7YC> (E) ID=4.76X3 THA	8-97216-721-1	03	1	1312-	●	●
20	CLIP; BRK PIPE (E) ID=4.76X3 THA	8-97216-721-1	03	1	1312-			●	●	●
20	CLIP; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) ID=4.8X3 THA	8-94487-369-0	01	1	1310-1311	●	●	●	●		●
20	CLIP; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) ID=4.8X3 THA	8-94487-369-0	01	1	1312-	●	●	●	●	●	●
20	CLIP; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (K) ID=4.76X2 & 6.35X1 THA	8-98113-390-0	01	1	1310-1311	●	●	●	●		●
20	CLIP; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (K) ID=4.76X2 & 6.35X1 THA	8-98113-390-0	01	1	1312-	●	●	●	●	●	●
20	CLIP; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (L) ID=4.76X3 & 6.35 OR 10X1 THA	8-98113-391-0	02	1	1310-1311	●	●	●	●		●
20	CLIP; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (L) ID=4.76X3 & 6.35 OR 10X1 THA	8-98113-391-0	02	1	1312-	●	●	●	●	●	●
20	CLIP; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (M) ID=4.76X2 THA	8-98113-395-0	01	1	1310-1311	●	●	●	●		●
20	CLIP; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (M) ID=4.76X2 THA	8-98113-395-0	01	1	1312-	●	●	●	●	●	●
20	CLIP; BRK PIPE EXC. HIGH RIDE SUSPENSION<7YC> (E) ID=4.76X3 THA	8-97216-721-1	02	1	1310-	●	●				●
20	CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (N) ID=6.8X2 THA	8-97251-122-0	02	1	1310-		●		●
20	CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> EXC. HIGH RIDE SUSPENSION<7YC> (J) ID=8.4 & 6.8X2 THA	8-97251-127-0	01	1	1310-		●
22	CLIP; PIPE TO FRAME ID=9 THA	5-09707-027-0	02	1	1310-1311	●	●	●	●		●
22	CLIP; PIPE TO FRAME ID=9 THA	5-09707-027-0	02	1	1312-	●	●	●	●	●	●

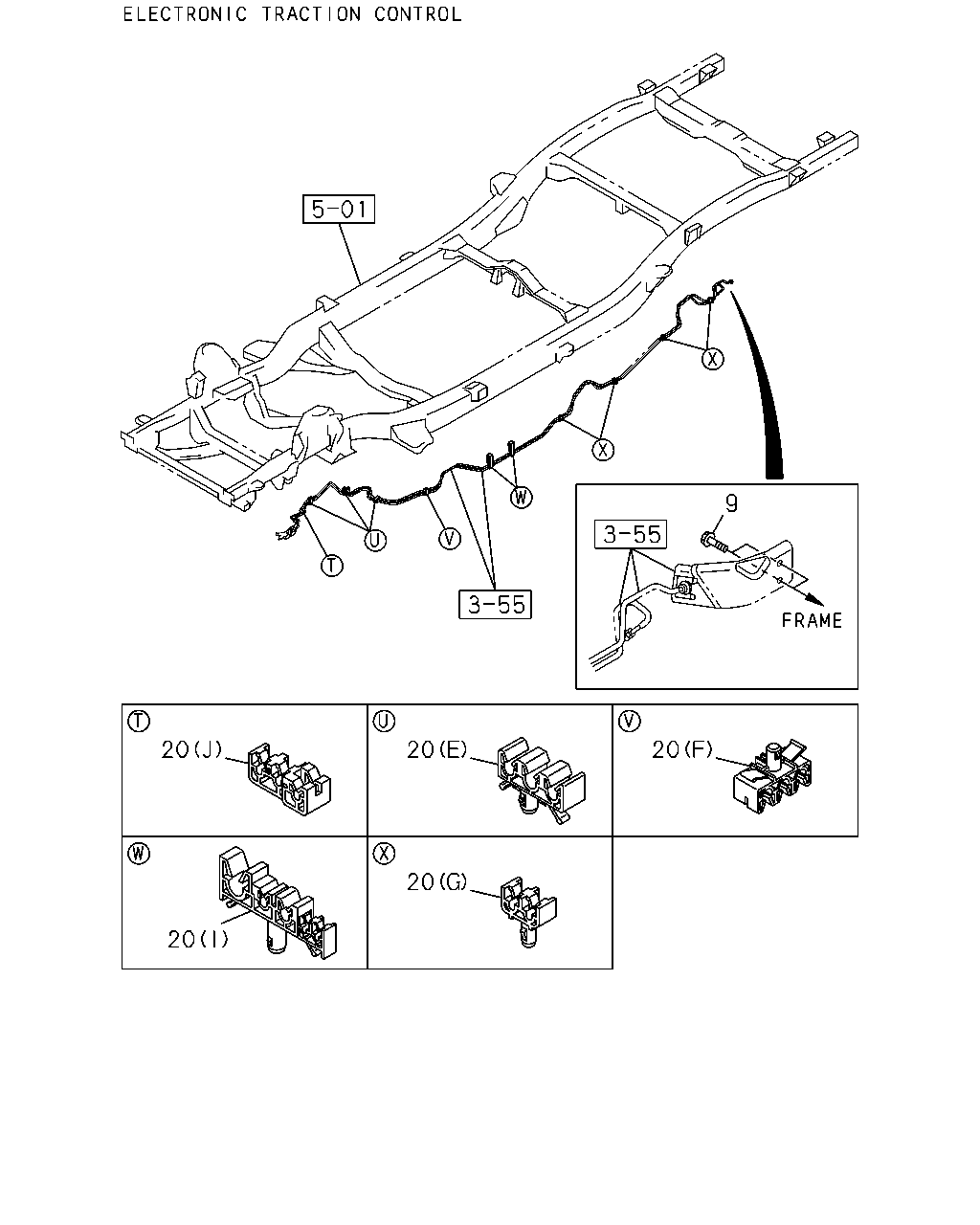

9 20 20 20 20 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
9	BOLT; BRKT ELECTRONIC TRACTION CONTROL<NW9> M8X25 FLANGE THA	0-28650-825-0	02	1	1310-		●		●
20	CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (A) ID=4.8X3 THA	8-94487-369-0	02	1	1310-	●	●	●	●
20	CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (B) ID=4.76X3 THA	8-98113-388-0	02	1	1310-	●	●	●	●
20	CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.76X3 & 6.35X1 OR 10X1 THA	8-98113-389-0	02	1	1310-	●	●	●	●
20	CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (D) ID=4.76 OR 6.8X3 THA	8-98113-396-0	01	1	1310-	●	●	●	●
20	CLIP; BRK PIPE (F) ID=10 & 6.8X2 OR 8.4X3 THA	8-97249-906-1	01	1	1310-1311	●	●	●	●		●
20	CLIP; BRK PIPE (F) ID=10 & 6.8X2 OR 8.4X3 THA	8-97249-906-1	01	1	1312-	●	●	●	●	●	●
20	CLIP; BRK PIPE (G) ID=6.8X2 THA	8-97251-124-0	04	1	1310-1311	●	●	●	●		●
20	CLIP; BRK PIPE (G) ID=6.8X2 THA	8-97251-124-0	04	1	1312-	●	●	●	●	●	●
20	CLIP; BRK PIPE (H) ID=4.76 THA	8-97300-443-0	01	1	1310-1311	●	●	●	●		●
20	CLIP; BRK PIPE (H) ID=4.76 THA	8-97300-443-0	01	1	1312-	●	●	●	●	●	●
20	CLIP; BRK PIPE (I) ID=6.8X2 & 8.4 OR 10X2 & 12 OR 14X1 THA	8-98113-394-0	02	1	1310-1311	●	●	●	●		●
20	CLIP; BRK PIPE (I) ID=6.8X2 & 8.4 OR 10X2 & 12 OR 14X1 THA	8-98113-394-0	02	1	1312-	●	●	●	●	●	●
20	CLIP; BRK PIPE HIGH RIDE SUSPENSION<7YC> (E) ID=4.76X3 THA	8-97216-721-1	03	1	1310-1311	●	●
20	CLIP; BRK PIPE (E) ID=4.76X3 THA	8-97216-721-1	03	1	1310-1311			●	●
20	CLIP; BRK PIPE HIGH RIDE SUSPENSION<7YC> (E) ID=4.76X3 THA	8-97216-721-1	03	1	1312-	●	●
20	CLIP; BRK PIPE (E) ID=4.76X3 THA	8-97216-721-1	03	1	1312-			●	●	●
20	CLIP; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) ID=4.8X3 THA	8-94487-369-0	01	1	1310-1311	●	●	●	●		●
20	CLIP; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) ID=4.8X3 THA	8-94487-369-0	01	1	1312-	●	●	●	●	●	●
20	CLIP; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (K) ID=4.76X2 & 6.35X1 THA	8-98113-390-0	01	1	1310-1311	●	●	●	●		●
20	CLIP; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (K) ID=4.76X2 & 6.35X1 THA	8-98113-390-0	01	1	1312-	●	●	●	●	●	●
20	CLIP; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (L) ID=4.76X3 & 6.35 OR 10X1 THA	8-98113-391-0	02	1	1310-1311	●	●	●	●		●
20	CLIP; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (L) ID=4.76X3 & 6.35 OR 10X1 THA	8-98113-391-0	02	1	1312-	●	●	●	●	●	●
20	CLIP; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (M) ID=4.76X2 THA	8-98113-395-0	01	1	1310-1311	●	●	●	●		●
20	CLIP; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (M) ID=4.76X2 THA	8-98113-395-0	01	1	1312-	●	●	●	●	●	●
20	CLIP; BRK PIPE EXC. HIGH RIDE SUSPENSION<7YC> (E) ID=4.76X3 THA	8-97216-721-1	02	1	1310-	●	●				●
20	CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (N) ID=6.8X2 THA	8-97251-122-0	02	1	1310-		●		●
20	CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> EXC. HIGH RIDE SUSPENSION<7YC> (J) ID=8.4 & 6.8X2 THA	8-97251-127-0	01	1	1310-		●

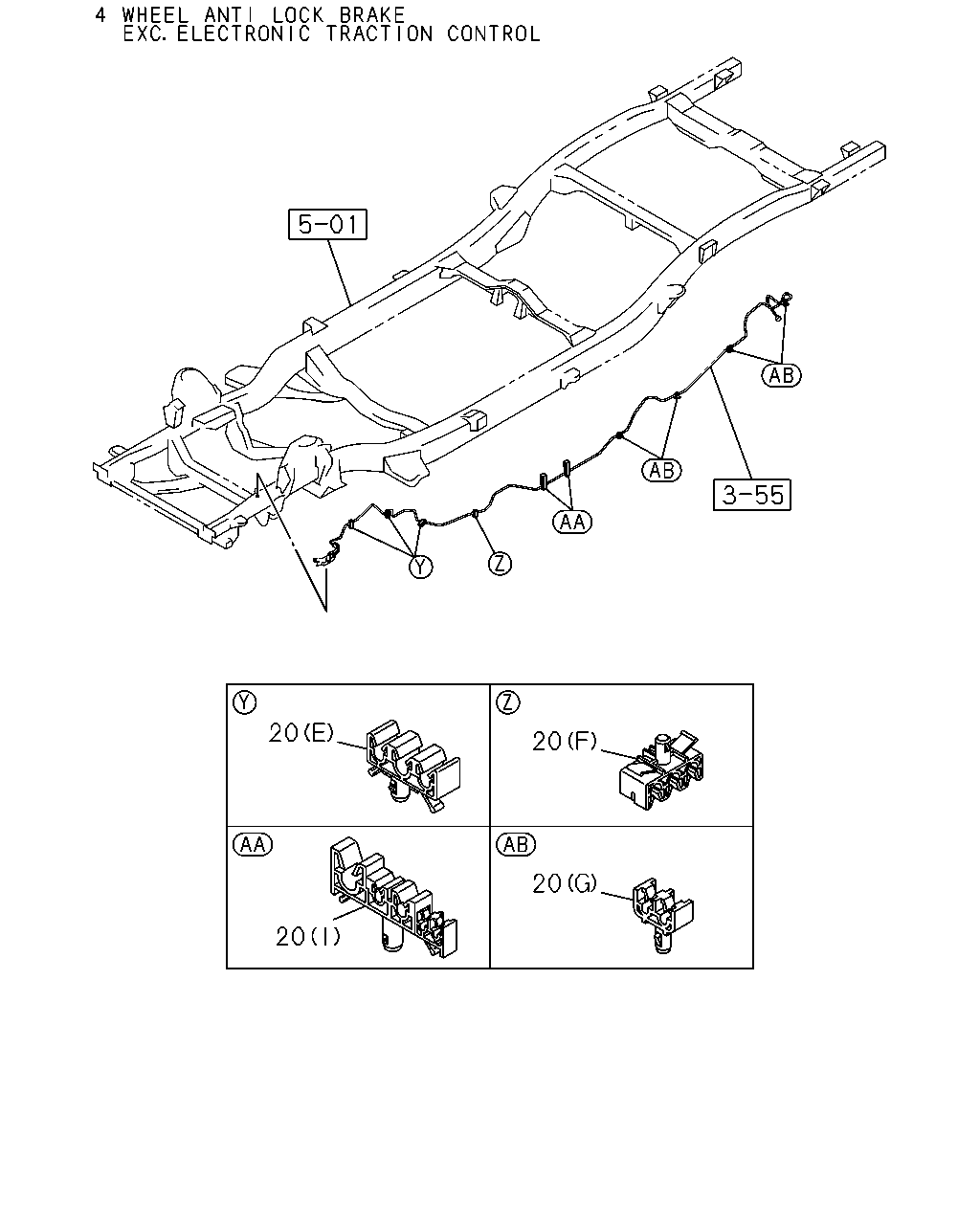

20 20 20 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
20	CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (A) ID=4.8X3 THA	8-94487-369-0	02	1	1310-	●	●	●	●
20	CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (B) ID=4.76X3 THA	8-98113-388-0	02	1	1310-	●	●	●	●
20	CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.76X3 & 6.35X1 OR 10X1 THA	8-98113-389-0	02	1	1310-	●	●	●	●
20	CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (D) ID=4.76 OR 6.8X3 THA	8-98113-396-0	01	1	1310-	●	●	●	●
20	CLIP; BRK PIPE (F) ID=10 & 6.8X2 OR 8.4X3 THA	8-97249-906-1	01	1	1310-1311	●	●	●	●		●
20	CLIP; BRK PIPE (F) ID=10 & 6.8X2 OR 8.4X3 THA	8-97249-906-1	01	1	1312-	●	●	●	●	●	●
20	CLIP; BRK PIPE (G) ID=6.8X2 THA	8-97251-124-0	04	1	1310-1311	●	●	●	●		●
20	CLIP; BRK PIPE (G) ID=6.8X2 THA	8-97251-124-0	04	1	1312-	●	●	●	●	●	●
20	CLIP; BRK PIPE (H) ID=4.76 THA	8-97300-443-0	01	1	1310-1311	●	●	●	●		●
20	CLIP; BRK PIPE (H) ID=4.76 THA	8-97300-443-0	01	1	1312-	●	●	●	●	●	●
20	CLIP; BRK PIPE (I) ID=6.8X2 & 8.4 OR 10X2 & 12 OR 14X1 THA	8-98113-394-0	02	1	1310-1311	●	●	●	●		●
20	CLIP; BRK PIPE (I) ID=6.8X2 & 8.4 OR 10X2 & 12 OR 14X1 THA	8-98113-394-0	02	1	1312-	●	●	●	●	●	●
20	CLIP; BRK PIPE HIGH RIDE SUSPENSION<7YC> (E) ID=4.76X3 THA	8-97216-721-1	03	1	1310-1311	●	●
20	CLIP; BRK PIPE (E) ID=4.76X3 THA	8-97216-721-1	03	1	1310-1311			●	●
20	CLIP; BRK PIPE HIGH RIDE SUSPENSION<7YC> (E) ID=4.76X3 THA	8-97216-721-1	03	1	1312-	●	●
20	CLIP; BRK PIPE (E) ID=4.76X3 THA	8-97216-721-1	03	1	1312-			●	●	●
20	CLIP; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) ID=4.8X3 THA	8-94487-369-0	01	1	1310-1311	●	●	●	●		●
20	CLIP; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) ID=4.8X3 THA	8-94487-369-0	01	1	1312-	●	●	●	●	●	●
20	CLIP; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (K) ID=4.76X2 & 6.35X1 THA	8-98113-390-0	01	1	1310-1311	●	●	●	●		●
20	CLIP; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (K) ID=4.76X2 & 6.35X1 THA	8-98113-390-0	01	1	1312-	●	●	●	●	●	●
20	CLIP; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (L) ID=4.76X3 & 6.35 OR 10X1 THA	8-98113-391-0	02	1	1310-1311	●	●	●	●		●
20	CLIP; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (L) ID=4.76X3 & 6.35 OR 10X1 THA	8-98113-391-0	02	1	1312-	●	●	●	●	●	●
20	CLIP; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (M) ID=4.76X2 THA	8-98113-395-0	01	1	1310-1311	●	●	●	●		●
20	CLIP; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (M) ID=4.76X2 THA	8-98113-395-0	01	1	1312-	●	●	●	●	●	●
20	CLIP; BRK PIPE EXC. HIGH RIDE SUSPENSION<7YC> (E) ID=4.76X3 THA	8-97216-721-1	02	1	1310-	●	●				●
20	CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (N) ID=6.8X2 THA	8-97251-122-0	02	1	1310-		●		●
20	CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> EXC. HIGH RIDE SUSPENSION<7YC> (J) ID=8.4 & 6.8X2 THA	8-97251-127-0	01	1	1310-		●

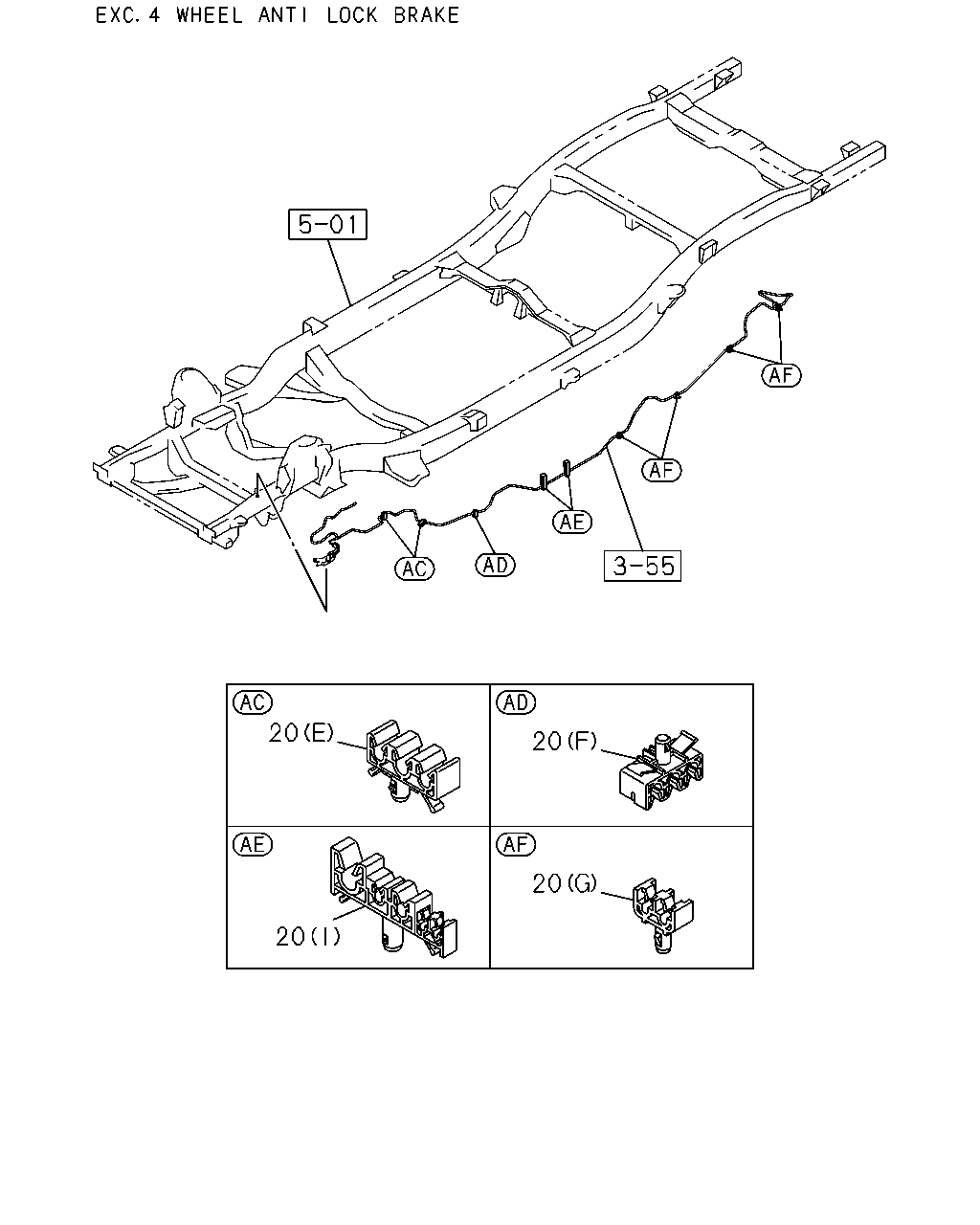

20 20 20 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
20	CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (A) ID=4.8X3 THA	8-94487-369-0	02	1	1310-	●	●	●	●
20	CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (B) ID=4.76X3 THA	8-98113-388-0	02	1	1310-	●	●	●	●
20	CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.76X3 & 6.35X1 OR 10X1 THA	8-98113-389-0	02	1	1310-	●	●	●	●
20	CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (D) ID=4.76 OR 6.8X3 THA	8-98113-396-0	01	1	1310-	●	●	●	●
20	CLIP; BRK PIPE (F) ID=10 & 6.8X2 OR 8.4X3 THA	8-97249-906-1	01	1	1310-1311	●	●	●	●		●
20	CLIP; BRK PIPE (F) ID=10 & 6.8X2 OR 8.4X3 THA	8-97249-906-1	01	1	1312-	●	●	●	●	●	●
20	CLIP; BRK PIPE (G) ID=6.8X2 THA	8-97251-124-0	04	1	1310-1311	●	●	●	●		●
20	CLIP; BRK PIPE (G) ID=6.8X2 THA	8-97251-124-0	04	1	1312-	●	●	●	●	●	●
20	CLIP; BRK PIPE (H) ID=4.76 THA	8-97300-443-0	01	1	1310-1311	●	●	●	●		●
20	CLIP; BRK PIPE (H) ID=4.76 THA	8-97300-443-0	01	1	1312-	●	●	●	●	●	●
20	CLIP; BRK PIPE (I) ID=6.8X2 & 8.4 OR 10X2 & 12 OR 14X1 THA	8-98113-394-0	02	1	1310-1311	●	●	●	●		●
20	CLIP; BRK PIPE (I) ID=6.8X2 & 8.4 OR 10X2 & 12 OR 14X1 THA	8-98113-394-0	02	1	1312-	●	●	●	●	●	●
20	CLIP; BRK PIPE HIGH RIDE SUSPENSION<7YC> (E) ID=4.76X3 THA	8-97216-721-1	03	1	1310-1311	●	●
20	CLIP; BRK PIPE (E) ID=4.76X3 THA	8-97216-721-1	03	1	1310-1311			●	●
20	CLIP; BRK PIPE HIGH RIDE SUSPENSION<7YC> (E) ID=4.76X3 THA	8-97216-721-1	03	1	1312-	●	●
20	CLIP; BRK PIPE (E) ID=4.76X3 THA	8-97216-721-1	03	1	1312-			●	●	●
20	CLIP; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) ID=4.8X3 THA	8-94487-369-0	01	1	1310-1311	●	●	●	●		●
20	CLIP; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) ID=4.8X3 THA	8-94487-369-0	01	1	1312-	●	●	●	●	●	●
20	CLIP; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (K) ID=4.76X2 & 6.35X1 THA	8-98113-390-0	01	1	1310-1311	●	●	●	●		●
20	CLIP; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (K) ID=4.76X2 & 6.35X1 THA	8-98113-390-0	01	1	1312-	●	●	●	●	●	●
20	CLIP; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (L) ID=4.76X3 & 6.35 OR 10X1 THA	8-98113-391-0	02	1	1310-1311	●	●	●	●		●
20	CLIP; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (L) ID=4.76X3 & 6.35 OR 10X1 THA	8-98113-391-0	02	1	1312-	●	●	●	●	●	●
20	CLIP; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (M) ID=4.76X2 THA	8-98113-395-0	01	1	1310-1311	●	●	●	●		●
20	CLIP; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (M) ID=4.76X2 THA	8-98113-395-0	01	1	1312-	●	●	●	●	●	●
20	CLIP; BRK PIPE EXC. HIGH RIDE SUSPENSION<7YC> (E) ID=4.76X3 THA	8-97216-721-1	02	1	1310-	●	●				●
20	CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (N) ID=6.8X2 THA	8-97251-122-0	02	1	1310-		●		●
20	CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> EXC. HIGH RIDE SUSPENSION<7YC> (J) ID=8.4 & 6.8X2 THA	8-97251-127-0	01	1	1310-		●

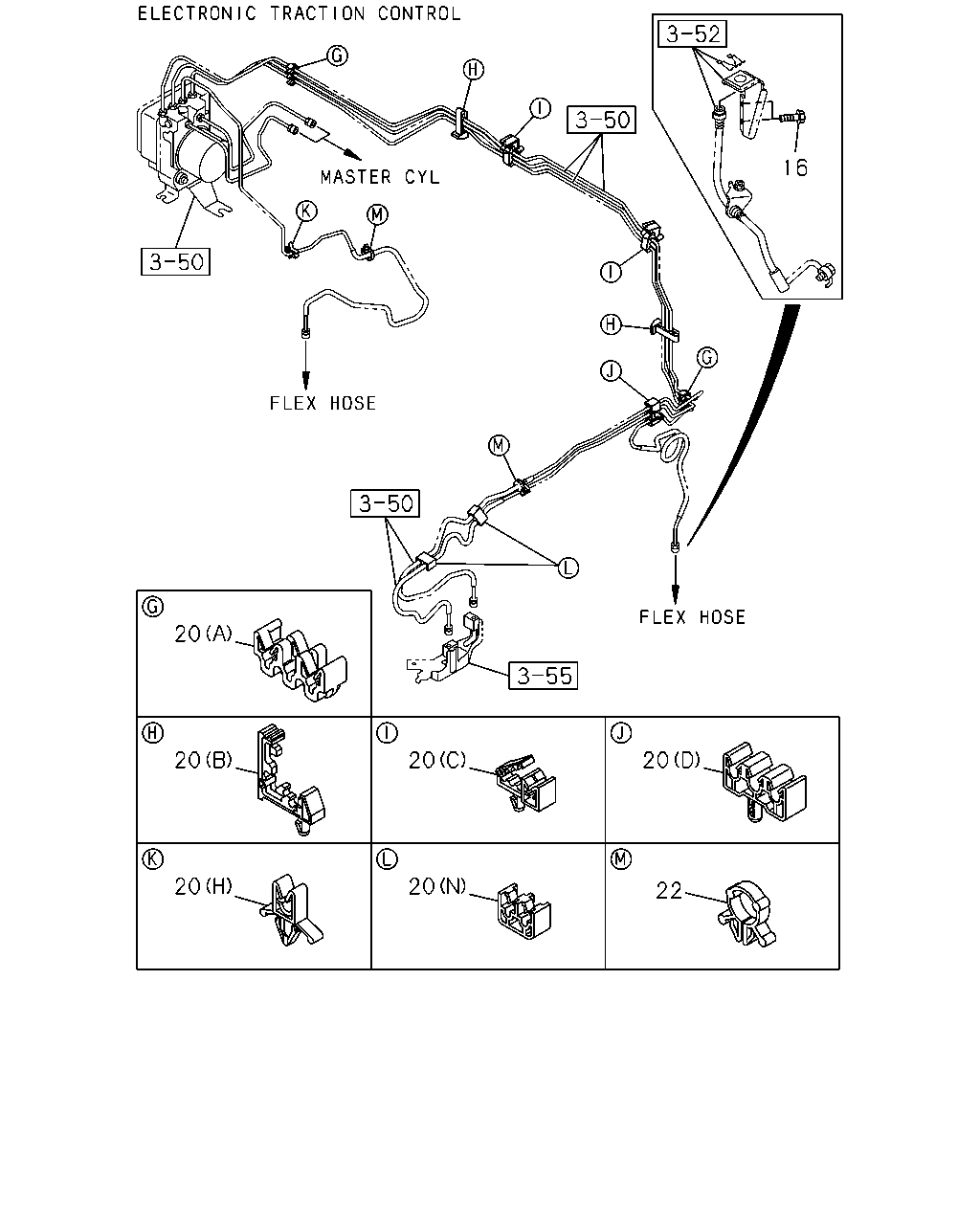

16 20 20 20 20 20 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
16	BOLT; BRKT TO FRAME HIGH RIDE SUSPENSION<7YC> M8X20 FLANGE THA	0-28650-820-0	04	1	1310-1311	●	●
16	BOLT; BRKT TO FRAME M8X20 FLANGE THA	0-28650-820-0	04	1	1310-1311			●	●
16	BOLT; BRKT TO FRAME HIGH RIDE SUSPENSION<7YC> M8X20 FLANGE THA	0-28650-820-0	04	1	1312-	●	●
16	BOLT; BRKT TO FRAME M8X20 FLANGE THA	0-28650-820-0	04	1	1312-			●	●	●
20	CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (A) ID=4.8X3 THA	8-94487-369-0	02	1	1310-	●	●	●	●
20	CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (B) ID=4.76X3 THA	8-98113-388-0	02	1	1310-	●	●	●	●
20	CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.76X3 & 6.35X1 OR 10X1 THA	8-98113-389-0	02	1	1310-	●	●	●	●
20	CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (D) ID=4.76 OR 6.8X3 THA	8-98113-396-0	01	1	1310-	●	●	●	●
20	CLIP; BRK PIPE (F) ID=10 & 6.8X2 OR 8.4X3 THA	8-97249-906-1	01	1	1310-1311	●	●	●	●		●
20	CLIP; BRK PIPE (F) ID=10 & 6.8X2 OR 8.4X3 THA	8-97249-906-1	01	1	1312-	●	●	●	●	●	●
20	CLIP; BRK PIPE (G) ID=6.8X2 THA	8-97251-124-0	04	1	1310-1311	●	●	●	●		●
20	CLIP; BRK PIPE (G) ID=6.8X2 THA	8-97251-124-0	04	1	1312-	●	●	●	●	●	●
20	CLIP; BRK PIPE (H) ID=4.76 THA	8-97300-443-0	01	1	1310-1311	●	●	●	●		●
20	CLIP; BRK PIPE (H) ID=4.76 THA	8-97300-443-0	01	1	1312-	●	●	●	●	●	●
20	CLIP; BRK PIPE (I) ID=6.8X2 & 8.4 OR 10X2 & 12 OR 14X1 THA	8-98113-394-0	02	1	1310-1311	●	●	●	●		●
20	CLIP; BRK PIPE (I) ID=6.8X2 & 8.4 OR 10X2 & 12 OR 14X1 THA	8-98113-394-0	02	1	1312-	●	●	●	●	●	●
20	CLIP; BRK PIPE HIGH RIDE SUSPENSION<7YC> (E) ID=4.76X3 THA	8-97216-721-1	03	1	1310-1311	●	●
20	CLIP; BRK PIPE (E) ID=4.76X3 THA	8-97216-721-1	03	1	1310-1311			●	●
20	CLIP; BRK PIPE HIGH RIDE SUSPENSION<7YC> (E) ID=4.76X3 THA	8-97216-721-1	03	1	1312-	●	●
20	CLIP; BRK PIPE (E) ID=4.76X3 THA	8-97216-721-1	03	1	1312-			●	●	●
20	CLIP; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) ID=4.8X3 THA	8-94487-369-0	01	1	1310-1311	●	●	●	●		●
20	CLIP; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) ID=4.8X3 THA	8-94487-369-0	01	1	1312-	●	●	●	●	●	●
20	CLIP; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (K) ID=4.76X2 & 6.35X1 THA	8-98113-390-0	01	1	1310-1311	●	●	●	●		●
20	CLIP; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (K) ID=4.76X2 & 6.35X1 THA	8-98113-390-0	01	1	1312-	●	●	●	●	●	●
20	CLIP; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (L) ID=4.76X3 & 6.35 OR 10X1 THA	8-98113-391-0	02	1	1310-1311	●	●	●	●		●
20	CLIP; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (L) ID=4.76X3 & 6.35 OR 10X1 THA	8-98113-391-0	02	1	1312-	●	●	●	●	●	●
20	CLIP; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (M) ID=4.76X2 THA	8-98113-395-0	01	1	1310-1311	●	●	●	●		●
20	CLIP; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (M) ID=4.76X2 THA	8-98113-395-0	01	1	1312-	●	●	●	●	●	●
20	CLIP; BRK PIPE EXC. HIGH RIDE SUSPENSION<7YC> (E) ID=4.76X3 THA	8-97216-721-1	02	1	1310-	●	●				●
20	CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (N) ID=6.8X2 THA	8-97251-122-0	02	1	1310-		●		●
20	CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> EXC. HIGH RIDE SUSPENSION<7YC> (J) ID=8.4 & 6.8X2 THA	8-97251-127-0	01	1	1310-		●
22	CLIP; PIPE TO FRAME ID=9 THA	5-09707-027-0	02	1	1310-1311	●	●	●	●		●
22	CLIP; PIPE TO FRAME ID=9 THA	5-09707-027-0	02	1	1312-	●	●	●	●	●	●

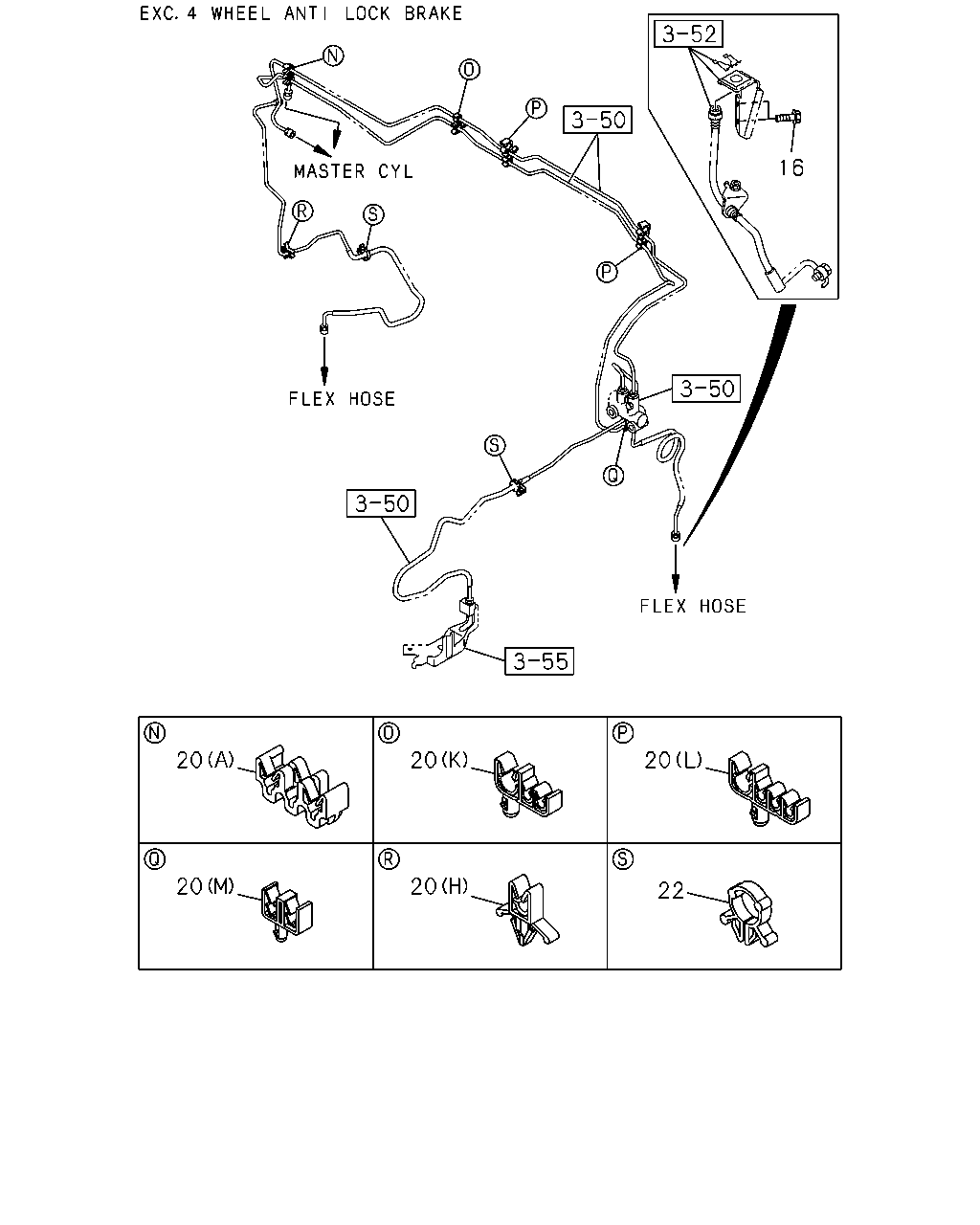

16 20 20 20 20 22 20 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
16	BOLT; BRKT TO FRAME HIGH RIDE SUSPENSION<7YC> M8X20 FLANGE THA	0-28650-820-0	04	1	1310-1311	●	●
16	BOLT; BRKT TO FRAME M8X20 FLANGE THA	0-28650-820-0	04	1	1310-1311			●	●
16	BOLT; BRKT TO FRAME HIGH RIDE SUSPENSION<7YC> M8X20 FLANGE THA	0-28650-820-0	04	1	1312-	●	●
16	BOLT; BRKT TO FRAME M8X20 FLANGE THA	0-28650-820-0	04	1	1312-			●	●	●
20	CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (A) ID=4.8X3 THA	8-94487-369-0	02	1	1310-	●	●	●	●
20	CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (B) ID=4.76X3 THA	8-98113-388-0	02	1	1310-	●	●	●	●
20	CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.76X3 & 6.35X1 OR 10X1 THA	8-98113-389-0	02	1	1310-	●	●	●	●
20	CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (D) ID=4.76 OR 6.8X3 THA	8-98113-396-0	01	1	1310-	●	●	●	●
20	CLIP; BRK PIPE (F) ID=10 & 6.8X2 OR 8.4X3 THA	8-97249-906-1	01	1	1310-1311	●	●	●	●		●
20	CLIP; BRK PIPE (F) ID=10 & 6.8X2 OR 8.4X3 THA	8-97249-906-1	01	1	1312-	●	●	●	●	●	●
20	CLIP; BRK PIPE (G) ID=6.8X2 THA	8-97251-124-0	04	1	1310-1311	●	●	●	●		●
20	CLIP; BRK PIPE (G) ID=6.8X2 THA	8-97251-124-0	04	1	1312-	●	●	●	●	●	●
20	CLIP; BRK PIPE (H) ID=4.76 THA	8-97300-443-0	01	1	1310-1311	●	●	●	●		●
20	CLIP; BRK PIPE (H) ID=4.76 THA	8-97300-443-0	01	1	1312-	●	●	●	●	●	●
20	CLIP; BRK PIPE (I) ID=6.8X2 & 8.4 OR 10X2 & 12 OR 14X1 THA	8-98113-394-0	02	1	1310-1311	●	●	●	●		●
20	CLIP; BRK PIPE (I) ID=6.8X2 & 8.4 OR 10X2 & 12 OR 14X1 THA	8-98113-394-0	02	1	1312-	●	●	●	●	●	●
20	CLIP; BRK PIPE HIGH RIDE SUSPENSION<7YC> (E) ID=4.76X3 THA	8-97216-721-1	03	1	1310-1311	●	●
20	CLIP; BRK PIPE (E) ID=4.76X3 THA	8-97216-721-1	03	1	1310-1311			●	●
20	CLIP; BRK PIPE HIGH RIDE SUSPENSION<7YC> (E) ID=4.76X3 THA	8-97216-721-1	03	1	1312-	●	●
20	CLIP; BRK PIPE (E) ID=4.76X3 THA	8-97216-721-1	03	1	1312-			●	●	●
20	CLIP; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) ID=4.8X3 THA	8-94487-369-0	01	1	1310-1311	●	●	●	●		●
20	CLIP; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) ID=4.8X3 THA	8-94487-369-0	01	1	1312-	●	●	●	●	●	●
20	CLIP; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (K) ID=4.76X2 & 6.35X1 THA	8-98113-390-0	01	1	1310-1311	●	●	●	●		●
20	CLIP; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (K) ID=4.76X2 & 6.35X1 THA	8-98113-390-0	01	1	1312-	●	●	●	●	●	●
20	CLIP; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (L) ID=4.76X3 & 6.35 OR 10X1 THA	8-98113-391-0	02	1	1310-1311	●	●	●	●		●
20	CLIP; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (L) ID=4.76X3 & 6.35 OR 10X1 THA	8-98113-391-0	02	1	1312-	●	●	●	●	●	●
20	CLIP; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (M) ID=4.76X2 THA	8-98113-395-0	01	1	1310-1311	●	●	●	●		●
20	CLIP; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (M) ID=4.76X2 THA	8-98113-395-0	01	1	1312-	●	●	●	●	●	●
20	CLIP; BRK PIPE EXC. HIGH RIDE SUSPENSION<7YC> (E) ID=4.76X3 THA	8-97216-721-1	02	1	1310-	●	●				●
20	CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (N) ID=6.8X2 THA	8-97251-122-0	02	1	1310-		●		●
20	CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> EXC. HIGH RIDE SUSPENSION<7YC> (J) ID=8.4 & 6.8X2 THA	8-97251-127-0	01	1	1310-		●
22	CLIP; PIPE TO FRAME ID=9 THA	5-09707-027-0	02	1	1310-1311	●	●	●	●		●
22	CLIP; PIPE TO FRAME ID=9 THA	5-09707-027-0	02	1	1312-	●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
