◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51491 - TFR/TFS(THAILAND) ▶ 3 - Brakes, Brake System ▶ 3-52 - BRAKE PIPING; OIL,FRONT ▶
3-52 — BRAKE PIPING; OIL,FRONT (#126397) — 30 parça

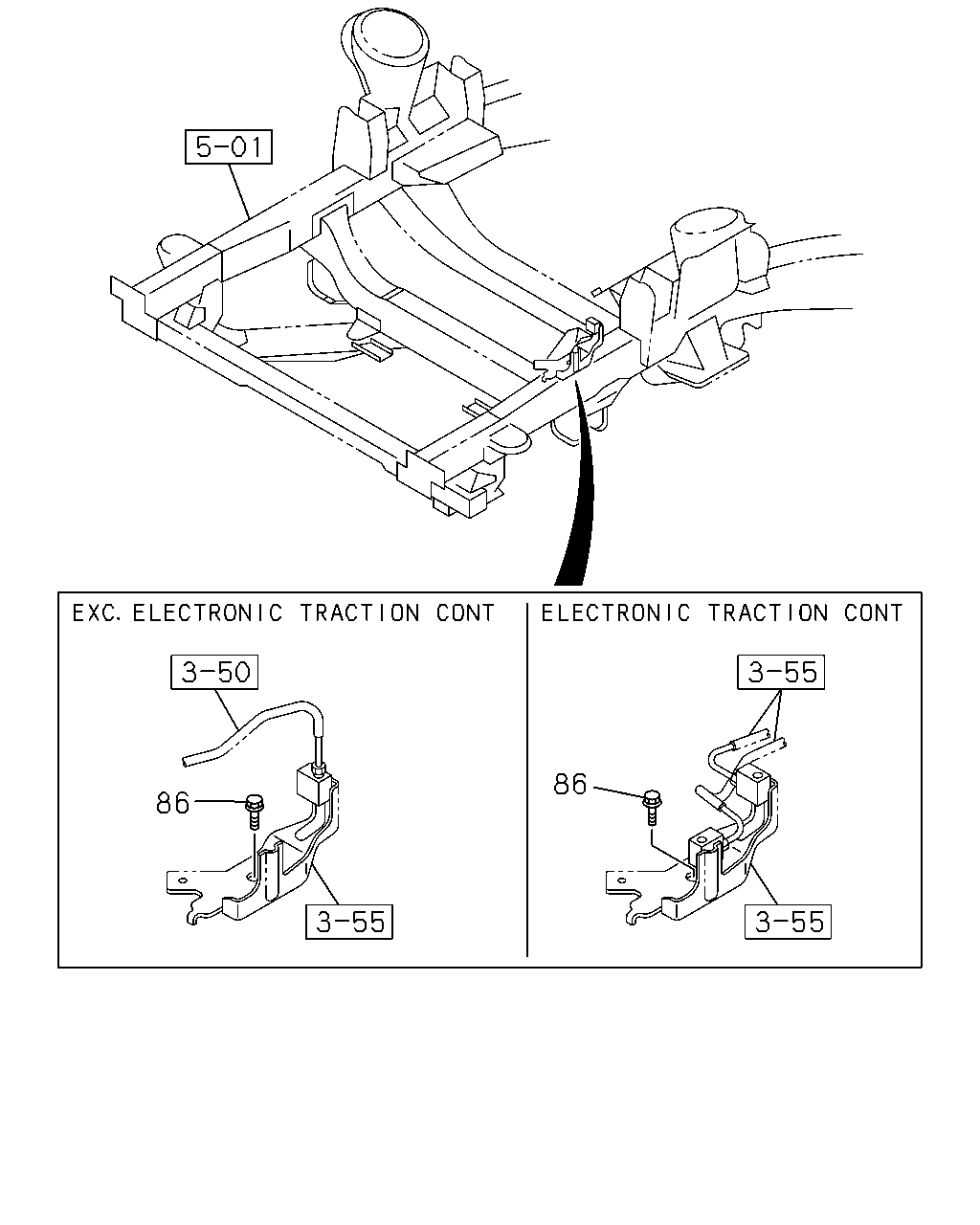

çizim 373340
86 86
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
86 BOLT; BRK PIPE
M8X20 FLANGE THA 		0-28650-820-0 01 1 1310-1311 ● ● ● ● ●
86 BOLT; BRK PIPE
M8X20 FLANGE THA 		0-28650-820-0 01 1 1312- ● ● ● ● ● ●

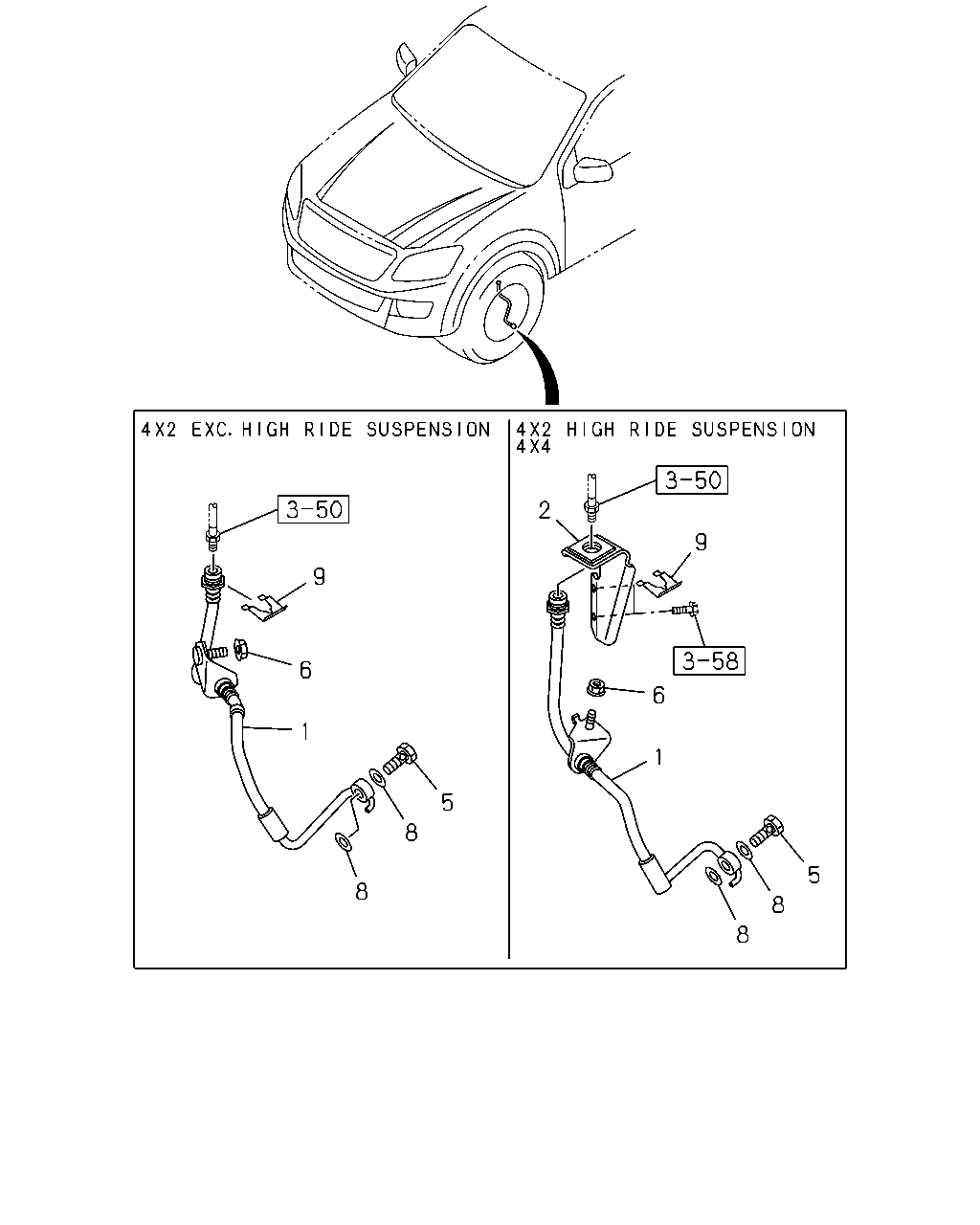

çizim 373867
9 6 1 8 8 5 2 9 6 1 8 8 5
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 HOSE; FLEX,FRT BRK
HIGH RIDE SUSPENSION<7YC> L=391 THA 		8-98067-246-4 01 1 1310-1311 ● ●
1 HOSE; FLEX,FRT BRK
L=391 THA 		8-98067-246-4 01 1 1310-1311 ● ●
1 HOSE; FLEX,FRT BRK
HIGH RIDE SUSPENSION<7YC> L=391 THA 		8-98067-246-4 01 1 1312- ● ●
1 HOSE; FLEX,FRT BRK
L=391 THA 		8-98067-246-4 01 1 1312- ● ● ●
1 HOSE; FLEX,FRT BRK
HIGH RIDE SUSPENSION<7YC> L=391 THA 		8-98067-247-4 01 1 1310-1311 ● ●
1 HOSE; FLEX,FRT BRK
L=391 THA 		8-98067-247-4 01 1 1310-1311 ● ●
1 HOSE; FLEX,FRT BRK
HIGH RIDE SUSPENSION<7YC> L=391 THA 		8-98067-247-4 01 1 1312- ● ●
1 HOSE; FLEX,FRT BRK
L=391 THA 		8-98067-247-4 01 1 1312- ● ● ●
1 HOSE; FLEX,FRT BRK
EXC. HIGH RIDE SUSPENSION<7YC> L=413 THA 		8-98067-244-1 01 1 1310- ● ●
1 HOSE; FLEX,FRT BRK
L=413 THA 		8-98067-244-1 01 1 1310- ●
1 HOSE; FLEX,FRT BRK
EXC. HIGH RIDE SUSPENSION<7YC> L=413 THA 		8-98067-248-1 01 1 1310- ● ●
1 HOSE; FLEX,FRT BRK
L=413 THA 		8-98067-248-1 01 1 1310- ●
2 BRACKET; FLEX HOSE,FRT BRK
HIGH RIDE SUSPENSION<7YC> THA 		8-97947-148-1 01 1 1310-1311 ● ●
2 BRACKET; FLEX HOSE,FRT BRK
THA 		8-97947-148-1 01 1 1310-1311 ● ●
2 BRACKET; FLEX HOSE,FRT BRK
HIGH RIDE SUSPENSION<7YC> THA 		8-97947-148-1 01 1 1312- ● ●
2 BRACKET; FLEX HOSE,FRT BRK
THA 		8-97947-148-1 01 1 1312- ● ● ●
2 BRACKET; FLEX HOSE,FRT BRK
HIGH RIDE SUSPENSION<7YC> THA 		8-97947-149-1 01 1 1310-1311 ● ●
2 BRACKET; FLEX HOSE,FRT BRK
THA 		8-97947-149-1 01 1 1310-1311 ● ●
2 BRACKET; FLEX HOSE,FRT BRK
HIGH RIDE SUSPENSION<7YC> THA 		8-97947-149-1 01 1 1312- ● ●
2 BRACKET; FLEX HOSE,FRT BRK
THA 		8-97947-149-1 01 1 1312- ● ● ●
5 BOLT; EYE,FLEX HOSE,FRT BRK
M10X22 THA 		8-98014-005-0 02 1 1310-1311 ● ● ● ● ●
5 BOLT; EYE,FLEX HOSE,FRT BRK
M10X22 THA 		8-98014-005-0 02 1 1312- ● ● ● ● ● ●
6 NUT; FLEX HOSE,FRT BRK
M8 FLANGE THA 		0-91180-108-0 02 1 1310-1311 ● ● ● ● ●
6 NUT; FLEX HOSE,FRT BRK
M8 FLANGE THA 		0-91180-108-0 02 1 1312- ● ● ● ● ● ●
8 GASKET; FLEX HOSE,FRT BRK
ID=10.2 OD=16.0 THA 		9-09571-410-0 04 1 1310-1311 ● ● ● ● ●
8 GASKET; FLEX HOSE,FRT BRK
ID=10.2 OD=16.0 THA 		9-09571-410-0 04 1 1312- ● ● ● ● ● ●
9 CLIP; FLEX HOSE,FRT BRK
IMA 		8-97360-054-0 02 1 1310-1311 ● ● ● ● ●
9 CLIP; FLEX HOSE,FRT BRK
IMA 		8-97360-054-0 02 1 1312- ● ● ● ● ● ●
