Isuzu WW
▶
PICKUP
▶
TFR
▶
51491 - TFR/TFS(THAILAND)
▶
3 - Brakes, Brake System
▶
3-31 - BRAKE MASTER VAC AND BRAKE BOOSTER
▶

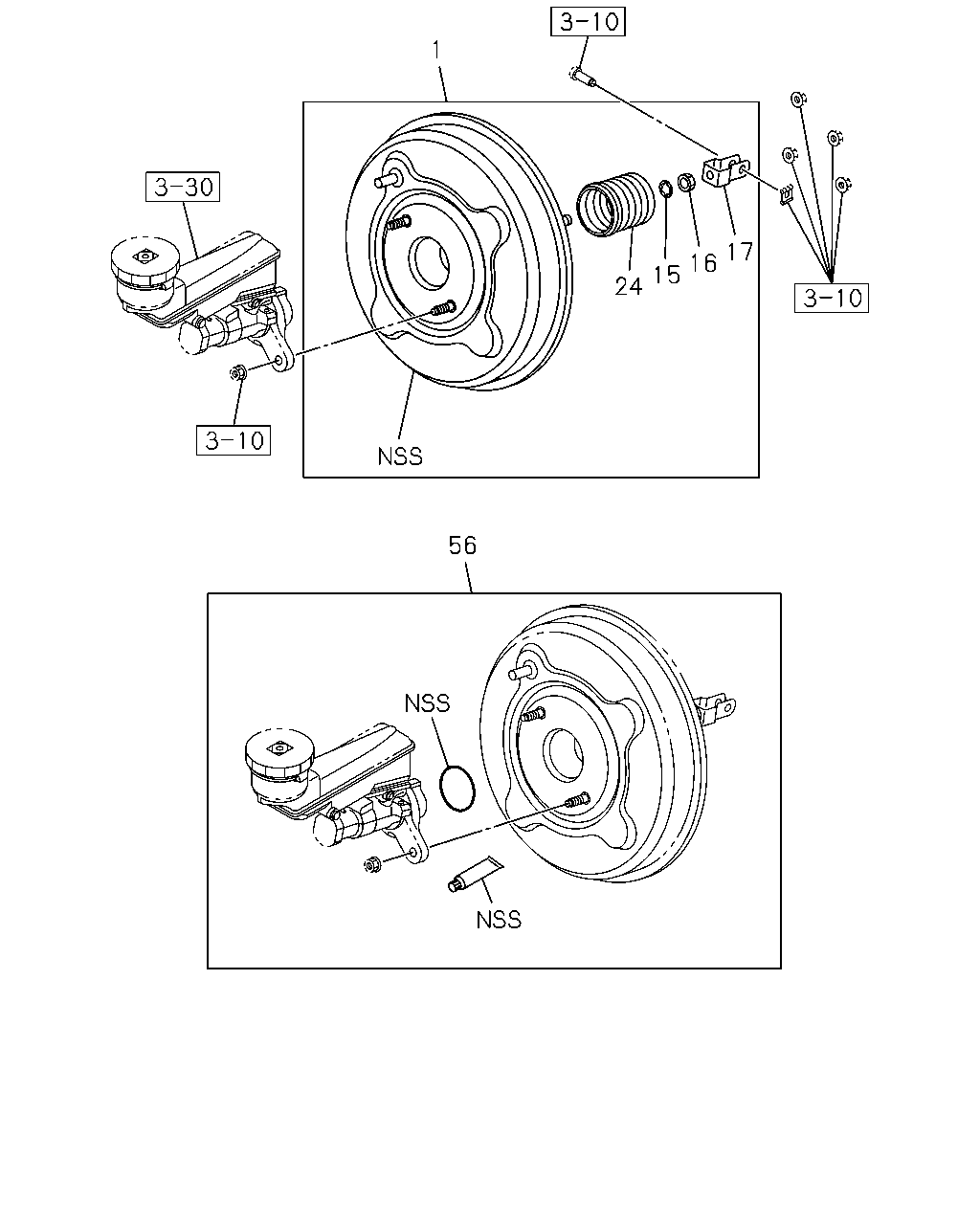

3-31 — BRAKE MASTER VAC AND BRAKE BOOSTER
(#126395) — 15 parça
Tümü
A - TFB5CF
B - TFB5WF
C - TFS5CF
D - TFS5WF
E - TFB5SF
F - TFS5SF
1
56
24
15
16
17
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
1
MASTER VAC ASM; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> THA
8-98163-232-1
01
1
1310-
●
●
●
●
1
MASTER VAC ASM; BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA
8-98163-231-1
01
1
1310-1311
●
●
●
●
1
MASTER VAC ASM; BRK
THA
8-98163-231-1
01
1
1310-1311
●
1
MASTER VAC ASM; BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA
8-98163-231-1
01
1
1312-
●
●
●
●
1
MASTER VAC ASM; BRK
THA
8-98163-231-1
01
1
1312-
●
●
15
RETAINER; GUARD,M/VAC
THA
8-98048-040-0
01
1
1310-1311
●
●
●
●
●
15
RETAINER; GUARD,M/VAC
THA
8-98048-040-0
01
1
1312-
●
●
●
●
●
●
16
NUT; VLV ROD,M/VAC
THA
8-98048-038-0
01
1
1310-1311
●
●
●
●
●
16
NUT; VLV ROD,M/VAC
THA
8-98048-038-0
01
1
1312-
●
●
●
●
●
●
17
CLEVIS; YOKE,M/VAC
THA
8-98048-039-0
01
1
1310-1311
●
●
●
●
●
17
CLEVIS; YOKE,M/VAC
THA
8-98048-039-0
01
1
1312-
●
●
●
●
●
●
24
GUARD; VLV BODY,M/VAC
THA
8-98185-212-0
01
1
1310-1311
●
●
●
●
●
24
GUARD; VLV BODY,M/VAC
THA
8-98185-212-0
01
1
1312-
●
●
●
●
●
●
56
GASKET KIT; M/CYL TO SERVO UNIT
THA
8-98185-211-0
01
1
1310-1311
●
●
●
●
●
56
GASKET KIT; M/CYL TO SERVO UNIT
THA
8-98185-211-0
01
1
1312-
●
●
●
●
●
●
