Isuzu WW
▶
PICKUP
▶
TFR
▶
51491 - TFR/TFS(THAILAND)
▶
3 - Brakes, Brake System
▶
3-30 - BRAKE MASTER CYLINDER
▶

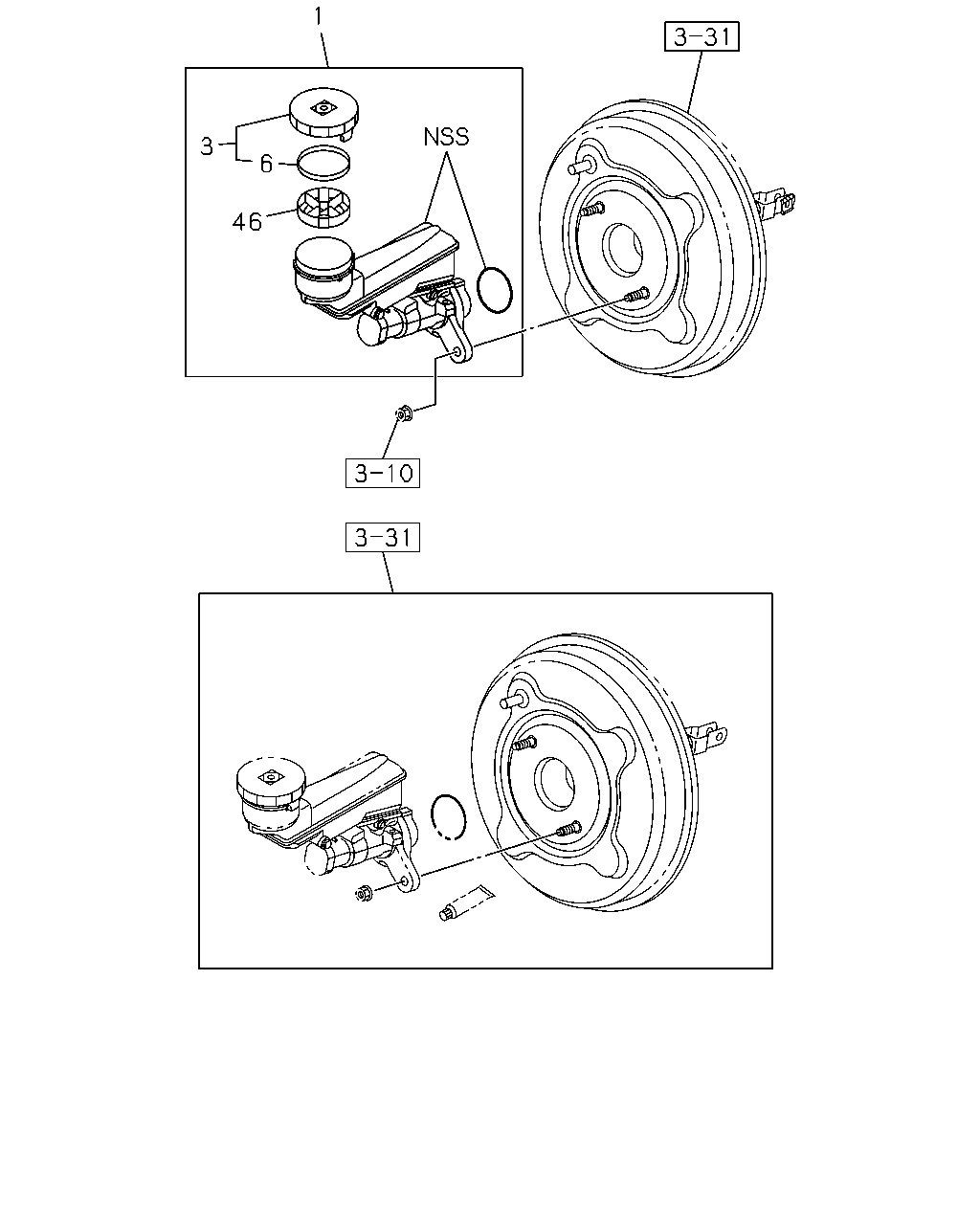

3-30 — BRAKE MASTER CYLINDER
(#126394) — 12 parça
Tümü
A - TFB5CF
B - TFB5SF
C - TFB5WF
D - TFS5WF
E - TFS5SF
F - TFS5CF
1
6
3
46
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
1
CYLINDER ASM; BRK MASTER
A/T 5 SPEED-AISIN<MA1> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA
8-98163-228-0
01
1
1310-
●
●
●
●
1
CYLINDER ASM; BRK MASTER
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA
8-98163-227-0
01
1
1310-1311
●
●
●
●
1
CYLINDER ASM; BRK MASTER
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA
8-98163-227-0
01
1
1312-
●
●
●
●
1
CYLINDER ASM; BRK MASTER
THA
8-98163-227-0
01
1
1312-
●
1
CYLINDER ASM; BRK MASTER
A/T 5 SPEED-AISIN<MA1> 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> THA
8-98163-230-0
01
1
1310-
●
●
1
CYLINDER ASM; BRK MASTER
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> THA
8-98163-229-0
01
1
1310-
●
●
3
CAP; OIL TANK
THA
8-98047-704-0
01
1
1310-1311
●
●
●
●
●
3
CAP; OIL TANK
THA
8-98047-704-0
01
1
1312-
●
●
●
●
●
●
6
DIAPHRAGM; BRK M/CYL
THA
8-98047-706-0
01
1
1310-1311
●
●
●
●
●
6
DIAPHRAGM; BRK M/CYL
THA
8-98047-706-0
01
1
1312-
●
●
●
●
●
●
46
FILTER; OIL TANK,M/CYL
THA
8-98047-702-0
01
1
1310-1311
●
●
●
●
●
46
FILTER; OIL TANK,M/CYL
THA
8-98047-702-0
01
1
1312-
●
●
●
●
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
