3-05 — REAR WHEEL BRAKE (#126391) — 136 parça

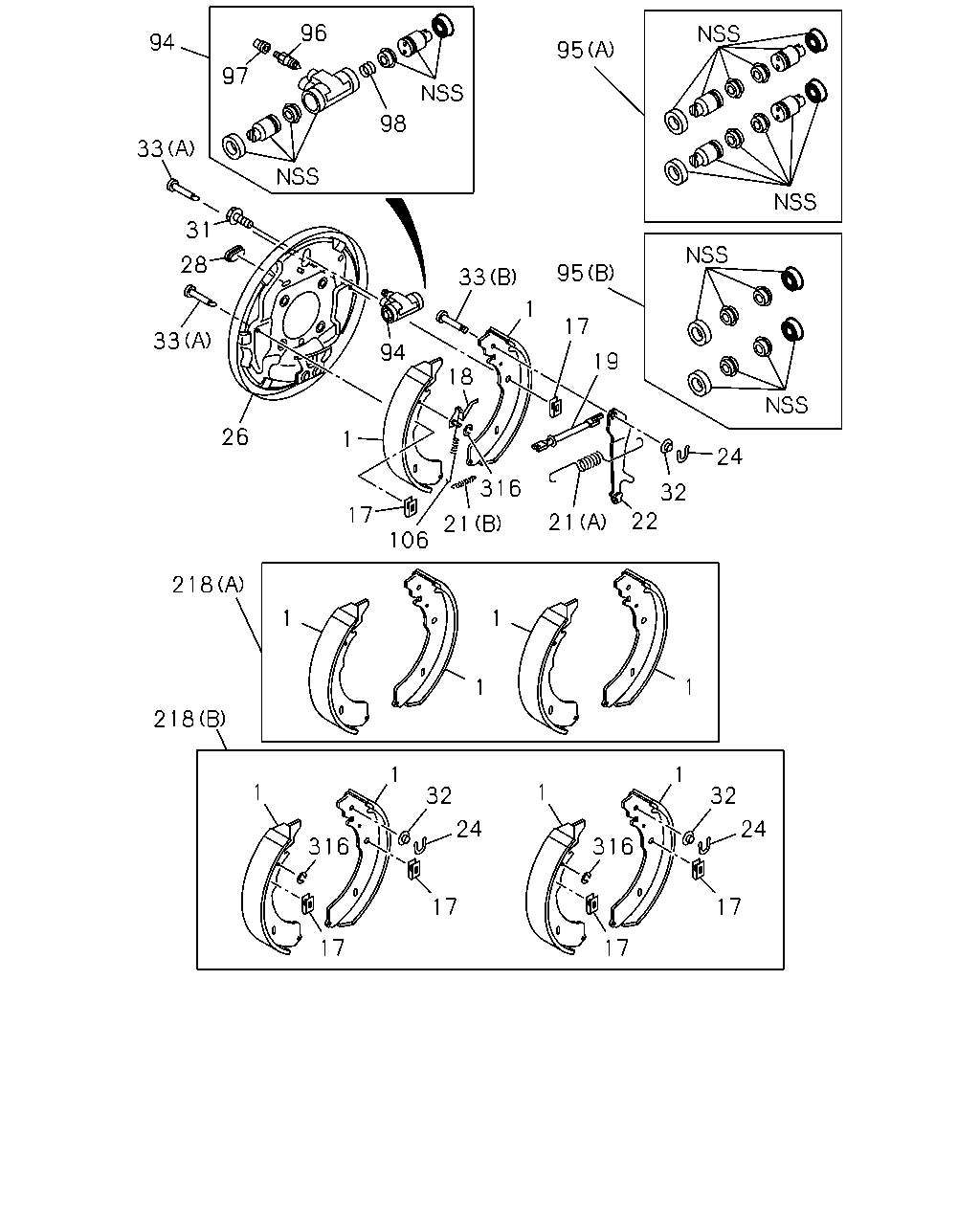

çizim 373844
95 98 96 97 94 33 31 28 33 26 17 218 218 1 1 94 33 17 95 1 19 18 316 21 106 21 22 32 24 1 1 1 1 32 24 17 17 316 1 1 316 1 32 24 17 17
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 SHOE; BRK,RR
HIGH RIDE SUSPENSION<7YC> TRAILING THA 		8-97947-734-0 02 1 1310-1311 ● ●
1 SHOE; BRK,RR
TRAILING THA 		8-97947-734-0 02 1 1310-1311 ● ●
1 SHOE; BRK,RR
HIGH RIDE SUSPENSION<7YC> TRAILING THA 		8-97947-734-0 02 1 1312- ● ●
1 SHOE; BRK,RR
TRAILING THA 		8-97947-734-0 02 1 1312- ● ● ●
1 SHOE; BRK,RR
HIGH RIDE SUSPENSION<7YC> LEADING THA 		8-97947-735-0 01 1 1310-1311 ● ●
1 SHOE; BRK,RR
LEADING THA 		8-97947-735-0 01 1 1310-1311 ● ●
1 SHOE; BRK,RR
HIGH RIDE SUSPENSION<7YC> LEADING THA 		8-97947-735-0 01 1 1312- ● ●
1 SHOE; BRK,RR
LEADING THA 		8-97947-735-0 01 1 1312- ● ● ●
1 SHOE; BRK,RR
HIGH RIDE SUSPENSION<7YC> LEADING THA 		8-97947-736-0 01 1 1310-1311 ● ●
1 SHOE; BRK,RR
LEADING THA 		8-97947-736-0 01 1 1310-1311 ● ●
1 SHOE; BRK,RR
HIGH RIDE SUSPENSION<7YC> LEADING THA 		8-97947-736-0 01 1 1312- ● ●
1 SHOE; BRK,RR
LEADING THA 		8-97947-736-0 01 1 1312- ● ● ●
1 SHOE; BRK,RR
EXC. HIGH RIDE SUSPENSION<7YC> TRAILING THA 		8-98167-405-0 02 1 1310- ● ●
1 SHOE; BRK,RR
TRAILING THA 		8-98167-405-0 02 1 1310- ●
1 SHOE; BRK,RR
EXC. HIGH RIDE SUSPENSION<7YC> LEADING THA 		8-98167-406-0 01 1 1310- ● ●
1 SHOE; BRK,RR
LEADING THA 		8-98167-406-0 01 1 1310- ●
1 SHOE; BRK,RR
EXC. HIGH RIDE SUSPENSION<7YC> LEADING THA 		8-98167-407-0 01 1 1310- ● ●
1 SHOE; BRK,RR
LEADING THA 		8-98167-407-0 01 1 1310- ●
17 SPRING; SHOE HOLD DOWN
THA 		8-98164-787-0 04 1 1310-1311 ● ● ● ● ●
17 SPRING; SHOE HOLD DOWN
THA 		8-98164-787-0 04 1 1312- ● ● ● ● ● ●
18 LEVER; AUTO ADJ
HIGH RIDE SUSPENSION<7YC> THA 		8-97947-474-0 01 1 1310-1311 ● ●
18 LEVER; AUTO ADJ
THA 		8-97947-474-0 01 1 1310-1311 ● ●
18 LEVER; AUTO ADJ
HIGH RIDE SUSPENSION<7YC> THA 		8-97947-474-0 01 1 1312- ● ●
18 LEVER; AUTO ADJ
THA 		8-97947-474-0 01 1 1312- ● ● ●
18 LEVER; AUTO ADJ
HIGH RIDE SUSPENSION<7YC> THA 		8-97947-475-0 01 1 1310-1311 ● ●
18 LEVER; AUTO ADJ
THA 		8-97947-475-0 01 1 1310-1311 ● ●
18 LEVER; AUTO ADJ
HIGH RIDE SUSPENSION<7YC> THA 		8-97947-475-0 01 1 1312- ● ●
18 LEVER; AUTO ADJ
THA 		8-97947-475-0 01 1 1312- ● ● ●
18 LEVER; AUTO ADJ
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98007-996-0 01 1 1310- ● ●
18 LEVER; AUTO ADJ
THA 		8-98007-996-0 01 1 1310- ●
18 LEVER; AUTO ADJ
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98007-997-0 01 1 1310- ● ●
18 LEVER; AUTO ADJ
THA 		8-98007-997-0 01 1 1310- ●
19 ADJUSTER; RR BRK
HIGH RIDE SUSPENSION<7YC> THA 		8-97947-402-0 01 1 1310-1311 ● ●
19 ADJUSTER; RR BRK
THA 		8-97947-402-0 01 1 1310-1311 ● ●
19 ADJUSTER; RR BRK
HIGH RIDE SUSPENSION<7YC> THA 		8-97947-402-0 01 1 1312-1312 ● ●
19 ADJUSTER; RR BRK
THA 		8-97947-402-0 01 1 1312-1312 ● ● ●
19 ADJUSTER; RR BRK
HIGH RIDE SUSPENSION<7YC> THA 		8-97947-402-0 01 1 1401- ● ●
19 ADJUSTER; RR BRK
THA 		8-97947-402-0 01 1 1401- ● ● ●
19 ADJUSTER; RR BRK
HIGH RIDE SUSPENSION<7YC> THA 		8-97947-403-0 01 1 1310-1311 ● ●
19 ADJUSTER; RR BRK
THA 		8-97947-403-0 01 1 1310-1311 ● ●
19 ADJUSTER; RR BRK
HIGH RIDE SUSPENSION<7YC> THA 		8-97947-403-0 01 1 1312-1312 ● ●
19 ADJUSTER; RR BRK
THA 		8-97947-403-0 01 1 1312-1312 ● ● ●
19 ADJUSTER; RR BRK
HIGH RIDE SUSPENSION<7YC> THA 		8-97947-403-0 01 1 1401- ● ●
19 ADJUSTER; RR BRK
THA 		8-97947-403-0 01 1 1401- ● ● ●
19 ADJUSTER; RR BRK
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-97947-400-0 01 1 1310- ● ●
19 ADJUSTER; RR BRK
THA 		8-97947-400-0 01 1 1310- ●
19 ADJUSTER; RR BRK
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-97947-401-0 01 1 1310- ● ●
19 ADJUSTER; RR BRK
THA 		8-97947-401-0 01 1 1310- ●
21 SPRING; SHOE,RET
HIGH RIDE SUSPENSION<7YC> (A) THA 		8-97947-413-0 02 1 1310-1311 ● ●
21 SPRING; SHOE,RET
(A) THA 		8-97947-413-0 02 1 1310-1311 ● ●
21 SPRING; SHOE,RET
HIGH RIDE SUSPENSION<7YC> (A) THA 		8-97947-413-0 02 1 1312- ● ●
21 SPRING; SHOE,RET
(A) THA 		8-97947-413-0 02 1 1312- ● ● ●
21 SPRING; SHOE,RET
EXC. HIGH RIDE SUSPENSION<7YC> (A) THA 		8-97947-412-0 02 1 1310- ● ●
21 SPRING; SHOE,RET
(A) THA 		8-97947-412-0 02 1 1310- ●
21 SPRING; SHOE,RET
(B) THA 		8-98008-002-0 02 1 1310-1311 ● ● ● ● ●
21 SPRING; SHOE,RET
(B) THA 		8-98008-002-0 02 1 1312- ● ● ● ● ● ●
22 LEVER; PARKING BRK,WHEEL BRK
HIGH RIDE SUSPENSION<7YC> THA 		8-97947-392-0 01 1 1310-1311 ● ●
22 LEVER; PARKING BRK,WHEEL BRK
THA 		8-97947-392-0 01 1 1310-1311 ● ●
22 LEVER; PARKING BRK,WHEEL BRK
HIGH RIDE SUSPENSION<7YC> THA 		8-97947-392-0 01 1 1312- ● ●
22 LEVER; PARKING BRK,WHEEL BRK
THA 		8-97947-392-0 01 1 1312- ● ● ●
22 LEVER; PARKING BRK,WHEEL BRK
HIGH RIDE SUSPENSION<7YC> THA 		8-97947-393-0 01 1 1310-1311 ● ●
22 LEVER; PARKING BRK,WHEEL BRK
THA 		8-97947-393-0 01 1 1310-1311 ● ●
22 LEVER; PARKING BRK,WHEEL BRK
HIGH RIDE SUSPENSION<7YC> THA 		8-97947-393-0 01 1 1312- ● ●
22 LEVER; PARKING BRK,WHEEL BRK
THA 		8-97947-393-0 01 1 1312- ● ● ●
22 LEVER; PARKING BRK,WHEEL BRK
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-97947-390-0 01 1 1310- ● ●
22 LEVER; PARKING BRK,WHEEL BRK
THA 		8-97947-390-0 01 1 1310- ●
22 LEVER; PARKING BRK,WHEEL BRK
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-97947-391-0 01 1 1310- ● ●
22 LEVER; PARKING BRK,WHEEL BRK
THA 		8-97947-391-0 01 1 1310- ●
24 RETAINER; PARKING BRK
THA 		8-97301-493-0 02 1 1310-1311 ● ● ● ● ●
24 RETAINER; PARKING BRK
THA 		8-97301-493-0 02 1 1312- ● ● ● ● ● ●
26 PLATE; BACK,RR BRK
HIGH RIDE SUSPENSION<7YC> THA 		8-97947-406-2 01 1 1310-1311 ● ●
26 PLATE; BACK,RR BRK
THA 		8-97947-406-2 01 1 1310-1311 ● ●
26 PLATE; BACK,RR BRK
HIGH RIDE SUSPENSION<7YC> THA 		8-97947-406-2 01 1 1312- ● ●
26 PLATE; BACK,RR BRK
THA 		8-97947-406-2 01 1 1312- ● ● ●
26 PLATE; BACK,RR BRK
HIGH RIDE SUSPENSION<7YC> THA 		8-97947-407-2 01 1 1310-1311 ● ●
26 PLATE; BACK,RR BRK
THA 		8-97947-407-2 01 1 1310-1311 ● ●
26 PLATE; BACK,RR BRK
HIGH RIDE SUSPENSION<7YC> THA 		8-97947-407-2 01 1 1312- ● ●
26 PLATE; BACK,RR BRK
THA 		8-97947-407-2 01 1 1312- ● ● ●
26 PLATE; BACK,RR BRK
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-97947-404-2 01 1 1310- ● ●
26 PLATE; BACK,RR BRK
THA 		8-97947-404-2 01 1 1310- ●
26 PLATE; BACK,RR BRK
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-97947-405-2 01 1 1310- ● ●
26 PLATE; BACK,RR BRK
THA 		8-97947-405-2 01 1 1310- ●
28 COVER; ADJ HOLE
THA 		8-97301-477-0 04 1 1310-1311 ● ● ● ● ●
28 COVER; ADJ HOLE
THA 		8-97301-477-0 04 1 1312- ● ● ● ● ● ●
31 BOLT; RR WHEEL CYL
M6X14 THA 		8-97947-469-0 04 1 1310-1311 ● ● ● ● ●
31 BOLT; RR WHEEL CYL
M6X14 THA 		8-97947-469-0 04 1 1312- ● ● ● ● ● ●
32 WASHER; LK
THA 		8-97947-470-0 02 1 1310-1311 ● ● ● ● ●
32 WASHER; LK
THA 		8-97947-470-0 02 1 1312- ● ● ● ● ● ●
33 PIN; SHOE HOLD DOWN
(A) THA 		8-97301-509-0 04 1 1310-1311 ● ● ● ● ●
33 PIN; SHOE HOLD DOWN
(A) THA 		8-97301-509-0 04 1 1312- ● ● ● ● ● ●
33 PIN; SHOE HOLD DOWN
(B) THA 		8-98008-034-0 02 1 1310-1311 ● ● ● ● ●
33 PIN; SHOE HOLD DOWN
(B) THA 		8-98008-034-0 02 1 1312- ● ● ● ● ● ●
94 CYLINDER; WHEEL,RR BRK
HIGH RIDE SUSPENSION<7YC> THA 		8-97319-300-0 02 1 1310-1311 ● ●
94 CYLINDER; WHEEL,RR BRK
THA 		8-97319-300-0 02 1 1310-1311 ● ●
94 CYLINDER; WHEEL,RR BRK
HIGH RIDE SUSPENSION<7YC> THA 		8-97319-300-0 02 1 1312- ● ●
94 CYLINDER; WHEEL,RR BRK
THA 		8-97319-300-0 02 1 1312- ● ● ●
94 CYLINDER; WHEEL,RR BRK
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-97301-478-0 02 1 1310- ● ●
94 CYLINDER; WHEEL,RR BRK
THA 		8-97301-478-0 02 1 1310- ●
95 CUP SET; RR WHEEL CYL
HIGH RIDE SUSPENSION<7YC> (A) W/PISTON THA 		5-87832-068-0 01 1 1310-1311 ● ●
95 CUP SET; RR WHEEL CYL
(A) W/PISTON THA 		5-87832-068-0 01 1 1310-1311 ● ●
95 CUP SET; RR WHEEL CYL
HIGH RIDE SUSPENSION<7YC> (A) W/PISTON THA 		5-87832-068-0 01 1 1312- ● ●
95 CUP SET; RR WHEEL CYL
(A) W/PISTON THA 		5-87832-068-0 01 1 1312- ● ● ●
95 CUP SET; RR WHEEL CYL
HIGH RIDE SUSPENSION<7YC> (B) WO/PISTON THA 		5-87832-247-0 01 1 1310-1311 ● ●
95 CUP SET; RR WHEEL CYL
(B) WO/PISTON THA 		5-87832-247-0 01 1 1310-1311 ● ●
95 CUP SET; RR WHEEL CYL
HIGH RIDE SUSPENSION<7YC> (B) WO/PISTON THA 		5-87832-247-0 01 1 1312- ● ●
95 CUP SET; RR WHEEL CYL
(B) WO/PISTON THA 		5-87832-247-0 01 1 1312- ● ● ●
95 CUP SET; RR WHEEL CYL
EXC. HIGH RIDE SUSPENSION<7YC> (A) W/PISTON THA 		5-87832-026-0 01 1 1310- ● ●
95 CUP SET; RR WHEEL CYL
(A) W/PISTON THA 		5-87832-026-0 01 1 1310- ●
95 CUP SET; RR WHEEL CYL
EXC. HIGH RIDE SUSPENSION<7YC> (B) WO/PISTON THA 		5-87832-246-0 01 1 1310- ● ●
95 CUP SET; RR WHEEL CYL
(B) WO/PISTON THA 		5-87832-246-0 01 1 1310- ●
96 SCREW; BLEEDER,RR BRK
THA 		8-97301-484-0 02 1 1310-1311 ● ● ● ● ●
96 SCREW; BLEEDER,RR BRK
THA 		8-97301-484-0 02 1 1312- ● ● ● ● ● ●
97 CAP; BLEEDER,RR WHEEL CYL
THA 		8-97301-485-0 02 1 1310-1311 ● ● ● ● ●
97 CAP; BLEEDER,RR WHEEL CYL
THA 		8-97301-485-0 02 1 1312- ● ● ● ● ● ●
98 SPRING; RR WHEEL CYL
THA 		8-97301-483-0 02 1 1310-1311 ● ● ● ● ●
98 SPRING; RR WHEEL CYL
THA 		8-97301-483-0 02 1 1312- ● ● ● ● ● ●
106 SPRING; ADJ LEVER
HIGH RIDE SUSPENSION<7YC> THA 		8-98008-006-0 01 1 1310-1311 ● ●
106 SPRING; ADJ LEVER
THA 		8-98008-006-0 01 1 1310-1311 ● ●
106 SPRING; ADJ LEVER
HIGH RIDE SUSPENSION<7YC> THA 		8-98008-006-0 01 1 1312- ● ●
106 SPRING; ADJ LEVER
THA 		8-98008-006-0 01 1 1312- ● ● ●
106 SPRING; ADJ LEVER
HIGH RIDE SUSPENSION<7YC> THA 		8-98008-007-0 01 1 1310-1311 ● ●
106 SPRING; ADJ LEVER
THA 		8-98008-007-0 01 1 1310-1311 ● ●
106 SPRING; ADJ LEVER
HIGH RIDE SUSPENSION<7YC> THA 		8-98008-007-0 01 1 1312- ● ●
106 SPRING; ADJ LEVER
THA 		8-98008-007-0 01 1 1312- ● ● ●
106 SPRING; ADJ LEVER
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98008-003-0 01 1 1310- ● ●
106 SPRING; ADJ LEVER
THA 		8-98008-003-0 01 1 1310- ●
106 SPRING; ADJ LEVER
EXC. HIGH RIDE SUSPENSION<7YC> THA 		8-98008-004-0 01 1 1310- ● ●
106 SPRING; ADJ LEVER
THA 		8-98008-004-0 01 1 1310- ●
218 SHOE KIT; BRK,RR
HIGH RIDE SUSPENSION<7YC> (B) THA 		8-97947-802-0 01 1 1310-1311 ● ●
218 SHOE KIT; BRK,RR
(B) THA 		8-97947-802-0 01 1 1310-1311 ● ●
218 SHOE KIT; BRK,RR
HIGH RIDE SUSPENSION<7YC> (B) THA 		8-97947-802-0 01 1 1312- ● ●
218 SHOE KIT; BRK,RR
(B) THA 		8-97947-802-0 01 1 1312- ● ● ●
218 SHOE KIT; BRK,RR
EXC. HIGH RIDE SUSPENSION<7YC> (A) THA 		5-87832-255-0 01 1 1310- ● ●
218 SHOE KIT; BRK,RR
(A) THA 		5-87832-255-0 01 1 1310- ●
316 RING; SNAP
THA 		8-97330-511-0 02 1 1310-1311 ● ● ● ● ●
316 RING; SNAP
THA 		8-97330-511-0 02 1 1312- ● ● ● ● ● ●
