2-65 — MANUAL TRANSFER GEAR; INPUT AND IDLE (#126388) — 33 parça

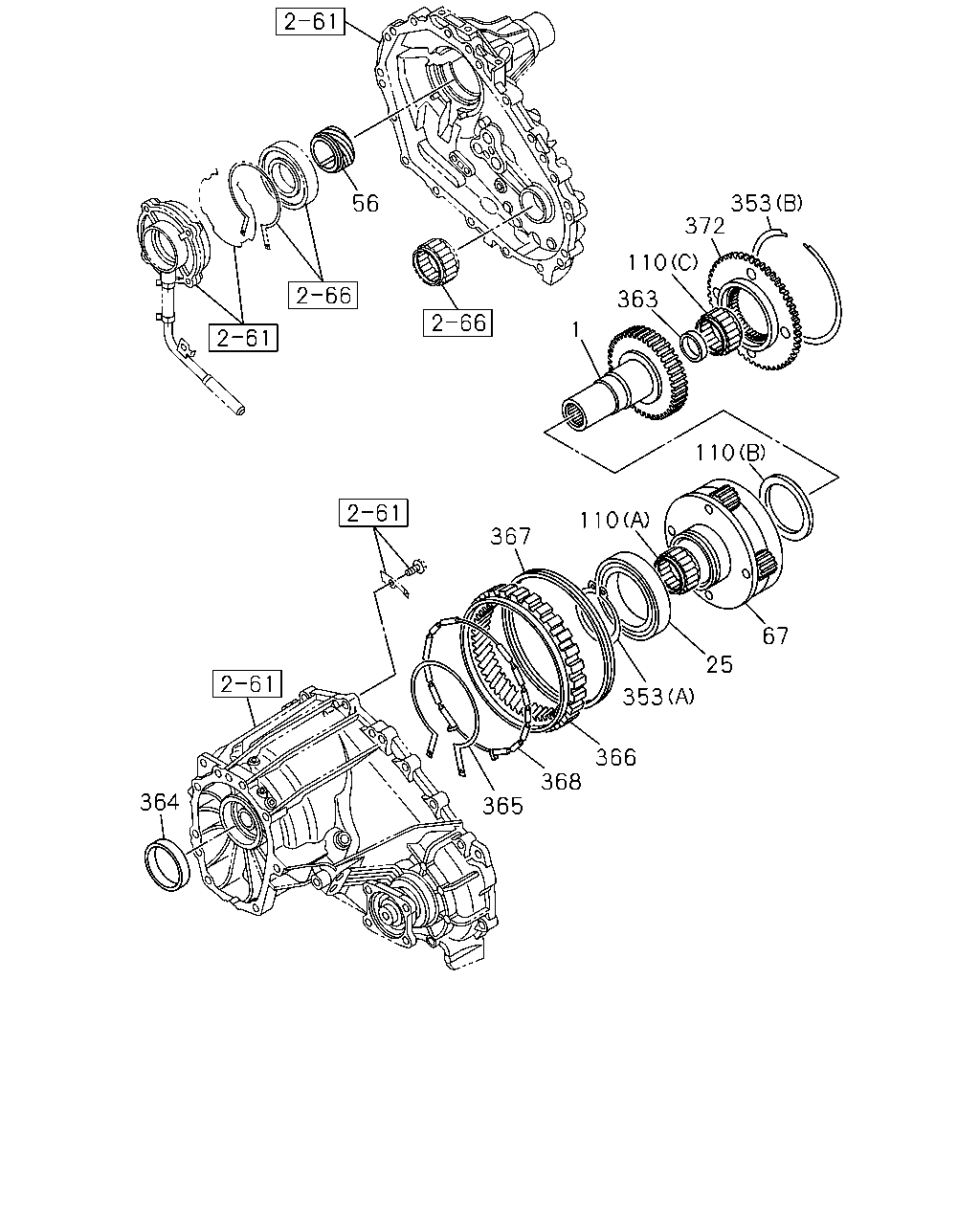

çizim 373984
56 353 372 110 363 1 110 110 367 67 25 353 366 368 365 364
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHAFT; GEAR,INPUT
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> IMA 		8-97373-467-0 01 1 1310-1311 ● ●
1 SHAFT; GEAR,INPUT
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> IMA 		8-97373-467-0 01 1 1312- ● ● ●
1 SHAFT; GEAR,INPUT
A/T 5 SPEED-AISIN<MA1> IMA 		8-98118-924-1 01 1 1310- ●
25 BEARING; BALL,INPUT SHAFT
NSK IMA 		8-97234-735-0 01 1 1310-1311 ● ●
25 BEARING; BALL,INPUT SHAFT
NSK IMA 		8-97234-735-0 01 1 1312- ● ● ●
56 GEAR; SPD DRIVE,TRANSFER
Z=6 IMA 		8-97238-581-0 01 1 1310-1311 ● ●
56 GEAR; SPD DRIVE,TRANSFER
Z=6 IMA 		8-97238-581-0 01 1 1312- ● ● ●
67 CARRIER; TRANSFER
IMA 		8-98158-116-0 01 1 1310-1311 ● ●
67 CARRIER; TRANSFER
IMA 		8-98158-116-0 01 1 1312- ● ● ●
110 BEARING; NEEDLE
(A) IMA 		8-97234-739-0 01 1 1310-1311 ● ●
110 BEARING; NEEDLE
(A) IMA 		8-97234-739-0 01 1 1312- ● ● ●
110 BEARING; NEEDLE
(B) IMA 		8-97234-741-0 01 1 1310-1311 ● ●
110 BEARING; NEEDLE
(B) IMA 		8-97234-741-0 01 1 1312- ● ● ●
110 BEARING; NEEDLE
(C) IMA 		8-97234-743-0 01 1 1310-1311 ● ●
110 BEARING; NEEDLE
(C) IMA 		8-97234-743-0 01 1 1312- ● ● ●
353 RING; SNAP,CARRIER
(A) ID=65.5 IMA 		8-97305-403-0 01 1 1310-1311 ● ●
353 RING; SNAP,CARRIER
(A) ID=65.5 IMA 		8-97305-403-0 01 1 1312- ● ● ●
353 RING; SNAP,CARRIER
(B) ID=137 IMA 		8-97305-406-0 01 1 1310-1311 ● ●
353 RING; SNAP,CARRIER
(B) ID=137 IMA 		8-97305-406-0 01 1 1312- ● ● ●
363 CAP; SEAL,INPUT SHAFT
IMA 		8-97238-725-0 01 1 1310-1311 ● ●
363 CAP; SEAL,INPUT SHAFT
IMA 		8-97238-725-0 01 1 1312- ● ● ●
364 SEAL; OIL,COVER,INPUT
NOK IMA 		8-97238-999-0 01 1 1310-1311 ● ●
364 SEAL; OIL,COVER,INPUT
NOK IMA 		8-97238-999-0 01 1 1312- ● ● ●
365 RING; RETAINING,OUTER INPUT
ID=97 IMA 		8-97305-010-1 01 1 1310-1311 ● ●
365 RING; RETAINING,OUTER INPUT
ID=97 IMA 		8-97305-010-1 01 1 1312- ● ● ●
366 GEAR; INTERNAL,HIGH-LOW
Z=27 IMA 		8-97231-831-2 01 1 1310-1311 ● ●
366 GEAR; INTERNAL,HIGH-LOW
Z=27 IMA 		8-97231-831-2 01 1 1312- ● ● ●
367 RING; RETAINING,SPIRAL TYPE
ID=162 OD=176 IMA 		8-97247-459-0 01 1 1310-1311 ● ●
367 RING; RETAINING,SPIRAL TYPE
ID=162 OD=176 IMA 		8-97247-459-0 01 1 1312- ● ● ●
368 RING; DAMPER,TRANSFER
ID=168.4 OD=178 IMA 		8-97320-914-0 01 1 1310-1311 ● ●
368 RING; DAMPER,TRANSFER
ID=168.4 OD=178 IMA 		8-97320-914-0 01 1 1312- ● ● ●
372 TEETH; DOG,PLANETARY
Z=56 IMA 		8-97358-244-0 01 1 1310-1311 ● ●
372 TEETH; DOG,PLANETARY
Z=56 IMA 		8-97358-244-0 01 1 1312- ● ● ●
