2-61 — TRANSFER CASE AND GEAR SHIFTER (#126386) — 42 parça

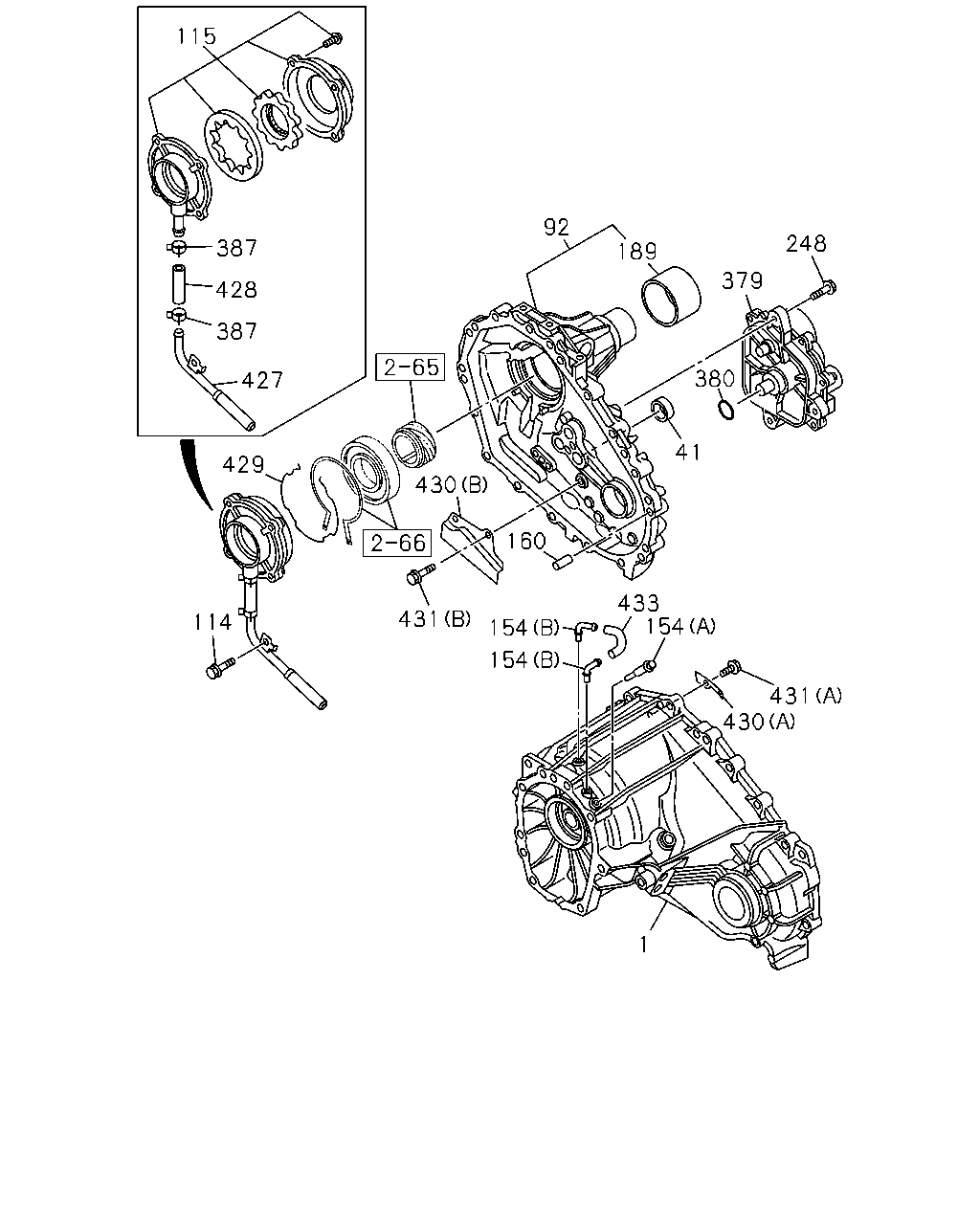

çizim 373962
115 387 428 387 427 429 114 430 431 154 154 433 154 431 430 41 380 379 248 189 92 160 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 CASE; TRANSFER
IMA 		8-98177-505-0 01 1 1310-1311 ● ●
1 CASE; TRANSFER
IMA 		8-98177-505-0 01 1 1312- ● ● ●
41 SEAL; OIL,SHIFT ROD
ALSO INCLUDED IN REPAIR KIT(T/F). IMA 		8-97238-998-0 01 1 1310-1311 ● ●
41 SEAL; OIL,SHIFT ROD
ALSO INCLUDED IN REPAIR KIT(T/F). IMA 		8-97238-998-0 01 1 1312- ● ● ●
92 COVER; RR,TRANSFER
IMA 		8-98118-921-0 01 1 1310-1311 ● ●
92 COVER; RR,TRANSFER
IMA 		8-98118-921-0 01 1 1312- ● ● ●
114 BOLT; OIL PUMP,TRANSFER
M8X20 FLANGE THA 		0-28650-820-0 01 1 1310-1311 ● ●
114 BOLT; OIL PUMP,TRANSFER
M8X20 FLANGE THA 		0-28650-820-0 01 1 1312- ● ● ●
115 PUMP ASM; OIL,TRANSFER
IMA 		8-98029-157-0 01 1 1310-1311 ● ●
115 PUMP ASM; OIL,TRANSFER
IMA 		8-98029-157-0 01 1 1312- ● ● ●
154 PIPE; BREATHER
(B) IMA 		8-97358-318-0 02 1 1310-1311 ● ●
154 PIPE; BREATHER
(B) IMA 		8-97358-318-0 02 1 1312- ● ● ●
154 PIPE; BREATHER
(A) IMA 		8-97358-319-0 01 1 1310-1311 ● ●
154 PIPE; BREATHER
(A) IMA 		8-97358-319-0 01 1 1312- ● ● ●
160 PIN; KNOCK,SHIFT CASE
OD=10 L=20 IMA 		8-97135-423-0 02 1 1310-1311 ● ●
160 PIN; KNOCK,SHIFT CASE
OD=10 L=20 IMA 		8-97135-423-0 02 1 1312- ● ● ●
189 COVER; DUST,OIL SEAL
IMA 		8-98173-748-0 01 1 1310-1311 ● ●
189 COVER; DUST,OIL SEAL
IMA 		8-98173-748-0 01 1 1312- ● ● ●
248 BOLT
M8X30 FLANGE THA 		0-28650-830-0 03 1 1310-1311 ● ●
248 BOLT
M8X30 FLANGE THA 		0-28650-830-0 03 1 1312- ● ● ●
379 ACTUATOR; TRANSFER,2-4 SHIFT
IMA 		8-98196-415-0 01 1 1310-1311 ● ●
379 ACTUATOR; TRANSFER,2-4 SHIFT
IMA 		8-98196-415-0 01 1 1312- ● ● ●
380 GASKET; ACTUATOR
ID=29.7 OD=36.7 IMA 		8-97318-475-0 01 1 1310-1311 ● ●
380 GASKET; ACTUATOR
ID=29.7 OD=36.7 IMA 		8-97318-475-0 01 1 1312- ● ● ●
387 CLAMP; HOSE
ID=16 THA 		8-97329-628-0 02 1 1310-1311 ● ●
387 CLAMP; HOSE
ID=16 THA 		8-97329-628-0 02 1 1312- ● ● ●
427 SCREEN; OIL PUMP
IMA 		8-98063-358-0 01 1 1310-1311 ● ●
427 SCREEN; OIL PUMP
IMA 		8-98063-358-0 01 1 1312- ● ● ●
428 HOSE; OIL PUMP
L=50 IMA 		8-98064-220-0 01 1 1310-1311 ● ●
428 HOSE; OIL PUMP
L=50 IMA 		8-98064-220-0 01 1 1312- ● ● ●
429 RING; SNAP,OIL PUMP
IMA 		8-97240-666-0 01 1 1310-1311 ● ●
429 RING; SNAP,OIL PUMP
IMA 		8-97240-666-0 01 1 1312- ● ● ●
430 PLATE; BAFFLE
(A) IMA 		8-97239-130-0 01 1 1310-1311 ● ●
430 PLATE; BAFFLE
(A) IMA 		8-97239-130-0 01 1 1312- ● ● ●
430 PLATE; BAFFLE
(B) IMA 		8-98063-360-0 01 1 1310-1311 ● ●
430 PLATE; BAFFLE
(B) IMA 		8-98063-360-0 01 1 1312- ● ● ●
431 BOLT; BAFFLE PLATE
(A) M6X16 FLANGE THA 		0-28650-616-0 01 1 1310-1311 ● ●
431 BOLT; BAFFLE PLATE
(A) M6X16 FLANGE THA 		0-28650-616-0 01 1 1312- ● ● ●
431 BOLT; BAFFLE PLATE
(B) M8X20 FLANGE THA 		0-28650-820-0 02 1 1310-1311 ● ●
431 BOLT; BAFFLE PLATE
(B) M8X20 FLANGE THA 		0-28650-820-0 02 1 1312- ● ● ●
433 HOSE; AIR,TRANSFER
IMA 		8-97236-080-0 01 1 1310-1311 ● ●
433 HOSE; AIR,TRANSFER
IMA 		8-97236-080-0 01 1 1312- ● ● ●
