2-48 — AUTO TRANS MULTIPLE-DISC CLUTCH (#126380) — 76 parça

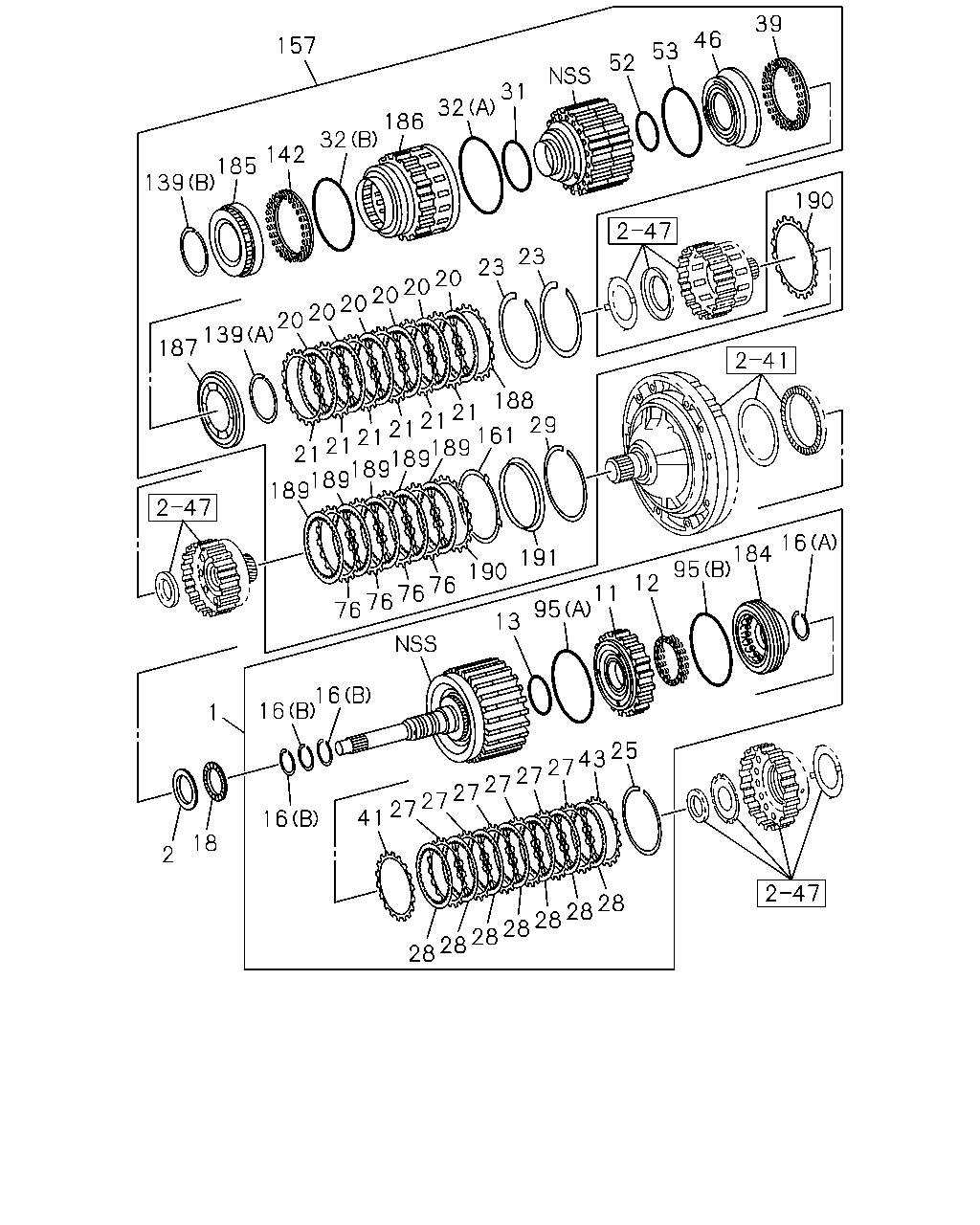

çizim 374774
157 139 185 142 32 186 32 31 52 53 46 39 187 139 20 20 20 20 20 20 23 23 190 21 21 21 21 21 21 188 189 189 189 189 189 161 29 76 191 190 76 76 76 1 2 16 16 184 95 12 11 95 13 16 18 28 28 28 28 28 28 28 25 43 27 27 27 27 27 27 41 16
BalonParca AdiParca NoAdetTipApplied Date
1 HUB ASM; CLU,INPUT SHAFT,A/T
4JK1-TCX ENG<LR0> THA 		8-98189-762-0 01 1 1310-
1 HUB ASM; CLU,INPUT SHAFT,A/T
4JJ1-TCX ENG<LS0> THA 		8-98189-510-0 01 1 1310-
2 RACE; THRUST BRG,A/T
THA 		8-98189-534-0 01 1 1310-
11 PISTON ASM; CLU,A/T
4JK1-TCX ENG<LR0> THA 		8-98189-764-0 01 1 1310-
11 PISTON ASM; CLU,A/T
4JJ1-TCX ENG<LS0> THA 		8-98189-512-0 01 1 1310-
12 SPRING; CLU RETURN,A/T
THA 		8-98189-515-0 01 1 1310-
13 GASKET; INNER,CLU,A/T
ID=40 THA 		8-98189-513-0 01 1 1310-
16 RING; SNAP,CLU,A/T
(A) ID=35 THA 		8-98189-518-0 01 1 1310-
16 RING; SNAP,CLU,A/T
(B) ID=29 THA 		8-98189-533-0 03 1 1310-
18 BEARING; THRUST,CLU,A/T
THA 		8-98189-535-0 01 1 1310-
20 DISC; CLU,A/T
4JK1-TCX ENG<LR0> OD=162 THA 		8-98189-559-0 05 1 1310-
20 DISC; CLU,A/T
4JJ1-TCX ENG<LS0> OD=162 THA 		8-98189-559-0 06 1 1310-
21 DISC ASM; CLU & FACING,A/T
4JK1-TCX ENG<LR0> ID=149 THA 		8-98189-558-0 05 1 1310-
21 DISC ASM; CLU & FACING,A/T
4JJ1-TCX ENG<LS0> ID=149 THA 		8-98189-558-0 06 1 1310-
23 RING; RET,CLU,A/T
ID=160 THA 		8-98189-576-0 02 1 1310-
25 RING; RET,BACKING PLATE,A/T
ID=115 THA 		8-98189-532-0 01 1 1310-
27 DISC ASM; CLU & FACING,A/T
4JK1-TCX ENG<LR0> T=1.8 THA 		8-98189-520-0 05 1 1310-
27 DISC ASM; CLU & FACING,A/T
4JJ1-TCX ENG<LS0> T=1.8 THA 		8-98189-520-0 06 1 1310-
28 DISC; CLU,A/T
4JK1-TCX ENG<LR0> OD=120 THA 		8-98189-519-0 06 1 1310-
28 DISC; CLU,A/T
4JJ1-TCX ENG<LS0> OD=120 THA 		8-98189-519-0 07 1 1310-
29 RING; SNAP,CLU,A/T
ID=171 THA 		8-98189-597-0 01 1 1310-
31 GASKET; CLU,INNER,A/T
ID=101 THA 		8-98189-586-0 01 1 1310-
32 GASKET; CLU,OUTER,A/T
(A) ID=142 THA 		8-98189-582-0 01 1 1310-
32 GASKET; CLU,OUTER,A/T
(B) ID=140 THA 		8-98189-585-0 01 1 1310-
39 SPRING; DIRECT CLU RETURN
THA 		8-98189-543-0 01 1 1310-
41 FLANGE; DIRECT CLU
T=3.0 THA 		8-98189-521-0 01 1 1310-
43 FLANGE; FWD CLU
T=3.0 THA 		8-98189-521-0 AR 1 1310-
43 FLANGE; FWD CLU
T=3.1 THA 		8-98189-522-0 AR 1 1310-
43 FLANGE; FWD CLU
T=3.2 THA 		8-98189-523-0 AR 1 1310-
43 FLANGE; FWD CLU
T=3.3 THA 		8-98189-524-0 AR 1 1310-
43 FLANGE; FWD CLU
T=3.4 THA 		8-98189-525-0 AR 1 1310-
43 FLANGE; FWD CLU
T=3.5 THA 		8-98189-526-0 AR 1 1310-
43 FLANGE; FWD CLU
T=3.6 THA 		8-98189-527-0 AR 1 1310-
43 FLANGE; FWD CLU
T=3.7 THA 		8-98189-528-0 AR 1 1310-
43 FLANGE; FWD CLU
T=3.8 THA 		8-98189-529-0 AR 1 1310-
43 FLANGE; FWD CLU
T=3.9 THA 		8-98189-530-0 AR 1 1310-
43 FLANGE; FWD CLU
T=4.0 THA 		8-98189-531-0 AR 1 1310-
46 PISTON; DIRECT CLU,A/T
4JK1-TCX ENG<LR0> THA 		8-98189-766-0 01 1 1310-
46 PISTON; DIRECT CLU,A/T
4JJ1-TCX ENG<LS0> THA 		8-98189-540-0 01 1 1310-
52 GASKET; PISTON INNER,DIRECT CLU,A/T
ID=75 THA 		8-98189-542-0 01 1 1310-
53 GASKET; PISTON OUTER,DIRECT CLU,A/T
ID=126.7 THA 		8-98189-541-0 01 1 1310-
76 PLATE; 3RD CLU
T=2.4 THA 		8-98189-591-0 04 1 1310-
95 GASKET; CLU HUB
(A) ID=108 THA 		8-98189-514-0 01 1 1310-
95 GASKET; CLU HUB
(B) ID=107 THA 		8-98189-517-0 01 1 1310-
139 RING; SNAP
(A) ID=64 THA 		8-98189-557-0 01 1 1310-
139 RING; SNAP
(B) ID=79 THA 		8-98189-589-0 01 1 1310-
142 SPRING; CLU
THA 		8-98189-587-0 01 1 1310-
157 CLUTCH ASM; A/T
4JK1-TCX ENG<LR0> THA 		8-98189-765-0 01 1 1310-
157 CLUTCH ASM; A/T
4JJ1-TCX ENG<LS0> THA 		8-98189-538-0 01 1 1310-
161 PLATE; CLU
T=1.5 THA 		8-98189-595-0 01 1 1310-
184 BALANCER; CLUTCH NO 1
THA 		8-98189-516-0 01 1 1310-
185 BALANCER; CLUTCH NO 3
THA 		8-98189-588-0 01 1 1310-
186 PISTON; REVERSE CLUTCH
THA 		8-98189-579-0 01 1 1310-
187 BALANCER; CLUTCH NO 2
THA 		8-98189-556-0 01 1 1310-
188 FLANGE; REVERSE CLUTCH
T=3.0 THA 		8-98189-560-0 AR 1 1310-
188 FLANGE; REVERSE CLUTCH
T=3.1 THA 		8-98189-561-0 AR 1 1310-
188 FLANGE; REVERSE CLUTCH
T=3.2 THA 		8-98189-562-0 AR 1 1310-
188 FLANGE; REVERSE CLUTCH
T=3.3 THA 		8-98189-563-0 AR 1 1310-
188 FLANGE; REVERSE CLUTCH
T=3.4 THA 		8-98189-564-0 AR 1 1310-
188 FLANGE; REVERSE CLUTCH
T=3.5 THA 		8-98189-565-0 AR 1 1310-
188 FLANGE; REVERSE CLUTCH
T=3.6 THA 		8-98189-566-0 AR 1 1310-
188 FLANGE; REVERSE CLUTCH
T=3.7 THA 		8-98189-568-0 AR 1 1310-
188 FLANGE; REVERSE CLUTCH
T=3.8 THA 		8-98189-572-0 AR 1 1310-
189 DISC; CLUTCH NO 3
OD=162 THA 		8-98189-590-0 05 1 1310-
190 FLANGE; CLUTCH
T=3.0 THA 		8-98189-560-0 AR 1 1310-
190 FLANGE; CLUTCH
T=3.1 THA 		8-98189-561-0 AR 1 1310-
190 FLANGE; CLUTCH
T=3.2 THA 		8-98189-562-0 AR 1 1310-
190 FLANGE; CLUTCH
T=3.3 THA 		8-98189-563-0 AR 1 1310-
190 FLANGE; CLUTCH
T=3.4 THA 		8-98189-564-0 AR 1 1310-
190 FLANGE; CLUTCH
T=3.5 THA 		8-98189-565-0 AR 1 1310-
190 FLANGE; CLUTCH
T=3.6 THA 		8-98189-566-0 AR 1 1310-
190 FLANGE; CLUTCH
T=3.7 THA 		8-98189-568-0 AR 1 1310-
190 FLANGE; CLUTCH
T=3.8 THA 		8-98189-572-0 AR 1 1310-
190 FLANGE; CLUTCH
T=2.8 THA 		8-98189-592-0 AR 1 1310-
190 FLANGE; CLUTCH
T=2.9 THA 		8-98189-594-0 AR 1 1310-
191 SLEEVE; CLUTCH
THA 		8-98189-596-0 01 1 1310-
