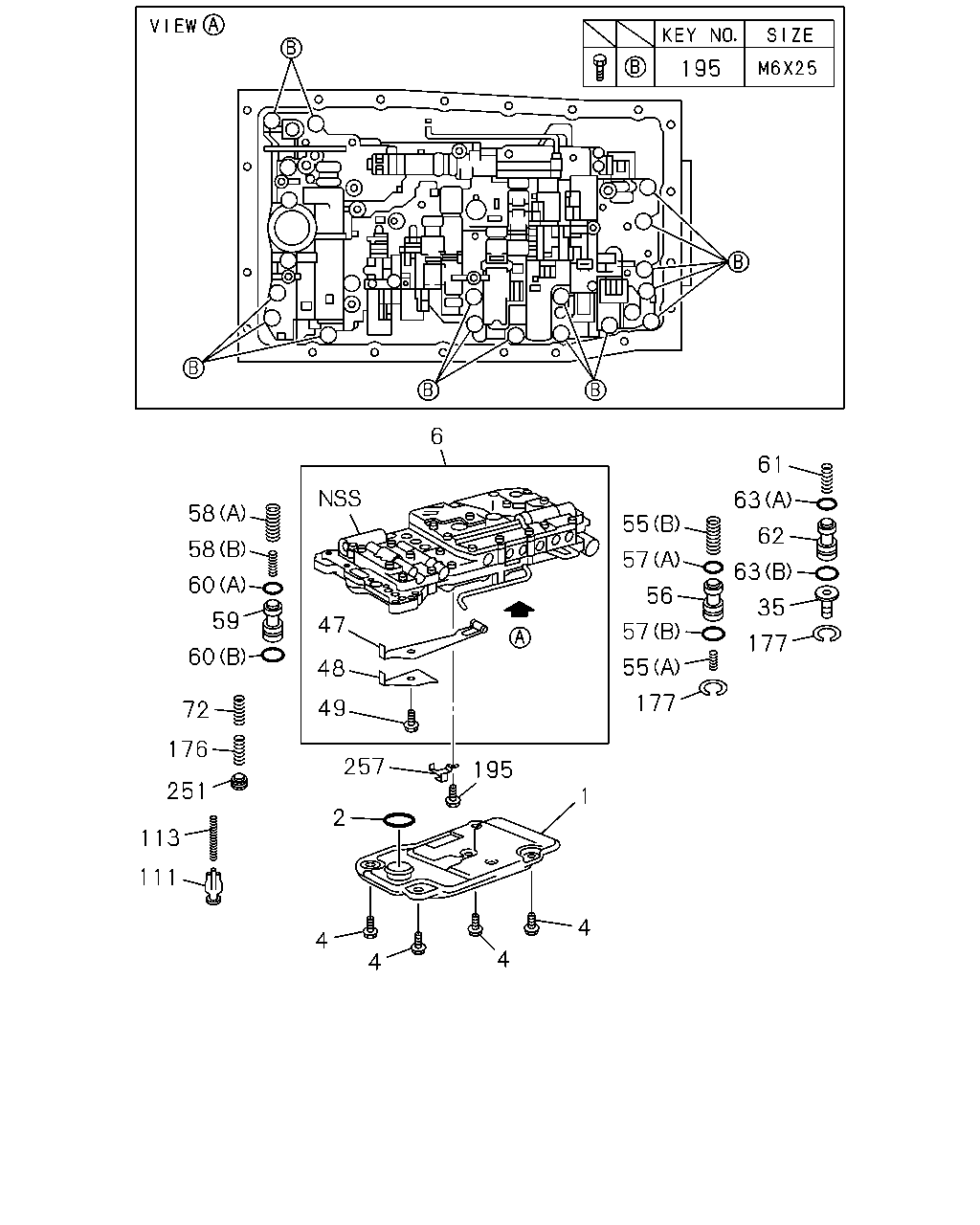

2-44 — AUTO TRANS CONTROL VALVE; LOWER BODY (#126377) — 34 parça

4 4 4 4 1 195 257 2 58 58 60 59 60 72 176 251 113 111 6 47 48 49 55 56 57 57 55 177 177 63 63 61 62 35 195

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	STRAINER ASM; OIL,A/T 4X2<TFB***> 4JK1-TCX ENG<LR0> EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98197-678-0	01	1	1310-
1	STRAINER ASM; OIL,A/T 4X2<TFB***> 4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> HIGH RIDE SUSPENSION<7YC> THA	8-98189-731-0	01	1	1310-
1	STRAINER ASM; OIL,A/T 4X4<TFS***> 4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> THA	8-98189-731-0	01	1	1310-
2	GASKET; OIL STRAINER,A/T THA	8-98189-732-0	01	1	1310-
4	BOLT; OIL STRAINER,A/T 4X2<TFB***> 4JK1-TCX ENG<LR0> EXC. HIGH RIDE SUSPENSION<7YC> L=16 THA	8-94480-096-0	04	1	1310-
4	BOLT; OIL STRAINER,A/T 4X2<TFB***> 4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> HIGH RIDE SUSPENSION<7YC> M6X12 THA	8-94479-927-0	04	1	1310-
4	BOLT; OIL STRAINER,A/T 4X4<TFS***> 4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> M6X12 THA	8-94479-927-0	04	1	1310-
6	BODY ASM; VLV LWR,A/T THA	8-98189-497-0	01	1	1310-
35	SPRING; LWR VLV BODY THA	8-98189-477-0	01	1	1310-
47	SPRING; DETENT,A/T THA	8-98189-498-0	01	1	1310-
48	PLATE; DETENT SPR,A/T THA	8-98189-499-0	01	1	1310-
49	BOLT; DETENT SPR PLATE,A/T M6X14 THA	8-98189-500-0	01	1	1310-
55	SPRING; ACCUMLATOR PISTON (A) THA	8-98189-480-0	01	1	1310-
55	SPRING; ACCUMLATOR PISTON (B) THA	8-98189-481-0	01	1	1310-
56	PISTON; ACCUMLATOR THA	8-98189-735-0	01	1	1310-
57	GASKET; 2ND SPD PISTON,A/T (A) ID=24 THA	8-97184-889-0	01	1	1310-
57	GASKET; 2ND SPD PISTON,A/T (B) ID=34 THA	8-98189-737-0	01	1	1310-
58	SPRING; DIRECT CLU (C-2 ACCUM),A/T (A) THA	8-97184-330-0	01	1	1310-
58	SPRING; DIRECT CLU (C-2 ACCUM),A/T (B) THA	8-98189-479-0	01	1	1310-
59	PISTON; DIRECT CLU,A/T THA	8-98189-734-0	01	1	1310-
60	GASKET; DIRECT CLU PISTON,A/T (A) ID=27 THA	8-97184-886-0	01	1	1310-
60	GASKET; DIRECT CLU PISTON,A/T (B) ID=34 THA	8-98189-737-0	01	1	1310-
61	SPRING; FWD CLU,(C-1 ACUUM),A/T THA	8-98189-478-0	01	1	1310-
62	PISTON; FWD CLU,A/T THA	8-98189-733-0	01	1	1310-
63	GASKET; FWD CLU,A/T (A) ID=20 THA	8-97184-885-0	01	1	1310-
63	GASKET; FWD CLU,A/T (B) ID=29 THA	8-98189-736-0	01	1	1310-
72	SPRING; ACCUMLATOR PISTON THA	8-98189-483-0	01	1	1310-
111	BODY; CHECK BALL THA	8-94479-931-0	01	1	1310-
113	SPRING; CHECK BALL THA	8-94479-930-0	01	1	1310-
176	SPRING; ACCUM INNER THA	8-98189-482-0	01	1	1310-
177	RING; SNAP ID=19 THA	8-97025-821-0	02	1	1310-
195	BOLT; CLAMP M6X25 THA	8-94473-624-0	16	1	1310-
251	VALVE; ACCUMULATOR THA	8-98189-739-0	01	1	1310-
257	CLAMP; HARNESS THA	8-98189-740-0	01	1	1310-
