2-41 — AUTO TRANS CASE,CONVERTER AND OIL PUMP (#126375) — 63 parça

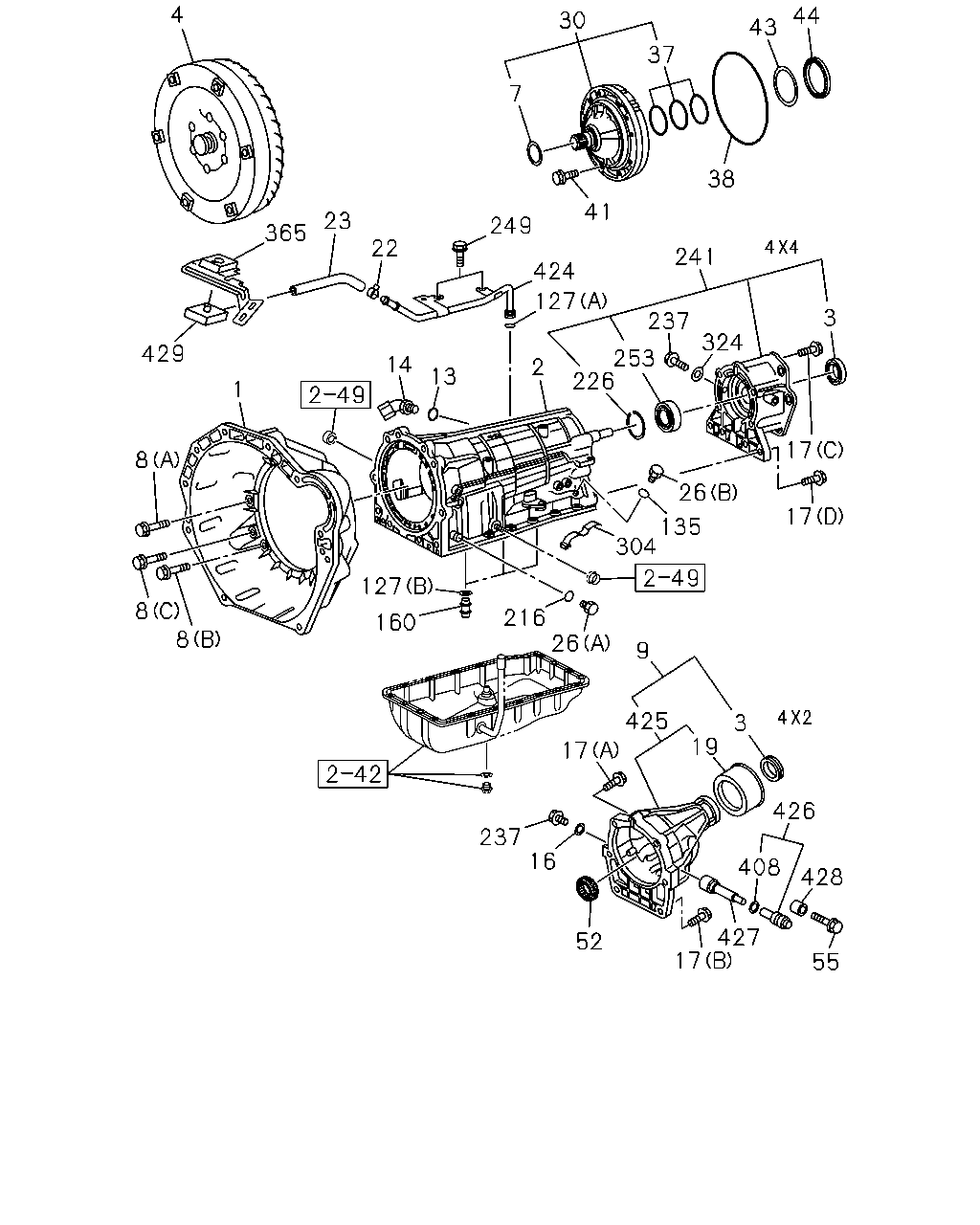

çizim 374282
26 304 216 17 17 3 425 9 26 17 19 426 428 55 408 427 17 52 16 237 160 127 8 8 8 429 365 23 22 14 13 249 424 2 127 241 41 38 37 30 4 1 237 253 226 324 43 44 135 7 3
BalonParca AdiParca NoAdetTipApplied Date
1 HOUSING; CONV,A/T
THA 		8-98189-468-0 01 1 1310-
2 CASE ASM; A/T
4X2<TFB***> THA 		8-98189-485-0 01 1 1310-
2 CASE ASM; A/T
4X4<TFS***> THA 		8-98189-783-0 01 1 1310-
3 SEAL; OIL,RR COVER,A/T
THA 		8-98189-757-0 01 1 1310-
4 CONVERTER ASM; TORQUE,A/T
4JK1-TCX ENG<LR0> THA 		8-98189-761-0 01 1 1310-
4 CONVERTER ASM; TORQUE,A/T
4JJ1-TCX ENG<LS0> THA 		8-98189-467-0 01 1 1310-
7 SEAL; OIL,LIP,A/T
THA 		8-98189-493-0 01 1 1310-
8 BOLT; HSG TO CASE
(A) M10X35 THA 		8-90257-082-0 06 1 1310-
8 BOLT; HSG TO CASE
(B) M10X35 THA 		8-98189-486-0 02 1 1310-
8 BOLT; HSG TO CASE
(C) M12X38 THA 		8-98189-487-0 02 1 1310-
9 COVER ASM; RR,A/T
4X2<TFB***> 4JJ1-TCX ENG<LS0> 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION<7YC> THA 		8-98189-754-0 01 1 1310-
9 COVER ASM; RR,A/T
4X2<TFB***> 4JK1-TCX ENG<LR0> 4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98189-754-0 01 1 1310-
9 COVER ASM; RR,A/T
4X2<TFB***> 4JJ1-TCX ENG<LS0> HIGH RIDE SUSPENSION<7YC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98189-777-0 01 1 1310-
9 COVER ASM; RR,A/T
4X2<TFB***> 4JK1-TCX ENG<LR0> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98189-777-0 01 1 1310-
13 GASKET; OIL COOLER PIPE
ID=11.7 THA 		8-94479-724-0 02 1 1310-
14 UNION; OIL COOLER RETURN PIPE
THA 		8-98189-473-0 02 1 1310-
16 GASKET; EXT HSG
4X2<TFB***> ID=15.4 THA 		8-98189-759-0 01 1 1310-
17 BOLT; REAR COVER TO CASE
4X2<TFB***> (A) M10X45 THA 		8-94473-632-0 04 1 1310-
17 BOLT; REAR COVER TO CASE
4X2<TFB***> (B) M10X35 THA 		8-94479-951-0 02 1 1310-
17 BOLT; REAR COVER TO CASE
4X4<TFS***> (C) M8X45 THA 		8-94479-858-0 01 1 1310-
17 BOLT; REAR COVER TO CASE
4X4<TFS***> (D) M10X50 THA 		8-94479-935-0 08 1 1310-
19 COVER; DUST,REAR COVER
4X2<TFB***> THA 		8-98189-756-0 01 1 1310-
22 CLIP; BREATHER HOSE,A/T
ID=11 THA 		8-97173-219-0 01 1 1310-
23 HOSE; BREATHER,A/T
L=220 SERVICED BY L=3000 THA 		0-02857-300-0 01 1 1310-
26 PLUG; TRANS CASE
(A) THA 		5-34119-002-0 05 1 1310-
26 PLUG; TRANS CASE
(B) M14X12 THA 		8-98189-490-0 01 1 1310-
30 PUMP ASM; OIL,A/T
THA 		8-98189-491-0 01 1 1310-
37 RING; SEAL,OIL PUMP,A/T
ID=63 THA 		8-98189-492-0 03 1 1310-
38 GASKET; OIL PUMP,A/T
ID=218 THA 		8-98189-494-0 01 1 1310-
41 BOLT; OIL PUMP HSG,A/T
M8X40 THA 		8-97141-759-0 10 1 1310-
43 RACE; THRUST BRG,OIL PUMP,A/T
ID=74 THA 		8-98189-495-0 01 1 1310-
44 BEARING; THRUST,OIL PUMP,A/T
THA 		8-98189-496-0 01 1 1310-
52 GEAR; SPD DRIVE
4X2<TFB***> 4JJ1-TCX ENG<LS0> HIGH RIDE SUSPENSION<7YC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98189-771-0 01 1 1310-
52 GEAR; SPD DRIVE
4X2<TFB***> 4JK1-TCX ENG<LR0> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98189-771-0 01 1 1310-
55 BOLT; COVER
4X2<TFB***> 4JJ1-TCX ENG<LS0> HIGH RIDE SUSPENSION<7YC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> M8X14 W/WASHER THA 		8-94480-043-0 01 1 1310-
55 BOLT; COVER
4X2<TFB***> 4JK1-TCX ENG<LR0> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> M8X14 W/WASHER THA 		8-94480-043-0 01 1 1310-
127 GASKET; CASE TO COVER
(A) ID=5 THA 		8-98189-476-0 01 1 1310-
127 GASKET; CASE TO COVER
(B) ID=10 THA 		8-98189-488-0 03 1 1310-
135 GASKET; PLUG,A/T CASE
ID=11.7 THA 		8-94479-724-0 01 1 1310-
160 GASKET; BRK DRUM,A/T
THA 		8-98189-489-0 03 1 1310-
216 GASKET; SOLENOID OUTER
ID=6 THA 		5-34119-001-0 05 1 1310-
226 RING; SNAP
4X4<TFS***> ID=67 THA 		8-98189-790-0 01 1 1310-
237 PLUG; COVER
THA 		8-98189-760-0 01 1 1310-
241 ADAPTER; A/T
4X4<TFS***> THA 		8-98189-788-0 01 1 1310-
249 BOLT; BRKT
M6X10 THA 		8-94252-680-0 02 1 1310-
253 BEARING; BALL,COVER
4X4<TFS***> THA 		8-98189-789-0 01 1 1310-
304 SPRING; LEAF,A/T
THA 		8-98189-484-0 01 1 1310-
324 GASKET; PLUG,REAR COVER
4X4<TFS***> ID=15.4 THA 		8-98189-759-0 01 1 1310-
365 BRACKET; BREATHER HOSE,A/T
THA 		8-98161-920-1 01 1 1310-
408 GASKET; SPEED SENSOR
4X2<TFB***> 4JJ1-TCX ENG<LS0> HIGH RIDE SUSPENSION<7YC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> ID=19 THA 		8-97181-545-0 01 1 1310-
408 GASKET; SPEED SENSOR
4X2<TFB***> 4JK1-TCX ENG<LR0> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> ID=19 THA 		8-97181-545-0 01 1 1310-
424 TUBE; BREATHER
THA 		8-98189-475-0 01 1 1310-
425 COVER SUB ASM; RR,A/T
4X2<TFB***> 4JJ1-TCX ENG<LS0> 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION<7YC> THA 		8-98189-755-0 01 1 1310-
425 COVER SUB ASM; RR,A/T
4X2<TFB***> 4JK1-TCX ENG<LR0> 4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98189-755-0 01 1 1310-
425 COVER SUB ASM; RR,A/T
4X2<TFB***> 4JJ1-TCX ENG<LS0> HIGH RIDE SUSPENSION<7YC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98189-778-0 01 1 1310-
425 COVER SUB ASM; RR,A/T
4X2<TFB***> 4JK1-TCX ENG<LR0> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98189-778-0 01 1 1310-
426 SLEEVE; SPEED METER
4X2<TFB***> 4JJ1-TCX ENG<LS0> HIGH RIDE SUSPENSION<7YC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-97181-543-0 01 1 1310-
426 SLEEVE; SPEED METER
4X2<TFB***> 4JK1-TCX ENG<LR0> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-97181-543-0 01 1 1310-
427 GEAR; SPEED METER
4X2<TFB***> 4JJ1-TCX ENG<LS0> HIGH RIDE SUSPENSION<7YC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> Z=19 THA 		8-98189-772-0 01 1 1310-
427 GEAR; SPEED METER
4X2<TFB***> 4JK1-TCX ENG<LR0> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> Z=19 THA 		8-98189-772-0 01 1 1310-
428 PLATE; SLEEVE
4X2<TFB***> 4JJ1-TCX ENG<LS0> HIGH RIDE SUSPENSION<7YC> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98189-773-0 01 1 1310-
428 PLATE; SLEEVE
4X2<TFB***> 4JK1-TCX ENG<LR0> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA 		8-98189-773-0 01 1 1310-
429 CLIP; BREATHER HOSE
THA 		8-98161-881-0 01 1 1310-
