2-30 — GEAR SHIFTER AND QUADRANT BOX (#126372) — 85 parça

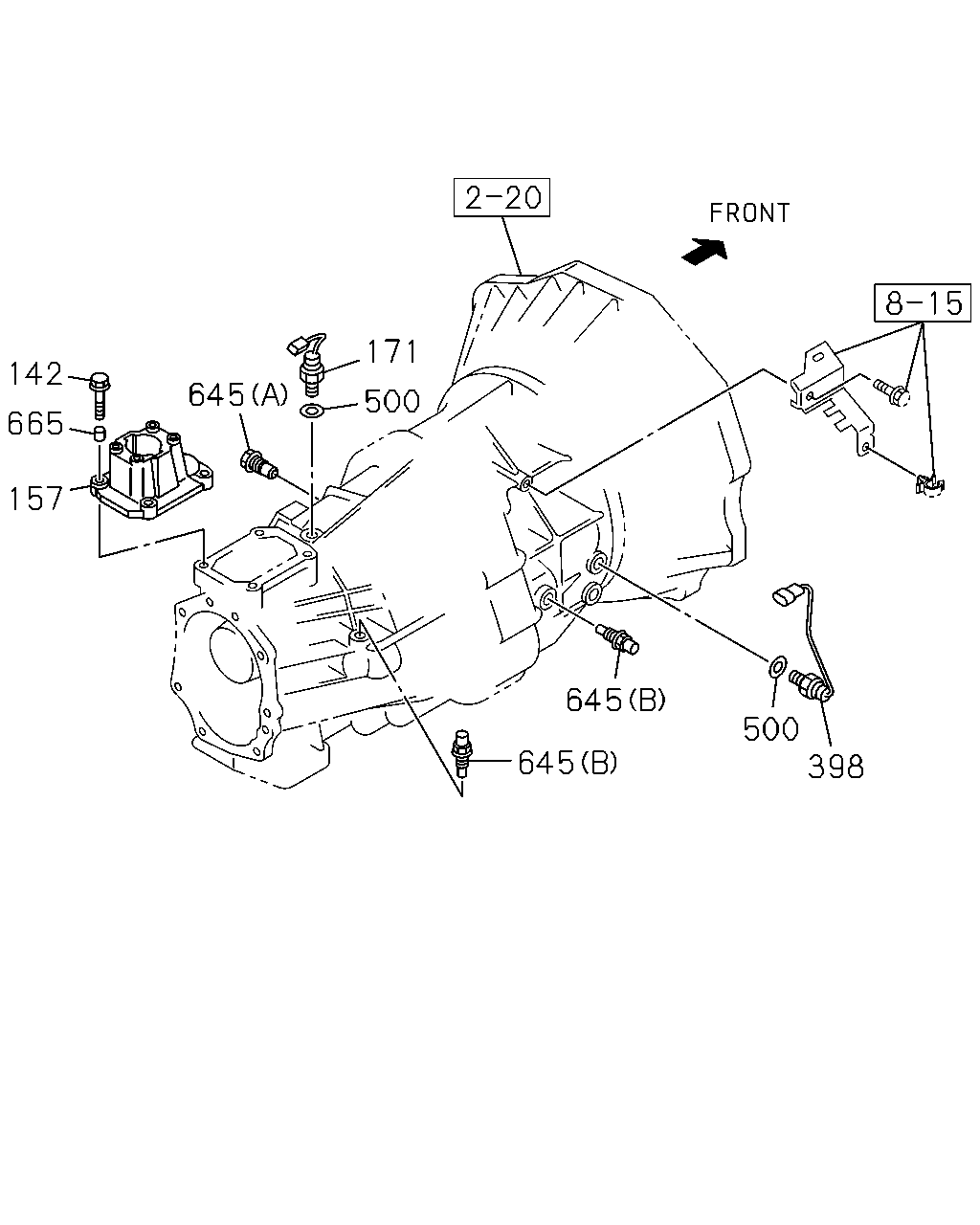

398 500 645 645 171 500 645 142 157 665

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
142	BOLT; QUAD BOX M8X22 FLANGE IMA	8-97365-376-0	04	1	1310-	●
142	BOLT; QUAD BOX M8X35 FLANGE THA	0-28650-835-0	04	1	1310-		●
157	BOX; QUAD,TRANS THA	8-98094-798-1	01	1	1310-		●
171	SWITCH; NEUTRAL IMA	8-98180-974-0	01	1	1310-		●
171	SWITCH; NEUTRAL IMA	8-98103-743-0	01	1	1310-	●
398	SWITCH; REV LAMP IMA	8-98103-750-0	01	1	1310-	●
398	SWITCH; REV LAMP IMA	8-98180-973-0	01	1	1310-		●
500	GASKET; SW ALSO INCLUDED IN GASKET SET(M/T). ID=14.2 OD=20.0 THA	9-09571-414-0	02	1	1310-		●
645	DETENT ASM (A) THA	8-97362-469-2	01	1	1310-		●
645	DETENT ASM (B) IMA	8-98019-536-0	02	1	1310-		●
665	DOWEL OD=11 L=8 IMA	9-11229-058-1	02	1	1310-		●

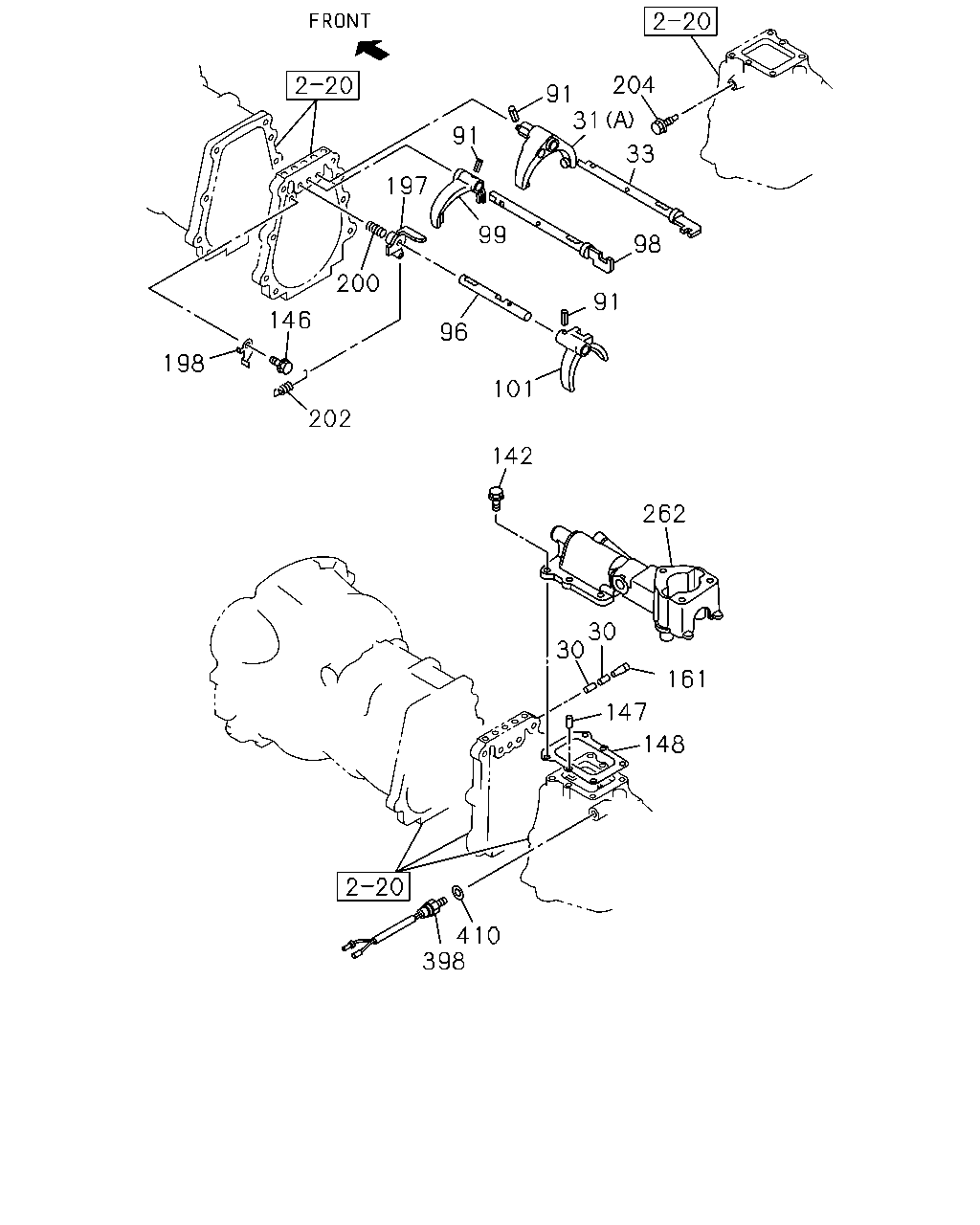

398 410 148 147 161 30 30 262 142 101 202 198 146 96 200 91 99 98 197 91 91 33 31 204

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
30	PIN; INTER LK OD=5.5 L=10 IMA	5-33534-002-1	02	1	1310-	●
31	ARM; SHIFT,LOW & 2ND (A) IMA	8-94421-912-2	01	1	1310-	●
31	ARM; SHIFT,LOW & 2ND (B) IMA	8-97362-435-0	01	1	1310-		●
33	ROD; SHIFT,LOW & 2ND IMA	8-97019-061-2	01	1	1310-	●
33	ROD; SHIFT,LOW & 2ND IMA	8-97362-441-0	01	1	1310-		●
91	PIN; SPR,SHIFT ARM D=4.2 L=25 IMA	8-94171-541-0	03	1	1310-	●
96	ROD; SHIFT,5TH THA	8-97232-886-0	01	1	1310-	●
98	ROD; SHIFT,TOP & 3RD IMA	8-97019-060-3	01	1	1310-	●
99	ARM; SHIFT,4TH & 3RD IMA	8-94421-911-2	01	1	1310-	●
99	ARM; SHIFT,4TH & 3RD THA	8-97362-439-2	01	1	1310-		●
101	ARM; SHIFT,REV & 5TH THA	8-97232-894-0	01	1	1310-	●
142	BOLT; QUAD BOX M8X22 FLANGE IMA	8-97365-376-0	04	1	1310-	●
142	BOLT; QUAD BOX M8X35 FLANGE THA	0-28650-835-0	04	1	1310-		●
146	BOLT; REV INHIBITOR M8X20 FLANGE THA	0-28650-820-0	01	1	1310-	●
147	PIN; KNOCK OD=6 L=12 IMA	9-08150-612-0	02	1	1310-	●
148	GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). IMA	8-97083-599-0	01	1	1310-	●
161	PLUG; INTER LK HOLE IMA	8-94239-543-1	01	1	1310-	●
197	INHIBITOR; REV SHIFT IMA	8-94448-753-0	01	1	1310-	●
198	BRACKET; REV INHIBITOR IMA	8-94448-199-0	01	1	1310-	●
200	SPRING; REV INHIBITOR,COMP IMA	8-94448-807-0	01	1	1310-	●
202	SPRING; REV INHIBITOR,EXT IMA	8-97017-500-0	01	1	1310-	●
204	STOPPER; REV INHIBITOR IMA	8-98035-673-0	01	1	1310-	●
262	BOX ASM; SHIFT CONT IMA	8-98219-761-0	01	1	1310-	●
398	SWITCH; REV LAMP IMA	8-98103-750-0	01	1	1310-	●
398	SWITCH; REV LAMP IMA	8-98180-973-0	01	1	1310-		●
410	GASKET; REV SW ALSO INCLUDED IN GASKET SET(M/T). ID=14.2 OD=20.0 THA	9-09571-414-0	01	1	1310-	●

261 289 271 268 271 262 288 22 459 274 248 132 172 171

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
22	CAP; RETURN SPR,SHIFT BLOCK IMA	8-97181-326-0	02	1	1310-	●
132	SPRING; SELECT STOP IMA	8-97181-395-0	02	1	1310-	●
171	SWITCH; NEUTRAL IMA	8-98180-974-0	01	1	1310-		●
171	SWITCH; NEUTRAL IMA	8-98103-743-0	01	1	1310-	●
172	GASKET; NEUTRAL SW ID=14.2 THA	8-94462-114-0	01	1	1310-	●
248	RETAINER; CONT BOX IMA	8-98210-983-0	02	1	1310-	●
261	ROD; GEAR CONT IMA	8-97257-909-0	01	1	1310-	●
261	ROD; GEAR CONT IMA	8-97362-444-0	01	1	1310-		●
262	BOX ASM; SHIFT CONT IMA	8-98219-761-0	01	1	1310-	●
268	LEVER; CONT,INTERNAL IMA	8-97184-895-0	01	1	1310-	●
271	BUSHING; QUAD BOX ID=14 L=12 IMA	8-98017-908-0	02	1	1310-	●
274	COVER; SHAFT,QUAD BOX IMA	8-97181-324-1	01	1	1310-	●
288	PLUG; AIR BREATHER IMA	9-00097-517-0	01	1	1310-	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX IMA	8-98017-744-0	01	1	1310-	●
459	PIN; SPR,ROD TO ARM OD=5 IMA	8-97184-905-0	01	1	1310-	●

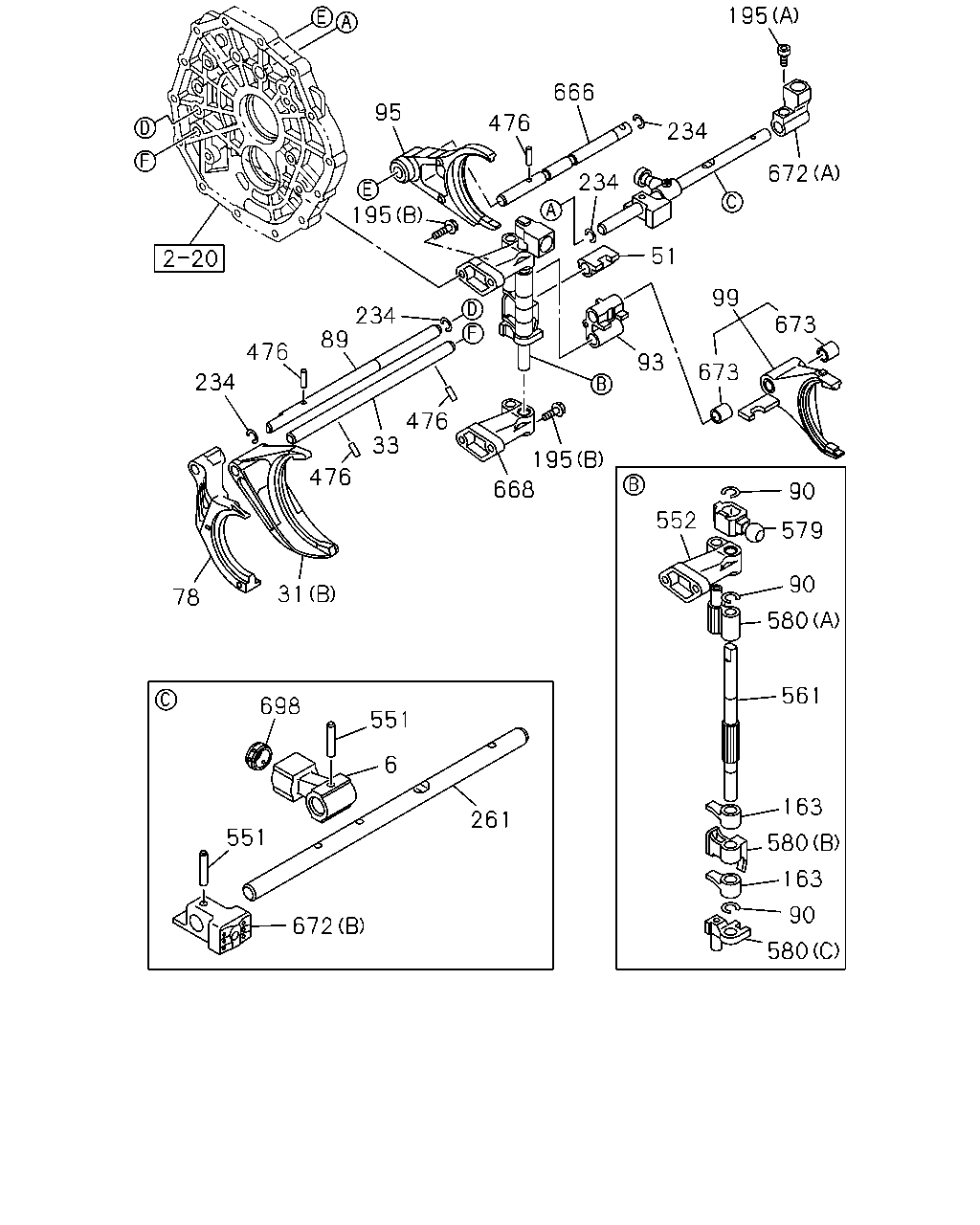

580 163 90 580 163 561 580 90 579 90 552 673 261 672 551 6 551 698 31 78 476 33 476 668 195 93 99 673 672 195 234 51 234 666 476 234 89 476 234 195 95

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	LEVER; RELAY IMA	8-98095-658-1	01	1	1310-		●
31	ARM; SHIFT,LOW & 2ND (A) IMA	8-94421-912-2	01	1	1310-	●
31	ARM; SHIFT,LOW & 2ND (B) IMA	8-97362-435-0	01	1	1310-		●
33	ROD; SHIFT,LOW & 2ND IMA	8-97019-061-2	01	1	1310-	●
33	ROD; SHIFT,LOW & 2ND IMA	8-97362-441-0	01	1	1310-		●
51	BLOCK; SHIFT,1ST & 2ND IMA	8-98186-703-0	01	1	1310-		●
78	ARM; SHIFT,REV THA	8-97362-434-1	01	1	1310-		●
89	ROD; SHIFT,REV IMA	8-98106-032-0	01	1	1310-		●
90	RING; SNAP,SHIFT ROD ID=12 IMA	8-94460-357-0	03	1	1310-		●
93	BLOCK; SHIFT,REV & 5TH THA	8-98106-035-0	01	1	1310-		●
95	ARM; SHIFT,5TH IMA	8-97362-436-1	01	1	1310-		●
99	ARM; SHIFT,4TH & 3RD IMA	8-94421-911-2	01	1	1310-	●
99	ARM; SHIFT,4TH & 3RD THA	8-97362-439-2	01	1	1310-		●
163	LEVER; SELECT,INTERNAL IMA	8-98052-461-0	02	1	1310-		●
195	BOLT (A) M8X8.5 TAPER IMA	8-97250-975-0	01	1	1310-		●
195	BOLT (B) M8X30 FLANGE IMA	8-98034-764-0	04	1	1310-		●
234	RING; SNAP ID=12 IMA	8-94460-357-0	04	1	1310-		●
261	ROD; GEAR CONT IMA	8-97257-909-0	01	1	1310-	●
261	ROD; GEAR CONT IMA	8-97362-444-0	01	1	1310-		●
476	PIN; SHIFT ROD D=4.2 L=25 IMA	8-94171-541-0	04	1	1310-		●
551	PIN; SPRING D=4.2 L=25 IMA	8-94171-541-0	02	1	1310-		●
552	BRACKET THA	8-97362-465-1	01	1	1310-		●
561	ROD; SHIFT IMA	8-98095-659-1	01	1	1310-		●
579	BLOCK; SHIFT,ROD GUIDE IMA	8-98095-657-0	01	1	1310-		●
580	BLOCK; INTERLOCK (A) IMA	8-97362-461-1	01	1	1310-		●
580	BLOCK; INTERLOCK (B) IMA	8-98052-462-0	01	1	1310-		●
580	BLOCK; INTERLOCK (C) IMA	8-98186-700-0	01	1	1310-		●
666	ROD; GEAR SHIFT,3RD,4TH & 4TH IMA	8-97362-442-2	01	1	1310-		●
668	BRACKET; SHIFT ROD THA	8-97362-465-1	01	1	1310-		●
672	BLOCK; SHIFT,T/M CONTROL (A) IMA	8-97362-467-0	01	1	1310-		●
672	BLOCK; SHIFT,T/M CONTROL (B) IMA	8-98095-689-1	01	1	1310-		●
673	BEARING; SHIFT ARM THA	8-97362-853-0	02	1	1310-		●
698	SEAT; SHIFT CONT IMA	8-98073-812-0	01	1	1310-		●
