Sayfa 2-20 - Isuzu EPC

2-20 — MANUAL TRANSMISSION ASM AND CASE (#126369) — 269 parça

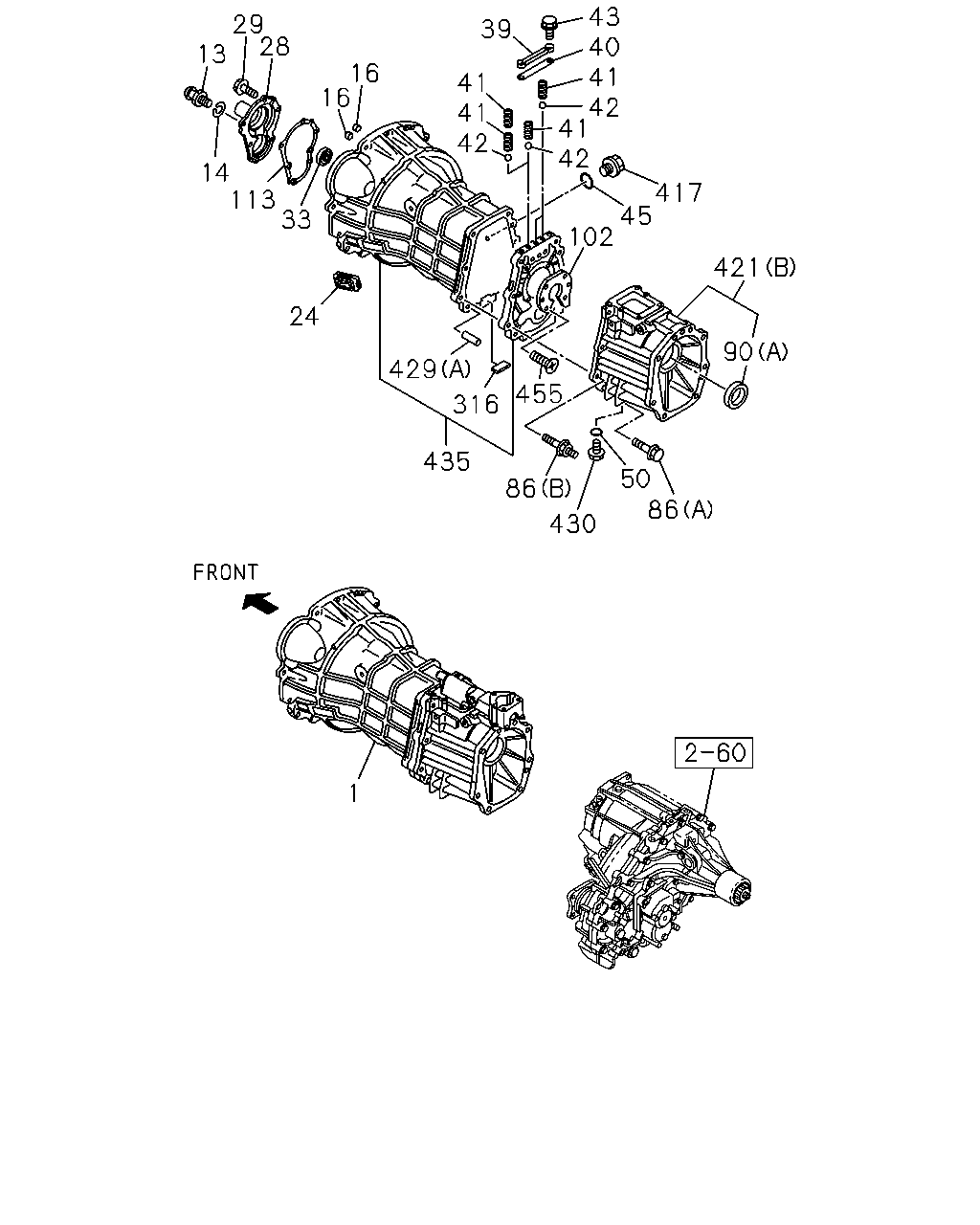

1 86 430 86 435 455 316 429 24 33 113 14 13 29 28 16 16 39 41 41 42 43 40 41 42 41 42 417 45 102 421 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TRANSMISSION ASM; MANUAL 4X2<TFB***> 4JK1-TCS ENG<LKZ> THA	8-98150-178-0	01	1	1310-	●
1	TRANSMISSION ASM; MANUAL 4X2<TFB***> 4JK1-TCX ENG<LR0> THA	8-98172-462-0	01	1	1310-	●
1	TRANSMISSION ASM; MANUAL 4X2<TFB***> 4JJ1-TCX ENG<LS0> 4 WHEEL ANTI LOCK BRAKE<JE5> THA	8-98087-608-0	01	1	1310-		●
1	TRANSMISSION ASM; MANUAL 4X2<TFB***> 4JJ1-TCX ENG<LS0> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA	8-98102-485-0	01	1	1310-		●
1	TRANSMISSION ASM; MANUAL 4X4<TFS***> 4JK1-TCS ENG<LKZ> THA	8-98150-180-0	01	1	1310-	●
1	TRANSMISSION ASM; MANUAL 4X4<TFS***> 4JK1-TCX ENG<LR0> THA	8-98172-959-0	01	1	1310-	●
1	TRANSMISSION ASM; MANUAL 4X4<TFS***> THA	8-98102-382-0	01	1	1310-		●
13	SUPPORT; SHIFT FORK L=47.5 IMA	8-97072-827-0	01	1	1310-	●	●
14	WASHER; LK,SUPPORT ID=12.2 IMA	0-91510-512-0	01	1	1310-	●
16	PLUG; SHIFT ROD OD=14 IMA	8-97358-601-0	02	1	1310-	●
24	COVER; CHECK HOLE,DUST IMA	8-94156-700-0	01	1	1310-	●
28	COVER; FRT,TRANS CASE THA	8-97381-406-0	01	1	1310-	●
28	COVER; FRT,TRANS CASE THA	8-98094-800-0	01	1	1310-		●
29	BOLT; FRT COVER M8X22 FLANGE IMA	8-97365-376-0	06	1	1310-	●
29	BOLT; FRT COVER M8X20 FLANGE THA	0-28650-820-0	03	1	1310-		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK THA	8-97947-839-0	01	1	1310-	●	●
39	PLATE; DETENT SPR IMA	8-98035-571-0	01	1	1310-	●
40	GASKET; DETENT SPR PLATE ALSO INCLUDED IN GASKET SET(M/T). IMA	8-97083-600-1	01	1	1310-	●
41	SPRING; DETENT BALL L=26.8 IMA	8-94320-193-0	02	1	1310-	●
41	SPRING; DETENT BALL L=27.6 IMA	8-97214-402-0	01	1	1310-	●
41	SPRING; DETENT BALL L=26.6 IMA	8-97214-403-0	01	1	1310-	●
42	BALL; DETENT,GEAR SHIFT IMA	8-94435-335-0	03	1	1310-	●
43	BOLT; PLATE TO PLATE M8X22 FLANGE IMA	8-97365-376-0	02	1	1310-	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17 IMA	8-97115-712-0	01	1	1310-	●	●
86	BOLT; RR COVER (B) M10X18 M10X55 L=86.8 IMA	8-97305-468-0	01	1	1310-	●
86	BOLT; RR COVER (A) M10X55 FLANGE THA	8-98035-672-0	07	1	1310-	●
86	BOLT; RR COVER (D) M8X50 FLANGE THA	0-28050-850-0	02	1	1310-		●
86	BOLT; RR COVER (E) M8X35 FLANGE THA	0-28650-835-0	03	1	1310-		●
86	BOLT; RR COVER 4X4<TFS***> (C) M8X45 FLANGE THA	0-28050-845-0	16	1	1310-	●	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2<TFB***> (D) NOK THA	8-97947-840-0	01	1	1310-	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4<TFS***> (A) NOK THA	8-97947-841-0	01	1	1310-	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4<TFS***> (B) NOK IMA	8-97046-705-3	01	1	1310-	●	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4<TFS***> (C) JTEKT IMA	8-98004-531-0	01	1	1310-		●
102	RETAINER; BRG UPR,MAINSHAFT IMA	8-97138-673-0	01	1	1310-	●
113	GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). IMA	8-97083-589-0	01	1	1310-	●
316	MAGNET; TRANS CASE IMA	8-94249-524-2	01	1	1310-	●	●
417	PLUG; OIL FILLER,TRANS 4X4<TFS***> IMA	8-97365-373-0	01	1	1310-	●	●	●
417	PLUG; OIL FILLER,TRANS IMA	8-97365-373-0	01	1	1310-	●	●
421	COVER; RR,TRANS 4X2<TFB***> (A) THA	8-98191-921-0	01	1	1310-1405	●
421	COVER; RR,TRANS 4X2<TFB***> (A) THA	8-97978-059-0	01	1	1406-	●
421	COVER; RR,TRANS 4X2<TFB***> (C) THA	8-98108-318-0	01	1	1310-		●
421	COVER; RR,TRANS 4X2<TFB***> 4JJ1-TCX ENG<LS0> 4 WHEEL ANTI LOCK BRAKE<JE5> (D) THA	8-98108-411-0	01	1	1310-		●
421	COVER; RR,TRANS 4X2<TFB***> 4JJ1-TCX ENG<LS0> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) THA	8-97382-905-2	01	1	1310-		●
421	COVER; RR,TRANS 4X4<TFS***> (B) THA	8-98214-238-0	01	1	1310-1409	●
421	COVER; RR,TRANS 4X4<TFS***> (B) THA	8-97978-061-0	01	1	1410-	●
421	COVER; RR,TRANS 4X4<TFS***> (E) THA	8-97362-423-1	01	1	1310-		●
421	COVER; RR,TRANS 4X4<TFS***> (F) THA	8-98108-319-0	01	1	1310-		●
429	PIN; STRAIGHT (A) OD=10 L=40 IMA	5-09740-018-1	02	1	1310-	●
429	PIN; STRAIGHT 4X4<TFS***> (B) OD=10 L=20 IMA	8-97135-423-0	02	1	1310-	●	●	●
430	PLUG; OIL DRAIN 4X4<TFS***> IMA	8-97365-374-0	01	1	1310-	●	●	●
430	PLUG; OIL DRAIN IMA	8-97365-374-0	01	1	1310-	●	●
435	CASE; TRANS IMA	8-98047-230-0	01	1	1310-	●
435	CASE; TRANS THA	8-98108-317-1	01	1	1310-		●
455	SCREW; BRG RET M8X22 IMA	8-98035-654-0	04	1	1310-	●

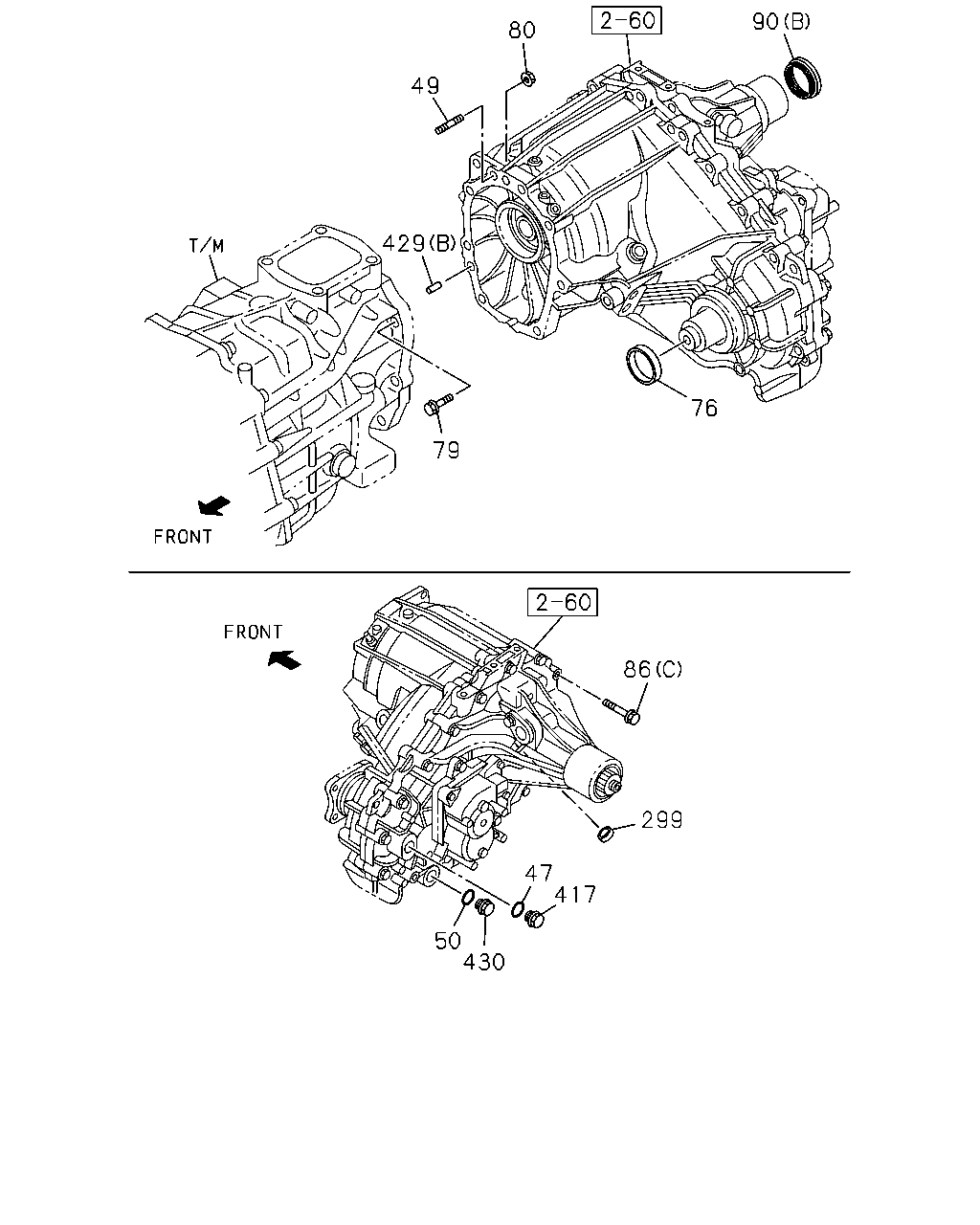

79 429 49 80 90 76 86 299 47 417 430 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
47	GASKET; FILLER PLUG,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). 4X4<TFS***> ID=17 IMA	8-97115-712-0	01	1	1310-	●	●	●
49	STUD; TRANSFER CASE 4X4<TFS***> M10X30 L=45 IMA	8-98035-675-0	01	1	1310-	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4<TFS***>. ID=17 IMA	8-97115-712-0	01	1	1310-	●	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17 IMA	8-97115-712-0	01	1	1310-	●	●
76	SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). 4X4<TFS***> NOK IMA	8-97238-999-0	01	1	1310-	●	●	●
79	BOLT; TRANSFER CASE 4X4 CREW CAB<TFSW> M10X45 FLANGE THA	0-28051-045-0	07	1	1310-			●
79	BOLT; TRANSFER CASE 4X4<TFS***> 4JK1-TCX ENG<LR0> M10X35 FLANGE THA	0-28051-035-0	06	1	1310-	●
79	BOLT; TRANSFER CASE 4X4<TFS***> M10X35 FLANGE THA	0-28051-035-0	06	1	1310-		●
80	NUT; TRANSFER CASE 4X4<TFS***> 4JK1-TCX ENG<LR0> M10 FLANGE THA	0-91180-110-0	01	1	1310-	●
80	NUT; TRANSFER CASE 4X4<TFS***> M10 FLANGE THA	0-91180-110-0	01	1	1310-		●
86	BOLT; RR COVER (B) M10X18 M10X55 L=86.8 IMA	8-97305-468-0	01	1	1310-	●
86	BOLT; RR COVER (A) M10X55 FLANGE THA	8-98035-672-0	07	1	1310-	●
86	BOLT; RR COVER (D) M8X50 FLANGE THA	0-28050-850-0	02	1	1310-		●
86	BOLT; RR COVER (E) M8X35 FLANGE THA	0-28650-835-0	03	1	1310-		●
86	BOLT; RR COVER 4X4<TFS***> (C) M8X45 FLANGE THA	0-28050-845-0	16	1	1310-	●	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2<TFB***> (D) NOK THA	8-97947-840-0	01	1	1310-	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4<TFS***> (A) NOK THA	8-97947-841-0	01	1	1310-	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4<TFS***> (B) NOK IMA	8-97046-705-3	01	1	1310-	●	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4<TFS***> (C) JTEKT IMA	8-98004-531-0	01	1	1310-		●
299	PLUG; SHIFTER ROD 4X4<TFS***> OD=15.6 IMA	8-94173-641-0	02	1	1310-	●	●	●
417	PLUG; OIL FILLER,TRANS 4X4<TFS***> IMA	8-97365-373-0	01	1	1310-	●	●	●
417	PLUG; OIL FILLER,TRANS IMA	8-97365-373-0	01	1	1310-	●	●
429	PIN; STRAIGHT (A) OD=10 L=40 IMA	5-09740-018-1	02	1	1310-	●
429	PIN; STRAIGHT 4X4<TFS***> (B) OD=10 L=20 IMA	8-97135-423-0	02	1	1310-	●	●	●
430	PLUG; OIL DRAIN 4X4<TFS***> IMA	8-97365-374-0	01	1	1310-	●	●	●
430	PLUG; OIL DRAIN IMA	8-97365-374-0	01	1	1310-	●	●

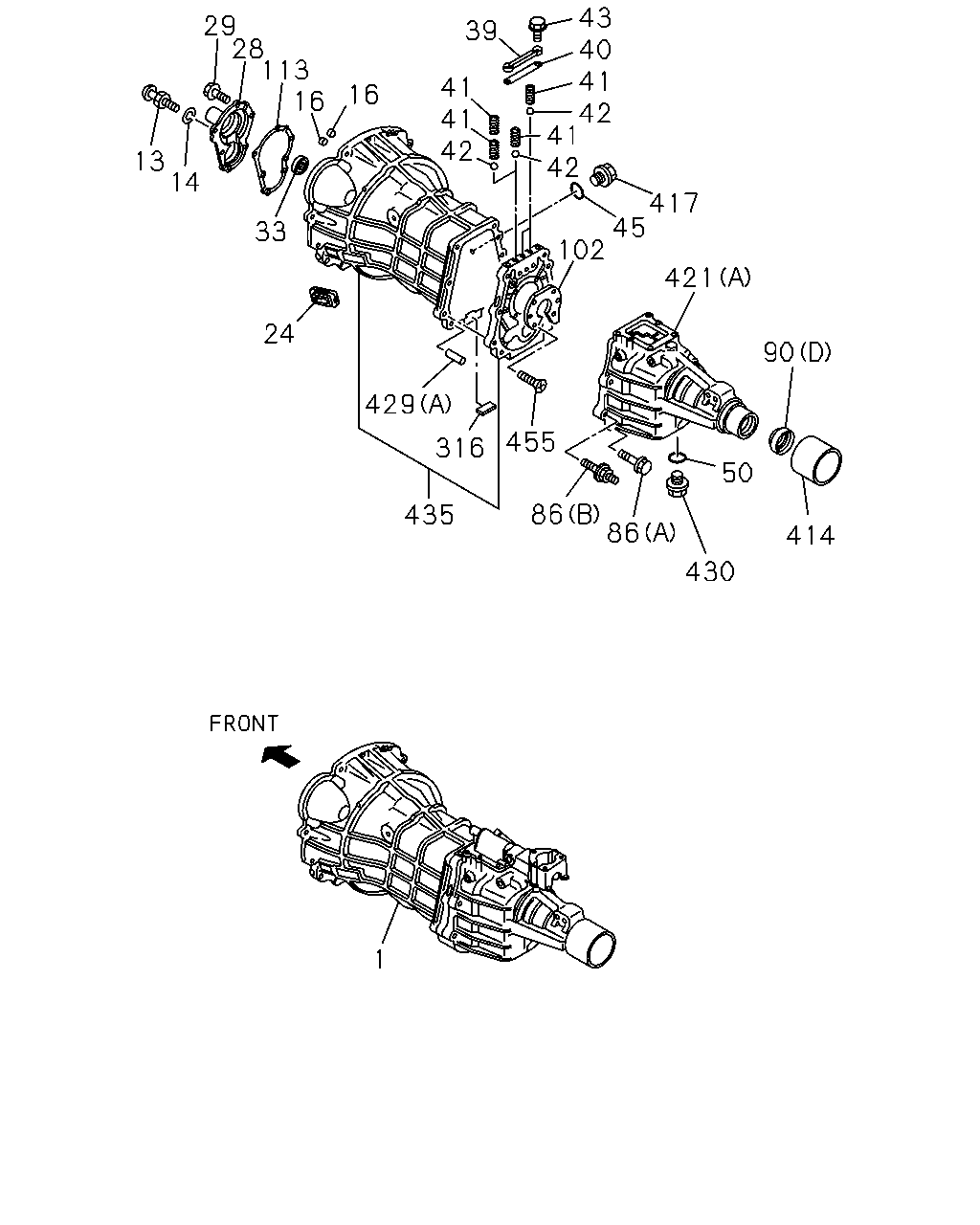

1 430 86 86 435 455 316 429 24 33 14 13 414 50 90 421 102 45 417 42 41 42 41 40 43 42 41 41 39 16 16 113 28 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TRANSMISSION ASM; MANUAL 4X2<TFB***> 4JK1-TCS ENG<LKZ> THA	8-98150-178-0	01	1	1310-	●
1	TRANSMISSION ASM; MANUAL 4X2<TFB***> 4JK1-TCX ENG<LR0> THA	8-98172-462-0	01	1	1310-	●
1	TRANSMISSION ASM; MANUAL 4X2<TFB***> 4JJ1-TCX ENG<LS0> 4 WHEEL ANTI LOCK BRAKE<JE5> THA	8-98087-608-0	01	1	1310-		●
1	TRANSMISSION ASM; MANUAL 4X2<TFB***> 4JJ1-TCX ENG<LS0> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA	8-98102-485-0	01	1	1310-		●
1	TRANSMISSION ASM; MANUAL 4X4<TFS***> 4JK1-TCS ENG<LKZ> THA	8-98150-180-0	01	1	1310-	●
1	TRANSMISSION ASM; MANUAL 4X4<TFS***> 4JK1-TCX ENG<LR0> THA	8-98172-959-0	01	1	1310-	●
1	TRANSMISSION ASM; MANUAL 4X4<TFS***> THA	8-98102-382-0	01	1	1310-		●
13	SUPPORT; SHIFT FORK L=47.5 IMA	8-97072-827-0	01	1	1310-	●	●
14	WASHER; LK,SUPPORT ID=12.2 IMA	0-91510-512-0	01	1	1310-	●
16	PLUG; SHIFT ROD OD=14 IMA	8-97358-601-0	02	1	1310-	●
24	COVER; CHECK HOLE,DUST IMA	8-94156-700-0	01	1	1310-	●
28	COVER; FRT,TRANS CASE THA	8-97381-406-0	01	1	1310-	●
28	COVER; FRT,TRANS CASE THA	8-98094-800-0	01	1	1310-		●
29	BOLT; FRT COVER M8X22 FLANGE IMA	8-97365-376-0	06	1	1310-	●
29	BOLT; FRT COVER M8X20 FLANGE THA	0-28650-820-0	03	1	1310-		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK THA	8-97947-839-0	01	1	1310-	●	●
39	PLATE; DETENT SPR IMA	8-98035-571-0	01	1	1310-	●
40	GASKET; DETENT SPR PLATE ALSO INCLUDED IN GASKET SET(M/T). IMA	8-97083-600-1	01	1	1310-	●
41	SPRING; DETENT BALL L=26.8 IMA	8-94320-193-0	02	1	1310-	●
41	SPRING; DETENT BALL L=27.6 IMA	8-97214-402-0	01	1	1310-	●
41	SPRING; DETENT BALL L=26.6 IMA	8-97214-403-0	01	1	1310-	●
42	BALL; DETENT,GEAR SHIFT IMA	8-94435-335-0	03	1	1310-	●
43	BOLT; PLATE TO PLATE M8X22 FLANGE IMA	8-97365-376-0	02	1	1310-	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17 IMA	8-97115-712-0	01	1	1310-	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4<TFS***>. ID=17 IMA	8-97115-712-0	01	1	1310-	●	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17 IMA	8-97115-712-0	01	1	1310-	●	●
86	BOLT; RR COVER (B) M10X18 M10X55 L=86.8 IMA	8-97305-468-0	01	1	1310-	●
86	BOLT; RR COVER (A) M10X55 FLANGE THA	8-98035-672-0	07	1	1310-	●
86	BOLT; RR COVER (D) M8X50 FLANGE THA	0-28050-850-0	02	1	1310-		●
86	BOLT; RR COVER (E) M8X35 FLANGE THA	0-28650-835-0	03	1	1310-		●
86	BOLT; RR COVER 4X4<TFS***> (C) M8X45 FLANGE THA	0-28050-845-0	16	1	1310-	●	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2<TFB***> (D) NOK THA	8-97947-840-0	01	1	1310-	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4<TFS***> (A) NOK THA	8-97947-841-0	01	1	1310-	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4<TFS***> (B) NOK IMA	8-97046-705-3	01	1	1310-	●	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4<TFS***> (C) JTEKT IMA	8-98004-531-0	01	1	1310-		●
102	RETAINER; BRG UPR,MAINSHAFT IMA	8-97138-673-0	01	1	1310-	●
113	GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). IMA	8-97083-589-0	01	1	1310-	●
316	MAGNET; TRANS CASE IMA	8-94249-524-2	01	1	1310-	●	●
414	COVER; DUST,RR COVER 4X2<TFB***> IMA	8-98027-802-0	01	1	1310-	●	●
417	PLUG; OIL FILLER,TRANS 4X4<TFS***> IMA	8-97365-373-0	01	1	1310-	●	●	●
417	PLUG; OIL FILLER,TRANS IMA	8-97365-373-0	01	1	1310-	●	●
421	COVER; RR,TRANS 4X2<TFB***> (A) THA	8-98191-921-0	01	1	1310-1405	●
421	COVER; RR,TRANS 4X2<TFB***> (A) THA	8-97978-059-0	01	1	1406-	●
421	COVER; RR,TRANS 4X2<TFB***> (C) THA	8-98108-318-0	01	1	1310-		●
421	COVER; RR,TRANS 4X2<TFB***> 4JJ1-TCX ENG<LS0> 4 WHEEL ANTI LOCK BRAKE<JE5> (D) THA	8-98108-411-0	01	1	1310-		●
421	COVER; RR,TRANS 4X2<TFB***> 4JJ1-TCX ENG<LS0> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) THA	8-97382-905-2	01	1	1310-		●
421	COVER; RR,TRANS 4X4<TFS***> (B) THA	8-98214-238-0	01	1	1310-1409	●
421	COVER; RR,TRANS 4X4<TFS***> (B) THA	8-97978-061-0	01	1	1410-	●
421	COVER; RR,TRANS 4X4<TFS***> (E) THA	8-97362-423-1	01	1	1310-		●
421	COVER; RR,TRANS 4X4<TFS***> (F) THA	8-98108-319-0	01	1	1310-		●
429	PIN; STRAIGHT (A) OD=10 L=40 IMA	5-09740-018-1	02	1	1310-	●
429	PIN; STRAIGHT 4X4<TFS***> (B) OD=10 L=20 IMA	8-97135-423-0	02	1	1310-	●	●	●
430	PLUG; OIL DRAIN 4X4<TFS***> IMA	8-97365-374-0	01	1	1310-	●	●	●
430	PLUG; OIL DRAIN IMA	8-97365-374-0	01	1	1310-	●	●
435	CASE; TRANS IMA	8-98047-230-0	01	1	1310-	●
435	CASE; TRANS THA	8-98108-317-1	01	1	1310-		●
455	SCREW; BRG RET M8X22 IMA	8-98035-654-0	04	1	1310-	●

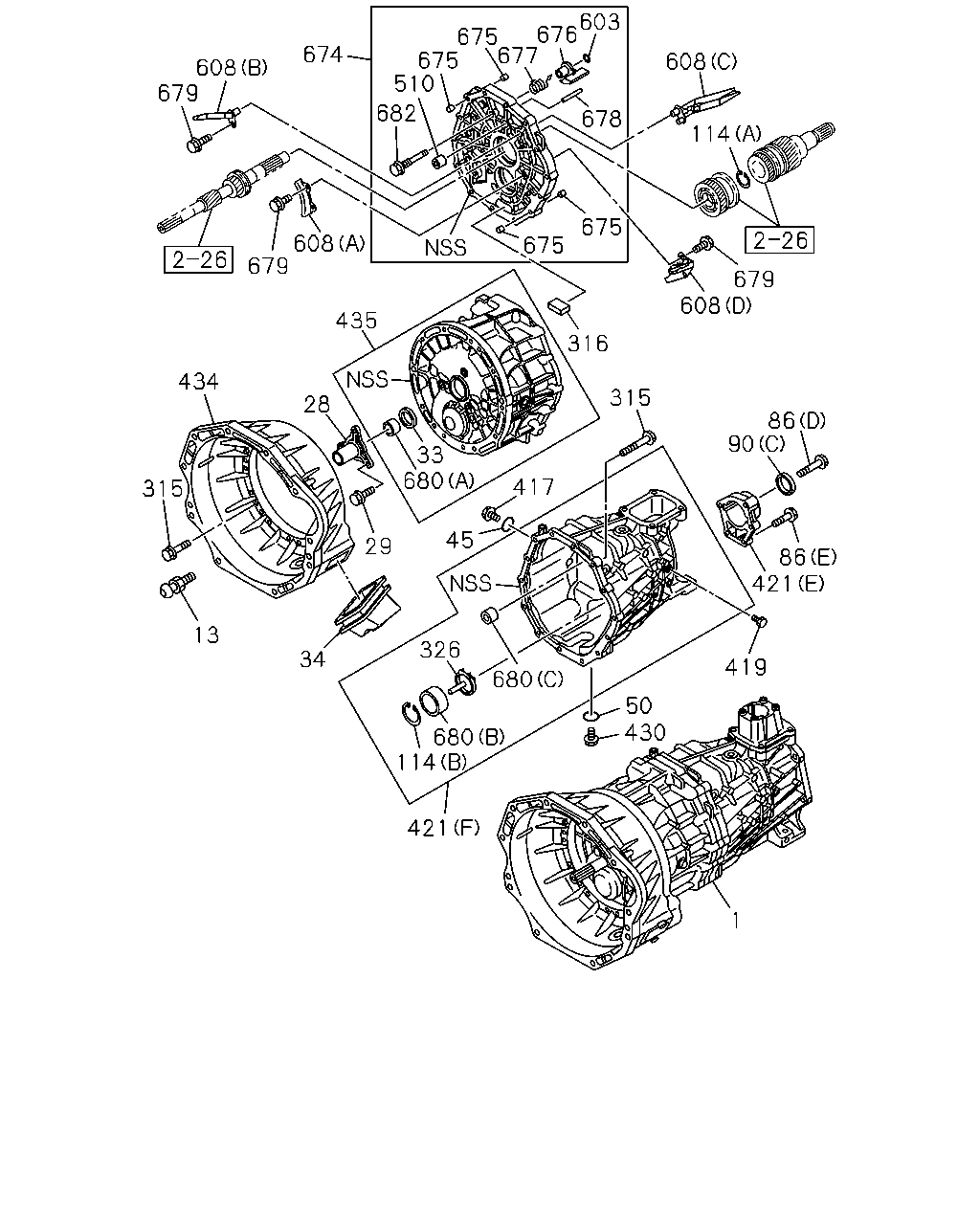

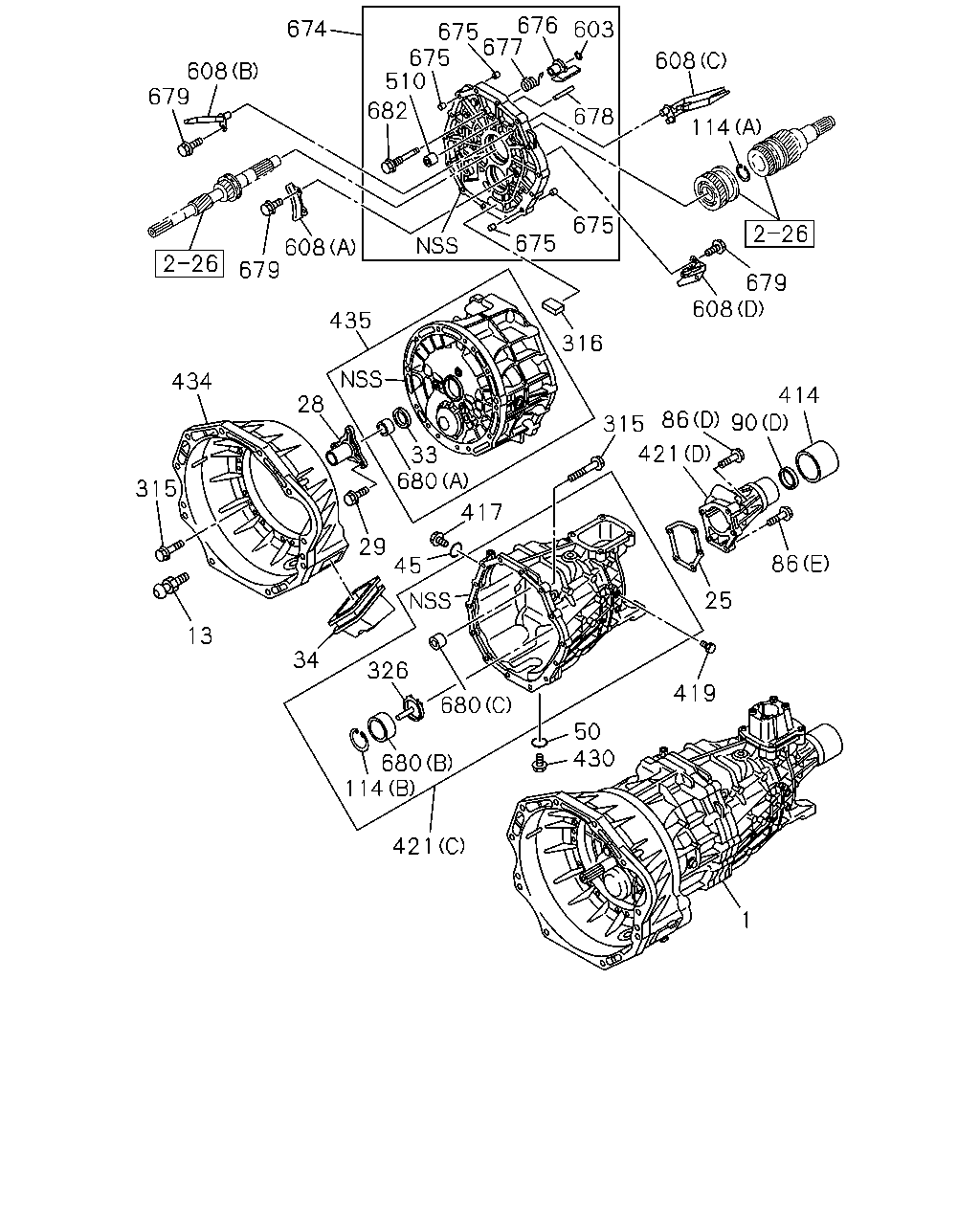

674 608 114 679 414 315 86 90 86 25 419 50 430 421 114 680 680 326 34 13 315 434 435 28 680 33 29 45 421 608 316 675 678 675 603 676 677 675 675 510 682 608 679 679 608 417 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TRANSMISSION ASM; MANUAL 4X2<TFB***> 4JK1-TCS ENG<LKZ> THA	8-98150-178-0	01	1	1310-	●
1	TRANSMISSION ASM; MANUAL 4X2<TFB***> 4JK1-TCX ENG<LR0> THA	8-98172-462-0	01	1	1310-	●
1	TRANSMISSION ASM; MANUAL 4X2<TFB***> 4JJ1-TCX ENG<LS0> 4 WHEEL ANTI LOCK BRAKE<JE5> THA	8-98087-608-0	01	1	1310-		●
1	TRANSMISSION ASM; MANUAL 4X2<TFB***> 4JJ1-TCX ENG<LS0> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA	8-98102-485-0	01	1	1310-		●
1	TRANSMISSION ASM; MANUAL 4X4<TFS***> 4JK1-TCS ENG<LKZ> THA	8-98150-180-0	01	1	1310-	●
1	TRANSMISSION ASM; MANUAL 4X4<TFS***> 4JK1-TCX ENG<LR0> THA	8-98172-959-0	01	1	1310-	●
1	TRANSMISSION ASM; MANUAL 4X4<TFS***> THA	8-98102-382-0	01	1	1310-		●
13	SUPPORT; SHIFT FORK L=47.5 IMA	8-97072-827-0	01	1	1310-	●	●
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2<TFB***> IMA	8-98004-774-0	01	1	1310-		●
28	COVER; FRT,TRANS CASE THA	8-97381-406-0	01	1	1310-	●
28	COVER; FRT,TRANS CASE THA	8-98094-800-0	01	1	1310-		●
29	BOLT; FRT COVER M8X22 FLANGE IMA	8-97365-376-0	06	1	1310-	●
29	BOLT; FRT COVER M8X20 FLANGE THA	0-28650-820-0	03	1	1310-		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK THA	8-97947-839-0	01	1	1310-	●	●
34	COVER; DUST,SHIFT FORK THA	8-98097-470-0	01	1	1310-		●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17 IMA	8-97115-712-0	01	1	1310-	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4<TFS***>. ID=17 IMA	8-97115-712-0	01	1	1310-	●	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17 IMA	8-97115-712-0	01	1	1310-	●	●
86	BOLT; RR COVER (B) M10X18 M10X55 L=86.8 IMA	8-97305-468-0	01	1	1310-	●
86	BOLT; RR COVER (A) M10X55 FLANGE THA	8-98035-672-0	07	1	1310-	●
86	BOLT; RR COVER (D) M8X50 FLANGE THA	0-28050-850-0	02	1	1310-		●
86	BOLT; RR COVER (E) M8X35 FLANGE THA	0-28650-835-0	03	1	1310-		●
86	BOLT; RR COVER 4X4<TFS***> (C) M8X45 FLANGE THA	0-28050-845-0	16	1	1310-	●	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2<TFB***> (D) NOK THA	8-97947-840-0	01	1	1310-	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4<TFS***> (A) NOK THA	8-97947-841-0	01	1	1310-	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4<TFS***> (B) NOK IMA	8-97046-705-3	01	1	1310-	●	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4<TFS***> (C) JTEKT IMA	8-98004-531-0	01	1	1310-		●
114	RING; SNAP,BALL BRG (A) OD=77 IMA	8-98024-221-0	01	1	1310-		●
114	RING; SNAP,BALL BRG (B) OD=60.2 IMA	9-09180-156-0	01	1	1310-		●
315	BOLT; CASE M8X60 FLANGE THA	0-28050-860-0	14	1	1310-		●
315	BOLT; CASE M8X35 FLANGE IMA	8-98046-876-0	11	1	1310-		●
316	MAGNET; TRANS CASE IMA	8-94249-524-2	01	1	1310-	●	●
326	NOZZLE; OIL,OUTLET IMA	8-98023-517-0	01	1	1310-		●
414	COVER; DUST,RR COVER 4X2<TFB***> IMA	8-98027-802-0	01	1	1310-	●	●
417	PLUG; OIL FILLER,TRANS 4X4<TFS***> IMA	8-97365-373-0	01	1	1310-	●	●	●
417	PLUG; OIL FILLER,TRANS IMA	8-97365-373-0	01	1	1310-	●	●
419	PLUG; RR COVER M12X9 IMA	8-98047-054-0	01	1	1310-		●
421	COVER; RR,TRANS 4X2<TFB***> (A) THA	8-98191-921-0	01	1	1310-1405	●
421	COVER; RR,TRANS 4X2<TFB***> (A) THA	8-97978-059-0	01	1	1406-	●
421	COVER; RR,TRANS 4X2<TFB***> (C) THA	8-98108-318-0	01	1	1310-		●
421	COVER; RR,TRANS 4X2<TFB***> 4JJ1-TCX ENG<LS0> 4 WHEEL ANTI LOCK BRAKE<JE5> (D) THA	8-98108-411-0	01	1	1310-		●
421	COVER; RR,TRANS 4X2<TFB***> 4JJ1-TCX ENG<LS0> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) THA	8-97382-905-2	01	1	1310-		●
421	COVER; RR,TRANS 4X4<TFS***> (B) THA	8-98214-238-0	01	1	1310-1409	●
421	COVER; RR,TRANS 4X4<TFS***> (B) THA	8-97978-061-0	01	1	1410-	●
421	COVER; RR,TRANS 4X4<TFS***> (E) THA	8-97362-423-1	01	1	1310-		●
421	COVER; RR,TRANS 4X4<TFS***> (F) THA	8-98108-319-0	01	1	1310-		●
430	PLUG; OIL DRAIN 4X4<TFS***> IMA	8-97365-374-0	01	1	1310-	●	●	●
430	PLUG; OIL DRAIN IMA	8-97365-374-0	01	1	1310-	●	●
434	HOUSING; CLU THA	8-98108-316-0	01	1	1310-		●
435	CASE; TRANS IMA	8-98047-230-0	01	1	1310-	●
435	CASE; TRANS THA	8-98108-317-1	01	1	1310-		●
510	BEARING THA	8-97362-853-0	01	1	1310-		●
603	RING; SNAP IMA	8-98039-270-0	01	1	1310-		●
608	GUTTER; OIL (A) IMA	8-97362-391-0	01	1	1310-		●
608	GUTTER; OIL (B) IMA	8-97362-564-1	01	1	1310-		●
608	GUTTER; OIL (D) IMA	8-98004-505-0	01	1	1310-		●
608	GUTTER; OIL (C) IMA	8-98142-574-0	01	1	1310-		●
674	PLATE; INTERMEDIATE THA	8-98042-863-0	01	1	1310-		●
675	DOWEL OD=11 L=8 IMA	9-11229-058-1	04	1	1310-		●
676	INHIBITOR IMA	8-98037-604-1	01	1	1310-		●
677	SPRING; INHIBITOR IMA	8-97362-852-0	01	1	1310-		●
678	PIN IMA	9-08160-436-0	01	1	1310-		●
679	BOLT; GUTTER M6X12 FLANGE THA	0-28050-612-0	04	1	1310-		●
680	BEARING (A) IMA	8-97362-720-1	01	1	1310-		●
680	BEARING (C) THA	8-97362-853-0	01	1	1310-		●
680	BEARING (B) IMA	8-98024-431-0	01	1	1310-		●
682	BOLT; INHIBITOR M10X50 IMA	8-98042-618-0	01	1	1310-		●

608 674 679 679 608 435 28 434 315 13 29 34 33 680 682 510 675 675 676 677 603 678 675 675 608 114 679 608 316 315 417 45 326 680 680 114 50 430 1 419 421 86 90 86 421

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TRANSMISSION ASM; MANUAL 4X2<TFB***> 4JK1-TCS ENG<LKZ> THA	8-98150-178-0	01	1	1310-	●
1	TRANSMISSION ASM; MANUAL 4X2<TFB***> 4JK1-TCX ENG<LR0> THA	8-98172-462-0	01	1	1310-	●
1	TRANSMISSION ASM; MANUAL 4X2<TFB***> 4JJ1-TCX ENG<LS0> 4 WHEEL ANTI LOCK BRAKE<JE5> THA	8-98087-608-0	01	1	1310-		●
1	TRANSMISSION ASM; MANUAL 4X2<TFB***> 4JJ1-TCX ENG<LS0> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> THA	8-98102-485-0	01	1	1310-		●
1	TRANSMISSION ASM; MANUAL 4X4<TFS***> 4JK1-TCS ENG<LKZ> THA	8-98150-180-0	01	1	1310-	●
1	TRANSMISSION ASM; MANUAL 4X4<TFS***> 4JK1-TCX ENG<LR0> THA	8-98172-959-0	01	1	1310-	●
1	TRANSMISSION ASM; MANUAL 4X4<TFS***> THA	8-98102-382-0	01	1	1310-		●
13	SUPPORT; SHIFT FORK L=47.5 IMA	8-97072-827-0	01	1	1310-	●	●
28	COVER; FRT,TRANS CASE THA	8-97381-406-0	01	1	1310-	●
28	COVER; FRT,TRANS CASE THA	8-98094-800-0	01	1	1310-		●
29	BOLT; FRT COVER M8X22 FLANGE IMA	8-97365-376-0	06	1	1310-	●
29	BOLT; FRT COVER M8X20 FLANGE THA	0-28650-820-0	03	1	1310-		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK THA	8-97947-839-0	01	1	1310-	●	●
34	COVER; DUST,SHIFT FORK THA	8-98097-470-0	01	1	1310-		●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17 IMA	8-97115-712-0	01	1	1310-	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4<TFS***>. ID=17 IMA	8-97115-712-0	01	1	1310-	●	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17 IMA	8-97115-712-0	01	1	1310-	●	●
86	BOLT; RR COVER (B) M10X18 M10X55 L=86.8 IMA	8-97305-468-0	01	1	1310-	●
86	BOLT; RR COVER (A) M10X55 FLANGE THA	8-98035-672-0	07	1	1310-	●
86	BOLT; RR COVER (D) M8X50 FLANGE THA	0-28050-850-0	02	1	1310-		●
86	BOLT; RR COVER (E) M8X35 FLANGE THA	0-28650-835-0	03	1	1310-		●
86	BOLT; RR COVER 4X4<TFS***> (C) M8X45 FLANGE THA	0-28050-845-0	16	1	1310-	●	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2<TFB***> (D) NOK THA	8-97947-840-0	01	1	1310-	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4<TFS***> (A) NOK THA	8-97947-841-0	01	1	1310-	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4<TFS***> (B) NOK IMA	8-97046-705-3	01	1	1310-	●	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4<TFS***> (C) JTEKT IMA	8-98004-531-0	01	1	1310-		●
114	RING; SNAP,BALL BRG (A) OD=77 IMA	8-98024-221-0	01	1	1310-		●
114	RING; SNAP,BALL BRG (B) OD=60.2 IMA	9-09180-156-0	01	1	1310-		●
315	BOLT; CASE M8X60 FLANGE THA	0-28050-860-0	14	1	1310-		●
315	BOLT; CASE M8X35 FLANGE IMA	8-98046-876-0	11	1	1310-		●
316	MAGNET; TRANS CASE IMA	8-94249-524-2	01	1	1310-	●	●
326	NOZZLE; OIL,OUTLET IMA	8-98023-517-0	01	1	1310-		●
417	PLUG; OIL FILLER,TRANS 4X4<TFS***> IMA	8-97365-373-0	01	1	1310-	●	●	●
417	PLUG; OIL FILLER,TRANS IMA	8-97365-373-0	01	1	1310-	●	●
419	PLUG; RR COVER M12X9 IMA	8-98047-054-0	01	1	1310-		●
421	COVER; RR,TRANS 4X2<TFB***> (A) THA	8-98191-921-0	01	1	1310-1405	●
421	COVER; RR,TRANS 4X2<TFB***> (A) THA	8-97978-059-0	01	1	1406-	●
421	COVER; RR,TRANS 4X2<TFB***> (C) THA	8-98108-318-0	01	1	1310-		●
421	COVER; RR,TRANS 4X2<TFB***> 4JJ1-TCX ENG<LS0> 4 WHEEL ANTI LOCK BRAKE<JE5> (D) THA	8-98108-411-0	01	1	1310-		●
421	COVER; RR,TRANS 4X2<TFB***> 4JJ1-TCX ENG<LS0> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) THA	8-97382-905-2	01	1	1310-		●
421	COVER; RR,TRANS 4X4<TFS***> (B) THA	8-98214-238-0	01	1	1310-1409	●
421	COVER; RR,TRANS 4X4<TFS***> (B) THA	8-97978-061-0	01	1	1410-	●
421	COVER; RR,TRANS 4X4<TFS***> (E) THA	8-97362-423-1	01	1	1310-		●
421	COVER; RR,TRANS 4X4<TFS***> (F) THA	8-98108-319-0	01	1	1310-		●
430	PLUG; OIL DRAIN 4X4<TFS***> IMA	8-97365-374-0	01	1	1310-	●	●	●
430	PLUG; OIL DRAIN IMA	8-97365-374-0	01	1	1310-	●	●
434	HOUSING; CLU THA	8-98108-316-0	01	1	1310-		●
435	CASE; TRANS IMA	8-98047-230-0	01	1	1310-	●
435	CASE; TRANS THA	8-98108-317-1	01	1	1310-		●
510	BEARING THA	8-97362-853-0	01	1	1310-		●
603	RING; SNAP IMA	8-98039-270-0	01	1	1310-		●
608	GUTTER; OIL (A) IMA	8-97362-391-0	01	1	1310-		●
608	GUTTER; OIL (B) IMA	8-97362-564-1	01	1	1310-		●
608	GUTTER; OIL (D) IMA	8-98004-505-0	01	1	1310-		●
608	GUTTER; OIL (C) IMA	8-98142-574-0	01	1	1310-		●
674	PLATE; INTERMEDIATE THA	8-98042-863-0	01	1	1310-		●
675	DOWEL OD=11 L=8 IMA	9-11229-058-1	04	1	1310-		●
676	INHIBITOR IMA	8-98037-604-1	01	1	1310-		●
677	SPRING; INHIBITOR IMA	8-97362-852-0	01	1	1310-		●
678	PIN IMA	9-08160-436-0	01	1	1310-		●
679	BOLT; GUTTER M6X12 FLANGE THA	0-28050-612-0	04	1	1310-		●
680	BEARING (A) IMA	8-97362-720-1	01	1	1310-		●
680	BEARING (C) THA	8-97362-853-0	01	1	1310-		●
680	BEARING (B) IMA	8-98024-431-0	01	1	1310-		●
682	BOLT; INHIBITOR M10X50 IMA	8-98042-618-0	01	1	1310-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
