Isuzu WW
▶
PICKUP
▶
TFR
▶
51491 - TFR/TFS(THAILAND)
▶
2 - Clutch, Transmission, Trans Axle
▶
2-05 - CLUTCH PIPING
▶
2-05 — CLUTCH PIPING
(#126365) — 24 parça
Tümü
A - 4JK1-TCS ENG
B - 4JK1-TCX ENG
C - 4JJ1-TCX ENG
◀

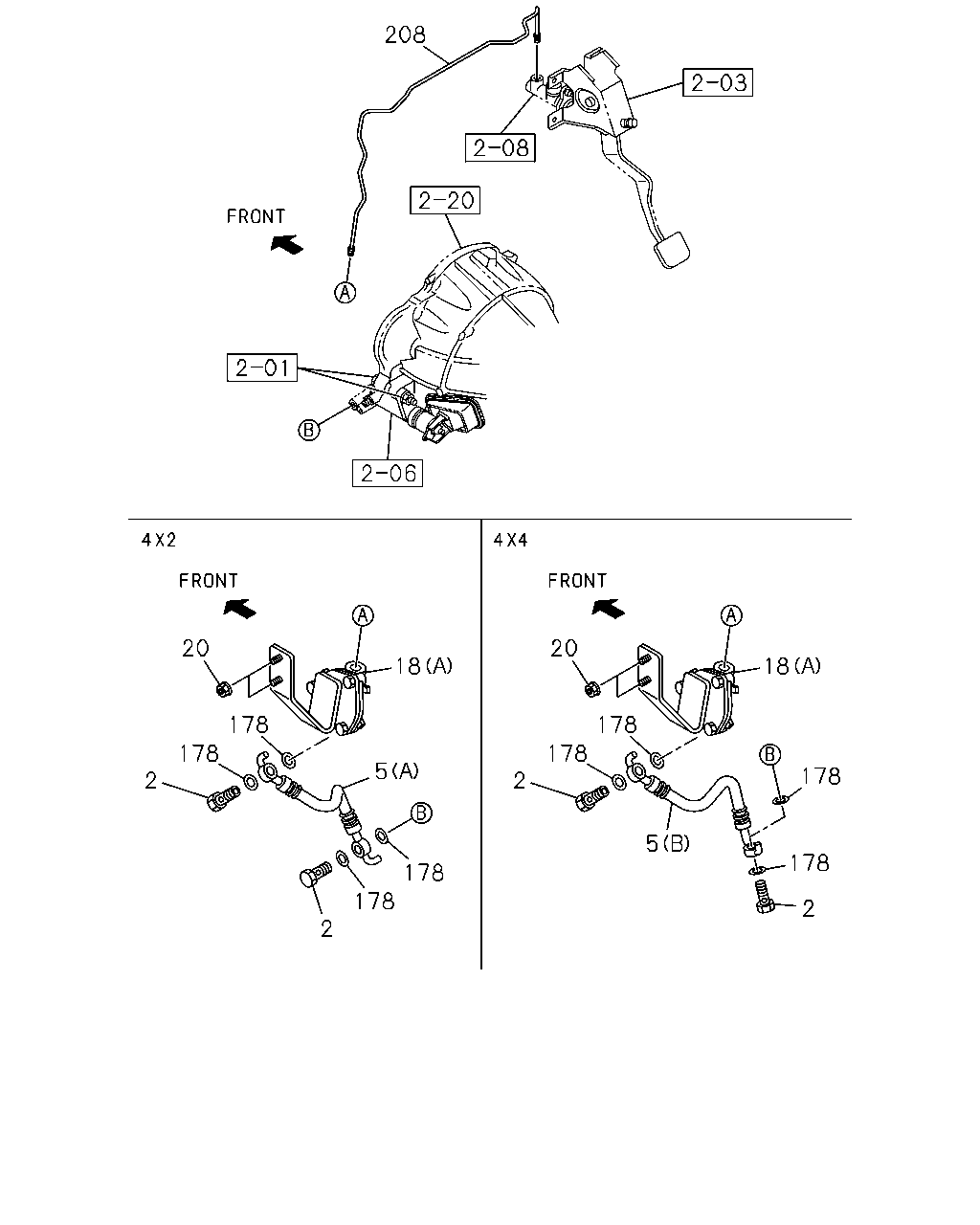

[205A] M/T MUA (10 parça)

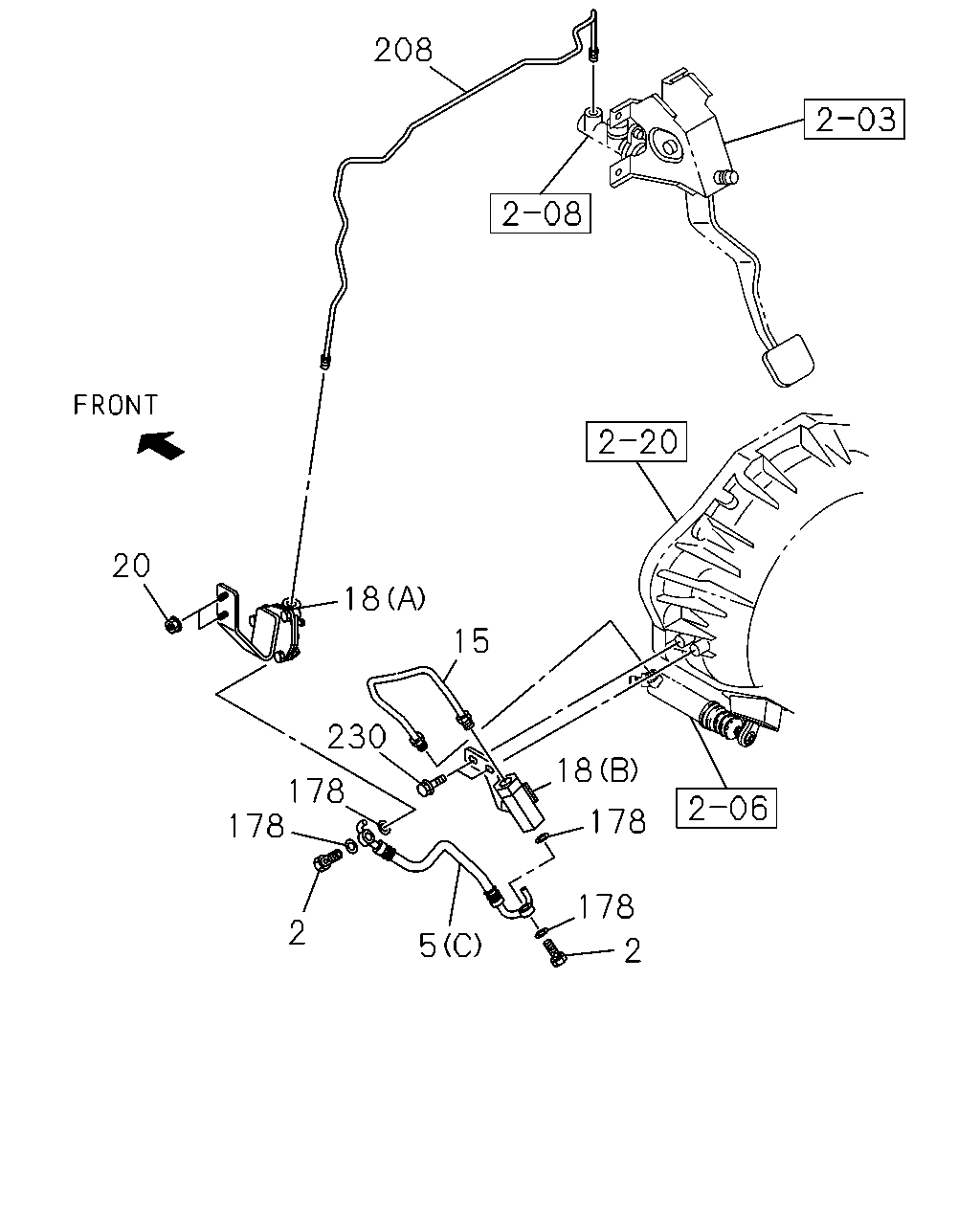

[205A] M/T MUX (12 parça)
[205A] HOSE (2 parça)
▶
208
20
18
178
178
2
5
178
178
2
20
178
178
2
5
18
178
178
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
2
BOLT; EYE,SLAVE CYL
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> M10X22 THA
8-97359-818-0
02
1
1310-
●
●
●
5
HOSE; FLEX,CLU PIPE
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ> (A) THA
8-98098-317-1
01
1
1310-
●
●
5
HOSE; FLEX,CLU PIPE
M/T MUX 5 SPEED 5S<MZJ> (C) THA
8-98098-315-1
01
1
1310-
●
5
HOSE; FLEX,CLU PIPE
4X4 EXTENDED CAB<TFS5CF> 4X4 CREW CAB<TFS5WF> M/T MUA 5 SPEED 5H<MWQ> (B) THA
8-98221-241-0
01
1
1310-1311
●
●
●
5
HOSE; FLEX,CLU PIPE
4X4<TFS***> M/T MUA 5 SPEED 5H<MWQ> (B) THA
8-98221-241-0
01
1
1312-
●
●
●
18
DAMPER ASM; CLU OIL
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> (A) THA
8-97946-616-1
01
1
1310-
●
●
●
18
DAMPER ASM; CLU OIL
M/T MUX 5 SPEED 5S<MZJ> (B) THA
8-97946-623-1
01
1
1310-
●
20
NUT; CLU OIL DAMPER
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> M6 FLANGE THA
0-91180-106-0
02
1
1310-
●
●
●
178
GASKET; FLEX HOSE TO M/CYL
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> ID=10.2 OD=16.0 THA
9-09571-410-0
04
1
1310-
●
●
●
208
PIPE; OIL,M/CYL TO DAMPER CYL
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA
8-98100-268-1
01
1
1310-
●
●
●
2
5
2
178
178
18
178
178
15
18
20
208
230
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
2
BOLT; EYE,SLAVE CYL
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> M10X22 THA
8-97359-818-0
02
1
1310-
●
●
●
5
HOSE; FLEX,CLU PIPE
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ> (A) THA
8-98098-317-1
01
1
1310-
●
●
5
HOSE; FLEX,CLU PIPE
M/T MUX 5 SPEED 5S<MZJ> (C) THA
8-98098-315-1
01
1
1310-
●
5
HOSE; FLEX,CLU PIPE
4X4 EXTENDED CAB<TFS5CF> 4X4 CREW CAB<TFS5WF> M/T MUA 5 SPEED 5H<MWQ> (B) THA
8-98221-241-0
01
1
1310-1311
●
●
●
5
HOSE; FLEX,CLU PIPE
4X4<TFS***> M/T MUA 5 SPEED 5H<MWQ> (B) THA
8-98221-241-0
01
1
1312-
●
●
●
15
PIPE; CLU,FLEX HOSE
M/T MUX 5 SPEED 5S<MZJ> THA
8-98097-509-0
01
1
1310-
●
18
DAMPER ASM; CLU OIL
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> (A) THA
8-97946-616-1
01
1
1310-
●
●
●
18
DAMPER ASM; CLU OIL
M/T MUX 5 SPEED 5S<MZJ> (B) THA
8-97946-623-1
01
1
1310-
●
20
NUT; CLU OIL DAMPER
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> M6 FLANGE THA
0-91180-106-0
02
1
1310-
●
●
●
178
GASKET; FLEX HOSE TO M/CYL
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> ID=10.2 OD=16.0 THA
9-09571-410-0
04
1
1310-
●
●
●
208
PIPE; OIL,M/CYL TO DAMPER CYL
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA
8-98100-268-1
01
1
1310-
●
●
●
230
BOLT; ACTUATOR
M/T MUX 5 SPEED 5S<MZJ> M6X16 FLANGE THA
0-28650-616-0
02
1
1310-
●

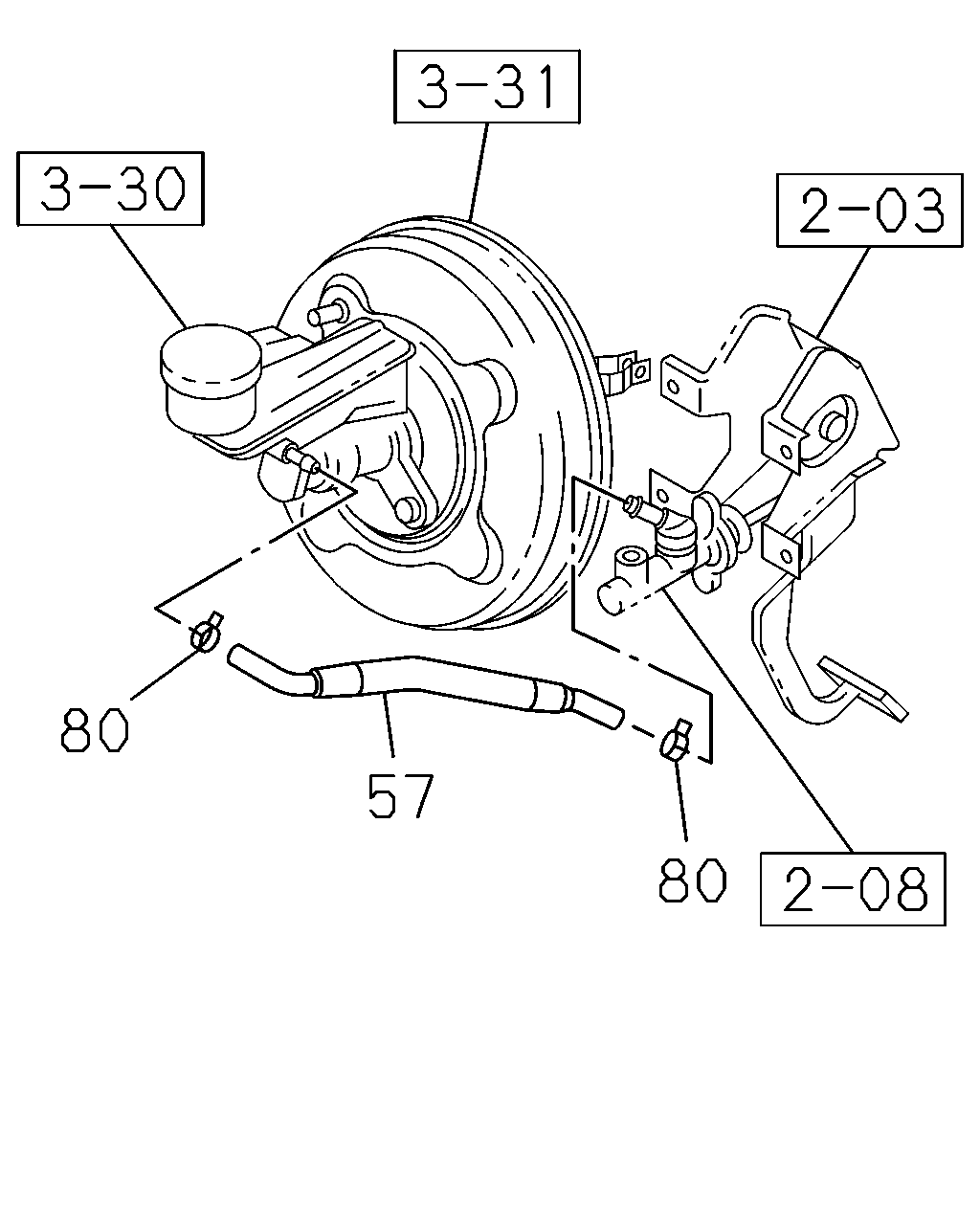

80
57
50
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
57
HOSE; CLU M/CYL TO OIL TANK
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> IMA
8-98119-218-2
01
1
1310-
●
●
●
80
CLIP; HOSE
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> ID=12 WO/PVC COATING THA
8-97947-824-0
02
1
1310-
●
●
●
