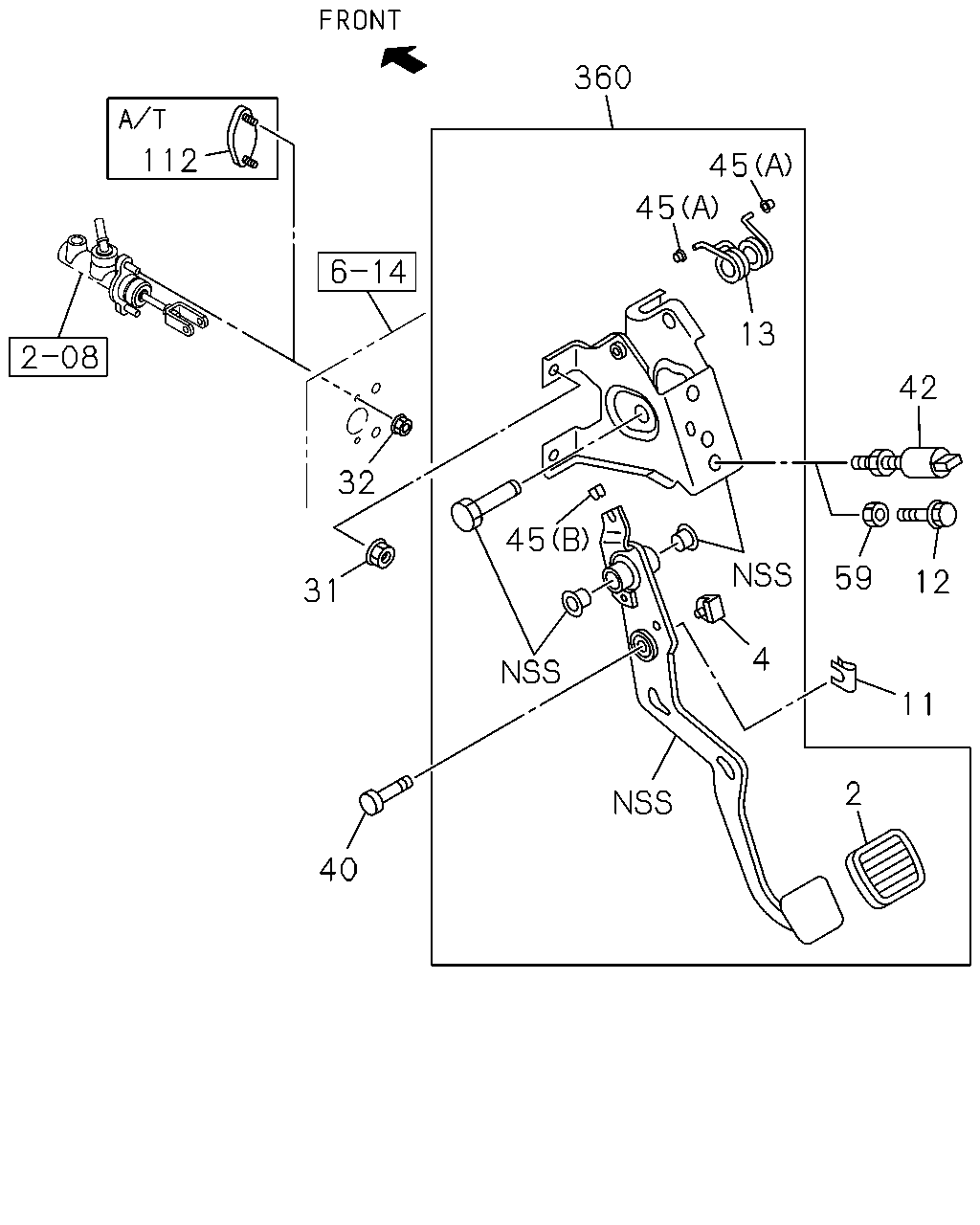

2-03 — CLUTCH PEDAL AND CONTROL (#126364) — 32 parça

32 31 40 45 13 45 45 360 42 12 59 11 2 4 112

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	COVER; CLU PEDAL M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA	8-97318-799-0	01	1	1310-1311	●	●	●	●	●
2	COVER; CLU PEDAL M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA	8-97318-799-0	01	1	1312-	●	●	●	●	●	●
4	STOPPER; CLU PEDAL M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA	8-97947-783-0	01	1	1310-1311	●	●	●	●	●
4	STOPPER; CLU PEDAL M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA	8-97947-783-0	01	1	1312-	●	●	●	●	●	●
11	PIN; SNAP,PUSH ROD TO PEDAL M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> IMA	8-98007-161-0	01	1	1310-1311	●	●	●	●	●
11	PIN; SNAP,PUSH ROD TO PEDAL M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> IMA	8-98007-161-0	01	1	1312-	●	●	●	●	●
11	PIN; SNAP,PUSH ROD TO PEDAL M/T MUA 5 SPEED 5H<MWQ> IMA	8-98007-161-0	01	1	1312-						●
12	BOLT; CLU PEDAL ADJ 4JK1-TCS ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ> M10X35 THA	0-20851-035-0	01	1	1310-	●	●	●	●
13	SPRING; ASSIST,CLU PEDAL M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA	8-97942-312-0	01	1	1310-1311	●	●	●	●	●
13	SPRING; ASSIST,CLU PEDAL M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA	8-97942-312-0	01	1	1312-	●	●	●	●	●	●
31	NUT; MTG BRKT TO BODY M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> M8 FLANGE THA	0-91180-108-0	04	1	1310-1311	●	●	●	●	●
31	NUT; MTG BRKT TO BODY M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> M8 FLANGE THA	0-91180-108-0	04	1	1312-	●	●	●	●	●
31	NUT; MTG BRKT TO BODY M/T MUA 5 SPEED 5H<MWQ> M8 FLANGE THA	0-91180-108-0	04	1	1312-						●
32	NUT; BRKT TO CLU M/CYL M8 FLANGE THA	0-91180-108-0	02	1	1310-1311	●	●	●	●	●
32	NUT; BRKT TO CLU M/CYL M8 FLANGE THA	0-91180-108-0	02	1	1312-	●	●	●	●	●	●
40	PIN; JOINT,CLU DAMPER M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> OD=7.9 L=27.5 IMA	8-97312-338-0	01	1	1310-1311	●	●	●	●	●
40	PIN; JOINT,CLU DAMPER M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> OD=7.9 L=27.5 IMA	8-97312-338-0	01	1	1312-	●	●	●	●	●
40	PIN; JOINT,CLU DAMPER M/T MUA 5 SPEED 5H<MWQ> OD=7.9 L=27.5 IMA	8-97312-338-0	01	1	1312-						●
42	SWITCH; CLU 4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA	8-98154-210-0	01	1	1310-	●	●	●	●	●	●
45	BUSHING; ASSIST SPRING,CLU PEDAL M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> (A) THA	8-97942-313-0	02	1	1310-1311	●	●	●	●	●
45	BUSHING; ASSIST SPRING,CLU PEDAL M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> (A) THA	8-97942-313-0	02	1	1312-	●	●	●	●	●	●
45	BUSHING; ASSIST SPRING,CLU PEDAL M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> (B) THA	8-97942-314-0	01	1	1310-1311	●	●	●	●	●
45	BUSHING; ASSIST SPRING,CLU PEDAL M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> (B) THA	8-97942-314-0	01	1	1312-	●	●	●	●	●	●
59	NUT; CLU PEDAL ADJ 4JK1-TCS ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ> M10 THA	0-91110-510-0	01	1	1310-	●	●	●	●
112	PLUG; METAL,M/CYL A/T 5 SPEED-AISIN<MA1> THA	8-97945-168-0	01	1	1310-	●	●	●		●
360	PEDAL ASM; CLUTCH 4JK1-TCS ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ> THA	8-98219-798-0	01	1	1310-1512	●	●	●	●
360	PEDAL ASM; CLUTCH 4JK1-TCS ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ> THA	8-98317-387-0	01	1	1601-	●	●	●	●
360	PEDAL ASM; CLUTCH 4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA	8-98219-800-0	01	1	1310-1311	●	●	●	●	●
360	PEDAL ASM; CLUTCH 4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA	8-98219-800-0	01	1	1312-1512	●	●	●	●	●
360	PEDAL ASM; CLUTCH 4JK1-TCX ENG<LR0> M/T MUA 5 SPEED 5H<MWQ> THA	8-98219-800-0	01	1	1312-1512						●
360	PEDAL ASM; CLUTCH 4JK1-TCX ENG<LR0>,4JJ1-TCX ENG<LS0> M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA	8-98317-389-0	01	1	1601-	●	●	●	●	●
360	PEDAL ASM; CLUTCH 4JK1-TCX ENG<LR0> M/T MUA 5 SPEED 5H<MWQ> THA	8-98317-389-0	01	1	1601-						●
