◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51491 - TFR/TFS(THAILAND) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-41 - FUEL PIPING; CHASSIS ▶
1-41 — FUEL PIPING; CHASSIS (#126361) — 55 parça

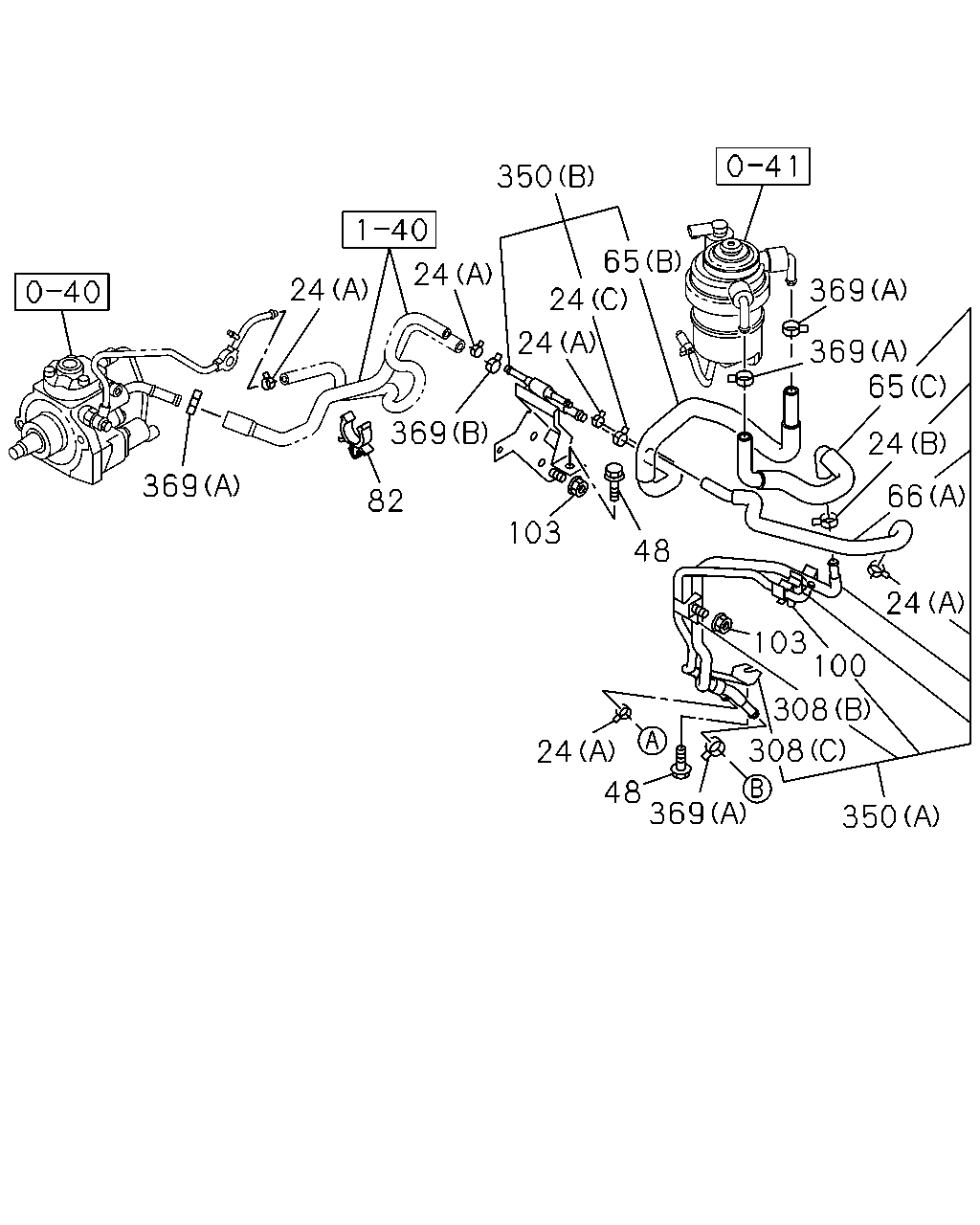

çizim 373821
24 350 65 369 65 369 24 66 24 100 308 308 24 48 369 350 103 369 82 48 103 369 24 24 24
BalonParca AdiParca NoAdetTipApplied Date A B C
24 CLIP; FUEL HOSE
(A) ID=11.5 THA 		8-98051-892-0 01 1 1310-1311 ● ● ●
24 CLIP; FUEL HOSE
(A) ID=11.5 THA 		8-98051-892-0 01 1 1310-1311 ● ● ●
24 CLIP; FUEL HOSE
(A) ID=11.5 THA 		8-98051-892-0 06 1 1312- ● ● ●
24 CLIP; FUEL HOSE
(B) ID=17.2 THA 		8-98052-395-0 01 1 1310- ● ● ●
24 CLIP; FUEL HOSE
(B) ID=17.2 THA 		8-98052-395-0 01 1 1310- ● ● ●
24 CLIP; FUEL HOSE
(C) ID=16 THA 		8-98030-682-0 01 1 1310- ● ● ●
24 CLIP; FUEL HOSE
(A) ID=11.5 THA 		8-98051-892-0 06 1 1310-1311 ● ● ●
24 CLIP; FUEL HOSE
(A) ID=11.5 THA 		8-98051-892-0 01 1 1312- ● ● ●
24 CLIP; FUEL HOSE
(A) ID=11.5 THA 		8-98051-892-0 01 1 1312- ● ● ●
24 CLIP; FUEL HOSE
(D) THA 		8-98233-886-0 02 1 1310- ● ● ●
24 CLIP; FUEL HOSE
(E) THA 		8-98233-887-0 01 1 1310- ● ● ●
48 BOLT; BRKT
M6X16 FLANGE THA 		0-28650-616-0 02 1 1310- ● ● ●
65 HOSE; FUEL,DELIVERY PIPE
(A) THA 		8-98248-701-0 01 1 1310- ● ● ●
65 HOSE; FUEL,DELIVERY PIPE
(B) THA 		8-98100-729-4 01 1 1310- ● ● ●
65 HOSE; FUEL,DELIVERY PIPE
(C) THA 		8-98100-731-2 01 1 1310- ● ● ●
66 HOSE; FUEL,RETURN PIPE
(B) THA 		8-98248-702-0 01 1 1310- ● ● ●
66 HOSE; FUEL,RETURN PIPE
(A) THA 		8-98100-720-2 01 1 1310- ● ● ●
82 CLIP; FUEL HOSE
ID=17 THA 		8-94382-792-1 01 1 1310- ● ● ●
100 CLIP; FUEL PIPE
THA 		8-98113-581-0 01 1 1310- ● ● ●
103 NUT; BRKT
M6 FLANGE THA 		0-91180-106-0 02 1 1310- ● ● ●
308 BRACKET; FUEL PIPE
(A) THA 		8-98128-259-0 01 1 1310- ● ● ●
308 BRACKET; FUEL PIPE
(B) THA 		8-98233-889-0 01 1 1310- ● ● ●
308 BRACKET; FUEL PIPE
(C) THA 		8-98233-890-0 01 1 1310- ● ● ●
350 PIPE; FUEL,DEL & RET
(A) THA 		8-98248-691-0 01 1 1310- ● ● ●
350 PIPE; FUEL,DEL & RET
(C) THA 		8-98248-684-0 01 1 1310- ● ● ●
350 PIPE; FUEL,DEL & RET
(B) THA 		8-98113-293-6 01 1 1310- ● ● ●
369 CLAMP; HOSE,FUEL
(A) ID=17.2 THA 		8-98052-395-0 06 1 1310- ● ● ●
369 CLAMP; HOSE,FUEL
(B) ID=15.2 THA 		8-98186-048-0 01 1 1310- ● ● ●

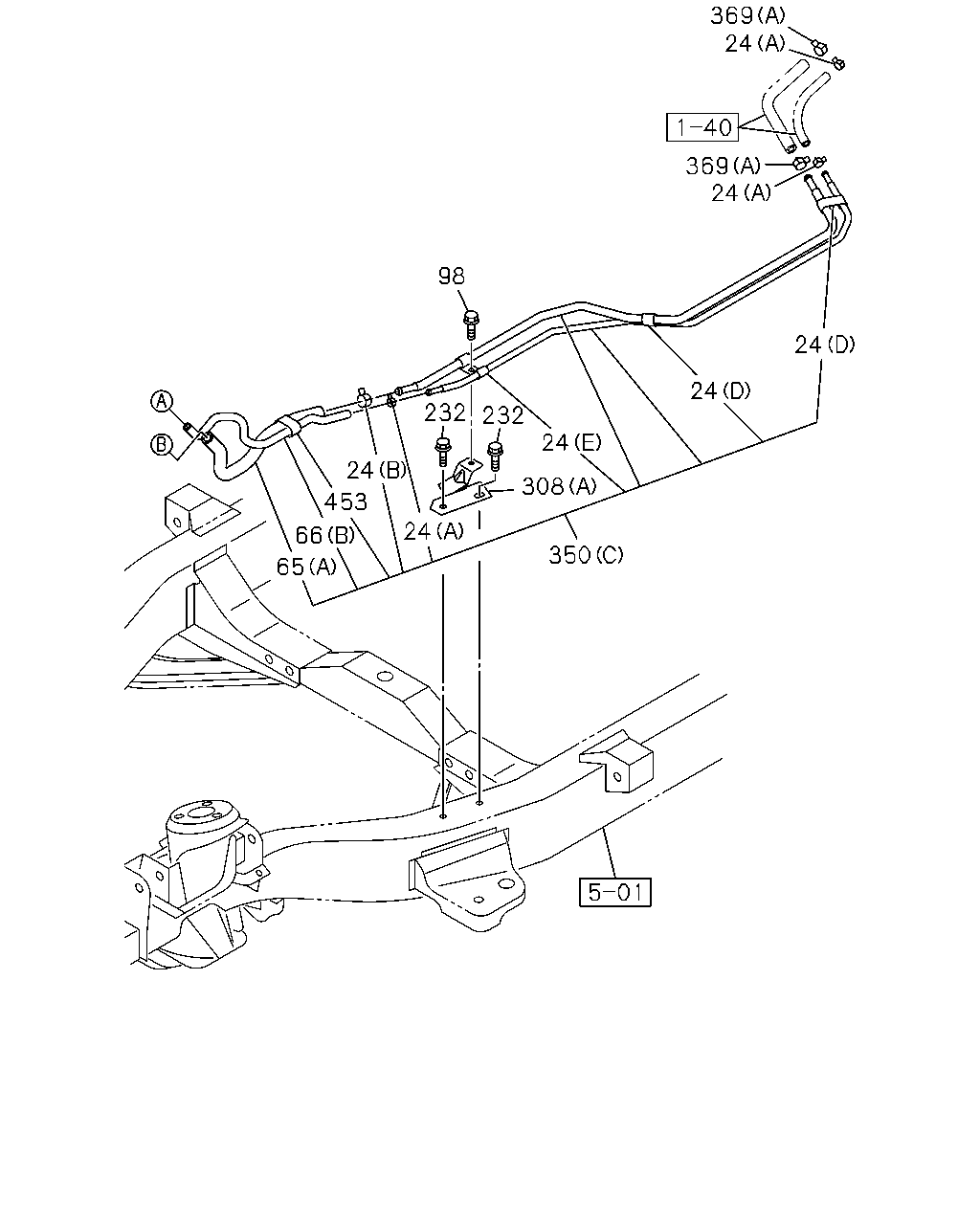

çizim 373838
350 369 24 369 24 24 24 24 24 24 98 232 232 308 453 66 65
BalonParca AdiParca NoAdetTipApplied Date A B C
24 CLIP; FUEL HOSE
(A) ID=11.5 THA 		8-98051-892-0 01 1 1310-1311 ● ● ●
24 CLIP; FUEL HOSE
(A) ID=11.5 THA 		8-98051-892-0 01 1 1310-1311 ● ● ●
24 CLIP; FUEL HOSE
(A) ID=11.5 THA 		8-98051-892-0 06 1 1312- ● ● ●
24 CLIP; FUEL HOSE
(B) ID=17.2 THA 		8-98052-395-0 01 1 1310- ● ● ●
24 CLIP; FUEL HOSE
(B) ID=17.2 THA 		8-98052-395-0 01 1 1310- ● ● ●
24 CLIP; FUEL HOSE
(C) ID=16 THA 		8-98030-682-0 01 1 1310- ● ● ●
24 CLIP; FUEL HOSE
(A) ID=11.5 THA 		8-98051-892-0 06 1 1310-1311 ● ● ●
24 CLIP; FUEL HOSE
(A) ID=11.5 THA 		8-98051-892-0 01 1 1312- ● ● ●
24 CLIP; FUEL HOSE
(A) ID=11.5 THA 		8-98051-892-0 01 1 1312- ● ● ●
24 CLIP; FUEL HOSE
(D) THA 		8-98233-886-0 02 1 1310- ● ● ●
24 CLIP; FUEL HOSE
(E) THA 		8-98233-887-0 01 1 1310- ● ● ●
65 HOSE; FUEL,DELIVERY PIPE
(A) THA 		8-98248-701-0 01 1 1310- ● ● ●
65 HOSE; FUEL,DELIVERY PIPE
(B) THA 		8-98100-729-4 01 1 1310- ● ● ●
65 HOSE; FUEL,DELIVERY PIPE
(C) THA 		8-98100-731-2 01 1 1310- ● ● ●
66 HOSE; FUEL,RETURN PIPE
(B) THA 		8-98248-702-0 01 1 1310- ● ● ●
66 HOSE; FUEL,RETURN PIPE
(A) THA 		8-98100-720-2 01 1 1310- ● ● ●
98 BOLT; BRKT,FUEL PIPE
M6X16 FLANGE THA 		0-28650-616-0 01 1 1310- ● ● ●
232 BOLT; CLIP,PIPE
M10X25 FLANGE THA 		0-28061-025-0 02 1 1310- ● ● ●
308 BRACKET; FUEL PIPE
(A) THA 		8-98128-259-0 01 1 1310- ● ● ●
308 BRACKET; FUEL PIPE
(B) THA 		8-98233-889-0 01 1 1310- ● ● ●
308 BRACKET; FUEL PIPE
(C) THA 		8-98233-890-0 01 1 1310- ● ● ●
350 PIPE; FUEL,DEL & RET
(A) THA 		8-98248-691-0 01 1 1310- ● ● ●
350 PIPE; FUEL,DEL & RET
(C) THA 		8-98248-684-0 01 1 1310- ● ● ●
350 PIPE; FUEL,DEL & RET
(B) THA 		8-98113-293-6 01 1 1310- ● ● ●
369 CLAMP; HOSE,FUEL
(A) ID=17.2 THA 		8-98052-395-0 06 1 1310- ● ● ●
369 CLAMP; HOSE,FUEL
(B) ID=15.2 THA 		8-98186-048-0 01 1 1310- ● ● ●
453 BAND; FLEX HOSE
THA 		8-98233-888-0 01 1 1310- ● ● ●
