1-40 — FUEL TANK (#126360) — 64 parça

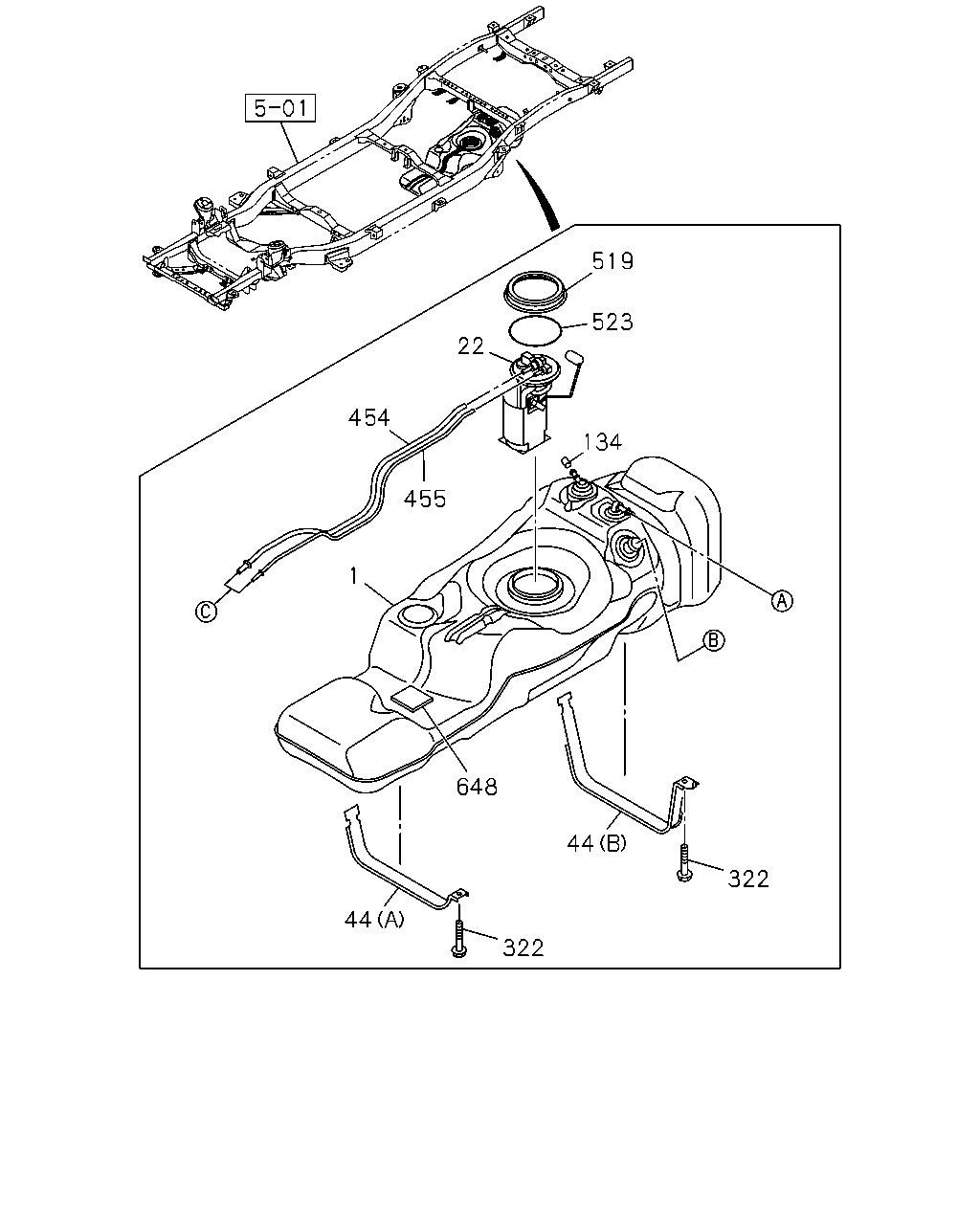

çizim 373901
454 22 523 519 134 455 1 648 44 322 322 44
BalonParca AdiParca NoAdetTipApplied Date A B C
1 TANK; FUEL
76L THA 		8-97947-077-3 01 1 1310- ● ● ●
22 UNIT; FUEL TANK
THA 		8-97947-151-3 01 1 1310- ● ● ●
44 BAND; FUEL TANK
(A) THA 		8-97947-085-4 01 1 1310- ● ● ●
44 BAND; FUEL TANK
(B) THA 		8-97947-086-2 01 1 1310- ● ● ●
134 CAP; VALVE,FUEL TANK
THA 		8-98223-574-0 01 1 1310- ● ● ●
322 BOLT; BRKT FIX
M10X50 FLANGE THA 		8-97301-165-0 02 1 1310- ● ● ●
322 BOLT; BRKT FIX
REAR BODY DELETE<8HH> M12X40 FLANGE THA 		0-28051-240-0 01 1 1310- ● ● ●
454 PIPE; FUEL,DELIVERY
THA 		8-97947-152-0 01 1 1310- ● ● ●
455 PIPE; FUEL,RETURN
THA 		8-97947-153-0 01 1 1310- ● ● ●
519 RETAINER; FUEL PUMP
THA 		8-97947-157-0 01 1 1310- ● ● ●
523 SEAL; FUEL SENSOR
ID=125 OD=135 THA 		8-97947-154-0 01 1 1310- ● ● ●
648 RUBBER
THA 		8-98191-468-0 01 1 1310- ● ● ●

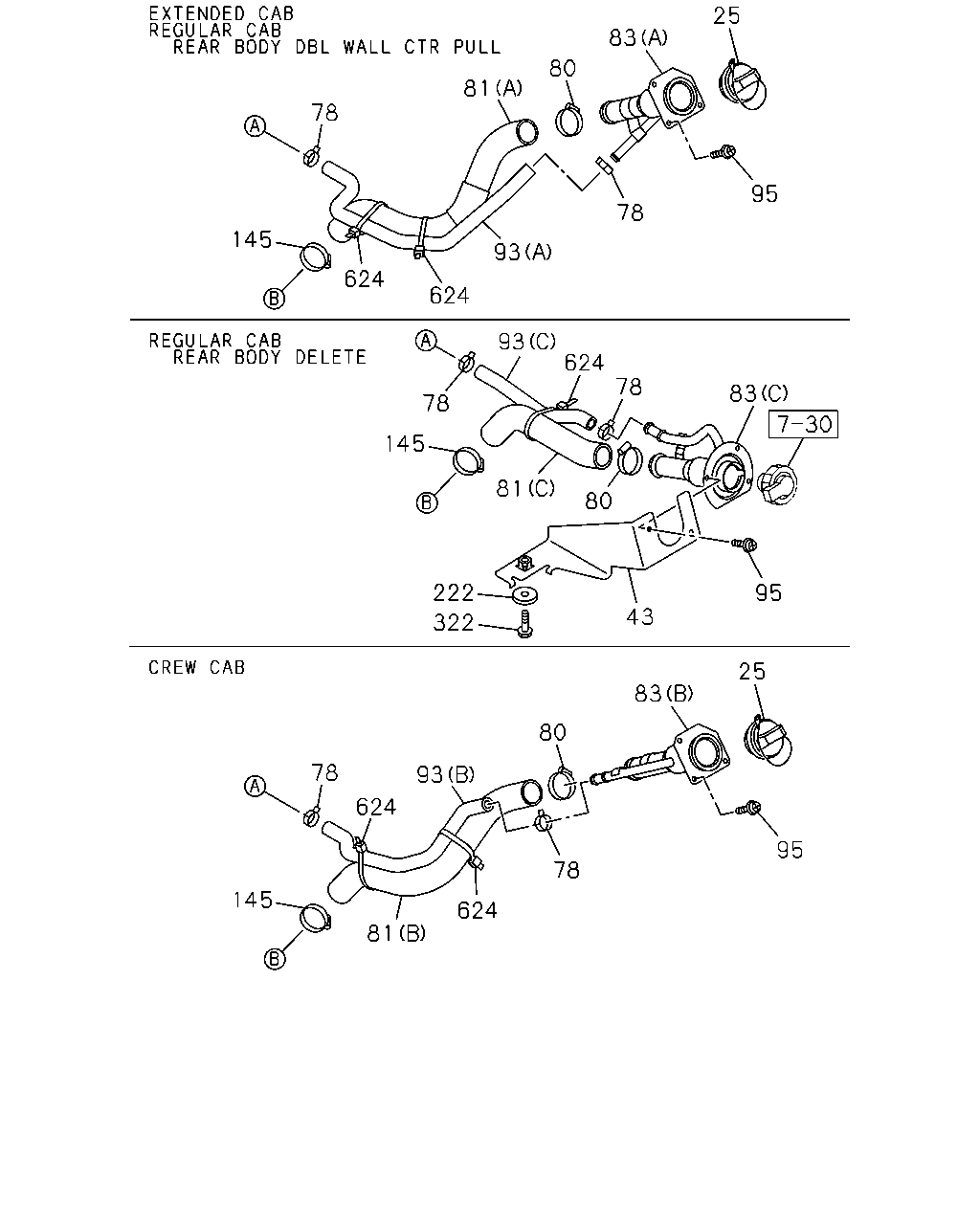

çizim 374190
78 81 80 83 25 78 95 624 93 624 145 93 83 78 624 81 43 95 222 322 145 78 80 83 25 80 93 78 624 78 95 624 81 145
BalonParca AdiParca NoAdetTipApplied Date A B C
25 CAP; FILLER,FUEL TANK
REAR BODY DBL WALL CTR PULL<E63> EXC. FUEL TANK CAP W/LOCK<N05> IMA 		8-98088-024-0 01 1 1310-1510 ● ● ●
25 CAP; FILLER,FUEL TANK
REAR BODY DBL WALL CTR PULL<E63> EXC. FUEL TANK CAP W/LOCK<N05> IMA 		8-98327-664-0 01 1 1511- ● ● ●
43 BRACKET; FUEL TANK
REAR BODY DELETE<8HH> THA 		8-97947-120-0 01 1 1310- ● ● ●
78 CLIP; BREATHER HOSE
ID=20.8 THA 		8-97944-127-0 01 1 1310- ● ● ●
78 CLIP; BREATHER HOSE
ID=20.8 THA 		8-97944-127-0 01 1 1310- ● ● ●
80 CLIP; FILLER HOSE
ID=30-45 THA 		8-98115-807-0 01 1 1310- ● ● ●
81 HOSE; FUEL FILLER
EXTENDED CAB<TF**C*> (A) THA 		8-97947-177-2 01 1 1310-1311 ● ● ●
81 HOSE; FUEL FILLER
4X2 REGULAR CAB<TFB*S*> REAR BODY DBL WALL CTR PULL<E63> (A) THA 		8-97947-177-2 01 1 1310-1311 ● ● ●
81 HOSE; FUEL FILLER
EXTENDED CAB<TF**C*> (A) THA 		8-97947-177-2 01 1 1312- ● ● ●
81 HOSE; FUEL FILLER
4X2 REGULAR CAB<TFB*S*> REAR BODY DBL WALL CTR PULL<E63> (A) THA 		8-97947-177-2 01 1 1312- ● ●
81 HOSE; FUEL FILLER
REGULAR CAB<TF**S*> REAR BODY DBL WALL CTR PULL<E63> (A) THA 		8-97947-177-2 01 1 1312- ●
81 HOSE; FUEL FILLER
REAR BODY DELETE<8HH> (C) THA 		8-97947-481-0 01 1 1310-1311 ● ● ●
81 HOSE; FUEL FILLER
4X2 REGULAR CAB<TFB*S*> REAR BODY DELETE<8HH> (C) THA 		8-97947-481-0 01 1 1312- ● ●
81 HOSE; FUEL FILLER
REGULAR CAB<TF**S*> REAR BODY DELETE<8HH> (C) THA 		8-97947-481-0 01 1 1312- ●
81 HOSE; FUEL FILLER
4X2 CREW CAB<TFB*W*> (B) THA 		8-97947-192-0 01 1 1310- ●
81 HOSE; FUEL FILLER
CREW CAB<TF**W*> (B) THA 		8-97947-192-0 01 1 1310- ● ●
83 NECK; FUEL FILLER
EXTENDED CAB<TF**C*> (A) THA 		8-97947-175-1 01 1 1310-1311 ● ● ●
83 NECK; FUEL FILLER
4X2 REGULAR CAB<TFB*S*> REAR BODY DBL WALL CTR PULL<E63> (A) THA 		8-97947-175-1 01 1 1310-1311 ● ● ●
83 NECK; FUEL FILLER
EXTENDED CAB<TF**C*> (A) THA 		8-97947-175-1 01 1 1312- ● ● ●
83 NECK; FUEL FILLER
4X2 REGULAR CAB<TFB*S*> REAR BODY DBL WALL CTR PULL<E63> (A) THA 		8-97947-175-1 01 1 1312- ● ●
83 NECK; FUEL FILLER
REGULAR CAB<TF**S*> REAR BODY DBL WALL CTR PULL<E63> (A) THA 		8-97947-175-1 01 1 1312- ●
83 NECK; FUEL FILLER
REAR BODY DELETE<8HH> (C) THA 		8-97947-479-2 01 1 1310-1311 ● ● ●
83 NECK; FUEL FILLER
4X2 REGULAR CAB<TFB*S*> REAR BODY DELETE<8HH> (C) THA 		8-97947-479-2 01 1 1312- ● ●
83 NECK; FUEL FILLER
REGULAR CAB<TF**S*> REAR BODY DELETE<8HH> (C) THA 		8-97947-479-2 01 1 1312- ●
83 NECK; FUEL FILLER
4X2 CREW CAB<TFB*W*> (B) THA 		8-97947-181-0 01 1 1310- ●
83 NECK; FUEL FILLER
CREW CAB<TF**W*> (B) THA 		8-97947-181-0 01 1 1310- ● ●
93 HOSE; BREATHER,FUEL TANK
EXTENDED CAB<TF**C*> (A) THA 		8-97947-176-2 01 1 1310-1311 ● ● ●
93 HOSE; BREATHER,FUEL TANK
4X2 REGULAR CAB<TFB*S*> REAR BODY DBL WALL CTR PULL<E63> (A) THA 		8-97947-176-2 01 1 1310-1311 ● ● ●
93 HOSE; BREATHER,FUEL TANK
EXTENDED CAB<TF**C*> (A) THA 		8-97947-176-2 01 1 1312- ● ● ●
93 HOSE; BREATHER,FUEL TANK
4X2 REGULAR CAB<TFB*S*> REAR BODY DBL WALL CTR PULL<E63> (A) THA 		8-97947-176-2 01 1 1312- ● ●
93 HOSE; BREATHER,FUEL TANK
REGULAR CAB<TF**S*> REAR BODY DBL WALL CTR PULL<E63> (A) THA 		8-97947-176-2 01 1 1312- ●
93 HOSE; BREATHER,FUEL TANK
REAR BODY DELETE<8HH> (C) THA 		8-97947-480-1 01 1 1310-1311 ● ● ●
93 HOSE; BREATHER,FUEL TANK
4X2 REGULAR CAB<TFB*S*> REAR BODY DELETE<8HH> (C) THA 		8-97947-480-1 01 1 1312- ● ●
93 HOSE; BREATHER,FUEL TANK
REGULAR CAB<TF**S*> REAR BODY DELETE<8HH> (C) THA 		8-97947-480-1 01 1 1312- ●
93 HOSE; BREATHER,FUEL TANK
4X2 CREW CAB<TFB*W*> (B) THA 		8-97947-193-0 01 1 1310- ●
93 HOSE; BREATHER,FUEL TANK
CREW CAB<TF**W*> (B) THA 		8-97947-193-0 01 1 1310- ● ●
95 SCREW; FILLER NECK
REAR BODY DBL WALL CTR PULL<E63> IMA 		8-98139-595-0 03 1 1310- ● ● ●
95 SCREW; FILLER NECK
REAR BODY DELETE<8HH> IMA 		8-98139-595-0 02 1 1310- ● ● ●
145 CLIP; HOSE,FILLER NECK
ID=30-45 THA 		8-97947-244-0 01 1 1310- ● ● ●
222 WASHER; BRKT,FUEL TANK
REAR BODY DELETE<8HH> ID=13 OD=40 T=6 THA 		8-98098-458-0 01 1 1310- ● ● ●
322 BOLT; BRKT FIX
M10X50 FLANGE THA 		8-97301-165-0 02 1 1310- ● ● ●
322 BOLT; BRKT FIX
REAR BODY DELETE<8HH> M12X40 FLANGE THA 		0-28051-240-0 01 1 1310- ● ● ●
624 CLIP; BAND
REAR BODY DBL WALL CTR PULL<E63> L=330 IMA 		5-09709-118-0 02 1 1310- ● ● ●
624 CLIP; BAND
REAR BODY DELETE<8HH> L=330 IMA 		5-09709-118-0 01 1 1310-1311 ● ● ●
624 CLIP; BAND
4X2 REGULAR CAB<TFB*S*> REAR BODY DELETE<8HH> L=330 IMA 		5-09709-118-0 01 1 1312- ● ●
624 CLIP; BAND
REGULAR CAB<TF**S*> REAR BODY DELETE<8HH> L=330 IMA 		5-09709-118-0 01 1 1312- ●

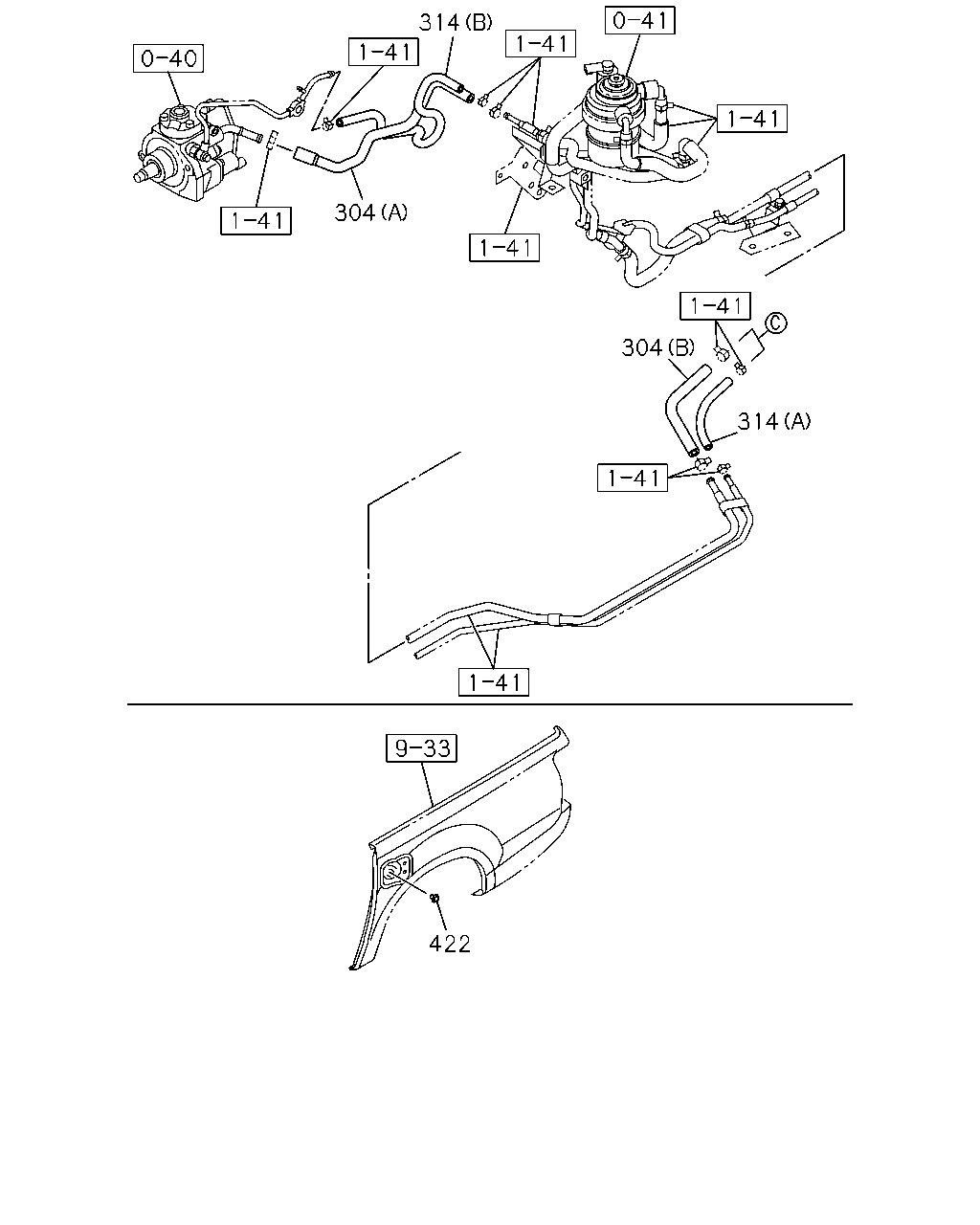

çizim 374554
314 304 304 314 422
BalonParca AdiParca NoAdetTipApplied Date A B C
304 HOSE; RUBBER,FUEL FILTER TO INJ PUMP
(B) THA 		8-98164-019-0 01 1 1310- ● ● ●
304 HOSE; RUBBER,FUEL FILTER TO INJ PUMP
(A) THA 		8-98222-042-1 01 1 1310- ● ● ●
314 HOSE; RUBBER,FUEL RETURN
(A) THA 		8-98113-323-1 01 1 1310-1404 ● ● ●
314 HOSE; RUBBER,FUEL RETURN
(A) THA 		8-98258-246-0 01 1 1405- ● ● ●
314 HOSE; RUBBER,FUEL RETURN
(B) THA 		8-98222-040-0 01 1 1310- ● ● ●
422 PLUG; FUEL TANK
REAR BODY DBL WALL CTR PULL<E63> THA 		8-98154-084-0 01 1 1310- ● ● ●
