1-31 — AIR DUCT (#126358) — 42 parça

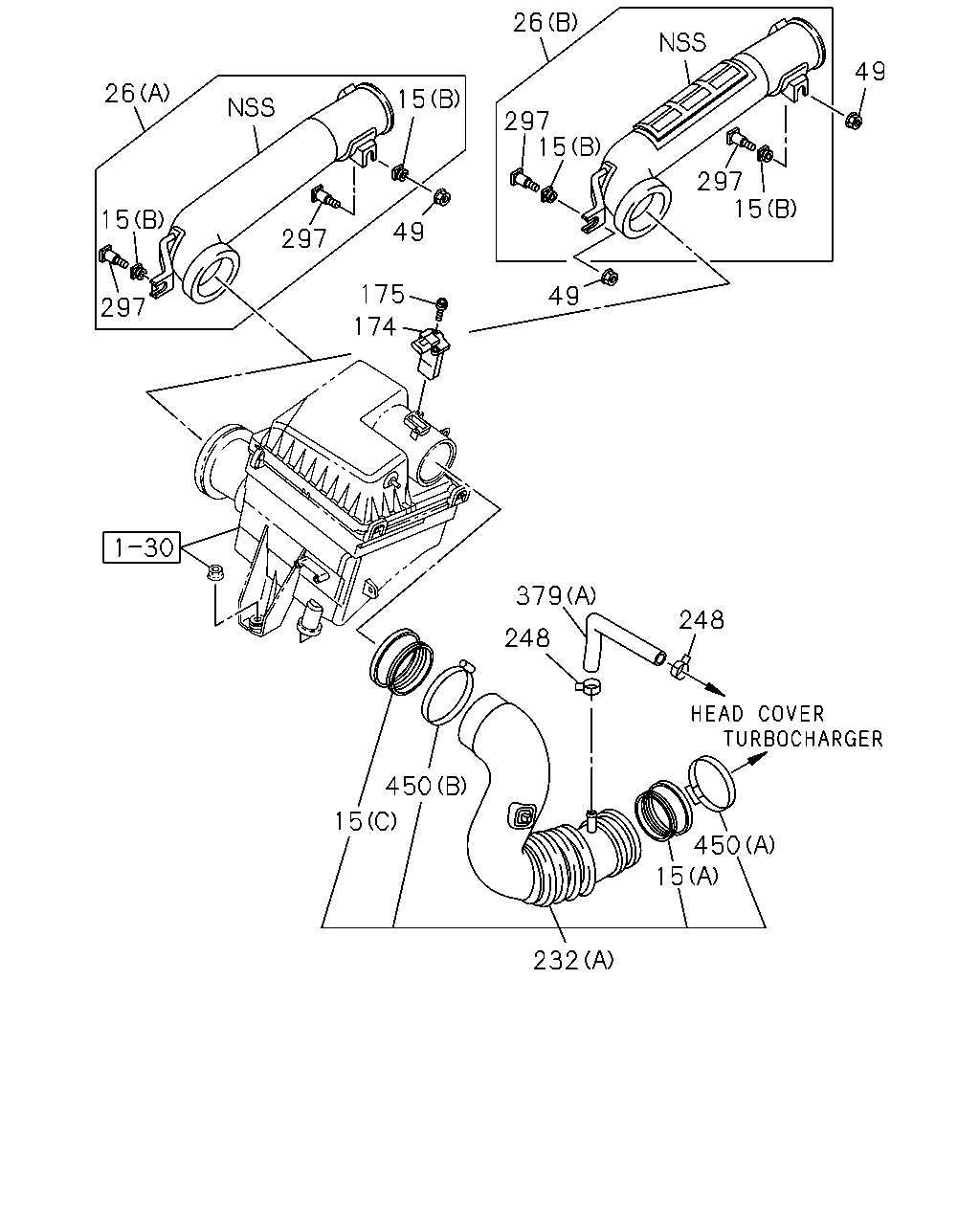

çizim 373742
26 15 297 15 26 49 297 15 297 15 49 297 175 49 174 379 248 248 450 15 450 15 232
BalonParca AdiParca NoAdetTipApplied Date A B C
15 INSULATOR
EXC. REFRIGERATION KIT<7FH> (A) THA 		8-98137-141-0 01 1 1310- ●
15 INSULATOR
(A) THA 		8-98137-140-0 01 1 1310- ● ●
15 INSULATOR
EXC. REFRIGERATION KIT<7FH> (C) THA 		8-98214-036-0 01 1 1310- ●
15 INSULATOR
(C) THA 		8-98214-036-0 01 1 1310- ● ●
15 INSULATOR
(B) THA 		8-98203-901-0 02 1 1310- ● ● ●
26 DUCT; AIR INT
(A) THA 		8-98065-550-1 01 1 1310- ●
26 DUCT; AIR INT
(B) THA 		8-98104-472-1 01 1 1310- ● ●
49 NUT; AIR DUCT
M6 FLANGE THA 		0-91180-106-0 02 1 1310- ● ● ●
174 SENSOR; AIR FLOW CONT
IMA 		8-97601-967-0 01 1 1310- ● ● ●
175 BOLT; AIR FLOW CONT SENSOR
SCREW M4X10 W/LK&PL WASHER THA 		0-36230-410-0 02 1 1310- ● ● ●
232 HOSE; CONN
EXC. REFRIGERATION KIT<7FH> (A) THA 		8-98212-085-0 01 1 1310- ●
232 HOSE; CONN
(A) THA 		8-98212-086-0 01 1 1310- ● ●
232 HOSE; CONN
REFRIGERATION KIT<7FH> (B) THA 		8-98201-837-0 01 1 1310- ●
248 CLIP; RUBBER HOSE
ID=20.4 IMA 		8-94121-113-0 02 1 1310- ●
248 CLIP; RUBBER HOSE
EXC. REFRIGERATION KIT<7FH> ID=20.4 IMA 		8-94121-113-0 02 1 1310- ● ●
297 BOLT; DUCT
THA 		8-98203-900-0 02 1 1310- ● ● ●
379 HOSE; RUBBER
EXC. REFRIGERATION KIT<7FH> (A) THA 		8-98065-694-1 01 1 1310- ● ● ●
379 HOSE; RUBBER
REFRIGERATION KIT<7FH> (B) THA 		8-98205-976-0 01 1 1310- ●
450 CLAMP; HOSE
EXC. REFRIGERATION KIT<7FH> (A) THA 		8-98136-625-0 01 1 1310- ●
450 CLAMP; HOSE
(A) THA 		8-98136-624-0 01 1 1310- ● ●
450 CLAMP; HOSE
EXC. REFRIGERATION KIT<7FH> (B) THA 		8-98136-623-0 01 1 1310- ●
450 CLAMP; HOSE
(B) THA 		8-98136-623-0 01 1 1310- ● ●

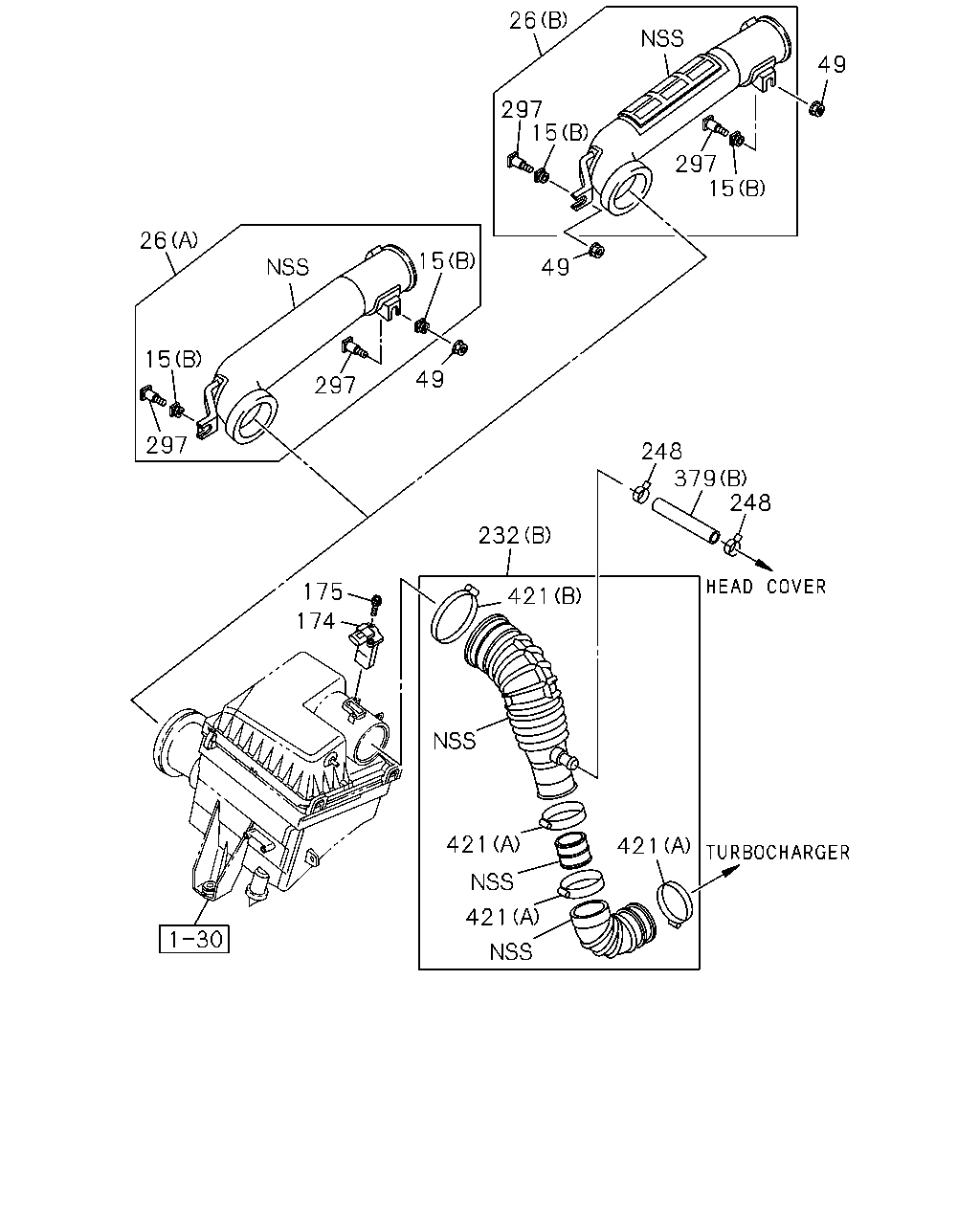

çizim 373836
26 297 49 15 15 297 175 174 421 421 421 421 232 248 248 379 49 15 297 49 297 26 15
BalonParca AdiParca NoAdetTipApplied Date A B C
15 INSULATOR
EXC. REFRIGERATION KIT<7FH> (A) THA 		8-98137-141-0 01 1 1310- ●
15 INSULATOR
(A) THA 		8-98137-140-0 01 1 1310- ● ●
15 INSULATOR
EXC. REFRIGERATION KIT<7FH> (C) THA 		8-98214-036-0 01 1 1310- ●
15 INSULATOR
(C) THA 		8-98214-036-0 01 1 1310- ● ●
15 INSULATOR
(B) THA 		8-98203-901-0 02 1 1310- ● ● ●
26 DUCT; AIR INT
(A) THA 		8-98065-550-1 01 1 1310- ●
26 DUCT; AIR INT
(B) THA 		8-98104-472-1 01 1 1310- ● ●
49 NUT; AIR DUCT
M6 FLANGE THA 		0-91180-106-0 02 1 1310- ● ● ●
174 SENSOR; AIR FLOW CONT
IMA 		8-97601-967-0 01 1 1310- ● ● ●
175 BOLT; AIR FLOW CONT SENSOR
SCREW M4X10 W/LK&PL WASHER THA 		0-36230-410-0 02 1 1310- ● ● ●
232 HOSE; CONN
EXC. REFRIGERATION KIT<7FH> (A) THA 		8-98212-085-0 01 1 1310- ●
232 HOSE; CONN
(A) THA 		8-98212-086-0 01 1 1310- ● ●
232 HOSE; CONN
REFRIGERATION KIT<7FH> (B) THA 		8-98201-837-0 01 1 1310- ●
248 CLIP; RUBBER HOSE
ID=20.4 IMA 		8-94121-113-0 02 1 1310- ●
248 CLIP; RUBBER HOSE
EXC. REFRIGERATION KIT<7FH> ID=20.4 IMA 		8-94121-113-0 02 1 1310- ● ●
297 BOLT; DUCT
THA 		8-98203-900-0 02 1 1310- ● ● ●
379 HOSE; RUBBER
EXC. REFRIGERATION KIT<7FH> (A) THA 		8-98065-694-1 01 1 1310- ● ● ●
379 HOSE; RUBBER
REFRIGERATION KIT<7FH> (B) THA 		8-98205-976-0 01 1 1310- ●
421 CLAMP; AIR DUCT
REFRIGERATION KIT<7FH> (A) THA 		8-98329-436-0 03 1 1507- ●
421 CLAMP; AIR DUCT
REFRIGERATION KIT<7FH> (B) THA 		8-98329-437-0 01 1 1507- ●
