1-10 — RADIATOR (#126355) — 20 parça

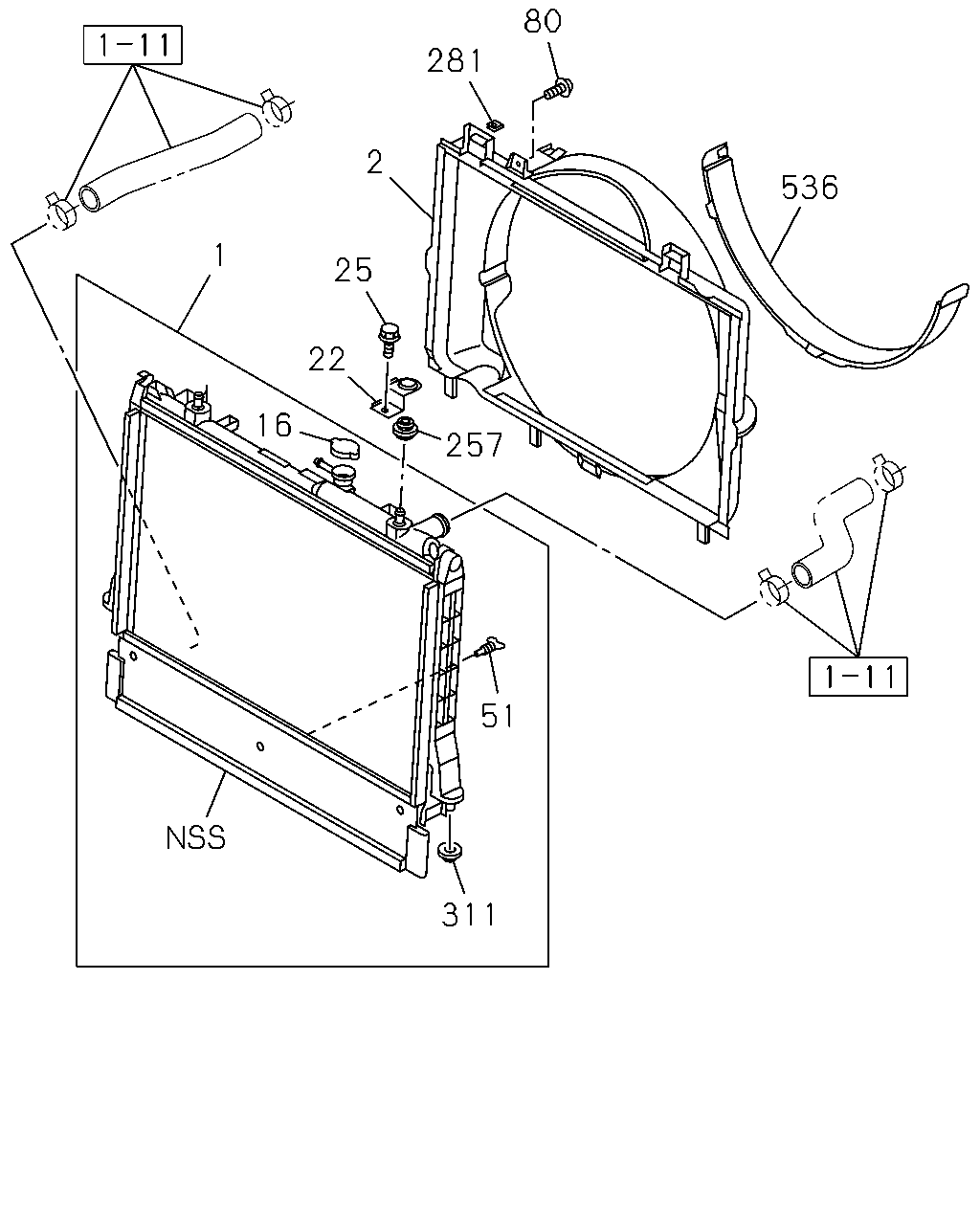

çizim 373603
80 281 2 25 536 22 1 257 51 311 16
BalonParca AdiParca NoAdetTipApplied Date A B C
1 RADIATOR ASM
THA 		8-98137-277-5 01 1 1310- ●
1 RADIATOR ASM
A/T 5 SPEED-AISIN<MA1> THA 		8-98137-274-5 01 1 1310- ●
1 RADIATOR ASM
M/T MUA 5 SPEED 5H<MWQ> THA 		8-98137-275-5 01 1 1310-1311 ●
1 RADIATOR ASM
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA 		8-98137-275-5 01 1 1312- ●
1 RADIATOR ASM
A/T 5 SPEED-AISIN<MA1> THA 		8-98137-272-4 01 1 1310- ●
1 RADIATOR ASM
M/T MUX 5 SPEED 5S<MZJ> THA 		8-98137-273-4 01 1 1310- ●
2 GUIDE; FAN
THA 		8-98189-876-0 01 1 1310- ● ●
2 GUIDE; FAN
THA 		8-98189-874-0 01 1 1310- ●
16 CAP; RAD
THA 		8-97942-268-1 01 1 1310- ● ● ●
22 BRACKET; RAD MTG
THA 		8-98102-383-2 02 1 1310- ● ● ●
25 BOLT; BRKT
M6X16 FLANGE THA 		0-28650-616-0 02 1 1310- ● ● ●
51 PLUG; DRAIN
W/GASKET THA 		8-97171-437-0 01 1 1310- ● ● ●
80 BOLT; FAN GUIDE
THA 		8-98189-890-0 01 1 1310- ● ● ●
257 MOUNTING; RAD STAY
THA 		8-97249-541-1 02 1 1310- ● ● ●
281 NUT; FAN GUIDE
THA 		8-98189-891-0 02 1 1310- ● ● ●
311 RUBBER; MTG,RAD
THA 		8-97942-297-0 02 1 1310- ● ● ●
536 SHROUD; FAN
THA 		8-97372-866-1 01 1 1310- ● ● ●

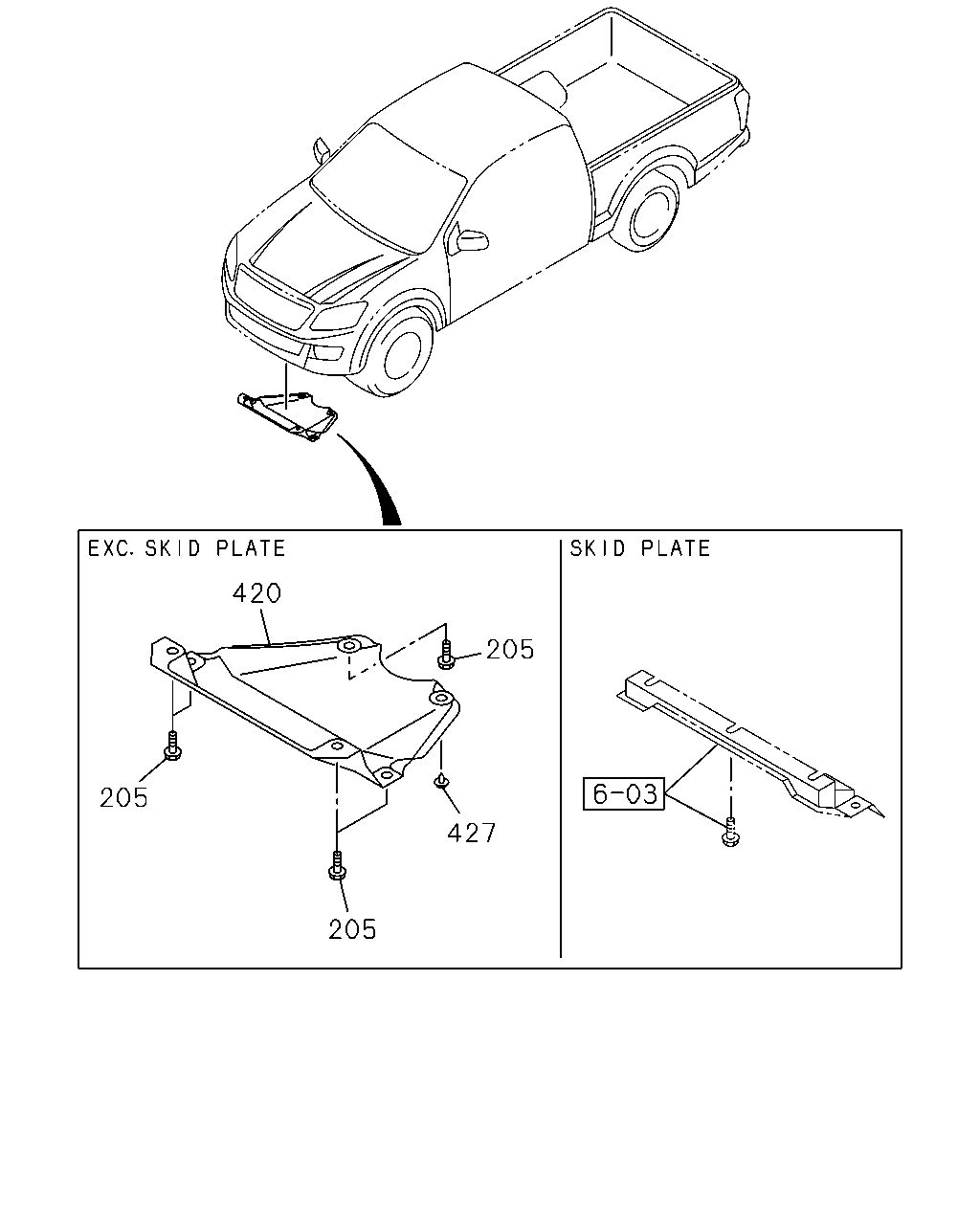

çizim 373604
420 205 427 205 205
BalonParca AdiParca NoAdetTipApplied Date A B C
205 BOLT; AIR GUIDE
4X2<TFB***> M10X28 W/LK&PL WASHER THA 		8-97945-706-0 05 1 1310- ● ● ●
420 GUIDE; AIR,RAD
4X2<TFB***> THA 		8-98176-508-1 01 1 1310- ● ● ●
427 CLIP; FAN GUIDE
4X2<TFB***> THA 		8-98178-267-0 01 1 1310- ● ● ●
