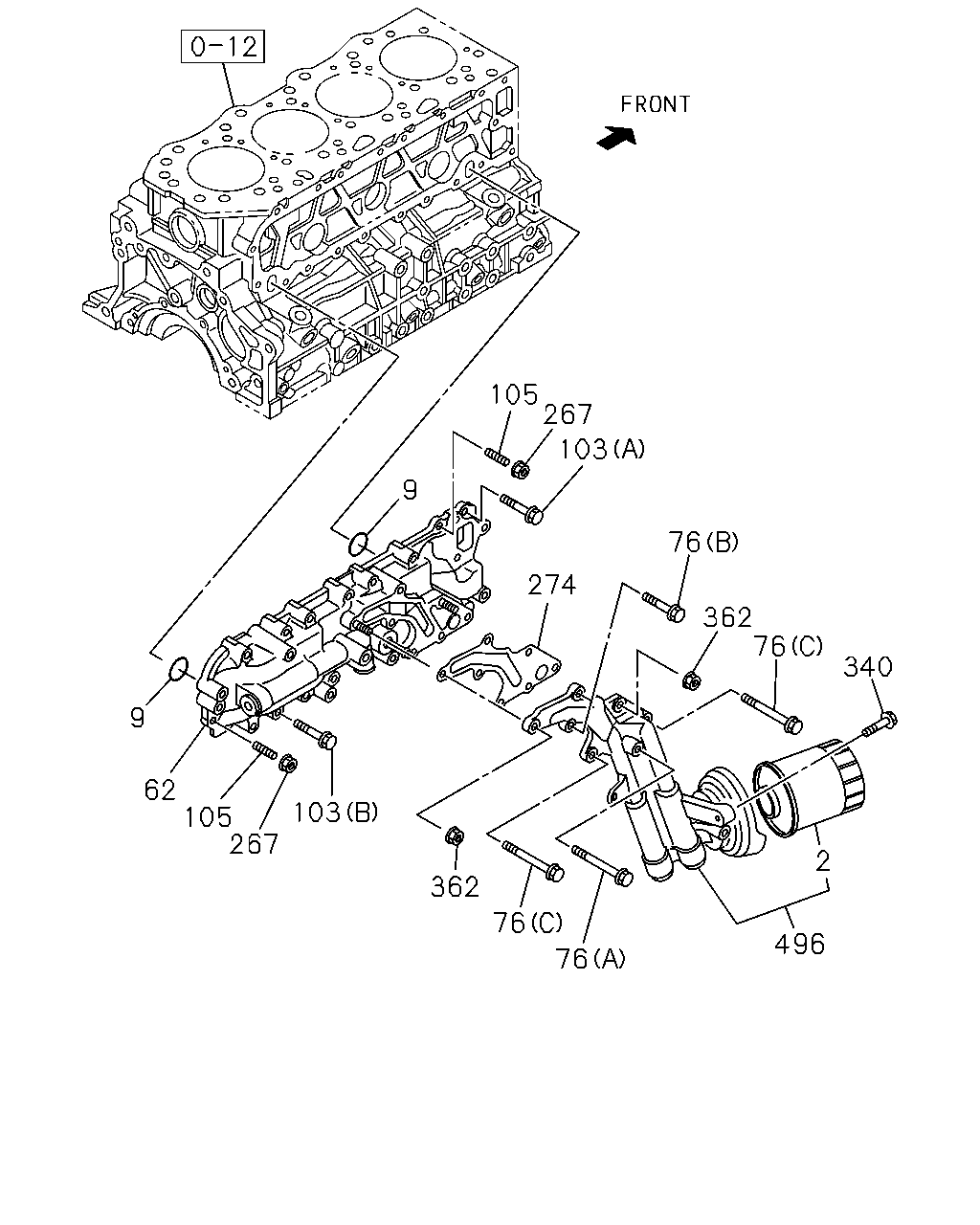

0-50 — OIL COOLER AND OIL FILTER (#126346) — 17 parça

105 103 267 76 362 76 340 2 496 76 76 362 103 267 105 62 9 9 274

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	ELEMENT; OIL FILTER THA	8-98165-071-0	01	1	1310-	●	●	●
9	GASKET; CENTER BOLT ID=26.2 THA	9-09566-226-0	02	1	1310-	●	●	●
62	COOLER ASM; OIL THA	8-98251-175-0	01	1	1310-	●	●	●
76	BOLT; OIL FILTER (A) M8X100 FLANGE THA	0-28050-800-0	01	1	1310-	●	●	●
76	BOLT; OIL FILTER (B) M8X25 FLANGE THA	0-28050-825-0	02	1	1310-	●	●	●
76	BOLT; OIL FILTER (C) M8X80 FLANGE THA	0-28050-880-0	02	1	1310-	●	●	●
103	BOLT; OIL COOLER (A) M8X20 FLANGE THA	0-28050-820-0	01	1	1310-	●	●	●
103	BOLT; OIL COOLER (B) M8X45 FLANGE THA	0-28050-845-0	13	1	1310-	●	●	●
105	STUD; OIL COOLER M8X20 L=32 THA	0-41010-820-0	02	1	1310-	●	●	●
267	NUT; OIL COOLER M8 FLANGE THA	0-91180-208-0	02	1	1310-	●	●	●
274	GASKET; OIL FILTER THA	8-98226-841-0	01	1	1310-	●	●	●
340	BOLT; BRKT M8X40 FLANGE THA	0-28650-840-0	01	1	1310-	●	●	●
362	NUT; OIL FILTER M8 FLANGE THA	0-91180-208-0	02	1	1310-	●	●	●
496	FILTER ASM; OIL THA	8-98226-423-1	01	1	1310-	●	●	●

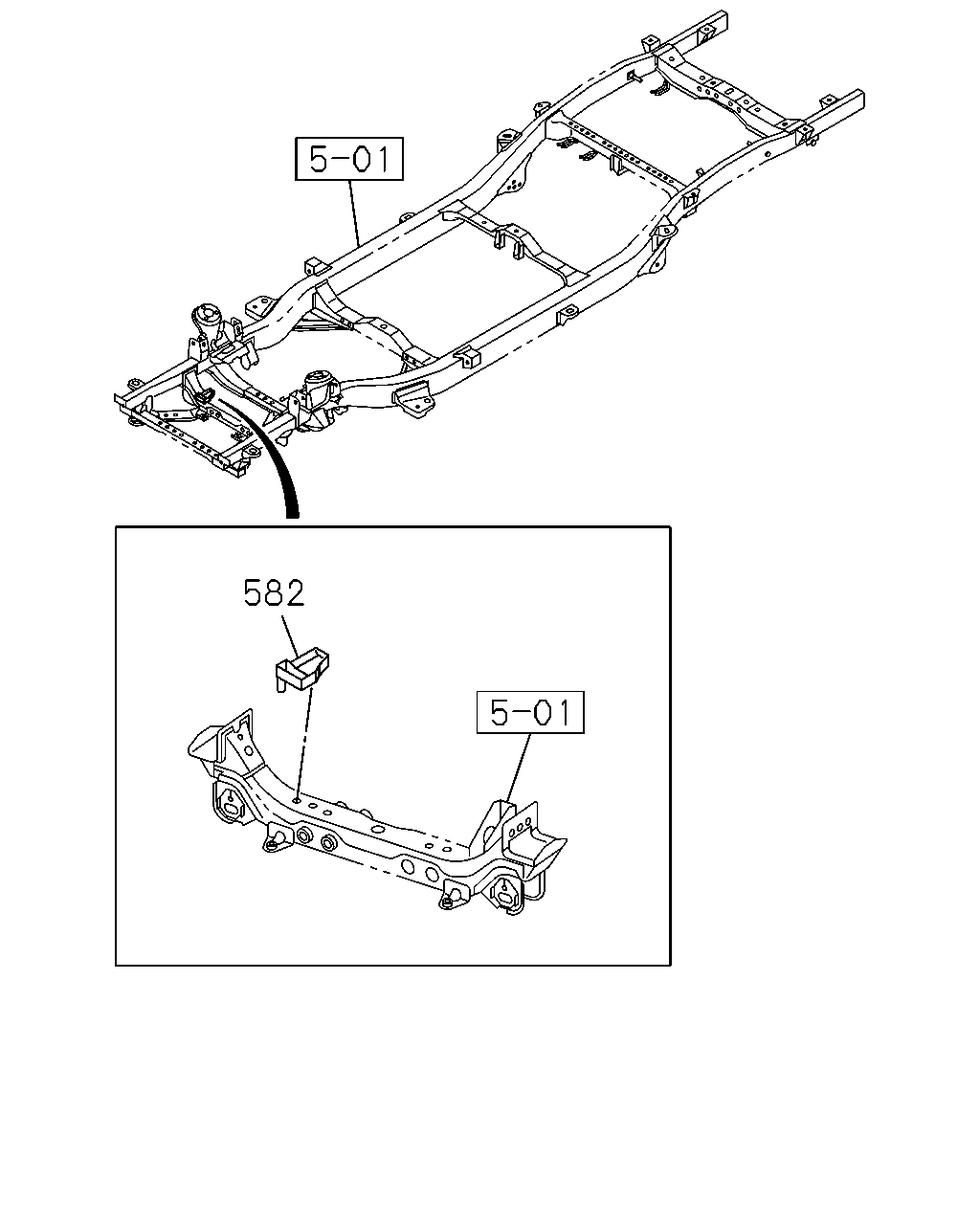

582

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
582	TRAY; OIL 4X2<TFB***> HIGH RIDE SUSPENSION<7YC> THA	8-98235-616-3	01	1	1310-	●	●	●
582	TRAY; OIL 4X4<TFS***> THA	8-98235-616-3	01	1	1310-	●	●	●
582	TRAY; OIL 4X2<TFB***> EXC. HIGH RIDE SUSPENSION<7YC> THA	8-98236-507-2	01	1	1310-	●	●	●
