◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51491 - TFR/TFS(THAILAND) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-40 - FUEL INJECTION SYSTEM ▶
0-40 — FUEL INJECTION SYSTEM (#126344) — 41 parça

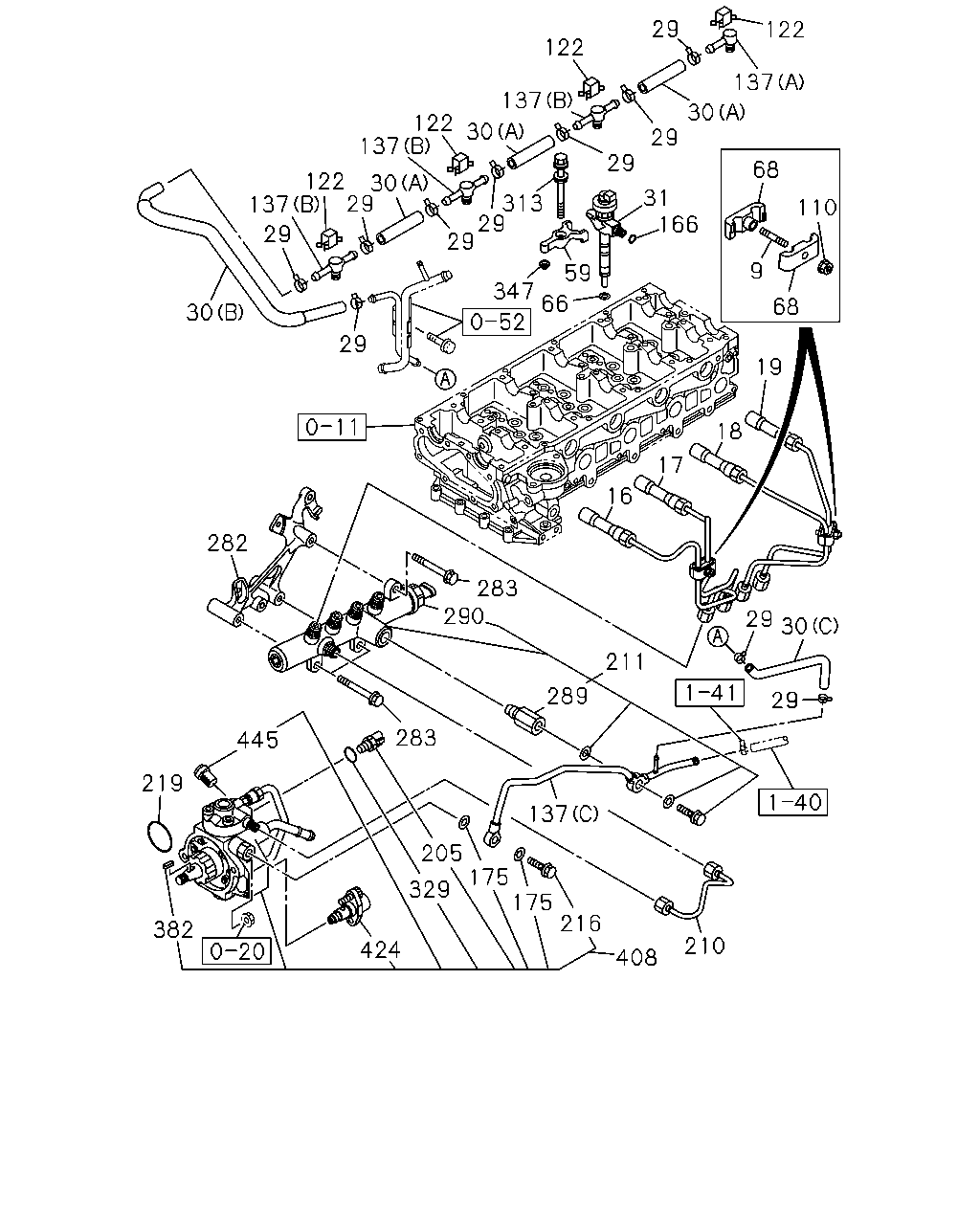

çizim 374681
30 137 29 122 29 30 137 122 30 137 122 29 122 137 30 29 29 31 166 313 29 29 29 282 445 219 382 424 329 205 283 290 283 211 16 347 66 59 68 110 9 68 19 18 17 29 30 29 289 137 175 175 216 408 210
BalonParca AdiParca NoAdetTipApplied Date A B C
9 STUD; CLIP
M6X30 L=38 THA 		0-41010-630-0 02 1 1310- ● ● ●
16 PIPE; INJ NO.1
THA 		8-98223-194-0 01 1 1310- ● ● ●
17 PIPE; INJ NO.2
THA 		8-98223-195-1 01 1 1310- ● ● ●
18 PIPE; INJ NO.3
THA 		8-98223-196-0 01 1 1310- ● ● ●
19 PIPE; INJ NO.4
THA 		8-98223-197-0 01 1 1310- ● ● ●
29 CLIP; HOSE
ID=10.5 THA 		8-97944-126-0 10 1 1310- ● ● ●
30 HOSE; RUBBER,FUEL LEAK
(A) L=96 THA 		8-98053-693-0 03 1 1310- ● ● ●
30 HOSE; RUBBER,FUEL LEAK
(C) THA 		8-98179-014-0 01 1 1310- ● ● ●
30 HOSE; RUBBER,FUEL LEAK
(B) THA 		8-98189-998-0 01 1 1310- ● ● ●
31 NOZZLE ASM; INJ
THA 		8-98228-474-0 04 1 1310- ● ●
31 NOZZLE ASM; INJ
THA 		8-98106-693-2 04 1 1310- ●
59 CLAMP; NOZZLE HOLDER
THA 		8-98092-539-0 04 1 1310- ● ● ●
66 GASKET; INJ NOZZLE
IMA 		8-98181-540-0 04 1 1310- ● ● ●
68 CLIP; INJ PIPE
ID=11 & 11 L=19 IMA 		8-98039-293-0 04 1 1310-1403 ● ● ●
68 CLIP; INJ PIPE
ID=11 & 11 L=19 IMA 		8-98148-996-2 04 1 1404- ● ● ●
110 NUT; CLIP
M6 FLANGE THA 		0-91180-106-0 02 1 1310- ● ● ●
122 CLIP; LEAK OFF PIPE
IMA 		8-97315-286-0 04 1 1310- ● ● ●
137 PIPE ASM; LEAK OFF
(C) THA 		8-98158-737-1 01 1 1310- ● ● ●
137 PIPE ASM; LEAK OFF
(B) THA 		8-98211-775-0 03 1 1310- ● ● ●
137 PIPE ASM; LEAK OFF
(A) THA 		8-98211-776-0 01 1 1310- ● ● ●
166 GASKET; FUEL INJECTOR
ID=11 OD=14.8 THA 		9-09566-111-0 04 1 1310- ● ● ●
175 GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP
ID=10.2 OD=15.2 IMA 		1-09630-083-0 02 1 1310-1505 ● ● ●
175 GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP
IMA 		1-15619-508-0 02 1 1506- ● ● ●
205 SENSOR; FUEL TEMP
IMA 		8-98023-581-0 01 1 1310- ● ● ●
210 PIPE; INJ,C/R
THA 		8-98233-237-0 01 1 1310- ● ● ●
211 RAIL ASM; COMMON
THA 		8-98228-475-0 01 1 1310- ● ● ●
216 BOLT; EYE
THA 		9-88130-088-0 01 1 1310-1409 ● ● ●
216 BOLT; EYE
THA 		8-98209-777-0 01 1 1410- ● ● ●
219 GASKET
ID=49.7 THA 		1-09623-541-0 01 1 1310- ● ● ●
282 BRACKET; COMMON RAIL
THA 		8-98205-942-0 01 1 1310- ● ● ●
283 BOLT; COMMON RAIL
M8X66 FLANGE THA 		8-98228-566-0 03 1 1310- ● ● ●
289 LIMITER; FUEL PRESS
THA 		8-98032-549-0 01 1 1310- ● ● ●
290 SENSOR; PRESS
THA 		8-98181-616-0 01 1 1310- ● ● ●
313 BOLT; BRKT,INJ NOZZLE
M8X85 W/WASHER THA 		8-98228-637-0 04 1 1310- ● ● ●
329 GASKET; SENSOR,FUEL TEMP
ID=9.8 OD=11.7 THA 		9-09566-110-0 01 1 1310-1409 ● ● ●
347 PIN
THA 		8-98165-035-0 04 1 1310- ● ● ●
382 KEY; DRIVE SHAFT
THA 		8-97375-384-0 01 1 1310-1409 ● ● ●
382 KEY; DRIVE SHAFT
IMA 		8-98161-995-0 01 1 1410- ● ● ●
408 PUMP ASM; FUEL,SUPPLY
THA 		8-98155-988-3 01 1 1310- ● ● ●
424 OVERHAUL KIT; SUPPLY PUMP
THA 		8-98145-455-1 01 1 1310- ● ● ●
445 SCREW; FILTER,INLET
THA 		8-98209-778-0 01 1 1310- ● ● ●
