0-36 — TURBOCHARGER SYSTEM (#126342) — 56 parça

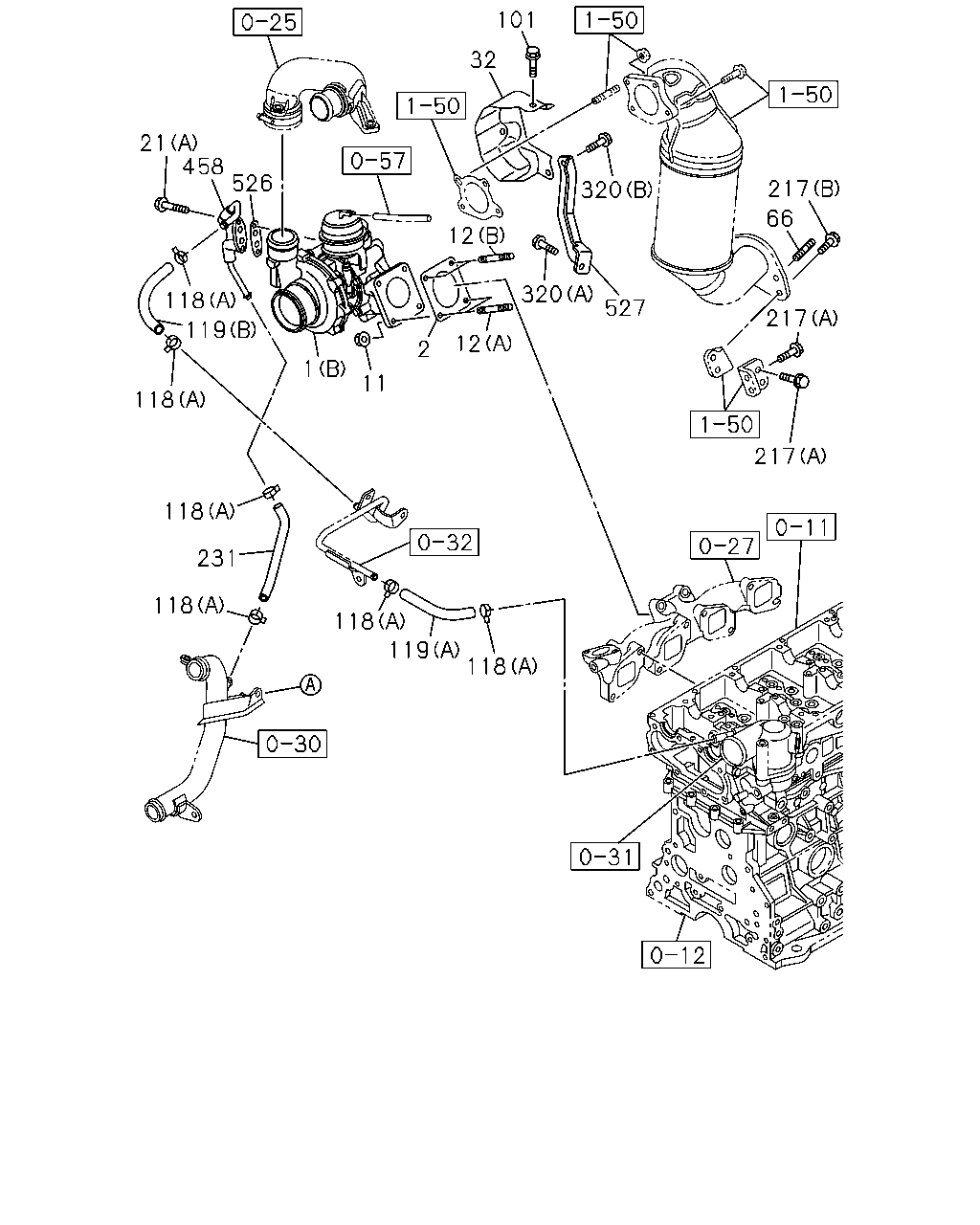

çizim 373129
21 118 118 118 231 118 119 458 526 1 11 118 2 119 12 12 118 32 101 320 320 527 217 66 217 217
BalonParca AdiParca NoAdetTipApplied Date A B C
1 TURBOCHARGER ASM
(A) SEE FIG-NO 0-37 FOR COMPONENT. THA 		8-98221-675-1 01 1 1310- ●
1 TURBOCHARGER ASM
(B) THA 		8-98221-674-1 01 1 1310- ●
1 TURBOCHARGER ASM
(B) THA 		8-98221-673-1 01 1 1310- ●
2 GASKET; TURBOCHARGER TO EXH MANIF
THA 		8-98132-073-0 01 1 1310- ● ● ●
11 NUT; TURBOCHARGER
M8 FLANGE THA 		8-97379-384-0 04 1 1310- ● ● ●
12 STUD; TURBOCHARGER
(A) M8X25 L=36 THA 		8-97378-062-0 02 1 1310- ● ● ●
12 STUD; TURBOCHARGER
(B) M8X30 L=41 IMA 		8-97378-064-0 02 1 1310- ● ● ●
21 BOLT; PIPE
(A) M6X45 FLANGE THA 		0-28050-645-0 02 1 1310- ● ●
21 BOLT; PIPE
(B) M8X16 FLANGE THA 		0-28050-816-0 02 1 1310- ● ● ●
32 PROTECTOR; HEAT,TURBOCHARGER
THA 		8-98156-389-0 01 1 1310- ● ●
66 STUD; EXH PIPE
M10X25 L=40 THA 		0-44011-025-0 02 1 1310- ● ● ●
101 BOLT; HEAT PROTECTOR
M8X12 FLANGE THA 		0-28050-812-0 02 1 1310- ● ●
118 CLIP; WATER HOSE
(B) ID=20.8 THA 		8-97944-127-0 06 1 1310- ● ● ●
118 CLIP; WATER HOSE
(A) ID=15.1 THA 		8-98179-581-0 06 1 1310- ● ● ●
119 HOSE; WATER,TURBOCHARGER
(B) THA 		8-98179-580-0 01 1 1310- ● ● ●
119 HOSE; WATER,TURBOCHARGER
(A) THA 		8-98239-061-0 01 1 1310- ● ● ●
217 BOLT; BRKT
(A) M12X30 FLANGE THA 		0-28661-230-0 03 1 1310- ● ● ●
217 BOLT; BRKT
(B) M12X35 FLANGE THA 		0-28661-235-0 02 1 1310- ● ● ●
231 HOSE; RUBBER,TURBOCHARGER OUT
THA 		8-98228-461-0 01 1 1310- ●
231 HOSE; RUBBER,TURBOCHARGER OUT
THA 		8-98228-462-0 01 1 1310- ● ●
320 BOLT; BRKT,TURBOCHARGER
(A) M8X20 FLANGE THA 		0-28650-820-0 01 1 1310- ● ●
320 BOLT; BRKT,TURBOCHARGER
(B) M8X18 FLANGE IMA 		8-97378-076-0 01 1 1310- ● ●
458 PIPE; WATER,TURBOCHARGER
THA 		8-98184-505-0 01 1 1310- ● ●
526 GASKET; PLATE
THA 		8-97352-985-0 01 1 1310- ● ●
527 BRACKET; TURBOCHARGER
THA 		8-98156-388-0 01 1 1310- ● ●

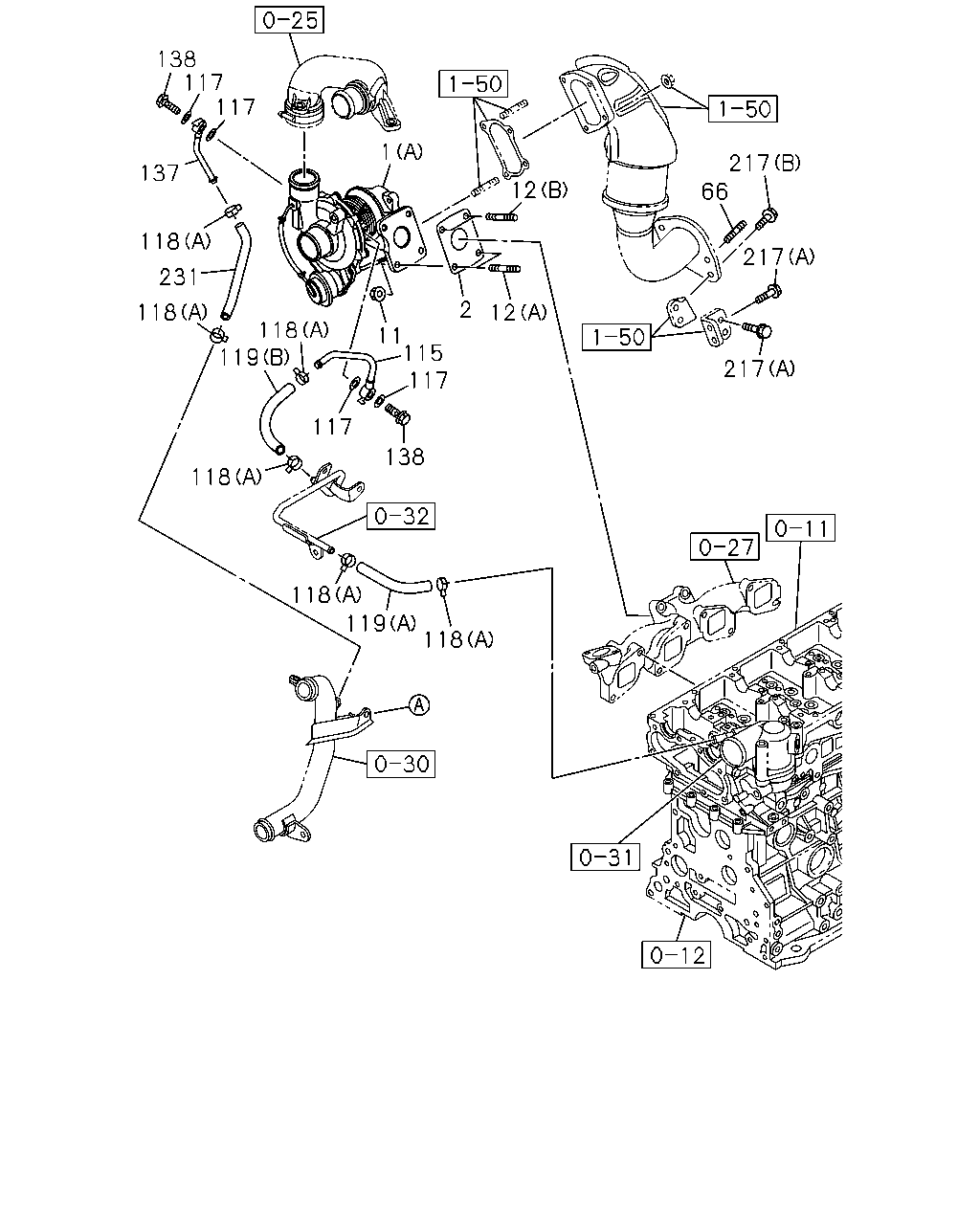

çizim 373133
138 117 117 1 12 217 66 137 118 231 2 12 217 217 118 118 11 119 115 117 117 118 138 118 119 118
BalonParca AdiParca NoAdetTipApplied Date A B C
1 TURBOCHARGER ASM
(A) SEE FIG-NO 0-37 FOR COMPONENT. THA 		8-98221-675-1 01 1 1310- ●
1 TURBOCHARGER ASM
(B) THA 		8-98221-674-1 01 1 1310- ●
1 TURBOCHARGER ASM
(B) THA 		8-98221-673-1 01 1 1310- ●
2 GASKET; TURBOCHARGER TO EXH MANIF
THA 		8-98132-073-0 01 1 1310- ● ● ●
11 NUT; TURBOCHARGER
M8 FLANGE THA 		8-97379-384-0 04 1 1310- ● ● ●
12 STUD; TURBOCHARGER
(A) M8X25 L=36 THA 		8-97378-062-0 02 1 1310- ● ● ●
12 STUD; TURBOCHARGER
(B) M8X30 L=41 IMA 		8-97378-064-0 02 1 1310- ● ● ●
66 STUD; EXH PIPE
M10X25 L=40 THA 		0-44011-025-0 02 1 1310- ● ● ●
115 PIPE; WATER,TURBOCHARGER OUT
THA 		8-98132-443-0 01 1 1310- ●
117 GASKET; WATER PIPE
ID=14.2 OD=20.0 THA 		9-09571-414-0 04 1 1310- ●
118 CLIP; WATER HOSE
(B) ID=20.8 THA 		8-97944-127-0 06 1 1310- ● ● ●
118 CLIP; WATER HOSE
(A) ID=15.1 THA 		8-98179-581-0 06 1 1310- ● ● ●
119 HOSE; WATER,TURBOCHARGER
(B) THA 		8-98179-580-0 01 1 1310- ● ● ●
119 HOSE; WATER,TURBOCHARGER
(A) THA 		8-98239-061-0 01 1 1310- ● ● ●
137 PIPE; WATER,TURBOCHARGER IN
THA 		8-98132-444-1 01 1 1310- ●
138 BOLT; EYE,WATER PIPE
M14X31 EYE-BOLT THA 		8-98037-067-0 02 1 1310- ●
217 BOLT; BRKT
(A) M12X30 FLANGE THA 		0-28661-230-0 03 1 1310- ● ● ●
217 BOLT; BRKT
(B) M12X35 FLANGE THA 		0-28661-235-0 02 1 1310- ● ● ●
231 HOSE; RUBBER,TURBOCHARGER OUT
THA 		8-98228-461-0 01 1 1310- ●
231 HOSE; RUBBER,TURBOCHARGER OUT
THA 		8-98228-462-0 01 1 1310- ● ●

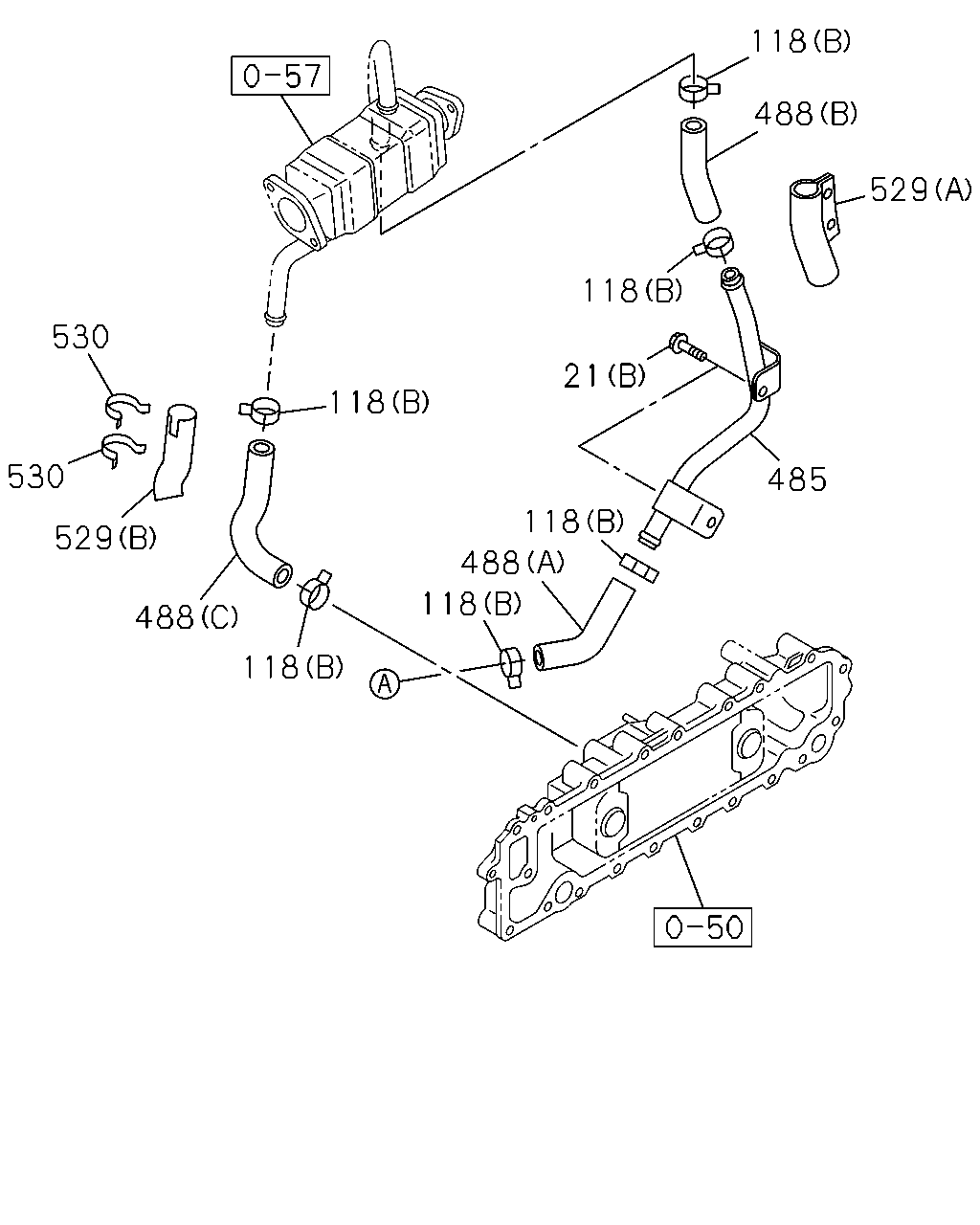

çizim 373136
530 530 529 488 118 118 118 488 118 21 118 118 488 529 485
BalonParca AdiParca NoAdetTipApplied Date A B C
21 BOLT; PIPE
(A) M6X45 FLANGE THA 		0-28050-645-0 02 1 1310- ● ●
21 BOLT; PIPE
(B) M8X16 FLANGE THA 		0-28050-816-0 02 1 1310- ● ● ●
118 CLIP; WATER HOSE
(B) ID=20.8 THA 		8-97944-127-0 06 1 1310- ● ● ●
118 CLIP; WATER HOSE
(A) ID=15.1 THA 		8-98179-581-0 06 1 1310- ● ● ●
485 PIPE; WATER EGR
THA 		8-98228-429-0 01 1 1310- ● ● ●
488 HOSE; RUBBER
(A) THA 		8-98132-368-0 01 1 1310- ● ● ●
488 HOSE; RUBBER
(B) THA 		8-98239-031-0 01 1 1310- ● ● ●
488 HOSE; RUBBER
(C) THA 		8-98215-481-0 01 1 1310- ● ● ●
529 INSULATOR; HOSE
(B) THA 		8-98031-883-0 01 1 1310- ● ● ●
529 INSULATOR; HOSE
(A) THA 		8-98228-426-0 01 1 1310- ● ● ●
530 CLIP; INSULATOR
IMA 		8-97101-337-0 02 1 1310- ● ● ●
