0-42 — FUEL PUMP AND PIPE (#12634) — 36 parça

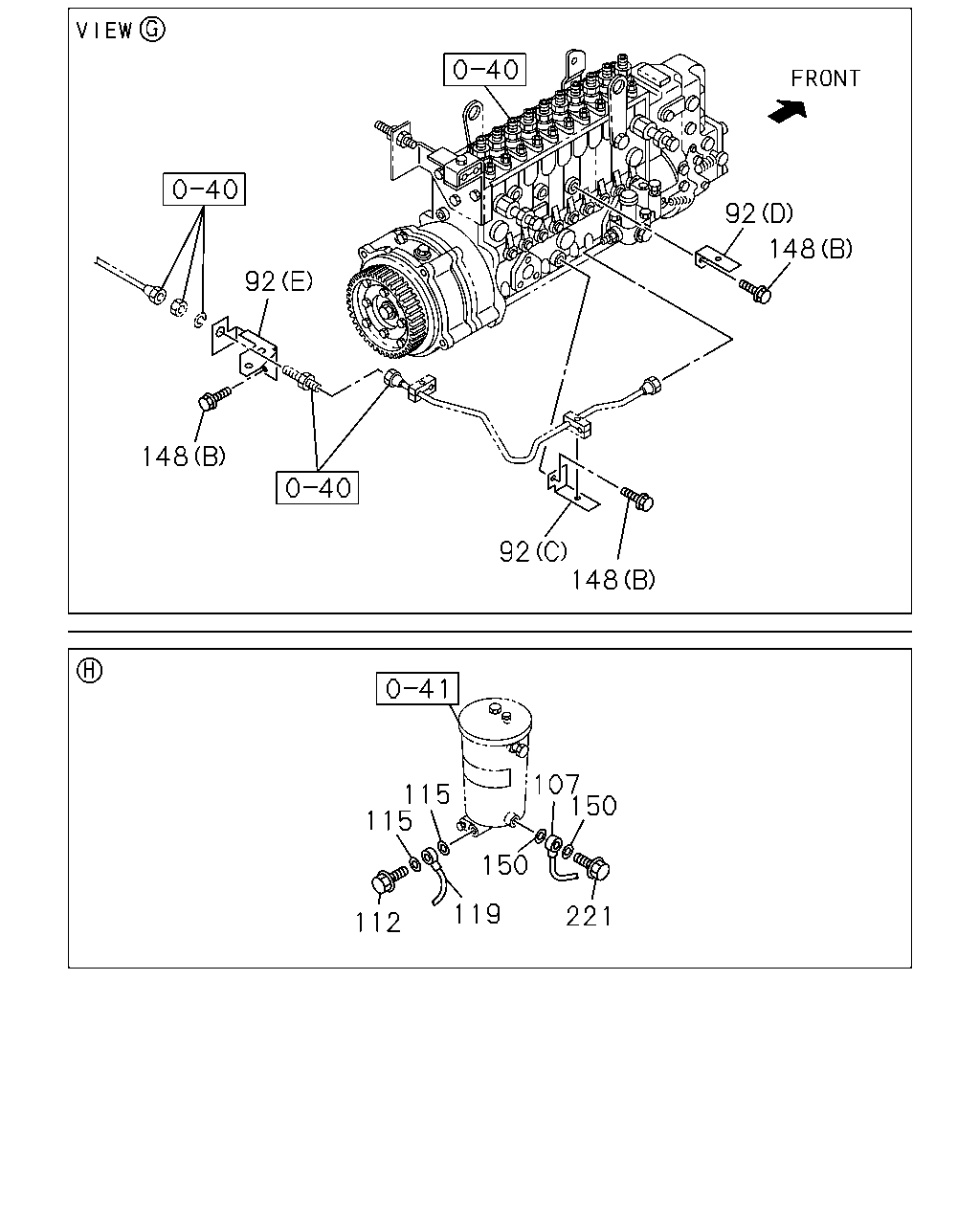

92 148 92 148 92 148 107 150 115 115 150 119 221 112

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
92	BRACKET; FUEL PIPE (B)	1-15419-428-0	01	1	0105-	●	●
92	BRACKET; FUEL PIPE (C)	1-15419-455-0	01	1	0105-	●	●
92	BRACKET; FUEL PIPE (D)	1-15419-456-0	01	1	0105-	●	●
92	BRACKET; FUEL PIPE (E)	1-15419-458-0	01	1	0105-	●	●
92	BRACKET; FUEL PIPE (A)	1-15419-462-0	01	1	0105-	●	●
92	BRACKET; FUEL PIPE (F)	1-15419-622-0	01	1	0105-	●	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	1-15415-726-2	01	1	0105-	●	●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0105-	●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0105-	●	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	1-15415-641-1	01	1	0105-	●	●
148	BOLT; BRKT (B) M8X12 FLANGE	0-28080-812-0	06	1	0105-	●	●
148	BOLT; BRKT (C) M10X16 FLANGE	0-28181-016-0	02	1	0105-	●	●
148	BOLT; BRKT (A) M10X20 FLANGE	0-28181-020-0	02	1	0105-	●	●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0105-	●	●
221	BOLT; FUEL PIPE M14X27 FLANGE	1-09675-086-0	01	1	0105-	●	●

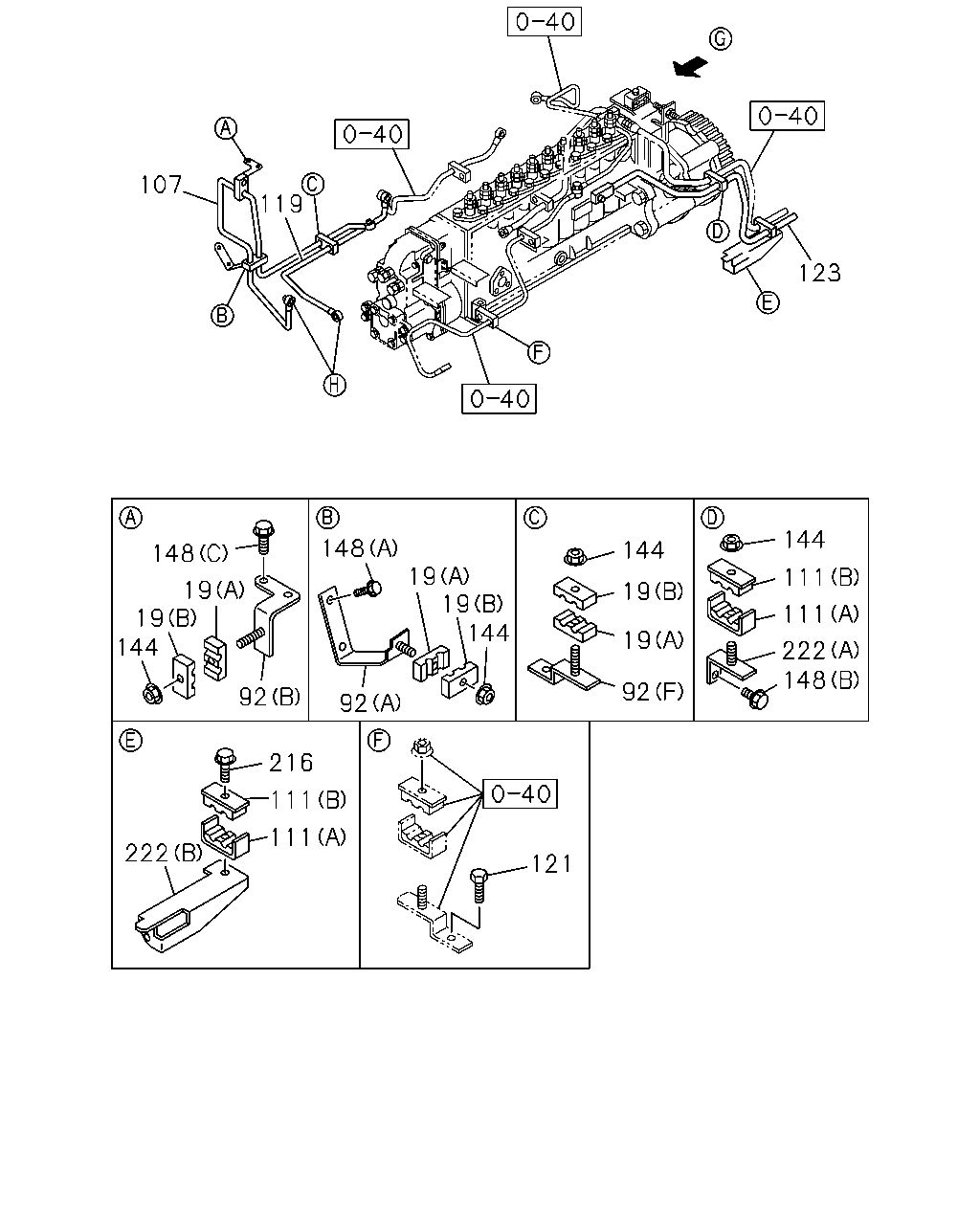

107 119 123 144 148 144 148 19 19 144 111 19 19 144 19 111 19 222 148 92 92 92 216 111 111 222 121

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
19	CLIP; FUEL PIPE (A)	1-09701-180-0	03	1	0105-	●	●
19	CLIP; FUEL PIPE (B) ID=10 & 10 L=25	8-94393-280-2	03	1	0105-	●	●
92	BRACKET; FUEL PIPE (B)	1-15419-428-0	01	1	0105-	●	●
92	BRACKET; FUEL PIPE (C)	1-15419-455-0	01	1	0105-	●	●
92	BRACKET; FUEL PIPE (D)	1-15419-456-0	01	1	0105-	●	●
92	BRACKET; FUEL PIPE (E)	1-15419-458-0	01	1	0105-	●	●
92	BRACKET; FUEL PIPE (A)	1-15419-462-0	01	1	0105-	●	●
92	BRACKET; FUEL PIPE (F)	1-15419-622-0	01	1	0105-	●	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	1-15415-726-2	01	1	0105-	●	●
111	CLIP; FUEL PIPE (A)	1-09701-193-1	02	1	0105-	●	●
111	CLIP; FUEL PIPE (B)	1-09701-194-1	02	1	0105-	●	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	1-15415-641-1	01	1	0105-	●	●
121	BOLT; CLIP M6X30 FLANGE	0-28080-630-0	01	1	0105-	●	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF	1-15415-659-1	01	1	0105-	●	●
144	NUT; CLIP M6 FLANGE	0-91150-106-0	04	1	0105-	●	●
148	BOLT; BRKT (B) M8X12 FLANGE	0-28080-812-0	06	1	0105-	●	●
148	BOLT; BRKT (C) M10X16 FLANGE	0-28181-016-0	02	1	0105-	●	●
148	BOLT; BRKT (A) M10X20 FLANGE	0-28181-020-0	02	1	0105-	●	●
216	BOLT; CLIP,FUEL PIPE M6X35 FLANGE	0-28080-635-0	01	1	0105-	●	●
222	BRACKET; CLIP (A)	1-15419-383-1	01	1	0105-	●	●
222	BRACKET; CLIP (B)	1-15419-402-1	01	1	0105-	●	●
