0-27 — EXHAUST MANIFOLD (#126337) — 22 parça

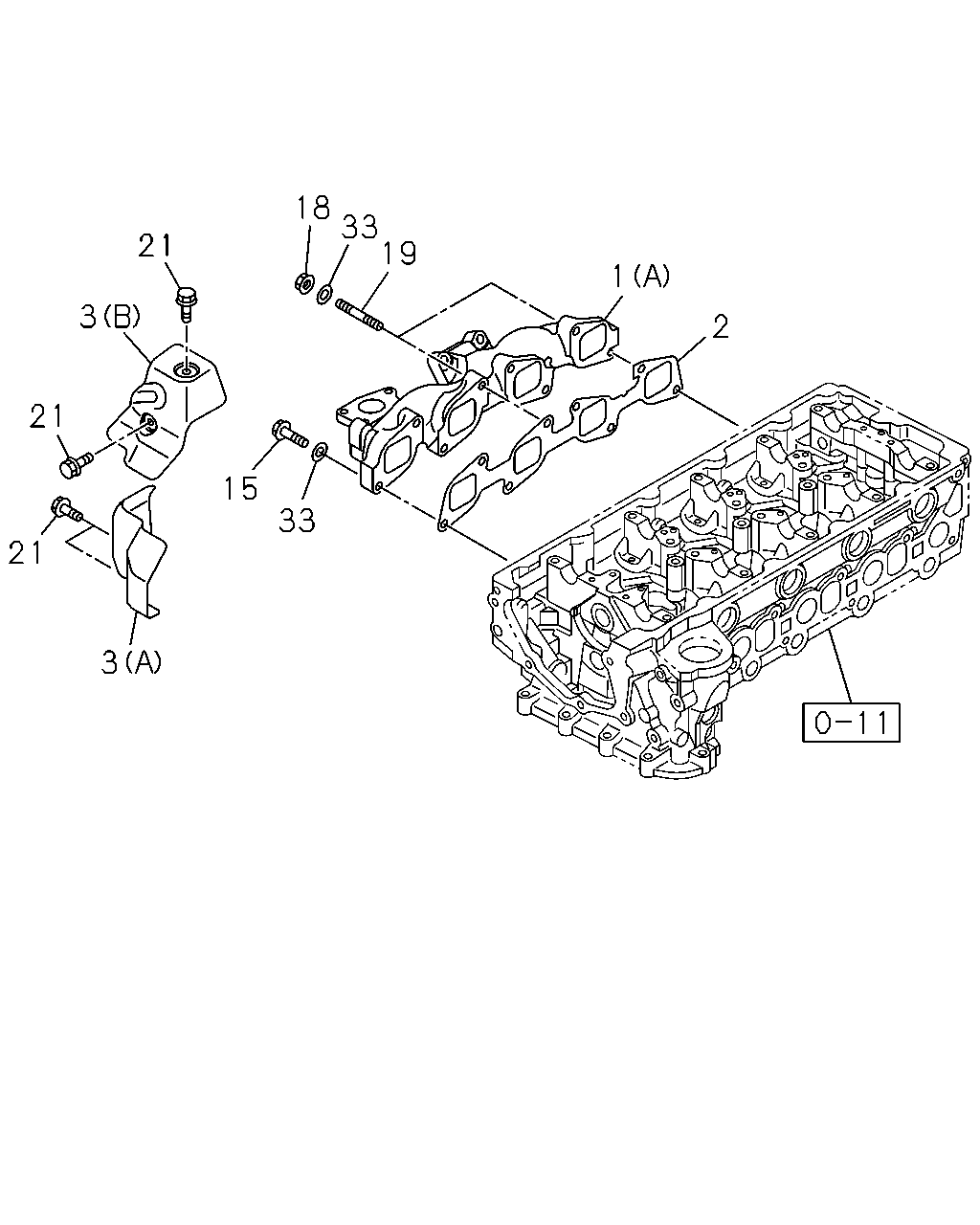

21 3 21 21 3 15 18 1 33 2 19 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	MANIFOLD; EXHAUST (A) THA	8-98192-221-0	01	1	1310-	●
1	MANIFOLD; EXHAUST (B) THA	8-98132-039-2	01	1	1310-		●	●
2	GASKET; EXH MANIF TO HD THA	8-97356-028-2	01	1	1310-1406	●	●	●
2	GASKET; EXH MANIF TO HD THA	8-98229-782-0	01	1	1407-	●	●	●
3	PROTECTOR; HEAT,EXH MANIF (A) THA	8-98228-431-2	01	1	1310-	●	●	●
3	PROTECTOR; HEAT,EXH MANIF (B) THA	8-98238-449-1	01	1	1310-	●	●	●
15	BOLT; EXH MANIF M10X30 FLANGE IMA	8-98032-158-0	06	1	1310-	●	●	●
18	NUT; EXH MANIF M10 FLANGE IMA	8-97381-617-0	02	1	1310-	●	●	●
19	STUD; MANIF TO CYL HD M10X33 L=48 THA	8-97379-383-0	02	1	1310-	●	●	●
21	BOLT; HEAT PROTECTOR M8X12 FLANGE THA	0-28050-812-0	04	1	1310-	●	●	●
33	WASHER; EXH MANIF ID=10.5 THA	5-09500-013-0	08	1	1310-	●	●	●

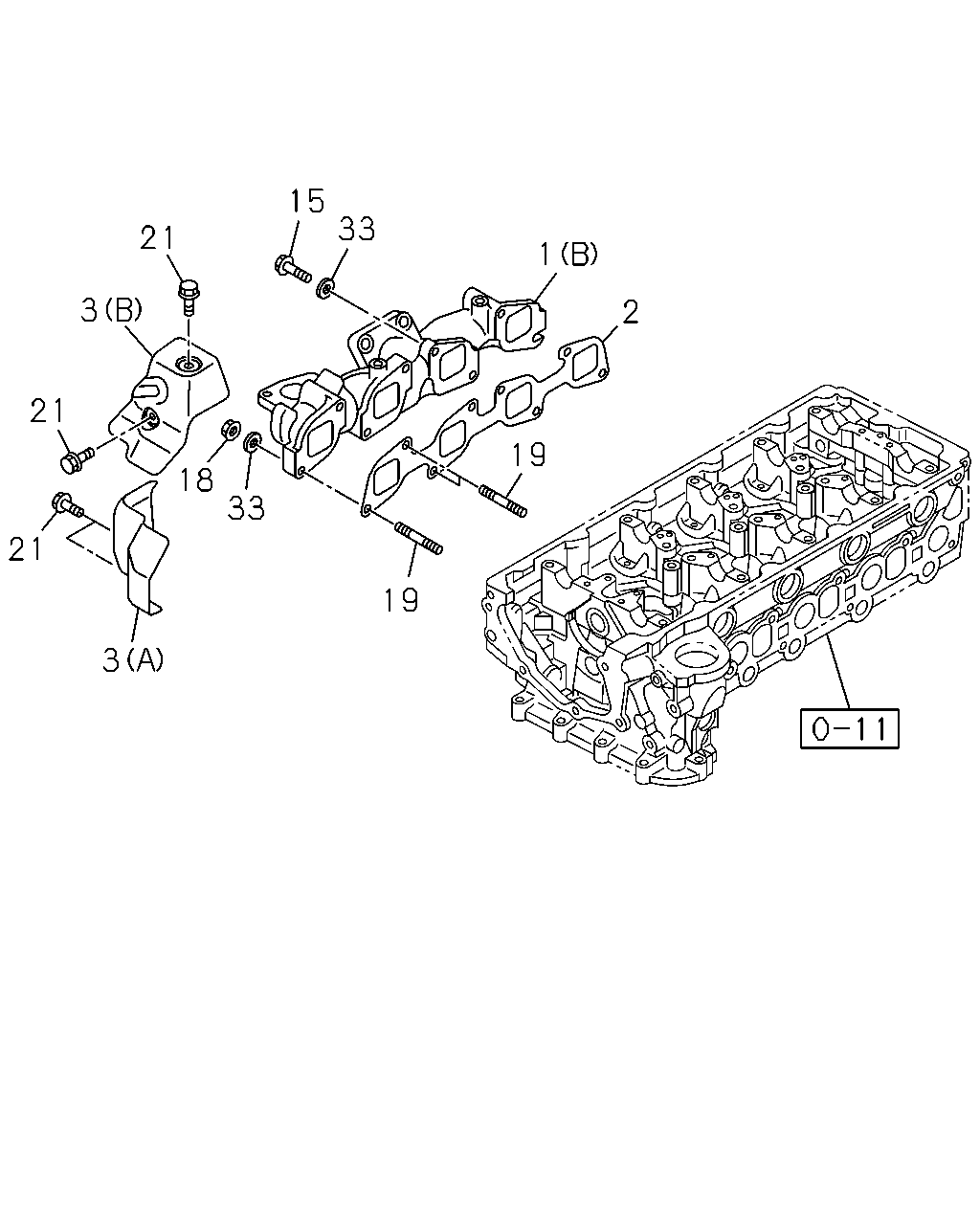

21 3 15 1 33 2 19 19 33 18 3 21 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	MANIFOLD; EXHAUST (A) THA	8-98192-221-0	01	1	1310-	●
1	MANIFOLD; EXHAUST (B) THA	8-98132-039-2	01	1	1310-		●	●
2	GASKET; EXH MANIF TO HD THA	8-97356-028-2	01	1	1310-1406	●	●	●
2	GASKET; EXH MANIF TO HD THA	8-98229-782-0	01	1	1407-	●	●	●
3	PROTECTOR; HEAT,EXH MANIF (A) THA	8-98228-431-2	01	1	1310-	●	●	●
3	PROTECTOR; HEAT,EXH MANIF (B) THA	8-98238-449-1	01	1	1310-	●	●	●
15	BOLT; EXH MANIF M10X30 FLANGE IMA	8-98032-158-0	06	1	1310-	●	●	●
18	NUT; EXH MANIF M10 FLANGE IMA	8-97381-617-0	02	1	1310-	●	●	●
19	STUD; MANIF TO CYL HD M10X33 L=48 THA	8-97379-383-0	02	1	1310-	●	●	●
21	BOLT; HEAT PROTECTOR M8X12 FLANGE THA	0-28050-812-0	04	1	1310-	●	●	●
33	WASHER; EXH MANIF ID=10.5 THA	5-09500-013-0	08	1	1310-	●	●	●
