0-15 — CRANKSHAFT,PISTON AND FLYWHEEL (#126333) — 60 parça

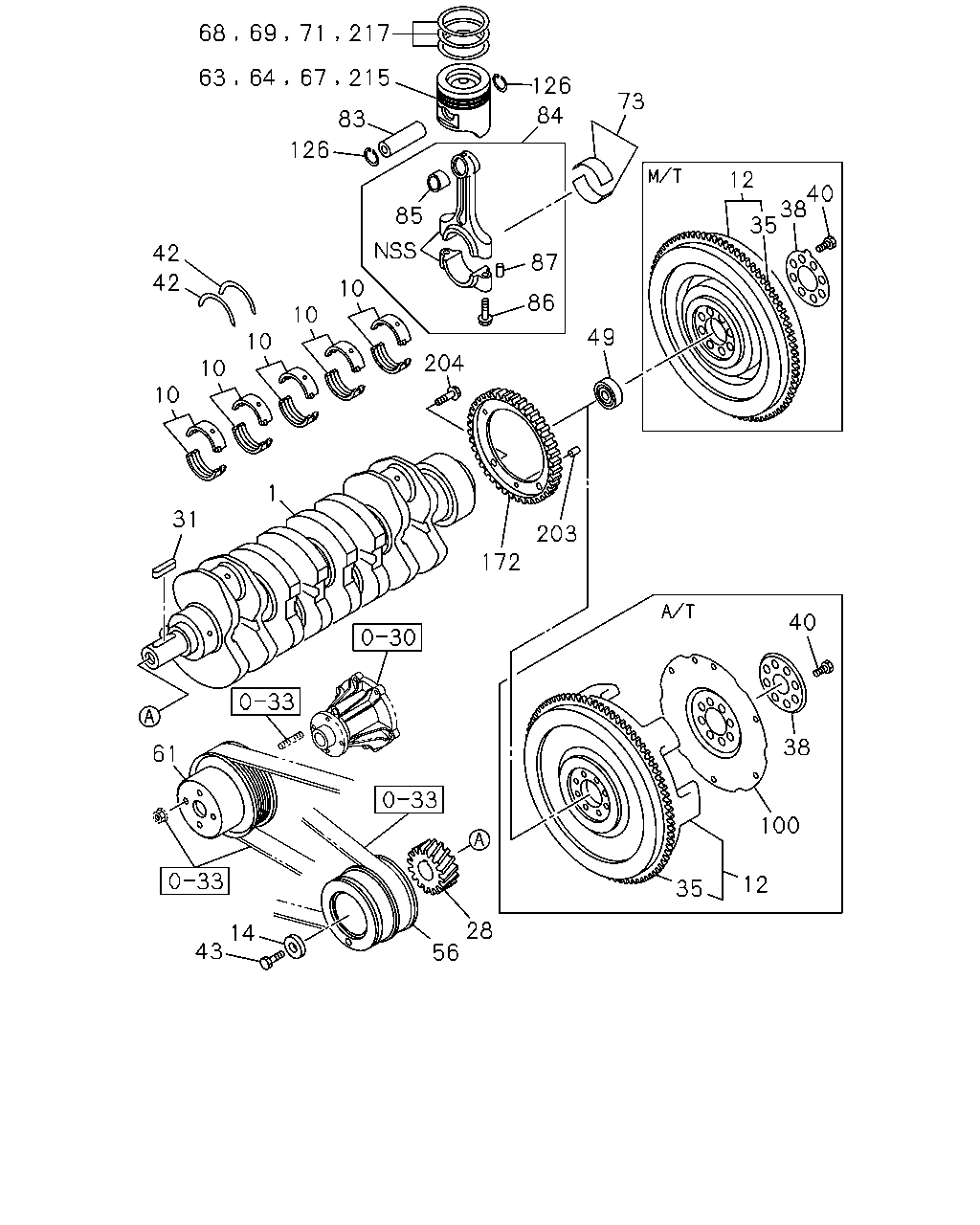

çizim 374525
68 69 71 217 63 64 67 215 83 126 73 84 126 85 87 86 12 35 38 40 42 42 10 10 10 10 10 204 49 203 172 40 38 100 12 35 28 56 14 43 1 31 61
BalonParca AdiParca NoAdetTipApplied Date A B C
1 CRANKSHAFT
THA 		8-98131-999-1 01 1 1310- ● ●
1 CRANKSHAFT
THA 		8-97311-632-1 01 1 1310- ●
10 METAL SET; CRANKSHAFT,STANDARD
GREEN THA 		8-97388-502-0 05 1 1310- ● ● ●
10 METAL SET; CRANKSHAFT,STANDARD
BLACK THA 		8-97388-503-0 05 1 1310- ● ● ●
10 METAL SET; CRANKSHAFT,STANDARD
BLUE THA 		8-97388-504-0 05 1 1310- ● ● ●
10 METAL SET; CRANKSHAFT,STANDARD
YELLOW THA 		8-97388-505-0 05 1 1310- ● ● ●
10 METAL SET; CRANKSHAFT,STANDARD
RED THA 		8-97388-506-0 05 1 1310- ● ● ●
12 FLYWHEEL
M/T MUA 5 SPEED 5H<MWQ> THA 		8-98077-180-0 01 1 1310- ● ●
12 FLYWHEEL
A/T 5 SPEED-AISIN<MA1> THA 		8-98132-505-0 01 1 1310- ● ●
12 FLYWHEEL
M/T MUX 5 SPEED 5S<MZJ> THA 		8-98186-653-1 01 1 1310-1409 ●
12 FLYWHEEL
M/T MUX 5 SPEED 5S<MZJ> THA 		8-98283-475-0 01 1 1410- ●
14 WASHER; PULLEY DAMPER
REFRIGERATION KIT<7FH> ID=16.5 OD=45 T=40 IMA 		8-98101-010-0 01 1 1310- ●
14 WASHER; PULLEY DAMPER
EXC. REFRIGERATION KIT<7FH> ID=16.5 OD=45 T=12 IMA 		5-09503-127-1 01 1 1310- ● ● ●
28 GEAR; CR/SHF
Z=44 THA 		8-97312-199-1 01 1 1310- ● ● ●
31 KEY; FEATHER,CR/SHF
IMA 		9-08030-743-0 01 1 1310- ● ● ●
35 GEAR; RING
M/T MUA 5 SPEED 5H<MWQ> Z=108 THA 		8-97912-516-1 01 1 1310- ● ●
35 GEAR; RING
A/T 5 SPEED-AISIN<MA1>,M/T MUX 5 SPEED 5S<MZJ> Z=122 IMA 		8-94364-395-1 01 1 1310- ● ●
38 WASHER; FLYWHEEL
A/T 5 SPEED-AISIN<MA1> IMA 		8-98195-090-0 01 1 1310- ● ●
38 WASHER; FLYWHEEL
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> THA 		8-94133-970-1 01 1 1310- ● ● ●
40 BOLT; FLYWHEEL
A/T 5 SPEED-AISIN<MA1> M13X78 IMA 		8-97080-561-1 08 1 1310- ● ●
40 BOLT; FLYWHEEL
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> M13X36 THA 		8-97941-069-0 08 1 1310- ● ● ●
42 WASHER; THRUST,CR/SHF
THA 		8-97354-055-1 02 1 1310- ● ● ●
43 BOLT; CR/SHF PULLEY
REFRIGERATION KIT<7FH> M16X69 IMA 		8-98246-605-0 01 1 1310- ●
43 BOLT; CR/SHF PULLEY
EXC. REFRIGERATION KIT<7FH> M16X43 THA 		8-97373-852-1 01 1 1310- ● ● ●
49 BEARING; PILOT
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> NSK THA 		8-97920-344-2 01 1 1310- ● ● ●
49 BEARING; PILOT
M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ> NACHI THA 		8-97922-552-1 01 1 1310- ● ● ●
56 PULLEY; CR/SHF DAMPER
REFRIGERATION KIT<7FH> 3-GROOVE THA 		8-98101-013-0 01 1 1310- ●
56 PULLEY; CR/SHF DAMPER
EXC. REFRIGERATION KIT<7FH> 2-GROOVE THA 		8-98183-902-0 01 1 1310- ● ● ●
61 PULLEY; FAN DRIVE
1-GROOVE THA 		8-98131-628-0 01 1 1310- ● ● ●
63 PISTON
GRADE=A THA 		8-98228-070-0 04 1 1310- ● ●
63 PISTON
GRADE=B THA 		8-98228-071-0 04 1 1310- ● ●
63 PISTON
GRADE=C THA 		8-98228-072-0 04 1 1310- ● ●
63 PISTON
GRADE=A THA 		8-98228-067-0 04 1 1310- ●
63 PISTON
GRADE=B THA 		8-98228-068-0 04 1 1310- ●
63 PISTON
GRADE=C THA 		8-98228-069-0 04 1 1310- ●
64 PISTON; O/S=0.50
THA 		8-98230-240-0 04 1 1310- ● ●
64 PISTON; O/S=0.50
THA 		8-98230-237-0 04 1 1310- ●
67 PISTON; O/S=0.25
THA 		8-98230-239-0 04 1 1310- ● ●
67 PISTON; O/S=0.25
THA 		8-98230-236-0 04 1 1310- ●
68 RING SET; PISTON,STANDARD
THA 		8-98171-040-0 04 1 1310- ● ●
68 RING SET; PISTON,STANDARD
THA 		8-98171-044-0 04 1 1310- ●
69 RING SET; PISTON,O/S=0.50
THA 		8-98171-042-0 04 1 1310- ● ●
69 RING SET; PISTON,O/S=0.50
THA 		8-98171-046-0 04 1 1310- ●
71 RING SET; PISTON,O/S=0.25
THA 		8-98171-041-0 04 1 1310- ● ●
71 RING SET; PISTON,O/S=0.25
THA 		8-98171-045-0 04 1 1310- ●
73 METAL SET; CONN ROD,STANDARD
THA 		8-97388-735-0 04 1 1310- ● ● ●
83 PIN; PISTON
THA 		8-98150-333-0 04 1 1310- ● ● ●
84 ROD ASM; CONN
THA 		8-97357-716-3 04 1 1310- ● ● ●
85 BUSHING; CONNROD
AFTER PRESS FITTING,SHAPE THE BUSHING. IMA 		8-97383-066-0 04 1 1310- ● ● ●
86 BOLT; CONNROD
M11X44.5 IMA 		8-98048-538-0 08 1 1310- ● ● ●
87 PIN; CONNROD BIG END
OD=5 L=8 THA 		9-08160-508-0 08 1 1310- ● ● ●
100 PLATE; FLEX
A/T 5 SPEED-AISIN<MA1> IMA 		8-98192-379-0 01 1 1310- ● ●
126 RING; SNAP,PISTON PIN
OD=37.5 IMA 		8-94460-687-0 08 1 1310- ● ● ●
172 ROTOR; CRANK SENSOR
IMA 		8-98163-693-0 01 1 1310- ● ● ●
203 PIN; ROTOR
OD=5 L=8 THA 		9-08160-508-0 01 1 1310- ● ● ●
204 BOLT; ROTOR
THA 		8-97944-142-1 03 1 1310- ● ● ●
215 PISTON; O/S=0.75
THA 		8-98230-241-0 04 1 1310- ● ●
215 PISTON; O/S=0.75
THA 		8-98230-238-0 04 1 1310- ●
217 RING SET; PISTON,O/S=0.75
THA 		8-98171-043-0 04 1 1310- ● ●
217 RING SET; PISTON,O/S=0.75
THA 		8-98171-047-0 04 1 1310- ●
