◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10876 - EXZ RHD FUEL TANK 200L+200L ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-41 - FUEL FILTER AND BRACKET ▶
0-41 — FUEL FILTER AND BRACKET (#12633) — 21 parça

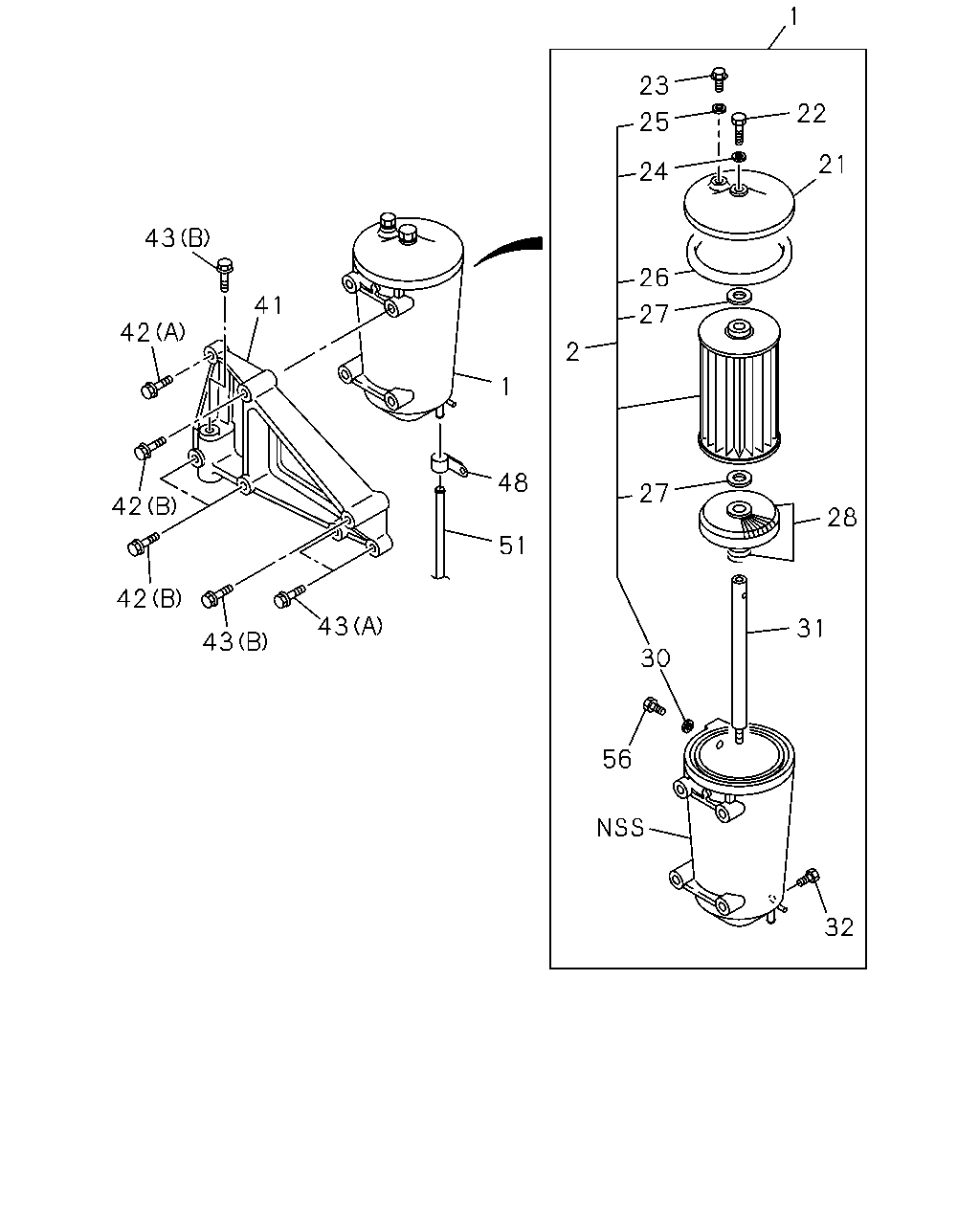

çizim 79568
1 23 22 25 21 24 43 26 41 27 42 2 1 48 27 42 28 51 42 43 31 43 30 56 32
BalonParca AdiParca NoAdetTipApplied Date A B
1 FILTER ASM; FUEL 1-13200-820-2 01 1 0105- ● ●
2 ELEMENT KIT; FUEL FILTER 1-87810-976-0 01 1 0105- ● ●
21 COVER; UPR,FUEL FILTER 1-13212-049-1 01 1 0105- ● ●
22 BOLT; CENTER TUBE,COVER 1-13219-045-0 01 1 0105- ● ●
23 PLUG; COVER 1-13219-074-0 01 1 0105- ● ●
24 GASKET; CENTER TUBE BOLT
ID=10.2 		1-09630-083-0 01 1 0105- ● ●
25 GASKET; AIR DRAIN PLUG
ID=10.2 		1-09630-083-0 01 1 0105- ● ●
26 GASKET; COVER TO BODY 9-09720-797-0 01 1 0105- ● ●
27 GASKET; ELEMENT 1-09630-007-0 02 1 0105- ● ●
28 STRAINER; WATER,FUEL FILTER 1-13251-001-0 01 1 0105- ● ●
30 GASKET; OVERFLOW VLV
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		1-09630-085-0 01 1 0105- ● ●
31 TUBE; CENTER BOLT 1-13231-026-0 01 1 0105- ● ●
32 BOLT; DRAIN,FUEL FILTER 1-13219-030-0 01 1 0105- ● ●
41 BRACKET; FUEL FILTER 1-19755-090-0 01 1 0105- ● ●
42 BOLT; FUEL FILTER
(A) M10X28 		0-28081-028-0 01 1 0105- ● ●
42 BOLT; FUEL FILTER
(B) M10X60 FLANGE 		0-28081-060-0 03 1 0105- ● ●
43 BOLT; BRKT
(A) M10X40 FLANGE 		0-28181-040-0 02 1 0105- ● ●
43 BOLT; BRKT
(B) M10X75 FLANGE 		8-94399-669-1 02 1 0105- ● ●
48 CLIP; VINYL PIPE 9-09915-274-1 01 1 0105- ● ●
51 PIPE; VINYL
L=750 SERVICED BY L=10000 		9-09914-909-0 01 1 0105- ● ●
56 PLUG; FUEL FILTER
M14X9 		9-99202-314-0 01 1 0105- ● ●
