8-90 — RADIO AND TV (#126326) — 13 parça

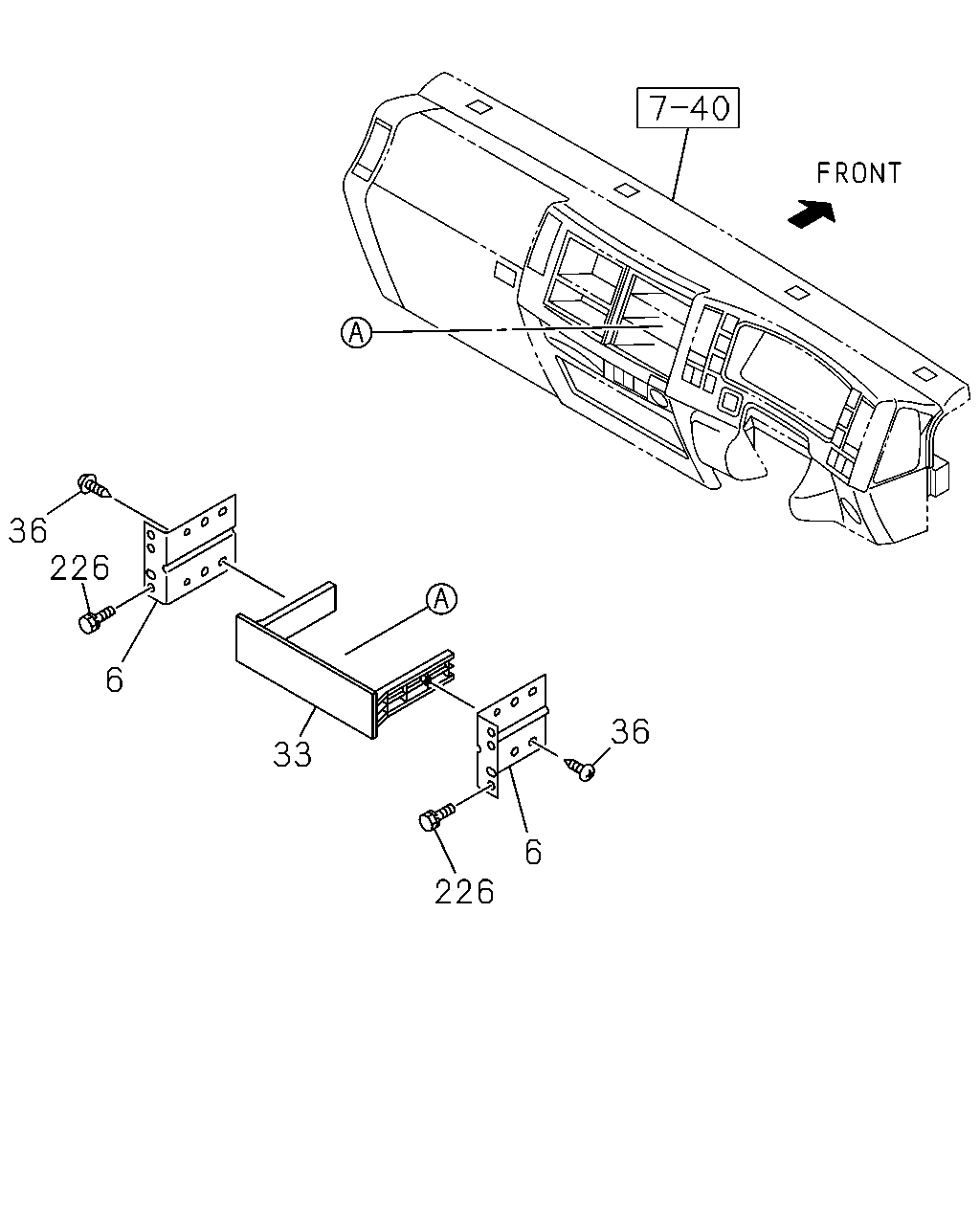

çizim 373668

36 6 226 33 6 226 36

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
	6	09.645 BRACKET; RADIO TO PANEL	8-97585-617-0	02	1	1309-	●	●	●
	33	09.650 COVER; RADIO BLACK	8-97407-896-2	01	1	1309-	●	●	●
	36	09.779 SCREW; COVER 16.100 T25 L=10 HEXALOBULAR	8-98058-632-0	02	1	1309-	●	●	●
	226	09.647 BOLT; BRKT M5X20 TAPPING HEXALOBULAR	0-72180-520-0	02	1	1309-	●	●	●

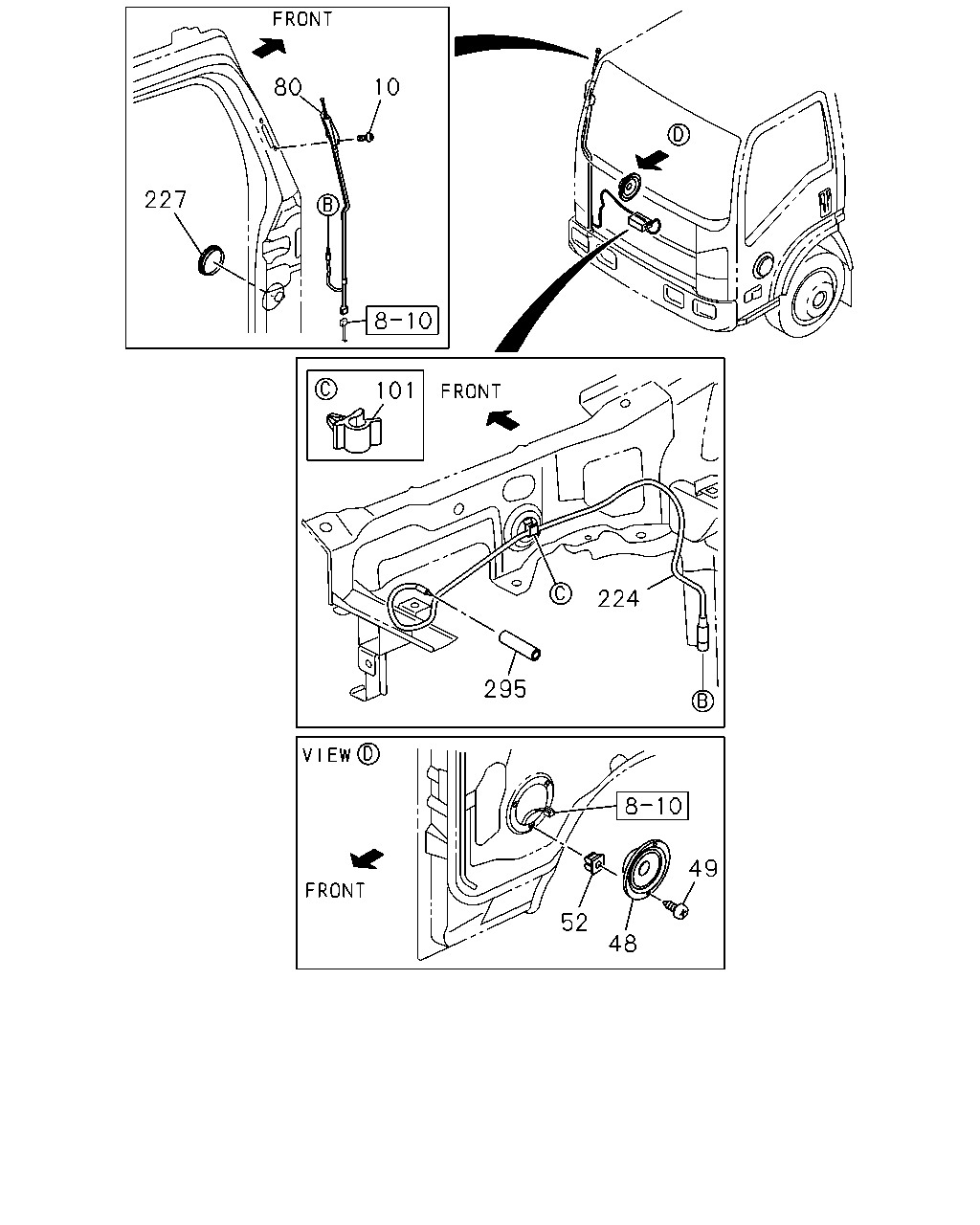

çizim 373675

224 295 101 10 80 227 49 48 52

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
	10	09.647 SCREW; ANTENNA CABLE M5X11 TAPPING W/TORQUES	8-98061-742-0	02	1	1309-	●	●	●
	48	09.650 SPEAKER; AUDIO	8-97317-001-1	02	1	1309-	●	●	●
	49	09.655 SCREW; SPEAKER M5X14 TAPPING W/TORQUES	8-98061-856-0	06	1	1309-	●	●	●
	52	09.655 GROMMET; SCREW,SPEAKER 01.269 D=8.6X7.7 L=7.5	8-94279-078-0	06	1	1309-	●	●	●
	80	09.645 ANTENNA	8-97387-265-3	01	1	1309-	●	●	●
	101	09.649 CLIP; FEEDER TO BRKT 09.647 ID=4.8	8-94128-483-0	01	1	1309-	●	●	●
	224	09.647 CABLE; EXT,FEEDER	8-98029-970-1	01	1	1309-	●	●	●
	227	09.647 PROTECTOR; EDGE	8-98053-117-0	01	1	1309-	●	●	●
	295	09.665 INSULATOR; ANTENNA	8-98095-617-1	01	1	1309-	●	●	●
