8-75 — CONDENSER (#126324) — 12 parça

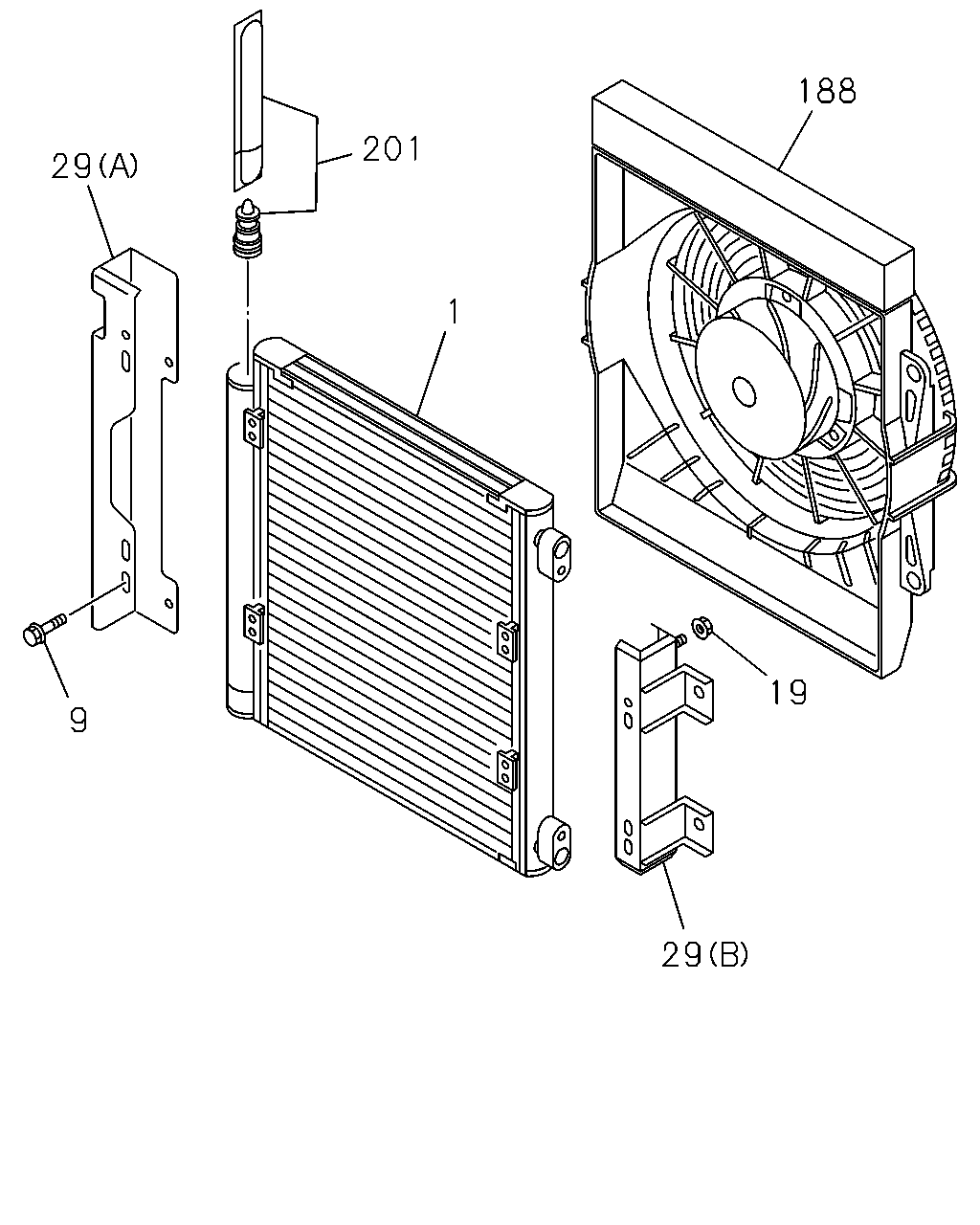

çizim 373636
29 19 188 201 29 9 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 09.190 CONDENSER; A/C
AIR CONDITIONER MANUAL CONT(C60) 		8-98042-456-1 01 1 1309- ● ● ●
9 09.190 BOLT; BRKT
AIR CONDITIONER MANUAL CONT(C60) M6X14 		1-83539-382-0 08 1 1309- ● ● ●
19 09.190 NUT; BRKT
AIR CONDITIONER MANUAL CONT(C60) M6 		1-83539-354-0 04 1 1309- ● ● ●
29 09.190 BRACKET; SIDE
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98042-466-0 01 1 1309- ● ● ●
29 09.190 BRACKET; SIDE
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98042-467-0 01 1 1309- ● ● ●
188 09.215 BLOWER ASM; SHROUD
AIR CONDITIONER MANUAL CONT(C60) 		8-98042-461-0 01 1 1309- ● ● ●
201 09.195 DRYER ASM; CONDENSER
AIR CONDITIONER MANUAL CONT(C60) 		1-83535-097-0 01 1 1309-1409 ● ● ●
201 09.195 DRYER ASM; CONDENSER
AIR CONDITIONER MANUAL CONT(C60) 		8-98282-482-0 01 1 1410- ● ● ●

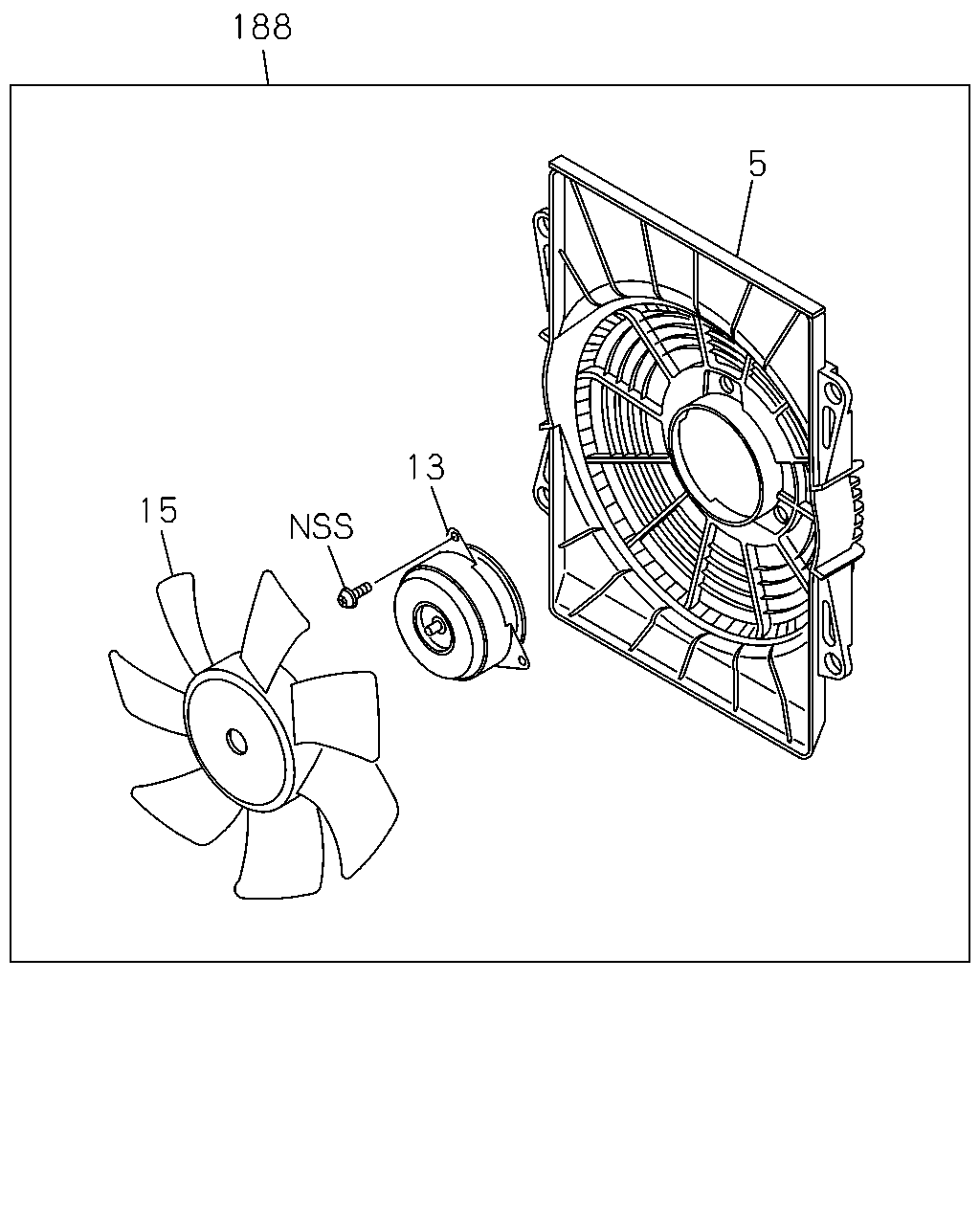

çizim 374606
5 188 13 15
BalonParca AdiParca NoAdetTipApplied Date A B C
5 09.216 SHROUD; FAN MOTOR
AIR CONDITIONER MANUAL CONT(C60) 		8-98152-866-0 01 1 1309- ● ● ●
13 09.215 MOTOR; FAN
AIR CONDITIONER MANUAL CONT(C60) 		8-98157-045-0 01 1 1309- ● ● ●
15 09.216 FAN; MOTOR
AIR CONDITIONER MANUAL CONT(C60) 		8-98152-861-0 01 1 1309- ● ● ●
188 09.215 BLOWER ASM; SHROUD
AIR CONDITIONER MANUAL CONT(C60) 		8-98042-461-0 01 1 1309- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
