◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51482 - NNR/NPR RHD EUROPE EURO5B+,6 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-71 - COMPRESSOR; AIR CONDITIONING ▶
8-71 — COMPRESSOR; AIR CONDITIONING (#126322) — 11 parça

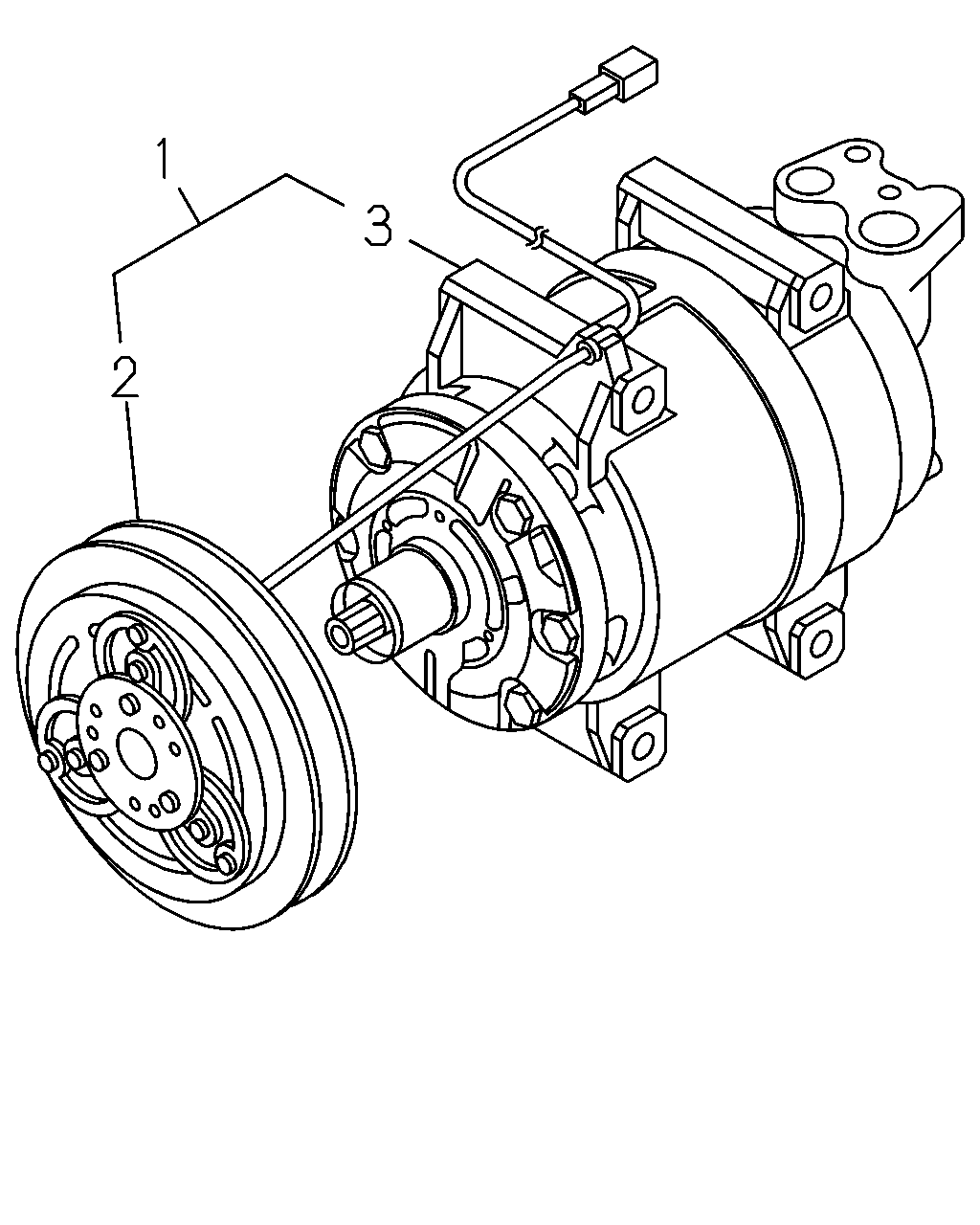

çizim 373630
1 2 3
BalonParca AdiParca NoAdetTipApplied Date A B C
1 09.170 COMPRESSOR ASM; A/C
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) VALEO 		8-98214-324-0 01 1 1309-1310 ● ●
1 09.170 COMPRESSOR ASM; A/C
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) VALEO 		8-98214-324-0 01 1 1311-1408 ● ●
1 09.170 COMPRESSOR ASM; A/C
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) VALEO 		8-98214-324-0 01 1 1409-1410 ● ● ●
1 09.170 COMPRESSOR ASM; A/C
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) VALEO 		8-98286-199-0 01 1 1411- ● ● ●
1 09.170 COMPRESSOR ASM; A/C
4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) VALEO 		8-98214-321-0 01 1 1309-1410 ● ●
1 09.170 COMPRESSOR ASM; A/C
4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) VALEO 		8-98286-197-0 01 1 1411- ● ●
2 09.188 CLUTCH; MAGNET,A/C
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) 		8-98208-772-1 01 1 1309-1310 ● ●
2 09.188 CLUTCH; MAGNET,A/C
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) 		8-98208-772-1 01 1 1311-1408 ● ●
2 09.188 CLUTCH; MAGNET,A/C
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) 		8-98208-772-1 01 1 1409- ● ● ●
2 09.188 CLUTCH; MAGNET,A/C
4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 		8-98208-773-1 01 1 1309- ● ●
3 09.170 COMPRESSOR ASM; A/C
AIR CONDITIONER MANUAL CONT(C60) 		8-98042-531-1 01 1 1309- ● ● ●
