0-40 — FUEL INJECTION SYSTEM (#12632) — 101 parça

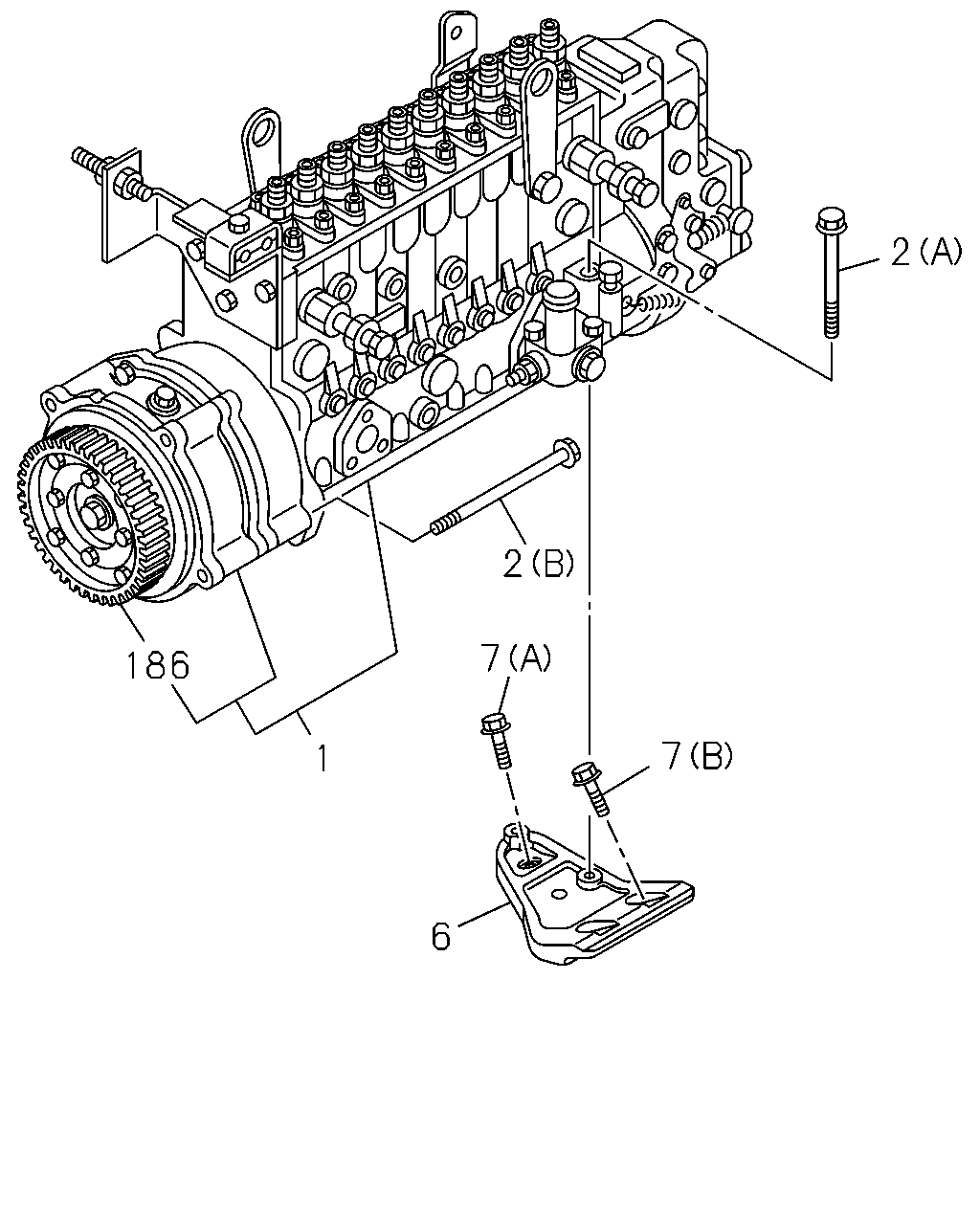

çizim 21991
2 2 7 186 7 1 6
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) 		1-15603-203-2 01 1 0105- ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) 		1-15603-202-2 01 1 0105- ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> 		1-15603-201-2 01 1 0105- ● ●
2 BOLT; INJ PUMP
(B) M10X80 FLANGE 		0-28181-080-0 04 1 0105- ● ●
2 BOLT; INJ PUMP
(A) M10X95 FLANGE 		8-94397-027-1 02 1 0105- ● ●
6 BRACKET; INJ PUMP TO C/BL 1-19751-051-0 01 1 0105- ● ●
7 BOLT; INJ PUMP BRKT
(A) M10X22 FLANGE 		0-28181-022-0 01 1 0105- ● ●
7 BOLT; INJ PUMP BRKT
(B) M10X40 FLANGE 		0-28181-040-0 01 1 0105- ● ●
186 GEAR; INJ PUMP 1-12524-085-3 01 1 0105- ● ●

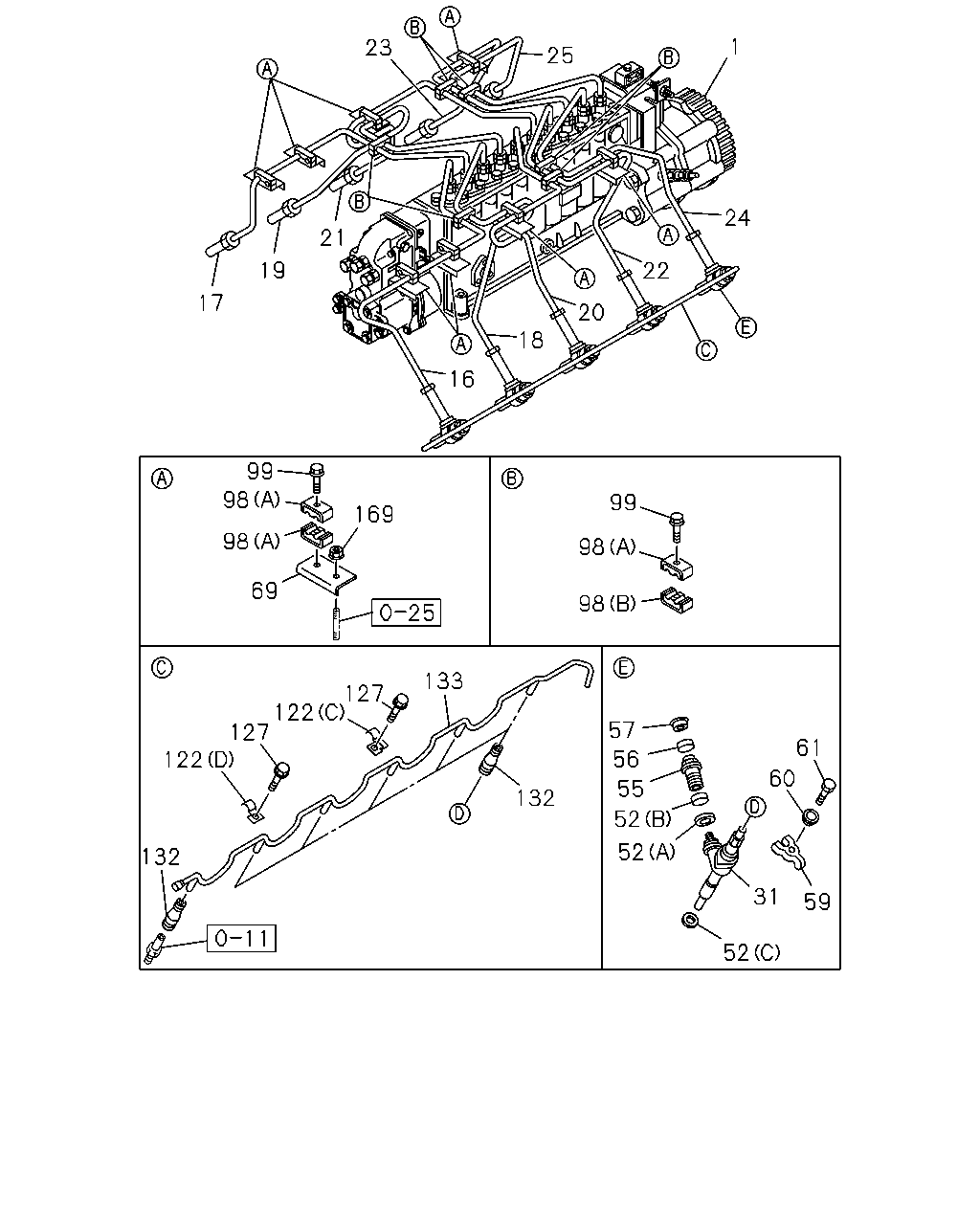

çizim 23933
1 23 25 24 21 19 22 17 20 18 16 99 98 99 169 98 98 69 98 133 127 122 127 122 57 61 56 60 55 132 52 52 132 31 59 52
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) 		1-15603-203-2 01 1 0105- ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) 		1-15603-202-2 01 1 0105- ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> 		1-15603-201-2 01 1 0105- ● ●
16 PIPE; INJ NO.1 1-15415-919-1 01 1 0105- ● ●
17 PIPE; INJ NO.2 1-15415-920-1 01 1 0105- ● ●
18 PIPE; INJ NO.3 1-15415-921-1 01 1 0105- ● ●
19 PIPE; INJ NO.4 1-15415-922-1 01 1 0105- ● ●
20 PIPE; INJ NO.5 1-15415-923-1 01 1 0105- ● ●
21 PIPE; INJ NO.6 1-15415-924-1 01 1 0105- ● ●
22 PIPE; INJ NO.7 1-15415-925-1 01 1 0105- ● ●
23 PIPE; INJ NO.8 1-15415-926-1 01 1 0105- ● ●
24 PIPE; INJ NO.9 1-15415-927-1 01 1 0105- ● ●
25 PIPE; INJ NO.10 1-15415-928-1 01 1 0105- ● ●
31 NOZZLE ASM; INJ 1-15300-204-1 10 1 0105- ● ●
52 GASKET; SLEEVE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) OD=26.0 		1-09630-111-0 10 1 0105- ● ●
52 GASKET; SLEEVE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=15 		1-15315-011-0 10 1 0105- ● ●
52 GASKET; SLEEVE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) OD=28.5 		1-09639-030-0 10 1 0105- ● ●
55 SLEEVE; INJ PUMP 1-15339-094-0 10 1 0105- ● ●
56 COVER 1-15419-028-0 10 1 0105- ● ●
57 GASKET; DUST COVER
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-15419-027-1 10 1 0105- ● ●
59 CLAMP; NOZZLE HOLDER 1-15337-012-0 10 1 0105- ● ●
60 WASHER; NOZZLE HOLDER 1-09509-046-0 10 1 0105- ● ●
61 BOLT; CLAMP NOZZLE HOLDER
M12X50 		9-01666-250-0 10 1 0105- ● ●
69 BRACKET; INJ PIPE CLIP 1-15419-391-1 08 1 0105- ● ●
98 CLIP; "A",INJ PIPE
(A) ID=15 L=30 		1-09701-132-1 22 1 0105- ● ●
98 CLIP; "A",INJ PIPE
(B) 		1-09701-213-0 06 1 0105- ● ●
99 BOLT; CLIP,INJ,PIPE
M6X30 FLANGE 		0-28080-630-0 14 1 0105- ● ●
122 CLIP; LEAK OFF PIPE
(A) 		1-09701-172-2 02 1 0105- ● ●
122 CLIP; LEAK OFF PIPE
(B) 		1-09701-173-1 02 1 0105- ● ●
122 CLIP; LEAK OFF PIPE
(C) L=19 		1-09709-104-0 04 1 0105- ● ●
122 CLIP; LEAK OFF PIPE
(D) L=22 		1-09709-156-0 02 1 0105- ● ●
127 BOLT; CLIP LEAK OFF PIPE
M8X18 FLANGE 		0-28080-818-0 06 1 0105- ● ●
132 CONNECTOR ASM; LEAK OFF 1-15449-009-0 12 1 0105- ● ●
133 PIPE; INJ NOZZLE LEAK OFF 1-15414-534-0 02 1 0105- ● ●
169 NUT; BRKT
M8 FLANGE 		0-91150-108-0 08 1 0105- ● ●

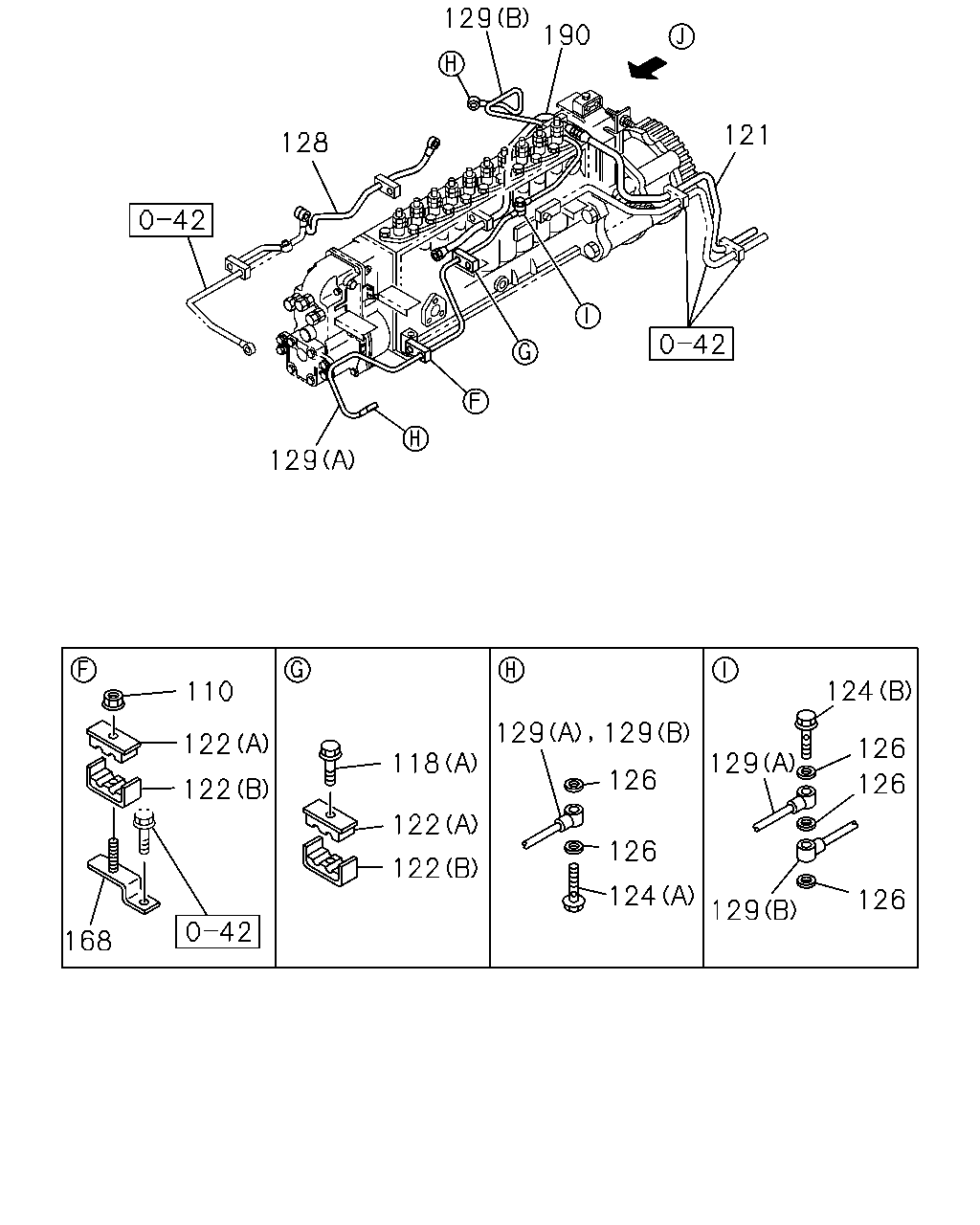

çizim 80335
129 190 121 128 129 124 110 129 129 122 126 118 129 126 126 122 122 126 122 124 126 129 168
BalonParca AdiParca NoAdetTipApplied Date A B
110 NUT; CLIP
M6 FLANGE 		0-91150-106-0 01 1 0105- ● ●
118 BOLT; CLIP,INJ PIPE
(B) M6X30 FLANGE 		0-28080-630-0 01 1 0105- ● ●
118 BOLT; CLIP,INJ PIPE
(A) M6X35 FLANGE 		0-28080-635-0 02 1 0105- ● ●
121 PIPE; FUEL,FEED PUMP,SUCTION 1-15415-657-0 01 1 0105- ● ●
122 CLIP; LEAK OFF PIPE
(A) 		1-09701-172-2 02 1 0105- ● ●
122 CLIP; LEAK OFF PIPE
(B) 		1-09701-173-1 02 1 0105- ● ●
122 CLIP; LEAK OFF PIPE
(C) L=19 		1-09709-104-0 04 1 0105- ● ●
122 CLIP; LEAK OFF PIPE
(D) L=22 		1-09709-156-0 02 1 0105- ● ●
124 BOLT; EYE LEAK OFF PIPE
(A) M8X18 EYE BOLT 		1-09675-037-1 02 1 0105- ● ●
124 BOLT; EYE LEAK OFF PIPE
(B) M8X30 FLANGE 		1-09675-039-1 01 1 0105- ● ●
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2 		1-09630-082-0 07 1 0105- ● ●
128 PIPE ASM; INJ 1-15415-740-1 01 1 0105- ● ●
129 PIPE ASM; LEAK OFF OUTER
(A) 		1-15415-390-0 01 1 0105- ● ●
129 PIPE ASM; LEAK OFF OUTER
(B) 		1-15415-620-0 01 1 0105- ● ●
168 BRACKET; FUEL PIPE 1-15419-622-0 01 1 0105- ● ●
190 PIPE; FUEL INLET 1-15415-915-0 01 1 0105- ● ●

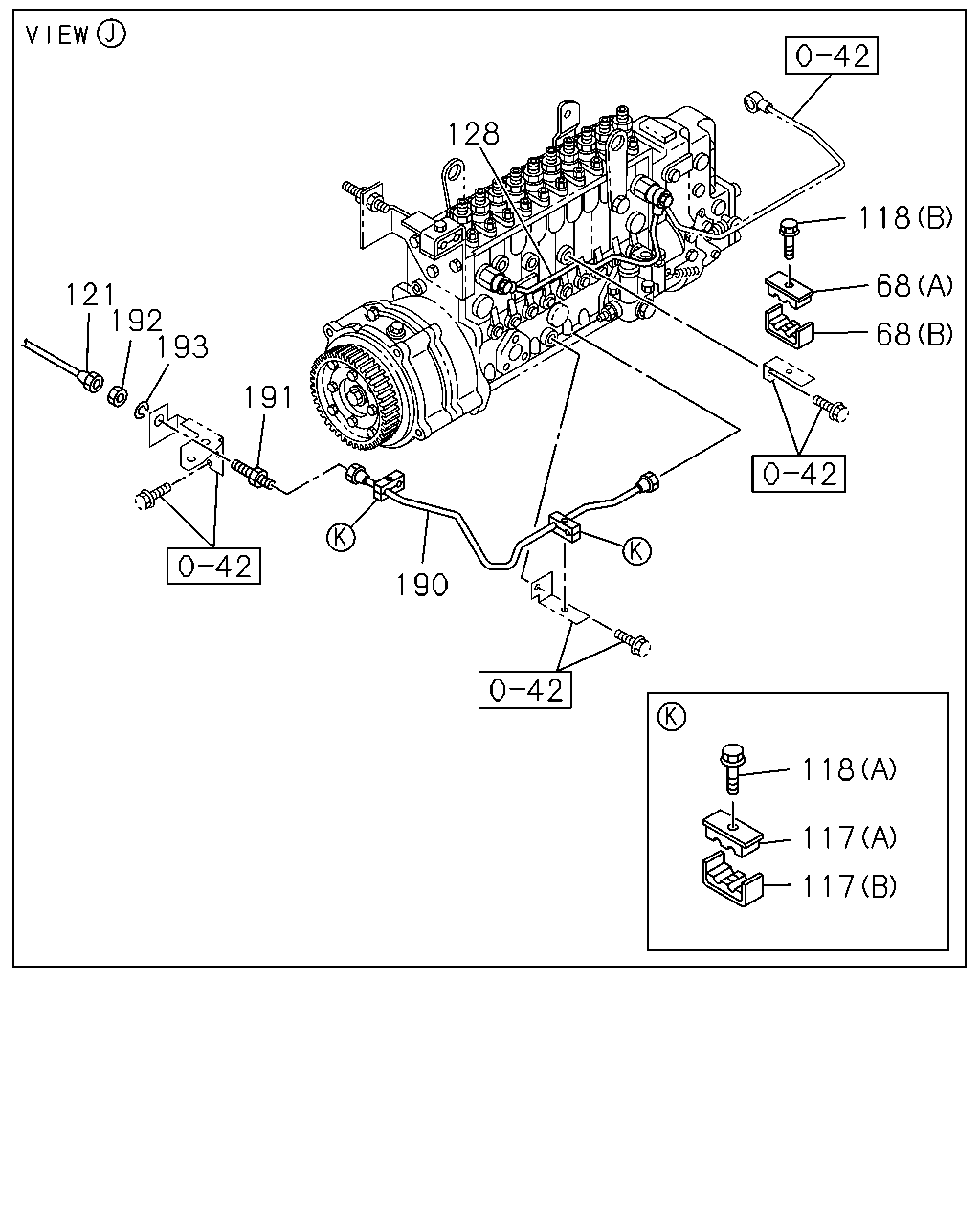

çizim 80633
128 118 68 121 192 193 68 191 190 118 117 117
BalonParca AdiParca NoAdetTipApplied Date A B
68 CLIP; INJ PIPE
(A) 		1-09701-180-0 01 1 0105- ● ●
68 CLIP; INJ PIPE
(B) ID=10 & 10 L=25 		8-94393-280-2 01 1 0105- ● ●
117 CLIP; INJ PIPE
(A) 		1-09701-195-2 02 1 0105- ● ●
117 CLIP; INJ PIPE
(B) 		1-09701-196-1 02 1 0105- ● ●
118 BOLT; CLIP,INJ PIPE
(B) M6X30 FLANGE 		0-28080-630-0 01 1 0105- ● ●
118 BOLT; CLIP,INJ PIPE
(A) M6X35 FLANGE 		0-28080-635-0 02 1 0105- ● ●
121 PIPE; FUEL,FEED PUMP,SUCTION 1-15415-657-0 01 1 0105- ● ●
128 PIPE ASM; INJ 1-15415-740-1 01 1 0105- ● ●
190 PIPE; FUEL INLET 1-15415-915-0 01 1 0105- ● ●
191 UNION; FLARE
M20 L=77.5 		9-09233-212-1 01 1 0105- ● ●
192 NUT; UNION
M20 		9-99110-420-0 01 1 0105- ● ●
193 WASHER; UNION
ID=20.2 		9-09150-520-0 01 1 0105- ● ●
çizim 83714
37 38 40 39 143 44 141 140 31 32 47 140 138 45 46 33 35
BalonParca AdiParca NoAdetTipApplied Date A B
31 NOZZLE ASM; INJ 1-15300-204-1 10 1 0105- ● ●
32 HOLDER ASM; NOZZLE 1-15330-089-1 10 1 0105- ● ●
33 NOZZLE; INJ 1-15311-180-0 10 1 0105- ● ●
35 NUT; NOZZLE RET,NOZZLE HOLDER 1-15332-017-0 10 1 0105- ● ●
37 NUT; CAP,NOZZLE HOLDER 1-15334-015-0 10 1 0105- ● ●
38 GASKET; CAP NUT,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENGINE). 		9-15339-056-0 10 1 0105- ● ●
39 SCREW; ADJ,NOZZLE SPRING,NOZZLE HOLDER 1-15345-004-0 10 1 0105- ● ●
40 NUT; ADJ SCREW,NOZZLE HOLDER 1-15332-011-0 10 1 0105- ● ●
44 SPRING; NOZZLE,NOZZLE HOLDER 8-94246-531-0 10 1 0105- ● ●
45 ROD; PUSH,NOZZLE HOLDER 1-15341-004-0 10 1 0105- ● ●
46 PIN; NOZZLE SET,NOZZLE HOLDER 9-15347-003-0 20 1 0105- ● ●
47 SPACER; NOZZLE SPRING,NOZZLE HOLDER 1-15339-015-0 10 1 0105- ● ●
138 SPRING; NOZZLE LWR,NOZZLE HOLDER 1-15343-001-0 10 1 0105- ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.50 		5-15339-007-0 AR 1 0105- ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.60 		5-15339-008-0 AR 1 0105- ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.70 		5-15339-009-0 AR 1 0105- ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.80 		5-15339-010-0 AR 1 0105- ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.90 		5-15339-011-0 AR 1 0105- ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=1.00 		5-15339-012-0 AR 1 0105- ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.52 		5-15339-018-0 AR 1 0105- ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.54 		5-15339-019-0 AR 1 0105- ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.56 		5-15339-020-0 AR 1 0105- ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.58 		5-15339-021-0 AR 1 0105- ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.10 		8-94128-982-0 AR 1 0105- ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.20 		8-94128-983-0 AR 1 0105- ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.30 		8-94128-984-0 AR 1 0105- ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.40 		8-94128-985-0 AR 1 0105- ● ●
141 ROD; PUSH,UPR,NOZZLE HOLDER 1-15341-005-0 10 1 0105- ● ●
143 SCREW; SET,NOZZLE SPRING,NOZZLE HOLDER 1-15345-003-0 10 1 0105- ● ●
