10876 - EXZ RHD FUEL TANK 200L+200L
▶
0 - Engine, Emission, Engine Electrical
▶
0-39 - AIR COMPRESSOR; BRAKE
▶
0-39 — AIR COMPRESSOR; BRAKE
(#12631) — 32 parça
Tümü
A - 10PE1S
B - 10PE1H
◀
[039A] LINER KIT (7 parça)
[039A] COMPONENT (25 parça)
▶
1
20
21
13
13
15
12
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
LINER KIT; CYL,AIR CMPR
1-19163-061-0
01
1
0105-
●
●
12
GASKET; AIR CMPR
1-09623-614-0
01
1
0105-
●
●
13
GASKET; AIR CMPR
(A)
1-09623-615-0
01
1
0105-
●
●
13
GASKET; AIR CMPR
(B)
1-19115-012-0
01
1
0105-
●
●
15
CYLINDER; AIR CMPR
1-19151-279-0
01
1
0105-
●
●
20
RING KIT; PISTON,AIR CMPR
1-19163-058-0
01
1
0105-
●
●
21
PISTON; AIR CMPR
1-19161-022-0
01
1
0105-
●
●

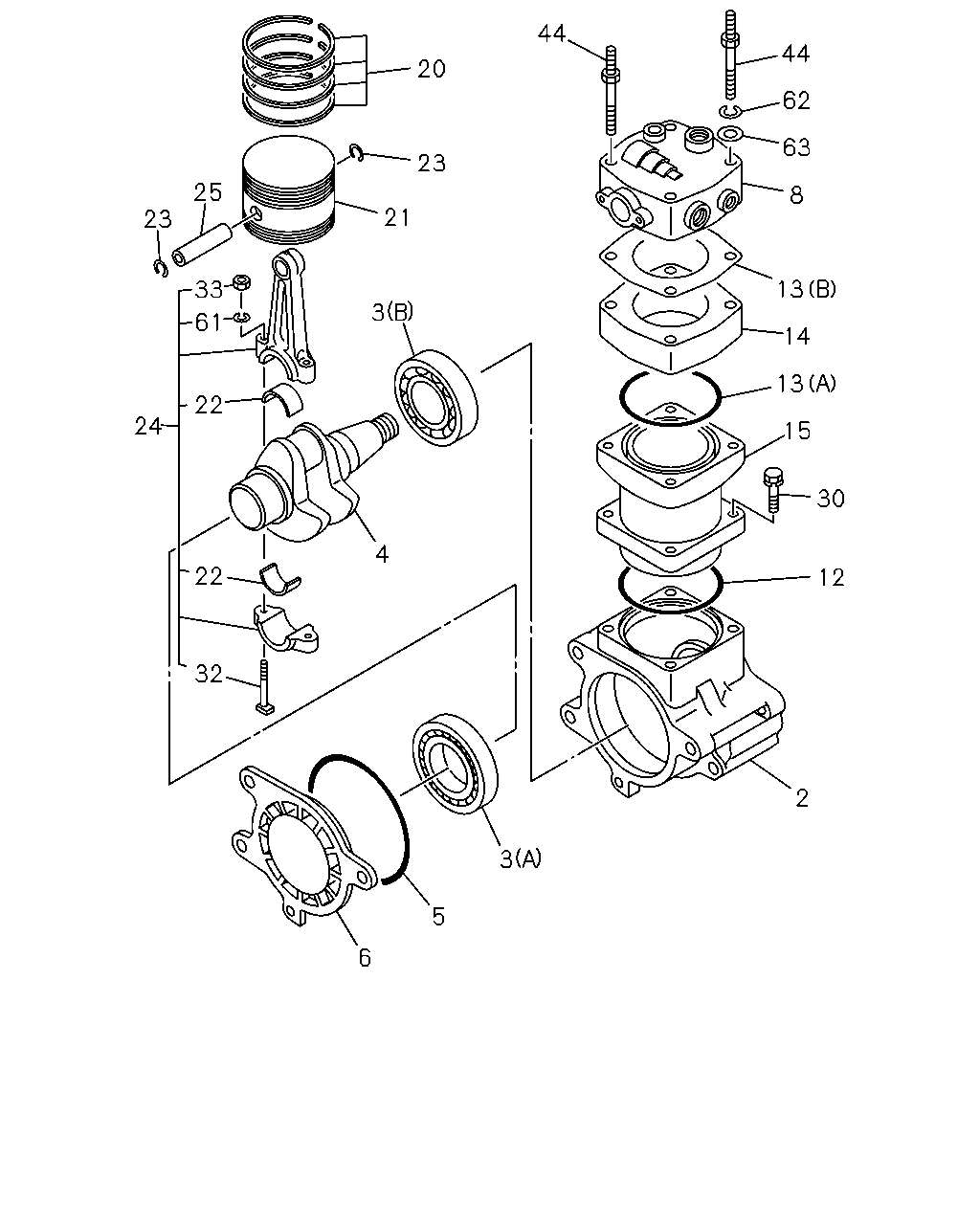

44
44
20
62
63
23
25
8
21
23
33
61
13
3
14
13
22
24
15
30
4
22
12
32
2
3
5
6
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
CRANKCASE; AIR CMPR
1-19151-281-0
01
1
0105-
●
●
3
BEARING; AIR CMPR
(A)
1-09800-268-0
01
1
0105-
●
●
3
BEARING; AIR CMPR
(B)
1-09800-269-0
01
1
0105-
●
●
4
CRANKSHAFT; AIR CMPR
1-19171-071-0
01
1
0105-
●
●
5
GASKET; AIR CMPR
1-09623-624-0
01
1
0105-
●
●
6
COVER ASM; BRG,AIR CMPR
1-19156-074-0
01
1
0105-
●
●
8
HEAD ASM; CYL,AIR CMPR
1-19110-061-0
01
1
0105-
●
●
12
GASKET; AIR CMPR
1-09623-614-0
01
1
0105-
●
●
13
GASKET; AIR CMPR
(A)
1-09623-615-0
01
1
0105-
●
●
13
GASKET; AIR CMPR
(B)
1-19115-012-0
01
1
0105-
●
●
14
PLATE; AIR CMPR
1-19130-008-0
01
1
0105-
●
●
15
CYLINDER; AIR CMPR
1-19151-279-0
01
1
0105-
●
●
20
RING KIT; PISTON,AIR CMPR
1-19163-058-0
01
1
0105-
●
●
21
PISTON; AIR CMPR
1-19161-022-0
01
1
0105-
●
●
22
BEARING; CONNROD,AIR CMPR
1-19177-008-0
02
1
0105-
●
●
23
RING; SNAP,PISTON,AIR CMPR
1-19169-003-0
02
1
0105-
●
●
24
ROD ASM; CONN,AIR CMPR
1-19173-019-0
01
1
0105-
●
●
25
PIN; PISTON,AIR CMPR
1-19167-004-0
01
1
0105-
●
●
30
BOLT; CYL TO CRANKCASE
M10X30
1-19119-026-0
05
1
0105-
●
●
32
BOLT; CONNROD
1-19179-021-0
02
1
0105-
●
●
33
NUT; CONNROD BOLT
1-19179-023-0
02
1
0105-
●
●
44
STUD; CYL HD,AIR CMPR
1-19119-025-0
04
1
0105-
●
●
61
WASHER; LK,CONNROD BOLT
1-19179-022-0
02
1
0105-
●
●
62
WASHER; LK,STUD
ID=10.2
9-09150-510-0
02
1
0105-
●
●
63
WASHER; PL,STUD
ID=10.5 OD=18
9-09160-510-0
02
1
0105-
●
●
