◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51482 - NNR/NPR RHD EUROPE EURO5B+,6 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶
7-60 — SEAT BELT (#126305) — 53 parça

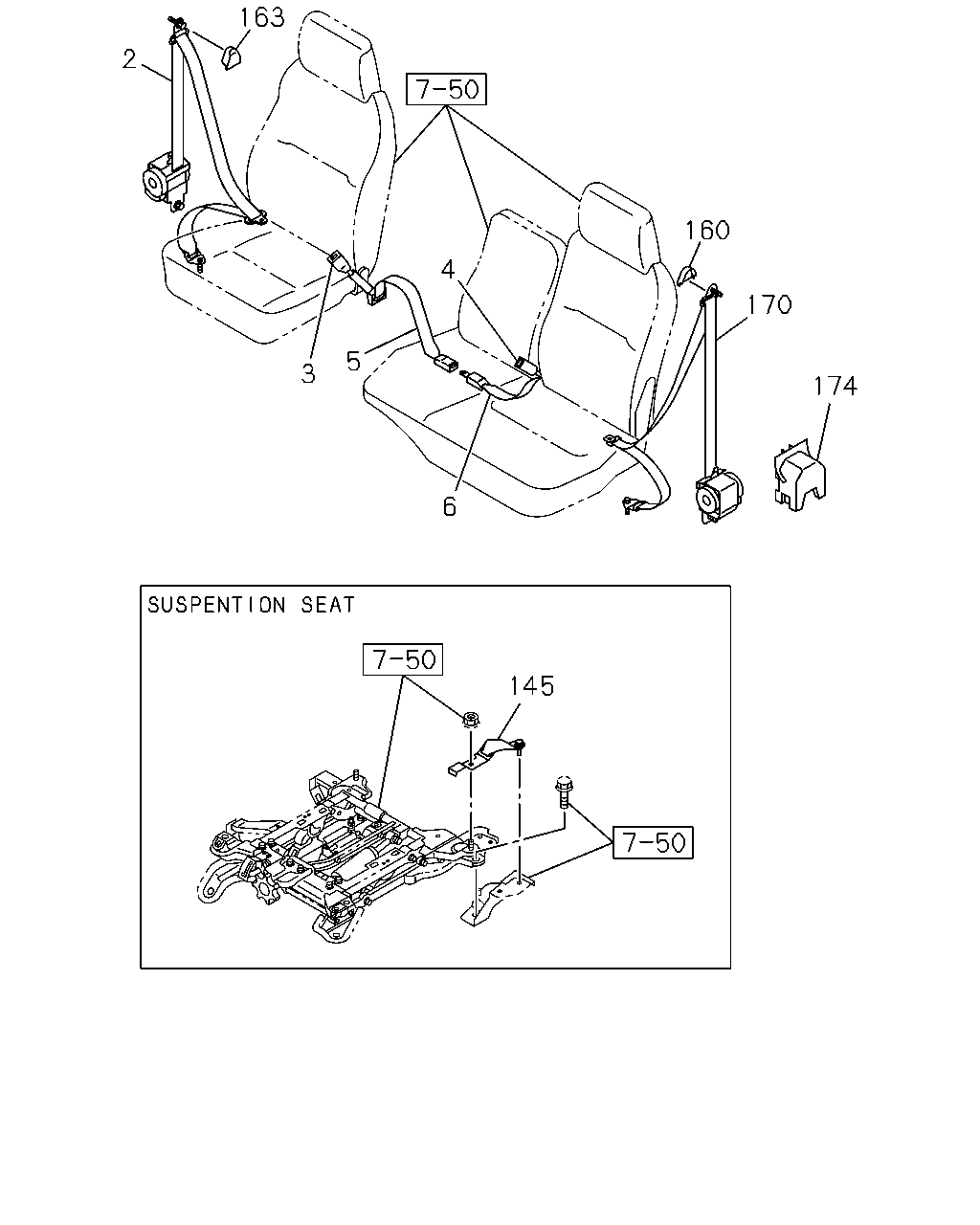

çizim 373351
2 4 5 3 6 174 170 160 163 145
BalonParca AdiParca NoAdetTipApplied Date A B C
2 16.714 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SEATBELT COLOR RED<6SX> 		8-97465-395-0 01 1 1407- ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> GRAY 		8-97405-179-9 01 1 1309-1406 ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. SEATBELT COLOR RED<6SX> GRAY 		8-97428-456-0 01 1 1407- ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> GRAY 		8-97405-180-7 01 1 1309-1406 ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> GRAY 		8-97428-457-1 01 1 1407- ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
GRAY 		8-97405-175-2 01 1 1309- ● ● ●
4 16.714 BELT; PASSENGER SEAT,BUCKLE SIDE
SEATBELT COLOR RED<6SX> 		8-97465-398-0 01 1 1407- ● ● ●
4 16.714 BELT; PASSENGER SEAT,BUCKLE SIDE
GRAY 		8-97405-178-0 01 1 1309-1406 ● ● ●
4 16.714 BELT; PASSENGER SEAT,BUCKLE SIDE
EXC. SEATBELT COLOR RED<6SX> GRAY 		8-97405-178-0 01 1 1407- ● ● ●
5 16.714 BELT; CENTER SEAT,BUCKLE SIDE
SEATBELT COLOR RED<6SX> 		8-97465-396-1 01 1 1407- ● ● ●
5 16.714 BELT; CENTER SEAT,BUCKLE SIDE
GRAY 		8-97405-182-1 01 1 1309-1406 ● ● ●
5 16.714 BELT; CENTER SEAT,BUCKLE SIDE
EXC. SEATBELT COLOR RED<6SX> GRAY 		8-97405-182-1 01 1 1407- ● ● ●
6 16.714 BELT; CENTER SEAT,TONGUE SIDE
SEATBELT COLOR RED<6SX> 		8-97465-397-2 01 1 1407- ● ● ●
6 16.714 BELT; CENTER SEAT,TONGUE SIDE
GRAY 		8-97411-507-2 01 1 1309-1406 ● ● ●
6 16.714 BELT; CENTER SEAT,TONGUE SIDE
EXC. SEATBELT COLOR RED<6SX> GRAY 		8-97411-507-2 01 1 1407- ● ● ●
145 16.714 BELT; TETHER,DRIVER
SUSP SEAT 100KG W/SEAT BELT ANCHORAGE<SA3> EXC. INSPECTION ENGINE COVER<8GA> GRAY 		8-97415-840-0 01 1 1309- ● ●
160 16.714 COVER; THROUGH ANCHOR
GRAY 		8-97405-991-0 01 1 1309- ● ● ●
160 16.714 COVER; THROUGH ANCHOR
GRAY 		8-97405-991-0 02 1 1309- ●
163 16.714 COVER; ADJUSTER
GRAY 		8-97405-991-0 01 1 1309- ● ● ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER<AK5> SEATBELT COLOR RED<6SX> 		8-97465-395-0 01 1 1407- ● ● ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
SEATBELT COLOR RED<6SX> EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-97465-399-1 01 1 1407- ● ● ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER<AK5> GRAY 		8-97405-179-9 01 1 1309-1406 ● ● ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER<AK5> EXC. SEATBELT COLOR RED<6SX> GRAY 		8-97428-456-0 01 1 1407- ● ● ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
EXC. AIR BAG DRIVER & PASSENGER<AK5> GRAY 		8-97405-180-7 01 1 1309-1406 ● ● ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
EXC. AIR BAG DRIVER & PASSENGER<AK5>, SEATBELT COLOR RED<6SX> GRAY 		8-97428-457-1 01 1 1407- ● ● ●
174 16.714 COVER; RETRACTOR,SEAT BELT 8-98039-376-1 01 1 1309- ● ●
çizim 373405
160 18 19 21 21 12 12 18 19 20 20 160
BalonParca AdiParca NoAdetTipApplied Date A B C
12 16.714 SCREW; RETRACTOR COVER,SEAT BELT
M4X14 TAPPING 		0-74360-414-0 04 1 1309- ●
18 16.714 BELT; SEAT,RR
SEATBELT COLOR RED<6SX> 		8-97465-403-8 02 1 1407- ●
18 16.714 BELT; SEAT,RR
GRAY 		8-97405-185-8 02 1 1309-1406 ●
18 16.714 BELT; SEAT,RR
EXC. SEATBELT COLOR RED<6SX> GRAY 		8-97405-185-8 02 1 1407- ●
19 16.714 BELT; RR SEAT,BUCKLE SIDE
SEATBELT COLOR RED<6SX> 		8-97465-404-3 02 1 1407- ●
19 16.714 BELT; RR SEAT,BUCKLE SIDE
GRAY 		8-97405-992-3 02 1 1309-1406 ●
19 16.714 BELT; RR SEAT,BUCKLE SIDE
EXC. SEATBELT COLOR RED<6SX> GRAY 		8-97405-992-3 02 1 1407- ●
20 16.714 BELT; RR SEAT CTR,TONGUE SIDE
SEATBELT COLOR RED<6SX> 		8-97465-402-3 01 1 1407- ●
20 16.714 BELT; RR SEAT CTR,TONGUE SIDE
SEATBELT COLOR RED<6SX> 		8-97465-407-3 01 1 1407- ●
20 16.714 BELT; RR SEAT CTR,TONGUE SIDE
GRAY 		8-97411-511-2 01 1 1309-1406 ●
20 16.714 BELT; RR SEAT CTR,TONGUE SIDE
EXC. SEATBELT COLOR RED<6SX> GRAY 		8-97411-511-3 01 1 1407- ●
20 16.714 BELT; RR SEAT CTR,TONGUE SIDE
GRAY 		8-97411-512-2 01 1 1309-1406 ●
20 16.714 BELT; RR SEAT CTR,TONGUE SIDE
EXC. SEATBELT COLOR RED<6SX> GRAY 		8-97411-512-3 01 1 1407- ●
21 16.714 BELT; RR SEAT CTR,BUCKLE SIDE
SEATBELT COLOR RED<6SX> 		8-97465-405-0 01 1 1407- ●
21 16.714 BELT; RR SEAT CTR,BUCKLE SIDE
SEATBELT COLOR RED<6SX> 		8-97465-406-0 01 1 1407- ●
21 16.714 BELT; RR SEAT CTR,BUCKLE SIDE
GRAY 		8-97405-993-0 01 1 1309-1406 ●
21 16.714 BELT; RR SEAT CTR,BUCKLE SIDE
EXC. SEATBELT COLOR RED<6SX> GRAY 		8-97405-993-0 01 1 1407- ●
21 16.714 BELT; RR SEAT CTR,BUCKLE SIDE
GRAY 		8-97407-144-0 01 1 1309-1406 ●
21 16.714 BELT; RR SEAT CTR,BUCKLE SIDE
EXC. SEATBELT COLOR RED<6SX> GRAY 		8-97407-144-0 01 1 1407- ●
160 16.714 COVER; THROUGH ANCHOR
GRAY 		8-97405-991-0 01 1 1309- ● ● ●
160 16.714 COVER; THROUGH ANCHOR
GRAY 		8-97405-991-0 02 1 1309- ●

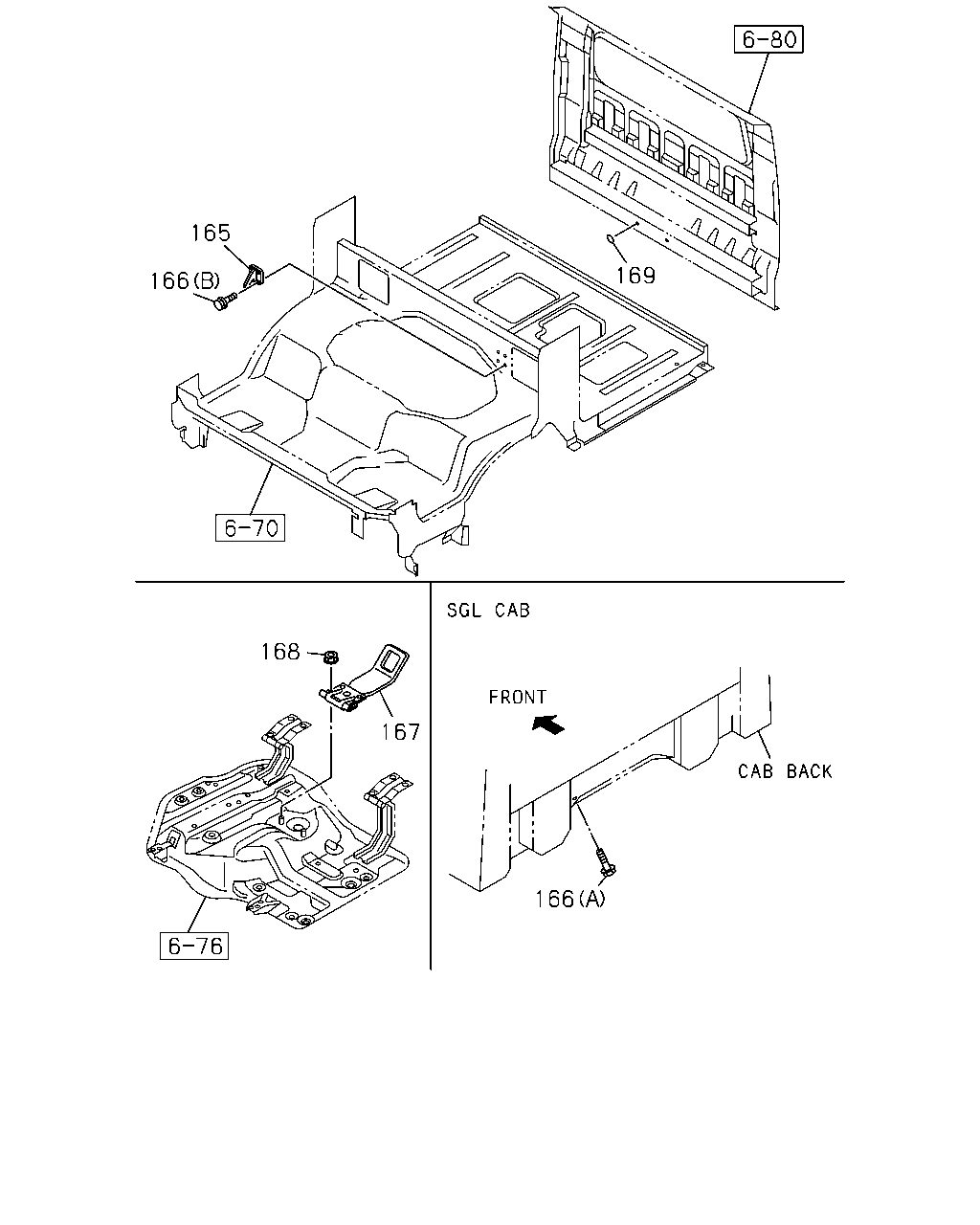

çizim 373407
165 166 169 168 167 166
BalonParca AdiParca NoAdetTipApplied Date A B C
165 16.714 HOOK; SEAT BELT ANCHOR 8-98040-143-0 01 1 1309- ●
166 16.714 BOLT; SEAT BELT ANCHOR
EXC. INSPECTION ENGINE COVER<8GA> 04.338 (A) M8X20 FLANGE 		0-28050-820-0 02 1 1309- ● ●
166 16.714 BOLT; SEAT BELT ANCHOR
06.216 (B) M8X25 FLANGE 		0-28650-825-0 04 1 1309- ●
167 16.714 PLATE; ANCHOR 8-97589-140-0 01 1 1309- ●
168 16.714 NUT; ANCHOR PLATE
01.062 M8 FLANGE 		0-91180-108-0 02 1 1309- ●
169 16.650 SEAL
02.580 OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 1309- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
