7-55 — REAR SEAT (#126304) — 22 parça

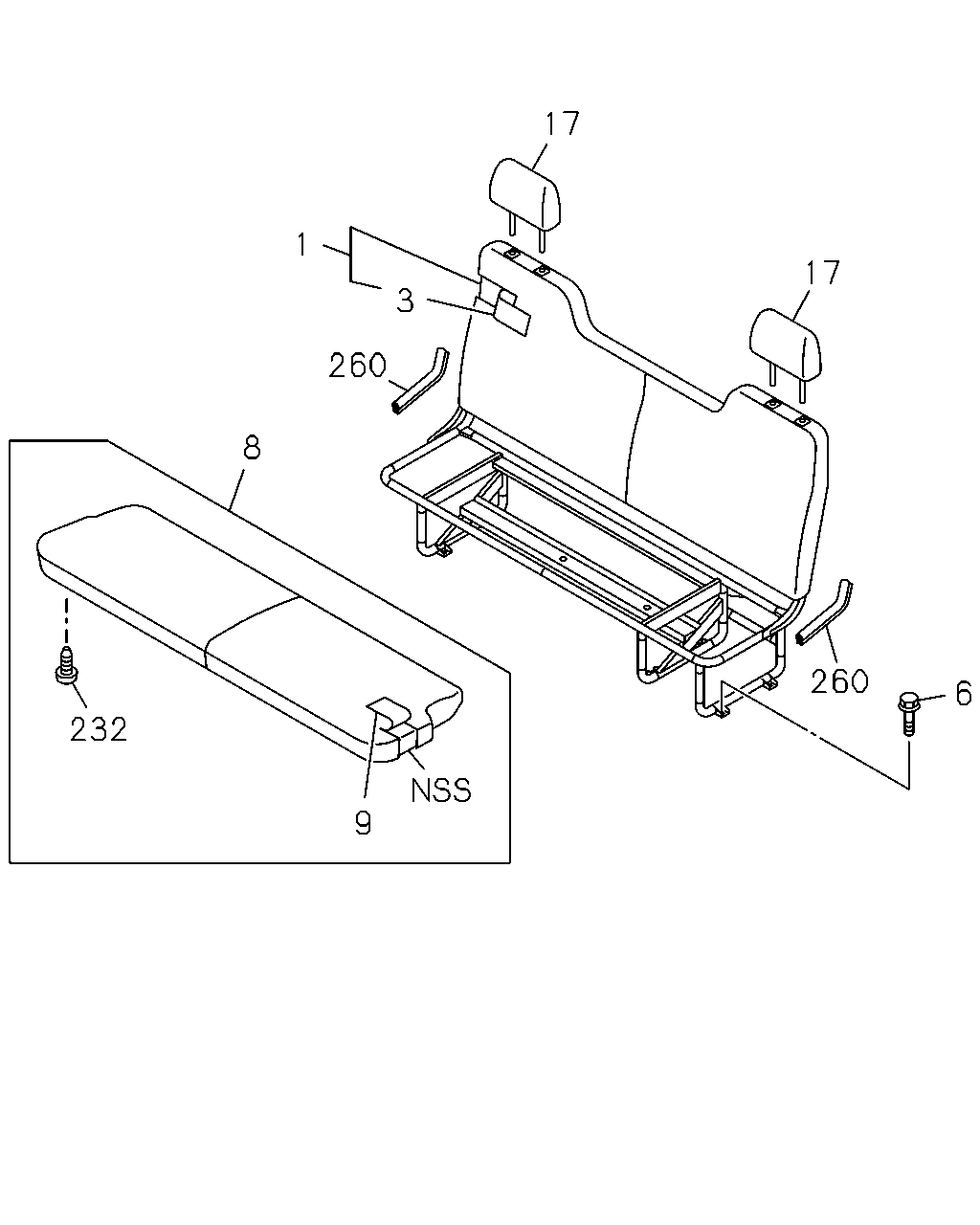

çizim 374319
232 9 8 260 1 17 17 3 6 260
BalonParca AdiParca NoAdetTipApplied Date
1 16.720 BACK ASM; RR SEAT
FACE LIFT MODEL<TX7> DARK GRAY 		8-97465-058-0 01 1 1409-
1 16.720 BACK ASM; RR SEAT
DARK GRAY 		8-97421-358-0 01 1 1309-1408
1 16.720 BACK ASM; RR SEAT
EXC. FACE LIFT MODEL<TX7> DARK GRAY 		8-97421-358-0 01 1 1409-
3 16.714 COVER; TRIM,RR SEAT BACK
FACE LIFT MODEL<TX7> DARK GRAY 		8-97465-060-0 01 1 1409-
3 16.714 COVER; TRIM,RR SEAT BACK
DARK GRAY 		8-97421-369-0 01 1 1309-1408
3 16.714 COVER; TRIM,RR SEAT BACK
EXC. FACE LIFT MODEL<TX7> DARK GRAY 		8-97421-369-0 01 1 1409-
6 16.679 BOLT; RR SEAT
M8X25 W/WASHER 		0-51640-825-0 06 1 1309-
8 16.715 CUSHION ASM; RR SEAT
FACE LIFT MODEL<TX7> DARK GRAY 		8-97465-061-0 01 1 1409-
8 16.715 CUSHION ASM; RR SEAT
DARK GRAY 		8-97421-364-0 01 1 1309-1408
8 16.715 CUSHION ASM; RR SEAT
EXC. FACE LIFT MODEL<TX7> DARK GRAY 		8-97421-364-0 01 1 1409-
9 16.717 COVER ASM; TRIM,RR,CUSHION
FACE LIFT MODEL<TX7> DARK GRAY 		8-97465-062-0 01 1 1409-
9 16.717 COVER ASM; TRIM,RR,CUSHION
DARK GRAY 		8-97421-372-0 01 1 1309-1408
9 16.717 COVER ASM; TRIM,RR,CUSHION
EXC. FACE LIFT MODEL<TX7> DARK GRAY 		8-97421-372-0 01 1 1409-
17 16.718 REST; HD,RR SEAT
FACE LIFT MODEL<TX7> DARK GRAY 		8-97465-063-0 02 1 1409-
17 16.718 REST; HD,RR SEAT
DARK GRAY 		8-97421-366-0 02 1 1309-1408
17 16.718 REST; HD,RR SEAT
EXC. FACE LIFT MODEL<TX7> DARK GRAY 		8-97421-366-0 02 1 1409-
232 16.680 SCREW; RR SEAT
05.812 M6X16 CK-HEAD 		9-03090-616-0 12 1 1309-1408
232 16.680 SCREW; RR SEAT
EXC. FACE LIFT MODEL<TX7> 05.812 M6X16 CK-HEAD 		9-03090-616-0 12 1 1409-1409
232 16.680 SCREW; RR SEAT
05.812 M6X16 CK-HEAD 		9-03090-616-0 12 1 1409-
260 16.715 FINISHER; RR SEAT
03.417 L=250 SERVICED BY L=314 		8-94262-845-0 02 1 1309-1408
260 16.715 FINISHER; RR SEAT
EXC. FACE LIFT MODEL<TX7> 03.417 L=250 SERVICED BY L=314 		8-94262-845-0 02 1 1409-1409
260 16.715 FINISHER; RR SEAT
03.417 L=250 SERVICED BY L=314 		8-94262-845-0 02 1 1409-
