Sayfa 7-43 - Isuzu EPC

7-43 — SUN VISOR AND ASSIST GRIP (#126301) — 93 parça

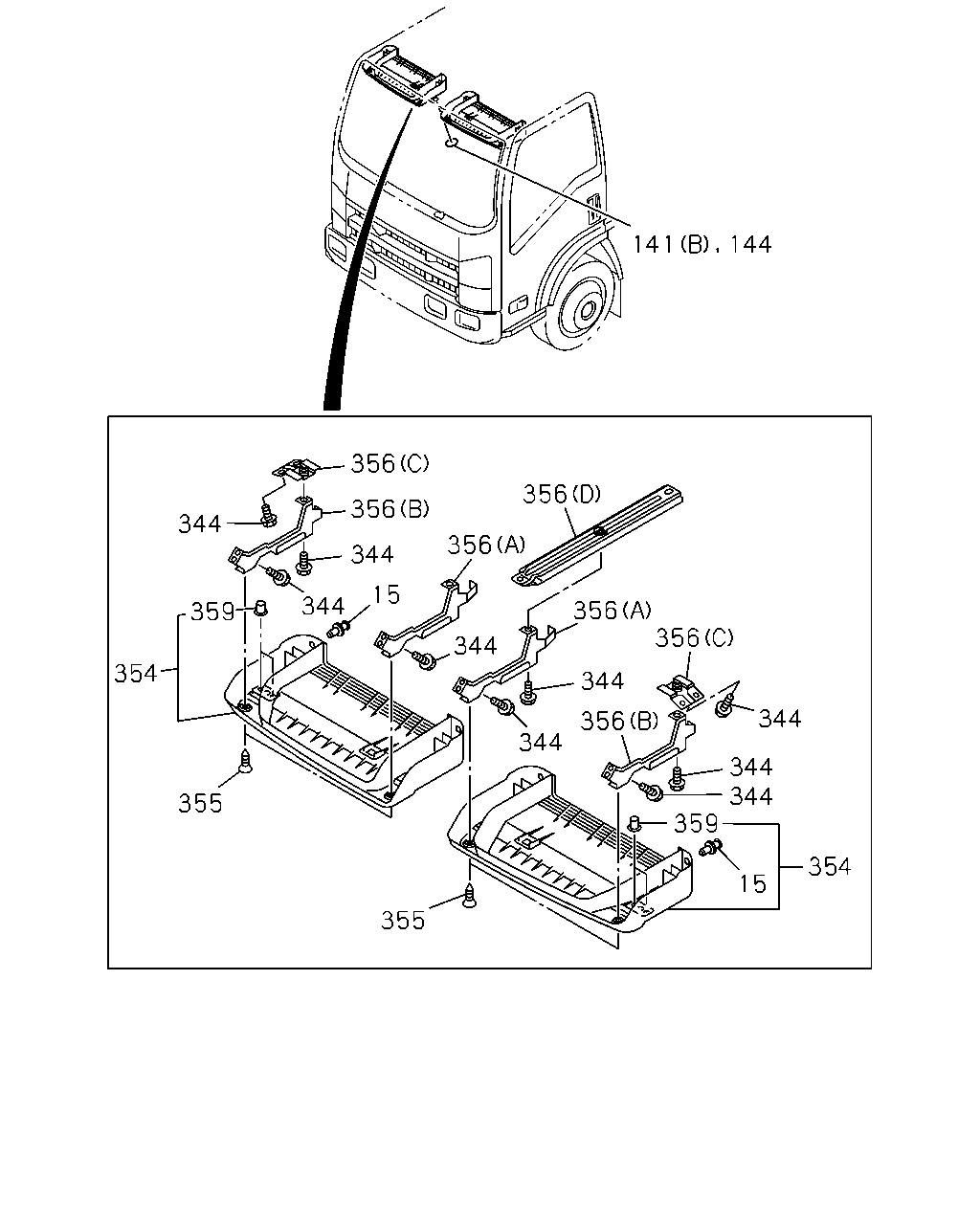

141 144 356 344 359 354 355 355 15 354 359 344 344 344 356 356 344 344 356 344 356 356 15 344 344 356

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
15	16.742 FASTENER; HEADER SHELF BOARD HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97406-299-0	02	1	1309-	●	●	●
15	16.742 FASTENER; HEADER SHELF BOARD HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97406-299-0	02	1	1309-	●	●	●
141	16.070 COVER; SUN VISOR HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) L=62 B=25 DARK GRAY	8-97405-173-0	01	1	1309-	●	●	●
141	16.070 COVER; SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20>, INTERIOR TRIM-FULL TRIMMING<WM3>,HEADER TRAY DRIVER & PASSENGER<8LY> (A) L=62 B=25 DARK GRAY	8-97405-173-0	01	1	1309-	●	●	●
141	16.070 COVER; SUN VISOR HEADER TRAY DRIVER & PASSENGER<8LY> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) L=62 B=25 DARK GRAY	8-97405-173-0	01	1	1309-	●	●	●
141	16.070 COVER; SUN VISOR HEADER TRAY DRIVER & PASSENGER<8LY> EXC. SUNVISOR PASSENGER SIDE<D20> (C) L=66 B=30 DARK GRAY	8-97408-029-0	01	1	1309-	●	●	●
141	16.070 COVER; SUN VISOR HEADER TRAY DRIVER & PASSENGER<8LY> EXC. SUNVISOR PASSENGER SIDE<D20> (B) OD=30 T=0.05 DARK GRAY	8-97408-030-0	01	1	1309-	●	●	●
144	16.070 SEAL; LOCATION HOLE BODY COLOR ARC WHITE(729) EXC. INTERIOR TRIM-FULL TRIMMING<WM3>, HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> 16.570 OD=20 T=0.05 WHITE	8-98059-421-0	04	1	1504-	●	●
144	16.070 SEAL; LOCATION HOLE BODY COLOR ARC WHITE(729) EXC. INTERIOR TRIM-FULL TRIMMING<WM3>, HEADER TRAY DRIVER & PASSENGER<8LY> 16.570 OD=20 T=0.05 WHITE	8-98059-421-0	04	1	1504-	●	●
144	16.070 SEAL; LOCATION HOLE BODY COLOR ARC WHITE(729) EXC. HEADER TRAY DRIVER<W56>,HEADER TRAYDRIVER & PASSENGER<8LY> 16.570 OD=20 T=0.05 WHITE	8-98059-421-0	04	1	1504-			●
144	16.070 SEAL; LOCATION HOLE BODY COLOR ARC WHITE(729) EXC. HEADER TRAY DRIVER & PASSENGER<8LY> 16.570 OD=20 T=0.05 WHITE	8-98059-421-0	04	1	1504-			●
144	16.070 SEAL; LOCATION HOLE BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. INTERIOR TRIM-FULL TRIMMING<WM3>, HEADER TRAY DRIVER & PASSENGER<8LY> 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	04	1	1504-	●	●
144	16.070 SEAL; LOCATION HOLE BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. INTERIOR TRIM-FULL TRIMMING<WM3>, HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	04	1	1504-	●	●
144	16.070 SEAL; LOCATION HOLE BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) EXC. HEADER TRAY DRIVER & PASSENGER<8LY> 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	04	1	1504-			●
144	16.070 SEAL; LOCATION HOLE BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) EXC. HEADER TRAY DRIVER<W56>,HEADER TRAYDRIVER & PASSENGER<8LY> 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	04	1	1504-			●
144	16.070 SEAL; LOCATION HOLE BODY COLOR ARC WHITE(729) EXC. SUNVISOR PASSENGER SIDE<D20>, INTERIOR TRIM-FULL TRIMMING<WM3>,HEADER TRAY D RIVER & PASSENGER<8LY> 16.570 OD=20 T=0.05 WHITE	8-98059-421-0	01	1	1309-1503	●	●	●
144	16.070 SEAL; LOCATION HOLE BODY COLOR ARC WHITE(729) EXC. INTERIOR TRIM-FULL TRIMMING<WM3>, HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> 16.570 OD=20 T=0.05 WHITE	8-98059-421-0	01	1	1309-1503	●	●	●
144	16.070 SEAL; LOCATION HOLE BODY COLOR ARC WHITE(729) EXC. INTERIOR TRIM-FULL TRIMMING<WM3>, HEADER TRAY DRIVER & PASSENGER<8LY> 16.570 OD=20 T=0.05 WHITE	8-98059-421-0	01	1	1309-1503	●	●	●
144	16.070 SEAL; LOCATION HOLE BODY COLOR ARC WHITE(729) EXC. SUNVISOR PASSENGER SIDE<D20>, INTERIOR TRIM-FULL TRIMMING<WM3>,HEADER TRAY D RIVER & PASSENGER<8LY> 16.570 OD=20 T=0.05 WHITE	8-98059-421-0	01	1	1504-	●	●
144	16.070 SEAL; LOCATION HOLE BODY COLOR ARC WHITE(729) EXC. SUNVISOR PASSENGER SIDE<D20>, HEADERTRAY DRIVER & PASSENGER<8LY> 16.570 OD=20 T=0.05 WHITE	8-98059-421-0	01	1	1504-			●
144	16.070 SEAL; LOCATION HOLE BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. SUNVISOR PASSENGER SIDE<D20>, INTERIOR TRIM-FULL TRIMMING<WM3>,HEADER TRAY D RIVER & PASSENGER<8LY> 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	01	1	1309-1503	●	●	●
144	16.070 SEAL; LOCATION HOLE BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. INTERIOR TRIM-FULL TRIMMING<WM3>, HEADER TRAY DRIVER & PASSENGER<8LY> 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	01	1	1309-1503	●	●	●
144	16.070 SEAL; LOCATION HOLE BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. INTERIOR TRIM-FULL TRIMMING<WM3>, HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	01	1	1309-1503	●	●	●
144	16.070 SEAL; LOCATION HOLE BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. SUNVISOR PASSENGER SIDE<D20>, INTERIOR TRIM-FULL TRIMMING<WM3>,HEADER TRAY D RIVER & PASSENGER<8LY> 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	01	1	1504-	●	●
144	16.070 SEAL; LOCATION HOLE BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) EXC. SUNVISOR PASSENGER SIDE<D20>, HEADERTRAY DRIVER & PASSENGER<8LY> 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	01	1	1504-			●
344	16.450 BOLT; BRKT,FRT HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> 03.604 M6X12 FLANGE	8-97108-669-0	08	1	1309-	●	●	●
344	16.450 BOLT; BRKT,FRT HEADER TRAY DRIVER & PASSENGER<8LY> 03.604 M6X12 FLANGE	8-97108-669-0	08	1	1309-	●	●	●
354	16.120 TRAY; HEADER ROOF INTERIOR TRIM-FULL TRIMMING<WM3> HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97408-061-2	01	1	1309-	●	●
354	16.120 TRAY; HEADER ROOF INTERIOR TRIM-FULL TRIMMING<WM3> HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97408-060-2	01	1	1309-	●	●
354	16.120 TRAY; HEADER ROOF HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY	8-97408-064-2	01	1	1309-	●	●
354	16.120 TRAY; HEADER ROOF HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97408-064-2	01	1	1309-			●
354	16.120 TRAY; HEADER ROOF HEADER TRAY DRIVER & PASSENGER<8LY> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY	8-97408-065-2	01	1	1309-	●	●
354	16.120 TRAY; HEADER ROOF HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97408-065-2	01	1	1309-			●
355	16.742 SCREW; TRAY HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> 16.570 M5X16 TAPPING HEXALOBULAR	0-72380-516-0	04	1	1309-	●	●	●
355	16.742 SCREW; TRAY HEADER TRAY DRIVER & PASSENGER<8LY> 16.570 M5X16 TAPPING HEXALOBULAR	0-72380-516-0	04	1	1309-	●	●	●
356	16.742 BRACKET; ROOF OUTER HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> (B)	8-97585-576-4	01	1	1309-	●	●	●
356	16.742 BRACKET; ROOF OUTER HEADER TRAY DRIVER & PASSENGER<8LY> (B)	8-97585-576-4	01	1	1309-	●	●	●
356	16.742 BRACKET; ROOF OUTER HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> (D)	8-97585-577-1	01	1	1309-	●	●	●
356	16.742 BRACKET; ROOF OUTER HEADER TRAY DRIVER & PASSENGER<8LY> (D)	8-97585-577-1	01	1	1309-	●	●	●
356	16.742 BRACKET; ROOF OUTER HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> (A)	8-98036-022-4	01	1	1309-	●	●	●
356	16.742 BRACKET; ROOF OUTER HEADER TRAY DRIVER & PASSENGER<8LY> (A)	8-98036-023-4	01	1	1309-	●	●	●
356	16.742 BRACKET; ROOF OUTER HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> (C)	8-97386-874-1	01	1	1309-	●	●	●
356	16.742 BRACKET; ROOF OUTER HEADER TRAY DRIVER & PASSENGER<8LY> (C)	8-97386-874-1	01	1	1309-	●	●	●
359	16.070 HOLDER; HEADER TRAY HEADER TRAY DRIVER & PASSENGER<8LY>	8-98041-754-0	02	1	1309-	●	●	●
359	16.070 HOLDER; HEADER TRAY HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY>	8-98041-754-0	02	1	1309-	●	●	●

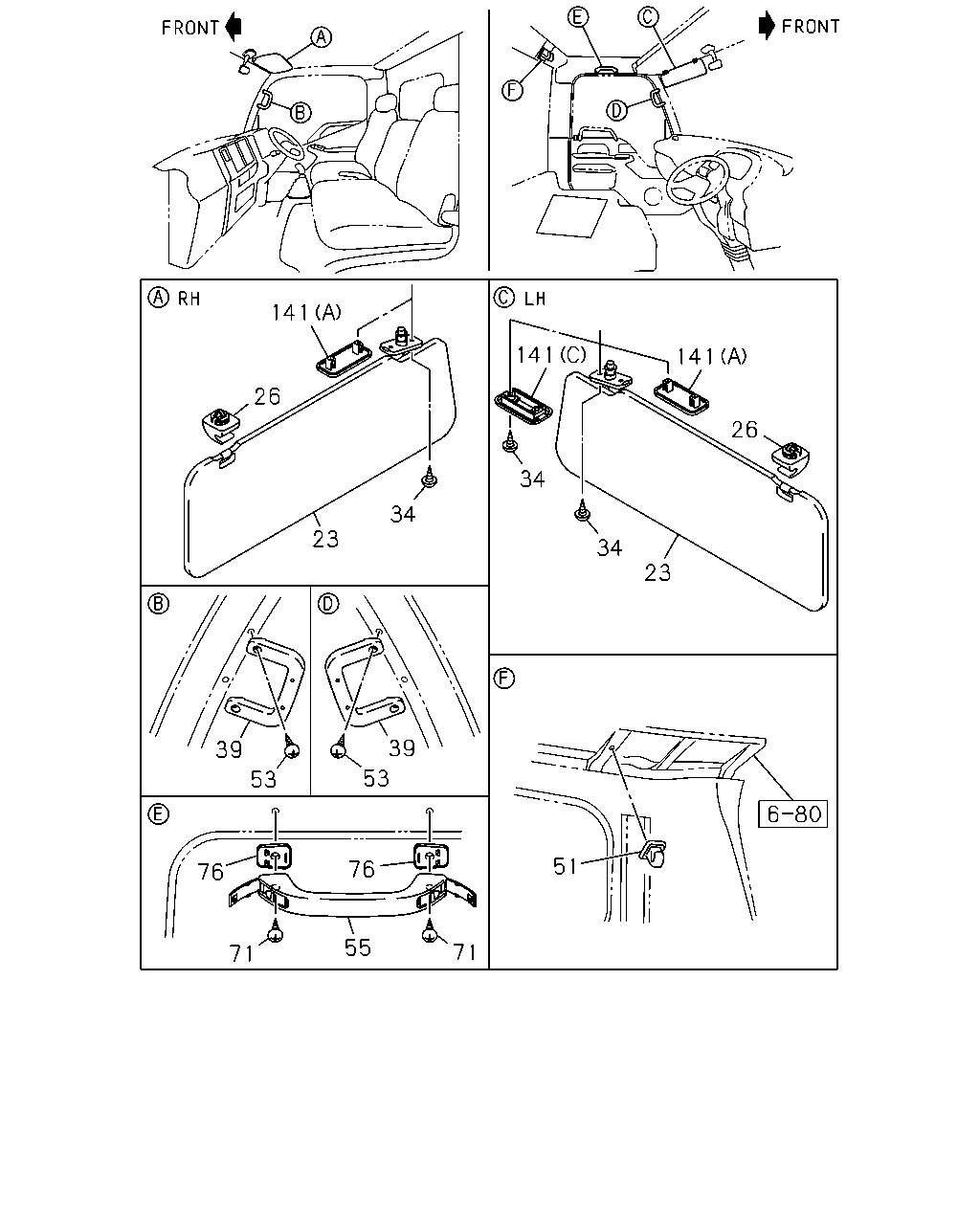

141 26 34 23 39 53 53 39 76 71 76 55 71 141 141 34 34 23 26 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
23	16.070 SUN VISOR SUSP SEAT 100KG W/SEAT BELT ANCHORAGE<SA3> HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> CATALYSIS CONTROL WITH DPD(8JM) DARK GRAY	8-97415-668-0	01	1	1311-	●
23	16.070 SUN VISOR SUSP SEAT 100KG W/SEAT BELT ANCHORAGE<SA3> CATALYSIS CONTROL WITH DPD(8JM) EXC. HEADER TRAY DRIVER<W56>,HEADER TRAYDRIVER & PASSENGER<8LY> DARK GRAY	8-97415-666-0	01	1	1311-	●
23	16.070 SUN VISOR HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSP SEAT 100KG W/SEAT BELT ANCHORA GE<SA3> DARK GRAY	8-97413-097-1	01	1	1311-	●
23	16.070 SUN VISOR CATALYSIS CONTROL WITH DPD(8JM) EXC. SUSP SEAT 100KG W/SEAT BELT ANCHORA GE<SA3>,HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97413-095-1	01	1	1311-	●
23	16.070 SUN VISOR SUNVISOR PASSENGER SIDE<D20> HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97405-170-3	01	1	1309-	●	●	●
23	16.070 SUN VISOR SUNVISOR PASSENGER SIDE<D20> EXC. HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97405-169-1	01	1	1309-	●	●	●
23	16.070 SUN VISOR SUSP SEAT 100KG W/SEAT BELT ANCHORAGE<SA3> HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY>	8-97427-613-0	01	1	1309-1310	●	●
23	16.070 SUN VISOR CATALYSIS CONTROL WITH DPD & SCR(JCQ) SUSP SEAT 100KG W/SEAT BELT ANCHORAGE<SA3> HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY>	8-97427-613-0	01	1	1311-	●
23	16.070 SUN VISOR SUSP SEAT 100KG W/SEAT BELT ANCHORAGE<SA3> HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY>	8-97427-613-0	01	1	1311-		●
23	16.070 SUN VISOR SUSP SEAT 100KG W/SEAT BELT ANCHORAGE<SA3> EXC. HEADER TRAY DRIVER<W56>,HEADER TRAYDRIVER & PASSENGER<8LY>	8-97427-614-0	01	1	1309-1310	●	●
23	16.070 SUN VISOR CATALYSIS CONTROL WITH DPD & SCR(JCQ) SUSP SEAT 100KG W/SEAT BELT ANCHORAGE<SA3> EXC. HEADER TRAY DRIVER<W56>,HEADER TRAYDRIVER & PASSENGER<8LY>	8-97427-614-0	01	1	1311-	●
23	16.070 SUN VISOR SUSP SEAT 100KG W/SEAT BELT ANCHORAGE<SA3> EXC. HEADER TRAY DRIVER<W56>,HEADER TRAYDRIVER & PASSENGER<8LY>	8-97427-614-0	01	1	1311-		●
23	16.070 SUN VISOR HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> EXC. SUSP SEAT 100KG W/SEAT BELT ANCHORA GE<SA3> DARK GRAY	8-97427-611-0	01	1	1309-1310	●	●
23	16.070 SUN VISOR HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97427-611-0	01	1	1309-1310			●
23	16.070 SUN VISOR CATALYSIS CONTROL WITH DPD & SCR(JCQ) HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> EXC. SUSP SEAT 100KG W/SEAT BELT ANCHORA GE<SA3> DARK GRAY	8-97427-611-0	01	1	1311-	●
23	16.070 SUN VISOR HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> EXC. SUSP SEAT 100KG W/SEAT BELT ANCHORA GE<SA3> DARK GRAY	8-97427-611-0	01	1	1311-		●
23	16.070 SUN VISOR HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97427-611-0	01	1	1311-			●
23	16.070 SUN VISOR EXC. SUSP SEAT 100KG W/SEAT BELT ANCHORA GE<SA3>,HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97427-609-0	01	1	1309-1310	●	●
23	16.070 SUN VISOR EXC. HEADER TRAY DRIVER<W56>,HEADER TRAYDRIVER & PASSENGER<8LY> DARK GRAY	8-97427-609-0	01	1	1309-1310			●
23	16.070 SUN VISOR CATALYSIS CONTROL WITH DPD & SCR(JCQ) EXC. SUSP SEAT 100KG W/SEAT BELT ANCHORA GE<SA3>,HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97427-609-0	01	1	1311-	●
23	16.070 SUN VISOR EXC. SUSP SEAT 100KG W/SEAT BELT ANCHORA GE<SA3>,HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97427-609-0	01	1	1311-		●
23	16.070 SUN VISOR EXC. HEADER TRAY DRIVER<W56>,HEADER TRAYDRIVER & PASSENGER<8LY> DARK GRAY	8-97427-609-0	01	1	1311-			●
26	16.070 HOLDER; SUN VISOR HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97405-171-0	01	1	1309-	●	●	●
26	16.070 HOLDER; SUN VISOR SUNVISOR PASSENGER SIDE<D20> HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97405-171-0	01	1	1309-	●	●	●
26	16.070 HOLDER; SUN VISOR EXC. HEADER TRAY DRIVER<W56>,HEADER TRAYDRIVER & PASSENGER<8LY> DARK GRAY	8-97406-200-0	01	1	1309-	●	●	●
26	16.070 HOLDER; SUN VISOR SUNVISOR PASSENGER SIDE<D20> EXC. HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97406-200-0	01	1	1308-1308		●	●
26	16.070 HOLDER; SUN VISOR SUNVISOR PASSENGER SIDE<D20> EXC. HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97406-200-0	01	1	1309-	●	●	●
34	16.070 SCREW; SUN VISOR HEADER TRAY DRIVER & PASSENGER<8LY> EXC. SUNVISOR PASSENGER SIDE<D20> M6X26	8-98033-674-0	02	1	1309-	●	●	●
34	16.070 SCREW; SUN VISOR M6X26	8-98033-674-0	02	1	1309-	●	●	●
34	16.070 SCREW; SUN VISOR SUNVISOR PASSENGER SIDE<D20> M6X26	8-98033-674-0	02	1	1309-	●	●	●
39	16.450 HANDLE; ASSIST,A-POST DARK GRAY	8-97405-249-2	02	1	1309-	●	●	●
51	16.570 HOOK; COAT HANGER COAT HOOK<S9M> INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY	8-97405-302-1	01	1	1309-	●	●
51	16.570 HOOK; COAT HANGER COAT HOOK<S9M> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 16.070 DARK GRAY	8-97406-200-0	01	1	1309-	●	●
53	16.450 SCREW; ASSIST HANDLE M6X28	8-98004-344-0	04	1	1309-	●	●	●
55	16.450 GRIP; ASSIST,CAB SIDE UPR ASSIST GRIP PASSENGER<EG5> DARK GRAY	8-97405-285-2	01	1	1309-	●	●	●
71	16.450 SCREW ASSIST GRIP PASSENGER<EG5> M6X28	8-98004-344-0	02	1	1309-	●	●	●
76	16.742 SPACER; ASSIST GRIP ASSIST GRIP PASSENGER<EG5> INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY	8-97405-286-0	02	1	1309-	●	●
141	16.070 COVER; SUN VISOR HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) L=62 B=25 DARK GRAY	8-97405-173-0	01	1	1309-	●	●	●
141	16.070 COVER; SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20>, INTERIOR TRIM-FULL TRIMMING<WM3>,HEADER TRAY DRIVER & PASSENGER<8LY> (A) L=62 B=25 DARK GRAY	8-97405-173-0	01	1	1309-	●	●	●
141	16.070 COVER; SUN VISOR HEADER TRAY DRIVER & PASSENGER<8LY> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) L=62 B=25 DARK GRAY	8-97405-173-0	01	1	1309-	●	●	●
141	16.070 COVER; SUN VISOR HEADER TRAY DRIVER & PASSENGER<8LY> EXC. SUNVISOR PASSENGER SIDE<D20> (C) L=66 B=30 DARK GRAY	8-97408-029-0	01	1	1309-	●	●	●
141	16.070 COVER; SUN VISOR HEADER TRAY DRIVER & PASSENGER<8LY> EXC. SUNVISOR PASSENGER SIDE<D20> (B) OD=30 T=0.05 DARK GRAY	8-97408-030-0	01	1	1309-	●	●	●

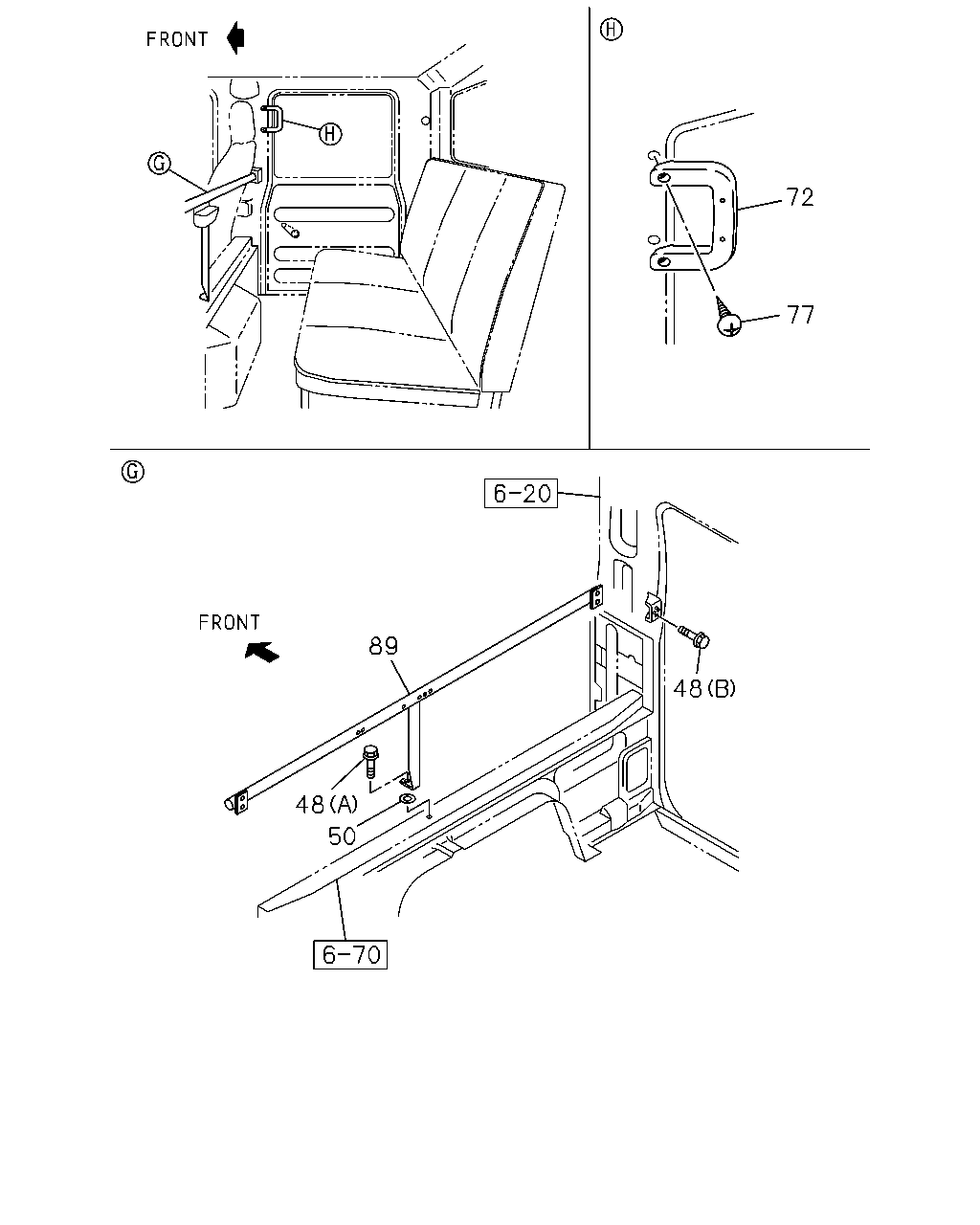

72 77 48 89 48 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	C
48	16.450 BOLT; ASSIST GRIP 03.671 (B) M6X10 FLANGE	0-28050-610-0	04	1	1309-	●
48	16.450 BOLT; ASSIST GRIP 03.162 (A) M6X20 FLANGE	0-28650-620-0	01	1	1309-	●
50	16.450 WASHER; PL,ASSIST GRIP 03.417 ID=8.4 OD=16	0-91610-508-0	01	1	1309-	●
72	16.450 GRIP; ASSIST,CAB ENTRY,BACK DARK GRAY	8-97405-249-2	02	1	1309-	●
77	16.450 SCREW; ASSIST GRIP M6X28	8-98004-344-0	04	1	1309-	●
89	16.560 HANDLE; ASSIST	8-97583-743-3	01	1	1309-	●
