◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51482 - NNR/NPR RHD EUROPE EURO5B+,6 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#126296) — 127 parça

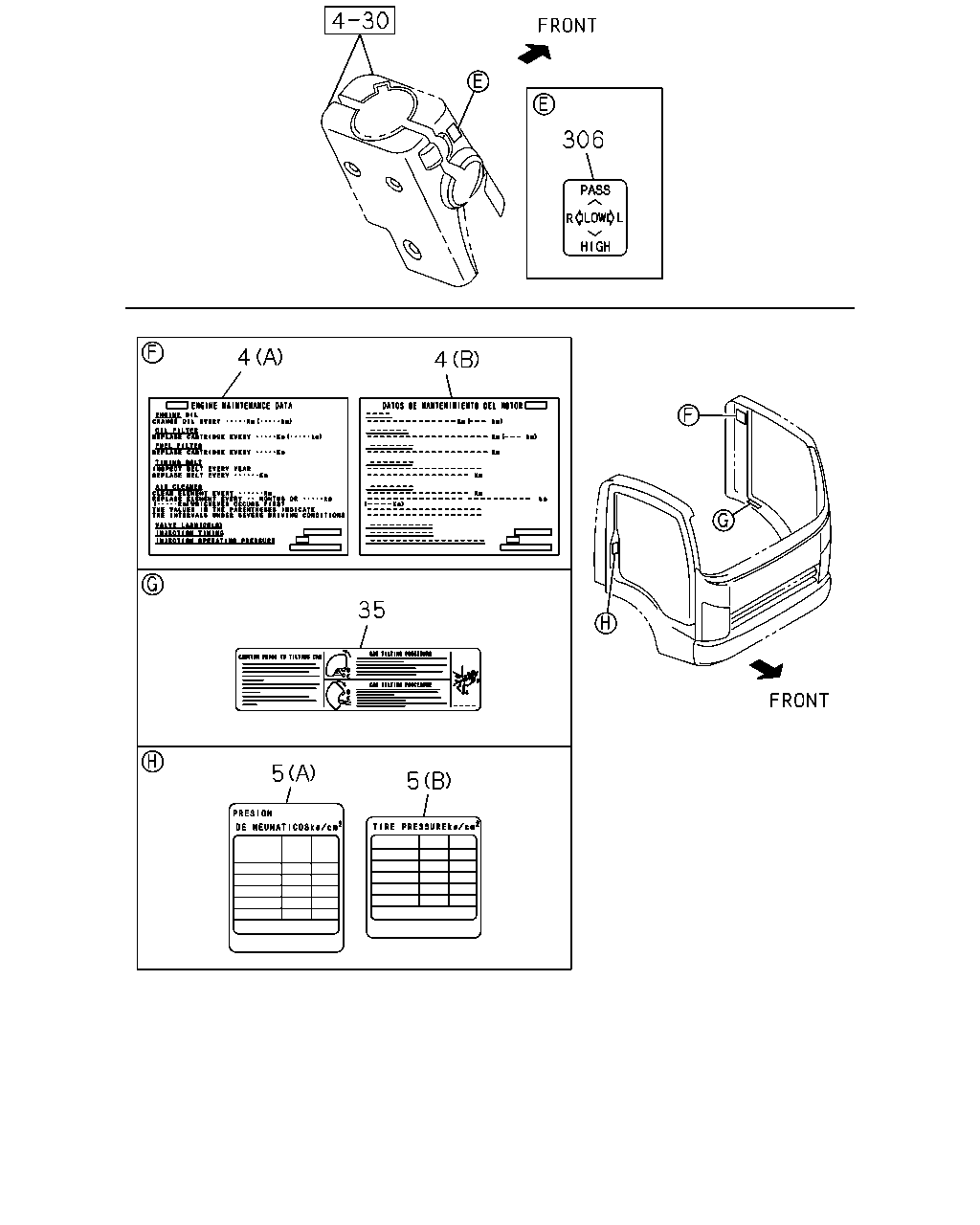

çizim 373215
306 4 4 35 5 5
BalonParca AdiParca NoAdetTipApplied Date A B C
4 00.004 LABEL; ENG MAINTENANCE
4JJ1-TCS ENG(LFB) CAUTION SPANISH<YN1> (B) 		8-98030-803-1 01 1 1309-1310 ● ●
4 00.004 LABEL; ENG MAINTENANCE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) CAUTION SPANISH<YN1> (B) 		8-98030-803-1 01 1 1311-1408 ● ●
4 00.004 LABEL; ENG MAINTENANCE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) CAUTION SPANISH<YN1> (B) 		8-98030-803-1 01 1 1409- ●
4 00.004 LABEL; ENG MAINTENANCE
4JJ1-TCS ENG(LFB) CAUTION SPANISH<YN1> (B) 		8-98030-803-1 01 1 1409- ● ●
4 00.004 LABEL; ENG MAINTENANCE
4JJ1-TCS ENG(LFB) EXC. CAUTION SPANISH<YN1> (A) 		8-98030-757-0 01 1 1309-1310 ● ●
4 00.004 LABEL; ENG MAINTENANCE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. CAUTION SPANISH<YN1> (A) 		8-98030-757-0 01 1 1311-1408 ● ●
4 00.004 LABEL; ENG MAINTENANCE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. CAUTION SPANISH<YN1> (A) 		8-98030-757-0 01 1 1409- ●
4 00.004 LABEL; ENG MAINTENANCE
4JJ1-TCS ENG(LFB) EXC. CAUTION SPANISH<YN1> (A) 		8-98030-757-0 01 1 1409- ● ●
4 00.004 LABEL; ENG MAINTENANCE
4HK1-TCS ENG(RJS) CAUTION SPANISH<YN1> (B) 		8-98207-330-0 01 1 1309- ● ●
4 00.004 LABEL; ENG MAINTENANCE
4HK1-TCS ENG(RJS) EXC. CAUTION SPANISH<YN1> (A) 		8-98207-329-0 01 1 1309- ● ●
5 05.880 LABEL; TIRE AIR PRESSURE
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215 /75R17.5 17.5X6.00-127 SILVER(CQU), FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU), F&R 215/75R17.5(MICHELIN)17.5X6.00-127 S ILVER(CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) CAUTION SPANISH<YN1> (A) 		8-97188-835-0 01 1 1309- ● ●
5 05.880 LABEL; TIRE AIR PRESSURE
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215 /75R17.5 17.5X6.00-127 SILVER(CQU), FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU), F&R 215/75R17.5(MICHELIN)17.5X6.00-127 S ILVER(CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) EXC. CAUTION SPANISH<YN1> (B) 		8-97188-834-0 01 1 1309- ● ●
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> CAUTION SPANISH<YN1> 		8-98070-512-0 01 1 1309- ● ●
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> EXC. CAUTION SPANISH<YN1> 		8-98067-809-0 01 1 1309- ● ●
306 08.808 LABEL; BEAM & PASS 8-98070-239-0 01 1 1309- ● ● ●

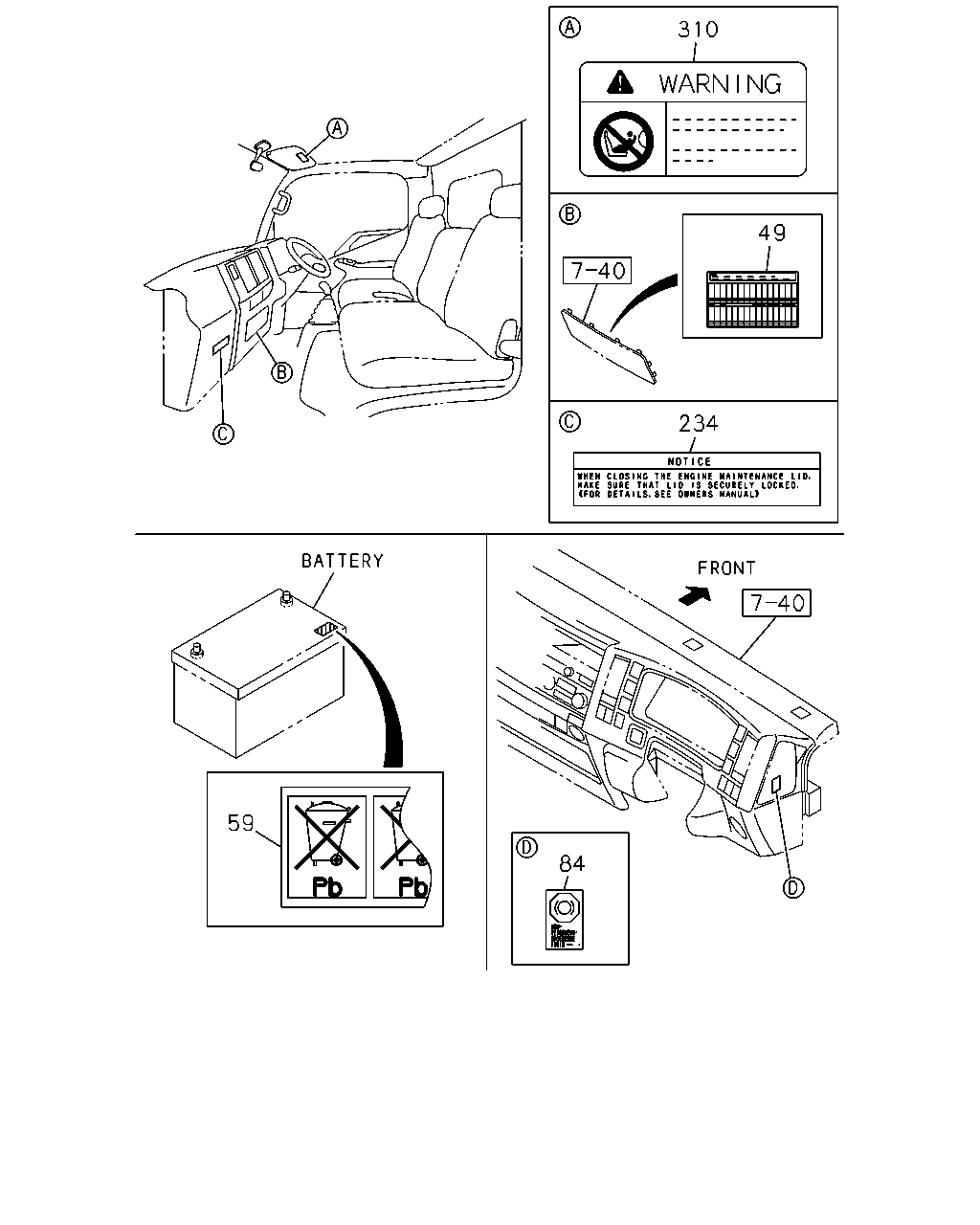

çizim 373592
310 49 234 59 84
BalonParca AdiParca NoAdetTipApplied Date A B C
49 08.808 PLATE; CAUTION,FUSE BOX 8-98090-175-0 01 1 1309- ● ● ●
59 08.808 PLATE; CAUTION,BATTERY
EXC. LEYLAND EQUIPMENT(S9Z) 10 PER 1 SHEET 		8-97116-760-0 02 1 1309- ● ● ●
84 08.808 PLATE; CAUTION,BRAKE FLUID 8-98022-836-1 01 1 1309- ● ● ●
234 08.808 PLATE; CAUTION,ENG COVER
CAUTION SPANISH<YN1> 		8-98071-067-0 01 1 1309- ●
234 08.808 PLATE; CAUTION,ENG COVER
EXC. CAUTION SPANISH<YN1> 		8-97994-545-0 01 1 1309- ●
310 08.808 LABEL; WARNING,SRS
AIR BAG DRIVER & PASSENGER<AK5> 		8-98080-839-0 01 1 1309- ● ● ●
çizim 374231
96 96 135 2 9 279 1 48
BalonParca AdiParca NoAdetTipApplied Date A B C
1 04.017 PLATE; CAUTION,SHIFT PATTERN
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL) 		8-97305-983-0 01 1 1309-1310 ●
1 04.017 PLATE; CAUTION,SHIFT PATTERN
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97305-983-0 01 1 1309-1310 ●
1 04.017 PLATE; CAUTION,SHIFT PATTERN
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) M/T MYY5A(RSL),M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97305-983-0 01 1 1311- ●
1 04.017 PLATE; CAUTION,SHIFT PATTERN
4JJ1-TCS ENG(LFB) M/T MYY5A(RSL) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97305-983-0 01 1 1311- ●
2 03.680 LABEL; FUEL CAUTION
4JJ1-TCS ENG(LFB) CAUTION SPANISH<YN1> 		8-98083-876-0 01 1 1309-1310 ● ●
2 03.680 LABEL; FUEL CAUTION
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) CAUTION SPANISH<YN1> 		8-98083-876-0 01 1 1311-1408 ● ●
2 03.680 LABEL; FUEL CAUTION
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) CAUTION SPANISH<YN1> 		8-98083-876-0 01 1 1409- ●
2 03.680 LABEL; FUEL CAUTION
4JJ1-TCS ENG(LFB) CAUTION SPANISH<YN1> 		8-98083-876-0 01 1 1409- ● ●
2 03.680 LABEL; FUEL CAUTION
4JJ1-TCS ENG(LFB) EXC. CAUTION SPANISH<YN1> 08.808 		8-98036-252-0 01 1 1309-1310 ● ●
2 03.680 LABEL; FUEL CAUTION
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. CAUTION SPANISH<YN1> 08.808 		8-98036-252-0 01 1 1311-1408 ● ●
2 03.680 LABEL; FUEL CAUTION
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. CAUTION SPANISH<YN1> 08.808 		8-98036-252-0 01 1 1409- ●
2 03.680 LABEL; FUEL CAUTION
4JJ1-TCS ENG(LFB) EXC. CAUTION SPANISH<YN1> 08.808 		8-98036-252-0 01 1 1409- ● ●
9 08.808 PLATE; NAME,SPD RANGE
4JJ1-TCS ENG(LFB) FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215 /75R17.5 17.5X6.00-127 E-MARK(CRU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER (CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) G.V.W. 6.5-7.0TON(RPW) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. ISRAEL COUNTRY<CV4> 		8-98136-158-2 01 1 1409-1409 ●
9 08.808 PLATE; NAME,SPD RANGE
4JJ1-TCS ENG(LFB) FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215 /75R17.5 17.5X6.00-127 E-MARK(CRU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER (CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) G.V.W. 6.5-7.0TON(RPW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ISRAEL COUNTRY<CV4> 		8-98136-157-2 01 1 1409-1409 ●
9 08.808 PLATE; NAME,SPD RANGE
4HK1-TCS ENG(RJS) FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),F&R 215/75 R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) ,FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98250-201-0 01 1 1309-1408 ●
9 08.808 PLATE; NAME,SPD RANGE
4HK1-TCS ENG(RJS) FINAL GEAR RATIO 41/10(GT5) FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215 /75R17.5 17.5X6.00-127 SILVER(CQU), FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU), F&R 215/75R17.5(MICHELIN)17.5X6.00-127 S ILVER(CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. ISRAEL COUNTRY<CV4> 		8-98250-201-0 01 1 1409- ●
9 08.808 PLATE; NAME,SPD RANGE
4HK1-TCS ENG(RJS) FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),F&R 215/75 R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) ,FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98250-200-0 01 1 1309-1408 ●
9 08.808 PLATE; NAME,SPD RANGE
4HK1-TCS ENG(RJS) FINAL GEAR RATIO 41/10(GT5) FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215 /75R17.5 17.5X6.00-127 SILVER(CQU), FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU), F&R 215/75R17.5(MICHELIN)17.5X6.00-127 S ILVER(CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ISRAEL COUNTRY<CV4> 		8-98250-200-0 01 1 1409- ●
9 08.808 PLATE; NAME,SPD RANGE
4HK1-TCS ENG(RJS) FINAL GEAR RATIO 41/10(GT5) FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215 /75R17.5 17.5X6.00-127 SILVER(CQU), FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU), F&R 215/75R17.5(MICHELIN)17.5X6.00-127 S ILVER(CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) SPEED LIMITER 90KM(NMJ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98250-197-0 01 1 1309-1309 ●
9 08.808 PLATE; NAME,SPD RANGE
4HK1-TCS ENG(RJS) FINAL GEAR RATIO 41/10(GT5) FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215 /75R17.5 17.5X6.00-127 SILVER(CQU), FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU), F&R 215/75R17.5(MICHELIN)17.5X6.00-127 S ILVER(CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) SPEED LIMITER 90KM(NMJ) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. ISRAEL COUNTRY<CV4> 		8-98250-197-0 01 1 1309-1401 ●
9 08.808 PLATE; NAME,SPD RANGE
4HK1-TCS ENG(RJS) FINAL GEAR RATIO 41/10(GT5) FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215 /75R17.5 17.5X6.00-127 SILVER(CQU), FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU), F&R 215/75R17.5(MICHELIN)17.5X6.00-127 S ILVER(CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. ISRAEL COUNTRY<CV4> 		8-98250-197-0 01 1 1402- ●
9 08.808 PLATE; NAME,SPD RANGE
4HK1-TCS ENG(RJS) FINAL GEAR RATIO 41/10(GT5) FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215 /75R17.5 17.5X6.00-127 SILVER(CQU), FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU), F&R 215/75R17.5(MICHELIN)17.5X6.00-127 S ILVER(CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) SPEED LIMITER 90KM(NMJ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98250-196-0 01 1 1309-1309 ●
9 08.808 PLATE; NAME,SPD RANGE
4HK1-TCS ENG(RJS) FINAL GEAR RATIO 41/10(GT5) FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215 /75R17.5 17.5X6.00-127 SILVER(CQU), FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU), F&R 215/75R17.5(MICHELIN)17.5X6.00-127 S ILVER(CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) SPEED LIMITER 90KM(NMJ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ISRAEL COUNTRY<CV4> 		8-98250-196-0 01 1 1309-1401 ●
9 08.808 PLATE; NAME,SPD RANGE
4HK1-TCS ENG(RJS) FINAL GEAR RATIO 41/10(GT5) FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215 /75R17.5 17.5X6.00-127 SILVER(CQU), FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU), F&R 215/75R17.5(MICHELIN)17.5X6.00-127 S ILVER(CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ISRAEL COUNTRY<CV4> 		8-98250-196-0 01 1 1402- ●
9 08.808 PLATE; NAME,SPD RANGE
4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 39/7(GV1) FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215 /75R17.5 17.5X6.00-127 SILVER(CQU), FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU), F&R 215/75R17.5(MICHELIN)17.5X6.00-127 S ILVER(CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) SPEED LIMITER 90KM(NMJ) G.V.W. 7.5-8.0TON(RPY) SMOOTHER-EX(TYPE2)(8NS) EXC. ISRAEL COUNTRY<CV4> 		8-98250-221-0 01 1 1311-1401 ●
9 08.808 PLATE; NAME,SPD RANGE
4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 39/7(GV1) FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215 /75R17.5 17.5X6.00-127 SILVER(CQU), FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU), F&R 215/75R17.5(MICHELIN)17.5X6.00-127 S ILVER(CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) G.V.W. 7.5-8.0TON(RPY) SMOOTHER-EX(TYPE2)(8NS) EXC. ISRAEL COUNTRY<CV4> 		8-98250-221-0 01 1 1402- ●
9 08.808 PLATE; NAME,SPD RANGE
4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/9(HC6) FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215 /75R17.5 17.5X6.00-127 SILVER(CQU), FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU), F&R 215/75R17.5(MICHELIN)17.5X6.00-127 S ILVER(CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) SPEED LIMITER 90KM(NMJ) G.V.W. 6.5-7.0TON(RPW) SMOOTHER-EX(TYPE2)(8NS) EXC. ISRAEL COUNTRY<CV4> 		8-98250-218-0 01 1 1311-1401 ●
9 08.808 PLATE; NAME,SPD RANGE
4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/9(HC6) FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215 /75R17.5 17.5X6.00-127 SILVER(CQU), FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU), F&R 215/75R17.5(MICHELIN)17.5X6.00-127 S ILVER(CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) G.V.W. 6.5-7.0TON(RPW) SMOOTHER-EX(TYPE2)(8NS) EXC. ISRAEL COUNTRY<CV4> 		8-98250-218-0 01 1 1402-1409 ●
9 08.808 PLATE; NAME,SPD RANGE
4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/9(HC6) FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215 /75R17.5 17.5X6.00-127 SILVER(CQU), FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU), F&R 215/75R17.5(MICHELIN)17.5X6.00-127 S ILVER(CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) G.V.W. 6.5-7.0TON(RPW) SMOOTHER-EX(TYPE2)(8NS) EXC. ISRAEL COUNTRY<CV4> 		8-98250-218-0 01 1 1410- ● ●
9 08.808 PLATE; NAME,SPD RANGE
4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/9(HC6) FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EE C(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) SPEED LIMITER 90KM(NMJ) G.V.W. 5.5-6.0TON(RPU) SMOOTHER-EX(TYPE2)(8NS) EXC. ISRAEL COUNTRY<CV4> 		8-98250-212-0 01 1 1311-1401 ●
9 08.808 PLATE; NAME,SPD RANGE
4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/9(HC6) FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EE C(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) G.V.W. 5.5-6.0TON(RPU) SMOOTHER-EX(TYPE2)(8NS) EXC. ISRAEL COUNTRY<CV4> 		8-98250-212-0 01 1 1402- ●
9 08.808 PLATE; NAME,SPD RANGE
4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 43/10(S7C) FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EE C(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) SPEED LIMITER 90KM(NMJ) G.V.W. 5.5-6.0TON(RPU) SMOOTHER-EX(TYPE2)(8NS) EXC. ISRAEL COUNTRY<CV4> 		8-98250-209-0 01 1 1311-1401 ●
9 08.808 PLATE; NAME,SPD RANGE
4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 43/10(S7C) FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EE C(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) G.V.W. 5.5-6.0TON(RPU) SMOOTHER-EX(TYPE2)(8NS) EXC. ISRAEL COUNTRY<CV4> 		8-98250-209-0 01 1 1402- ●
9 08.808 PLATE; NAME,SPD RANGE
4JJ1-TCS ENG(LFB) FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215 /75R17.5 17.5X6.00-127 E-MARK(CRU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER (CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) SPEED LIMITER 90KM(NMJ) G.V.W. 6.5-7.0TON(RPW) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. ISRAEL COUNTRY<CV4> 		8-98136-156-2 01 1 1309-1309 ●
9 08.808 PLATE; NAME,SPD RANGE
4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 39/7(GV1) FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215 /75R17.5 17.5X6.00-127 SILVER(CQU), FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU), F&R 215/75R17.5(MICHELIN)17.5X6.00-127 S ILVER(CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) SPEED LIMITER 90KM(NMJ) G.V.W. 7.5-8.0TON(RPY) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ISRAEL COUNTRY<CV4> 		8-98250-220-0 01 1 1309-1401 ●
9 08.808 PLATE; NAME,SPD RANGE
4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 39/7(GV1) FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215 /75R17.5 17.5X6.00-127 SILVER(CQU), FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU), F&R 215/75R17.5(MICHELIN)17.5X6.00-127 S ILVER(CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) G.V.W. 7.5-8.0TON(RPY) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ISRAEL COUNTRY<CV4> 		8-98250-220-0 01 1 1402- ●
9 08.808 PLATE; NAME,SPD RANGE
4JJ1-TCS ENG(LFB) FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215 /75R17.5 17.5X6.00-127 E-MARK(CRU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER (CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) SPEED LIMITER 90KM(NMJ) G.V.W. 6.5-7.0TON(RPW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ISRAEL COUNTRY<CV4> 		8-98136-155-2 01 1 1309-1309 ●
9 08.808 PLATE; NAME,SPD RANGE
4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/9(HC6) FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215 /75R17.5 17.5X6.00-127 SILVER(CQU), FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU), F&R 215/75R17.5(MICHELIN)17.5X6.00-127 S ILVER(CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) SPEED LIMITER 90KM(NMJ) G.V.W. 6.5-7.0TON(RPW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ISRAEL COUNTRY<CV4> 		8-98250-217-0 01 1 1309-1401 ●
9 08.808 PLATE; NAME,SPD RANGE
4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/9(HC6) FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215 /75R17.5 17.5X6.00-127 SILVER(CQU), FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU), F&R 215/75R17.5(MICHELIN)17.5X6.00-127 S ILVER(CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) G.V.W. 6.5-7.0TON(RPW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ISRAEL COUNTRY<CV4> 		8-98250-217-0 01 1 1402-1409 ●
9 08.808 PLATE; NAME,SPD RANGE
4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/9(HC6) FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215 /75R17.5 17.5X6.00-127 SILVER(CQU), FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU), F&R 215/75R17.5(MICHELIN)17.5X6.00-127 S ILVER(CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) G.V.W. 6.5-7.0TON(RPW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ISRAEL COUNTRY<CV4> 		8-98250-217-0 01 1 1410- ● ●
9 08.808 PLATE; NAME,SPD RANGE
4JJ1-TCS ENG(LFB) FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EE C(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) SPEED LIMITER 90KM(NMJ) G.V.W. 5.5-6.0TON(RPU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. ISRAEL COUNTRY<CV4> 		8-98176-311-0 01 1 1309-1309 ●
9 08.808 PLATE; NAME,SPD RANGE
4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/9(HC6) FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EE C(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) SPEED LIMITER 90KM(NMJ) G.V.W. 5.5-6.0TON(RPU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ISRAEL COUNTRY<CV4> 		8-98250-210-0 01 1 1309-1401 ●
9 08.808 PLATE; NAME,SPD RANGE
4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/9(HC6) FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EE C(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) G.V.W. 5.5-6.0TON(RPU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ISRAEL COUNTRY<CV4> 		8-98250-210-0 01 1 1402- ●
9 08.808 PLATE; NAME,SPD RANGE
4JJ1-TCS ENG(LFB) FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EE C(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) SPEED LIMITER 90KM(NMJ) G.V.W. 5.5-6.0TON(RPU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ISRAEL COUNTRY<CV4> 		8-98176-303-0 01 1 1309-1309 ●
9 08.808 PLATE; NAME,SPD RANGE
4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 43/10(S7C) FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EE C(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) SPEED LIMITER 90KM(NMJ) G.V.W. 5.5-6.0TON(RPU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ISRAEL COUNTRY<CV4> 		8-98250-207-0 01 1 1309-1401 ●
9 08.808 PLATE; NAME,SPD RANGE
4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 43/10(S7C) FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EE C(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) G.V.W. 5.5-6.0TON(RPU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ISRAEL COUNTRY<CV4> 		8-98250-207-0 01 1 1402- ●
48 08.808 PLATE; CAUTION,PTO
CAUTION SPANISH<YN1> PTO MANUAL CONTROL(6WC) SMOOTHER-EX(TYPE2)(8NS) 		8-98091-102-0 01 1 1311-1407 ● ●
48 08.808 PLATE; CAUTION,PTO
CAUTION SPANISH<YN1> PTO MANUAL CONTROL(6WC) SMOOTHER-EX(TYPE2)(8NS) 		8-98091-102-0 01 1 1408-1408 ●
48 08.808 PLATE; CAUTION,PTO
CAUTION SPANISH<YN1> PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-98091-102-0 01 1 1408-1408 ●
48 08.808 PLATE; CAUTION,PTO
CAUTION SPANISH<YN1> PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98091-102-0 01 1 1408-1408 ●
48 08.808 PLATE; CAUTION,PTO
CAUTION SPANISH<YN1> PTO MANUAL CONTROL(6WC) SMOOTHER-EX(TYPE2)(8NS) 		8-98091-102-0 01 1 1409- ●
48 08.808 PLATE; CAUTION,PTO
CAUTION SPANISH<YN1> PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 		8-98091-102-0 01 1 1409- ● ●
48 08.808 PLATE; CAUTION,PTO
PTO MANUAL CONTROL(6WC) SMOOTHER-EX(TYPE2)(8NS) EXC. CAUTION SPANISH<YN1> 		8-98090-262-0 01 1 1311-1407 ● ●
48 08.808 PLATE; CAUTION,PTO
PTO MANUAL CONTROL(6WC) SMOOTHER-EX(TYPE2)(8NS) EXC. CAUTION SPANISH<YN1> 		8-98090-262-0 01 1 1408-1408 ●
48 08.808 PLATE; CAUTION,PTO
PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. CAUTION SPANISH<YN1> 		8-98090-262-0 01 1 1408-1408 ●
48 08.808 PLATE; CAUTION,PTO
PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. CAUTION SPANISH<YN1> 		8-98090-262-0 01 1 1408-1408 ●
48 08.808 PLATE; CAUTION,PTO
PTO MANUAL CONTROL(6WC) SMOOTHER-EX(TYPE2)(8NS) EXC. CAUTION SPANISH<YN1> 		8-98090-262-0 01 1 1409- ●
48 08.808 PLATE; CAUTION,PTO
PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) EXC. CAUTION SPANISH<YN1> 		8-98090-262-0 01 1 1409- ● ●
48 08.808 PLATE; CAUTION,PTO
CAUTION SPANISH<YN1> PTO MANUAL CONTROL(6WC) 		8-94313-054-0 01 1 1309-1310 ●
48 08.808 PLATE; CAUTION,PTO
CAUTION SPANISH<YN1> PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-94313-054-0 01 1 1309-1310 ● ●
48 08.808 PLATE; CAUTION,PTO
CAUTION SPANISH<YN1> PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-94313-054-0 01 1 1311- ● ● ●
48 08.808 PLATE; CAUTION,PTO
PTO MANUAL CONTROL(6WC) EXC. CAUTION SPANISH<YN1> 		8-94469-277-0 01 1 1309-1310 ●
48 08.808 PLATE; CAUTION,PTO
PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. CAUTION SPANISH<YN1> 		8-94469-277-0 01 1 1309-1310 ● ●
48 08.808 PLATE; CAUTION,PTO
PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. CAUTION SPANISH<YN1> 		8-94469-277-0 01 1 1311- ● ● ●
96 08.808 PLATE; CAUTION,ENGINE OIL
4JJ1-TCS ENG(LFB) CAUTION SPANISH<YN1> (A) 		8-98036-112-0 01 1 1309-1310 ● ●
96 08.808 PLATE; CAUTION,ENGINE OIL
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) CAUTION SPANISH<YN1> (A) 		8-98036-112-0 01 1 1311-1408 ● ●
96 08.808 PLATE; CAUTION,ENGINE OIL
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) CAUTION SPANISH<YN1> (A) 		8-98036-112-0 01 1 1409- ●
96 08.808 PLATE; CAUTION,ENGINE OIL
4JJ1-TCS ENG(LFB) CAUTION SPANISH<YN1> (A) 		8-98036-112-0 01 1 1409- ● ●
96 08.808 PLATE; CAUTION,ENGINE OIL
4JJ1-TCS ENG(LFB) CAUTION SPANISH<YN1> (B) 		8-98036-733-0 01 1 1309-1310 ● ●
96 08.808 PLATE; CAUTION,ENGINE OIL
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) CAUTION SPANISH<YN1> (B) 		8-98036-733-0 01 1 1311-1408 ● ●
96 08.808 PLATE; CAUTION,ENGINE OIL
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) CAUTION SPANISH<YN1> (B) 		8-98036-733-0 01 1 1409- ●
96 08.808 PLATE; CAUTION,ENGINE OIL
4JJ1-TCS ENG(LFB) CAUTION SPANISH<YN1> (B) 		8-98036-733-0 01 1 1409- ● ●
96 08.808 PLATE; CAUTION,ENGINE OIL
4JJ1-TCS ENG(LFB) EXC. CAUTION SPANISH<YN1> (A) 		8-98036-111-1 01 1 1309-1310 ● ●
96 08.808 PLATE; CAUTION,ENGINE OIL
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. CAUTION SPANISH<YN1> (A) 		8-98036-111-1 01 1 1311-1408 ● ●
96 08.808 PLATE; CAUTION,ENGINE OIL
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. CAUTION SPANISH<YN1> (A) 		8-98036-111-1 01 1 1409- ●
96 08.808 PLATE; CAUTION,ENGINE OIL
4JJ1-TCS ENG(LFB) EXC. CAUTION SPANISH<YN1> (A) 		8-98036-111-1 01 1 1409- ● ●
96 08.808 PLATE; CAUTION,ENGINE OIL
4JJ1-TCS ENG(LFB) EXC. CAUTION SPANISH<YN1> (B) 		8-98036-732-0 01 1 1309-1310 ● ●
96 08.808 PLATE; CAUTION,ENGINE OIL
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. CAUTION SPANISH<YN1> (B) 		8-98036-732-0 01 1 1311-1408 ● ●
96 08.808 PLATE; CAUTION,ENGINE OIL
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. CAUTION SPANISH<YN1> (B) 		8-98036-732-0 01 1 1409- ●
96 08.808 PLATE; CAUTION,ENGINE OIL
4JJ1-TCS ENG(LFB) EXC. CAUTION SPANISH<YN1> (B) 		8-98036-732-0 01 1 1409- ● ●
135 08.808 PLATE; CAUTION,ENGINE
4HK1-TCS ENG(RJS) EGR COOLER LH POSITION<KCC> KD PREPARATORY PACK<6HF> GENERATOR 24V80A(7YN) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98308-088-0 01 1 1503- ●
279 08.808 PLATE; CAUTION,SLD
4HK1-TCS ENG(RJS) FINAL GEAR RATIO 41/10(GT5) FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215 /75R17.5 17.5X6.00-127 SILVER(CQU), FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU), F&R 215/75R17.5(MICHELIN)17.5X6.00-127 S ILVER(CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) ISRAEL COUNTRY<CV4> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98250-201-0 01 1 1409- ●
279 08.808 PLATE; CAUTION,SLD
4HK1-TCS ENG(RJS) FINAL GEAR RATIO 41/10(GT5) FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215 /75R17.5 17.5X6.00-127 SILVER(CQU), FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU), F&R 215/75R17.5(MICHELIN)17.5X6.00-127 S ILVER(CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) ISRAEL COUNTRY<CV4> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98250-200-0 01 1 1409- ●
279 08.808 PLATE; CAUTION,SLD
4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 39/7(GV1) FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215 /75R17.5 17.5X6.00-127 SILVER(CQU), FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU), F&R 215/75R17.5(MICHELIN)17.5X6.00-127 S ILVER(CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) ISRAEL COUNTRY<CV4> SPEED LIMITER 90KM(NMJ) G.V.W. 7.5-8.0TON(RPY) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98250-220-0 01 1 1309-1401 ●
279 08.808 PLATE; CAUTION,SLD
4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 39/7(GV1) FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215 /75R17.5 17.5X6.00-127 SILVER(CQU), FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU), F&R 215/75R17.5(MICHELIN)17.5X6.00-127 S ILVER(CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) ISRAEL COUNTRY<CV4> G.V.W. 7.5-8.0TON(RPY) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98250-220-0 01 1 1402- ●
279 08.808 PLATE; CAUTION,SLD
4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/9(HC6) FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215 /75R17.5 17.5X6.00-127 SILVER(CQU), FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU), F&R 215/75R17.5(MICHELIN)17.5X6.00-127 S ILVER(CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) ISRAEL COUNTRY<CV4> SPEED LIMITER 90KM(NMJ) G.V.W. 6.5-7.0TON(RPW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98250-217-0 01 1 1309-1401 ●
279 08.808 PLATE; CAUTION,SLD
4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/9(HC6) FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215 /75R17.5 17.5X6.00-127 SILVER(CQU), FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU), F&R 215/75R17.5(MICHELIN)17.5X6.00-127 S ILVER(CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) ISRAEL COUNTRY<CV4> G.V.W. 6.5-7.0TON(RPW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98250-217-0 01 1 1402-1409 ●
279 08.808 PLATE; CAUTION,SLD
4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/9(HC6) FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215 /75R17.5 17.5X6.00-127 SILVER(CQU), FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU), F&R 215/75R17.5(MICHELIN)17.5X6.00-127 S ILVER(CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) ISRAEL COUNTRY<CV4> G.V.W. 6.5-7.0TON(RPW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98250-217-0 01 1 1410- ● ●
279 08.808 PLATE; CAUTION,SLD
4HK1-TCS ENG(RJS) FINAL GEAR RATIO 41/10(GT5) FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215 /75R17.5 17.5X6.00-127 SILVER(CQU), FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU), F&R 215/75R17.5(MICHELIN)17.5X6.00-127 S ILVER(CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) ISRAEL COUNTRY<CV4> SPEED LIMITER 90KM(NMJ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98250-197-0 01 1 1309-1401 ●
279 08.808 PLATE; CAUTION,SLD
4HK1-TCS ENG(RJS) FINAL GEAR RATIO 41/10(GT5) FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215 /75R17.5 17.5X6.00-127 SILVER(CQU), FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU), F&R 215/75R17.5(MICHELIN)17.5X6.00-127 S ILVER(CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) ISRAEL COUNTRY<CV4> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98250-197-0 01 1 1402- ●
279 08.808 PLATE; CAUTION,SLD
4HK1-TCS ENG(RJS) FINAL GEAR RATIO 41/10(GT5) FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215 /75R17.5 17.5X6.00-127 SILVER(CQU), FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU), F&R 215/75R17.5(MICHELIN)17.5X6.00-127 S ILVER(CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) ISRAEL COUNTRY<CV4> SPEED LIMITER 90KM(NMJ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98250-196-0 01 1 1309-1401 ●
279 08.808 PLATE; CAUTION,SLD
4HK1-TCS ENG(RJS) FINAL GEAR RATIO 41/10(GT5) FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215 /75R17.5 17.5X6.00-127 SILVER(CQU), FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU), F&R 215/75R17.5(MICHELIN)17.5X6.00-127 S ILVER(CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) ISRAEL COUNTRY<CV4> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98250-196-0 01 1 1402- ●
279 08.808 PLATE; CAUTION,SLD
4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 39/7(GV1) FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215 /75R17.5 17.5X6.00-127 SILVER(CQU), FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU), F&R 215/75R17.5(MICHELIN)17.5X6.00-127 S ILVER(CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) ISRAEL COUNTRY<CV4> SPEED LIMITER 90KM(NMJ) G.V.W. 7.5-8.0TON(RPY) SMOOTHER-EX(TYPE2)(8NS) 		8-98250-221-0 01 1 1311-1401 ●
279 08.808 PLATE; CAUTION,SLD
4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 39/7(GV1) FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215 /75R17.5 17.5X6.00-127 SILVER(CQU), FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU), F&R 215/75R17.5(MICHELIN)17.5X6.00-127 S ILVER(CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) ISRAEL COUNTRY<CV4> G.V.W. 7.5-8.0TON(RPY) SMOOTHER-EX(TYPE2)(8NS) 		8-98250-221-0 01 1 1402- ●
279 08.808 PLATE; CAUTION,SLD
4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/9(HC6) FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215 /75R17.5 17.5X6.00-127 SILVER(CQU), FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU), F&R 215/75R17.5(MICHELIN)17.5X6.00-127 S ILVER(CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) ISRAEL COUNTRY<CV4> SPEED LIMITER 90KM(NMJ) G.V.W. 6.5-7.0TON(RPW) SMOOTHER-EX(TYPE2)(8NS) 		8-98250-218-0 01 1 1311-1401 ●
279 08.808 PLATE; CAUTION,SLD
4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/9(HC6) FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215 /75R17.5 17.5X6.00-127 SILVER(CQU), FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU), F&R 215/75R17.5(MICHELIN)17.5X6.00-127 S ILVER(CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) ISRAEL COUNTRY<CV4> G.V.W. 6.5-7.0TON(RPW) SMOOTHER-EX(TYPE2)(8NS) 		8-98250-218-0 01 1 1402-1409 ●
279 08.808 PLATE; CAUTION,SLD
4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/9(HC6) FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215 /75R17.5 17.5X6.00-127 SILVER(CQU), FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU), F&R 215/75R17.5(MICHELIN)17.5X6.00-127 S ILVER(CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) ISRAEL COUNTRY<CV4> G.V.W. 6.5-7.0TON(RPW) SMOOTHER-EX(TYPE2)(8NS) 		8-98250-218-0 01 1 1410- ● ●

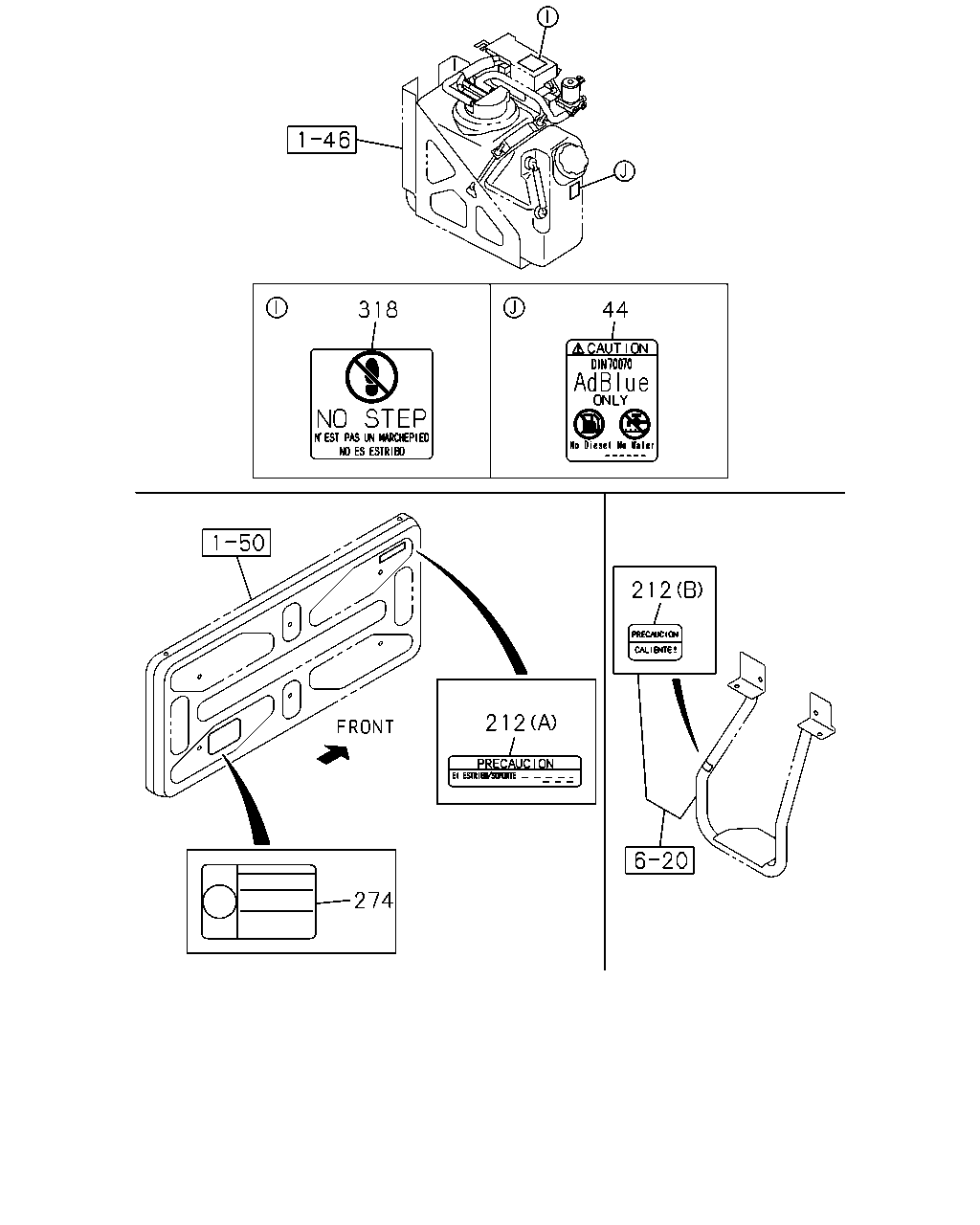

çizim 374394
318 44 212 212 274
BalonParca AdiParca NoAdetTipApplied Date A B C
44 08.155 PANEL; CAUTION PLATE 8-98231-935-0 01 1 1309- ● ● ●
212 08.808 LABEL; SAFETY
4JJ1-TCS ENG(LFB) CAUTION SPANISH<YN1> (B) 		8-98297-501-0 01 1 1410- ●
212 08.808 LABEL; SAFETY
4JJ1-TCS ENG(LFB) CAUTION SPANISH<YN1> (A) 		8-98297-573-0 02 1 1410- ●
212 08.808 LABEL; SAFETY
4JJ1-TCS ENG(LFB) EXC. CAUTION SPANISH<YN1> (B) 		8-98297-500-0 01 1 1410- ●
212 08.808 LABEL; SAFETY
4JJ1-TCS ENG(LFB) EXC. CAUTION SPANISH<YN1> (A) 		8-98297-572-0 02 1 1410- ●
274 08.808 PLATE; CAUTION,DPD
03.706 		8-98145-388-0 01 1 1309-1408 ● ● ●
274 08.808 PLATE; CAUTION,DPD
4JJ1-TCS ENG(LFB) 03.706 		8-98145-388-0 01 1 1409- ●
274 08.808 PLATE; CAUTION,DPD
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.706 		8-98145-388-0 01 1 1409- ● ●
318 08.155 PLATE; CAUTION,DEF
03.609 		8-98158-131-0 01 1 1309- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
