6-90 — REAR BUMPER (#126294) — 57 parça

306 315 1 11 2 2 306 12 315 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	07.070 BUMPER; RR WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) STAMP D8P	8-98088-674-0	01	1	1309-1408	●
1	07.070 BUMPER; RR WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> STAMP D8P	8-98088-674-0	01	1	1309-1408		●
1	07.070 BUMPER; RR WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) STAMP D8P	8-98088-674-0	01	1	1409-	●
1	07.070 BUMPER; RR WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> STAMP D8P	8-98088-674-0	01	1	1409-		●
1	07.070 BUMPER; RR WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> STAMP D8P	8-98088-674-0	01	1	1409-			●
1	07.070 BUMPER; RR WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> STAMP D8Q	8-98088-675-0	01	1	1309-1408		●
1	07.070 BUMPER; RR STAMP D8Q	8-98088-675-0	01	1	1309-1408			●
1	07.070 BUMPER; RR WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> STAMP D8Q	8-98088-675-0	01	1	1409-		●
1	07.070 BUMPER; RR WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> STAMP D8Q	8-98088-675-0	01	1	1409-			●
2	07.874 BOLT; BACK BAR 07.395 (B) M12X30 FLANGE	0-28651-230-0	08	1	1309-	●	●	●
2	07.874 BOLT; BACK BAR (A) M14X30	0-20851-430-0	08	1	1309-	●	●	●
11	07.829 CAP; RR BUMPER	8-98070-331-0	02	1	1309-	●	●	●
12	07.833 NUT; BRKT 00.429 M14 FLANGE	0-91180-214-0	08	1	1309-	●	●	●
306	07.836 BAR; BACK,RR STAMP IA3	8-98039-408-0	01	1	1309-	●	●	●
306	07.836 BAR; BACK,RR STAMP IA3	8-98039-409-0	01	1	1309-	●	●	●
315	07.829 RIVET; CAP	1-71290-062-0	04	1	1309-	●	●	●

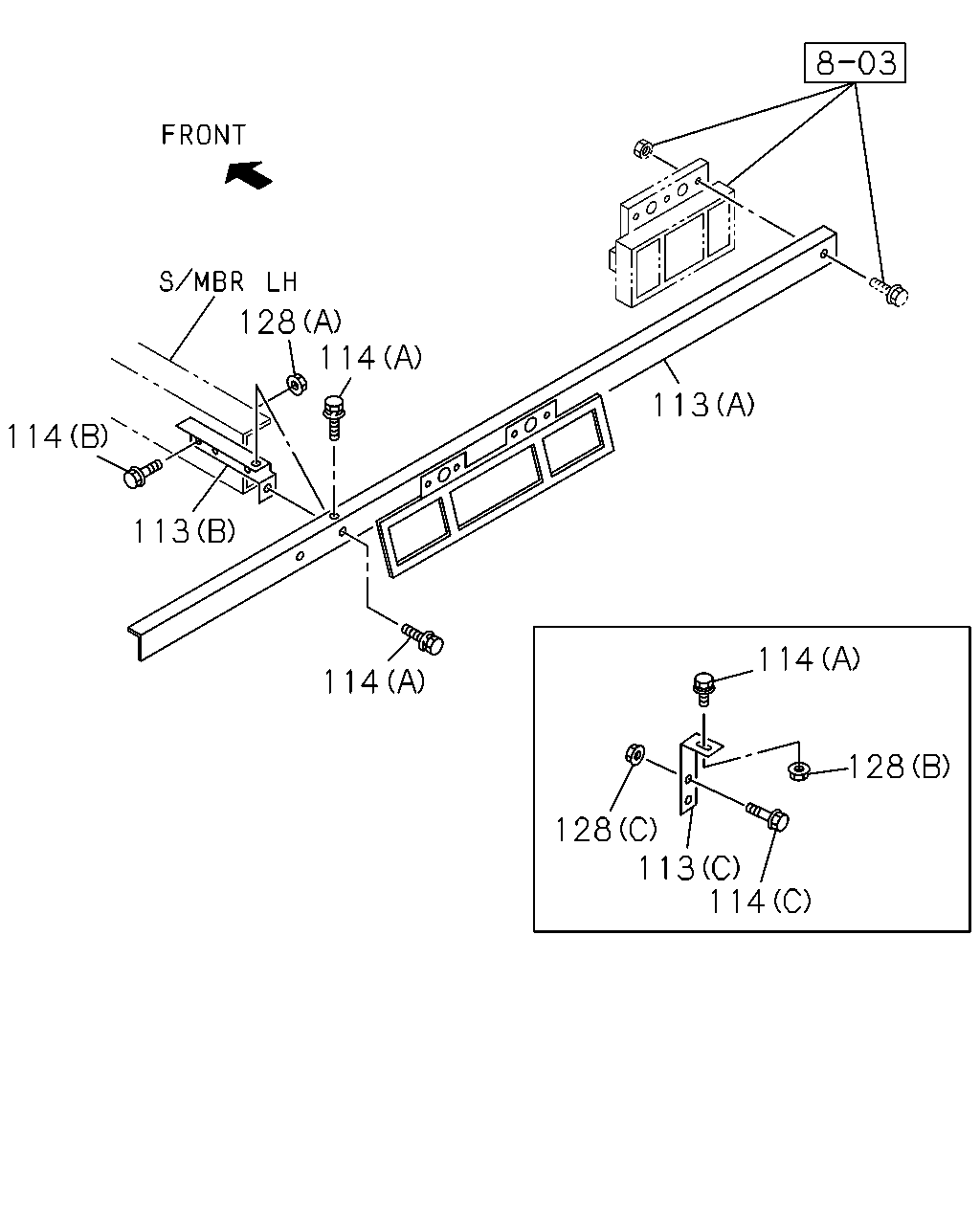

113 114 113 114 128 114 114 128 114 113 128

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
113	07.800 BRACKET; LICENSE PLATE DOOR MIRROR<6VE> (A)	8-98079-146-0	01	1	1309-1408	●
113	07.800 BRACKET; LICENSE PLATE DOOR MIRROR<6VE> EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98079-146-0	01	1	1309-1408		●
113	07.800 BRACKET; LICENSE PLATE DOOR MIRROR<6VE> (A)	8-98079-146-0	01	1	1409-	●
113	07.800 BRACKET; LICENSE PLATE DOOR MIRROR<6VE> EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98079-146-0	01	1	1409-		●	●
113	07.800 BRACKET; LICENSE PLATE O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A)	8-98079-147-0	01	1	1309-1408	●
113	07.800 BRACKET; LICENSE PLATE O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98079-147-0	01	1	1309-1408		●
113	07.800 BRACKET; LICENSE PLATE O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A)	8-98079-147-0	01	1	1409-	●
113	07.800 BRACKET; LICENSE PLATE O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98079-147-0	01	1	1409-		●	●
113	07.800 BRACKET; LICENSE PLATE (B)	8-98100-014-0	01	1	1309-	●	●	●
113	07.800 BRACKET; LICENSE PLATE (B)	8-98100-015-0	01	1	1309-	●	●	●
113	07.800 BRACKET; LICENSE PLATE EXC. DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A)	8-98079-732-0	01	1	1309-1408	●
113	07.800 BRACKET; LICENSE PLATE EXC. DOOR MIRROR<6VE>,FRAME STRAIGHT TYPE<7KJ>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A)	8-98079-732-0	01	1	1309-1408		●
113	07.800 BRACKET; LICENSE PLATE EXC. DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A)	8-98079-732-0	01	1	1409-	●
113	07.800 BRACKET; LICENSE PLATE EXC. DOOR MIRROR<6VE>,FRAME STRAIGHT TYPE<7KJ>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A)	8-98079-732-0	01	1	1409-		●	●
113	07.800 BRACKET; LICENSE PLATE WHEEL BASE 4400MM(44W) (C)	8-98091-681-0	02	1	1309-1408		●
113	07.800 BRACKET; LICENSE PLATE (C)	8-98091-681-0	02	1	1309-1408			●
113	07.800 BRACKET; LICENSE PLATE WHEEL BASE 4400MM(44W) (C)	8-98091-681-0	02	1	1409-		●	●
113	07.800 BRACKET; LICENSE PLATE DOOR MIRROR<6VE> FRAME STRAIGHT TYPE<7KJ> (A)	8-98079-733-0	01	1	1309-1408		●
113	07.800 BRACKET; LICENSE PLATE DOOR MIRROR<6VE> (A)	8-98079-733-0	01	1	1309-1408			●
113	07.800 BRACKET; LICENSE PLATE DOOR MIRROR<6VE> FRAME STRAIGHT TYPE<7KJ> (A)	8-98079-733-0	01	1	1409-		●	●
113	07.800 BRACKET; LICENSE PLATE FRAME STRAIGHT TYPE<7KJ> O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A)	8-98079-734-0	01	1	1309-1408		●
113	07.800 BRACKET; LICENSE PLATE O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A)	8-98079-734-0	01	1	1309-1408			●
113	07.800 BRACKET; LICENSE PLATE FRAME STRAIGHT TYPE<7KJ> O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A)	8-98079-734-0	01	1	1409-		●	●
113	07.800 BRACKET; LICENSE PLATE FRAME STRAIGHT TYPE<7KJ> EXC. DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A)	8-98070-523-0	01	1	1309-1408		●
113	07.800 BRACKET; LICENSE PLATE EXC. DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A)	8-98070-523-0	01	1	1309-1408			●
113	07.800 BRACKET; LICENSE PLATE FRAME STRAIGHT TYPE<7KJ> EXC. DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A)	8-98070-523-0	01	1	1409-		●	●
114	07.800 BOLT; BRKT,LICENSE PLATE 07.874 (B) M14X30	0-20851-430-0	04	1	1309-	●	●	●
114	07.800 BOLT; BRKT,LICENSE PLATE 06.216 (A) M8X25 FLANGE	0-28650-825-0	04	1	1309-	●	●	●
114	07.800 BOLT; BRKT,LICENSE PLATE WHEEL BASE 4400MM(44W) 00.685 (A) M8X40 FLANGE	0-28650-840-0	02	1	1309-1408		●
114	07.800 BOLT; BRKT,LICENSE PLATE 00.685 (A) M8X40 FLANGE	0-28650-840-0	02	1	1309-1408			●
114	07.800 BOLT; BRKT,LICENSE PLATE WHEEL BASE 4400MM(44W) 00.685 (A) M8X40 FLANGE	0-28650-840-0	02	1	1409-		●	●
114	07.800 BOLT; BRKT,LICENSE PLATE WHEEL BASE 4400MM(44W) 07.833 (C) M10X25 FLANGE	0-28661-025-0	04	1	1309-1408		●
114	07.800 BOLT; BRKT,LICENSE PLATE 07.833 (C) M10X25 FLANGE	0-28661-025-0	04	1	1309-1408			●
114	07.800 BOLT; BRKT,LICENSE PLATE WHEEL BASE 4400MM(44W) 07.833 (C) M10X25 FLANGE	0-28661-025-0	04	1	1409-		●	●
128	02.662 NUT; CROSS PLATE 00.429 (A) M14 FLANGE	0-91180-214-0	04	1	1309-	●	●	●
128	02.662 NUT; CROSS PLATE WHEEL BASE 4400MM(44W) 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	1309-1408		●
128	02.662 NUT; CROSS PLATE 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	1309-1408			●
128	02.662 NUT; CROSS PLATE WHEEL BASE 4400MM(44W) 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	1409-		●	●
128	02.662 NUT; CROSS PLATE WHEEL BASE 4400MM(44W) 03.162 (C) M10 FLANGE	0-91180-110-0	04	1	1309-1408		●
128	02.662 NUT; CROSS PLATE 03.162 (C) M10 FLANGE	0-91180-110-0	04	1	1309-1408			●
128	02.662 NUT; CROSS PLATE WHEEL BASE 4400MM(44W) 03.162 (C) M10 FLANGE	0-91180-110-0	04	1	1409-		●	●
