◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51482 - NNR/NPR RHD EUROPE EURO5B+,6 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-75 - MAT AND CARPET ▶
6-75 — MAT AND CARPET (#126288) — 55 parça

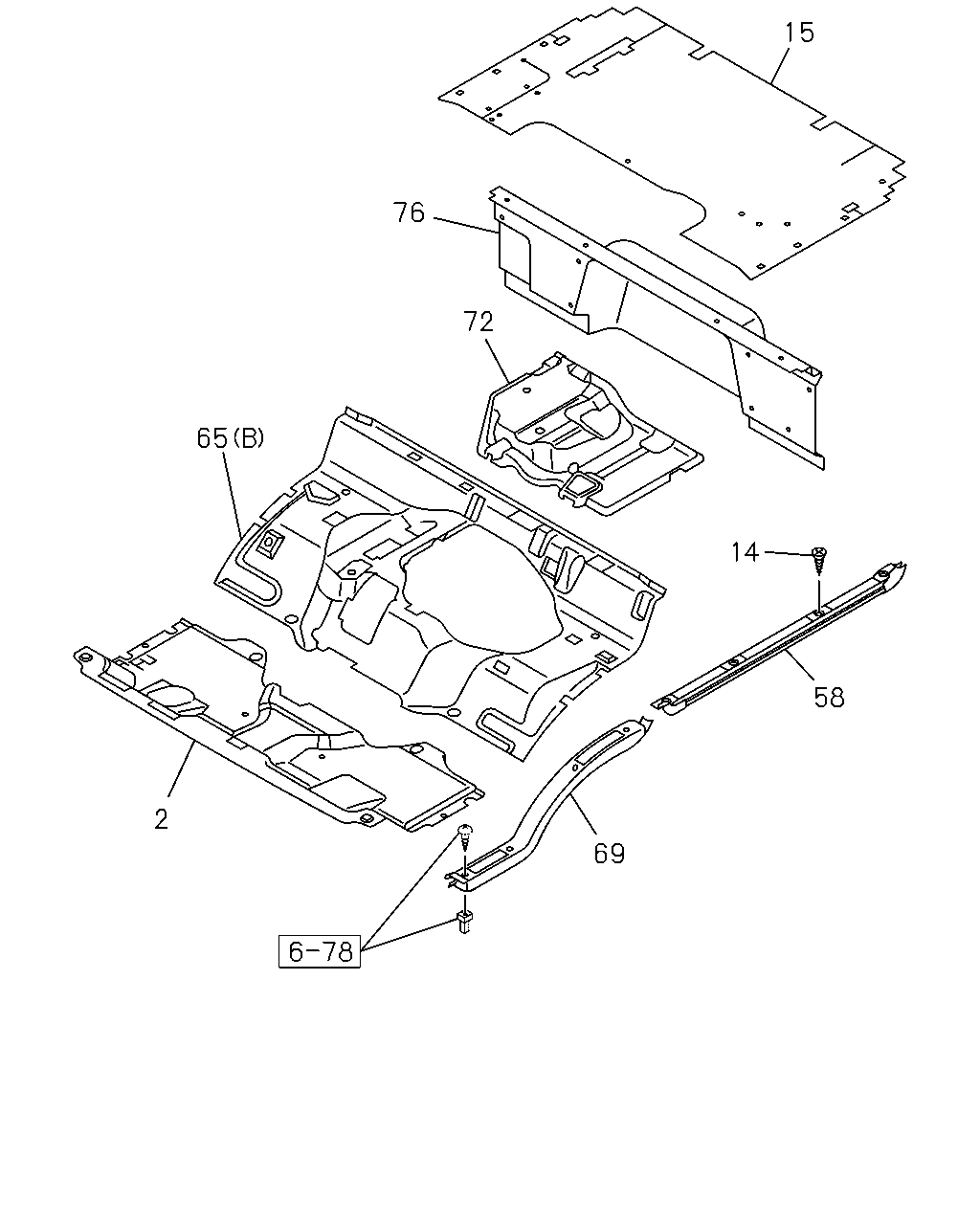

çizim 374402
15 14 58 69 2 72 65 76
BalonParca AdiParca NoAdetTipApplied Date A B C
2 16.800 MAT; FLOOR
GRAY 		8-97405-147-6 01 1 1309-1310 ●
2 16.800 MAT; FLOOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) GRAY 		8-97405-147-6 01 1 1309-1310 ● ●
2 16.800 MAT; FLOOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) GRAY 		8-97405-147-6 01 1 1311- ● ● ●
2 16.800 MAT; FLOOR
TRANSMISSION CONTROL-SMOOTHER(8GF) GRAY 		8-97405-148-6 01 1 1309-1310 ● ●
2 16.800 MAT; FLOOR
SMOOTHER-EX(TYPE2)(8NS) GRAY 		8-97405-148-6 01 1 1311-1408 ●
2 16.800 MAT; FLOOR
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) GRAY 		8-97405-148-6 01 1 1311-1408 ●
2 16.800 MAT; FLOOR
TRANSMISSION CONTROL-SMOOTHER(8GF) GRAY 		8-97405-148-6 01 1 1311-1408 ●
2 16.800 MAT; FLOOR
SMOOTHER-EX(TYPE2)(8NS) GRAY 		8-97405-148-6 01 1 1409- ●
2 16.800 MAT; FLOOR
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) GRAY 		8-97405-148-6 01 1 1409- ● ●
14 16.870 SCREW; PLATE
04.681 T25 M5X12 TAPPING HEXALOBULAR 		0-72180-512-0 08 1 1309- ●
15 16.800 MAT; FLOOR REAR
4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) GRAY 		8-97423-540-0 01 1 1409- ●
15 16.800 MAT; FLOOR REAR
4JJ1-TCS ENG(LFB) SMOOTHER-EX(TYPE2)(8NS) GRAY 		8-97423-542-0 01 1 1409- ●
15 16.800 MAT; FLOOR REAR
4HK1-TCS ENG(RJS) GRAY 		8-97424-573-0 01 1 1309- ●
58 08.153 PLATE; GUARD,RR FLOOR MAT
GRAY 		8-97405-981-1 02 1 1309- ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
SUSP SEAT 100KG W/SEAT BELT ANCHORAGE<SA3> VEHICLE LOW COST PACKAGE VARIANT 1<6NX> EXC. INSPECTION ENGINE COVER<8GA> (A) GRAY 		8-97425-122-1 01 1 1402- ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
VEHICLE LOW COST PACKAGE VARIANT 1<6NX> EXC. SUSP SEAT 100KG W/SEAT BELT ANCHORA GE<SA3>,INSPECTION ENGINE COVER<8GA> (A) GRAY 		8-97425-119-1 01 1 1402- ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
VEHICLE LOW COST PACKAGE VARIANT 1<6NX> (B) GRAY 		8-97425-111-1 01 1 1402- ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
SUSP SEAT 100KG W/SEAT BELT ANCHORAGE<SA3> EXC. INSPECTION ENGINE COVER<8GA> (A) GRAY 		8-97425-125-1 01 1 1309-1401 ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
SUSP SEAT 100KG W/SEAT BELT ANCHORAGE<SA3> EXC. INSPECTION ENGINE COVER<8GA> (A) GRAY 		8-97425-125-1 01 1 1402- ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
SUSP SEAT 100KG W/SEAT BELT ANCHORAGE<SA3> EXC. VEHICLE LOW COST PACKAGE VARIANT 1<6NX>,INSPECTION ENGINE COVER<8GA> (A) GRAY 		8-97425-125-1 01 1 1402- ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
EXC. SUSP SEAT 100KG W/SEAT BELT ANCHORA GE<SA3>,INSPECTION ENGINE COVER<8GA> (A) GRAY 		8-97425-124-1 01 1 1309-1401 ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
EXC. SUSP SEAT 100KG W/SEAT BELT ANCHORA GE<SA3>,INSPECTION ENGINE COVER<8GA> (A) GRAY 		8-97425-124-1 01 1 1402- ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
EXC. SUSP SEAT 100KG W/SEAT BELT ANCHORA GE<SA3>,VEHICLE LOW COST PACKAGE VARIANT1<6NX>,INSPECTION ENGINE COVER<8GA> (A) GRAY 		8-97425-124-1 01 1 1402- ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
(B) GRAY 		8-97425-113-1 01 1 1309-1401 ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
EXC. VEHICLE LOW COST PACKAGE VARIANT 1<6NX> (B) GRAY 		8-97425-113-1 01 1 1402- ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY 		8-97405-388-1 01 1 1309- ● ● ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY 		8-97405-389-1 01 1 1309- ● ● ●
72 16.800 MAT; SILENCER,ENG COVER
INSPECTION ENGINE COVER<8GA> GRAY 		8-97406-252-3 01 1 1309- ● ●
72 16.800 MAT; SILENCER,ENG COVER
GRAY 		8-97406-252-3 01 1 1309- ●
76 16.800 MAT; FLOOR,REINF,CAB RR MTG
4JJ1-TCS ENG(LFB) GRAY 		8-97423-549-0 01 1 1409- ●
76 16.800 MAT; FLOOR,REINF,CAB RR MTG
4HK1-TCS ENG(RJS) GRAY 		8-97424-574-0 01 1 1309- ●

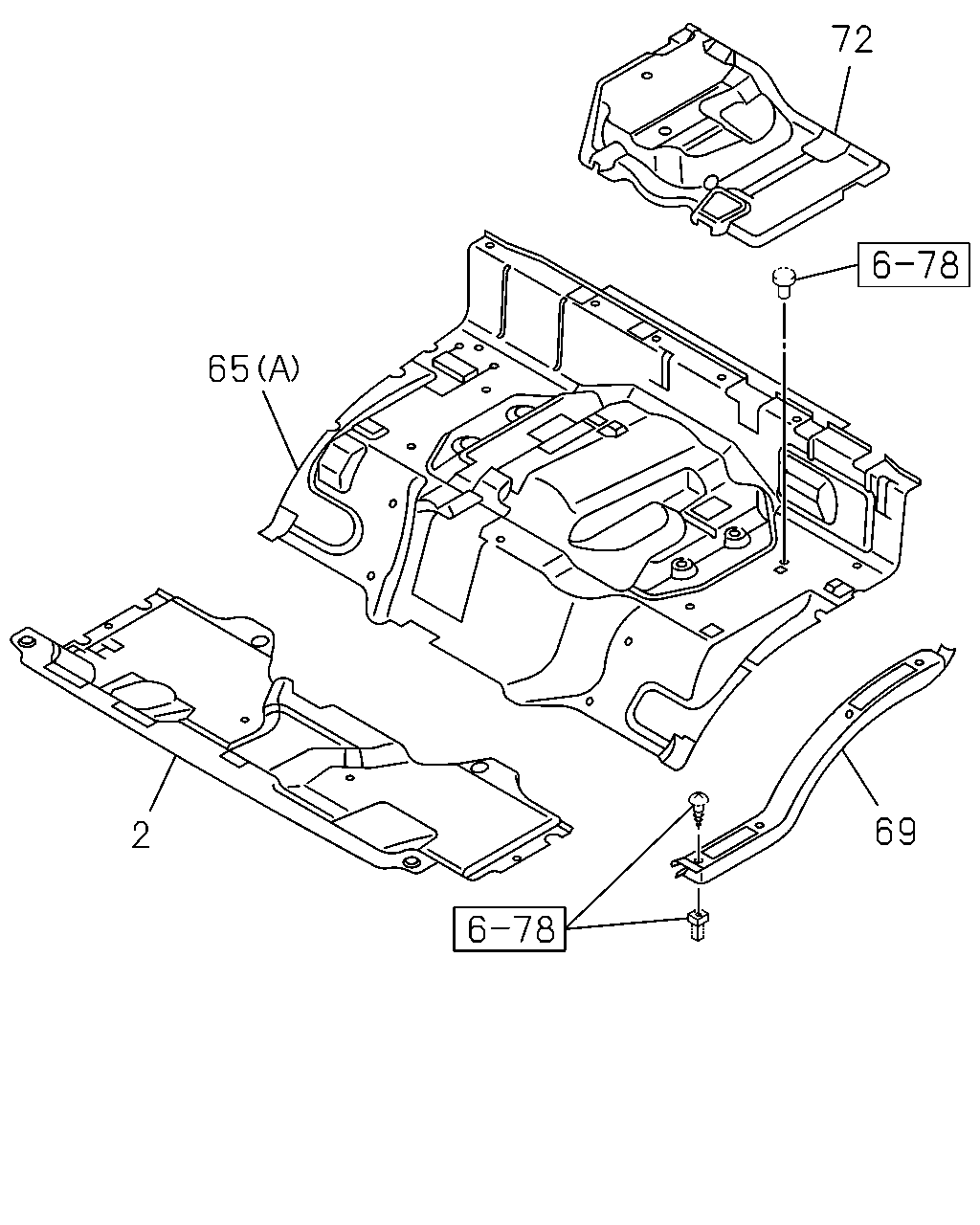

çizim 374628
72 69 2 65
BalonParca AdiParca NoAdetTipApplied Date A B C
2 16.800 MAT; FLOOR
GRAY 		8-97405-147-6 01 1 1309-1310 ●
2 16.800 MAT; FLOOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) GRAY 		8-97405-147-6 01 1 1309-1310 ● ●
2 16.800 MAT; FLOOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) GRAY 		8-97405-147-6 01 1 1311- ● ● ●
2 16.800 MAT; FLOOR
TRANSMISSION CONTROL-SMOOTHER(8GF) GRAY 		8-97405-148-6 01 1 1309-1310 ● ●
2 16.800 MAT; FLOOR
SMOOTHER-EX(TYPE2)(8NS) GRAY 		8-97405-148-6 01 1 1311-1408 ●
2 16.800 MAT; FLOOR
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) GRAY 		8-97405-148-6 01 1 1311-1408 ●
2 16.800 MAT; FLOOR
TRANSMISSION CONTROL-SMOOTHER(8GF) GRAY 		8-97405-148-6 01 1 1311-1408 ●
2 16.800 MAT; FLOOR
SMOOTHER-EX(TYPE2)(8NS) GRAY 		8-97405-148-6 01 1 1409- ●
2 16.800 MAT; FLOOR
TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) GRAY 		8-97405-148-6 01 1 1409- ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
SUSP SEAT 100KG W/SEAT BELT ANCHORAGE<SA3> VEHICLE LOW COST PACKAGE VARIANT 1<6NX> EXC. INSPECTION ENGINE COVER<8GA> (A) GRAY 		8-97425-122-1 01 1 1402- ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
VEHICLE LOW COST PACKAGE VARIANT 1<6NX> EXC. SUSP SEAT 100KG W/SEAT BELT ANCHORA GE<SA3>,INSPECTION ENGINE COVER<8GA> (A) GRAY 		8-97425-119-1 01 1 1402- ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
VEHICLE LOW COST PACKAGE VARIANT 1<6NX> (B) GRAY 		8-97425-111-1 01 1 1402- ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
SUSP SEAT 100KG W/SEAT BELT ANCHORAGE<SA3> EXC. INSPECTION ENGINE COVER<8GA> (A) GRAY 		8-97425-125-1 01 1 1309-1401 ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
SUSP SEAT 100KG W/SEAT BELT ANCHORAGE<SA3> EXC. INSPECTION ENGINE COVER<8GA> (A) GRAY 		8-97425-125-1 01 1 1402- ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
SUSP SEAT 100KG W/SEAT BELT ANCHORAGE<SA3> EXC. VEHICLE LOW COST PACKAGE VARIANT 1<6NX>,INSPECTION ENGINE COVER<8GA> (A) GRAY 		8-97425-125-1 01 1 1402- ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
EXC. SUSP SEAT 100KG W/SEAT BELT ANCHORA GE<SA3>,INSPECTION ENGINE COVER<8GA> (A) GRAY 		8-97425-124-1 01 1 1309-1401 ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
EXC. SUSP SEAT 100KG W/SEAT BELT ANCHORA GE<SA3>,INSPECTION ENGINE COVER<8GA> (A) GRAY 		8-97425-124-1 01 1 1402- ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
EXC. SUSP SEAT 100KG W/SEAT BELT ANCHORA GE<SA3>,VEHICLE LOW COST PACKAGE VARIANT1<6NX>,INSPECTION ENGINE COVER<8GA> (A) GRAY 		8-97425-124-1 01 1 1402- ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
(B) GRAY 		8-97425-113-1 01 1 1309-1401 ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
EXC. VEHICLE LOW COST PACKAGE VARIANT 1<6NX> (B) GRAY 		8-97425-113-1 01 1 1402- ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY 		8-97405-388-1 01 1 1309- ● ● ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY 		8-97405-389-1 01 1 1309- ● ● ●
72 16.800 MAT; SILENCER,ENG COVER
INSPECTION ENGINE COVER<8GA> GRAY 		8-97406-252-3 01 1 1309- ● ●
72 16.800 MAT; SILENCER,ENG COVER
GRAY 		8-97406-252-3 01 1 1309- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
