◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51482 - NNR/NPR RHD EUROPE EURO5B+,6 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-05 - FRONT PANEL ▶
6-05 — FRONT PANEL (#126272) — 61 parça

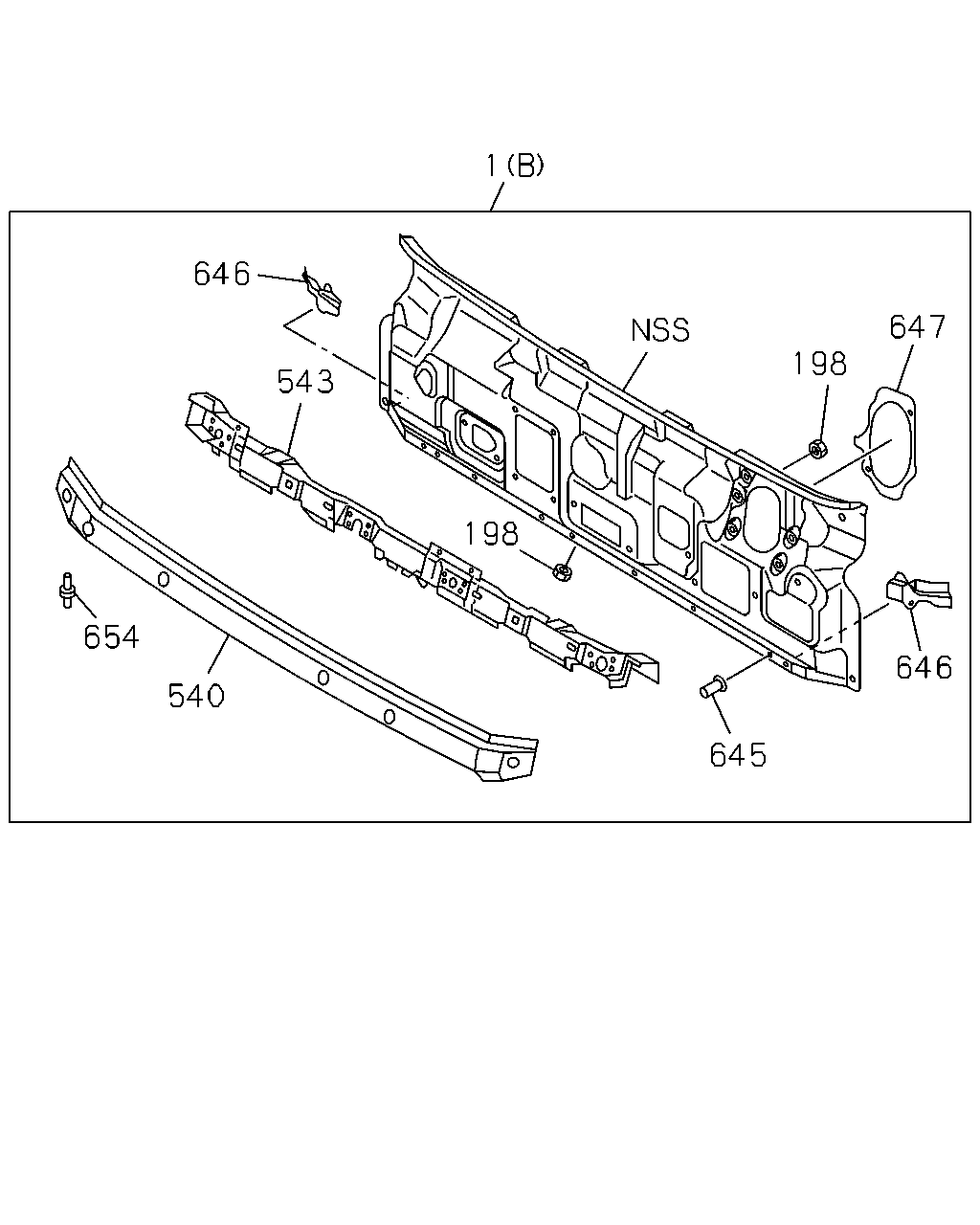

çizim 373454
1 198 647 646 645 540 654 543 646 198
BalonParca AdiParca NoAdetTipApplied Date A B C
1 16.550 PANEL ASM; FRT
PTO MANUAL CONTROL(6WC) (B) 		8-98182-390-0 01 1 1309- ● ● ●
1 16.550 PANEL ASM; FRT
EXC. PTO MANUAL CONTROL(6WC) (B) 		8-98181-027-0 01 1 1309- ● ● ●
1 16.550 PANEL ASM; FRT
(A) 		8-98122-695-0 01 1 1309- ● ● ●
198 16.125 NUT; PANEL
PTO MANUAL CONTROL(6WC) 16.545 M6 		9-09114-086-0 06 1 1309- ● ● ●
198 16.125 NUT; PANEL
EXC. PTO MANUAL CONTROL(6WC) 16.545 M6 		9-09114-086-0 04 1 1309- ● ● ●
540 16.588 PANEL; FRONT,OUTER 8-97585-325-3 01 1 1309- ● ● ●
543 16.570 CLOSING; FRT MTG RAIL 8-97585-328-5 01 1 1309- ● ● ●
645 16.588 STUD; FRT PANEL
M6X12 		8-98013-112-0 06 1 1309- ● ● ●
646 08.155 REINFORCEMENT; DASH 8-98023-098-1 01 1 1309- ● ● ●
646 08.155 REINFORCEMENT; DASH 8-98023-099-1 01 1 1309- ● ● ●
647 08.155 REINFORCEMENT; WIPER MOTOR 8-98006-327-0 01 1 1309- ● ● ●
654 16.125 PIN; FRT PANEL 8-98021-967-2 02 1 1309- ● ● ●

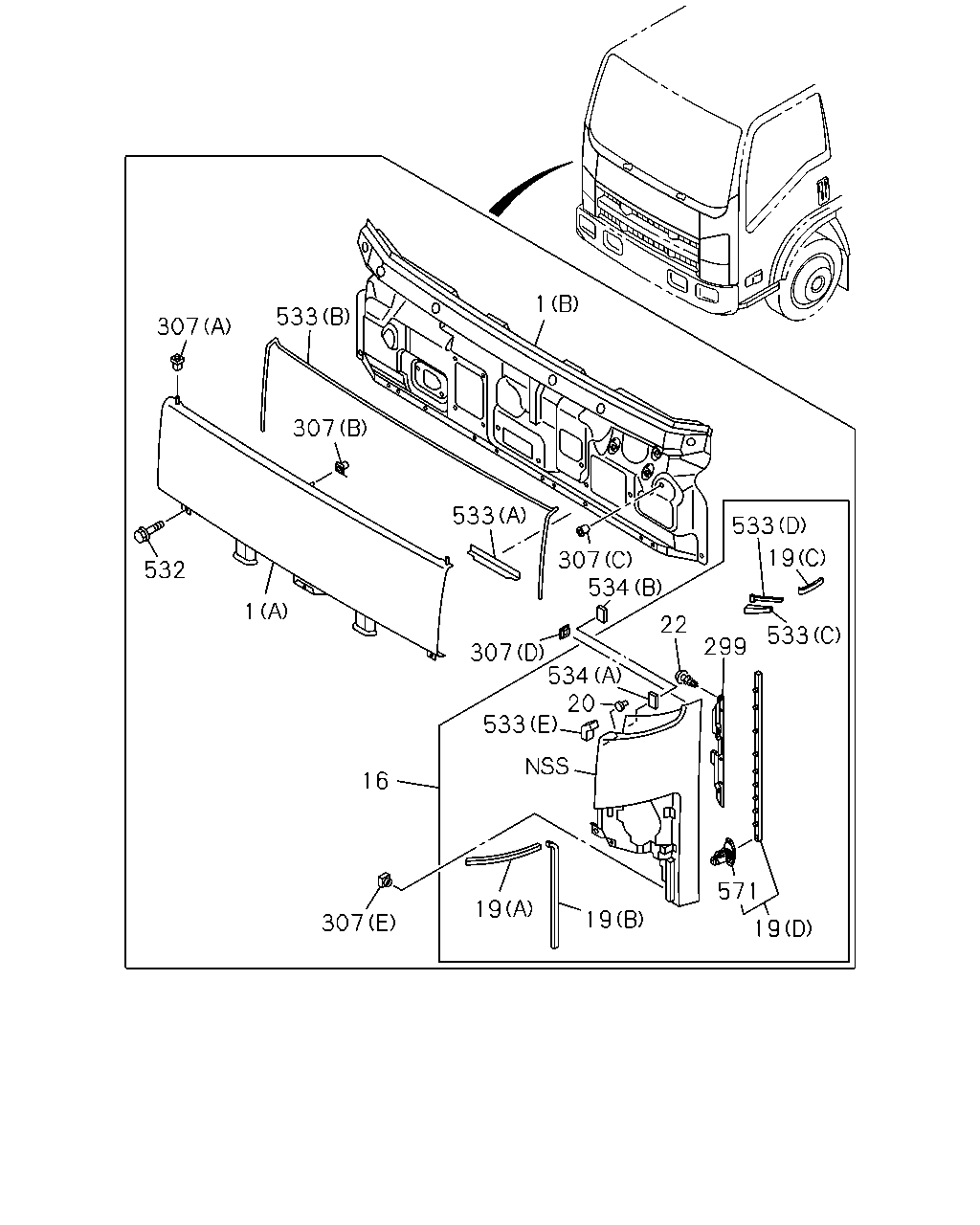

çizim 374056
1 533 307 307 533 307 533 19 533 299 22 534 307 1 532 16 307 19 19 571 19 534 20 533
BalonParca AdiParca NoAdetTipApplied Date A B C
1 16.550 PANEL ASM; FRT
PTO MANUAL CONTROL(6WC) (B) 		8-98182-390-0 01 1 1309- ● ● ●
1 16.550 PANEL ASM; FRT
EXC. PTO MANUAL CONTROL(6WC) (B) 		8-98181-027-0 01 1 1309- ● ● ●
1 16.550 PANEL ASM; FRT
(A) 		8-98122-695-0 01 1 1309- ● ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WHITE 		8-97406-040-9 01 1 1309- ● ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOORMIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDL E ARM<8ML> WHITE 		8-97406-039-9 01 1 1309- ● ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) BLUE 		8-97415-716-9 01 1 1309- ● ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOORMIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDL E ARM<8ML> BLUE 		8-97415-715-9 01 1 1309- ● ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR QUICK SILVER MET(998) LIGHT GRAY 		8-97414-636-9 01 1 1309- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR QUICK SILVER MET(998) O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOORMIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDL E ARM<8ML> LIGHT GRAY 		8-97414-635-9 01 1 1309- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) BLUE 		8-97409-872-9 01 1 1309- ● ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOORMIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDL E ARM<8ML> BLUE 		8-97409-870-9 01 1 1309- ● ● ●
19 16.588 SEAL; FRT SIDE PANEL
(A) 		8-98035-268-0 01 1 1309- ● ● ●
19 16.588 SEAL; FRT SIDE PANEL
(A) 		8-98035-268-0 01 1 1309- ● ● ●
19 16.588 SEAL; FRT SIDE PANEL
(C) 		8-98038-608-0 01 1 1309- ● ● ●
19 16.588 SEAL; FRT SIDE PANEL
(C) 		8-98038-608-0 01 1 1309- ● ● ●
19 16.588 SEAL; FRT SIDE PANEL
(B) 		8-98062-215-0 01 1 1309- ● ● ●
19 16.588 SEAL; FRT SIDE PANEL
(B) 		8-98062-215-0 01 1 1309- ● ● ●
19 16.588 SEAL; FRT SIDE PANEL
(D) 		8-98028-749-3 01 1 1309- ● ● ●
19 16.588 SEAL; FRT SIDE PANEL
(D) 		8-98028-750-3 01 1 1309- ● ● ●
20 16.588 CLIP; FRT PANEL SIDE 8-97410-739-1 02 1 1309- ● ● ●
20 16.588 CLIP; FRT PANEL SIDE 8-97410-739-1 02 1 1309- ● ● ●
22 16.588 SCREW; FRT PANEL SIDE
M4X10 TAPPING W/PL WASHER 		0-74360-410-0 03 1 1309- ● ● ●
22 16.588 SCREW; FRT PANEL SIDE
M4X10 TAPPING W/PL WASHER 		0-74360-410-0 03 1 1309- ● ● ●
299 16.069 COVER; FRT PANEL SIDE 8-98028-144-1 01 1 1309- ● ● ●
299 16.069 COVER; FRT PANEL SIDE 8-98028-145-1 01 1 1309- ● ● ●
307 16.125 GROMMET; FRT PANEL
(D) 		8-97410-738-0 02 1 1309- ● ● ●
307 16.125 GROMMET; FRT PANEL
(E) 		8-98021-300-1 04 1 1309- ● ● ●
307 16.125 GROMMET; FRT PANEL
(A) 		8-98021-968-0 01 1 1309- ● ● ●
307 16.125 GROMMET; FRT PANEL
(A) 		8-98021-969-0 01 1 1309- ● ● ●
307 16.125 GROMMET; FRT PANEL
(B) 		8-98023-229-1 01 1 1309- ● ● ●
307 16.125 GROMMET; FRT PANEL
(C) OD=20 		8-98034-363-1 04 1 1309- ● ● ●
532 08.143 BOLT; FRT PANEL
M6X16 W/LK&PL WASHER 		0-52010-616-0 04 1 1309- ● ● ●
533 08.143 SEAL; FRT PANEL
(D) 		8-98043-511-1 01 1 1309- ● ● ●
533 08.143 SEAL; FRT PANEL
(D) 		8-98043-511-1 01 1 1309- ● ● ●
533 08.143 SEAL; FRT PANEL
(E) 		8-98064-939-0 01 1 1309- ● ● ●
533 08.143 SEAL; FRT PANEL
(E) 		8-98064-939-0 01 1 1309- ● ● ●
533 08.143 SEAL; FRT PANEL
(C) 		8-98043-509-0 01 1 1309- ● ● ●
533 08.143 SEAL; FRT PANEL
(C) 		8-98043-510-0 01 1 1309- ● ● ●
533 08.143 SEAL; FRT PANEL
(B) 		8-98021-964-4 01 1 1309-1506 ● ● ●
533 08.143 SEAL; FRT PANEL
(B) 		8-98309-764-0 01 1 1507- ● ● ●
533 08.143 SEAL; FRT PANEL
(A) 		8-98021-965-2 01 1 1309- ● ● ●
534 16.550 FASTENER
(A) 40X25 		8-98089-412-1 01 1 1309- ● ● ●
534 16.550 FASTENER
(A) 40X25 		8-98089-412-1 01 1 1309- ● ● ●
534 16.550 FASTENER
(B) 40X25 		8-98089-411-1 02 1 1309- ● ● ●
571 16.570 CLIP; SEAL
16.165 NATURAL 		8-98027-457-0 10 1 1309- ● ● ●
571 16.570 CLIP; SEAL
16.165 NATURAL 		8-98027-457-0 10 1 1309- ● ● ●

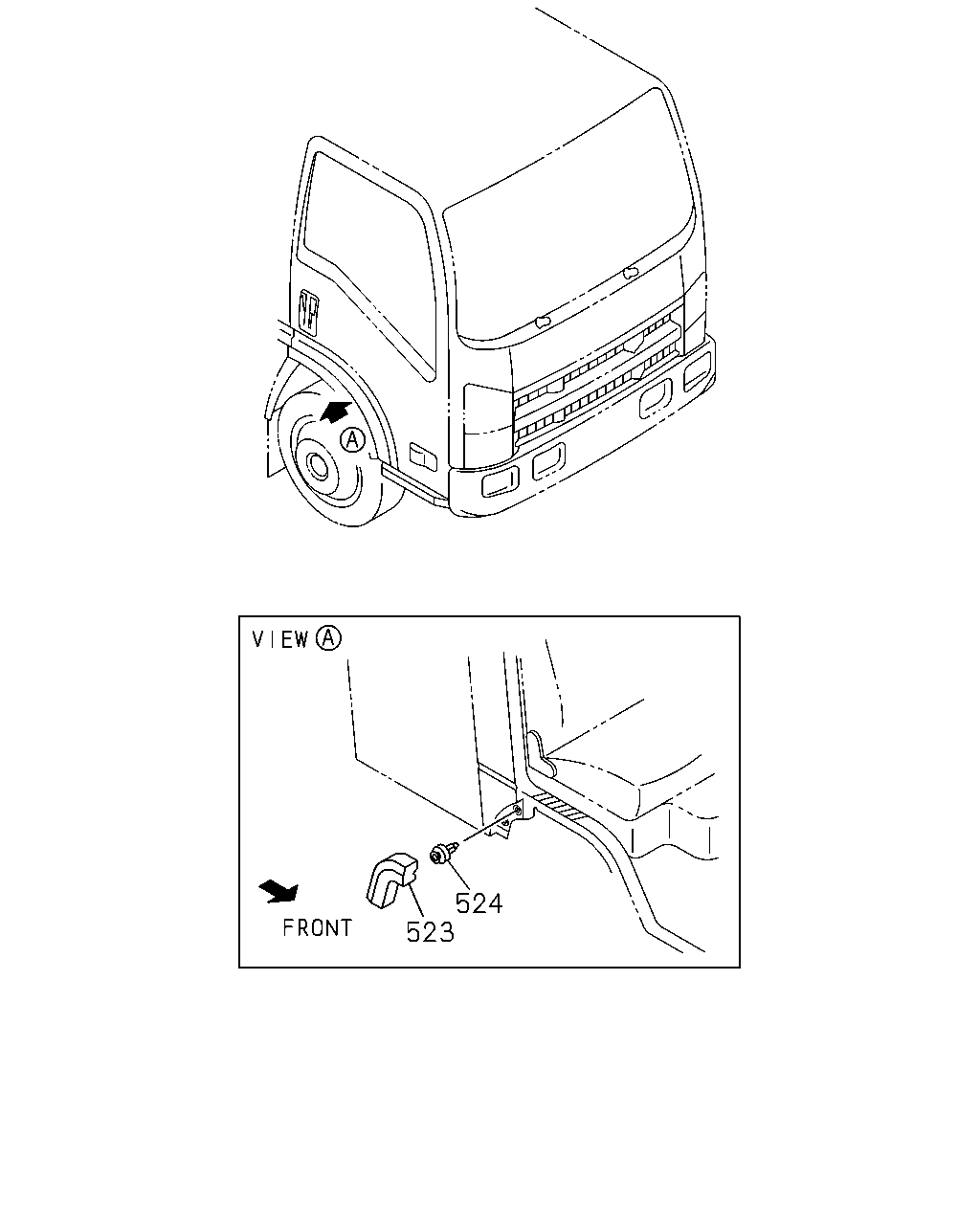

çizim 374274
523 524
BalonParca AdiParca NoAdetTipApplied Date A B C
523 08.212 COVER; FENDER RR 8-97410-295-2 01 1 1309- ●
523 08.212 COVER; FENDER RR 8-97410-296-2 01 1 1309- ●
524 08.212 CLIP; FENDER COVER
OD=8.5 GRAY 		8-97893-482-0 06 1 1309- ●
