◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51482 - NNR/NPR RHD EUROPE EURO5B+,6 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-03 - RADIATOR GRILLE ▶
6-03 — RADIATOR GRILLE (#126270) — 51 parça

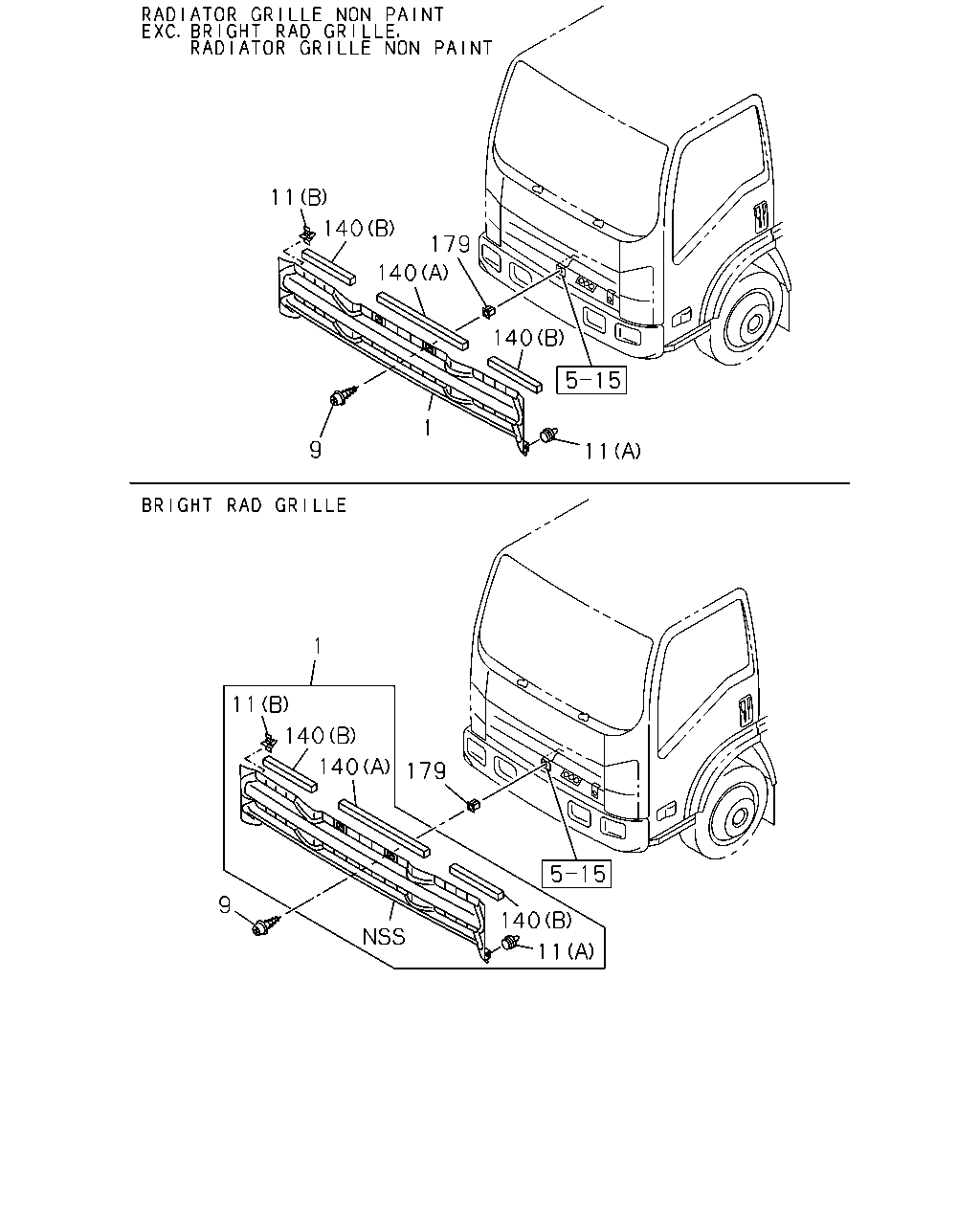

çizim 374037
11 140 179 140 140 11 9 11 1 140 140 179 140 11 9 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 01.266 GRILLE; RAD
FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22> PLATED 		8-98241-071-1 01 1 1406- ● ● ●
1 01.266 GRILLE; RAD
FACE LIFT MODEL<TX7> RADIATOR GRILLE NON PAINT<7LB> 		8-98244-209-1 01 1 1406- ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR ARC WHITE(729) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> WHITE 		8-97428-977-1 01 1 1406- ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR MARINE BLUE(890) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> BLUE 		8-97428-989-1 01 1 1406- ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR QUICK SILVER MET(998) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> LIGHT GRAY 		8-97428-979-1 01 1 1406- ● ●
1 01.266 GRILLE; RAD
BODY COLOR TRANS BLUE(999) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> BLUE 		8-97428-978-1 01 1 1406- ● ● ●
1 01.266 GRILLE; RAD
BRIGHT RAD GRILLE<V22> PLATED 		8-98025-458-4 01 1 1309-1405 ● ● ●
1 01.266 GRILLE; RAD
BRIGHT RAD GRILLE<V22> EXC. FACE LIFT MODEL<TX7> PLATED 		8-98025-458-4 01 1 1406- ● ● ●
1 01.266 GRILLE; RAD
RADIATOR GRILLE NON PAINT<7LB> 		8-98025-468-4 01 1 1309-1405 ● ● ●
1 01.266 GRILLE; RAD
RADIATOR GRILLE NON PAINT<7LB> EXC. FACE LIFT MODEL<TX7> 		8-98025-468-4 01 1 1406- ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR ARC WHITE(729) EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> WHITE 		8-97407-294-4 01 1 1309-1405 ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR ARC WHITE(729) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> WHITE 		8-97407-294-4 01 1 1406- ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR MARINE BLUE(890) EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> BLUE 		8-97412-398-4 01 1 1309-1405 ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR MARINE BLUE(890) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> BLUE 		8-97412-398-4 01 1 1406- ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR QUICK SILVER MET(998) EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> LIGHT GRAY 		8-97407-293-4 01 1 1309-1405 ● ●
1 01.266 GRILLE; RAD
BODY COLOR QUICK SILVER MET(998) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> LIGHT GRAY 		8-97407-293-4 01 1 1406- ● ●
1 01.266 GRILLE; RAD
BODY COLOR TRANS BLUE(999) EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> BLUE 		8-97407-292-4 01 1 1309-1405 ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR TRANS BLUE(999) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> BLUE 		8-97407-292-4 01 1 1406- ● ● ●
9 01.269 SCREW; RAD GRILLE
M5X16 TAPPING W/PL WASHER 		0-74165-516-0 01 1 1309- ● ● ●
11 01.269 CLIP; RAD GRILLE
(A) 		8-97581-651-2 02 1 1309- ● ● ●
11 01.269 CLIP; RAD GRILLE
(B) 		8-98025-698-0 05 1 1309- ● ● ●
140 01.266 SEAL; RAD GRILLE
(A) 		8-98054-280-0 01 1 1309-1405 ● ● ●
140 01.266 SEAL; RAD GRILLE
EXC. FACE LIFT MODEL<TX7> (A) 		8-98054-280-0 01 1 1406- ● ● ●
140 01.266 SEAL; RAD GRILLE
(B) 		8-98054-281-0 02 1 1309-1405 ● ● ●
140 01.266 SEAL; RAD GRILLE
EXC. FACE LIFT MODEL<TX7> (B) 		8-98054-281-0 02 1 1406- ● ● ●
179 01.269 RETAINER; GRILLE,RAD
02.726 D=7X7 L=7.5 		8-94291-927-0 01 1 1309- ● ● ●

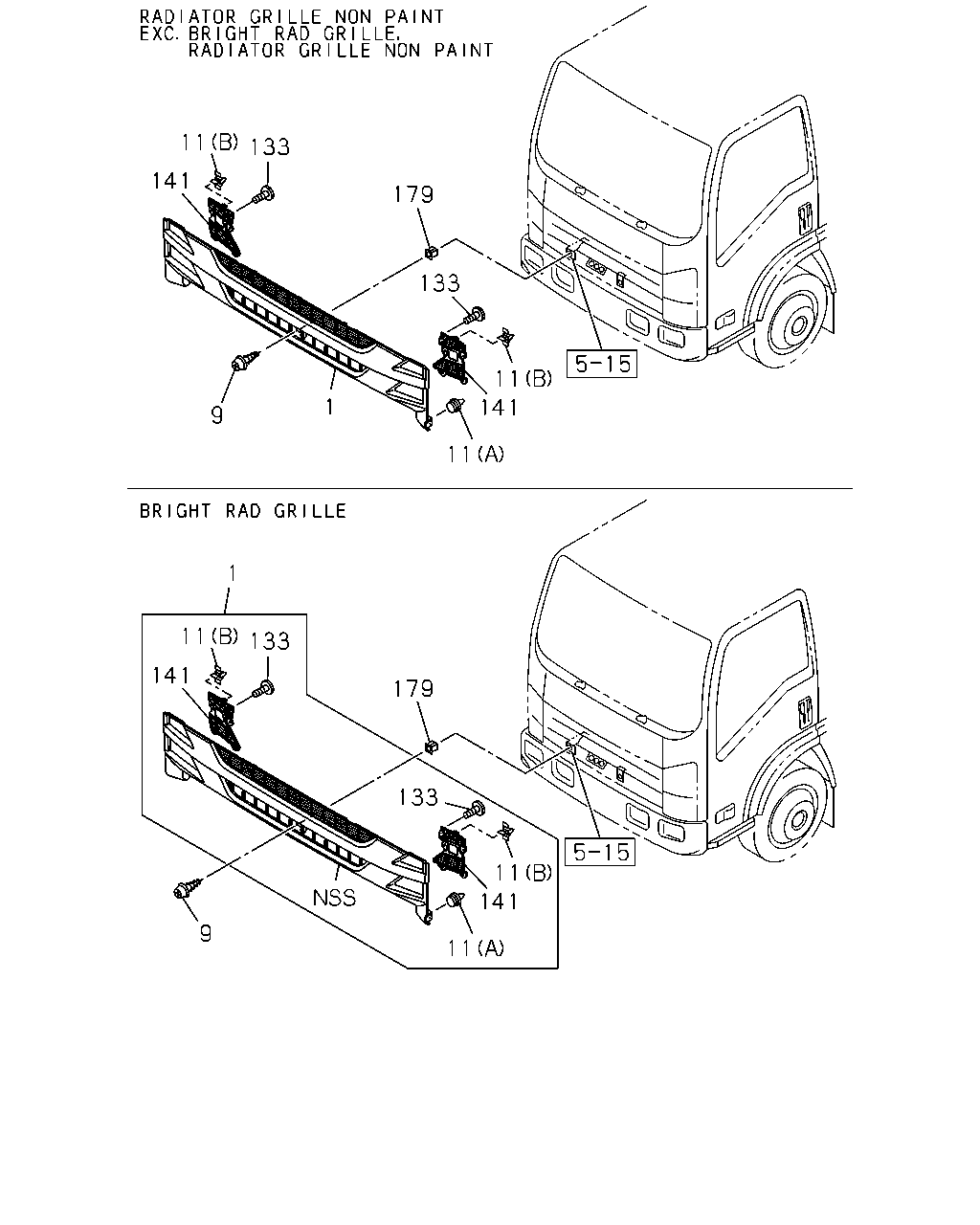

çizim 443469
11 141 133 179 133 11 141 11 9 1 11 133 179 133 11 141 11 9 141 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 01.266 GRILLE; RAD
FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22> PLATED 		8-98241-071-1 01 1 1406- ● ● ●
1 01.266 GRILLE; RAD
FACE LIFT MODEL<TX7> RADIATOR GRILLE NON PAINT<7LB> 		8-98244-209-1 01 1 1406- ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR ARC WHITE(729) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> WHITE 		8-97428-977-1 01 1 1406- ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR MARINE BLUE(890) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> BLUE 		8-97428-989-1 01 1 1406- ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR QUICK SILVER MET(998) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> LIGHT GRAY 		8-97428-979-1 01 1 1406- ● ●
1 01.266 GRILLE; RAD
BODY COLOR TRANS BLUE(999) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> BLUE 		8-97428-978-1 01 1 1406- ● ● ●
1 01.266 GRILLE; RAD
BRIGHT RAD GRILLE<V22> PLATED 		8-98025-458-4 01 1 1309-1405 ● ● ●
1 01.266 GRILLE; RAD
BRIGHT RAD GRILLE<V22> EXC. FACE LIFT MODEL<TX7> PLATED 		8-98025-458-4 01 1 1406- ● ● ●
1 01.266 GRILLE; RAD
RADIATOR GRILLE NON PAINT<7LB> 		8-98025-468-4 01 1 1309-1405 ● ● ●
1 01.266 GRILLE; RAD
RADIATOR GRILLE NON PAINT<7LB> EXC. FACE LIFT MODEL<TX7> 		8-98025-468-4 01 1 1406- ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR ARC WHITE(729) EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> WHITE 		8-97407-294-4 01 1 1309-1405 ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR ARC WHITE(729) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> WHITE 		8-97407-294-4 01 1 1406- ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR MARINE BLUE(890) EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> BLUE 		8-97412-398-4 01 1 1309-1405 ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR MARINE BLUE(890) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> BLUE 		8-97412-398-4 01 1 1406- ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR QUICK SILVER MET(998) EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> LIGHT GRAY 		8-97407-293-4 01 1 1309-1405 ● ●
1 01.266 GRILLE; RAD
BODY COLOR QUICK SILVER MET(998) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> LIGHT GRAY 		8-97407-293-4 01 1 1406- ● ●
1 01.266 GRILLE; RAD
BODY COLOR TRANS BLUE(999) EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> BLUE 		8-97407-292-4 01 1 1309-1405 ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR TRANS BLUE(999) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> BLUE 		8-97407-292-4 01 1 1406- ● ● ●
9 01.269 SCREW; RAD GRILLE
M5X16 TAPPING W/PL WASHER 		0-74165-516-0 01 1 1309- ● ● ●
11 01.269 CLIP; RAD GRILLE
(A) 		8-97581-651-2 02 1 1309- ● ● ●
11 01.269 CLIP; RAD GRILLE
(B) 		8-98025-698-0 05 1 1309- ● ● ●
133 01.269 SCREW; COVER
FACE LIFT MODEL<TX7> 04.681 T25 M5X12 TAPPING HEXALOBULAR 		0-72180-512-0 10 1 1406- ● ● ●
141 01.266 COVER; RAD GRILLE
FACE LIFT MODEL<TX7> 		8-98244-212-0 01 1 1406- ● ● ●
141 01.266 COVER; RAD GRILLE
FACE LIFT MODEL<TX7> 		8-98244-213-0 01 1 1406- ● ● ●
179 01.269 RETAINER; GRILLE,RAD
02.726 D=7X7 L=7.5 		8-94291-927-0 01 1 1309- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
