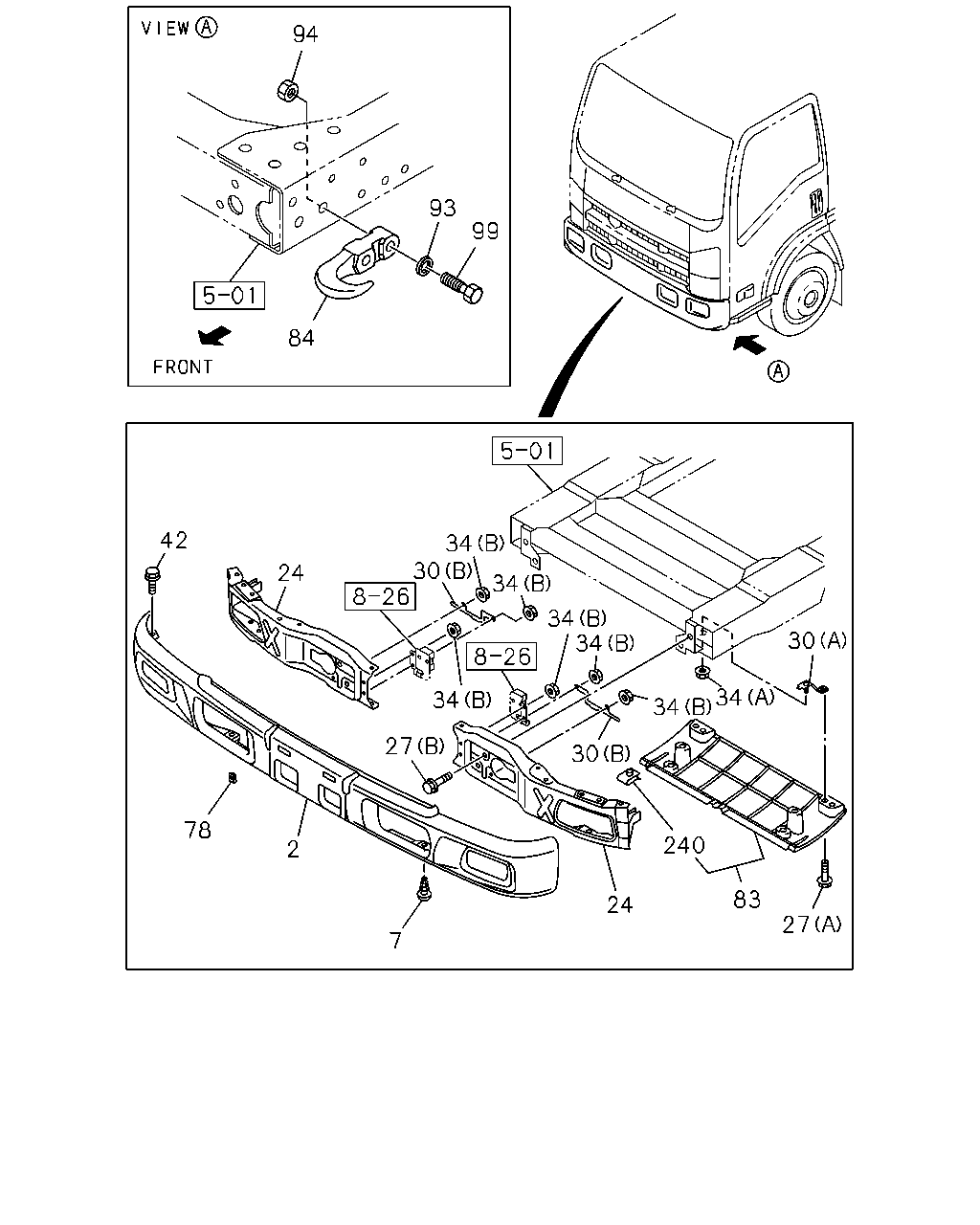

2 |
07.831 BUMPER; FRT,CENTER
FOG LAMP FRONT VAR2<X99>
FRONT BUMPER PAINTED<VB5>
PRIMER
|
8-98055-079-2 |
01 |
1 |
1309- |
● |
● |
● |
| |
2 |
07.831 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729)
FOG LAMP FRONT VAR2<X99>
EXC. FRONT BUMPER PAINTED<VB5>
WHITE
|
8-97405-628-5 |
01 |
1 |
1309- |
● |
● |
● |
| |
2 |
07.831 BUMPER; FRT,CENTER
BODY COLOR TRANS BLUE(999)
FOG LAMP FRONT VAR2<X99>
EXC. FRONT BUMPER PAINTED<VB5>
BLUE
|
8-97405-629-5 |
01 |
1 |
1309- |
● |
● |
● |
| |
7 |
07.833 SCREW; FRT BUMPER
4JJ1-TCS ENG(LFB)
M6X20 TAPPING
|
8-98082-975-0 |
03 |
1 |
1309-1310 |
● |
● |
|
| |
7 |
07.833 SCREW; FRT BUMPER
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)
M6X20 TAPPING
|
8-98082-975-0 |
03 |
1 |
1311- |
● |
● |
|
| |
24 |
07.869 BAR; FRT BUMPER
|
8-98229-432-0 |
01 |
1 |
1309- |
● |
● |
● |
| |
24 |
07.869 BAR; FRT BUMPER
|
8-98229-433-0 |
01 |
1 |
1309- |
● |
● |
● |
| |
27 |
07.833 BOLT; BUMPER TO BACK BAR
4JJ1-TCS ENG(LFB)
16.679
(A)
M8X20 W/PL WASHER
|
8-98031-841-0 |
02 |
1 |
1309-1310 |
● |
● |
|
| |
27 |
07.833 BOLT; BUMPER TO BACK BAR
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)
16.679
(A)
M8X20 W/PL WASHER
|
8-98031-841-0 |
02 |
1 |
1311- |
● |
● |
|
| |
27 |
07.833 BOLT; BUMPER TO BACK BAR
(B)
M10X30 W/TORQUES
|
8-98092-250-0 |
04 |
1 |
1309- |
● |
● |
● |
| |
30 |
07.869 BRACKET; FRT BUMPER
(B)
|
8-98232-133-0 |
02 |
1 |
1309- |
● |
● |
● |
| |
30 |
07.869 BRACKET; FRT BUMPER
4JJ1-TCS ENG(LFB)
EXC. PTO MANUAL CONTROL(6WC)
(A)
|
8-98025-203-0 |
02 |
1 |
1309-1310 |
● |
● |
|
| |
30 |
07.869 BRACKET; FRT BUMPER
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)
EXC. PTO MANUAL CONTROL(6WC)
(A)
|
8-98025-203-0 |
02 |
1 |
1311- |
● |
● |
|
| |
34 |
07.874 NUT; BRKT,BUMPER
01.062
(B)
M6 FLANGE
|
0-91180-106-0 |
06 |
1 |
1309- |
● |
● |
● |
| |
34 |
07.874 NUT; BRKT,BUMPER
4JJ1-TCS ENG(LFB)
EXC. PTO MANUAL CONTROL(6WC)
01.062
(A)
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
1309-1310 |
● |
● |
|
| |
34 |
07.874 NUT; BRKT,BUMPER
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)
EXC. PTO MANUAL CONTROL(6WC)
01.062
(A)
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
1311- |
● |
● |
|
| |
42 |
07.874 BOLT; BUMPER
08.143
M6X16 W/LK&PL WASHER
|
0-52010-616-0 |
10 |
1 |
1309- |
● |
● |
● |
| |
78 |
07.874 NUT; SPIRE
M6
|
8-98029-416-0 |
02 |
1 |
1309- |
● |
● |
● |
| |
83 |
07.833 GUIDE; AIR,FRT BUMPER
4JJ1-TCS ENG(LFB)
|
8-98025-201-1 |
01 |
1 |
1309-1310 |
● |
● |
|
| |
83 |
07.833 GUIDE; AIR,FRT BUMPER
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)
|
8-98025-201-1 |
01 |
1 |
1311- |
● |
● |
|
| |
84 |
07.068 HOOK
|
8-97387-665-0 |
01 |
1 |
1309- |
● |
● |
● |
| |
93 |
07.068 WASHER; LK,HOOK
06.174
ID=14.2
|
0-91510-814-0 |
02 |
1 |
1309- |
● |
● |
● |
| |
94 |
07.068 NUT; HOOK
07.833
M14
|
0-91110-514-0 |
01 |
1 |
1309- |
● |
● |
● |
| |
99 |
07.039 BOLT; HOOK
M14X55
|
8-97301-262-0 |
02 |
1 |
1309- |
● |
● |
● |
| |
240 |
07.833 NUT; AIR GUIDE,FRT BUMPER
4JJ1-TCS ENG(LFB)
16.550
|
1-71996-035-1 |
03 |
1 |
1309-1310 |
● |
● |
|
| |
240 |
07.833 NUT; AIR GUIDE,FRT BUMPER
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)
16.550
|
1-71996-035-1 |
03 |
1 |
1311- |
● |
● |
|
