Sayfa 4-80 - Isuzu EPC

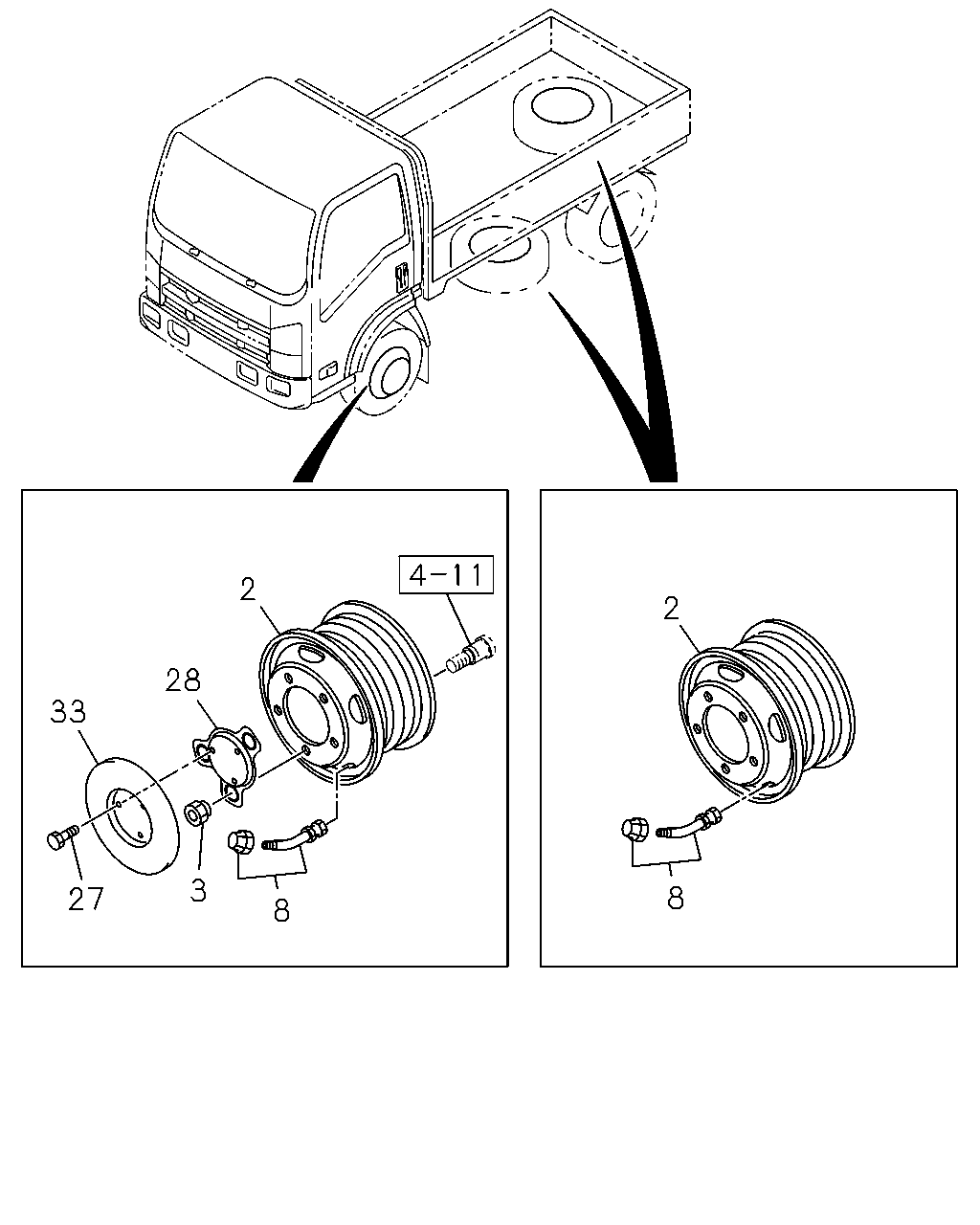

4-80 — ROAD WHEEL (#126263) — 143 parça

2 28 33 3 8 27 8 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	05.803 WHEEL; DISC FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EEC(CVZ) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	06	1	1309-1401	●
2	05.803 WHEEL; DISC FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EE C(CVZ) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	06	1	1309-1401		●
2	05.803 WHEEL; DISC FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EEC(CVZ),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 SILVER(CYS) 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	06	1	1402-	●
2	05.803 WHEEL; DISC FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EE C(CVZ) 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	06	1	1402-		●
2	05.803 WHEEL; DISC FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EEC(CVZ) SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	01	1	1309-1401	●
2	05.803 WHEEL; DISC FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EE C(CVZ) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	01	1	1309-1401		●
2	05.803 WHEEL; DISC FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EEC(CVZ),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 SILVER(CYS) SPARE TIRE & DISC WHEEL REAR TIRE<R46> 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	01	1	1402-	●
2	05.803 WHEEL; DISC FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EE C(CVZ) 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	01	1	1402-		●
2	05.803 WHEEL; DISC FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WH ITE(BQV),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) FRONT,REAR 16X5.5J OFFSET=116.5 WHITE 5-HOLE	8-97213-256-0	06	1	1309-1401	●
2	05.803 WHEEL; DISC FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WH ITE(CWA) FRONT,REAR 16X5.5J OFFSET=116.5 WHITE 5-HOLE	8-97213-256-0	06	1	1309-1401		●
2	05.803 WHEEL; DISC FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WH ITE(BQV),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA),F&R 205/75R16C L.R.R R IB 16X5.5J-116.5 WHITE(CYT) 16X5.5J OFFSET=116.5 WHITE 5-HOLE	8-97213-256-0	06	1	1402-	●
2	05.803 WHEEL; DISC FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WH ITE(CWA) 16X5.5J OFFSET=116.5 WHITE 5-HOLE	8-97213-256-0	06	1	1402-		●
2	05.803 WHEEL; DISC FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WH ITE(BQV),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE 16X5.5J OFFSET=116.5 WHITE 5-HOLE	8-97213-256-0	01	1	1309-1401	●
2	05.803 WHEEL; DISC FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WH ITE(CWA) SPARE 16X5.5J OFFSET=116.5 WHITE 5-HOLE	8-97213-256-0	01	1	1309-1401		●
2	05.803 WHEEL; DISC FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WH ITE(BQV),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA),F&R 205/75R16C L.R.R R IB 16X5.5J-116.5 WHITE(CYT) SPARE TIRE & DISC WHEEL REAR TIRE<R46> 16X5.5J OFFSET=116.5 WHITE 5-HOLE	8-97213-256-0	01	1	1402-	●
2	05.803 WHEEL; DISC FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WH ITE(CWA) 16X5.5J OFFSET=116.5 WHITE 5-HOLE	8-97213-256-0	01	1	1402-		●
2	05.803 WHEEL; DISC FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) SPARE 17.5X6.00 OFFSET=127 WHITE 6-HOLE	8-98168-216-0	01	1	1309-		●	●
2	05.803 WHEEL; DISC FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) FRONT 17.5X6.00 OFFSET=127 WHITE 6-HOLE	8-98168-216-0	02	1	1309-		●	●
2	05.803 WHEEL; DISC FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) REAR 17.5X6.00 OFFSET=127 WHITE 6-HOLE	8-98168-216-0	04	1	1309-		●	●
2	05.803 WHEEL; DISC FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127 BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC) FRONT 17.5X6.00 OFFSET=127 SILVER 6-HOLE	8-98168-215-0	02	1	1309-		●	●
2	05.803 WHEEL; DISC FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127 BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC) REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE	8-98168-215-0	04	1	1309-		●	●
2	05.803 WHEEL; DISC FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127 BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215/75R17.5 17 .5X6.00-127 SILVER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) SPARE 17.5X6.00 OFFSET=127 SILVER 6-HOLE	8-98168-215-0	01	1	1309-1408		●
2	05.803 WHEEL; DISC FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127 BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) SPARE 17.5X6.00 OFFSET=127 SILVER 6-HOLE	8-98168-215-0	01	1	1309-1408			●
2	05.803 WHEEL; DISC FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127 BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215/75R17.5 17 .5X6.00-127 SILVER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) 17.5X6.00 OFFSET=127 SILVER 6-HOLE	8-98168-215-0	01	1	1409-		●	●
2	05.803 WHEEL; DISC FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) FRONT,REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE	8-98168-215-0	06	1	1309-1408		●
2	05.803 WHEEL; DISC F&R 215/75R17.5(MICHELIN)17.5X6.00-127 S ILVER(CRV) FRONT,REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE	8-98168-215-0	06	1	1309-1408			●
2	05.803 WHEEL; DISC FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) 17.5X6.00 OFFSET=127 SILVER 6-HOLE	8-98168-215-0	06	1	1409-		●	●
2	05.803 WHEEL; DISC FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU) SPARE 17.5X6.00 OFFSET=127 BLACK 6-HOLE	8-98168-217-0	01	1	1309-1408		●
2	05.803 WHEEL; DISC FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU) 17.5X6.00 OFFSET=127 BLACK 6-HOLE	8-98168-217-0	01	1	1409-		●	●
2	05.803 WHEEL; DISC FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU) FRONT,REAR 17.5X6.00 OFFSET=127 BLACK 6-HOLE	8-98168-217-0	06	1	1309-1408		●
2	05.803 WHEEL; DISC FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU) 17.5X6.00 OFFSET=127 BLACK 6-HOLE	8-98168-217-0	06	1	1409-		●	●
3	05.813 NUT; WHEEL,FRT AXLE FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EEC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) M18 RH THREAD	8-98007-907-0	05	1	1309-1401	●
3	05.813 NUT; WHEEL,FRT AXLE FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EE C(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) M18 RH THREAD	8-98007-907-0	05	1	1309-1401		●
3	05.813 NUT; WHEEL,FRT AXLE FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EEC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 SILVER(CYS),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 WHITE(CYT) M18 RH THREAD	8-98007-907-0	05	1	1402-	●
3	05.813 NUT; WHEEL,FRT AXLE FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EE C(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) M18 RH THREAD	8-98007-907-0	05	1	1402-		●
3	05.813 NUT; WHEEL,FRT AXLE FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EEC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) M18 LH THREAD	8-98007-908-0	05	1	1309-1401	●
3	05.813 NUT; WHEEL,FRT AXLE FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EE C(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) M18 LH THREAD	8-98007-908-0	05	1	1309-1401		●
3	05.813 NUT; WHEEL,FRT AXLE FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EEC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 SILVER(CYS),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 WHITE(CYT) M18 LH THREAD	8-98007-908-0	05	1	1402-	●
3	05.813 NUT; WHEEL,FRT AXLE FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EE C(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) M18 LH THREAD	8-98007-908-0	05	1	1402-		●
3	05.813 NUT; WHEEL,FRT AXLE FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215 /75R17.5 17.5X6.00-127 SILVER(CQU), FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU), F&R 215/75R17.5(MICHELIN)17.5X6.00-127 S ILVER(CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) M20 RH THREAD	8-97359-807-0	06	1	1309-1408		●
3	05.813 NUT; WHEEL,FRT AXLE FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),F&R 215/75 R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) ,FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) M20 RH THREAD	8-97359-807-0	06	1	1309-1408			●
3	05.813 NUT; WHEEL,FRT AXLE FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215 /75R17.5 17.5X6.00-127 SILVER(CQU), FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU), F&R 215/75R17.5(MICHELIN)17.5X6.00-127 S ILVER(CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) M20 RH THREAD	8-97359-807-0	06	1	1409-		●	●
3	05.813 NUT; WHEEL,FRT AXLE FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215 /75R17.5 17.5X6.00-127 SILVER(CQU), FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU), F&R 215/75R17.5(MICHELIN)17.5X6.00-127 S ILVER(CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) M20 LH THREAD	8-97359-808-0	06	1	1309-1408		●
3	05.813 NUT; WHEEL,FRT AXLE FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),F&R 215/75 R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) ,FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) M20 LH THREAD	8-97359-808-0	06	1	1309-1408			●
3	05.813 NUT; WHEEL,FRT AXLE FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215 /75R17.5 17.5X6.00-127 SILVER(CQU), FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU), F&R 215/75R17.5(MICHELIN)17.5X6.00-127 S ILVER(CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) M20 LH THREAD	8-97359-808-0	06	1	1409-		●	●
8	05.875 VALVE; TIRE FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EEC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) FRONT,REAR	8-98221-106-0	06	1	1309-1401	●
8	05.875 VALVE; TIRE FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EE C(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) FRONT,REAR	8-98221-106-0	06	1	1309-1401		●
8	05.875 VALVE; TIRE FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EEC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 SILVER(CYS),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 WHITE(CYT)	8-98221-106-0	06	1	1402-	●
8	05.875 VALVE; TIRE FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EE C(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA)	8-98221-106-0	06	1	1402-		●
8	05.875 VALVE; TIRE FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EEC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE	8-98221-106-0	01	1	1309-1401	●
8	05.875 VALVE; TIRE FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EE C(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) SPARE	8-98221-106-0	01	1	1309-1401		●
8	05.875 VALVE; TIRE FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EEC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 SILVER(CYS),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 WHITE(CYT) SPARE TIRE & DISC WHEEL REAR TIRE<R46>	8-98221-106-0	01	1	1402-	●
8	05.875 VALVE; TIRE FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EE C(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA)	8-98221-106-0	01	1	1402-		●
8	05.875 VALVE; TIRE FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215 /75R17.5 17.5X6.00-127 SILVER(CQU), FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU), F&R 215/75R17.5(MICHELIN)17.5X6.00-127 S ILVER(CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) SPARE	8-98221-112-0	01	1	1309-1408		●
8	05.875 VALVE; TIRE FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),F&R 215/75 R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) ,FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) SPARE	8-98221-112-0	01	1	1309-1408			●
8	05.875 VALVE; TIRE FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215 /75R17.5 17.5X6.00-127 SILVER(CQU), FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU), F&R 215/75R17.5(MICHELIN)17.5X6.00-127 S ILVER(CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW)	8-98221-112-0	01	1	1409-		●	●
8	05.875 VALVE; TIRE FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215 /75R17.5 17.5X6.00-127 WHITE(CRW) FRONT	8-98221-112-0	02	1	1309-		●	●
8	05.875 VALVE; TIRE FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215 /75R17.5 17.5X6.00-127 WHITE(CRW) REAR	8-98221-112-0	04	1	1309-		●	●
8	05.875 VALVE; TIRE FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) FRONT,REAR	8-98221-112-0	06	1	1309-1408		●
8	05.875 VALVE; TIRE F&R 215/75R17.5(MICHELIN)17.5X6.00-127 S ILVER(CRV) FRONT,REAR	8-98221-112-0	06	1	1309-1408			●
8	05.875 VALVE; TIRE FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV)	8-98221-112-0	06	1	1409-		●	●
27	05.871 BOLT; COVER 02.343 M10X20 FLANGE	0-28651-020-0	06	1	1309-	●	●	●
28	05.864 BRACKET; COVER	8-97169-249-0	02	1	1309-	●
28	05.864 BRACKET; COVER G.V.W. 5.5-6.0TON(RPU)	8-97169-249-0	02	1	1309-		●
28	05.864 BRACKET; COVER G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.5-8.0TON(RPY)	8-97169-250-0	02	1	1309-1408		●
28	05.864 BRACKET; COVER	8-97169-250-0	02	1	1309-1408			●
28	05.864 BRACKET; COVER G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.5-8.0TON(RPY)	8-97169-250-0	02	1	1409-		●	●
33	05.858 COVER; WHEEL	8-97167-658-0	02	1	1309-	●	●	●

4 2 8 2 5 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	05.803 WHEEL; DISC FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EEC(CVZ) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	06	1	1309-1401	●
2	05.803 WHEEL; DISC FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EE C(CVZ) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	06	1	1309-1401		●
2	05.803 WHEEL; DISC FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EEC(CVZ),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 SILVER(CYS) 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	06	1	1402-	●
2	05.803 WHEEL; DISC FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EE C(CVZ) 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	06	1	1402-		●
2	05.803 WHEEL; DISC FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EEC(CVZ) SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	01	1	1309-1401	●
2	05.803 WHEEL; DISC FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EE C(CVZ) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	01	1	1309-1401		●
2	05.803 WHEEL; DISC FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EEC(CVZ),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 SILVER(CYS) SPARE TIRE & DISC WHEEL REAR TIRE<R46> 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	01	1	1402-	●
2	05.803 WHEEL; DISC FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EE C(CVZ) 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	01	1	1402-		●
2	05.803 WHEEL; DISC FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WH ITE(BQV),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) FRONT,REAR 16X5.5J OFFSET=116.5 WHITE 5-HOLE	8-97213-256-0	06	1	1309-1401	●
2	05.803 WHEEL; DISC FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WH ITE(CWA) FRONT,REAR 16X5.5J OFFSET=116.5 WHITE 5-HOLE	8-97213-256-0	06	1	1309-1401		●
2	05.803 WHEEL; DISC FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WH ITE(BQV),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA),F&R 205/75R16C L.R.R R IB 16X5.5J-116.5 WHITE(CYT) 16X5.5J OFFSET=116.5 WHITE 5-HOLE	8-97213-256-0	06	1	1402-	●
2	05.803 WHEEL; DISC FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WH ITE(CWA) 16X5.5J OFFSET=116.5 WHITE 5-HOLE	8-97213-256-0	06	1	1402-		●
2	05.803 WHEEL; DISC FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WH ITE(BQV),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE 16X5.5J OFFSET=116.5 WHITE 5-HOLE	8-97213-256-0	01	1	1309-1401	●
2	05.803 WHEEL; DISC FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WH ITE(CWA) SPARE 16X5.5J OFFSET=116.5 WHITE 5-HOLE	8-97213-256-0	01	1	1309-1401		●
2	05.803 WHEEL; DISC FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WH ITE(BQV),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA),F&R 205/75R16C L.R.R R IB 16X5.5J-116.5 WHITE(CYT) SPARE TIRE & DISC WHEEL REAR TIRE<R46> 16X5.5J OFFSET=116.5 WHITE 5-HOLE	8-97213-256-0	01	1	1402-	●
2	05.803 WHEEL; DISC FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WH ITE(CWA) 16X5.5J OFFSET=116.5 WHITE 5-HOLE	8-97213-256-0	01	1	1402-		●
2	05.803 WHEEL; DISC FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) SPARE 17.5X6.00 OFFSET=127 WHITE 6-HOLE	8-98168-216-0	01	1	1309-		●	●
2	05.803 WHEEL; DISC FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) FRONT 17.5X6.00 OFFSET=127 WHITE 6-HOLE	8-98168-216-0	02	1	1309-		●	●
2	05.803 WHEEL; DISC FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) REAR 17.5X6.00 OFFSET=127 WHITE 6-HOLE	8-98168-216-0	04	1	1309-		●	●
2	05.803 WHEEL; DISC FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127 BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC) FRONT 17.5X6.00 OFFSET=127 SILVER 6-HOLE	8-98168-215-0	02	1	1309-		●	●
2	05.803 WHEEL; DISC FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127 BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC) REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE	8-98168-215-0	04	1	1309-		●	●
2	05.803 WHEEL; DISC FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127 BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215/75R17.5 17 .5X6.00-127 SILVER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) SPARE 17.5X6.00 OFFSET=127 SILVER 6-HOLE	8-98168-215-0	01	1	1309-1408		●
2	05.803 WHEEL; DISC FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127 BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) SPARE 17.5X6.00 OFFSET=127 SILVER 6-HOLE	8-98168-215-0	01	1	1309-1408			●
2	05.803 WHEEL; DISC FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127 BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215/75R17.5 17 .5X6.00-127 SILVER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) 17.5X6.00 OFFSET=127 SILVER 6-HOLE	8-98168-215-0	01	1	1409-		●	●
2	05.803 WHEEL; DISC FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) FRONT,REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE	8-98168-215-0	06	1	1309-1408		●
2	05.803 WHEEL; DISC F&R 215/75R17.5(MICHELIN)17.5X6.00-127 S ILVER(CRV) FRONT,REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE	8-98168-215-0	06	1	1309-1408			●
2	05.803 WHEEL; DISC FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) 17.5X6.00 OFFSET=127 SILVER 6-HOLE	8-98168-215-0	06	1	1409-		●	●
2	05.803 WHEEL; DISC FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU) SPARE 17.5X6.00 OFFSET=127 BLACK 6-HOLE	8-98168-217-0	01	1	1309-1408		●
2	05.803 WHEEL; DISC FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU) 17.5X6.00 OFFSET=127 BLACK 6-HOLE	8-98168-217-0	01	1	1409-		●	●
2	05.803 WHEEL; DISC FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU) FRONT,REAR 17.5X6.00 OFFSET=127 BLACK 6-HOLE	8-98168-217-0	06	1	1309-1408		●
2	05.803 WHEEL; DISC FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU) 17.5X6.00 OFFSET=127 BLACK 6-HOLE	8-98168-217-0	06	1	1409-		●	●
4	05.813 NUT; WHEEL,RR AXLE FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EEC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) M27 RH THREAD	8-98007-824-0	05	1	1309-1401	●
4	05.813 NUT; WHEEL,RR AXLE FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EE C(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) M27 RH THREAD	8-98007-824-0	05	1	1309-1401		●
4	05.813 NUT; WHEEL,RR AXLE FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EEC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 SILVER(CYS),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 WHITE(CYT) M27 RH THREAD	8-98007-824-0	05	1	1402-	●
4	05.813 NUT; WHEEL,RR AXLE FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EE C(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) M27 RH THREAD	8-98007-824-0	05	1	1402-		●
4	05.813 NUT; WHEEL,RR AXLE FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EEC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) M27 LH THREAD	8-98007-825-0	05	1	1309-1401	●
4	05.813 NUT; WHEEL,RR AXLE FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EE C(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) M27 LH THREAD	8-98007-825-0	05	1	1309-1401		●
4	05.813 NUT; WHEEL,RR AXLE FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EEC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 SILVER(CYS),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 WHITE(CYT) M27 LH THREAD	8-98007-825-0	05	1	1402-	●
4	05.813 NUT; WHEEL,RR AXLE FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EE C(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) M27 LH THREAD	8-98007-825-0	05	1	1402-		●
4	05.813 NUT; WHEEL,RR AXLE FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215 /75R17.5 17.5X6.00-127 SILVER(CQU), FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU), F&R 215/75R17.5(MICHELIN)17.5X6.00-127 S ILVER(CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) M30 RH THREAD	8-97359-809-0	06	1	1309-1408		●
4	05.813 NUT; WHEEL,RR AXLE FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),F&R 215/75 R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) ,FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) M30 RH THREAD	8-97359-809-0	06	1	1309-1408			●
4	05.813 NUT; WHEEL,RR AXLE FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215 /75R17.5 17.5X6.00-127 SILVER(CQU), FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU), F&R 215/75R17.5(MICHELIN)17.5X6.00-127 S ILVER(CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) M30 RH THREAD	8-97359-809-0	06	1	1409-		●	●
4	05.813 NUT; WHEEL,RR AXLE FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215 /75R17.5 17.5X6.00-127 SILVER(CQU), FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU), F&R 215/75R17.5(MICHELIN)17.5X6.00-127 S ILVER(CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) M30 LH THREAD	8-97359-810-0	06	1	1309-1408		●
4	05.813 NUT; WHEEL,RR AXLE FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),F&R 215/75 R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) ,FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) M30 LH THREAD	8-97359-810-0	06	1	1309-1408			●
4	05.813 NUT; WHEEL,RR AXLE FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215 /75R17.5 17.5X6.00-127 SILVER(CQU), FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU), F&R 215/75R17.5(MICHELIN)17.5X6.00-127 S ILVER(CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) M30 LH THREAD	8-97359-810-0	06	1	1409-		●	●
5	05.813 NUT; WHEEL,INNER,RR AXLE FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EEC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) OUTER M27,INNER M18 RH THREAD	8-98007-810-0	05	1	1309-1401	●
5	05.813 NUT; WHEEL,INNER,RR AXLE FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EE C(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) OUTER M27,INNER M18 RH THREAD	8-98007-810-0	05	1	1309-1401		●
5	05.813 NUT; WHEEL,INNER,RR AXLE FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EEC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 SILVER(CYS),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 WHITE(CYT) OUTER M27,INNER M18 RH THREAD	8-98007-810-0	05	1	1402-	●
5	05.813 NUT; WHEEL,INNER,RR AXLE FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EE C(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) OUTER M27,INNER M18 RH THREAD	8-98007-810-0	05	1	1402-		●
5	05.813 NUT; WHEEL,INNER,RR AXLE FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EEC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) OUTER M27,INNER M18 LH THREAD	8-98007-811-0	05	1	1309-1401	●
5	05.813 NUT; WHEEL,INNER,RR AXLE FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EE C(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) OUTER M27,INNER M18 LH THREAD	8-98007-811-0	05	1	1309-1401		●
5	05.813 NUT; WHEEL,INNER,RR AXLE FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EEC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 SILVER(CYS),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 WHITE(CYT) OUTER M27,INNER M18 LH THREAD	8-98007-811-0	05	1	1402-	●
5	05.813 NUT; WHEEL,INNER,RR AXLE FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EE C(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) OUTER M27,INNER M18 LH THREAD	8-98007-811-0	05	1	1402-		●
5	05.813 NUT; WHEEL,INNER,RR AXLE FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215 /75R17.5 17.5X6.00-127 SILVER(CQU), FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU), F&R 215/75R17.5(MICHELIN)17.5X6.00-127 S ILVER(CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) OUTER M30,INNER M20 RH THREAD	8-97359-805-0	06	1	1309-1408		●
5	05.813 NUT; WHEEL,INNER,RR AXLE FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),F&R 215/75 R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) ,FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) OUTER M30,INNER M20 RH THREAD	8-97359-805-0	06	1	1309-1408			●
5	05.813 NUT; WHEEL,INNER,RR AXLE FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215 /75R17.5 17.5X6.00-127 SILVER(CQU), FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU), F&R 215/75R17.5(MICHELIN)17.5X6.00-127 S ILVER(CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) OUTER M30,INNER M20 RH THREAD	8-97359-805-0	06	1	1409-		●	●
5	05.813 NUT; WHEEL,INNER,RR AXLE FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215 /75R17.5 17.5X6.00-127 SILVER(CQU), FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU), F&R 215/75R17.5(MICHELIN)17.5X6.00-127 S ILVER(CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) OUTER M30,INNER M20 LH THREAD	8-97359-806-0	06	1	1309-1408		●
5	05.813 NUT; WHEEL,INNER,RR AXLE FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),F&R 215/75 R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) ,FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) OUTER M30,INNER M20 LH THREAD	8-97359-806-0	06	1	1309-1408			●
5	05.813 NUT; WHEEL,INNER,RR AXLE FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215 /75R17.5 17.5X6.00-127 SILVER(CQU), FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU), F&R 215/75R17.5(MICHELIN)17.5X6.00-127 S ILVER(CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) OUTER M30,INNER M20 LH THREAD	8-97359-806-0	06	1	1409-		●	●
8	05.875 VALVE; TIRE FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EEC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) FRONT,REAR	8-98221-106-0	06	1	1309-1401	●
8	05.875 VALVE; TIRE FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EE C(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) FRONT,REAR	8-98221-106-0	06	1	1309-1401		●
8	05.875 VALVE; TIRE FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EEC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 SILVER(CYS),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 WHITE(CYT)	8-98221-106-0	06	1	1402-	●
8	05.875 VALVE; TIRE FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EE C(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA)	8-98221-106-0	06	1	1402-		●
8	05.875 VALVE; TIRE FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EEC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE	8-98221-106-0	01	1	1309-1401	●
8	05.875 VALVE; TIRE FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EE C(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) SPARE	8-98221-106-0	01	1	1309-1401		●
8	05.875 VALVE; TIRE FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EEC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 SILVER(CYS),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 WHITE(CYT) SPARE TIRE & DISC WHEEL REAR TIRE<R46>	8-98221-106-0	01	1	1402-	●
8	05.875 VALVE; TIRE FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EE C(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA)	8-98221-106-0	01	1	1402-		●
8	05.875 VALVE; TIRE FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215 /75R17.5 17.5X6.00-127 SILVER(CQU), FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU), F&R 215/75R17.5(MICHELIN)17.5X6.00-127 S ILVER(CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) SPARE	8-98221-112-0	01	1	1309-1408		●
8	05.875 VALVE; TIRE FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),F&R 215/75 R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) ,FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) SPARE	8-98221-112-0	01	1	1309-1408			●
8	05.875 VALVE; TIRE FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215 /75R17.5 17.5X6.00-127 SILVER(CQU), FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU), F&R 215/75R17.5(MICHELIN)17.5X6.00-127 S ILVER(CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW)	8-98221-112-0	01	1	1409-		●	●
8	05.875 VALVE; TIRE FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215 /75R17.5 17.5X6.00-127 WHITE(CRW) FRONT	8-98221-112-0	02	1	1309-		●	●
8	05.875 VALVE; TIRE FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215 /75R17.5 17.5X6.00-127 WHITE(CRW) REAR	8-98221-112-0	04	1	1309-		●	●
8	05.875 VALVE; TIRE FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) FRONT,REAR	8-98221-112-0	06	1	1309-1408		●
8	05.875 VALVE; TIRE F&R 215/75R17.5(MICHELIN)17.5X6.00-127 S ILVER(CRV) FRONT,REAR	8-98221-112-0	06	1	1309-1408			●
8	05.875 VALVE; TIRE FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV)	8-98221-112-0	06	1	1409-		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
