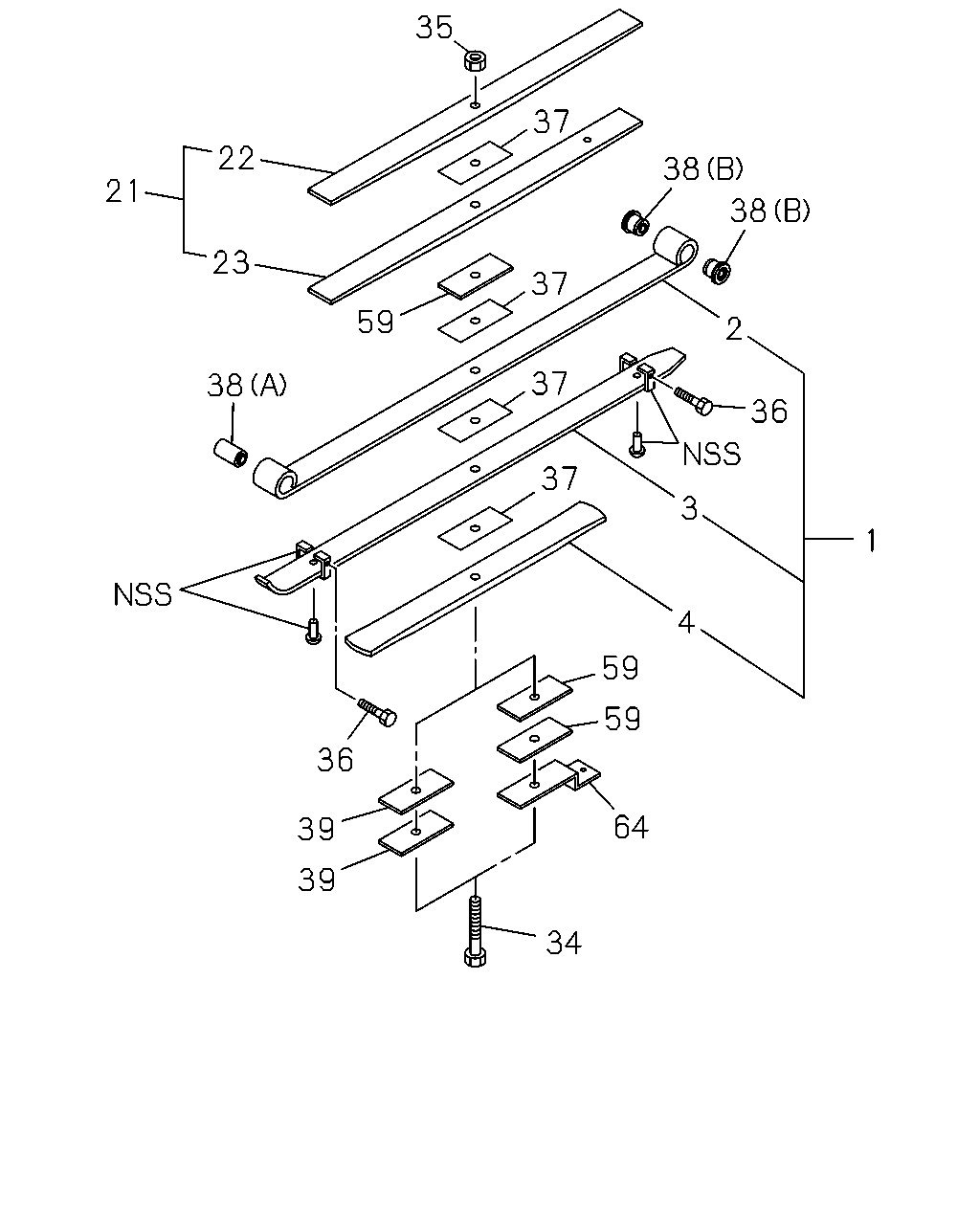

4-65C — REAR LEAF SPRING (#126261) — 24 parça

35 37 38 38 2 36 1 3 4 59 59 64 34 37 37 37 22 21 23 38 36 39 39 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	07.503 SPRING ASM; LEAF,RR MAIN ASM PART: A = 8-97387-900-0, 97387900, B = 8-98025-046-0, 98025046, C = 8-98233-199-0, 98233199, D = 8-98233-292-0, 98233292	8-98037-637-0	01	1	-
2	07.505 SPRING; LEAF,NO 1,RR MAIN ASM PART: A = 8-97387-900-0, 97387900, B = 8-98025-046-0, 98025046, C = 8-98233-199-0, 98233199, D = 8-98233-292-0, 98233292	8-98037-638-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: A = 8-97387-900-0, 97387900, B = 8-98025-046-0, 98025046, C = 8-98233-199-0, 98233199, D = 8-98233-292-0, 98233292	8-98037-639-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: A = 8-97387-900-0, 97387900, B = 8-98025-046-0, 98025046, C = 8-98233-199-0, 98233199, D = 8-98233-292-0, 98233292	8-98037-640-0	01	1	-
21	07.503 SPRING ASM; LEAF,RR SUB ASM PART: A = 8-97387-900-0, 97387900, B = 8-98025-046-0, 98025046	8-98037-641-0	01	1	-
21	07.503 SPRING ASM; LEAF,RR SUB ASM PART: C = 8-98233-199-0, 98233199, D = 8-98233-292-0, 98233292	8-98242-174-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: A = 8-97387-900-0, 97387900, B = 8-98025-046-0, 98025046	8-98037-642-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: C = 8-98233-199-0, 98233199, D = 8-98233-292-0, 98233292	8-98242-175-0	01	1	-
23	07.505 SPRING; LEAF,NO 2,RR SUB ASM PART: A = 8-97387-900-0, 97387900, B = 8-98025-046-0, 98025046	8-98037-643-0	01	1	-
23	07.505 SPRING; LEAF,NO 2,RR SUB ASM PART: C = 8-98233-199-0, 98233199, D = 8-98233-292-0, 98233292	8-98242-176-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN L=105 ASM PART: A = 8-97387-900-0, 97387900, B = 8-98025-046-0, 98025046	8-98040-307-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN L=120 ASM PART: C = 8-98233-199-0, 98233199, D = 8-98233-292-0, 98233292	8-98080-315-0	01	1	-
35	07.506 NUT; CENTER BOLT,LEAF SPR,RR 04.634, M12 ASM PART: A = 8-97387-900-0, 97387900, B = 8-98025-046-0, 98025046, C = 8-98233-199-0, 98233199, D = 8-98233-292-0, 98233292	9-99110-512-0	01	1	-
36	07.506 BOLT; CLIP,LEAF SPR,RR M8X89 ASM PART: A = 8-97387-900-0, 97387900, B = 8-98025-046-0, 98025046, C = 8-98233-199-0, 98233199, D = 8-98233-292-0, 98233292	8-98040-332-0	02	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR T=1 ASM PART: A = 8-97387-900-0, 97387900, B = 8-98025-046-0, 98025046	8-97084-102-0	03	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR T=1 ASM PART: C = 8-98233-199-0, 98233199, D = 8-98233-292-0, 98233292	8-97084-102-0	04	1	-
38	07.505 BUSHING; LEAF SPR,RR (A), BEST VALUE PARTS ASM PART: A = 8-97387-900-0, 97387900, B = 8-98025-046-0, 98025046, C = 8-98233-199-0, 98233199, D = 8-98233-292-0, 98233292	5-87610-163-0	01	1	-
38	07.505 BUSHING; LEAF SPR,RR 07.524, (B) ASM PART: A = 8-97387-900-0, 97387900, B = 8-98025-046-0, 98025046, C = 8-98233-199-0, 98233199, D = 8-98233-292-0, 98233292	8-94118-588-1	02	1	-
38	07.505 BUSHING; LEAF SPR,RR (A), OD=42 L=81 ASM PART: A = 8-97387-900-0, 97387900, B = 8-98025-046-0, 98025046, C = 8-98233-199-0, 98233199, D = 8-98233-292-0, 98233292	8-97074-826-0	01	1	-
39	07.518 SEAT; LEAF SPR,RR MAIN 07.513, T=10 ASM PART: C = 8-98233-199-0, 98233199	8-98034-523-0	02	1	-
39	07.518 SEAT; LEAF SPR,RR MAIN 07.513, T=8 ASM PART: B = 8-98025-046-0, 98025046	8-98040-779-0	01	1	-
59	07.513 SEAT; RR SPRING,SUB T=6 ASM PART: D = 8-98233-292-0, 98233292	8-98034-524-0	03	1	-
59	07.513 SEAT; RR SPRING,SUB T=6 ASM PART: A = 8-97387-900-0, 97387900, B = 8-98025-046-0, 98025046, C = 8-98233-199-0, 98233199	8-98034-524-0	01	1	-
64	07.513 SUPPORT; RR SPR ASM PART: A = 8-97387-900-0, 97387900, D = 8-98233-292-0, 98233292	8-97225-579-1	01	1	-
