Sayfa 4-65A - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51482 - NNR/NPR RHD EUROPE EURO5B+,6 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-65A - REAR LEAF SPRING ▶

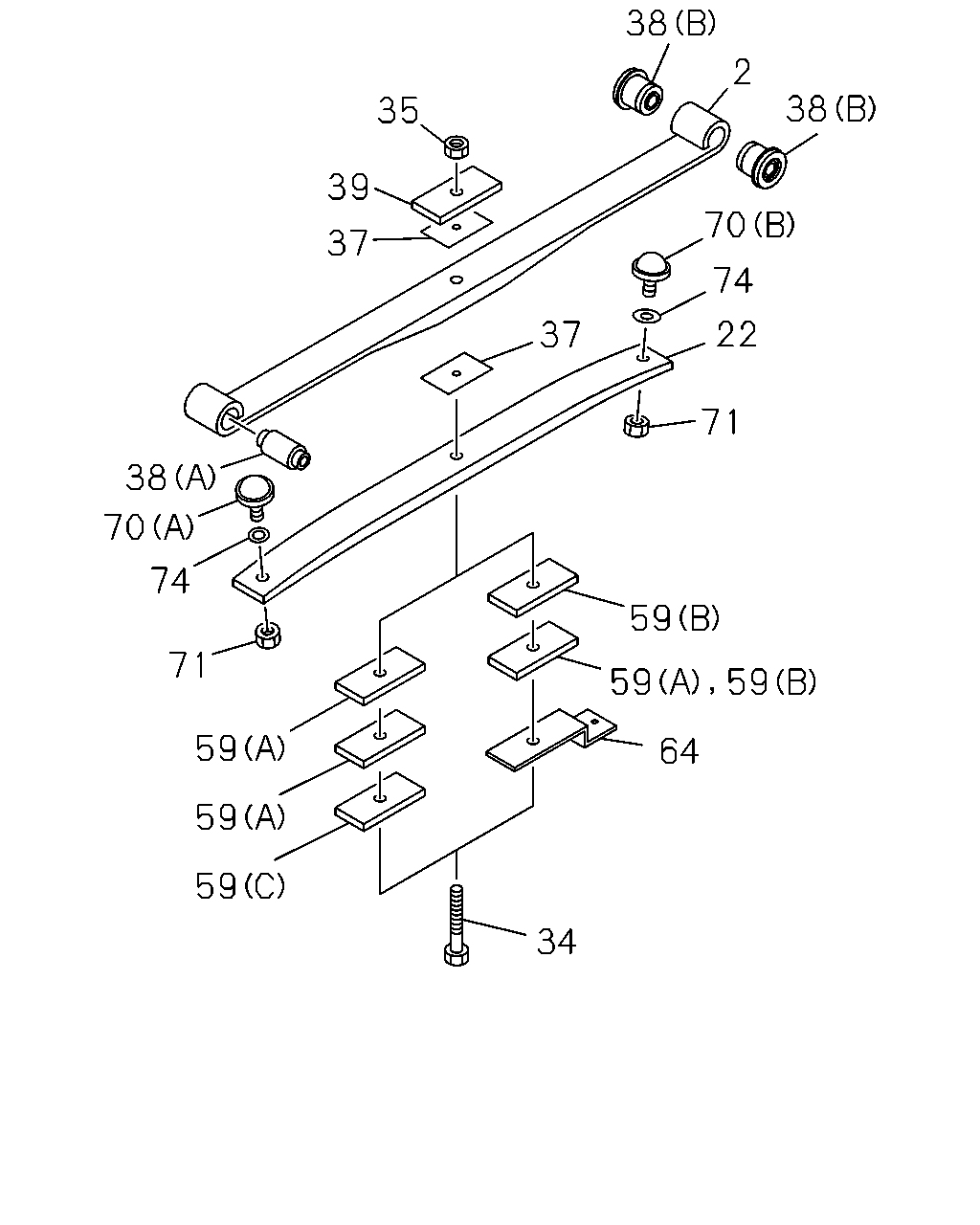

4-65A — REAR LEAF SPRING (#126259) — 25 parça

34 64 59 59 59 71 22 74 70 38 2 38 35 39 37 38 70 74 71 59 59 59 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	07.505 SPRING; LEAF,NO 1,RR MAIN ASM PART: B = 8-98025-043-1, 98025043	8-98054-473-0	01	1	-
2	07.505 SPRING; LEAF,NO 1,RR MAIN ASM PART: A = 8-98025-042-1, 98025042	8-98080-200-0	01	1	-
2	07.505 SPRING; LEAF,NO 1,RR MAIN ASM PART: C = 8-98233-163-0, 98233163, D = 8-98233-164-0, 98233164, E = 8-98233-289-0, 98233289, F = 8-98233-293-0, 98233293	8-98239-454-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: B = 8-98025-043-1, 98025043	8-98054-474-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: A = 8-98025-042-1, 98025042	8-98080-201-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: C = 8-98233-163-0, 98233163, D = 8-98233-164-0, 98233164, E = 8-98233-289-0, 98233289, F = 8-98233-293-0, 98233293	8-98239-455-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN L=85 ASM PART: A = 8-98025-042-1, 98025042, B = 8-98025-043-1, 98025043, D = 8-98233-164-0, 98233164, E = 8-98233-289-0, 98233289	8-98037-590-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN L=90 ASM PART: C = 8-98233-163-0, 98233163, F = 8-98233-293-0, 98233293	8-98040-309-0	01	1	-
35	07.506 NUT; CENTER BOLT,LEAF SPR,RR 04.634, M12 ASM PART: A = 8-98025-042-1, 98025042, B = 8-98025-043-1, 98025043, C = 8-98233-163-0, 98233163, D = 8-98233-164-0, 98233164, E = 8-98233-289-0, 98233289, F = 8-98233-293-0, 98233293	9-99110-512-0	01	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR T=1 ASM PART: A = 8-98025-042-1, 98025042, B = 8-98025-043-1, 98025043, C = 8-98233-163-0, 98233163, D = 8-98233-164-0, 98233164, E = 8-98233-289-0, 98233289, F = 8-98233-293-0, 98233293	8-94448-734-0	02	1	-
38	07.505 BUSHING; LEAF SPR,RR (A), BEST VALUE PARTS ASM PART: A = 8-98025-042-1, 98025042, B = 8-98025-043-1, 98025043, C = 8-98233-163-0, 98233163, D = 8-98233-164-0, 98233164, E = 8-98233-289-0, 98233289, F = 8-98233-293-0, 98233293	5-87610-163-0	01	1	-
38	07.505 BUSHING; LEAF SPR,RR 07.524, (B) ASM PART: A = 8-98025-042-1, 98025042, B = 8-98025-043-1, 98025043, C = 8-98233-163-0, 98233163, D = 8-98233-164-0, 98233164, E = 8-98233-289-0, 98233289, F = 8-98233-293-0, 98233293	8-94118-588-1	02	1	-
38	07.505 BUSHING; LEAF SPR,RR (A), OD=42 L=81 ASM PART: A = 8-98025-042-1, 98025042, B = 8-98025-043-1, 98025043, C = 8-98233-163-0, 98233163, D = 8-98233-164-0, 98233164, E = 8-98233-289-0, 98233289, F = 8-98233-293-0, 98233293	8-97074-826-0	01	1	-
39	07.518 SEAT; LEAF SPR,RR MAIN T=12 ASM PART: A = 8-98025-042-1, 98025042, B = 8-98025-043-1, 98025043, C = 8-98233-163-0, 98233163, D = 8-98233-164-0, 98233164, E = 8-98233-289-0, 98233289, F = 8-98233-293-0, 98233293	8-94407-146-0	01	1	-
59	07.513 SEAT; RR SPRING,SUB (A), T=8 ASM PART: E = 8-98233-289-0, 98233289	1-51177-242-0	01	1	-
59	07.513 SEAT; RR SPRING,SUB (A), T=8 ASM PART: A = 8-98025-042-1, 98025042, C = 8-98233-163-0, 98233163, D = 8-98233-164-0, 98233164	1-51177-242-0	02	1	-
59	07.513 SEAT; RR SPRING,SUB (C), T=6 ASM PART: C = 8-98233-163-0, 98233163	8-98041-367-0	01	1	-
59	07.513 SEAT; RR SPRING,SUB (B), T=7 ASM PART: F = 8-98233-293-0, 98233293	8-98041-606-0	02	1	-
59	07.513 SEAT; RR SPRING,SUB (B), T=7 ASM PART: B = 8-98025-043-1, 98025043	8-98041-606-0	01	1	-
64	07.513 SUPPORT; RR SPR ASM PART: B = 8-98025-043-1, 98025043, E = 8-98233-289-0, 98233289, F = 8-98233-293-0, 98233293	8-94342-863-1	01	1	-
70	07.505 RUBBER; LEAF SPR,RR (A) ASM PART: A = 8-98025-042-1, 98025042, B = 8-98025-043-1, 98025043, C = 8-98233-163-0, 98233163, D = 8-98233-164-0, 98233164, E = 8-98233-289-0, 98233289, F = 8-98233-293-0, 98233293	8-98039-335-0	01	1	-
70	07.505 RUBBER; LEAF SPR,RR (B) ASM PART: A = 8-98025-042-1, 98025042, B = 8-98025-043-1, 98025043, C = 8-98233-163-0, 98233163, D = 8-98233-164-0, 98233164, E = 8-98233-289-0, 98233289, F = 8-98233-293-0, 98233293	8-98039-336-0	01	1	-
71	07.505 NUT; RUBBER,RR LEAF SPR 07.506, M10 ASM PART: A = 8-98025-042-1, 98025042, B = 8-98025-043-1, 98025043, C = 8-98233-163-0, 98233163, D = 8-98233-164-0, 98233164, E = 8-98233-289-0, 98233289, F = 8-98233-293-0, 98233293	9-09110-010-0	02	1	-
74	07.518 SPACER; SILENSER T=1 ASM PART: A = 8-98025-042-1, 98025042, B = 8-98025-043-1, 98025043, C = 8-98233-163-0, 98233163, D = 8-98233-164-0, 98233164, E = 8-98233-289-0, 98233289, F = 8-98233-293-0, 98233293	8-98069-694-0	AR	1	-
74	07.518 SPACER; SILENSER T=2 ASM PART: A = 8-98025-042-1, 98025042, B = 8-98025-043-1, 98025043, C = 8-98233-163-0, 98233163, D = 8-98233-164-0, 98233164, E = 8-98233-289-0, 98233289, F = 8-98233-293-0, 98233293	8-98201-771-0	AR	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
