◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51482 - NNR/NPR RHD EUROPE EURO5B+,6 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-60 - REAR SUSPENSION ▶
4-60 — REAR SUSPENSION (#126257) — 108 parça

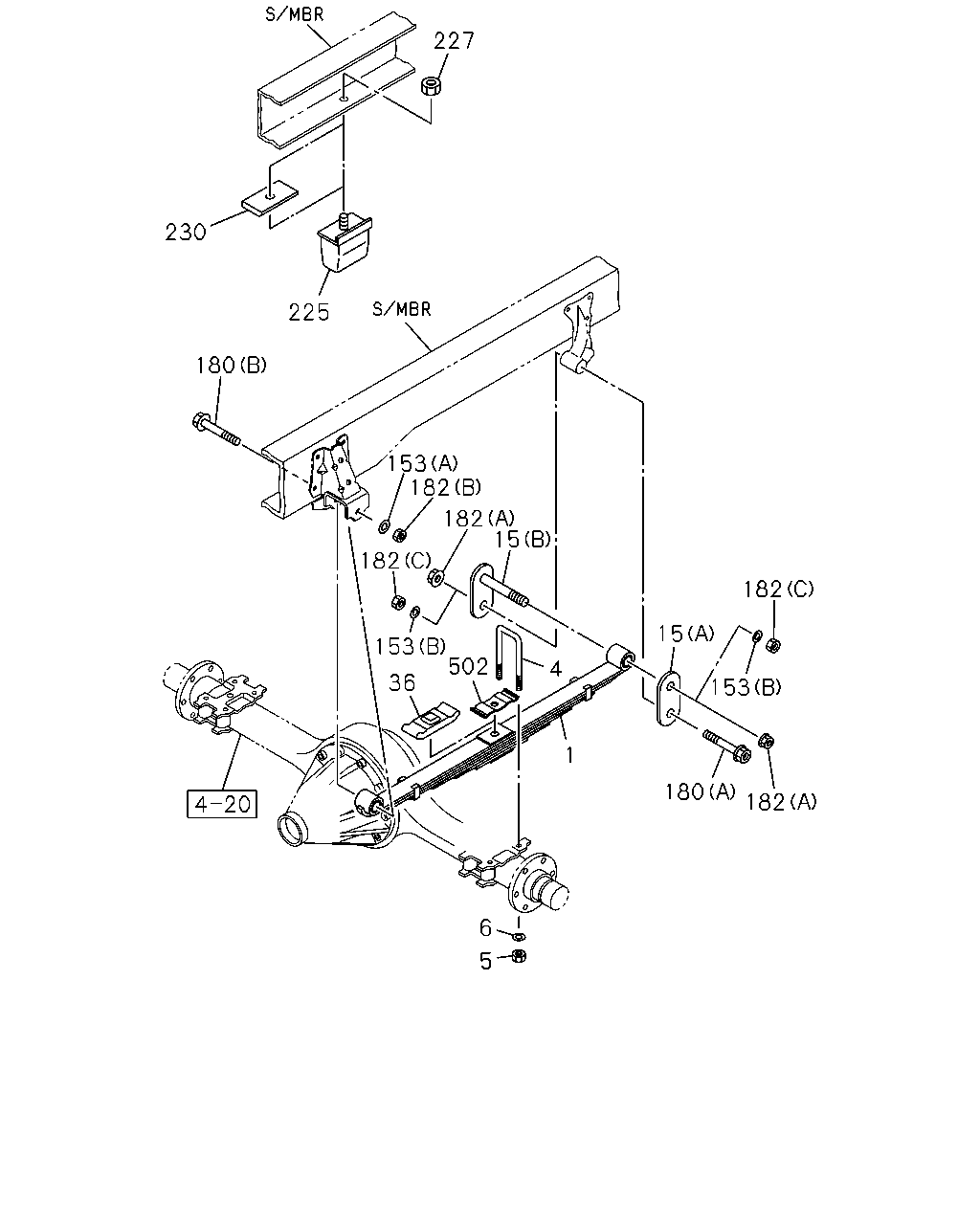

çizim 373895
227 225 180 230 153 182 15 182 153 36 502 4 1 15 182 153 180 182 5 6 182
BalonParca AdiParca NoAdetTipApplied Date A B C
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) STABILIZER REAR<GN1> EURO5B+ SPECIFICATION(NT5) 2-LEAF 		8-98025-043-1 02 1 1311- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) EXC. STABILIZER REAR<GN1> 2-LEAF 		8-98025-042-1 02 1 1311- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 2700MM(27W) STABILIZER REAR<GN1> 2-LEAF 		8-98233-289-0 02 1 1309-1310 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 2700MM(27W) STABILIZER REAR<GN1> EURO6 SPECIFICATION(NT6) 2-LEAF 		8-98233-289-0 02 1 1311- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 2700MM(27W) EXC. STABILIZER REAR<GN1> 2-LEAF 		8-98233-164-0 02 1 1309-1310 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 2700MM(27W) EURO6 SPECIFICATION(NT6) EXC. STABILIZER REAR<GN1> 2-LEAF 		8-98233-164-0 02 1 1311- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 3300MM(33W) STABILIZER REAR<GN1> 2-LEAF 		8-98233-293-0 02 1 1309-1310 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 3300MM(33W) STABILIZER REAR<GN1> EURO6 SPECIFICATION(NT6) 2-LEAF 		8-98233-293-0 02 1 1311- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 3300MM(33W) EXC. STABILIZER REAR<GN1> 2-LEAF 		8-98233-163-0 02 1 1309-1310 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) EXC. STABILIZER REAR<GN1> 2-LEAF 		8-98233-163-0 02 1 1311- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) STABILIZER REAR<GN1> G.V.W. 5.5-6.0TON(RPU) EXC. FRAME STRAIGHT TYPE<7KJ> 3-LEAF 		8-98233-291-0 02 1 1309- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) STABILIZER REAR<GN1> G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 13-LEAF 		8-98239-515-0 02 1 1309-1408 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. STABILIZER REAR<GN1> 13-LEAF 		8-98239-515-0 02 1 1309-1408 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) STABILIZER REAR<GN1> G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 13-LEAF 		8-98239-515-0 02 1 1409- ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) G.V.W. 5.5-6.0TON(RPU) EXC. STABILIZER REAR<GN1>,FRAME STRAIGHTTYPE<7KJ> 3-LEAF 		8-98233-198-0 02 1 1309- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. STABILIZER REAR<GN1> 13-LEAF 		8-98239-514-0 02 1 1309-1408 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EXC. STABILIZER REAR<GN1> 13-LEAF 		8-98239-514-0 02 1 1309-1408 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. STABILIZER REAR<GN1> 13-LEAF 		8-98239-514-0 02 1 1409- ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W) STABILIZER REAR<GN1> G.V.W. 6.5-7.0TON(RPW) EXC. FRAME STRAIGHT TYPE<7KJ> 5-LEAF 		8-97387-900-0 02 1 1309-1408 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W) STABILIZER REAR<GN1> G.V.W. 6.5-7.0TON(RPW) EXC. FRAME STRAIGHT TYPE<7KJ> 5-LEAF 		8-97387-900-0 02 1 1409- ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W) G.V.W. 6.5-7.0TON(RPW) EXC. STABILIZER REAR<GN1>,FRAME STRAIGHTTYPE<7KJ> 5-LEAF 		8-98025-046-0 02 1 1309-1408 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W) G.V.W. 6.5-7.0TON(RPW) EXC. STABILIZER REAR<GN1>,FRAME STRAIGHTTYPE<7KJ> 5-LEAF 		8-98025-046-0 02 1 1409- ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 3800MM(38W) STABILIZER REAR<GN1> G.V.W. 6.5-7.0TON(RPW) EXC. FRAME STRAIGHT TYPE<7KJ> 5-LEAF 		8-98233-292-0 02 1 1309-1408 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 3800MM(38W) STABILIZER REAR<GN1> G.V.W. 6.5-7.0TON(RPW) EXC. FRAME STRAIGHT TYPE<7KJ> 5-LEAF 		8-98233-292-0 02 1 1409- ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 3800MM(38W) G.V.W. 6.5-7.0TON(RPW) EXC. STABILIZER REAR<GN1>,FRAME STRAIGHTTYPE<7KJ> 5-LEAF 		8-98233-199-0 02 1 1309-1408 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 3800MM(38W) G.V.W. 6.5-7.0TON(RPW) EXC. STABILIZER REAR<GN1>,FRAME STRAIGHTTYPE<7KJ> 5-LEAF 		8-98233-199-0 02 1 1409- ● ●
4 07.516 U-BOLT; RR SPR
WHEEL BASE 2700MM(27W) L=225 		8-94127-919-3 04 1 1309-1310 ●
4 07.516 U-BOLT; RR SPR
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) L=225 		8-94127-919-3 04 1 1311- ●
4 07.516 U-BOLT; RR SPR
WHEEL BASE 2700MM(27W) EURO6 SPECIFICATION(NT6) L=225 		8-94127-919-3 04 1 1311- ●
4 07.516 U-BOLT; RR SPR
WHEEL BASE 3300MM(33W) L=235 		8-94127-920-3 04 1 1309-1310 ●
4 07.516 U-BOLT; RR SPR
WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) L=235 		8-94127-920-3 04 1 1311- ●
4 07.516 U-BOLT; RR SPR
REAR AXLE HEAVY DUTY 292MM(G73) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) G.V.W. 5.5-6.0TON(RPU) EXC. FRAME STRAIGHT TYPE<7KJ> L=265 		8-94127-923-3 04 1 1309-1408 ●
4 07.516 U-BOLT; RR SPR
REAR AXLE HEAVY DUTY 292MM(G73) WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W) G.V.W. 6.5-7.0TON(RPW) EXC. FRAME STRAIGHT TYPE<7KJ> L=265 		8-94127-923-3 04 1 1309-1408 ●
4 07.516 U-BOLT; RR SPR
REAR AXLE HEAVY DUTY 292MM(G73) WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W) G.V.W. 6.5-7.0TON(RPW) EXC. FRAME STRAIGHT TYPE<7KJ> L=265 		8-94127-923-3 04 1 1409- ● ●
4 07.516 U-BOLT; RR SPR
REAR AXLE HEAVY DUTY 292MM(G73) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) G.V.W. 5.5-6.0TON(RPU) EXC. FRAME STRAIGHT TYPE<7KJ> L=265 		8-94127-923-3 04 1 1409- ●
4 07.516 U-BOLT; RR SPR
REAR AXLE HEAVY DUTY 292MM(G73) WHEEL BASE 3800MM(38W) G.V.W. 6.5-7.0TON(RPW) EXC. FRAME STRAIGHT TYPE<7KJ> L=275 		8-94127-924-3 04 1 1309-1408 ●
4 07.516 U-BOLT; RR SPR
REAR AXLE HEAVY DUTY 292MM(G73) WHEEL BASE 3800MM(38W) G.V.W. 6.5-7.0TON(RPW) EXC. FRAME STRAIGHT TYPE<7KJ> L=275 		8-94127-924-3 04 1 1409- ● ●
4 07.516 U-BOLT; RR SPR
REAR AXLE HEAVY DUTY 320MM(6CP) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> L=345 		1-51371-195-2 04 1 1309-1408 ●
4 07.516 U-BOLT; RR SPR
L=345 		1-51371-195-2 04 1 1309-1408 ●
4 07.516 U-BOLT; RR SPR
REAR AXLE HEAVY DUTY 320MM(6CP) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> L=345 		1-51371-195-2 04 1 1409- ● ●
5 07.529 NUT; U-BOLT,RR SPR
07.417 M16 		8-97360-121-0 08 1 1309-1408 ●
5 07.529 NUT; U-BOLT,RR SPR
EXC. FRAME STRAIGHT TYPE<7KJ> 07.417 M16 		8-97360-121-0 08 1 1309-1408 ●
5 07.529 NUT; U-BOLT,RR SPR
07.417 M16 		8-97360-121-0 08 1 1409- ●
5 07.529 NUT; U-BOLT,RR SPR
EXC. FRAME STRAIGHT TYPE<7KJ> 07.417 M16 		8-97360-121-0 08 1 1409- ● ●
5 07.529 NUT; U-BOLT,RR SPR
FRAME STRAIGHT TYPE<7KJ> M18 FLANGE 		1-09440-039-1 08 1 1309-1408 ●
5 07.529 NUT; U-BOLT,RR SPR
M18 FLANGE 		1-09440-039-1 08 1 1309-1408 ●
5 07.529 NUT; U-BOLT,RR SPR
FRAME STRAIGHT TYPE<7KJ> M18 FLANGE 		1-09440-039-1 08 1 1409- ● ●
6 07.516 WASHER; PL,U-BOLT
ID=16.4 		8-97360-118-0 08 1 1309-1408 ●
6 07.516 WASHER; PL,U-BOLT
EXC. FRAME STRAIGHT TYPE<7KJ> ID=16.4 		8-97360-118-0 08 1 1309-1408 ●
6 07.516 WASHER; PL,U-BOLT
ID=16.4 		8-97360-118-0 08 1 1409- ●
6 07.516 WASHER; PL,U-BOLT
EXC. FRAME STRAIGHT TYPE<7KJ> ID=16.4 		8-97360-118-0 08 1 1409- ● ●
15 07.523 SHACKLE; RR SPR
(A) 		8-94118-511-3 02 1 1309- ● ● ●
15 07.523 SHACKLE; RR SPR
(B) 		8-97360-011-0 02 1 1309- ● ● ●
36 07.529 SEAT; HELPER RUBBER,RR SPR
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> 07.518 		1-51372-059-0 02 1 1309-1408 ●
36 07.529 SEAT; HELPER RUBBER,RR SPR
4HK1-TCS ENG(RJS) 07.518 		1-51372-059-0 02 1 1309-1408 ●
36 07.529 SEAT; HELPER RUBBER,RR SPR
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> 07.518 		1-51372-059-0 02 1 1409- ● ●
153 07.529 WASHER; PL,SPRING PIN
KD PREPARATORY PACK<6HF> 07.427 (B) ID=16.5 		8-98011-489-0 04 1 1309- ● ● ●
153 07.529 WASHER; PL,SPRING PIN
(A) ID=19 		8-97360-119-0 02 1 1309- ● ● ●
180 07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> 07.427 (A) M16X122 		8-98011-487-0 02 1 1309- ● ● ●
180 07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> (B) M18X130 		8-98011-488-0 02 1 1309- ● ● ●
180 07.529 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> 07.427 (A) M16X122 FLANGE 		8-97360-110-0 02 1 1309- ● ● ●
180 07.529 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> (B) M18X130 FLANGE 		8-97360-112-0 02 1 1309- ● ● ●
182 07.529 NUT; PIN,RR SPR
KD PREPARATORY PACK<6HF> 06.509 (C) M16 		0-91110-516-0 04 1 1309- ● ● ●
182 07.529 NUT; PIN,RR SPR
(B) M18 		0-91110-518-0 02 1 1309- ● ● ●
182 07.529 NUT; PIN,RR SPR
EXC. KD PREPARATORY PACK<6HF> 07.427 (A) M16 FLANGE 		8-97360-125-0 04 1 1309- ● ● ●
225 07.535 RUBBER; CUSHION,RR SPR 8-98187-342-0 02 1 1309- ● ● ●
227 07.535 NUT; CUSHION RUBBER
02.042 M12 FLANGE 		0-91180-112-0 02 1 1309- ● ● ●
230 07.518 SPACER; CUSHION RUBBER
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 		8-97136-852-0 02 1 1309-1310 ●
230 07.518 SPACER; CUSHION RUBBER
WHEEL BASE 3300MM(33W) G.V.W. 5.5-6.0TON(RPU),G.V.W. 7.5-8.0TON(RPY) 		8-97136-852-0 02 1 1309-1310 ●
230 07.518 SPACER; CUSHION RUBBER
WHEEL BASE 3800MM(38W) G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.5-8.0TON(RPY) 		8-97136-852-0 02 1 1309-1310 ●
230 07.518 SPACER; CUSHION RUBBER
WHEEL BASE 4400MM(44W) G.V.W. 7.5-8.0TON(RPY) 		8-97136-852-0 02 1 1309-1310 ●
230 07.518 SPACER; CUSHION RUBBER 8-97136-852-0 02 1 1309-1310 ●
230 07.518 SPACER; CUSHION RUBBER
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) 		8-97136-852-0 02 1 1311-1408 ●
230 07.518 SPACER; CUSHION RUBBER
WHEEL BASE 3300MM(33W) G.V.W. 5.5-6.0TON(RPU),G.V.W. 7.5-8.0TON(RPY) 		8-97136-852-0 02 1 1311-1408 ●
230 07.518 SPACER; CUSHION RUBBER
WHEEL BASE 3800MM(38W) G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.5-8.0TON(RPY) 		8-97136-852-0 02 1 1311-1408 ●
230 07.518 SPACER; CUSHION RUBBER
WHEEL BASE 4400MM(44W) G.V.W. 7.5-8.0TON(RPY) 		8-97136-852-0 02 1 1311-1408 ●
230 07.518 SPACER; CUSHION RUBBER 8-97136-852-0 02 1 1311-1408 ●
230 07.518 SPACER; CUSHION RUBBER
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) 		8-97136-852-0 02 1 1409- ●
230 07.518 SPACER; CUSHION RUBBER
WHEEL BASE 3800MM(38W) G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.5-8.0TON(RPY) 		8-97136-852-0 02 1 1409- ● ●
230 07.518 SPACER; CUSHION RUBBER
WHEEL BASE 3300MM(33W) G.V.W. 5.5-6.0TON(RPU),G.V.W. 7.5-8.0TON(RPY) 		8-97136-852-0 02 1 1409- ●
230 07.518 SPACER; CUSHION RUBBER
WHEEL BASE 4400MM(44W) G.V.W. 7.5-8.0TON(RPY) 		8-97136-852-0 02 1 1409- ●
230 07.518 SPACER; CUSHION RUBBER
WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W) G.V.W. 7.5-8.0TON(RPY) 		8-97136-852-0 02 1 1409- ●
502 07.506 CLAMP; RR LEAF SPR
07.518 L=130 T=4.5 		8-94119-069-2 02 1 1309- ●
502 07.506 CLAMP; RR LEAF SPR
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 5.5-6.0TON(RPU) EXC. FRAME STRAIGHT TYPE<7KJ> 07.518 L=130 T=4.5 		8-94119-069-2 02 1 1309- ●
502 07.506 CLAMP; RR LEAF SPR
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.5-7.0TON(RPW) EXC. FRAME STRAIGHT TYPE<7KJ> 07.518 L=140 T=4.5 		8-94118-509-1 02 1 1309-1408 ●
502 07.506 CLAMP; RR LEAF SPR
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.5-7.0TON(RPW) EXC. FRAME STRAIGHT TYPE<7KJ> 07.518 L=140 T=4.5 		8-94118-509-1 02 1 1409- ● ●

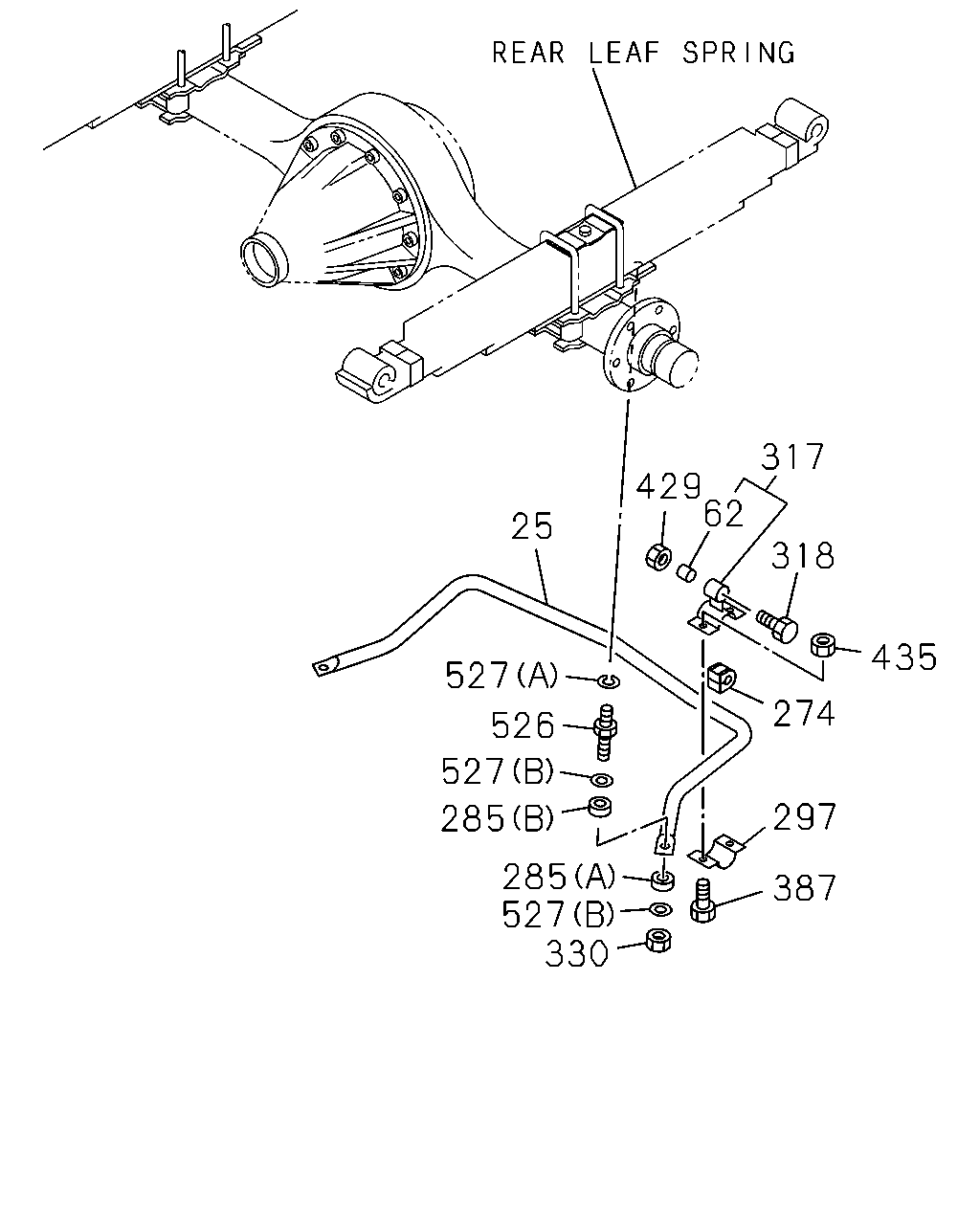

çizim 373931
317 318 435 274 297 387 330 527 285 285 526 527 25 429 62 527
BalonParca AdiParca NoAdetTipApplied Date A B C
25 07.241 BAR ASM; STAB,RR SUSP
WHEEL BASE 2700MM(27W) STABILIZER REAR<GN1> 		8-98237-787-0 01 1 1309- ●
25 07.241 BAR ASM; STAB,RR SUSP
WHEEL BASE 3300MM(33W) STABILIZER REAR<GN1> 		8-98025-630-0 01 1 1309-1408 ●
25 07.241 BAR ASM; STAB,RR SUSP
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) STABILIZER REAR<GN1> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98025-630-0 01 1 1309-1408 ●
25 07.241 BAR ASM; STAB,RR SUSP
WHEEL BASE 3300MM(33W) STABILIZER REAR<GN1> 		8-98025-630-0 01 1 1409- ●
25 07.241 BAR ASM; STAB,RR SUSP
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) STABILIZER REAR<GN1> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98025-630-0 01 1 1409- ● ●
25 07.241 BAR ASM; STAB,RR SUSP
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) STABILIZER REAR<GN1> FRAME STRAIGHT TYPE<7KJ> 		8-98067-239-0 01 1 1309-1408 ●
25 07.241 BAR ASM; STAB,RR SUSP
STABILIZER REAR<GN1> 		8-98067-239-0 01 1 1309-1408 ●
25 07.241 BAR ASM; STAB,RR SUSP
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) STABILIZER REAR<GN1> FRAME STRAIGHT TYPE<7KJ> 		8-98067-239-0 01 1 1409- ● ●
62 07.243 BUSHING; LINK ROD
STABILIZER REAR<GN1> 		8-97239-911-0 02 1 1309- ● ● ●
274 07.243 BUSHING; RR STAB BAR TO LINK
STABILIZER REAR<GN1> 		8-94440-793-0 02 1 1309- ● ● ●
285 07.243 BUSHING; STAB BAR TO RR AXLE
STABILIZER REAR<GN1> (A) L=18 		8-97089-556-0 02 1 1309- ● ● ●
285 07.243 BUSHING; STAB BAR TO RR AXLE
STABILIZER REAR<GN1> (B) L=29 		8-97089-557-0 02 1 1309- ● ● ●
297 07.242 CAP; STAB BAR
STABILIZER REAR<GN1> 		8-94178-430-2 02 1 1309- ● ● ●
317 07.240 ROD LINK ASM; STABILIZER,RR
STABILIZER REAR<GN1> 		8-97239-907-0 02 1 1309- ● ● ●
318 07.242 BOLT; LINK ROD
STABILIZER REAR<GN1> M14X70 FLANGE 		0-28851-470-0 02 1 1309- ● ● ●
330 07.242 NUT; STAB
STABILIZER REAR<GN1> M12 LOCK NUT 		0-91370-012-0 02 1 1309- ● ● ●
387 07.242 BOLT; CAP FIX,STAB BAR
STABILIZER REAR<GN1> 00.029 M10X25 FLANGE 		0-28651-025-0 04 1 1309- ● ● ●
429 07.242 NUT; LINK
STABILIZER REAR<GN1> 06.174 M14 FLANGE 		8-97360-124-0 02 1 1309- ● ● ●
435 07.242 NUT; CAP
STABILIZER REAR<GN1> 03.162 M10 FLANGE 		0-91180-110-0 04 1 1309- ● ● ●
526 07.535 STUD; STABILIZER
STABILIZER REAR<GN1> 07.242 		8-97360-120-0 02 1 1309- ● ● ●
527 07.242 WASHER; STABILIZER
STABILIZER REAR<GN1> 06.174 (A) ID=14.2 		0-91510-814-0 02 1 1309- ● ● ●
527 07.242 WASHER; STABILIZER
STABILIZER REAR<GN1> (B) ID=12.5 		8-97360-055-0 04 1 1309- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
