◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51482 - NNR/NPR RHD EUROPE EURO5B+,6 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-50 - FRONT SUSPENSION ▶
4-50 — FRONT SUSPENSION (#126254) — 80 parça

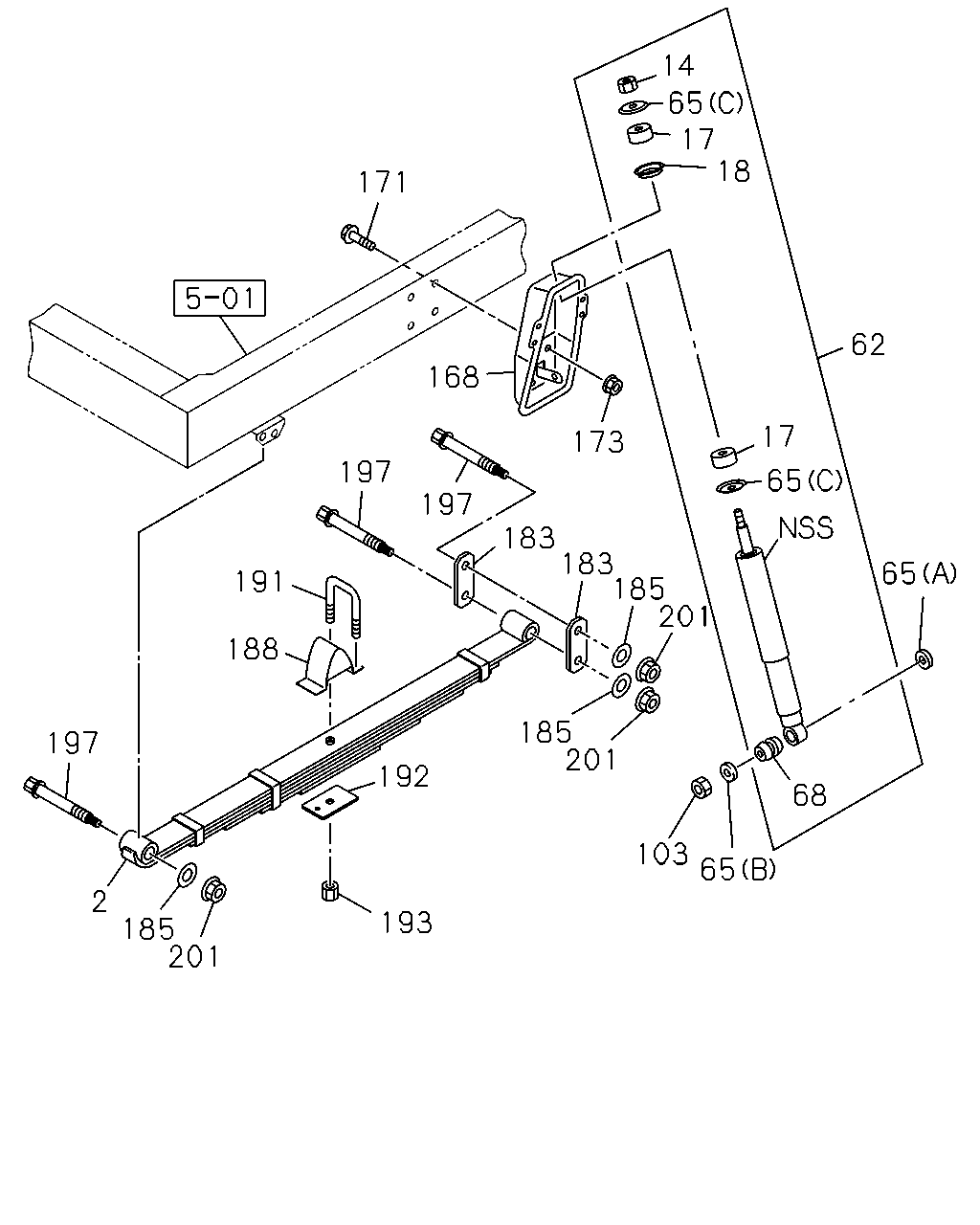

çizim 373710
201 185 183 197 197 191 188 168 173 171 14 17 65 18 62 17 201 185 103 65 193 201 185 2 65 183 68 65 197 192
BalonParca AdiParca NoAdetTipApplied Date A B C
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> EURO5B+ SPECIFICATION(NT5) 2-LEAF 		8-98197-604-0 01 1 1311- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> EURO5B+ SPECIFICATION(NT5) 2-LEAF 		8-98197-605-0 01 1 1311- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EURO5B+ SPECIFICATION(NT5) EXC. FRONT STABILIZER SHAFT<F59> 2-LEAF 		8-98197-602-0 01 1 1311- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EURO5B+ SPECIFICATION(NT5) EXC. FRONT STABILIZER SHAFT<F59> 2-LEAF 		8-98197-603-0 01 1 1311- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> 2-LEAF 		8-98233-294-0 01 1 1309-1310 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> EURO6 SPECIFICATION(NT6) 2-LEAF 		8-98233-294-0 01 1 1311- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> 2-LEAF 		8-98233-295-0 01 1 1309-1310 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> EURO6 SPECIFICATION(NT6) 2-LEAF 		8-98233-295-0 01 1 1311- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT STABILIZER SHAFT<F59> 2-LEAF 		8-98233-161-0 01 1 1309-1310 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EURO6 SPECIFICATION(NT6) EXC. FRONT STABILIZER SHAFT<F59> 2-LEAF 		8-98233-161-0 01 1 1311- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT STABILIZER SHAFT<F59> 2-LEAF 		8-98233-162-0 01 1 1309-1310 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EURO6 SPECIFICATION(NT6) EXC. FRONT STABILIZER SHAFT<F59> 2-LEAF 		8-98233-162-0 01 1 1311- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. FRAME STRAIGHT TYPE<7KJ> 2-LEAF 		8-98025-018-0 01 1 1309-1408 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. FRAME STRAIGHT TYPE<7KJ> 2-LEAF 		8-98025-018-0 01 1 1409- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> G.V.W. 6.5-7.0TON(RPW) EXC. FRAME STRAIGHT TYPE<7KJ> 2-LEAF 		8-98025-018-0 01 1 1409- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. FRAME STRAIGHT TYPE<7KJ> 2-LEAF 		8-98025-019-0 01 1 1309-1408 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. FRAME STRAIGHT TYPE<7KJ> 2-LEAF 		8-98025-019-0 01 1 1409- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> G.V.W. 6.5-7.0TON(RPW) EXC. FRAME STRAIGHT TYPE<7KJ> 2-LEAF 		8-98025-019-0 01 1 1409- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 3-LEAF 		8-98079-966-0 02 1 1309-1408 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> 3-LEAF 		8-98079-966-0 02 1 1309-1408 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 3-LEAF 		8-98079-966-0 02 1 1409- ● ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. FRONT STABILIZER SHAFT<F59>,FRAME STRAIGHT TYPE<7KJ> 2-LEAF 		8-98025-016-0 01 1 1309-1408 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. FRONT STABILIZER SHAFT<F59>,FRAME STRAIGHT TYPE<7KJ> 2-LEAF 		8-98025-016-0 01 1 1409- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 6.5-7.0TON(RPW) EXC. FRONT STABILIZER SHAFT<F59>,FRAME STRAIGHT TYPE<7KJ> 2-LEAF 		8-98025-016-0 01 1 1409- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. FRONT STABILIZER SHAFT<F59>,FRAME STRAIGHT TYPE<7KJ> 2-LEAF 		8-98025-017-0 01 1 1309-1408 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. FRONT STABILIZER SHAFT<F59>,FRAME STRAIGHT TYPE<7KJ> 2-LEAF 		8-98025-017-0 01 1 1409- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 6.5-7.0TON(RPW) EXC. FRONT STABILIZER SHAFT<F59>,FRAME STRAIGHT TYPE<7KJ> 2-LEAF 		8-98025-017-0 01 1 1409- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. FRONT STABILIZER SHAFT<F59> 3-LEAF 		8-98079-918-0 02 1 1309-1408 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT STABILIZER SHAFT<F59> 3-LEAF 		8-98079-918-0 02 1 1309-1408 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. FRONT STABILIZER SHAFT<F59> 3-LEAF 		8-98079-918-0 02 1 1409- ● ●
14 07.389 NUT; S/ABS,UPR
M10 T=8 		9-09640-020-0 02 1 1309- ● ● ●
17 07.388 BUSHING; RUBBER,S/ABS
TOKICO 		9-51631-603-0 04 1 1309- ● ● ●
18 07.347 WASHER; CENTERING,S/ABS
TOKICO 		8-94412-791-0 02 1 1309- ● ● ●
62 07.345 ABSORBER ASM; SHOCK,FRT 8-97253-618-1 02 1 1309-1408 ●
62 07.345 ABSORBER ASM; SHOCK,FRT
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97253-618-1 02 1 1309-1408 ●
62 07.345 ABSORBER ASM; SHOCK,FRT 8-97253-618-1 02 1 1409- ●
62 07.345 ABSORBER ASM; SHOCK,FRT
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97253-618-1 02 1 1409- ● ●
62 07.345 ABSORBER ASM; SHOCK,FRT
G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 		8-98080-130-1 02 1 1309-1408 ●
62 07.345 ABSORBER ASM; SHOCK,FRT 8-98080-130-1 02 1 1309-1408 ●
62 07.345 ABSORBER ASM; SHOCK,FRT
G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 		8-98080-130-1 02 1 1409- ● ●
62 07.345 ABSORBER ASM; SHOCK,FRT
BEST VALUE PARTS 		5-87610-129-1 02 1 1309-1408 ●
62 07.345 ABSORBER ASM; SHOCK,FRT
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. FRAME STRAIGHT TYPE<7KJ> BEST VALUE PARTS 		5-87610-129-1 02 1 1309-1408 ●
62 07.345 ABSORBER ASM; SHOCK,FRT
BEST VALUE PARTS 		5-87610-129-1 02 1 1409- ●
62 07.345 ABSORBER ASM; SHOCK,FRT
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. FRAME STRAIGHT TYPE<7KJ> BEST VALUE PARTS 		5-87610-129-1 02 1 1409- ● ●
65 07.347 WASHER; S/ABS
(C) OD=40 		9-51631-614-0 04 1 1309- ● ● ●
65 07.347 WASHER; S/ABS
(A) ID=21 OD=40 		0-91614-620-0 02 1 1309- ● ● ●
65 07.347 WASHER; S/ABS
(B) ID=15 		8-97360-056-0 02 1 1309- ● ● ●
68 07.388 BUSHING; S/ABS
TOKICO 		8-94382-149-0 02 1 1309- ● ● ●
103 07.347 NUT; S/ABS TO LWR LINK
07.833 M14 		0-91110-514-0 02 1 1309- ● ● ●
168 07.380 BRACKET; S/ABS,FRT SUSP 8-98006-958-1 01 1 1309- ● ● ●
168 07.380 BRACKET; S/ABS,FRT SUSP 8-98006-959-1 01 1 1309- ● ● ●
171 07.395 BOLT; S/ABS BRKT
09.003 M12X35 FLANGE 		0-28651-235-0 08 1 1309- ● ● ●
173 07.395 NUT; S/ABS
M12 		8-97360-126-0 08 1 1309- ● ● ●
183 07.436 SHACKLE; FRT SUSP 8-94110-399-3 04 1 1309- ● ● ●
185 07.427 WASHER; LK,PIN
KD PREPARATORY PACK<6HF> ID=16.5 		8-98011-489-0 06 1 1309- ● ● ●
188 07.436 RUBBER; CLAMP,U-BOLT,FRT SPR 8-98033-516-0 02 1 1309- ● ● ●
191 07.417 U-BOLT; FRT SPR
L=125 		8-94119-671-5 04 1 1309-1310 ● ●
191 07.417 U-BOLT; FRT SPR
G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> L=125 		8-94119-671-5 04 1 1309-1310 ●
191 07.417 U-BOLT; FRT SPR
EURO6 SPECIFICATION(NT6) L=125 		8-94119-671-5 04 1 1311-1408 ●
191 07.417 U-BOLT; FRT SPR
G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> L=125 		8-94119-671-5 04 1 1311-1408 ●
191 07.417 U-BOLT; FRT SPR
L=125 		8-94119-671-5 04 1 1311-1408 ●
191 07.417 U-BOLT; FRT SPR
EURO6 SPECIFICATION(NT6) L=125 		8-94119-671-5 04 1 1409- ●
191 07.417 U-BOLT; FRT SPR
G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> L=125 		8-94119-671-5 04 1 1409- ● ●
191 07.417 U-BOLT; FRT SPR
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. FRAME STRAIGHT TYPE<7KJ> L=115 		8-94412-504-3 04 1 1309-1310 ●
191 07.417 U-BOLT; FRT SPR
EURO5B+ SPECIFICATION(NT5) L=115 		8-94412-504-3 04 1 1311-1408 ●
191 07.417 U-BOLT; FRT SPR
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. FRAME STRAIGHT TYPE<7KJ> L=115 		8-94412-504-3 04 1 1311-1408 ●
191 07.417 U-BOLT; FRT SPR
EURO5B+ SPECIFICATION(NT5) L=115 		8-94412-504-3 04 1 1409- ●
191 07.417 U-BOLT; FRT SPR
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. FRAME STRAIGHT TYPE<7KJ> L=115 		8-94412-504-3 04 1 1409- ●
191 07.417 U-BOLT; FRT SPR
G.V.W. 6.5-7.0TON(RPW) EXC. FRAME STRAIGHT TYPE<7KJ> L=115 		8-94412-504-3 04 1 1409- ●
192 07.436 PIECE; DIST
WHEEL BASE 2700MM(27W) 		8-97093-554-1 02 1 1309-1408 ●
192 07.436 PIECE; DIST
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97093-554-1 02 1 1309-1408 ●
192 07.436 PIECE; DIST
WHEEL BASE 2700MM(27W) 		8-97093-554-1 02 1 1409- ●
192 07.436 PIECE; DIST
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97093-554-1 02 1 1409- ●
192 07.436 PIECE; DIST
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) G.V.W. 6.5-7.0TON(RPW) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97093-554-1 02 1 1409- ●
192 07.436 PIECE; DIST
WHEEL BASE 3300MM(33W) 		8-97093-553-0 02 1 1309- ●
193 07.417 NUT; U BOLT
06.174 M14 FLANGE 		8-97360-124-0 08 1 1309- ● ● ●
197 07.427 PIN; FRT SPR,FRT
KD PREPARATORY PACK<6HF> M16X122 		8-98011-487-0 06 1 1309- ● ● ●
197 07.427 PIN; FRT SPR,FRT
EXC. KD PREPARATORY PACK<6HF> M16X122 FLANGE 		8-97360-110-0 06 1 1309- ● ● ●
201 07.427 NUT; PIN LK
KD PREPARATORY PACK<6HF> 06.509 M16 		0-91110-516-0 06 1 1309- ● ● ●
201 07.427 NUT; PIN LK
EXC. KD PREPARATORY PACK<6HF> M16 FLANGE 		8-97360-125-0 06 1 1309- ● ● ●
