4-42 — POWER STEERING OIL PUMP (#126253) — 60 parça

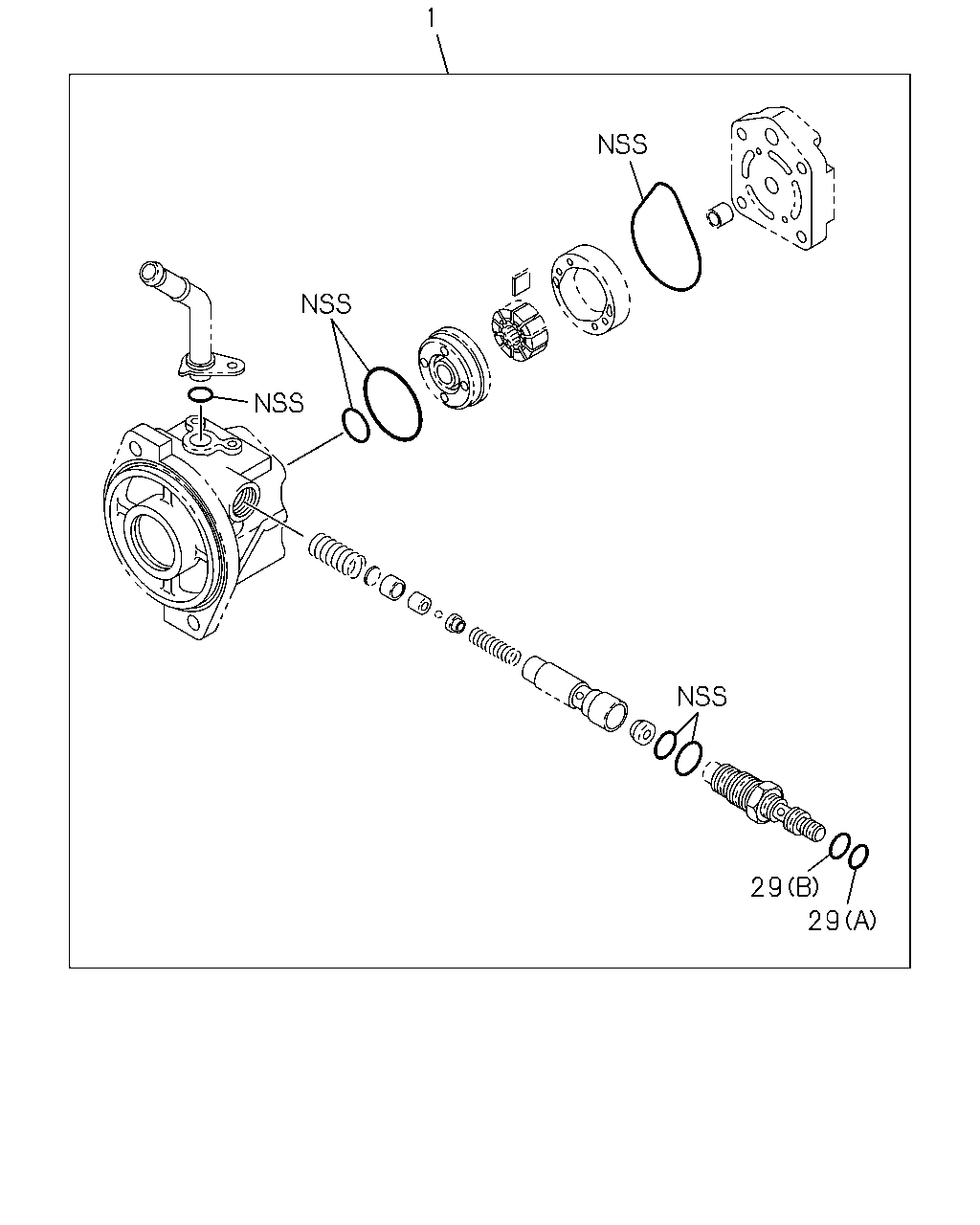

1 29 29 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	06.609 REPAIR KIT; OIL PUMP ASM PART: B = 8-98238-238-1, 98238238	8-98058-096-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP ASM PART: A = 8-98043-204-4, 98043204	8-98159-585-0	01	1	-
20	06.635 GASKET; FRT,OIL PUMP ASM PART: A = 8-98043-204-4, 98043204	8-98061-424-0	01	1	-
29	06.609 GASKET; PLUG TO VLV 06.674, (A) ASM PART: B = 8-98238-238-1, 98238238	8-94379-666-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (B) ASM PART: B = 8-98238-238-1, 98238238	8-97075-581-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (C) ASM PART: A = 8-98043-204-4, 98043204	8-98061-421-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (D) ASM PART: A = 8-98043-204-4, 98043204	8-98061-422-0	01	1	-

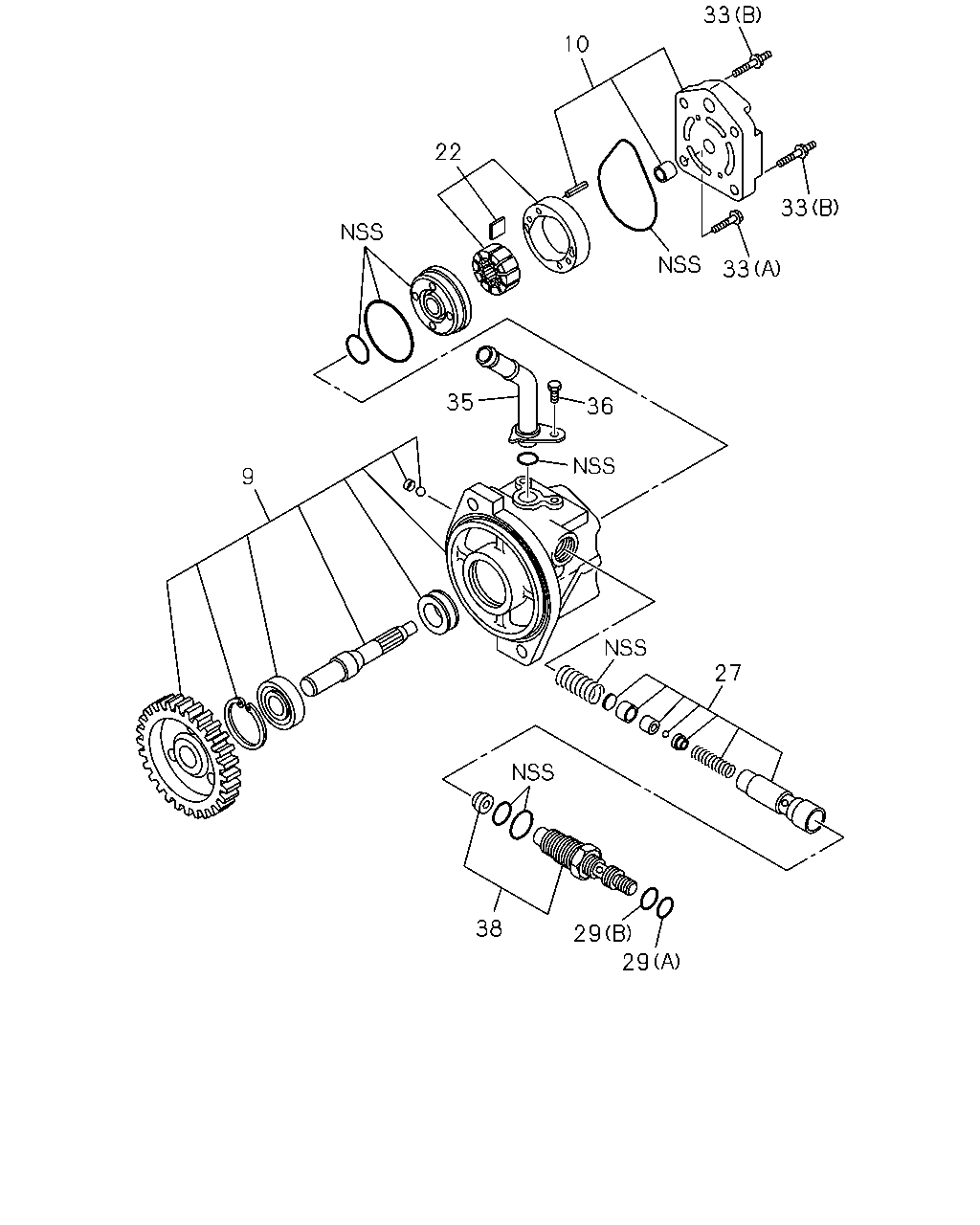

33 33 33 10 22 36 35 9 27 29 29 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: B = 8-98238-238-1, 98238238	8-98058-097-0	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: A = 8-98043-204-4, 98043204	8-98061-428-1	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP ASM PART: B = 8-98238-238-1, 98238238	8-98116-059-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP 06.609 ASM PART: A = 8-98043-204-4, 98043204	8-98159-587-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: A = 8-98043-204-4, 98043204	8-98061-406-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: B = 8-98238-238-1, 98238238	8-98216-517-0	01	1	-
27	06.624 VALVE ASM; OIL PUMP ASM PART: A = 8-98043-204-4, 98043204	8-98061-410-0	01	1	-
27	06.624 VALVE ASM; OIL PUMP ASM PART: B = 8-98238-238-1, 98238238	8-98139-289-0	01	1	-
29	06.609 GASKET; PLUG TO VLV 06.674, (A) ASM PART: B = 8-98238-238-1, 98238238	8-94379-666-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (B) ASM PART: B = 8-98238-238-1, 98238238	8-97075-581-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (C) ASM PART: A = 8-98043-204-4, 98043204	8-98061-421-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (D) ASM PART: A = 8-98043-204-4, 98043204	8-98061-422-0	01	1	-
33	06.606 BOLT; COVER (A) ASM PART: B = 8-98238-238-1, 98238238	8-97184-761-0	02	1	-
33	06.606 BOLT; COVER (B) ASM PART: B = 8-98238-238-1, 98238238	8-97184-762-0	02	1	-
33	06.606 BOLT; COVER (C) ASM PART: A = 8-98043-204-4, 98043204	8-98061-385-0	04	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP ASM PART: B = 8-98238-238-1, 98238238	8-98058-094-0	01	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP ASM PART: A = 8-98043-204-4, 98043204	8-98061-419-0	01	1	-
36	06.602 BOLT; CONN,PIPE ASM PART: B = 8-98238-238-1, 98238238	8-97184-763-0	01	1	-
36	06.602 BOLT; CONN,PIPE ASM PART: A = 8-98043-204-4, 98043204	8-98061-418-0	02	1	-
38	06.624 CONNECTOR; OIL PUMP ASM PART: B = 8-98238-238-1, 98238238	8-97093-504-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP ASM PART: A = 8-98043-204-4, 98043204	8-98061-407-0	01	1	-

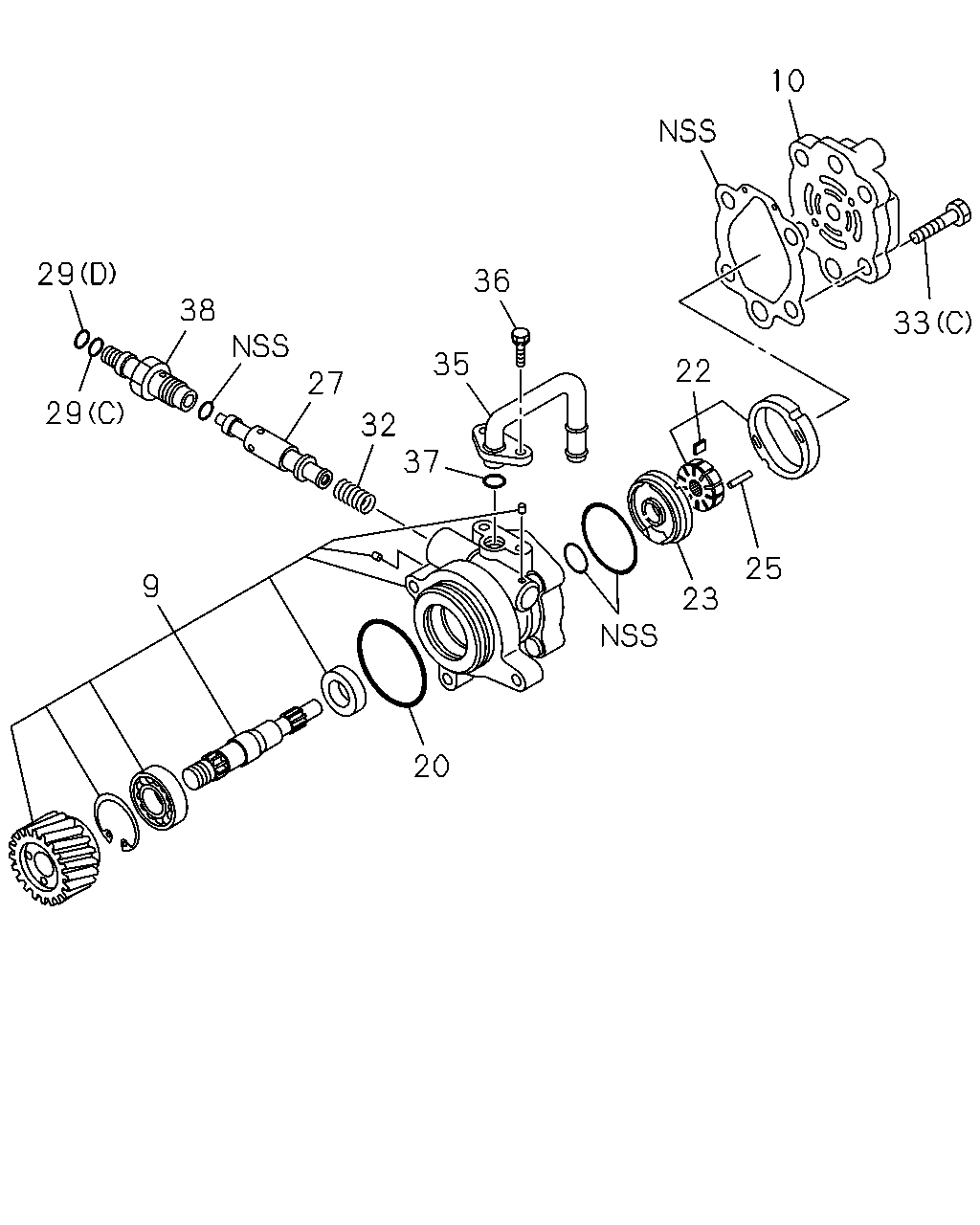

33 10 25 22 23 36 35 37 20 9 32 27 38 29 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: B = 8-98238-238-1, 98238238	8-98058-097-0	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: A = 8-98043-204-4, 98043204	8-98061-428-1	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP ASM PART: B = 8-98238-238-1, 98238238	8-98116-059-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP 06.609 ASM PART: A = 8-98043-204-4, 98043204	8-98159-587-0	01	1	-
20	06.635 GASKET; FRT,OIL PUMP ASM PART: A = 8-98043-204-4, 98043204	8-98061-424-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: A = 8-98043-204-4, 98043204	8-98061-406-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: B = 8-98238-238-1, 98238238	8-98216-517-0	01	1	-
23	06.609 PLATE; SIDE,OIL PUMP ASM PART: A = 8-98043-204-4, 98043204	8-98061-404-0	01	1	-
25	06.608 PIN; HSG,P/S ASM PART: A = 8-98043-204-4, 98043204	8-98061-412-0	02	1	-
27	06.624 VALVE ASM; OIL PUMP ASM PART: A = 8-98043-204-4, 98043204	8-98061-410-0	01	1	-
27	06.624 VALVE ASM; OIL PUMP ASM PART: B = 8-98238-238-1, 98238238	8-98139-289-0	01	1	-
29	06.609 GASKET; PLUG TO VLV 06.674, (A) ASM PART: B = 8-98238-238-1, 98238238	8-94379-666-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (B) ASM PART: B = 8-98238-238-1, 98238238	8-97075-581-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (C) ASM PART: A = 8-98043-204-4, 98043204	8-98061-421-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (D) ASM PART: A = 8-98043-204-4, 98043204	8-98061-422-0	01	1	-
32	06.606 SPRING; OIL PUMP ASM PART: A = 8-98043-204-4, 98043204	8-98061-411-0	01	1	-
33	06.606 BOLT; COVER (A) ASM PART: B = 8-98238-238-1, 98238238	8-97184-761-0	02	1	-
33	06.606 BOLT; COVER (B) ASM PART: B = 8-98238-238-1, 98238238	8-97184-762-0	02	1	-
33	06.606 BOLT; COVER (C) ASM PART: A = 8-98043-204-4, 98043204	8-98061-385-0	04	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP ASM PART: B = 8-98238-238-1, 98238238	8-98058-094-0	01	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP ASM PART: A = 8-98043-204-4, 98043204	8-98061-419-0	01	1	-
36	06.602 BOLT; CONN,PIPE ASM PART: B = 8-98238-238-1, 98238238	8-97184-763-0	01	1	-
36	06.602 BOLT; CONN,PIPE ASM PART: A = 8-98043-204-4, 98043204	8-98061-418-0	02	1	-
37	06.635 GASKET; PIPE CONN,OIL PUMP ASM PART: A = 8-98043-204-4, 98043204	8-98061-417-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP ASM PART: B = 8-98238-238-1, 98238238	8-97093-504-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP ASM PART: A = 8-98043-204-4, 98043204	8-98061-407-0	01	1	-

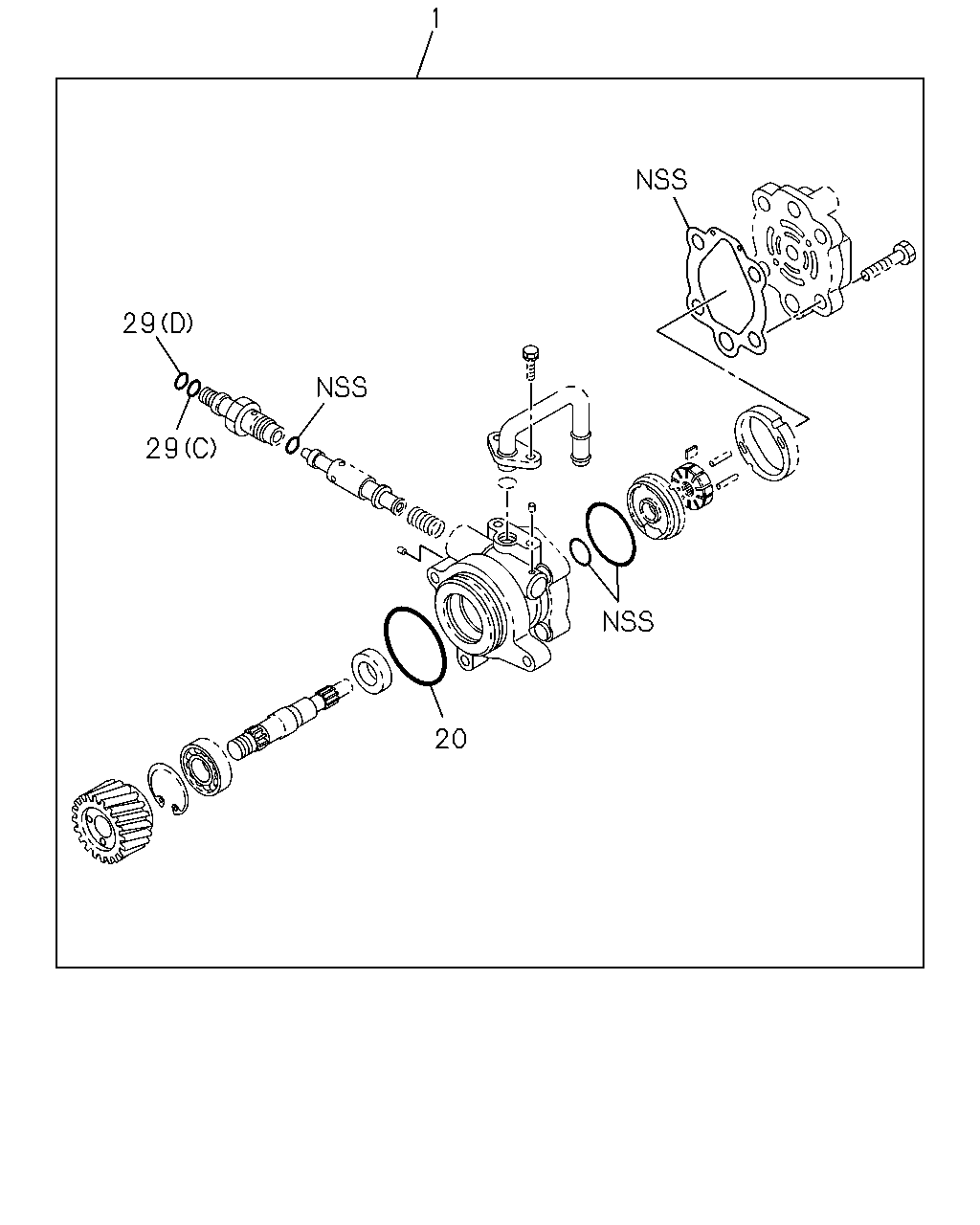

1 29 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	06.609 REPAIR KIT; OIL PUMP ASM PART: B = 8-98238-238-1, 98238238	8-98058-096-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP ASM PART: A = 8-98043-204-4, 98043204	8-98159-585-0	01	1	-
29	06.609 GASKET; PLUG TO VLV 06.674, (A) ASM PART: B = 8-98238-238-1, 98238238	8-94379-666-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (B) ASM PART: B = 8-98238-238-1, 98238238	8-97075-581-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (C) ASM PART: A = 8-98043-204-4, 98043204	8-98061-421-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (D) ASM PART: A = 8-98043-204-4, 98043204	8-98061-422-0	01	1	-
