◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51482 - NNR/NPR RHD EUROPE EURO5B+,6 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-30 - STEERING WHEEL AND COWL ▶
4-30 — STEERING WHEEL AND COWL (#126247) — 48 parça

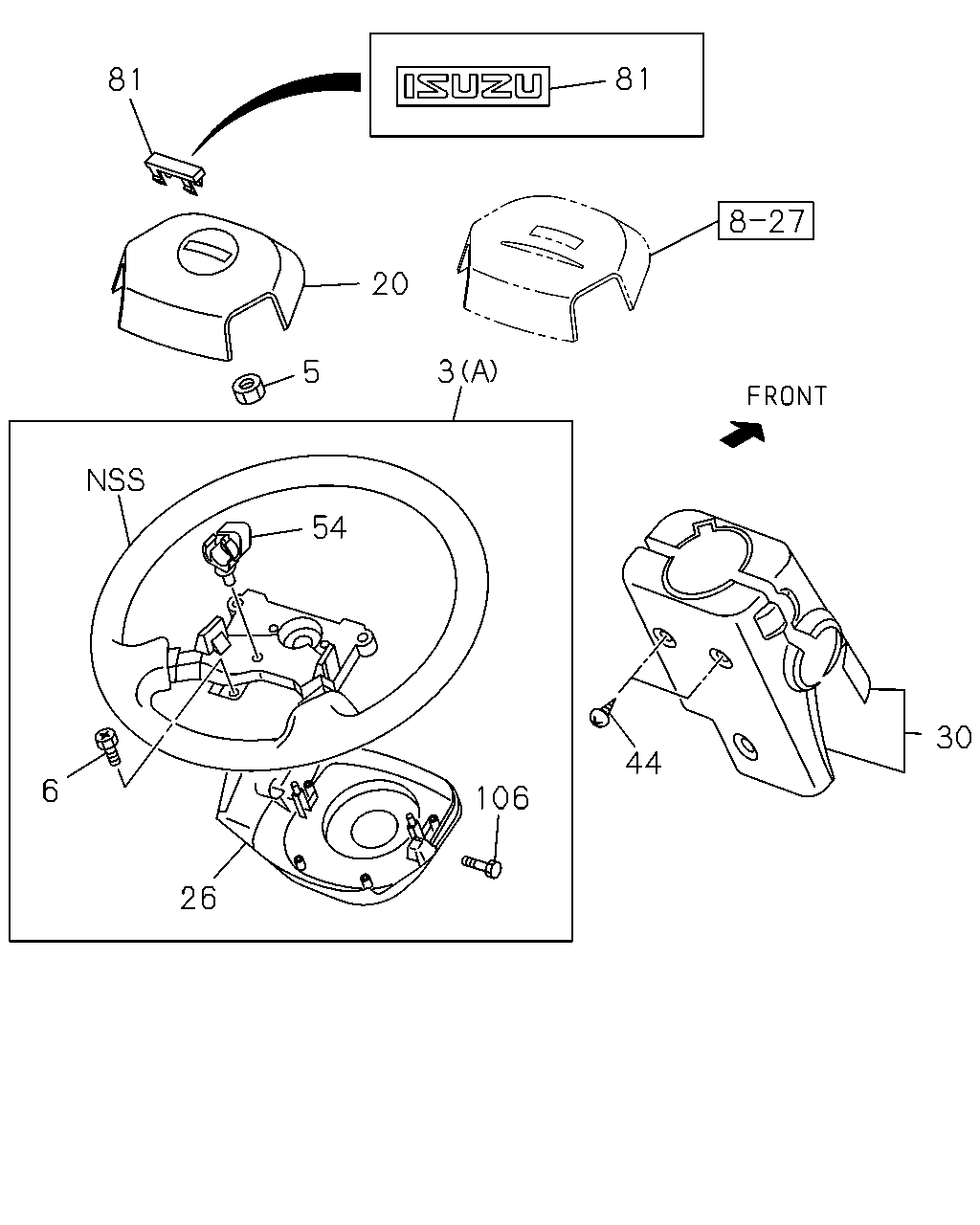

çizim 373504
81 20 81 5 3 54 6 26 106 44 30
BalonParca AdiParca NoAdetTipApplied Date A B C
3 06.513 WHEEL; STRG
FACE LIFT MODEL<TX7> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) DARK GRAY 		8-97466-361-0 01 1 1508- ●
3 06.513 WHEEL; STRG
FACE LIFT MODEL<TX7> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,VEHICLE LOW COST PACKAGE VARIANT 1<6NX> (B) DARK GRAY 		8-97466-361-0 01 1 1508- ● ●
3 06.513 WHEEL; STRG
FACE LIFT MODEL<TX7> VEHICLE LOW COST PACKAGE VARIANT 1<6NX> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) DARK GRAY 		8-97465-649-2 01 1 1508- ● ●
3 06.513 WHEEL; STRG
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FACE LIFT MODEL<TX7> (B) DARK GRAY 		8-97428-464-5 01 1 1407- ● ● ●
3 06.513 WHEEL; STRG
(A) DARK GRAY 		8-97423-997-0 01 1 1309-1406 ● ● ●
3 06.513 WHEEL; STRG
EXC. FACE LIFT MODEL<TX7> (A) DARK GRAY 		8-97423-997-0 01 1 1407- ● ● ●
5 06.515 NUT; STRG WHEEL TO SHAFT
M14 		0-91111-514-0 01 1 1309- ● ● ●
6 02.820 SCREW; HORN SPR CONTACT
M4X12 		8-97167-588-0 04 1 1309-1406 ● ● ●
6 02.820 SCREW; HORN SPR CONTACT
EXC. FACE LIFT MODEL<TX7> M4X12 		8-97167-588-0 04 1 1407- ● ● ●
20 06.512 SHROUD; PAD,STRG WHEEL
FACE LIFT MODEL<TX7> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> DARK GRAY 		8-97465-647-0 01 1 1508- ● ● ●
20 06.512 SHROUD; PAD,STRG WHEEL
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> DARK GRAY 		8-97423-922-0 01 1 1309-1507 ● ● ●
20 06.512 SHROUD; PAD,STRG WHEEL
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FACE LIFT MODEL<TX7> DARK GRAY 		8-97423-922-0 01 1 1508- ● ● ●
26 06.514 COVER; STRG WHEEL,LWR
FACE LIFT MODEL<TX7> VEHICLE LOW COST PACKAGE VARIANT 1<6NX> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> DARK GRAY 		8-97465-650-0 01 1 1508- ● ●
26 06.514 COVER; STRG WHEEL,LWR
DARK GRAY 		8-97421-978-0 01 1 1309-1406 ● ● ●
26 06.514 COVER; STRG WHEEL,LWR
EXC. FACE LIFT MODEL<TX7> DARK GRAY 		8-97421-978-0 01 1 1407- ● ● ●
30 06.518 COWL; STEERING
DARK GRAY 		8-97418-761-1 01 1 1309- ● ● ●
44 06.514 SCREW; STRG COWL
M5X12 		0-38050-512-0 03 1 1309- ● ● ●
54 02.559 CLIP; HARNESS 8-98165-703-0 01 1 1309-1406 ● ● ●
54 02.559 CLIP; HARNESS
EXC. FACE LIFT MODEL<TX7> 		8-98165-703-0 01 1 1407- ● ● ●
81 02.820 EMBLEM; STRG WHEEL
FACE LIFT MODEL<TX7> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> DARK GRAY 		8-97465-648-0 01 1 1508- ● ● ●
81 02.820 EMBLEM; STRG WHEEL
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> DARK GRAY 		8-97405-986-0 01 1 1309-1507 ● ● ●
81 02.820 EMBLEM; STRG WHEEL
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FACE LIFT MODEL<TX7> DARK GRAY 		8-97405-986-0 01 1 1508- ● ● ●
106 05.453 BOLT; TORX 8-98231-397-0 02 1 1309-1406 ● ● ●
106 05.453 BOLT; TORX
EXC. FACE LIFT MODEL<TX7> 		8-98231-397-0 02 1 1407- ● ● ●

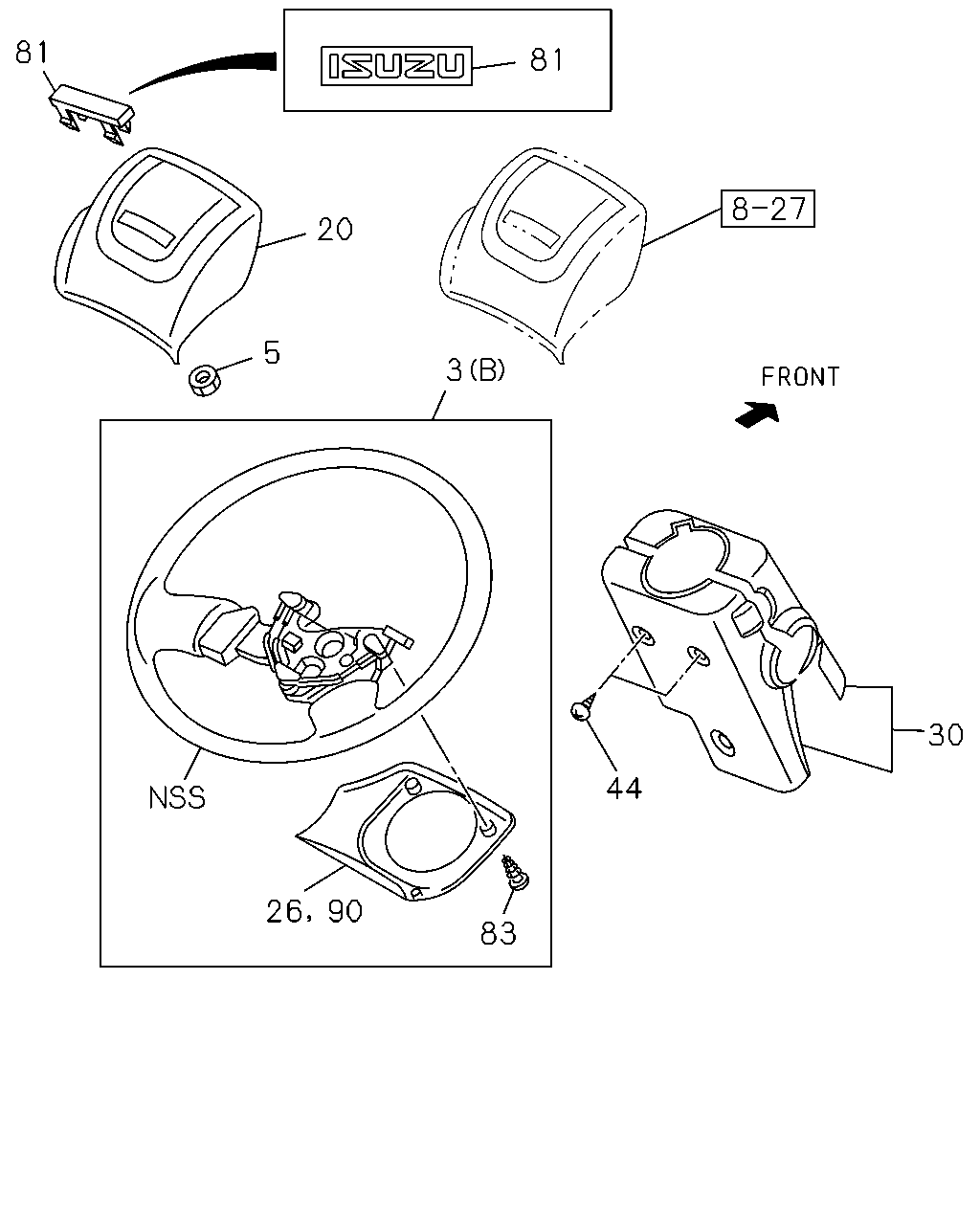

çizim 443862
81 81 20 5 3 0 44 83 90 26
BalonParca AdiParca NoAdetTipApplied Date A B C
3 06.513 WHEEL; STRG
FACE LIFT MODEL<TX7> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) DARK GRAY 		8-97466-361-0 01 1 1508- ●
3 06.513 WHEEL; STRG
FACE LIFT MODEL<TX7> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,VEHICLE LOW COST PACKAGE VARIANT 1<6NX> (B) DARK GRAY 		8-97466-361-0 01 1 1508- ● ●
3 06.513 WHEEL; STRG
FACE LIFT MODEL<TX7> VEHICLE LOW COST PACKAGE VARIANT 1<6NX> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) DARK GRAY 		8-97465-649-2 01 1 1508- ● ●
3 06.513 WHEEL; STRG
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FACE LIFT MODEL<TX7> (B) DARK GRAY 		8-97428-464-5 01 1 1407- ● ● ●
3 06.513 WHEEL; STRG
(A) DARK GRAY 		8-97423-997-0 01 1 1309-1406 ● ● ●
3 06.513 WHEEL; STRG
EXC. FACE LIFT MODEL<TX7> (A) DARK GRAY 		8-97423-997-0 01 1 1407- ● ● ●
5 06.515 NUT; STRG WHEEL TO SHAFT
M14 		0-91111-514-0 01 1 1309- ● ● ●
20 06.512 SHROUD; PAD,STRG WHEEL
FACE LIFT MODEL<TX7> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> DARK GRAY 		8-97465-647-0 01 1 1508- ● ● ●
20 06.512 SHROUD; PAD,STRG WHEEL
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> DARK GRAY 		8-97423-922-0 01 1 1309-1507 ● ● ●
20 06.512 SHROUD; PAD,STRG WHEEL
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FACE LIFT MODEL<TX7> DARK GRAY 		8-97423-922-0 01 1 1508- ● ● ●
26 06.514 COVER; STRG WHEEL,LWR
FACE LIFT MODEL<TX7> VEHICLE LOW COST PACKAGE VARIANT 1<6NX> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> DARK GRAY 		8-97465-650-0 01 1 1508- ● ●
26 06.514 COVER; STRG WHEEL,LWR
DARK GRAY 		8-97421-978-0 01 1 1309-1406 ● ● ●
26 06.514 COVER; STRG WHEEL,LWR
EXC. FACE LIFT MODEL<TX7> DARK GRAY 		8-97421-978-0 01 1 1407- ● ● ●
44 06.514 SCREW; STRG COWL
M5X12 		0-38050-512-0 03 1 1309- ● ● ●
81 02.820 EMBLEM; STRG WHEEL
FACE LIFT MODEL<TX7> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> DARK GRAY 		8-97465-648-0 01 1 1508- ● ● ●
81 02.820 EMBLEM; STRG WHEEL
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> DARK GRAY 		8-97405-986-0 01 1 1309-1507 ● ● ●
81 02.820 EMBLEM; STRG WHEEL
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FACE LIFT MODEL<TX7> DARK GRAY 		8-97405-986-0 01 1 1508- ● ● ●
83 06.514 SCREW; LWR COVER TO WHEEL
FACE LIFT MODEL<TX7> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 09.242 M4X10 TAPPING 		0-71240-410-0 03 1 1508- ● ● ●
83 06.514 SCREW; LWR COVER TO WHEEL
FACE LIFT MODEL<TX7> 09.242 M4X10 TAPPING 		0-71240-410-0 03 1 1407-1503 ● ● ●
83 06.514 SCREW; LWR COVER TO WHEEL
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FACE LIFT MODEL<TX7> M4X10 TAPPING 		8-98319-680-0 03 1 1504- ● ● ●
90 06.578 COVER ASM; STRG WHEEL,LWR
FACE LIFT MODEL<TX7> DARK GRAY 		8-97465-726-2 01 1 1407-1507 ● ● ●
90 06.578 COVER ASM; STRG WHEEL,LWR
FACE LIFT MODEL<TX7> DARK GRAY 		8-97465-726-2 01 1 1508- ●
90 06.578 COVER ASM; STRG WHEEL,LWR
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FACE LIFT MODEL<TX7> DARK GRAY 		8-97465-726-2 01 1 1508- ● ●
90 06.578 COVER ASM; STRG WHEEL,LWR
FACE LIFT MODEL<TX7> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,VEHICLE LOW COST PACKAGE VARIANT 1<6NX> DARK GRAY 		8-97465-726-2 01 1 1508- ● ●
