4-20 — REAR AXLE CASE AND SHAFT (#126245) — 107 parça

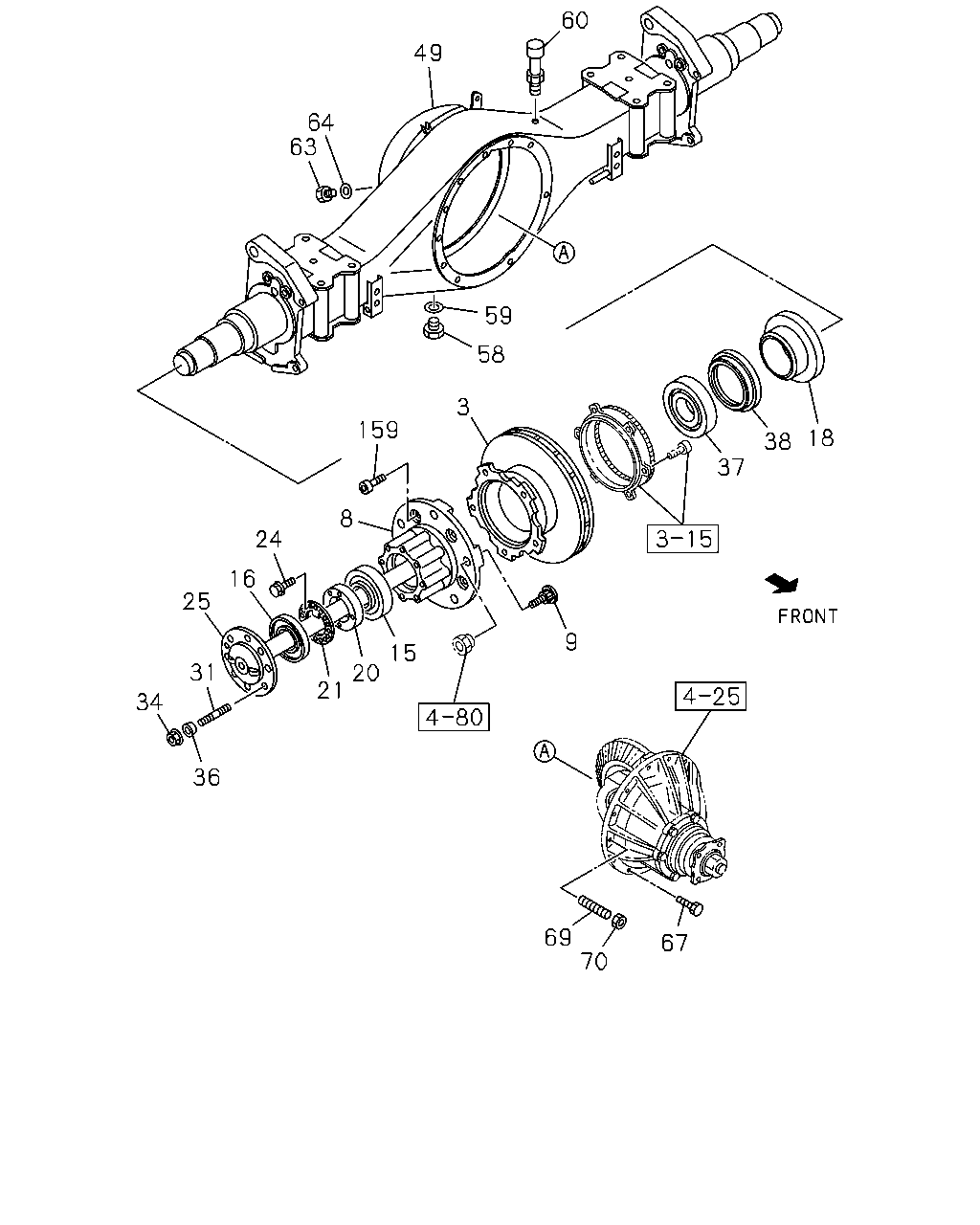

çizim 373775
18 38 37 60 49 64 63 59 58 3 159 15 20 21 36 34 31 25 16 24 8 9 69 70 67
BalonParca AdiParca NoAdetTipApplied Date A B C
3 05.809 ROTOR; DISC BRK,RR 8-98248-897-0 02 1 1309- ●
3 05.809 ROTOR; DISC BRK,RR
FINAL GEAR RATIO 41/9(HC6) G.V.W. 6.5-7.0TON(RPW) 		8-98248-898-0 02 1 1309-1408 ●
3 05.809 ROTOR; DISC BRK,RR
FINAL GEAR RATIO 41/9(HC6) G.V.W. 6.5-7.0TON(RPW) 		8-98248-898-0 02 1 1409- ● ●
3 05.809 ROTOR; DISC BRK,RR
G.V.W. 5.5-6.0TON(RPU) 		8-98209-261-2 02 1 1309- ●
3 05.809 ROTOR; DISC BRK,RR
G.V.W. 7.5-8.0TON(RPY) 		8-98191-956-0 02 1 1309-1408 ●
3 05.809 ROTOR; DISC BRK,RR 8-98191-956-0 02 1 1309-1408 ●
3 05.809 ROTOR; DISC BRK,RR
G.V.W. 7.5-8.0TON(RPY) 		8-98191-956-0 02 1 1409- ● ●
8 05.809 HUB; RR AXLE 8-98022-462-0 02 1 1309- ●
8 05.809 HUB; RR AXLE
G.V.W. 5.5-6.0TON(RPU) 		8-98022-462-0 02 1 1309- ●
8 05.809 HUB; RR AXLE
FINAL GEAR RATIO 41/9(HC6) G.V.W. 6.5-7.0TON(RPW) 		8-98022-463-0 02 1 1309-1408 ●
8 05.809 HUB; RR AXLE
FINAL GEAR RATIO 41/9(HC6) G.V.W. 6.5-7.0TON(RPW) 		8-98022-463-0 02 1 1409- ● ●
8 05.809 HUB; RR AXLE
G.V.W. 7.5-8.0TON(RPY) 		8-98192-924-0 02 1 1309-1408 ●
8 05.809 HUB; RR AXLE 8-98192-924-0 02 1 1309-1408 ●
8 05.809 HUB; RR AXLE
G.V.W. 7.5-8.0TON(RPY) 		8-98192-924-0 02 1 1409- ● ●
9 05.812 PIN; WHEEL,RR AXLE
M18X46 RH THREAD 		8-98028-532-1 05 1 1309- ●
9 05.812 PIN; WHEEL,RR AXLE
G.V.W. 5.5-6.0TON(RPU) M18X46 RH THREAD 		8-98028-532-1 05 1 1309- ●
9 05.812 PIN; WHEEL,RR AXLE
M18X46 LH THREAD 		8-98028-533-1 05 1 1309- ●
9 05.812 PIN; WHEEL,RR AXLE
G.V.W. 5.5-6.0TON(RPU) M18X46 LH THREAD 		8-98028-533-1 05 1 1309- ●
9 05.812 PIN; WHEEL,RR AXLE
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.5-8.0TON(RPY) M20X53 RH THREAD 		8-97168-456-2 06 1 1309- ●
9 05.812 PIN; WHEEL,RR AXLE
M20X53 RH THREAD 		8-97168-456-2 06 1 1309- ●
9 05.812 PIN; WHEEL,RR AXLE
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.5-8.0TON(RPY) M20X53 LH THREAD 		8-97168-457-2 06 1 1309- ●
9 05.812 PIN; WHEEL,RR AXLE
M20X53 LH THREAD 		8-97168-457-2 06 1 1309- ●
15 05.855 BEARING; HUB OUTER,RR AXLE
NSK 		9-00093-082-0 02 1 1309- ●
15 05.855 BEARING; HUB OUTER,RR AXLE
G.V.W. 5.5-6.0TON(RPU) NSK 		9-00093-082-0 02 1 1309- ●
15 05.855 BEARING; HUB OUTER,RR AXLE
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.5-8.0TON(RPY) NSK 		9-00093-607-0 02 1 1309- ●
15 05.855 BEARING; HUB OUTER,RR AXLE
NSK 		9-00093-607-0 02 1 1309- ●
15 05.855 BEARING; HUB OUTER,RR AXLE
BEST VALUE PARTS 		5-87610-140-0 02 1 1309- ●
15 05.855 BEARING; HUB OUTER,RR AXLE
G.V.W. 5.5-6.0TON(RPU) BEST VALUE PARTS 		5-87610-140-0 02 1 1309- ●
15 05.855 BEARING; HUB OUTER,RR AXLE
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.5-8.0TON(RPY) BEST VALUE PARTS 		5-87610-139-0 02 1 1309- ●
15 05.855 BEARING; HUB OUTER,RR AXLE
BEST VALUE PARTS 		5-87610-139-0 02 1 1309- ●
16 05.822 SEAL; OIL,RR HUB,OUTER
NOK 		8-98202-911-0 02 1 1309- ●
16 05.822 SEAL; OIL,RR HUB,OUTER
G.V.W. 5.5-6.0TON(RPU) NOK 		8-98202-911-0 02 1 1309- ●
16 05.822 SEAL; OIL,RR HUB,OUTER
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.5-8.0TON(RPY) NOK 		8-98202-912-0 02 1 1309- ●
16 05.822 SEAL; OIL,RR HUB,OUTER
NOK 		8-98202-912-0 02 1 1309- ●
18 05.822 RETAINER; RR AXLE 8-98232-252-0 02 1 1309- ●
18 05.822 RETAINER; RR AXLE
G.V.W. 5.5-6.0TON(RPU) 		8-98232-252-0 02 1 1309- ●
18 05.822 RETAINER; RR AXLE
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.5-8.0TON(RPY) 		8-98032-677-0 02 1 1309- ●
18 05.822 RETAINER; RR AXLE 8-98032-677-0 02 1 1309- ●
20 05.830 NUT; BRG,RR HUB
M52 		8-98236-850-0 02 1 1309- ●
20 05.830 NUT; BRG,RR HUB
G.V.W. 5.5-6.0TON(RPU) M52 		8-98236-850-0 02 1 1309- ●
20 05.830 NUT; BRG,RR HUB
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.5-8.0TON(RPY) M55 		8-97137-094-0 02 1 1309- ●
20 05.830 NUT; BRG,RR HUB
M55 		8-97137-094-0 02 1 1309- ●
21 05.830 WASHER; LK,BRG NUT
ID=52 		9-09853-214-1 02 1 1309- ●
21 05.830 WASHER; LK,BRG NUT
G.V.W. 5.5-6.0TON(RPU) ID=52 		9-09853-214-1 02 1 1309- ●
21 05.830 WASHER; LK,BRG NUT
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.5-8.0TON(RPY) ID=55 		9-09653-002-1 02 1 1309- ●
21 05.830 WASHER; LK,BRG NUT
ID=55 		9-09653-002-1 02 1 1309- ●
24 05.830 BOLT; LK WASHER
03.671 M6X10 FLANGE 		0-28050-610-0 04 1 1309-1508 ● ● ●
24 05.830 BOLT; LK WASHER
03.162 M6X12 FLANGE 		0-28050-612-0 04 1 1509- ● ● ●
25 05.420 SHAFT; AXLE,RR
L=804.5 		8-97032-497-0 02 1 1309- ●
25 05.420 SHAFT; AXLE,RR
G.V.W. 5.5-6.0TON(RPU) L=804.5 		8-97032-497-0 02 1 1309- ●
25 05.420 SHAFT; AXLE,RR
FINAL GEAR RATIO 41/9(HC6) G.V.W. 6.5-7.0TON(RPW) L=830 		8-94341-974-1 02 1 1309-1408 ●
25 05.420 SHAFT; AXLE,RR
FINAL GEAR RATIO 41/9(HC6) G.V.W. 6.5-7.0TON(RPW) L=830 		8-94341-974-1 02 1 1409- ● ●
25 05.420 SHAFT; AXLE,RR
G.V.W. 7.5-8.0TON(RPY) L=885 		8-97134-439-0 02 1 1309-1408 ●
25 05.420 SHAFT; AXLE,RR
L=885 		8-97134-439-0 02 1 1309-1408 ●
25 05.420 SHAFT; AXLE,RR
G.V.W. 7.5-8.0TON(RPY) L=885 		8-97134-439-0 02 1 1409- ● ●
31 05.422 STUD; AXLE SHAFT TO HUB
M10X30 L=49 		8-97359-803-0 16 1 1309- ● ● ●
34 05.387 NUT; AXLE SHAFT
04.085 M10 FLANGE 		0-91180-210-0 16 1 1309- ● ● ●
36 05.422 WASHER; SPECIAL,AXLE SHAFT
ID=10.5 		8-97360-004-0 16 1 1309- ● ● ●
37 05.855 BEARING; HUB INNER,RR AXLE
NSK 		9-00093-081-0 02 1 1309- ●
37 05.855 BEARING; HUB INNER,RR AXLE
G.V.W. 5.5-6.0TON(RPU) NSK 		9-00093-081-0 02 1 1309- ●
37 05.855 BEARING; HUB INNER,RR AXLE
FINAL GEAR RATIO 41/9(HC6) G.V.W. 6.5-7.0TON(RPW) NSK 		9-00093-624-0 02 1 1309-1408 ●
37 05.855 BEARING; HUB INNER,RR AXLE
FINAL GEAR RATIO 41/9(HC6) G.V.W. 6.5-7.0TON(RPW) NSK 		9-00093-624-0 02 1 1409- ● ●
37 05.855 BEARING; HUB INNER,RR AXLE
G.V.W. 7.5-8.0TON(RPY) NSK 		8-97122-938-0 02 1 1309-1408 ●
37 05.855 BEARING; HUB INNER,RR AXLE
NSK 		8-97122-938-0 02 1 1309-1408 ●
37 05.855 BEARING; HUB INNER,RR AXLE
G.V.W. 7.5-8.0TON(RPY) NSK 		8-97122-938-0 02 1 1409- ● ●
37 05.855 BEARING; HUB INNER,RR AXLE
G.V.W. 7.5-8.0TON(RPY) JTEKT 		8-97123-119-0 02 1 1309-1408 ●
37 05.855 BEARING; HUB INNER,RR AXLE
JTEKT 		8-97123-119-0 02 1 1309-1408 ●
37 05.855 BEARING; HUB INNER,RR AXLE
G.V.W. 7.5-8.0TON(RPY) JTEKT 		8-97123-119-0 02 1 1409- ● ●
37 05.855 BEARING; HUB INNER,RR AXLE
BEST VALUE PARTS 		5-87610-142-0 02 1 1309- ●
37 05.855 BEARING; HUB INNER,RR AXLE
G.V.W. 5.5-6.0TON(RPU) BEST VALUE PARTS 		5-87610-142-0 02 1 1309- ●
37 05.855 BEARING; HUB INNER,RR AXLE
FINAL GEAR RATIO 41/9(HC6) G.V.W. 6.5-7.0TON(RPW) BEST VALUE PARTS 		5-87610-141-0 02 1 1309-1408 ●
37 05.855 BEARING; HUB INNER,RR AXLE
FINAL GEAR RATIO 41/9(HC6) G.V.W. 6.5-7.0TON(RPW) BEST VALUE PARTS 		5-87610-141-0 02 1 1409- ● ●
38 05.822 SEAL; OIL,RR HUB,INNER
NOK 		8-98037-080-0 02 1 1309- ●
38 05.822 SEAL; OIL,RR HUB,INNER
G.V.W. 5.5-6.0TON(RPU) NOK 		8-98037-080-0 02 1 1309- ●
38 05.822 SEAL; OIL,RR HUB,INNER
FINAL GEAR RATIO 41/9(HC6) G.V.W. 6.5-7.0TON(RPW) 		8-98037-081-0 02 1 1309-1408 ●
38 05.822 SEAL; OIL,RR HUB,INNER
FINAL GEAR RATIO 41/9(HC6) G.V.W. 6.5-7.0TON(RPW) 		8-98037-081-0 02 1 1409- ● ●
38 05.822 SEAL; OIL,RR HUB,INNER
G.V.W. 7.5-8.0TON(RPY) 		8-98194-208-0 02 1 1309-1408 ●
38 05.822 SEAL; OIL,RR HUB,INNER 8-98194-208-0 02 1 1309-1408 ●
38 05.822 SEAL; OIL,RR HUB,INNER
G.V.W. 7.5-8.0TON(RPY) 		8-98194-208-0 02 1 1409- ● ●
49 05.387 CASE; RR AXLE 8-98022-460-6 01 1 1309- ●
49 05.387 CASE; RR AXLE
G.V.W. 5.5-6.0TON(RPU) 		8-98022-460-6 01 1 1309- ●
49 05.387 CASE; RR AXLE
FINAL GEAR RATIO 41/9(HC6) G.V.W. 6.5-7.0TON(RPW) 		8-98022-461-5 01 1 1309-1408 ●
49 05.387 CASE; RR AXLE
FINAL GEAR RATIO 41/9(HC6) G.V.W. 6.5-7.0TON(RPW) 		8-98022-461-5 01 1 1409- ● ●
49 05.387 CASE; RR AXLE
G.V.W. 7.5-8.0TON(RPY) 		8-98192-921-1 01 1 1309-1408 ●
49 05.387 CASE; RR AXLE 8-98192-921-1 01 1 1309-1408 ●
49 05.387 CASE; RR AXLE
G.V.W. 7.5-8.0TON(RPY) 		8-98192-921-1 01 1 1409- ● ●
58 05.508 PLUG; DRAIN,AXLE CASE
M16X12.5 		8-97307-060-0 01 1 1309- ● ● ●
59 05.400 GASKET; DRAIN PLUG
01.252 ID=16.2 OD=24 		9-09571-416-0 01 1 1309- ● ● ●
60 05.387 BREATHER; RR AXLE CASE
L=29 		8-98006-960-0 01 1 1309- ● ● ●
63 05.400 PLUG; OIL FILLER,AXLE CASE
M20X10.5 		8-98009-333-0 01 1 1309- ● ● ●
64 05.400 GASKET; OIL FILLER,AXLE CASE
ID=20 OD=30 		8-94462-734-0 01 1 1309- ● ● ●
67 05.387 BOLT; FINAL DRIVE SETTING
06.156 M10X40 W/LK WASHER 		0-50561-040-0 11 1 1309-1408 ●
67 05.387 BOLT; FINAL DRIVE SETTING
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) 06.156 M10X40 W/LK WASHER 		0-50561-040-0 11 1 1309-1408 ●
67 05.387 BOLT; FINAL DRIVE SETTING
06.156 M10X40 W/LK WASHER 		0-50561-040-0 11 1 1409- ●
67 05.387 BOLT; FINAL DRIVE SETTING
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) 06.156 M10X40 W/LK WASHER 		0-50561-040-0 11 1 1409- ● ●
67 05.387 BOLT; FINAL DRIVE SETTING
G.V.W. 7.5-8.0TON(RPY) 06.156 M10X40 W/LK WASHER 		0-50561-040-0 07 1 1309-1408 ●
67 05.387 BOLT; FINAL DRIVE SETTING
06.156 M10X40 W/LK WASHER 		0-50561-040-0 07 1 1309-1408 ●
67 05.387 BOLT; FINAL DRIVE SETTING
G.V.W. 7.5-8.0TON(RPY) 06.156 M10X40 W/LK WASHER 		0-50561-040-0 07 1 1409- ● ●
67 05.387 BOLT; FINAL DRIVE SETTING
G.V.W. 7.5-8.0TON(RPY) M10X50 W/LK WASHER 		0-50561-050-0 04 1 1309-1408 ●
67 05.387 BOLT; FINAL DRIVE SETTING
M10X50 W/LK WASHER 		0-50561-050-0 04 1 1309-1408 ●
67 05.387 BOLT; FINAL DRIVE SETTING
G.V.W. 7.5-8.0TON(RPY) M10X50 W/LK WASHER 		0-50561-050-0 04 1 1409- ● ●
69 05.387 STUD; AXLE CASE
M10X40.5 L=52.5 		8-97359-802-0 02 1 1309- ● ● ●
70 05.387 NUT; CARRIER
04.085 M10 FLANGE 		0-91180-210-0 02 1 1309- ● ● ●
159 05.822 BOLT; ROTOR TO HUB
05.812 		8-98021-780-0 10 1 1309- ●
159 05.822 BOLT; ROTOR TO HUB
G.V.W. 5.5-6.0TON(RPU) 05.812 		8-98021-780-0 10 1 1309- ●
159 05.822 BOLT; ROTOR TO HUB
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.5-8.0TON(RPY) 05.812 		8-98021-780-0 12 1 1309- ●
159 05.822 BOLT; ROTOR TO HUB
05.812 		8-98021-780-0 12 1 1309- ●
