6 |
05.600 COUPLING ASM; DRIVER,PROP SHAFT
4JJ1-TCS ENG(LFB)
WHEEL BASE 4400MM(44W)
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
|
8-98020-796-0 |
01 |
1 |
1309-1408 |
|
● |
|
| |
6 |
05.600 COUPLING ASM; DRIVER,PROP SHAFT
4HK1-TCS ENG(RJS)
|
8-98020-796-0 |
01 |
1 |
1309-1408 |
|
● |
|
| |
6 |
05.600 COUPLING ASM; DRIVER,PROP SHAFT
|
8-98020-796-0 |
01 |
1 |
1309-1408 |
|
|
● |
| |
6 |
05.600 COUPLING ASM; DRIVER,PROP SHAFT
4HK1-TCS ENG(RJS)
|
8-98020-796-0 |
01 |
1 |
1409- |
|
● |
● |
| |
6 |
05.600 COUPLING ASM; DRIVER,PROP SHAFT
4JJ1-TCS ENG(LFB)
WHEEL BASE 4400MM(44W)
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
|
8-98020-796-0 |
01 |
1 |
1409- |
|
● |
|
| |
8 |
05.544 YOKE; FLANGE,PROP SHAFT
WHEEL BASE 2700MM(27W)
D=80
|
8-97322-663-0 |
02 |
1 |
1309- |
● |
|
|
| |
8 |
05.544 YOKE; FLANGE,PROP SHAFT
WHEEL BASE 3300MM(33W)
D=80
|
8-97322-663-0 |
01 |
1 |
1309-1310 |
● |
|
|
| |
8 |
05.544 YOKE; FLANGE,PROP SHAFT
WHEEL BASE 3300MM(33W)
D=80
|
8-97322-663-0 |
01 |
1 |
1309-1310 |
● |
|
|
| |
8 |
05.544 YOKE; FLANGE,PROP SHAFT
4JJ1-TCS ENG(LFB)
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
D=80
|
8-97322-663-0 |
01 |
1 |
1309-1310 |
|
● |
|
| |
8 |
05.544 YOKE; FLANGE,PROP SHAFT
4JJ1-TCS ENG(LFB)
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
D=80
|
8-97322-663-0 |
01 |
1 |
1309-1310 |
|
● |
|
| |
8 |
05.544 YOKE; FLANGE,PROP SHAFT
WHEEL BASE 3300MM(33W)
D=80
|
8-97322-663-0 |
01 |
1 |
1311-1408 |
● |
|
|
| |
8 |
05.544 YOKE; FLANGE,PROP SHAFT
WHEEL BASE 3300MM(33W)
D=80
|
8-97322-663-0 |
01 |
1 |
1311-1408 |
● |
|
|
| |
8 |
05.544 YOKE; FLANGE,PROP SHAFT
4JJ1-TCS ENG(LFB)
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
D=80
|
8-97322-663-0 |
01 |
1 |
1311-1408 |
|
● |
|
| |
8 |
05.544 YOKE; FLANGE,PROP SHAFT
4JJ1-TCS ENG(LFB)
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
D=80
|
8-97322-663-0 |
01 |
1 |
1311-1408 |
|
● |
|
| |
8 |
05.544 YOKE; FLANGE,PROP SHAFT
4JJ1-TCS ENG(LFB)
WHEEL BASE 4400MM(44W)
SMOOTHER-EX(TYPE2)(8NS)
D=80
|
8-97322-663-0 |
01 |
1 |
1311-1408 |
|
● |
|
| |
8 |
05.544 YOKE; FLANGE,PROP SHAFT
4JJ1-TCS ENG(LFB)
WHEEL BASE 4400MM(44W)
SMOOTHER-EX(TYPE2)(8NS)
D=80
|
8-97322-663-0 |
01 |
1 |
1311-1408 |
|
● |
|
| |
8 |
05.544 YOKE; FLANGE,PROP SHAFT
WHEEL BASE 3300MM(33W)
D=80
|
8-97322-663-0 |
01 |
1 |
1409- |
● |
|
|
| |
8 |
05.544 YOKE; FLANGE,PROP SHAFT
WHEEL BASE 3300MM(33W)
D=80
|
8-97322-663-0 |
01 |
1 |
1409- |
● |
|
|
| |
8 |
05.544 YOKE; FLANGE,PROP SHAFT
4JJ1-TCS ENG(LFB)
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
D=80
|
8-97322-663-0 |
01 |
1 |
1409- |
|
● |
● |
| |
8 |
05.544 YOKE; FLANGE,PROP SHAFT
4JJ1-TCS ENG(LFB)
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
D=80
|
8-97322-663-0 |
01 |
1 |
1409- |
|
● |
● |
| |
8 |
05.544 YOKE; FLANGE,PROP SHAFT
4JJ1-TCS ENG(LFB)
WHEEL BASE 4400MM(44W)
SMOOTHER-EX(TYPE2)(8NS)
D=80
|
8-97322-663-0 |
01 |
1 |
1409- |
|
● |
● |
| |
8 |
05.544 YOKE; FLANGE,PROP SHAFT
4JJ1-TCS ENG(LFB)
WHEEL BASE 4400MM(44W)
SMOOTHER-EX(TYPE2)(8NS)
D=80
|
8-97322-663-0 |
01 |
1 |
1409- |
|
● |
● |
| |
8 |
05.544 YOKE; FLANGE,PROP SHAFT
4JJ1-TCS ENG(LFB)
WHEEL BASE 4400MM(44W)
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
D=80
|
1-37211-037-4 |
01 |
1 |
1309-1408 |
|
● |
|
| |
8 |
05.544 YOKE; FLANGE,PROP SHAFT
4HK1-TCS ENG(RJS)
D=80
|
1-37211-037-4 |
01 |
1 |
1309-1408 |
|
● |
|
| |
8 |
05.544 YOKE; FLANGE,PROP SHAFT
D=80
|
1-37211-037-4 |
01 |
1 |
1309-1408 |
|
|
● |
| |
8 |
05.544 YOKE; FLANGE,PROP SHAFT
4HK1-TCS ENG(RJS)
D=80
|
1-37211-037-4 |
01 |
1 |
1409- |
|
● |
● |
| |
8 |
05.544 YOKE; FLANGE,PROP SHAFT
4JJ1-TCS ENG(LFB)
WHEEL BASE 4400MM(44W)
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
D=80
|
1-37211-037-4 |
01 |
1 |
1409- |
|
● |
|
| |
8 |
05.544 YOKE; FLANGE,PROP SHAFT
4JJ1-TCS ENG(LFB)
WHEEL BASE 4400MM(44W)
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
D=80
|
1-37211-037-4 |
02 |
1 |
1309-1408 |
|
● |
|
| |
8 |
05.544 YOKE; FLANGE,PROP SHAFT
4HK1-TCS ENG(RJS)
D=80
|
1-37211-037-4 |
02 |
1 |
1309-1408 |
|
● |
|
| |
8 |
05.544 YOKE; FLANGE,PROP SHAFT
D=80
|
1-37211-037-4 |
02 |
1 |
1309-1408 |
|
|
● |
| |
8 |
05.544 YOKE; FLANGE,PROP SHAFT
4JJ1-TCS ENG(LFB)
WHEEL BASE 4400MM(44W)
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
D=80
|
1-37211-037-4 |
02 |
1 |
1409- |
|
● |
● |
| |
8 |
05.544 YOKE; FLANGE,PROP SHAFT
4HK1-TCS ENG(RJS)
D=80
|
1-37211-037-4 |
02 |
1 |
1409- |
|
● |
● |
| |
9 |
05.548 JOURNAL ASM; PROP SHAFT
|
8-98033-605-1 |
02 |
1 |
1309-1310 |
● |
|
|
| |
9 |
05.548 JOURNAL ASM; PROP SHAFT
4JJ1-TCS ENG(LFB)
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
|
8-98033-605-1 |
02 |
1 |
1309-1310 |
|
● |
|
| |
9 |
05.548 JOURNAL ASM; PROP SHAFT
|
8-98033-605-1 |
02 |
1 |
1311-1408 |
● |
|
|
| |
9 |
05.548 JOURNAL ASM; PROP SHAFT
4JJ1-TCS ENG(LFB)
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
|
8-98033-605-1 |
02 |
1 |
1311-1408 |
|
● |
|
| |
9 |
05.548 JOURNAL ASM; PROP SHAFT
4JJ1-TCS ENG(LFB)
WHEEL BASE 4400MM(44W)
SMOOTHER-EX(TYPE2)(8NS)
|
8-98033-605-1 |
02 |
1 |
1311-1408 |
|
● |
|
| |
9 |
05.548 JOURNAL ASM; PROP SHAFT
|
8-98033-605-1 |
02 |
1 |
1409- |
● |
|
|
| |
9 |
05.548 JOURNAL ASM; PROP SHAFT
4JJ1-TCS ENG(LFB)
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
|
8-98033-605-1 |
02 |
1 |
1409- |
|
● |
● |
| |
9 |
05.548 JOURNAL ASM; PROP SHAFT
4JJ1-TCS ENG(LFB)
WHEEL BASE 4400MM(44W)
SMOOTHER-EX(TYPE2)(8NS)
|
8-98033-605-1 |
02 |
1 |
1409- |
|
● |
● |
| |
9 |
05.548 JOURNAL ASM; PROP SHAFT
WHEEL BASE 3300MM(33W)
|
8-98033-605-1 |
01 |
1 |
1309-1310 |
● |
|
|
| |
9 |
05.548 JOURNAL ASM; PROP SHAFT
4JJ1-TCS ENG(LFB)
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
|
8-98033-605-1 |
01 |
1 |
1309-1310 |
|
● |
|
| |
9 |
05.548 JOURNAL ASM; PROP SHAFT
WHEEL BASE 3300MM(33W)
|
8-98033-605-1 |
01 |
1 |
1311-1408 |
● |
|
|
| |
9 |
05.548 JOURNAL ASM; PROP SHAFT
4JJ1-TCS ENG(LFB)
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
|
8-98033-605-1 |
01 |
1 |
1311-1408 |
|
● |
|
| |
9 |
05.548 JOURNAL ASM; PROP SHAFT
4JJ1-TCS ENG(LFB)
WHEEL BASE 4400MM(44W)
SMOOTHER-EX(TYPE2)(8NS)
|
8-98033-605-1 |
01 |
1 |
1311-1408 |
|
● |
|
| |
9 |
05.548 JOURNAL ASM; PROP SHAFT
WHEEL BASE 3300MM(33W)
|
8-98033-605-1 |
01 |
1 |
1409- |
● |
|
|
| |
9 |
05.548 JOURNAL ASM; PROP SHAFT
4JJ1-TCS ENG(LFB)
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
|
8-98033-605-1 |
01 |
1 |
1409- |
|
● |
● |
| |
9 |
05.548 JOURNAL ASM; PROP SHAFT
4JJ1-TCS ENG(LFB)
WHEEL BASE 4400MM(44W)
SMOOTHER-EX(TYPE2)(8NS)
|
8-98033-605-1 |
01 |
1 |
1409- |
|
● |
● |
| |
9 |
05.548 JOURNAL ASM; PROP SHAFT
4JJ1-TCS ENG(LFB)
WHEEL BASE 4400MM(44W)
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
|
8-98020-789-1 |
01 |
1 |
1309-1408 |
|
● |
|
| |
9 |
05.548 JOURNAL ASM; PROP SHAFT
4HK1-TCS ENG(RJS)
|
8-98020-789-1 |
01 |
1 |
1309-1408 |
|
● |
|
| |
9 |
05.548 JOURNAL ASM; PROP SHAFT
|
8-98020-789-1 |
01 |
1 |
1309-1408 |
|
|
● |
| |
9 |
05.548 JOURNAL ASM; PROP SHAFT
4HK1-TCS ENG(RJS)
|
8-98020-789-1 |
01 |
1 |
1409- |
|
● |
● |
| |
9 |
05.548 JOURNAL ASM; PROP SHAFT
4JJ1-TCS ENG(LFB)
WHEEL BASE 4400MM(44W)
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
|
8-98020-789-1 |
01 |
1 |
1409- |
|
● |
|
| |
9 |
05.548 JOURNAL ASM; PROP SHAFT
4JJ1-TCS ENG(LFB)
WHEEL BASE 4400MM(44W)
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
|
8-98020-789-1 |
02 |
1 |
1309-1408 |
|
● |
|
| |
9 |
05.548 JOURNAL ASM; PROP SHAFT
4HK1-TCS ENG(RJS)
|
8-98020-789-1 |
02 |
1 |
1309-1408 |
|
● |
|
| |
9 |
05.548 JOURNAL ASM; PROP SHAFT
|
8-98020-789-1 |
02 |
1 |
1309-1408 |
|
|
● |
| |
9 |
05.548 JOURNAL ASM; PROP SHAFT
4JJ1-TCS ENG(LFB)
WHEEL BASE 4400MM(44W)
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
|
8-98020-789-1 |
02 |
1 |
1409- |
|
● |
● |
| |
9 |
05.548 JOURNAL ASM; PROP SHAFT
4HK1-TCS ENG(RJS)
|
8-98020-789-1 |
02 |
1 |
1409- |
|
● |
● |
| |
17 |
05.601 NIPPLE; GREASE,PROP SHAFT
08.984
(A)
PT1/8 ELBOW
|
0-90301-610-0 |
02 |
1 |
1309- |
● |
● |
● |
| |
17 |
05.601 NIPPLE; GREASE,PROP SHAFT
WHEEL BASE 3300MM(33W)
(B)
M6 STRAIGHT
|
0-90301-406-0 |
02 |
1 |
1309-1310 |
● |
|
|
| |
17 |
05.601 NIPPLE; GREASE,PROP SHAFT
4JJ1-TCS ENG(LFB)
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
(B)
M6 STRAIGHT
|
0-90301-406-0 |
02 |
1 |
1309-1310 |
|
● |
|
| |
17 |
05.601 NIPPLE; GREASE,PROP SHAFT
WHEEL BASE 3300MM(33W)
(B)
M6 STRAIGHT
|
0-90301-406-0 |
02 |
1 |
1311-1408 |
● |
|
|
| |
17 |
05.601 NIPPLE; GREASE,PROP SHAFT
4JJ1-TCS ENG(LFB)
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
(B)
M6 STRAIGHT
|
0-90301-406-0 |
02 |
1 |
1311-1408 |
|
● |
|
| |
17 |
05.601 NIPPLE; GREASE,PROP SHAFT
4JJ1-TCS ENG(LFB)
WHEEL BASE 4400MM(44W)
SMOOTHER-EX(TYPE2)(8NS)
(B)
M6 STRAIGHT
|
0-90301-406-0 |
02 |
1 |
1311-1408 |
|
● |
|
| |
17 |
05.601 NIPPLE; GREASE,PROP SHAFT
WHEEL BASE 3300MM(33W)
(B)
M6 STRAIGHT
|
0-90301-406-0 |
02 |
1 |
1409- |
● |
|
|
| |
17 |
05.601 NIPPLE; GREASE,PROP SHAFT
4JJ1-TCS ENG(LFB)
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
(B)
M6 STRAIGHT
|
0-90301-406-0 |
02 |
1 |
1409- |
|
● |
● |
| |
17 |
05.601 NIPPLE; GREASE,PROP SHAFT
4JJ1-TCS ENG(LFB)
WHEEL BASE 4400MM(44W)
SMOOTHER-EX(TYPE2)(8NS)
(B)
M6 STRAIGHT
|
0-90301-406-0 |
02 |
1 |
1409- |
|
● |
● |
| |
17 |
05.601 NIPPLE; GREASE,PROP SHAFT
WHEEL BASE 3300MM(33W)
08.984
(A)
PT1/8 ELBOW
|
0-90301-610-0 |
01 |
1 |
1309- |
● |
|
|
| |
17 |
05.601 NIPPLE; GREASE,PROP SHAFT
08.984
(A)
PT1/8 ELBOW
|
0-90301-610-0 |
01 |
1 |
1309- |
|
● |
● |
| |
20 |
05.600 BEARING ASM; CTR,PROP SHAFT
WHEEL BASE 3300MM(33W)
|
8-98033-936-0 |
01 |
1 |
1309-1310 |
● |
|
|
| |
20 |
05.600 BEARING ASM; CTR,PROP SHAFT
4JJ1-TCS ENG(LFB)
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
|
8-98033-936-0 |
01 |
1 |
1309-1310 |
|
● |
|
| |
20 |
05.600 BEARING ASM; CTR,PROP SHAFT
WHEEL BASE 3300MM(33W)
|
8-98033-936-0 |
01 |
1 |
1311-1408 |
● |
|
|
| |
20 |
05.600 BEARING ASM; CTR,PROP SHAFT
4JJ1-TCS ENG(LFB)
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
|
8-98033-936-0 |
01 |
1 |
1311-1408 |
|
● |
|
| |
20 |
05.600 BEARING ASM; CTR,PROP SHAFT
4JJ1-TCS ENG(LFB)
WHEEL BASE 4400MM(44W)
SMOOTHER-EX(TYPE2)(8NS)
|
8-98033-936-0 |
01 |
1 |
1311-1408 |
|
● |
|
| |
20 |
05.600 BEARING ASM; CTR,PROP SHAFT
WHEEL BASE 3300MM(33W)
|
8-98033-936-0 |
01 |
1 |
1409- |
● |
|
|
| |
20 |
05.600 BEARING ASM; CTR,PROP SHAFT
4JJ1-TCS ENG(LFB)
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
|
8-98033-936-0 |
01 |
1 |
1409- |
|
● |
● |
| |
20 |
05.600 BEARING ASM; CTR,PROP SHAFT
4JJ1-TCS ENG(LFB)
WHEEL BASE 4400MM(44W)
SMOOTHER-EX(TYPE2)(8NS)
|
8-98033-936-0 |
01 |
1 |
1409- |
|
● |
● |
| |
20 |
05.600 BEARING ASM; CTR,PROP SHAFT
4JJ1-TCS ENG(LFB)
WHEEL BASE 4400MM(44W)
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
|
8-98020-880-0 |
01 |
1 |
1309-1408 |
|
● |
|
| |
20 |
05.600 BEARING ASM; CTR,PROP SHAFT
4HK1-TCS ENG(RJS)
|
8-98020-880-0 |
01 |
1 |
1309-1408 |
|
● |
|
| |
20 |
05.600 BEARING ASM; CTR,PROP SHAFT
|
8-98020-880-0 |
01 |
1 |
1309-1408 |
|
|
● |
| |
20 |
05.600 BEARING ASM; CTR,PROP SHAFT
4HK1-TCS ENG(RJS)
|
8-98020-880-0 |
01 |
1 |
1409- |
|
● |
● |
| |
20 |
05.600 BEARING ASM; CTR,PROP SHAFT
4JJ1-TCS ENG(LFB)
WHEEL BASE 4400MM(44W)
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
|
8-98020-880-0 |
01 |
1 |
1409- |
|
● |
|
| |
59 |
05.586 NUT; RET TO SUPPORT
4JJ1-TCS ENG(LFB)
WHEEL BASE 4400MM(44W)
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
M30
|
8-97160-857-0 |
01 |
1 |
1309-1408 |
|
● |
|
| |
59 |
05.586 NUT; RET TO SUPPORT
4HK1-TCS ENG(RJS)
M30
|
8-97160-857-0 |
01 |
1 |
1309-1408 |
|
● |
|
| |
59 |
05.586 NUT; RET TO SUPPORT
M30
|
8-97160-857-0 |
01 |
1 |
1309-1408 |
|
|
● |
| |
59 |
05.586 NUT; RET TO SUPPORT
4HK1-TCS ENG(RJS)
M30
|
8-97160-857-0 |
01 |
1 |
1409- |
|
● |
● |
| |
59 |
05.586 NUT; RET TO SUPPORT
4JJ1-TCS ENG(LFB)
WHEEL BASE 4400MM(44W)
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
M30
|
8-97160-857-0 |
01 |
1 |
1409- |
|
● |
|
| |
89 |
05.586 NUT; YOKE TO RR AXLE
M12
|
8-97365-450-1 |
08 |
1 |
1309- |
● |
● |
● |
| |
89 |
05.586 NUT; YOKE TO RR AXLE
4HK1-TCS ENG(RJS)
M12
|
8-97365-450-0 |
04 |
1 |
1309-1405 |
|
● |
|
| |
89 |
05.586 NUT; YOKE TO RR AXLE
M12
|
8-97365-450-0 |
04 |
1 |
1309-1405 |
|
|
● |
| |
89 |
05.586 NUT; YOKE TO RR AXLE
4JJ1-TCS ENG(LFB)
WHEEL BASE 4400MM(44W)
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
M12
|
8-97365-450-1 |
04 |
1 |
1406-1408 |
|
● |
|
| |
89 |
05.586 NUT; YOKE TO RR AXLE
4HK1-TCS ENG(RJS)
M12
|
8-97365-450-1 |
04 |
1 |
1406-1408 |
|
● |
|
| |
89 |
05.586 NUT; YOKE TO RR AXLE
M12
|
8-97365-450-1 |
04 |
1 |
1406-1408 |
|
|
● |
| |
89 |
05.586 NUT; YOKE TO RR AXLE
4HK1-TCS ENG(RJS)
M12
|
8-97365-450-1 |
04 |
1 |
1409- |
|
● |
● |
| |
89 |
05.586 NUT; YOKE TO RR AXLE
4JJ1-TCS ENG(LFB)
WHEEL BASE 4400MM(44W)
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
M12
|
8-97365-450-1 |
04 |
1 |
1409- |
|
● |
|
| |
90 |
05.586 WASHER; LK,YOKE TO RR AXLE
07.347
ID=12.2
|
0-91510-812-0 |
08 |
1 |
1309- |
● |
● |
● |
| |
90 |
05.586 WASHER; LK,YOKE TO RR AXLE
4HK1-TCS ENG(RJS)
07.347
ID=12.2
|
0-91510-812-0 |
04 |
1 |
1309-1405 |
|
● |
|
| |
90 |
05.586 WASHER; LK,YOKE TO RR AXLE
07.347
ID=12.2
|
0-91510-812-0 |
04 |
1 |
1309-1405 |
|
|
● |
| |
90 |
05.586 WASHER; LK,YOKE TO RR AXLE
4JJ1-TCS ENG(LFB)
WHEEL BASE 4400MM(44W)
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
07.347
ID=12.2
|
0-91510-812-0 |
04 |
1 |
1406-1408 |
|
● |
|
| |
90 |
05.586 WASHER; LK,YOKE TO RR AXLE
4HK1-TCS ENG(RJS)
07.347
ID=12.2
|
0-91510-812-0 |
04 |
1 |
1406-1408 |
|
● |
|
| |
90 |
05.586 WASHER; LK,YOKE TO RR AXLE
07.347
ID=12.2
|
0-91510-812-0 |
04 |
1 |
1406-1408 |
|
|
● |
| |
90 |
05.586 WASHER; LK,YOKE TO RR AXLE
4HK1-TCS ENG(RJS)
07.347
ID=12.2
|
0-91510-812-0 |
04 |
1 |
1409- |
|
● |
● |
| |
90 |
05.586 WASHER; LK,YOKE TO RR AXLE
4JJ1-TCS ENG(LFB)
WHEEL BASE 4400MM(44W)
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
07.347
ID=12.2
|
0-91510-812-0 |
04 |
1 |
1409- |
|
● |
|
| |
120 |
05.586 BOLT; YOKE TO RR AXLE
M12X35
|
8-97365-451-0 |
04 |
1 |
1309-1405 |
● |
● |
● |
| |
120 |
05.586 BOLT; YOKE TO RR AXLE
M12X35
|
8-97365-451-0 |
04 |
1 |
1309-1405 |
|
|
● |
| |
120 |
05.586 BOLT; YOKE TO RR AXLE
M12X35
|
8-97365-451-1 |
04 |
1 |
1406-1408 |
● |
● |
● |
| |
120 |
05.586 BOLT; YOKE TO RR AXLE
4JJ1-TCS ENG(LFB)
WHEEL BASE 4400MM(44W)
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
M12X35
|
8-97365-451-1 |
04 |
1 |
1406-1408 |
|
● |
|
| |
120 |
05.586 BOLT; YOKE TO RR AXLE
4HK1-TCS ENG(RJS)
M12X35
|
8-97365-451-1 |
04 |
1 |
1406-1408 |
|
● |
|
| |
120 |
05.586 BOLT; YOKE TO RR AXLE
M12X35
|
8-97365-451-1 |
04 |
1 |
1406-1408 |
|
|
● |
| |
120 |
05.586 BOLT; YOKE TO RR AXLE
M12X35
|
8-97365-451-1 |
04 |
1 |
1409- |
● |
● |
● |
| |
120 |
05.586 BOLT; YOKE TO RR AXLE
4JJ1-TCS ENG(LFB)
WHEEL BASE 4400MM(44W)
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
M12X35
|
8-97365-451-1 |
04 |
1 |
1409- |
|
● |
● |
| |
120 |
05.586 BOLT; YOKE TO RR AXLE
4HK1-TCS ENG(RJS)
M12X35
|
8-97365-451-1 |
04 |
1 |
1409- |
|
● |
● |
| |
121 |
05.598 RETAINER; CUSHION RUBBER
WHEEL BASE 3300MM(33W)
|
8-97035-623-1 |
01 |
1 |
1309- |
● |
|
|
| |
121 |
05.598 RETAINER; CUSHION RUBBER
|
8-97035-623-1 |
01 |
1 |
1309- |
|
● |
● |
| |
123 |
05.601 BOLT; RET
WHEEL BASE 3300MM(33W)
M10X25 W/LK&PL WASHER
|
0-50641-025-0 |
04 |
1 |
1309- |
● |
|
|
| |
123 |
05.601 BOLT; RET
M10X25 W/LK&PL WASHER
|
0-50641-025-0 |
04 |
1 |
1309- |
|
● |
● |
| |
125 |
05.545 YOKE ASM; SPLINED,PROP SHAFT
WHEEL BASE 2700MM(27W)
L=246
|
8-98034-338-1 |
01 |
1 |
1309- |
● |
|
|
| |
125 |
05.545 YOKE ASM; SPLINED,PROP SHAFT
WHEEL BASE 3300MM(33W)
L=183
|
8-98033-647-2 |
01 |
1 |
1309-1310 |
● |
|
|
| |
125 |
05.545 YOKE ASM; SPLINED,PROP SHAFT
4JJ1-TCS ENG(LFB)
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
L=183
|
8-98033-647-2 |
01 |
1 |
1309-1310 |
|
● |
|
| |
125 |
05.545 YOKE ASM; SPLINED,PROP SHAFT
WHEEL BASE 3300MM(33W)
L=183
|
8-98033-647-2 |
01 |
1 |
1311-1408 |
● |
|
|
| |
125 |
05.545 YOKE ASM; SPLINED,PROP SHAFT
4JJ1-TCS ENG(LFB)
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
L=183
|
8-98033-647-2 |
01 |
1 |
1311-1408 |
|
● |
|
| |
125 |
05.545 YOKE ASM; SPLINED,PROP SHAFT
4JJ1-TCS ENG(LFB)
WHEEL BASE 4400MM(44W)
SMOOTHER-EX(TYPE2)(8NS)
L=183
|
8-98033-647-2 |
01 |
1 |
1311-1408 |
|
● |
|
| |
125 |
05.545 YOKE ASM; SPLINED,PROP SHAFT
WHEEL BASE 3300MM(33W)
L=183
|
8-98033-647-2 |
01 |
1 |
1409- |
● |
|
|
| |
125 |
05.545 YOKE ASM; SPLINED,PROP SHAFT
4JJ1-TCS ENG(LFB)
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
L=183
|
8-98033-647-2 |
01 |
1 |
1409- |
|
● |
● |
| |
125 |
05.545 YOKE ASM; SPLINED,PROP SHAFT
4JJ1-TCS ENG(LFB)
WHEEL BASE 4400MM(44W)
SMOOTHER-EX(TYPE2)(8NS)
L=183
|
8-98033-647-2 |
01 |
1 |
1409- |
|
● |
● |
| |
125 |
05.545 YOKE ASM; SPLINED,PROP SHAFT
4JJ1-TCS ENG(LFB)
WHEEL BASE 4400MM(44W)
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
L=224
|
8-98044-229-0 |
01 |
1 |
1309-1408 |
|
● |
|
| |
125 |
05.545 YOKE ASM; SPLINED,PROP SHAFT
4HK1-TCS ENG(RJS)
L=224
|
8-98044-229-0 |
01 |
1 |
1309-1408 |
|
● |
|
| |
125 |
05.545 YOKE ASM; SPLINED,PROP SHAFT
L=224
|
8-98044-229-0 |
01 |
1 |
1309-1408 |
|
|
● |
| |
125 |
05.545 YOKE ASM; SPLINED,PROP SHAFT
4JJ1-TCS ENG(LFB)
WHEEL BASE 4400MM(44W)
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
L=224
|
8-98044-229-0 |
01 |
1 |
1409- |
|
● |
● |
| |
125 |
05.545 YOKE ASM; SPLINED,PROP SHAFT
4HK1-TCS ENG(RJS)
L=224
|
8-98044-229-0 |
01 |
1 |
1409- |
|
● |
● |
| |
126 |
05.556 PLUG; SPLINED YOKE
(B)
|
8-94366-900-0 |
01 |
1 |
1309- |
● |
● |
● |
| |
126 |
05.556 PLUG; SPLINED YOKE
(A)
|
1-09600-023-0 |
01 |
1 |
1309-1310 |
● |
● |
● |
| |
126 |
05.556 PLUG; SPLINED YOKE
4JJ1-TCS ENG(LFB)
WHEEL BASE 4400MM(44W)
(A)
|
1-09600-023-0 |
01 |
1 |
1309-1310 |
|
● |
|
| |
126 |
05.556 PLUG; SPLINED YOKE
4HK1-TCS ENG(RJS)
(A)
|
1-09600-023-0 |
01 |
1 |
1309-1310 |
|
● |
|
| |
126 |
05.556 PLUG; SPLINED YOKE
(A)
|
1-09600-023-0 |
01 |
1 |
1309-1310 |
|
|
● |
| |
126 |
05.556 PLUG; SPLINED YOKE
(A)
|
1-09600-023-0 |
01 |
1 |
1311-1408 |
● |
● |
● |
| |
126 |
05.556 PLUG; SPLINED YOKE
4JJ1-TCS ENG(LFB)
WHEEL BASE 4400MM(44W)
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
(A)
|
1-09600-023-0 |
01 |
1 |
1311-1408 |
|
● |
|
| |
126 |
05.556 PLUG; SPLINED YOKE
4HK1-TCS ENG(RJS)
(A)
|
1-09600-023-0 |
01 |
1 |
1311-1408 |
|
● |
|
| |
126 |
05.556 PLUG; SPLINED YOKE
(A)
|
1-09600-023-0 |
01 |
1 |
1311-1408 |
|
|
● |
| |
126 |
05.556 PLUG; SPLINED YOKE
(A)
|
1-09600-023-0 |
01 |
1 |
1409- |
● |
● |
● |
| |
126 |
05.556 PLUG; SPLINED YOKE
4JJ1-TCS ENG(LFB)
WHEEL BASE 4400MM(44W)
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
(A)
|
1-09600-023-0 |
01 |
1 |
1409- |
|
● |
● |
| |
126 |
05.556 PLUG; SPLINED YOKE
4HK1-TCS ENG(RJS)
(A)
|
1-09600-023-0 |
01 |
1 |
1409- |
|
● |
● |
| |
126 |
05.556 PLUG; SPLINED YOKE
WHEEL BASE 3300MM(33W)
(A)
|
1-09600-023-0 |
02 |
1 |
1309-1310 |
● |
|
|
| |
126 |
05.556 PLUG; SPLINED YOKE
4JJ1-TCS ENG(LFB)
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
(A)
|
1-09600-023-0 |
02 |
1 |
1309-1310 |
|
● |
|
| |
126 |
05.556 PLUG; SPLINED YOKE
WHEEL BASE 3300MM(33W)
(A)
|
1-09600-023-0 |
02 |
1 |
1311-1408 |
● |
|
|
| |
126 |
05.556 PLUG; SPLINED YOKE
4JJ1-TCS ENG(LFB)
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
(A)
|
1-09600-023-0 |
02 |
1 |
1311-1408 |
|
● |
|
| |
126 |
05.556 PLUG; SPLINED YOKE
4JJ1-TCS ENG(LFB)
WHEEL BASE 4400MM(44W)
SMOOTHER-EX(TYPE2)(8NS)
(A)
|
1-09600-023-0 |
02 |
1 |
1311-1408 |
|
● |
|
| |
126 |
05.556 PLUG; SPLINED YOKE
WHEEL BASE 3300MM(33W)
(A)
|
1-09600-023-0 |
02 |
1 |
1409- |
● |
|
|
| |
126 |
05.556 PLUG; SPLINED YOKE
4JJ1-TCS ENG(LFB)
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
(A)
|
1-09600-023-0 |
02 |
1 |
1409- |
|
● |
● |
| |
126 |
05.556 PLUG; SPLINED YOKE
4JJ1-TCS ENG(LFB)
WHEEL BASE 4400MM(44W)
SMOOTHER-EX(TYPE2)(8NS)
(A)
|
1-09600-023-0 |
02 |
1 |
1409- |
|
● |
● |
| |
127 |
05.586 NIPPLE; GREASE,SPLINED YOKE
WHEEL BASE 2700MM(27W)
05.601
M6 STRAIGHT
|
0-90301-406-0 |
01 |
1 |
1309-1310 |
● |
|
|
| |
127 |
05.586 NIPPLE; GREASE,SPLINED YOKE
4HK1-TCS ENG(RJS)
05.601
M6 STRAIGHT
|
0-90301-406-0 |
01 |
1 |
1309-1310 |
|
● |
● |
| |
127 |
05.586 NIPPLE; GREASE,SPLINED YOKE
4JJ1-TCS ENG(LFB)
WHEEL BASE 4400MM(44W)
05.601
M6 STRAIGHT
|
0-90301-406-0 |
01 |
1 |
1309-1310 |
|
● |
|
| |
127 |
05.586 NIPPLE; GREASE,SPLINED YOKE
WHEEL BASE 2700MM(27W)
05.601
M6 STRAIGHT
|
0-90301-406-0 |
01 |
1 |
1311-1408 |
● |
|
|
| |
127 |
05.586 NIPPLE; GREASE,SPLINED YOKE
4HK1-TCS ENG(RJS)
05.601
M6 STRAIGHT
|
0-90301-406-0 |
01 |
1 |
1311-1408 |
|
● |
● |
| |
127 |
05.586 NIPPLE; GREASE,SPLINED YOKE
4JJ1-TCS ENG(LFB)
WHEEL BASE 4400MM(44W)
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
05.601
M6 STRAIGHT
|
0-90301-406-0 |
01 |
1 |
1311-1408 |
|
● |
|
| |
127 |
05.586 NIPPLE; GREASE,SPLINED YOKE
WHEEL BASE 2700MM(27W)
05.601
M6 STRAIGHT
|
0-90301-406-0 |
01 |
1 |
1409- |
● |
|
|
| |
127 |
05.586 NIPPLE; GREASE,SPLINED YOKE
4JJ1-TCS ENG(LFB)
WHEEL BASE 4400MM(44W)
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
05.601
M6 STRAIGHT
|
0-90301-406-0 |
01 |
1 |
1409- |
|
● |
● |
| |
127 |
05.586 NIPPLE; GREASE,SPLINED YOKE
4HK1-TCS ENG(RJS)
05.601
M6 STRAIGHT
|
0-90301-406-0 |
01 |
1 |
1409- |
|
● |
● |
| |
128 |
05.586 SEAL; SLEEVE
WHEEL BASE 2700MM(27W)
|
8-97145-746-0 |
01 |
1 |
1309-1310 |
● |
|
|
| |
128 |
05.586 SEAL; SLEEVE
4HK1-TCS ENG(RJS)
|
8-97145-746-0 |
01 |
1 |
1309-1310 |
|
● |
● |
| |
128 |
05.586 SEAL; SLEEVE
4JJ1-TCS ENG(LFB)
WHEEL BASE 4400MM(44W)
|
8-97145-746-0 |
01 |
1 |
1309-1310 |
|
● |
|
| |
128 |
05.586 SEAL; SLEEVE
WHEEL BASE 2700MM(27W)
|
8-97145-746-0 |
01 |
1 |
1311-1408 |
● |
|
|
| |
128 |
05.586 SEAL; SLEEVE
4HK1-TCS ENG(RJS)
|
8-97145-746-0 |
01 |
1 |
1311-1408 |
|
● |
● |
| |
128 |
05.586 SEAL; SLEEVE
4JJ1-TCS ENG(LFB)
WHEEL BASE 4400MM(44W)
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
|
8-97145-746-0 |
01 |
1 |
1311-1408 |
|
● |
|
| |
128 |
05.586 SEAL; SLEEVE
WHEEL BASE 2700MM(27W)
|
8-97145-746-0 |
01 |
1 |
1409- |
● |
|
|
| |
128 |
05.586 SEAL; SLEEVE
4JJ1-TCS ENG(LFB)
WHEEL BASE 4400MM(44W)
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
|
8-97145-746-0 |
01 |
1 |
1409- |
|
● |
● |
| |
128 |
05.586 SEAL; SLEEVE
4HK1-TCS ENG(RJS)
|
8-97145-746-0 |
01 |
1 |
1409- |
|
● |
● |
| |
226 |
05.586 PLATE; LK,CENTER BRG
WHEEL BASE 3300MM(33W)
|
8-97371-572-0 |
02 |
1 |
1309- |
● |
|
|
| |
226 |
05.586 PLATE; LK,CENTER BRG
|
8-97371-572-0 |
02 |
1 |
1309- |
|
● |
● |
| |

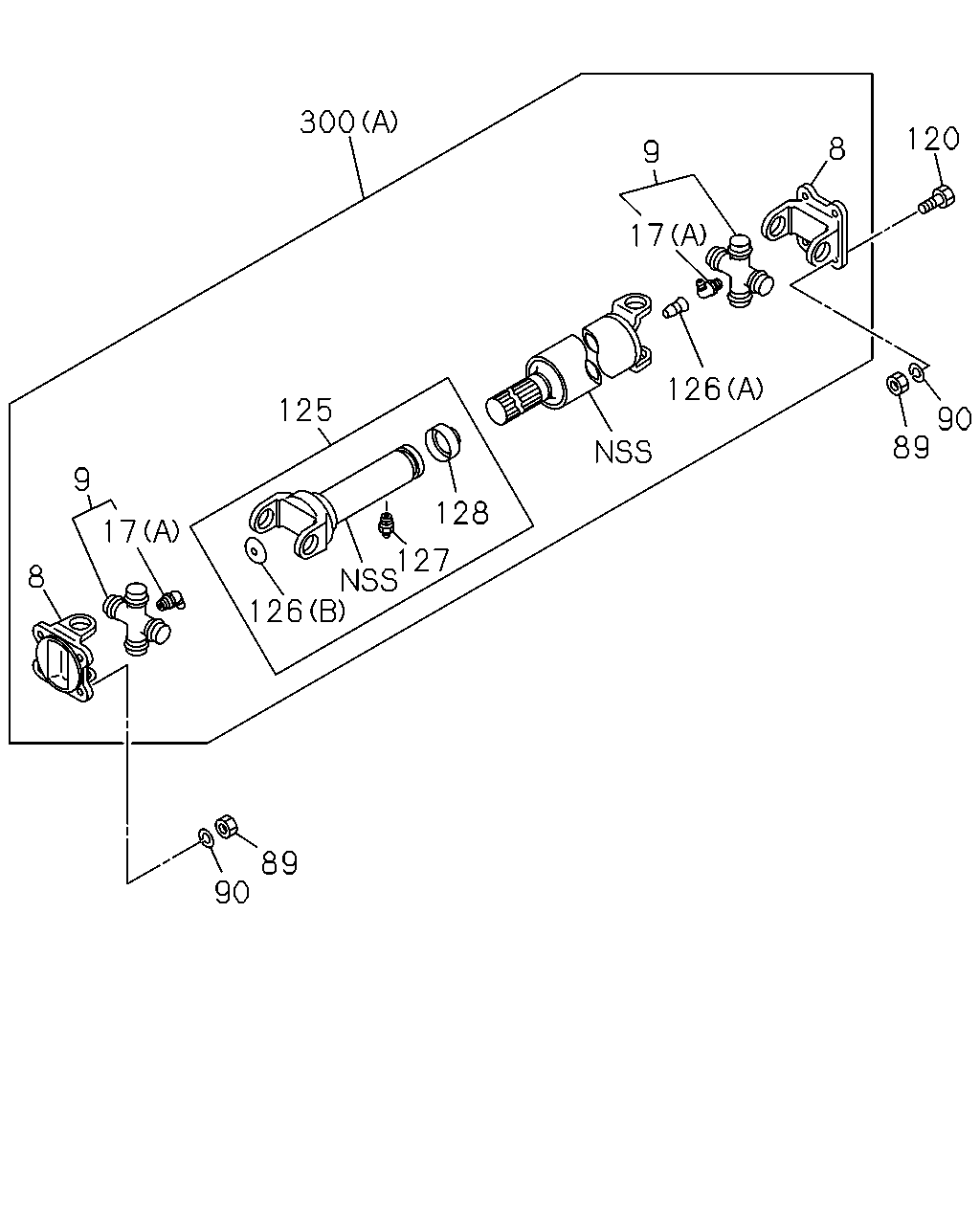

300 |
05.544 SHAFT ASM; PROP,RR
4JJ1-TCS ENG(LFB)
M/T MYY5A(RSL)
WHEEL BASE 2700MM(27W)
SMOOTHER-EX(TYPE2)(8NS)
(A)
L=1179
|
8-97387-790-3 |
01 |
1 |
1311-1401 |
● |
|
|
| |
300 |
05.544 SHAFT ASM; PROP,RR
4JJ1-TCS ENG(LFB)
M/T MYY5A(RSL)
WHEEL BASE 2700MM(27W)
SMOOTHER-EX(TYPE2)(8NS)
(A)
L=1179
|
8-97387-790-3 |
01 |
1 |
1402- |
● |
|
|
| |
300 |
05.544 SHAFT ASM; PROP,RR
4JJ1-TCC ENG(RDU)
M/T MYY5T(RSM)
WHEEL BASE 2700MM(27W)
SMOOTHER-EX(TYPE2)(8NS)
(A)
L=1179
|
8-97387-790-3 |
01 |
1 |
1402- |
● |
|
|
| |

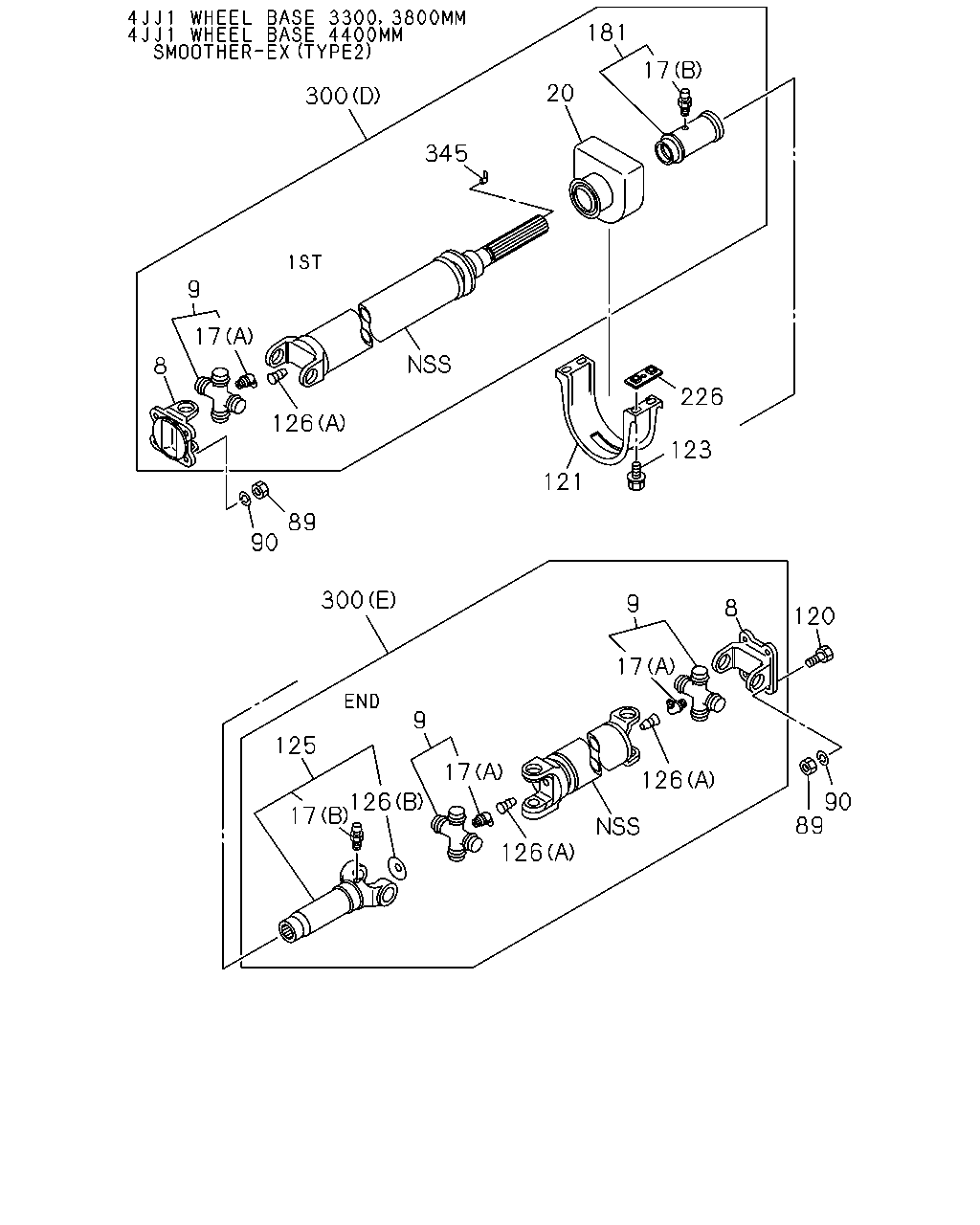

300 |
05.544 SHAFT ASM; PROP,RR
4JJ1-TCS ENG(LFB)
M/T MYY5A(RSL)
WHEEL BASE 3300MM(33W)
SMOOTHER-EX(TYPE2)(8NS)
(D)
L=770
|
8-98039-637-1 |
01 |
1 |
1311-1401 |
● |
● |
|
| |
300 |
05.544 SHAFT ASM; PROP,RR
4JJ1-TCS ENG(LFB)
M/T MYY5A(RSL)
WHEEL BASE 3300MM(33W)
SMOOTHER-EX(TYPE2)(8NS)
(D)
L=770
|
8-98039-637-1 |
01 |
1 |
1402- |
● |
● |
|
| |
300 |
05.544 SHAFT ASM; PROP,RR
4JJ1-TCC ENG(RDU)
M/T MYY5T(RSM)
WHEEL BASE 3300MM(33W)
SMOOTHER-EX(TYPE2)(8NS)
(D)
L=770
|
8-98039-637-1 |
01 |
1 |
1402- |
● |
|
|
| |
300 |
05.544 SHAFT ASM; PROP,RR
4JJ1-TCS ENG(LFB)
M/T MYY6S(RST)
WHEEL BASE 3300MM(33W)
SMOOTHER-EX(TYPE2)(8NS)
(D)
L=715
|
8-98039-638-1 |
01 |
1 |
1311-1408 |
|
● |
|
| |
300 |
05.544 SHAFT ASM; PROP,RR
4JJ1-TCS ENG(LFB)
M/T MYY6S(RST)
WHEEL BASE 3300MM(33W)
SMOOTHER-EX(TYPE2)(8NS)
(D)
L=715
|
8-98039-638-1 |
01 |
1 |
1409- |
|
● |
● |
| |
300 |
05.544 SHAFT ASM; PROP,RR
4JJ1-TCS ENG(LFB)
M/T MYY6S(RST)
WHEEL BASE 3800MM(38W)
SMOOTHER-EX(TYPE2)(8NS)
(D)
L=1155
|
8-98039-640-1 |
01 |
1 |
1311-1408 |
|
● |
|
| |
300 |
05.544 SHAFT ASM; PROP,RR
4JJ1-TCS ENG(LFB)
M/T MYY6S(RST)
WHEEL BASE 3800MM(38W)
SMOOTHER-EX(TYPE2)(8NS)
(D)
L=1155
|
8-98039-640-1 |
01 |
1 |
1409- |
|
● |
● |
| |
300 |
05.544 SHAFT ASM; PROP,RR
4JJ1-TCS ENG(LFB)
M/T MYY6S(RST)
WHEEL BASE 4400MM(44W)
SMOOTHER-EX(TYPE2)(8NS)
(D)
L=1390
|
8-98207-865-0 |
01 |
1 |
1311-1408 |
|
● |
|
| |
300 |
05.544 SHAFT ASM; PROP,RR
4JJ1-TCS ENG(LFB)
M/T MYY6S(RST)
WHEEL BASE 4400MM(44W)
SMOOTHER-EX(TYPE2)(8NS)
(D)
L=1390
|
8-98207-865-0 |
01 |
1 |
1409- |
|
● |
● |
| |
300 |
05.544 SHAFT ASM; PROP,RR
4JJ1-TCS ENG(LFB)
M/T MYY6S(RST)
REAR AXLE HEAVY DUTY 320MM(6CP)
WHEEL BASE 3300MM(33W)
FRAME STRAIGHT TYPE<7KJ>
SMOOTHER-EX(TYPE2)(8NS)
(E)
L=1026
|
8-98113-045-2 |
01 |
1 |
1311-1408 |
|
● |
|
| |
300 |
05.544 SHAFT ASM; PROP,RR
4JJ1-TCS ENG(LFB)
M/T MYY6S(RST)
REAR AXLE HEAVY DUTY 320MM(6CP)
WHEEL BASE 3300MM(33W)
FRAME STRAIGHT TYPE<7KJ>
SMOOTHER-EX(TYPE2)(8NS)
(E)
L=1026
|
8-98113-045-2 |
01 |
1 |
1409- |
|
● |
● |
| |
300 |
05.544 SHAFT ASM; PROP,RR
4JJ1-TCS ENG(LFB)
M/T MYY6S(RST)
REAR AXLE HEAVY DUTY 320MM(6CP)
WHEEL BASE 4400MM(44W)
FRAME STRAIGHT TYPE<7KJ>
SMOOTHER-EX(TYPE2)(8NS)
(E)
L=1456
|
8-98207-866-0 |
01 |
1 |
1311-1408 |
|
● |
|
| |
300 |
05.544 SHAFT ASM; PROP,RR
4JJ1-TCS ENG(LFB)
M/T MYY6S(RST)
REAR AXLE HEAVY DUTY 320MM(6CP)
WHEEL BASE 4400MM(44W)
FRAME STRAIGHT TYPE<7KJ>
SMOOTHER-EX(TYPE2)(8NS)
(E)
L=1456
|
8-98207-866-0 |
01 |
1 |
1409- |
|
● |
● |
| |
300 |
05.544 SHAFT ASM; PROP,RR
WHEEL BASE 2700MM(27W)
(A)
L=1254
|
8-97387-791-3 |
01 |
1 |
1309-1310 |
● |
|
|
| |
300 |
05.544 SHAFT ASM; PROP,RR
4JJ1-TCS ENG(LFB)
M/T MYY5A(RSL)
WHEEL BASE 2700MM(27W)
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
(A)
L=1254
|
8-97387-791-3 |
01 |
1 |
1311- |
● |
|
|
| |
300 |
05.544 SHAFT ASM; PROP,RR
4JJ1-TCC ENG(RDU)
M/T MYY5T(RSM)
WHEEL BASE 2700MM(27W)
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
(A)
L=1254
|
8-97387-791-3 |
01 |
1 |
1311- |
● |
|
|
| |
300 |
05.544 SHAFT ASM; PROP,RR
4JJ1-TCS ENG(LFB)
M/T MYY5A(RSL)
WHEEL BASE 3300MM(33W)
(D)
L=845
|
8-98039-649-1 |
01 |
1 |
1309-1310 |
● |
|
|
| |
300 |
05.544 SHAFT ASM; PROP,RR
4JJ1-TCS ENG(LFB)
M/T MYY5A(RSL)
WHEEL BASE 3300MM(33W)
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
(D)
L=845
|
8-98039-649-1 |
01 |
1 |
1309-1310 |
|
● |
|
| |
300 |
05.544 SHAFT ASM; PROP,RR
4JJ1-TCS ENG(LFB)
M/T MYY5A(RSL)
WHEEL BASE 3300MM(33W)
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
(D)
L=845
|
8-98039-649-1 |
01 |
1 |
1311- |
● |
● |
|
| |
300 |
05.544 SHAFT ASM; PROP,RR
4JJ1-TCC ENG(RDU)
M/T MYY5T(RSM)
WHEEL BASE 3300MM(33W)
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
(D)
L=845
|
8-98039-649-1 |
01 |
1 |
1311- |
● |
|
|
| |
300 |
05.544 SHAFT ASM; PROP,RR
4JJ1-TCS ENG(LFB)
M/T MYY5A(RSL)
WHEEL BASE 3300MM(33W)
(E)
L=1066
|
8-97387-806-4 |
01 |
1 |
1309-1310 |
● |
|
|
| |
300 |
05.544 SHAFT ASM; PROP,RR
4JJ1-TCS ENG(LFB)
M/T MYY5A(RSL),M/T MYY6S(RST)
REAR AXLE HEAVY DUTY 292MM(G73)
WHEEL BASE 3300MM(33W)
EXC. FRAME STRAIGHT TYPE<7KJ>
(E)
L=1066
|
8-97387-806-4 |
01 |
1 |
1309-1310 |
|
● |
|
| |
300 |
05.544 SHAFT ASM; PROP,RR
4JJ1-TCS ENG(LFB)
M/T MYY5A(RSL)
WHEEL BASE 3300MM(33W)
(E)
L=1066
|
8-97387-806-4 |
01 |
1 |
1311-1408 |
● |
|
|
| |
300 |
05.544 SHAFT ASM; PROP,RR
4JJ1-TCC ENG(RDU)
M/T MYY5T(RSM)
WHEEL BASE 3300MM(33W)
(E)
L=1066
|
8-97387-806-4 |
01 |
1 |
1311-1408 |
● |
|
|
| |
300 |
05.544 SHAFT ASM; PROP,RR
4JJ1-TCS ENG(LFB)
M/T MYY5A(RSL),M/T MYY6S(RST)
REAR AXLE HEAVY DUTY 292MM(G73)
WHEEL BASE 3300MM(33W)
EXC. FRAME STRAIGHT TYPE<7KJ>
(E)
L=1066
|
8-97387-806-4 |
01 |
1 |
1311-1408 |
|
● |
|
| |
300 |
05.544 SHAFT ASM; PROP,RR
4JJ1-TCS ENG(LFB)
M/T MYY5A(RSL)
WHEEL BASE 3300MM(33W)
(E)
L=1066
|
8-97387-806-4 |
01 |
1 |
1409- |
● |
|
|
| |
300 |
05.544 SHAFT ASM; PROP,RR
4JJ1-TCC ENG(RDU)
M/T MYY5T(RSM)
WHEEL BASE 3300MM(33W)
(E)
L=1066
|
8-97387-806-4 |
01 |
1 |
1409- |
● |
|
|
| |
300 |
05.544 SHAFT ASM; PROP,RR
4JJ1-TCS ENG(LFB)
M/T MYY5A(RSL),M/T MYY6S(RST)
REAR AXLE HEAVY DUTY 292MM(G73)
WHEEL BASE 3300MM(33W)
EXC. FRAME STRAIGHT TYPE<7KJ>
(E)
L=1066
|
8-97387-806-4 |
01 |
1 |
1409- |
|
● |
|
| |
300 |
05.544 SHAFT ASM; PROP,RR
4JJ1-TCS ENG(LFB)
M/T MYY6S(RST)
REAR AXLE HEAVY DUTY 292MM(G73)
WHEEL BASE 3300MM(33W)
EXC. FRAME STRAIGHT TYPE<7KJ>
(E)
L=1066
|
8-97387-806-4 |
01 |
1 |
1409- |
|
|
● |
| |
300 |
05.544 SHAFT ASM; PROP,RR
4JJ1-TCS ENG(LFB)
M/T MYY6S(RST)
REAR AXLE HEAVY DUTY 292MM(G73)
WHEEL BASE 3800MM(38W)
EXC. FRAME STRAIGHT TYPE<7KJ>
(E)
L=1076
|
8-97383-854-4 |
01 |
1 |
1309-1408 |
|
● |
|
| |
300 |
05.544 SHAFT ASM; PROP,RR
4JJ1-TCS ENG(LFB)
M/T MYY6S(RST)
REAR AXLE HEAVY DUTY 292MM(G73)
WHEEL BASE 3800MM(38W)
EXC. FRAME STRAIGHT TYPE<7KJ>
(E)
L=1076
|
8-97383-854-4 |
01 |
1 |
1409- |
|
● |
● |
| |
300 |
05.544 SHAFT ASM; PROP,RR
4JJ1-TCS ENG(LFB)
M/T MYY6S(RST)
WHEEL BASE 3300MM(33W)
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
(D)
L=785
|
8-98039-655-1 |
01 |
1 |
1309-1408 |
|
● |
|
| |
300 |
05.544 SHAFT ASM; PROP,RR
4JJ1-TCS ENG(LFB)
M/T MYY6S(RST)
WHEEL BASE 3300MM(33W)
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
(D)
L=785
|
8-98039-655-1 |
01 |
1 |
1409- |
|
● |
● |
| |
300 |
05.544 SHAFT ASM; PROP,RR
4JJ1-TCS ENG(LFB)
M/T MYY6S(RST)
WHEEL BASE 3800MM(38W)
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
(D)
L=1225
|
8-98039-641-1 |
01 |
1 |
1309-1408 |
|
● |
|
| |
300 |
05.544 SHAFT ASM; PROP,RR
4JJ1-TCS ENG(LFB)
M/T MYY6S(RST)
WHEEL BASE 3800MM(38W)
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
(D)
L=1225
|
8-98039-641-1 |
01 |
1 |
1409- |
|
● |
● |
| |

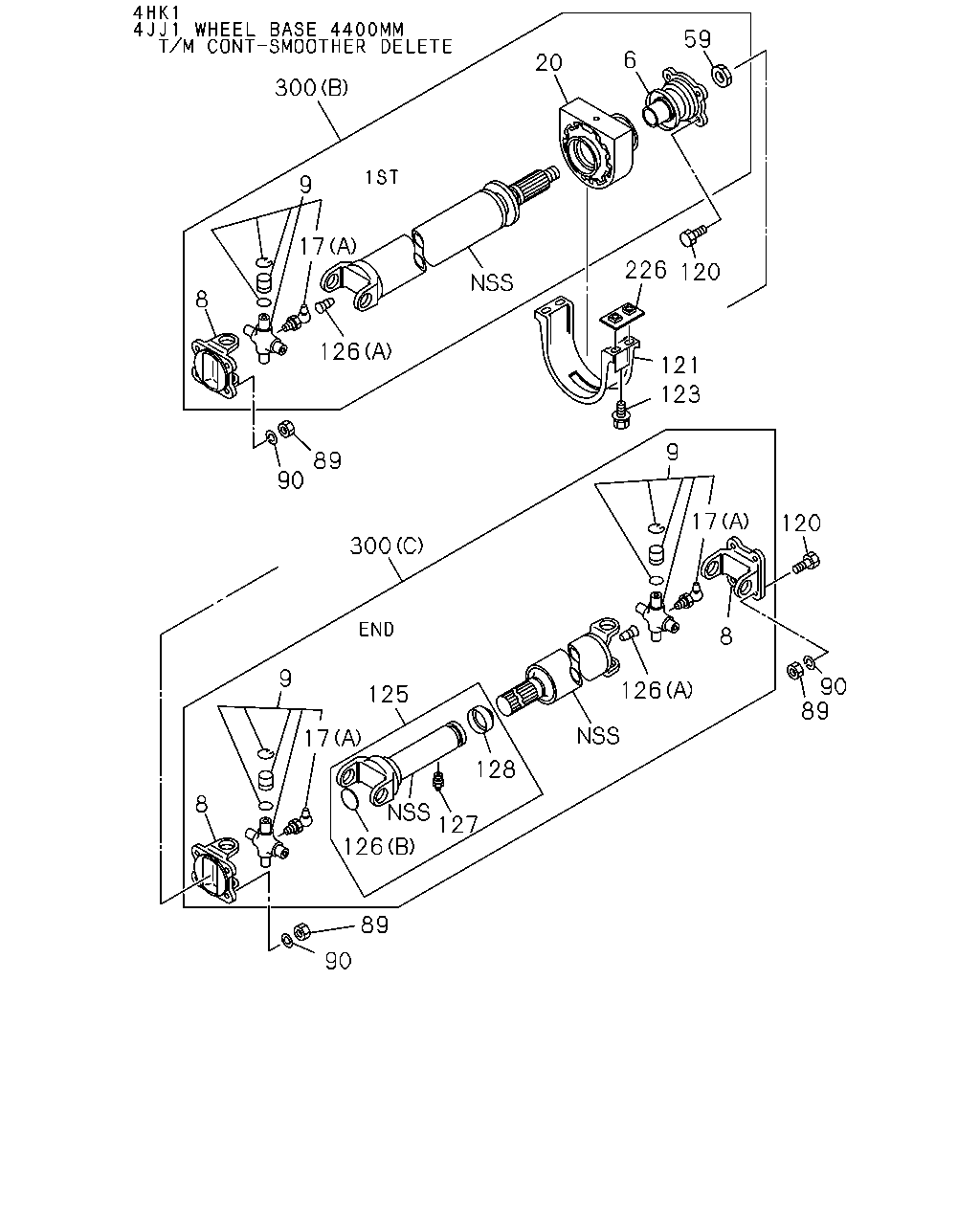

300 |
05.544 SHAFT ASM; PROP,RR
4JJ1-TCS ENG(LFB)
M/T MYY6S(RST)
WHEEL BASE 4400MM(44W)
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
(B)
L=1412
|
8-98239-746-0 |
01 |
1 |
1309-1408 |
|
● |
|
| |
300 |
05.544 SHAFT ASM; PROP,RR
4JJ1-TCS ENG(LFB)
M/T MYY6S(RST)
WHEEL BASE 4400MM(44W)
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
(B)
L=1412
|
8-98239-746-0 |
01 |
1 |
1409- |
|
● |
● |
| |
300 |
05.544 SHAFT ASM; PROP,RR
4JJ1-TCS ENG(LFB)
M/T MYY6S(RST)
REAR AXLE HEAVY DUTY 320MM(6CP)
WHEEL BASE 3300MM(33W)
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
(E)
L=1031
|
8-98107-139-2 |
01 |
1 |
1309-1408 |
|
● |
|
| |
300 |
05.544 SHAFT ASM; PROP,RR
4JJ1-TCS ENG(LFB)
M/T MYY6S(RST)
REAR AXLE HEAVY DUTY 320MM(6CP)
WHEEL BASE 3300MM(33W)
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
(E)
L=1031
|
8-98107-139-2 |
01 |
1 |
1409- |
|
● |
● |
| |
300 |
05.544 SHAFT ASM; PROP,RR
4JJ1-TCS ENG(LFB)
M/T MYY6S(RST)
REAR AXLE HEAVY DUTY 320MM(6CP)
WHEEL BASE 3800MM(38W)
FRAME STRAIGHT TYPE<7KJ>
(E)
L=1036
|
8-98107-140-2 |
01 |
1 |
1309-1408 |
|
● |
|
| |
300 |
05.544 SHAFT ASM; PROP,RR
4JJ1-TCS ENG(LFB)
M/T MYY6S(RST)
REAR AXLE HEAVY DUTY 320MM(6CP)
WHEEL BASE 3800MM(38W)
FRAME STRAIGHT TYPE<7KJ>
(E)
L=1036
|
8-98107-140-2 |
01 |
1 |
1409- |
|
● |
● |
| |
300 |
05.544 SHAFT ASM; PROP,RR
4JJ1-TCS ENG(LFB)
M/T MYY6S(RST)
REAR AXLE HEAVY DUTY 320MM(6CP)
WHEEL BASE 4400MM(44W)
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
(C)
L=1436
|
8-98111-010-1 |
01 |
1 |
1309-1408 |
|
● |
|
| |
300 |
05.544 SHAFT ASM; PROP,RR
4JJ1-TCS ENG(LFB)
M/T MYY6S(RST)
REAR AXLE HEAVY DUTY 320MM(6CP)
WHEEL BASE 4400MM(44W)
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
(C)
L=1436
|
8-98111-010-1 |
01 |
1 |
1409- |
|
● |
● |
| |
300 |
05.544 SHAFT ASM; PROP,RR
4HK1-TCS ENG(RJS)
M/T MZZ6F(RSR)
WHEEL BASE 3300MM(33W)
TRANSMISSION CONTROL-SMOOTHER(8GF)
(B)
L=627
|
8-98006-983-1 |
01 |
1 |
1309-1408 |
|
● |
|
| |
300 |
05.544 SHAFT ASM; PROP,RR
4HK1-TCS ENG(RJS)
M/T MZZ6F(RSR)
WHEEL BASE 3300MM(33W)
TRANSMISSION CONTROL-SMOOTHER(8GF)
(B)
L=627
|
8-98006-983-1 |
01 |
1 |
1409- |
|
● |
● |
| |
300 |
05.544 SHAFT ASM; PROP,RR
4HK1-TCS ENG(RJS)
M/T MZZ6F(RSR)
WHEEL BASE 3300MM(33W)
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
(B)
L=683
|
8-98006-982-1 |
01 |
1 |
1309-1408 |
|
● |
|
| |
300 |
05.544 SHAFT ASM; PROP,RR
4HK1-TCS ENG(RJS)
M/T MZZ6F(RSR)
WHEEL BASE 3300MM(33W)
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
(B)
L=683
|
8-98006-982-1 |
01 |
1 |
1409- |
|
● |
● |
| |
300 |
05.544 SHAFT ASM; PROP,RR
4HK1-TCS ENG(RJS)
M/T MZZ6F(RSR)
WHEEL BASE 3800MM(38W)
TRANSMISSION CONTROL-SMOOTHER(8GF)
(B)
L=1062
|
8-98040-528-1 |
01 |
1 |
1309-1408 |
|
● |
|
| |
300 |
05.544 SHAFT ASM; PROP,RR
4HK1-TCS ENG(RJS)
M/T MZZ6F(RSR)
WHEEL BASE 3800MM(38W)
TRANSMISSION CONTROL-SMOOTHER(8GF)
(B)
L=1062
|
8-98040-528-1 |
01 |
1 |
1409- |
|
● |
● |
| |
300 |
05.544 SHAFT ASM; PROP,RR
4HK1-TCS ENG(RJS)
M/T MZZ6F(RSR)
WHEEL BASE 3800MM(38W)
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
(B)
L=1127
|
8-98040-793-1 |
01 |
1 |
1309-1408 |
|
● |
|
| |
300 |
05.544 SHAFT ASM; PROP,RR
4HK1-TCS ENG(RJS)
M/T MZZ6F(RSR)
WHEEL BASE 3800MM(38W)
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
(B)
L=1127
|
8-98040-793-1 |
01 |
1 |
1409- |
|
● |
● |
| |
300 |
05.544 SHAFT ASM; PROP,RR
4HK1-TCS ENG(RJS)
M/T MZZ6F(RSR)
WHEEL BASE 4400MM(44W)
TRANSMISSION CONTROL-SMOOTHER(8GF)
(B)
L=1302
|
8-98040-529-1 |
01 |
1 |
1309-1408 |
|
● |
|
| |
300 |
05.544 SHAFT ASM; PROP,RR
4HK1-TCS ENG(RJS)
M/T MZZ6F(RSR)
TRANSMISSION CONTROL-SMOOTHER(8GF)
(B)
L=1302
|
8-98040-529-1 |
01 |
1 |
1309-1408 |
|
|
● |
| |
300 |
05.544 SHAFT ASM; PROP,RR
4HK1-TCS ENG(RJS)
M/T MZZ6F(RSR)
WHEEL BASE 4400MM(44W)
TRANSMISSION CONTROL-SMOOTHER(8GF)
(B)
L=1302
|
8-98040-529-1 |
01 |
1 |
1409- |
|
● |
● |
| |
300 |
05.544 SHAFT ASM; PROP,RR
4HK1-TCS ENG(RJS)
M/T MZZ6F(RSR)
WHEEL BASE 4400MM(44W)
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
(B)
L=1367
|
8-98019-423-1 |
01 |
1 |
1309-1408 |
|
● |
|
| |
300 |
05.544 SHAFT ASM; PROP,RR
4HK1-TCS ENG(RJS)
M/T MZZ6F(RSR)
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
(B)
L=1367
|
8-98019-423-1 |
01 |
1 |
1309-1408 |
|
|
● |
| |
300 |
05.544 SHAFT ASM; PROP,RR
4HK1-TCS ENG(RJS)
M/T MZZ6F(RSR)
WHEEL BASE 4400MM(44W)
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
(B)
L=1367
|
8-98019-423-1 |
01 |
1 |
1409- |
|
● |
● |
| |
300 |
05.544 SHAFT ASM; PROP,RR
4HK1-TCS ENG(RJS)
M/T MZZ6F(RSR)
REAR AXLE HEAVY DUTY 320MM(6CP)
WHEEL BASE 3300MM(33W)
FRAME STRAIGHT TYPE<7KJ>
(C)
L=1001
|
8-98024-923-1 |
01 |
1 |
1309-1408 |
|
● |
|
| |
300 |
05.544 SHAFT ASM; PROP,RR
4HK1-TCS ENG(RJS)
M/T MZZ6F(RSR)
REAR AXLE HEAVY DUTY 320MM(6CP)
WHEEL BASE 3300MM(33W)
FRAME STRAIGHT TYPE<7KJ>
(C)
L=1001
|
8-98024-923-1 |
01 |
1 |
1409- |
|
● |
● |
| |
300 |
05.544 SHAFT ASM; PROP,RR
4HK1-TCS ENG(RJS)
M/T MZZ6F(RSR)
REAR AXLE HEAVY DUTY 320MM(6CP)
WHEEL BASE 3800MM(38W)
FRAME STRAIGHT TYPE<7KJ>
(C)
L=1011
|
8-98040-477-1 |
01 |
1 |
1309-1408 |
|
● |
|
| |
300 |
05.544 SHAFT ASM; PROP,RR
4HK1-TCS ENG(RJS)
M/T MZZ6F(RSR)
REAR AXLE HEAVY DUTY 320MM(6CP)
WHEEL BASE 3800MM(38W)
FRAME STRAIGHT TYPE<7KJ>
(C)
L=1011
|
8-98040-477-1 |
01 |
1 |
1409- |
|
● |
● |
| |
300 |
05.544 SHAFT ASM; PROP,RR
4HK1-TCS ENG(RJS)
M/T MZZ6F(RSR)
REAR AXLE HEAVY DUTY 320MM(6CP)
WHEEL BASE 4400MM(44W)
FRAME STRAIGHT TYPE<7KJ>
(C)
L=1302
|
8-98024-925-1 |
01 |
1 |
1309-1408 |
|
● |
|
| |
300 |
05.544 SHAFT ASM; PROP,RR
4HK1-TCS ENG(RJS)
M/T MZZ6F(RSR)
(C)
L=1302
|
8-98024-925-1 |
01 |
1 |
1309-1408 |
|
|
● |
| |
300 |
05.544 SHAFT ASM; PROP,RR
4HK1-TCS ENG(RJS)
M/T MZZ6F(RSR)
REAR AXLE HEAVY DUTY 320MM(6CP)
WHEEL BASE 4400MM(44W)
FRAME STRAIGHT TYPE<7KJ>
(C)
L=1302
|
8-98024-925-1 |
01 |
1 |
1409- |
|
● |
● |
