◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51482 - NNR/NPR RHD EUROPE EURO5B+,6 ▶ 3 - Brakes, Brake System ▶ 3-60 - BRAKE PIPING; VACUUM ▶
3-60 — BRAKE PIPING; VACUUM (#126241) — 1016 parça
çizim 373392
116 39 165 184 184 184 116 12 12 157 13 157 39
BalonParca AdiParca NoAdetTipApplied Date A B C
12 04.681 CLIP; HOSE
CATALYSIS CONTROL WITH DPD(8JM) 03.162 (C) ID=16 		8-98008-098-0 08 1 1311- ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 1309- ● ● ●
12 04.681 CLIP; HOSE
04.930 (A) ID=15.5 		8-98008-097-0 02 1 1309- ● ● ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 12 1 1309- ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) EXC. BRAKE SYSTEM PA TYPE(8BX) 04.930 (A) ID=15.5 		8-98008-097-0 12 1 1309- ●
12 04.681 CLIP; HOSE
02.559 (D) ID=14-20 		8-97061-603-0 01 1 1309-1310 ●
12 04.681 CLIP; HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (D) ID=14-20 		8-97061-603-0 01 1 1309-1310 ●
12 04.681 CLIP; HOSE
CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) 02.559 (D) ID=14-20 		8-97061-603-0 01 1 1311-1312 ●
12 04.681 CLIP; HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (D) ID=14-20 		8-97061-603-0 01 1 1311-1312 ●
12 04.681 CLIP; HOSE
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) 02.559 (D) ID=14-20 		8-97061-603-0 01 1 1401-1408 ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (D) ID=14-20 		8-97061-603-0 01 1 1401-1408 ●
12 04.681 CLIP; HOSE
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) 02.559 (D) ID=14-20 		8-97061-603-0 01 1 1409- ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (D) ID=14-20 		8-97061-603-0 01 1 1409- ● ●
12 04.681 CLIP; HOSE
03.162 (C) ID=16 		8-98008-098-0 06 1 1309-1310 ●
12 04.681 CLIP; HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) ID=16 		8-98008-098-0 06 1 1309-1310 ●
12 04.681 CLIP; HOSE
CATALYSIS CONTROL WITH DPD & SCR(JCQ) 03.162 (C) ID=16 		8-98008-098-0 06 1 1311-1312 ●
12 04.681 CLIP; HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) ID=16 		8-98008-098-0 06 1 1311-1312 ●
12 04.681 CLIP; HOSE
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) 03.162 (C) ID=16 		8-98008-098-0 06 1 1401-1408 ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) ID=16 		8-98008-098-0 06 1 1401-1408 ●
12 04.681 CLIP; HOSE
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) 03.162 (C) ID=16 		8-98008-098-0 06 1 1409- ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) ID=16 		8-98008-098-0 06 1 1409- ● ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 04 1 1309- ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T),BRAKE SYSTEM PA TYPE(8BX) 04.930 (A) ID=15.5 		8-98008-097-0 04 1 1309- ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) BRAKE SYSTEM PA TYPE(8BX) 04.930 (A) ID=15.5 		8-98008-097-0 16 1 1309- ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 16 1 1309- ●
12 04.681 CLIP; HOSE
BRAKE SYSTEM PA TYPE(8BX) (B) 		8-98060-842-0 12 1 1309- ●
12 04.681 CLIP; HOSE
(B) 		8-98060-842-0 12 1 1309- ●
12 04.681 CLIP; HOSE
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 08 1 1309- ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 08 1 1309- ●
13 04.681 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) (B) 		8-98035-106-0 02 1 1309- ● ● ●
13 04.681 JOINT; HOSE,VAC
(B) 		8-98035-106-0 01 1 1309- ● ● ●
13 04.681 JOINT; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98048-075-0 01 1 1309- ● ● ●
13 04.681 JOINT; HOSE,VAC
BRAKE SYSTEM PA TYPE(8BX) 04.931 (C) 		8-98119-530-0 01 1 1309- ●
13 04.681 JOINT; HOSE,VAC
04.931 (C) 		8-98119-530-0 01 1 1309- ●
13 04.681 JOINT; HOSE,VAC
BRAKE SYSTEM PA TYPE(8BX) (D) 		8-98172-020-0 02 1 1309- ●
13 04.681 JOINT; HOSE,VAC
(D) 		8-98172-020-0 02 1 1309- ●
39 04.681 CLIP; HOSE,VAC
01.097 (C) ID=16 		8-97329-628-0 02 1 1309- ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 04 1 1309- ● ● ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 1309- ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 1309- ● ● ●
39 04.681 CLIP; HOSE,VAC
BRAKE SYSTEM PA TYPE(8BX) (D) ID=11X2 L=16 		0-95325-025-0 01 1 1309- ●
39 04.681 CLIP; HOSE,VAC
(D) ID=11X2 L=16 		0-95325-025-0 01 1 1309- ●
39 04.681 CLIP; HOSE,VAC
BRAKE SYSTEM PA TYPE(8BX) (F) 		8-98060-842-0 02 1 1309- ●
39 04.681 CLIP; HOSE,VAC
(F) 		8-98060-842-0 02 1 1309- ●
39 04.681 CLIP; HOSE,VAC
BRAKE SYSTEM PA TYPE(8BX) (E) 		8-98182-203-0 01 1 1309- ●
39 04.681 CLIP; HOSE,VAC
(E) 		8-98182-203-0 01 1 1309- ●
116 04.931 HOSE; VAC,M/VAC
(I) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 1309-1408 ●
116 04.931 HOSE; VAC,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ> (I) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 1309-1408 ●
116 04.931 HOSE; VAC,M/VAC
(I) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 1409- ●
116 04.931 HOSE; VAC,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ> (I) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 1409- ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (D) 		8-97389-689-3 01 1 1309- ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (H) 		8-98115-385-1 01 1 1309- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) EXC. BRAKE SYSTEM PA TYPE(8BX) (H) 		8-98115-385-1 01 1 1309- ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (C) 		8-97389-690-3 01 1 1309- ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (G) 		8-98115-399-1 01 1 1309- ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T),BRAKE SYSTEM PA TYPE(8BX) (G) 		8-98115-399-1 01 1 1309- ●
116 04.931 HOSE; VAC,M/VAC
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F) 		8-98212-894-0 01 1 1309-1310 ●
116 04.931 HOSE; VAC,M/VAC
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (F) 		8-98212-894-0 01 1 1311-1408 ●
116 04.931 HOSE; VAC,M/VAC
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (F) 		8-98212-894-0 01 1 1409- ● ●
116 04.931 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (E) L=140 SERVICED BY L=3000 		0-08158-300-0 02 1 1309-1408 ●
116 04.931 HOSE; VAC,M/VAC
(E) L=140 SERVICED BY L=3000 		0-08158-300-0 02 1 1309-1408 ●
116 04.931 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (E) L=140 SERVICED BY L=3000 		0-08158-300-0 02 1 1409- ● ●
116 04.931 HOSE; VAC,M/VAC
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (F) 		8-98158-378-0 01 1 1309-1408 ●
116 04.931 HOSE; VAC,M/VAC
(F) 		8-98158-378-0 01 1 1309-1408 ●
116 04.931 HOSE; VAC,M/VAC
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (F) 		8-98158-378-0 01 1 1409- ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) BRAKE SYSTEM PA TYPE(8BX) (B) 		8-98115-387-2 01 1 1309- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (B) 		8-98115-387-2 01 1 1309- ●
116 04.931 HOSE; VAC,M/VAC
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98115-401-2 01 1 1309- ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98115-401-2 01 1 1309- ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (B) 		8-98017-168-3 01 1 1309- ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (C) 		8-98027-351-3 01 1 1309- ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (E) 		8-98027-354-2 01 1 1309- ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (D) 		8-98125-532-1 01 1 1309- ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (N) 		8-98027-353-3 01 1 1309- ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. BRAKE SYSTEM PA TYPE(8BX) (N) 		8-98027-353-3 01 1 1309- ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98022-868-3 01 1 1309- ● ● ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T) (H) 		8-98125-849-1 01 1 1309- ● ● ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T) (O) 		8-97389-671-3 01 1 1309- ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T),BRAKE SYSTEM PA TYPE(8BX) (O) 		8-97389-671-3 01 1 1309- ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) BRAKE SYSTEM PA TYPE(8BX) (F) 		8-98118-477-0 01 1 1309- ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (F) 		8-98118-477-0 01 1 1309- ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) (I) 		8-98118-478-1 01 1 1309- ●
157 04.931 HOSE; JOINT
(I) 		8-98118-478-1 01 1 1309- ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) (J) 		8-98118-479-1 01 1 1309- ●
157 04.931 HOSE; JOINT
(J) 		8-98118-479-1 01 1 1309- ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) (K) 		8-98118-480-0 01 1 1309- ●
157 04.931 HOSE; JOINT
(K) 		8-98118-480-0 01 1 1309- ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) (L) 		8-98158-475-1 01 1 1309- ●
157 04.931 HOSE; JOINT
(L) 		8-98158-475-1 01 1 1309- ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) (M) 		8-98172-652-0 01 1 1309- ●
157 04.931 HOSE; JOINT
(M) 		8-98172-652-0 01 1 1309- ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) (G) 		8-98118-481-0 01 1 1309- ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T) (G) 		8-98118-481-0 01 1 1309- ●
165 04.686 BOLT; BRKT
02.762 (A) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 1309- ● ● ●
165 04.686 BOLT; BRKT
EXC. KD PREPARATORY PACK VAR.4<7TV> 02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 1309- ●
165 04.686 BOLT; BRKT
KD PREPARATORY PACK VAR.4<7TV> BRAKE SYSTEM PA TYPE(8BX) 02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 1309- ●
165 04.686 BOLT; BRKT
EXC. KD PREPARATORY PACK VAR.4<7TV>, BRAKE SYSTEM PA TYPE(8BX) 02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 1309- ●
165 04.686 BOLT; BRKT
KD PREPARATORY PACK VAR.4<7TV> 02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 1309- ●
165 04.686 BOLT; BRKT
BRAKE SYSTEM PA TYPE(8BX) EXC. KD PREPARATORY PACK VAR.4<7TV> 02.343 (B) M6X16 FLANGE 		0-28650-616-0 02 1 1309- ●
165 04.686 BOLT; BRKT
EXC. KD PREPARATORY PACK VAR.4<7TV> 02.343 (B) M6X16 FLANGE 		0-28650-616-0 02 1 1309- ●
184 04.685 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (D) 		8-98255-548-0 01 1 1312- ● ● ●
184 04.685 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> (A) 		8-98183-467-1 01 1 1309- ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. PTO MANUAL CONTROL(6WC) (B) 		8-98017-628-1 01 1 1309- ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (A) 		8-98183-462-1 01 1 1309-1311 ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98255-535-0 01 1 1312- ● ● ●

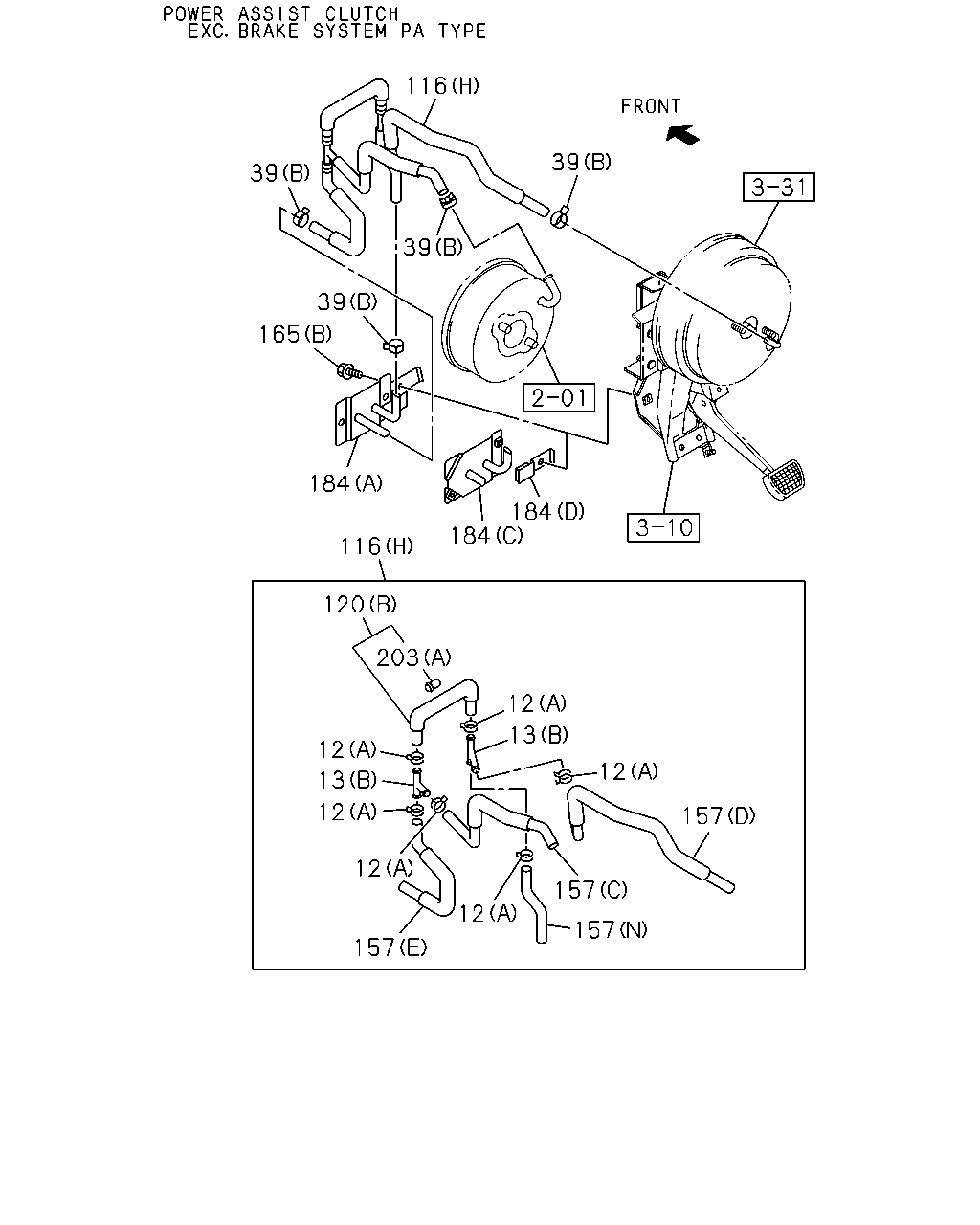

çizim 373774
116 39 39 39 39 184 184 116 184 165 12 13 12 157 12 120 203 13 12 12 157 157 157 12
BalonParca AdiParca NoAdetTipApplied Date A B C
12 04.681 CLIP; HOSE
CATALYSIS CONTROL WITH DPD(8JM) 03.162 (C) ID=16 		8-98008-098-0 08 1 1311- ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 1309- ● ● ●
12 04.681 CLIP; HOSE
04.930 (A) ID=15.5 		8-98008-097-0 02 1 1309- ● ● ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 12 1 1309- ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) EXC. BRAKE SYSTEM PA TYPE(8BX) 04.930 (A) ID=15.5 		8-98008-097-0 12 1 1309- ●
12 04.681 CLIP; HOSE
02.559 (D) ID=14-20 		8-97061-603-0 01 1 1309-1310 ●
12 04.681 CLIP; HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (D) ID=14-20 		8-97061-603-0 01 1 1309-1310 ●
12 04.681 CLIP; HOSE
CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) 02.559 (D) ID=14-20 		8-97061-603-0 01 1 1311-1312 ●
12 04.681 CLIP; HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (D) ID=14-20 		8-97061-603-0 01 1 1311-1312 ●
12 04.681 CLIP; HOSE
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) 02.559 (D) ID=14-20 		8-97061-603-0 01 1 1401-1408 ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (D) ID=14-20 		8-97061-603-0 01 1 1401-1408 ●
12 04.681 CLIP; HOSE
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) 02.559 (D) ID=14-20 		8-97061-603-0 01 1 1409- ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (D) ID=14-20 		8-97061-603-0 01 1 1409- ● ●
12 04.681 CLIP; HOSE
03.162 (C) ID=16 		8-98008-098-0 06 1 1309-1310 ●
12 04.681 CLIP; HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) ID=16 		8-98008-098-0 06 1 1309-1310 ●
12 04.681 CLIP; HOSE
CATALYSIS CONTROL WITH DPD & SCR(JCQ) 03.162 (C) ID=16 		8-98008-098-0 06 1 1311-1312 ●
12 04.681 CLIP; HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) ID=16 		8-98008-098-0 06 1 1311-1312 ●
12 04.681 CLIP; HOSE
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) 03.162 (C) ID=16 		8-98008-098-0 06 1 1401-1408 ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) ID=16 		8-98008-098-0 06 1 1401-1408 ●
12 04.681 CLIP; HOSE
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) 03.162 (C) ID=16 		8-98008-098-0 06 1 1409- ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) ID=16 		8-98008-098-0 06 1 1409- ● ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 04 1 1309- ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T),BRAKE SYSTEM PA TYPE(8BX) 04.930 (A) ID=15.5 		8-98008-097-0 04 1 1309- ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) BRAKE SYSTEM PA TYPE(8BX) 04.930 (A) ID=15.5 		8-98008-097-0 16 1 1309- ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 16 1 1309- ●
12 04.681 CLIP; HOSE
BRAKE SYSTEM PA TYPE(8BX) (B) 		8-98060-842-0 12 1 1309- ●
12 04.681 CLIP; HOSE
(B) 		8-98060-842-0 12 1 1309- ●
12 04.681 CLIP; HOSE
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 08 1 1309- ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 08 1 1309- ●
13 04.681 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) (B) 		8-98035-106-0 02 1 1309- ● ● ●
13 04.681 JOINT; HOSE,VAC
(B) 		8-98035-106-0 01 1 1309- ● ● ●
13 04.681 JOINT; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98048-075-0 01 1 1309- ● ● ●
13 04.681 JOINT; HOSE,VAC
BRAKE SYSTEM PA TYPE(8BX) 04.931 (C) 		8-98119-530-0 01 1 1309- ●
13 04.681 JOINT; HOSE,VAC
04.931 (C) 		8-98119-530-0 01 1 1309- ●
13 04.681 JOINT; HOSE,VAC
BRAKE SYSTEM PA TYPE(8BX) (D) 		8-98172-020-0 02 1 1309- ●
13 04.681 JOINT; HOSE,VAC
(D) 		8-98172-020-0 02 1 1309- ●
39 04.681 CLIP; HOSE,VAC
01.097 (C) ID=16 		8-97329-628-0 02 1 1309- ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 04 1 1309- ● ● ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 1309- ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 1309- ● ● ●
39 04.681 CLIP; HOSE,VAC
BRAKE SYSTEM PA TYPE(8BX) (D) ID=11X2 L=16 		0-95325-025-0 01 1 1309- ●
39 04.681 CLIP; HOSE,VAC
(D) ID=11X2 L=16 		0-95325-025-0 01 1 1309- ●
39 04.681 CLIP; HOSE,VAC
BRAKE SYSTEM PA TYPE(8BX) (F) 		8-98060-842-0 02 1 1309- ●
39 04.681 CLIP; HOSE,VAC
(F) 		8-98060-842-0 02 1 1309- ●
39 04.681 CLIP; HOSE,VAC
BRAKE SYSTEM PA TYPE(8BX) (E) 		8-98182-203-0 01 1 1309- ●
39 04.681 CLIP; HOSE,VAC
(E) 		8-98182-203-0 01 1 1309- ●
116 04.931 HOSE; VAC,M/VAC
(I) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 1309-1408 ●
116 04.931 HOSE; VAC,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ> (I) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 1309-1408 ●
116 04.931 HOSE; VAC,M/VAC
(I) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 1409- ●
116 04.931 HOSE; VAC,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ> (I) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 1409- ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (D) 		8-97389-689-3 01 1 1309- ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (H) 		8-98115-385-1 01 1 1309- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) EXC. BRAKE SYSTEM PA TYPE(8BX) (H) 		8-98115-385-1 01 1 1309- ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (C) 		8-97389-690-3 01 1 1309- ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (G) 		8-98115-399-1 01 1 1309- ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T),BRAKE SYSTEM PA TYPE(8BX) (G) 		8-98115-399-1 01 1 1309- ●
116 04.931 HOSE; VAC,M/VAC
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F) 		8-98212-894-0 01 1 1309-1310 ●
116 04.931 HOSE; VAC,M/VAC
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (F) 		8-98212-894-0 01 1 1311-1408 ●
116 04.931 HOSE; VAC,M/VAC
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (F) 		8-98212-894-0 01 1 1409- ● ●
116 04.931 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (E) L=140 SERVICED BY L=3000 		0-08158-300-0 02 1 1309-1408 ●
116 04.931 HOSE; VAC,M/VAC
(E) L=140 SERVICED BY L=3000 		0-08158-300-0 02 1 1309-1408 ●
116 04.931 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (E) L=140 SERVICED BY L=3000 		0-08158-300-0 02 1 1409- ● ●
116 04.931 HOSE; VAC,M/VAC
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (F) 		8-98158-378-0 01 1 1309-1408 ●
116 04.931 HOSE; VAC,M/VAC
(F) 		8-98158-378-0 01 1 1309-1408 ●
116 04.931 HOSE; VAC,M/VAC
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (F) 		8-98158-378-0 01 1 1409- ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) BRAKE SYSTEM PA TYPE(8BX) (B) 		8-98115-387-2 01 1 1309- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (B) 		8-98115-387-2 01 1 1309- ●
116 04.931 HOSE; VAC,M/VAC
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98115-401-2 01 1 1309- ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98115-401-2 01 1 1309- ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) (C) 		8-97389-695-2 01 1 1309- ● ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) (B) 		8-98027-352-3 01 1 1309- ● ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-97389-696-2 01 1 1309- ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (B) 		8-98017-168-3 01 1 1309- ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (C) 		8-98027-351-3 01 1 1309- ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (E) 		8-98027-354-2 01 1 1309- ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (D) 		8-98125-532-1 01 1 1309- ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (N) 		8-98027-353-3 01 1 1309- ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. BRAKE SYSTEM PA TYPE(8BX) (N) 		8-98027-353-3 01 1 1309- ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98022-868-3 01 1 1309- ● ● ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T) (H) 		8-98125-849-1 01 1 1309- ● ● ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T) (O) 		8-97389-671-3 01 1 1309- ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T),BRAKE SYSTEM PA TYPE(8BX) (O) 		8-97389-671-3 01 1 1309- ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) BRAKE SYSTEM PA TYPE(8BX) (F) 		8-98118-477-0 01 1 1309- ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (F) 		8-98118-477-0 01 1 1309- ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) (I) 		8-98118-478-1 01 1 1309- ●
157 04.931 HOSE; JOINT
(I) 		8-98118-478-1 01 1 1309- ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) (J) 		8-98118-479-1 01 1 1309- ●
157 04.931 HOSE; JOINT
(J) 		8-98118-479-1 01 1 1309- ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) (K) 		8-98118-480-0 01 1 1309- ●
157 04.931 HOSE; JOINT
(K) 		8-98118-480-0 01 1 1309- ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) (L) 		8-98158-475-1 01 1 1309- ●
157 04.931 HOSE; JOINT
(L) 		8-98158-475-1 01 1 1309- ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) (M) 		8-98172-652-0 01 1 1309- ●
157 04.931 HOSE; JOINT
(M) 		8-98172-652-0 01 1 1309- ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) (G) 		8-98118-481-0 01 1 1309- ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T) (G) 		8-98118-481-0 01 1 1309- ●
165 04.686 BOLT; BRKT
02.762 (A) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 1309- ● ● ●
165 04.686 BOLT; BRKT
EXC. KD PREPARATORY PACK VAR.4<7TV> 02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 1309- ●
165 04.686 BOLT; BRKT
KD PREPARATORY PACK VAR.4<7TV> BRAKE SYSTEM PA TYPE(8BX) 02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 1309- ●
165 04.686 BOLT; BRKT
EXC. KD PREPARATORY PACK VAR.4<7TV>, BRAKE SYSTEM PA TYPE(8BX) 02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 1309- ●
165 04.686 BOLT; BRKT
KD PREPARATORY PACK VAR.4<7TV> 02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 1309- ●
165 04.686 BOLT; BRKT
BRAKE SYSTEM PA TYPE(8BX) EXC. KD PREPARATORY PACK VAR.4<7TV> 02.343 (B) M6X16 FLANGE 		0-28650-616-0 02 1 1309- ●
165 04.686 BOLT; BRKT
EXC. KD PREPARATORY PACK VAR.4<7TV> 02.343 (B) M6X16 FLANGE 		0-28650-616-0 02 1 1309- ●
184 04.685 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (D) 		8-98255-548-0 01 1 1312- ● ● ●
184 04.685 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> (A) 		8-98183-467-1 01 1 1309- ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. PTO MANUAL CONTROL(6WC) (B) 		8-98017-628-1 01 1 1309- ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (A) 		8-98183-462-1 01 1 1309-1311 ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98255-535-0 01 1 1312- ● ● ●
203 04.690 VALVE; CHECK
POWER ASSIST CLUTCH(S2T) (B) 		8-94104-021-0 01 1 1309- ● ● ●
203 04.690 VALVE; CHECK
(A) 		8-94386-540-0 01 1 1309- ● ● ●

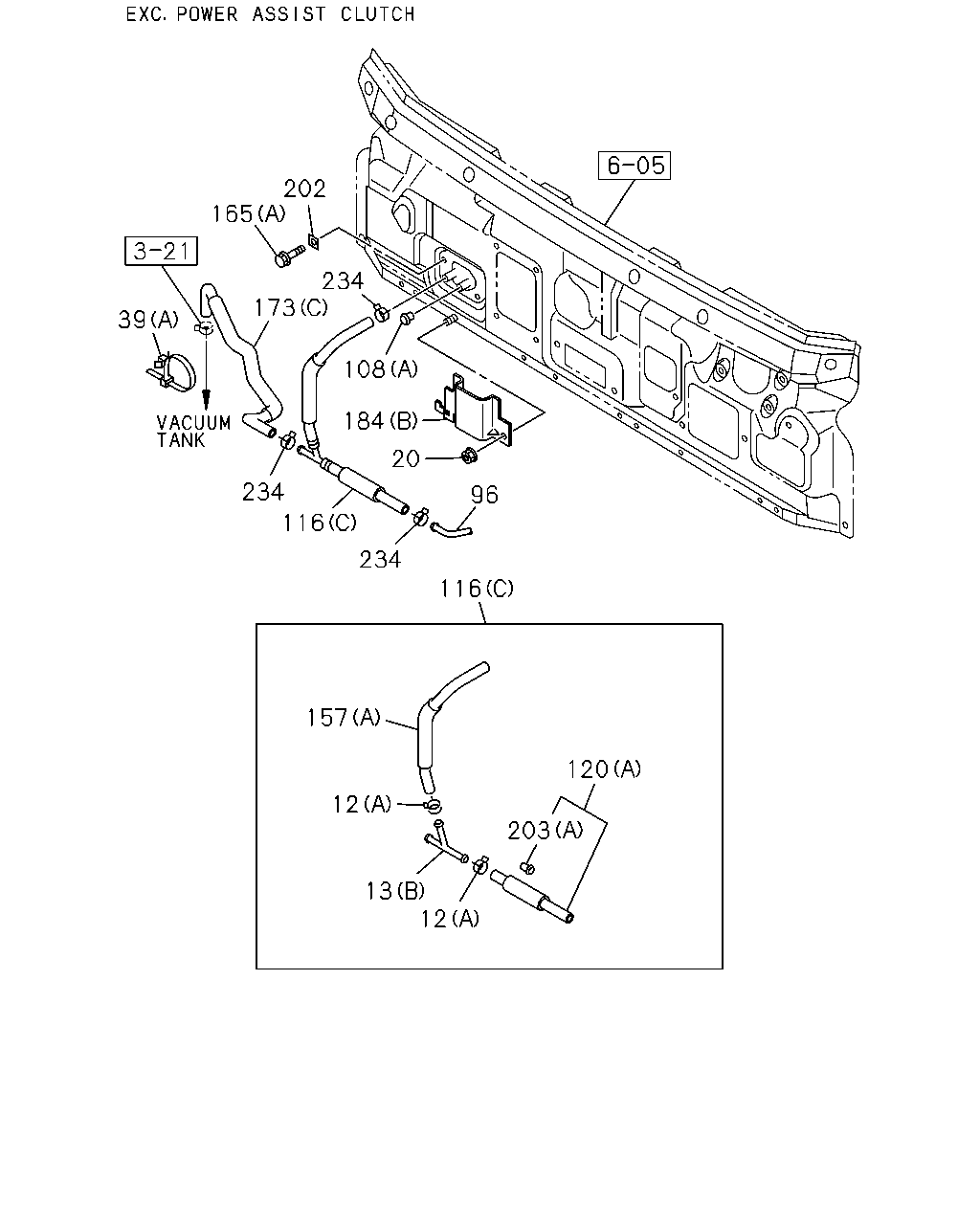

çizim 373812
202 234 108 184 234 116 96 116 234 39 173 165 20 157 12 120 203 12 13
BalonParca AdiParca NoAdetTipApplied Date A B C
12 04.681 CLIP; HOSE
CATALYSIS CONTROL WITH DPD(8JM) 03.162 (C) ID=16 		8-98008-098-0 08 1 1311- ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 1309- ● ● ●
12 04.681 CLIP; HOSE
04.930 (A) ID=15.5 		8-98008-097-0 02 1 1309- ● ● ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 12 1 1309- ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) EXC. BRAKE SYSTEM PA TYPE(8BX) 04.930 (A) ID=15.5 		8-98008-097-0 12 1 1309- ●
12 04.681 CLIP; HOSE
02.559 (D) ID=14-20 		8-97061-603-0 01 1 1309-1310 ●
12 04.681 CLIP; HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (D) ID=14-20 		8-97061-603-0 01 1 1309-1310 ●
12 04.681 CLIP; HOSE
CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) 02.559 (D) ID=14-20 		8-97061-603-0 01 1 1311-1312 ●
12 04.681 CLIP; HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (D) ID=14-20 		8-97061-603-0 01 1 1311-1312 ●
12 04.681 CLIP; HOSE
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) 02.559 (D) ID=14-20 		8-97061-603-0 01 1 1401-1408 ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (D) ID=14-20 		8-97061-603-0 01 1 1401-1408 ●
12 04.681 CLIP; HOSE
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) 02.559 (D) ID=14-20 		8-97061-603-0 01 1 1409- ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (D) ID=14-20 		8-97061-603-0 01 1 1409- ● ●
12 04.681 CLIP; HOSE
03.162 (C) ID=16 		8-98008-098-0 06 1 1309-1310 ●
12 04.681 CLIP; HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) ID=16 		8-98008-098-0 06 1 1309-1310 ●
12 04.681 CLIP; HOSE
CATALYSIS CONTROL WITH DPD & SCR(JCQ) 03.162 (C) ID=16 		8-98008-098-0 06 1 1311-1312 ●
12 04.681 CLIP; HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) ID=16 		8-98008-098-0 06 1 1311-1312 ●
12 04.681 CLIP; HOSE
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) 03.162 (C) ID=16 		8-98008-098-0 06 1 1401-1408 ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) ID=16 		8-98008-098-0 06 1 1401-1408 ●
12 04.681 CLIP; HOSE
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) 03.162 (C) ID=16 		8-98008-098-0 06 1 1409- ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) ID=16 		8-98008-098-0 06 1 1409- ● ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 04 1 1309- ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T),BRAKE SYSTEM PA TYPE(8BX) 04.930 (A) ID=15.5 		8-98008-097-0 04 1 1309- ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) BRAKE SYSTEM PA TYPE(8BX) 04.930 (A) ID=15.5 		8-98008-097-0 16 1 1309- ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 16 1 1309- ●
12 04.681 CLIP; HOSE
BRAKE SYSTEM PA TYPE(8BX) (B) 		8-98060-842-0 12 1 1309- ●
12 04.681 CLIP; HOSE
(B) 		8-98060-842-0 12 1 1309- ●
12 04.681 CLIP; HOSE
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 08 1 1309- ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 08 1 1309- ●
13 04.681 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) (B) 		8-98035-106-0 02 1 1309- ● ● ●
13 04.681 JOINT; HOSE,VAC
(B) 		8-98035-106-0 01 1 1309- ● ● ●
13 04.681 JOINT; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98048-075-0 01 1 1309- ● ● ●
13 04.681 JOINT; HOSE,VAC
BRAKE SYSTEM PA TYPE(8BX) 04.931 (C) 		8-98119-530-0 01 1 1309- ●
13 04.681 JOINT; HOSE,VAC
04.931 (C) 		8-98119-530-0 01 1 1309- ●
13 04.681 JOINT; HOSE,VAC
BRAKE SYSTEM PA TYPE(8BX) (D) 		8-98172-020-0 02 1 1309- ●
13 04.681 JOINT; HOSE,VAC
(D) 		8-98172-020-0 02 1 1309- ●
20 04.686 NUT; BRKT
EXC. PTO MANUAL CONTROL(6WC) 01.062 M6 FLANGE 		0-91180-106-0 01 1 1309- ● ● ●
39 04.681 CLIP; HOSE,VAC
01.097 (C) ID=16 		8-97329-628-0 02 1 1309- ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 04 1 1309- ● ● ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 1309- ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 1309- ● ● ●
39 04.681 CLIP; HOSE,VAC
BRAKE SYSTEM PA TYPE(8BX) (D) ID=11X2 L=16 		0-95325-025-0 01 1 1309- ●
39 04.681 CLIP; HOSE,VAC
(D) ID=11X2 L=16 		0-95325-025-0 01 1 1309- ●
39 04.681 CLIP; HOSE,VAC
BRAKE SYSTEM PA TYPE(8BX) (F) 		8-98060-842-0 02 1 1309- ●
39 04.681 CLIP; HOSE,VAC
(F) 		8-98060-842-0 02 1 1309- ●
39 04.681 CLIP; HOSE,VAC
BRAKE SYSTEM PA TYPE(8BX) (E) 		8-98182-203-0 01 1 1309- ●
39 04.681 CLIP; HOSE,VAC
(E) 		8-98182-203-0 01 1 1309- ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP 8-98220-579-0 01 1 1309- ● ● ●
108 04.931 GROMMET; PIPE
02.343 (B) ID=17 		8-94128-319-2 01 1 1309- ● ● ●
108 04.931 GROMMET; PIPE
EXC. POWER ASSIST CLUTCH(S2T) (A) 		9-09956-353-0 01 1 1309- ● ● ●
116 04.931 HOSE; VAC,M/VAC
(I) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 1309-1408 ●
116 04.931 HOSE; VAC,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ> (I) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 1309-1408 ●
116 04.931 HOSE; VAC,M/VAC
(I) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 1409- ●
116 04.931 HOSE; VAC,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ> (I) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 1409- ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (D) 		8-97389-689-3 01 1 1309- ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (H) 		8-98115-385-1 01 1 1309- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) EXC. BRAKE SYSTEM PA TYPE(8BX) (H) 		8-98115-385-1 01 1 1309- ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (C) 		8-97389-690-3 01 1 1309- ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (G) 		8-98115-399-1 01 1 1309- ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T),BRAKE SYSTEM PA TYPE(8BX) (G) 		8-98115-399-1 01 1 1309- ●
116 04.931 HOSE; VAC,M/VAC
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F) 		8-98212-894-0 01 1 1309-1310 ●
116 04.931 HOSE; VAC,M/VAC
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (F) 		8-98212-894-0 01 1 1311-1408 ●
116 04.931 HOSE; VAC,M/VAC
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (F) 		8-98212-894-0 01 1 1409- ● ●
116 04.931 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (E) L=140 SERVICED BY L=3000 		0-08158-300-0 02 1 1309-1408 ●
116 04.931 HOSE; VAC,M/VAC
(E) L=140 SERVICED BY L=3000 		0-08158-300-0 02 1 1309-1408 ●
116 04.931 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (E) L=140 SERVICED BY L=3000 		0-08158-300-0 02 1 1409- ● ●
116 04.931 HOSE; VAC,M/VAC
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (F) 		8-98158-378-0 01 1 1309-1408 ●
116 04.931 HOSE; VAC,M/VAC
(F) 		8-98158-378-0 01 1 1309-1408 ●
116 04.931 HOSE; VAC,M/VAC
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (F) 		8-98158-378-0 01 1 1409- ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) BRAKE SYSTEM PA TYPE(8BX) (B) 		8-98115-387-2 01 1 1309- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (B) 		8-98115-387-2 01 1 1309- ●
116 04.931 HOSE; VAC,M/VAC
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98115-401-2 01 1 1309- ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98115-401-2 01 1 1309- ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) (C) 		8-97389-695-2 01 1 1309- ● ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) (B) 		8-98027-352-3 01 1 1309- ● ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-97389-696-2 01 1 1309- ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (B) 		8-98017-168-3 01 1 1309- ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (C) 		8-98027-351-3 01 1 1309- ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (E) 		8-98027-354-2 01 1 1309- ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (D) 		8-98125-532-1 01 1 1309- ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (N) 		8-98027-353-3 01 1 1309- ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. BRAKE SYSTEM PA TYPE(8BX) (N) 		8-98027-353-3 01 1 1309- ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98022-868-3 01 1 1309- ● ● ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T) (H) 		8-98125-849-1 01 1 1309- ● ● ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T) (O) 		8-97389-671-3 01 1 1309- ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T),BRAKE SYSTEM PA TYPE(8BX) (O) 		8-97389-671-3 01 1 1309- ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) BRAKE SYSTEM PA TYPE(8BX) (F) 		8-98118-477-0 01 1 1309- ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (F) 		8-98118-477-0 01 1 1309- ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) (I) 		8-98118-478-1 01 1 1309- ●
157 04.931 HOSE; JOINT
(I) 		8-98118-478-1 01 1 1309- ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) (J) 		8-98118-479-1 01 1 1309- ●
157 04.931 HOSE; JOINT
(J) 		8-98118-479-1 01 1 1309- ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) (K) 		8-98118-480-0 01 1 1309- ●
157 04.931 HOSE; JOINT
(K) 		8-98118-480-0 01 1 1309- ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) (L) 		8-98158-475-1 01 1 1309- ●
157 04.931 HOSE; JOINT
(L) 		8-98158-475-1 01 1 1309- ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) (M) 		8-98172-652-0 01 1 1309- ●
157 04.931 HOSE; JOINT
(M) 		8-98172-652-0 01 1 1309- ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) (G) 		8-98118-481-0 01 1 1309- ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T) (G) 		8-98118-481-0 01 1 1309- ●
165 04.686 BOLT; BRKT
02.762 (A) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 1309- ● ● ●
165 04.686 BOLT; BRKT
EXC. KD PREPARATORY PACK VAR.4<7TV> 02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 1309- ●
165 04.686 BOLT; BRKT
KD PREPARATORY PACK VAR.4<7TV> BRAKE SYSTEM PA TYPE(8BX) 02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 1309- ●
165 04.686 BOLT; BRKT
EXC. KD PREPARATORY PACK VAR.4<7TV>, BRAKE SYSTEM PA TYPE(8BX) 02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 1309- ●
165 04.686 BOLT; BRKT
KD PREPARATORY PACK VAR.4<7TV> 02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 1309- ●
165 04.686 BOLT; BRKT
BRAKE SYSTEM PA TYPE(8BX) EXC. KD PREPARATORY PACK VAR.4<7TV> 02.343 (B) M6X16 FLANGE 		0-28650-616-0 02 1 1309- ●
165 04.686 BOLT; BRKT
EXC. KD PREPARATORY PACK VAR.4<7TV> 02.343 (B) M6X16 FLANGE 		0-28650-616-0 02 1 1309- ●
173 04.931 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) (A) 		8-98121-940-0 01 1 1309- ● ● ●
173 04.931 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) (B) 		8-98121-941-0 01 1 1309- ● ● ●
173 04.931 HOSE; VAC,VAC TANK SIDE
EXC. POWER ASSIST CLUTCH(S2T) (C) 		8-98107-558-0 01 1 1309- ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (D) 		8-98255-548-0 01 1 1312- ● ● ●
184 04.685 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> (A) 		8-98183-467-1 01 1 1309- ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. PTO MANUAL CONTROL(6WC) (B) 		8-98017-628-1 01 1 1309- ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (A) 		8-98183-462-1 01 1 1309-1311 ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98255-535-0 01 1 1312- ● ● ●
202 04.686 SEAL
08.845 		8-97856-616-0 02 1 1309- ● ● ●
203 04.690 VALVE; CHECK
POWER ASSIST CLUTCH(S2T) (B) 		8-94104-021-0 01 1 1309- ● ● ●
203 04.690 VALVE; CHECK
(A) 		8-94386-540-0 01 1 1309- ● ● ●
234 04.685 CLAMP; PIPE
POWER ASSIST CLUTCH(S2T) 04.930 ID=16 		8-94238-568-0 04 1 1309- ● ● ●
234 04.685 CLAMP; PIPE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 ID=16 		8-94238-568-0 03 1 1309- ● ● ●

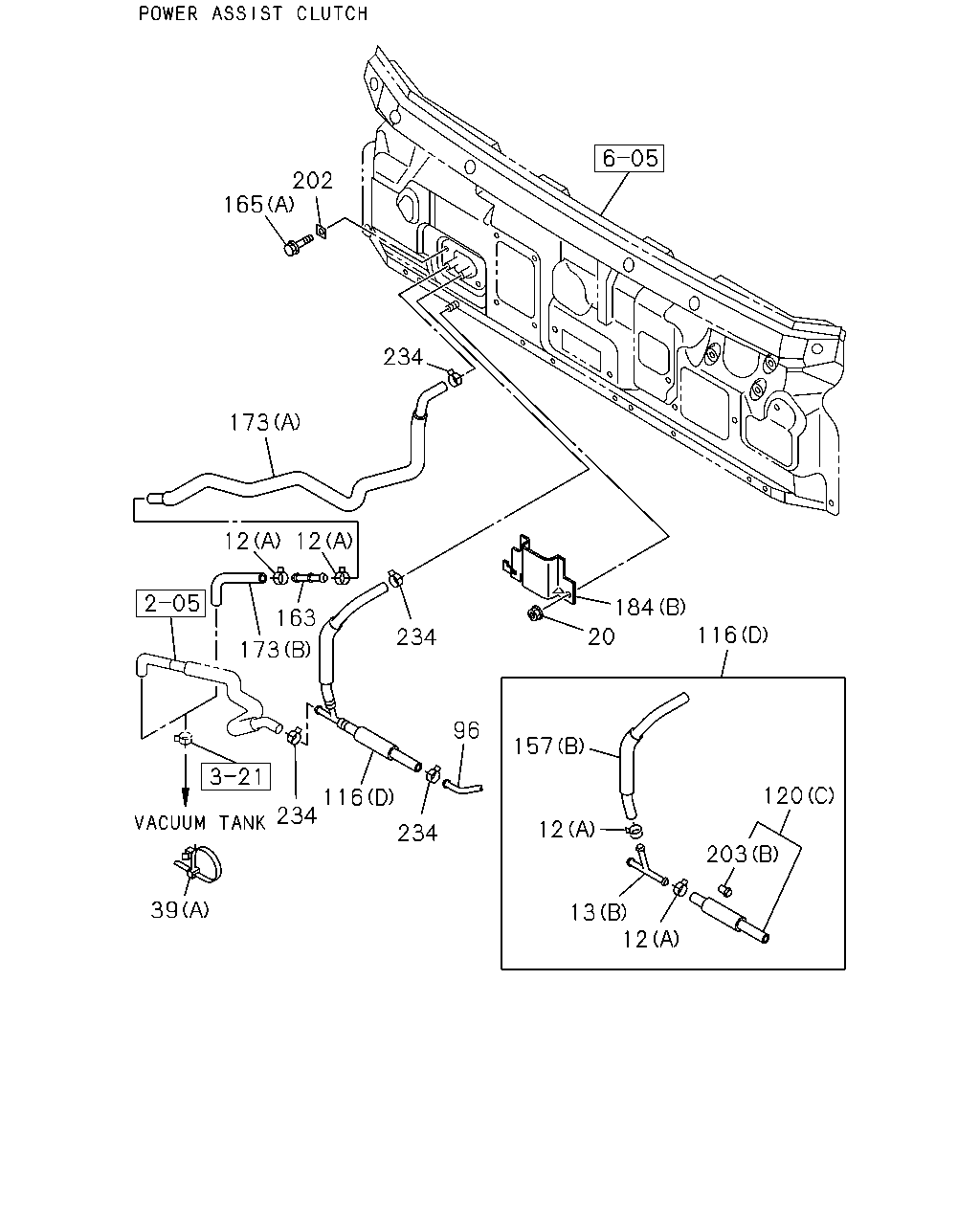

çizim 373848
202 165 234 173 12 12 234 20 116 184 120 157 12 13 12 234 116 234 173 39 163 203 96
BalonParca AdiParca NoAdetTipApplied Date A B C
12 04.681 CLIP; HOSE
CATALYSIS CONTROL WITH DPD(8JM) 03.162 (C) ID=16 		8-98008-098-0 08 1 1311- ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 1309- ● ● ●
12 04.681 CLIP; HOSE
04.930 (A) ID=15.5 		8-98008-097-0 02 1 1309- ● ● ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 12 1 1309- ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) EXC. BRAKE SYSTEM PA TYPE(8BX) 04.930 (A) ID=15.5 		8-98008-097-0 12 1 1309- ●
12 04.681 CLIP; HOSE
02.559 (D) ID=14-20 		8-97061-603-0 01 1 1309-1310 ●
12 04.681 CLIP; HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (D) ID=14-20 		8-97061-603-0 01 1 1309-1310 ●
12 04.681 CLIP; HOSE
CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) 02.559 (D) ID=14-20 		8-97061-603-0 01 1 1311-1312 ●
12 04.681 CLIP; HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (D) ID=14-20 		8-97061-603-0 01 1 1311-1312 ●
12 04.681 CLIP; HOSE
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) 02.559 (D) ID=14-20 		8-97061-603-0 01 1 1401-1408 ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (D) ID=14-20 		8-97061-603-0 01 1 1401-1408 ●
12 04.681 CLIP; HOSE
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) 02.559 (D) ID=14-20 		8-97061-603-0 01 1 1409- ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (D) ID=14-20 		8-97061-603-0 01 1 1409- ● ●
12 04.681 CLIP; HOSE
03.162 (C) ID=16 		8-98008-098-0 06 1 1309-1310 ●
12 04.681 CLIP; HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) ID=16 		8-98008-098-0 06 1 1309-1310 ●
12 04.681 CLIP; HOSE
CATALYSIS CONTROL WITH DPD & SCR(JCQ) 03.162 (C) ID=16 		8-98008-098-0 06 1 1311-1312 ●
12 04.681 CLIP; HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) ID=16 		8-98008-098-0 06 1 1311-1312 ●
12 04.681 CLIP; HOSE
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) 03.162 (C) ID=16 		8-98008-098-0 06 1 1401-1408 ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) ID=16 		8-98008-098-0 06 1 1401-1408 ●
12 04.681 CLIP; HOSE
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) 03.162 (C) ID=16 		8-98008-098-0 06 1 1409- ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) ID=16 		8-98008-098-0 06 1 1409- ● ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 04 1 1309- ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T),BRAKE SYSTEM PA TYPE(8BX) 04.930 (A) ID=15.5 		8-98008-097-0 04 1 1309- ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) BRAKE SYSTEM PA TYPE(8BX) 04.930 (A) ID=15.5 		8-98008-097-0 16 1 1309- ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 16 1 1309- ●
12 04.681 CLIP; HOSE
BRAKE SYSTEM PA TYPE(8BX) (B) 		8-98060-842-0 12 1 1309- ●
12 04.681 CLIP; HOSE
(B) 		8-98060-842-0 12 1 1309- ●
12 04.681 CLIP; HOSE
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 08 1 1309- ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 08 1 1309- ●
13 04.681 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) (B) 		8-98035-106-0 02 1 1309- ● ● ●
13 04.681 JOINT; HOSE,VAC
(B) 		8-98035-106-0 01 1 1309- ● ● ●
13 04.681 JOINT; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98048-075-0 01 1 1309- ● ● ●
13 04.681 JOINT; HOSE,VAC
BRAKE SYSTEM PA TYPE(8BX) 04.931 (C) 		8-98119-530-0 01 1 1309- ●
13 04.681 JOINT; HOSE,VAC
04.931 (C) 		8-98119-530-0 01 1 1309- ●
13 04.681 JOINT; HOSE,VAC
BRAKE SYSTEM PA TYPE(8BX) (D) 		8-98172-020-0 02 1 1309- ●
13 04.681 JOINT; HOSE,VAC
(D) 		8-98172-020-0 02 1 1309- ●
20 04.686 NUT; BRKT
EXC. PTO MANUAL CONTROL(6WC) 01.062 M6 FLANGE 		0-91180-106-0 01 1 1309- ● ● ●
39 04.681 CLIP; HOSE,VAC
01.097 (C) ID=16 		8-97329-628-0 02 1 1309- ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 04 1 1309- ● ● ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 1309- ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 1309- ● ● ●
39 04.681 CLIP; HOSE,VAC
BRAKE SYSTEM PA TYPE(8BX) (D) ID=11X2 L=16 		0-95325-025-0 01 1 1309- ●
39 04.681 CLIP; HOSE,VAC
(D) ID=11X2 L=16 		0-95325-025-0 01 1 1309- ●
39 04.681 CLIP; HOSE,VAC
BRAKE SYSTEM PA TYPE(8BX) (F) 		8-98060-842-0 02 1 1309- ●
39 04.681 CLIP; HOSE,VAC
(F) 		8-98060-842-0 02 1 1309- ●
39 04.681 CLIP; HOSE,VAC
BRAKE SYSTEM PA TYPE(8BX) (E) 		8-98182-203-0 01 1 1309- ●
39 04.681 CLIP; HOSE,VAC
(E) 		8-98182-203-0 01 1 1309- ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP 8-98220-579-0 01 1 1309- ● ● ●
116 04.931 HOSE; VAC,M/VAC
(I) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 1309-1408 ●
116 04.931 HOSE; VAC,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ> (I) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 1309-1408 ●
116 04.931 HOSE; VAC,M/VAC
(I) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 1409- ●
116 04.931 HOSE; VAC,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ> (I) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 1409- ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (D) 		8-97389-689-3 01 1 1309- ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (H) 		8-98115-385-1 01 1 1309- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) EXC. BRAKE SYSTEM PA TYPE(8BX) (H) 		8-98115-385-1 01 1 1309- ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (C) 		8-97389-690-3 01 1 1309- ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (G) 		8-98115-399-1 01 1 1309- ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T),BRAKE SYSTEM PA TYPE(8BX) (G) 		8-98115-399-1 01 1 1309- ●
116 04.931 HOSE; VAC,M/VAC
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F) 		8-98212-894-0 01 1 1309-1310 ●
116 04.931 HOSE; VAC,M/VAC
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (F) 		8-98212-894-0 01 1 1311-1408 ●
116 04.931 HOSE; VAC,M/VAC
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (F) 		8-98212-894-0 01 1 1409- ● ●
116 04.931 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (E) L=140 SERVICED BY L=3000 		0-08158-300-0 02 1 1309-1408 ●
116 04.931 HOSE; VAC,M/VAC
(E) L=140 SERVICED BY L=3000 		0-08158-300-0 02 1 1309-1408 ●
116 04.931 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (E) L=140 SERVICED BY L=3000 		0-08158-300-0 02 1 1409- ● ●
116 04.931 HOSE; VAC,M/VAC
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (F) 		8-98158-378-0 01 1 1309-1408 ●
116 04.931 HOSE; VAC,M/VAC
(F) 		8-98158-378-0 01 1 1309-1408 ●
116 04.931 HOSE; VAC,M/VAC
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (F) 		8-98158-378-0 01 1 1409- ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) BRAKE SYSTEM PA TYPE(8BX) (B) 		8-98115-387-2 01 1 1309- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (B) 		8-98115-387-2 01 1 1309- ●
116 04.931 HOSE; VAC,M/VAC
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98115-401-2 01 1 1309- ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98115-401-2 01 1 1309- ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) (C) 		8-97389-695-2 01 1 1309- ● ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) (B) 		8-98027-352-3 01 1 1309- ● ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-97389-696-2 01 1 1309- ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (B) 		8-98017-168-3 01 1 1309- ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (C) 		8-98027-351-3 01 1 1309- ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (E) 		8-98027-354-2 01 1 1309- ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (D) 		8-98125-532-1 01 1 1309- ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (N) 		8-98027-353-3 01 1 1309- ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. BRAKE SYSTEM PA TYPE(8BX) (N) 		8-98027-353-3 01 1 1309- ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98022-868-3 01 1 1309- ● ● ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T) (H) 		8-98125-849-1 01 1 1309- ● ● ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T) (O) 		8-97389-671-3 01 1 1309- ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T),BRAKE SYSTEM PA TYPE(8BX) (O) 		8-97389-671-3 01 1 1309- ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) BRAKE SYSTEM PA TYPE(8BX) (F) 		8-98118-477-0 01 1 1309- ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (F) 		8-98118-477-0 01 1 1309- ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) (I) 		8-98118-478-1 01 1 1309- ●
157 04.931 HOSE; JOINT
(I) 		8-98118-478-1 01 1 1309- ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) (J) 		8-98118-479-1 01 1 1309- ●
157 04.931 HOSE; JOINT
(J) 		8-98118-479-1 01 1 1309- ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) (K) 		8-98118-480-0 01 1 1309- ●
157 04.931 HOSE; JOINT
(K) 		8-98118-480-0 01 1 1309- ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) (L) 		8-98158-475-1 01 1 1309- ●
157 04.931 HOSE; JOINT
(L) 		8-98158-475-1 01 1 1309- ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) (M) 		8-98172-652-0 01 1 1309- ●
157 04.931 HOSE; JOINT
(M) 		8-98172-652-0 01 1 1309- ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) (G) 		8-98118-481-0 01 1 1309- ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T) (G) 		8-98118-481-0 01 1 1309- ●
163 04.681 JOINT; VAC HOSE
POWER ASSIST CLUTCH(S2T) 03.163 		8-97353-668-0 01 1 1309- ● ● ●
165 04.686 BOLT; BRKT
02.762 (A) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 1309- ● ● ●
165 04.686 BOLT; BRKT
EXC. KD PREPARATORY PACK VAR.4<7TV> 02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 1309- ●
165 04.686 BOLT; BRKT
KD PREPARATORY PACK VAR.4<7TV> BRAKE SYSTEM PA TYPE(8BX) 02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 1309- ●
165 04.686 BOLT; BRKT
EXC. KD PREPARATORY PACK VAR.4<7TV>, BRAKE SYSTEM PA TYPE(8BX) 02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 1309- ●
165 04.686 BOLT; BRKT
KD PREPARATORY PACK VAR.4<7TV> 02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 1309- ●
165 04.686 BOLT; BRKT
BRAKE SYSTEM PA TYPE(8BX) EXC. KD PREPARATORY PACK VAR.4<7TV> 02.343 (B) M6X16 FLANGE 		0-28650-616-0 02 1 1309- ●
165 04.686 BOLT; BRKT
EXC. KD PREPARATORY PACK VAR.4<7TV> 02.343 (B) M6X16 FLANGE 		0-28650-616-0 02 1 1309- ●
173 04.931 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) (A) 		8-98121-940-0 01 1 1309- ● ● ●
173 04.931 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) (B) 		8-98121-941-0 01 1 1309- ● ● ●
173 04.931 HOSE; VAC,VAC TANK SIDE
EXC. POWER ASSIST CLUTCH(S2T) (C) 		8-98107-558-0 01 1 1309- ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (D) 		8-98255-548-0 01 1 1312- ● ● ●
184 04.685 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> (A) 		8-98183-467-1 01 1 1309- ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. PTO MANUAL CONTROL(6WC) (B) 		8-98017-628-1 01 1 1309- ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (A) 		8-98183-462-1 01 1 1309-1311 ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98255-535-0 01 1 1312- ● ● ●
202 04.686 SEAL
08.845 		8-97856-616-0 02 1 1309- ● ● ●
203 04.690 VALVE; CHECK
POWER ASSIST CLUTCH(S2T) (B) 		8-94104-021-0 01 1 1309- ● ● ●
203 04.690 VALVE; CHECK
(A) 		8-94386-540-0 01 1 1309- ● ● ●
234 04.685 CLAMP; PIPE
POWER ASSIST CLUTCH(S2T) 04.930 ID=16 		8-94238-568-0 04 1 1309- ● ● ●
234 04.685 CLAMP; PIPE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 ID=16 		8-94238-568-0 03 1 1309- ● ● ●

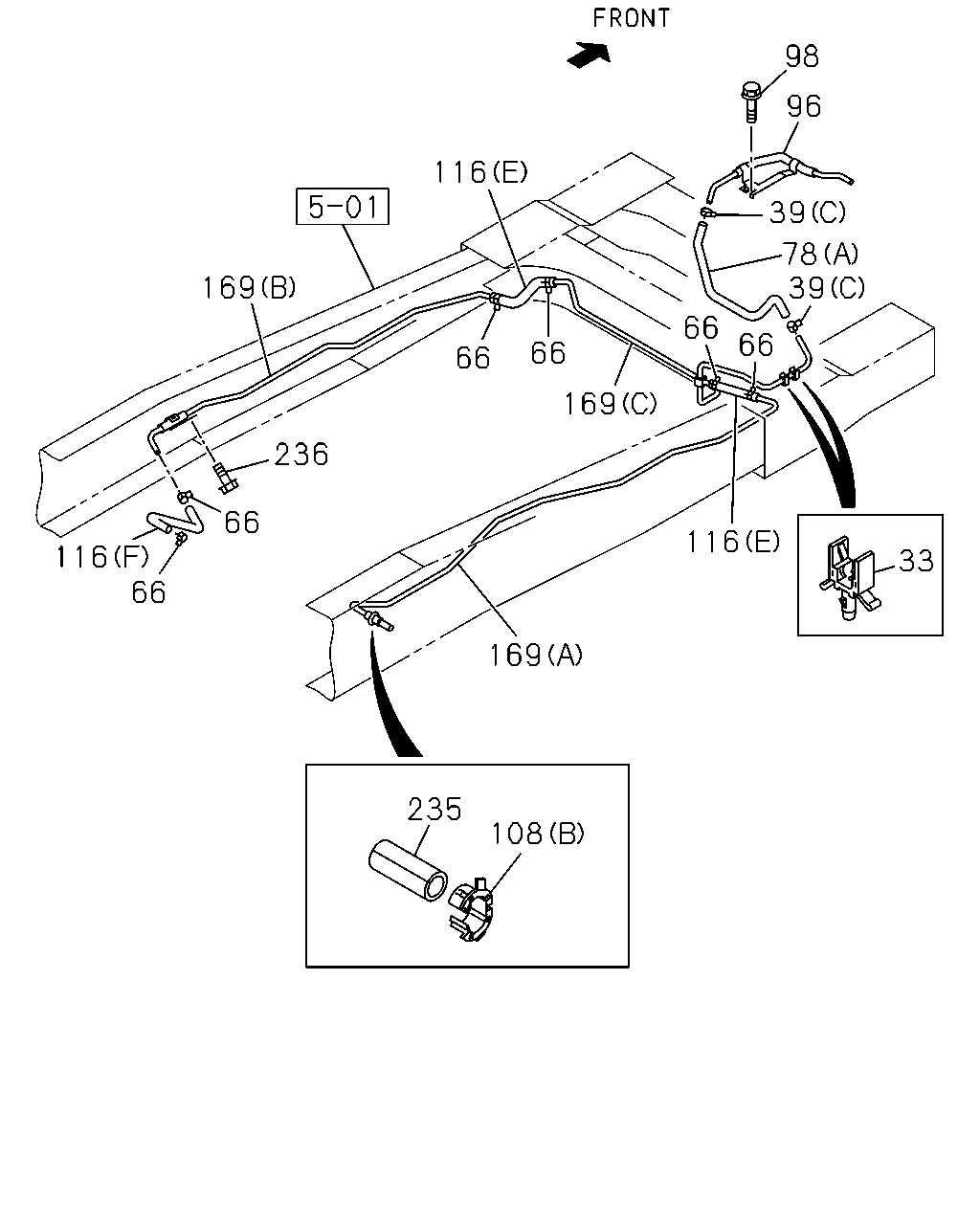

çizim 373849
116 169 236 66 66 116 169 235 108 116 169 66 66 33 98 96 39 39 78 66 66
BalonParca AdiParca NoAdetTipApplied Date A B C
33 04.930 CLIP; VAC PIPE
ID=10 H=40 		8-94462-219-0 02 1 1309- ● ● ●
39 04.681 CLIP; HOSE,VAC
01.097 (C) ID=16 		8-97329-628-0 02 1 1309- ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 04 1 1309- ● ● ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 1309- ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 1309- ● ● ●
39 04.681 CLIP; HOSE,VAC
BRAKE SYSTEM PA TYPE(8BX) (D) ID=11X2 L=16 		0-95325-025-0 01 1 1309- ●
39 04.681 CLIP; HOSE,VAC
(D) ID=11X2 L=16 		0-95325-025-0 01 1 1309- ●
39 04.681 CLIP; HOSE,VAC
BRAKE SYSTEM PA TYPE(8BX) (F) 		8-98060-842-0 02 1 1309- ●
39 04.681 CLIP; HOSE,VAC
(F) 		8-98060-842-0 02 1 1309- ●
39 04.681 CLIP; HOSE,VAC
BRAKE SYSTEM PA TYPE(8BX) (E) 		8-98182-203-0 01 1 1309- ●
39 04.681 CLIP; HOSE,VAC
(E) 		8-98182-203-0 01 1 1309- ●
66 04.930 CLIP; VAC HOSE,M/VAC
03.162 ID=16 		8-98008-098-0 02 1 1309-1408 ●
66 04.930 CLIP; VAC HOSE,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16 		8-98008-098-0 02 1 1309-1408 ●
66 04.930 CLIP; VAC HOSE,M/VAC
03.162 ID=16 		8-98008-098-0 02 1 1409- ●
66 04.930 CLIP; VAC HOSE,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16 		8-98008-098-0 02 1 1409- ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16 		8-98008-098-0 06 1 1309-1408 ●
66 04.930 CLIP; VAC HOSE,M/VAC
03.162 ID=16 		8-98008-098-0 06 1 1309-1408 ●
66 04.930 CLIP; VAC HOSE,M/VAC
FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16 		8-98008-098-0 06 1 1409- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(D) 		8-98220-704-0 01 1 1309-1408 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-98220-704-0 01 1 1309-1408 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(D) 		8-98220-704-0 01 1 1409- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-98220-704-0 01 1 1409- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (C) 		8-98109-826-0 01 1 1309- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98080-833-1 01 1 1309-1408 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(A) 		8-98080-833-1 01 1 1309-1408 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98080-833-1 01 1 1409- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (B) 		8-98109-825-2 01 1 1309-1408 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(B) 		8-98109-825-2 01 1 1309-1408 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (B) 		8-98109-825-2 01 1 1409- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (C) 		8-98207-456-0 01 1 1309-1408 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(C) 		8-98207-456-0 01 1 1309-1408 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (C) 		8-98207-456-0 01 1 1409- ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP 8-98220-579-0 01 1 1309- ● ● ●
98 04.931 BOLT; VAC PIPE FIX
03.162 M6X12 FLANGE 		0-28050-612-0 01 1 1309- ● ● ●
108 04.931 GROMMET; PIPE
02.343 (B) ID=17 		8-94128-319-2 01 1 1309- ● ● ●
108 04.931 GROMMET; PIPE
EXC. POWER ASSIST CLUTCH(S2T) (A) 		9-09956-353-0 01 1 1309- ● ● ●
116 04.931 HOSE; VAC,M/VAC
(I) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 1309-1408 ●
116 04.931 HOSE; VAC,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ> (I) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 1309-1408 ●
116 04.931 HOSE; VAC,M/VAC
(I) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 1409- ●
116 04.931 HOSE; VAC,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ> (I) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 1409- ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (D) 		8-97389-689-3 01 1 1309- ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (H) 		8-98115-385-1 01 1 1309- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) EXC. BRAKE SYSTEM PA TYPE(8BX) (H) 		8-98115-385-1 01 1 1309- ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (C) 		8-97389-690-3 01 1 1309- ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (G) 		8-98115-399-1 01 1 1309- ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T),BRAKE SYSTEM PA TYPE(8BX) (G) 		8-98115-399-1 01 1 1309- ●
116 04.931 HOSE; VAC,M/VAC
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F) 		8-98212-894-0 01 1 1309-1310 ●
116 04.931 HOSE; VAC,M/VAC
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (F) 		8-98212-894-0 01 1 1311-1408 ●
116 04.931 HOSE; VAC,M/VAC
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (F) 		8-98212-894-0 01 1 1409- ● ●
116 04.931 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (E) L=140 SERVICED BY L=3000 		0-08158-300-0 02 1 1309-1408 ●
116 04.931 HOSE; VAC,M/VAC
(E) L=140 SERVICED BY L=3000 		0-08158-300-0 02 1 1309-1408 ●
116 04.931 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (E) L=140 SERVICED BY L=3000 		0-08158-300-0 02 1 1409- ● ●
116 04.931 HOSE; VAC,M/VAC
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (F) 		8-98158-378-0 01 1 1309-1408 ●
116 04.931 HOSE; VAC,M/VAC
(F) 		8-98158-378-0 01 1 1309-1408 ●
116 04.931 HOSE; VAC,M/VAC
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (F) 		8-98158-378-0 01 1 1409- ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) BRAKE SYSTEM PA TYPE(8BX) (B) 		8-98115-387-2 01 1 1309- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (B) 		8-98115-387-2 01 1 1309- ●
116 04.931 HOSE; VAC,M/VAC
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98115-401-2 01 1 1309- ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98115-401-2 01 1 1309- ●
169 04.930 PIPE; VAC,BOOSTER SIDE
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98212-871-0 01 1 1309-1310 ●
169 04.930 PIPE; VAC,BOOSTER SIDE
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (B) 		8-98212-871-0 01 1 1311-1408 ●
169 04.930 PIPE; VAC,BOOSTER SIDE
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (B) 		8-98212-871-0 01 1 1409- ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98067-259-2 01 1 1309-1408 ●
169 04.930 PIPE; VAC,BOOSTER SIDE
(A) 		8-98067-259-2 01 1 1309-1408 ●
169 04.930 PIPE; VAC,BOOSTER SIDE
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98067-259-2 01 1 1409- ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
FRAME STRAIGHT TYPE<7KJ> (C) 		8-98210-357-1 01 1 1309-1408 ●
169 04.930 PIPE; VAC,BOOSTER SIDE
(C) 		8-98210-357-1 01 1 1309-1408 ●
169 04.930 PIPE; VAC,BOOSTER SIDE
FRAME STRAIGHT TYPE<7KJ> (C) 		8-98210-357-1 01 1 1409- ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98222-220-0 01 1 1309-1408 ●
169 04.930 PIPE; VAC,BOOSTER SIDE
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98222-220-0 01 1 1309-1408 ●
169 04.930 PIPE; VAC,BOOSTER SIDE
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98222-220-0 01 1 1409- ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98222-219-0 01 1 1309-1408 ●
169 04.930 PIPE; VAC,BOOSTER SIDE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98222-219-0 01 1 1309-1408 ●
169 04.930 PIPE; VAC,BOOSTER SIDE
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98222-219-0 01 1 1409- ● ●
235 04.931 RUBBER; SUPPORT,PIPE
03.162 OD=16.5 L=50 		8-97214-235-0 01 1 1309- ● ● ●
236 04.930 BOLT; PIPE
CATALYSIS CONTROL WITH DPD(8JM) 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 1311- ●
236 04.930 BOLT; PIPE
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1309- ● ● ●
çizim 373870
116 116 78 80 66 85 66 80 39 98 96 39 80 108 235
BalonParca AdiParca NoAdetTipApplied Date A B C
39 04.681 CLIP; HOSE,VAC
01.097 (C) ID=16 		8-97329-628-0 02 1 1309- ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 04 1 1309- ● ● ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 1309- ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 1309- ● ● ●
39 04.681 CLIP; HOSE,VAC
BRAKE SYSTEM PA TYPE(8BX) (D) ID=11X2 L=16 		0-95325-025-0 01 1 1309- ●
39 04.681 CLIP; HOSE,VAC
(D) ID=11X2 L=16 		0-95325-025-0 01 1 1309- ●
39 04.681 CLIP; HOSE,VAC
BRAKE SYSTEM PA TYPE(8BX) (F) 		8-98060-842-0 02 1 1309- ●
39 04.681 CLIP; HOSE,VAC
(F) 		8-98060-842-0 02 1 1309- ●
39 04.681 CLIP; HOSE,VAC
BRAKE SYSTEM PA TYPE(8BX) (E) 		8-98182-203-0 01 1 1309- ●
39 04.681 CLIP; HOSE,VAC
(E) 		8-98182-203-0 01 1 1309- ●
66 04.930 CLIP; VAC HOSE,M/VAC
03.162 ID=16 		8-98008-098-0 02 1 1309-1408 ●
66 04.930 CLIP; VAC HOSE,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16 		8-98008-098-0 02 1 1309-1408 ●
66 04.930 CLIP; VAC HOSE,M/VAC
03.162 ID=16 		8-98008-098-0 02 1 1409- ●
66 04.930 CLIP; VAC HOSE,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16 		8-98008-098-0 02 1 1409- ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16 		8-98008-098-0 06 1 1309-1408 ●
66 04.930 CLIP; VAC HOSE,M/VAC
03.162 ID=16 		8-98008-098-0 06 1 1309-1408 ●
66 04.930 CLIP; VAC HOSE,M/VAC
FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16 		8-98008-098-0 06 1 1409- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(D) 		8-98220-704-0 01 1 1309-1408 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-98220-704-0 01 1 1309-1408 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(D) 		8-98220-704-0 01 1 1409- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-98220-704-0 01 1 1409- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (C) 		8-98109-826-0 01 1 1309- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98080-833-1 01 1 1309-1408 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(A) 		8-98080-833-1 01 1 1309-1408 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98080-833-1 01 1 1409- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (B) 		8-98109-825-2 01 1 1309-1408 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(B) 		8-98109-825-2 01 1 1309-1408 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (B) 		8-98109-825-2 01 1 1409- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (C) 		8-98207-456-0 01 1 1309-1408 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(C) 		8-98207-456-0 01 1 1309-1408 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (C) 		8-98207-456-0 01 1 1409- ● ●
80 04.930 PIPE; VAC,ENG SIDE
(C) 		8-98051-652-0 01 1 1309-1408 ●
80 04.930 PIPE; VAC,ENG SIDE
EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-98051-652-0 01 1 1309-1408 ●
80 04.930 PIPE; VAC,ENG SIDE
(C) 		8-98051-652-0 01 1 1409- ●
80 04.930 PIPE; VAC,ENG SIDE
EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-98051-652-0 01 1 1409- ● ●
80 04.930 PIPE; VAC,ENG SIDE
(A) 		8-98058-596-0 01 1 1309-1408 ●
80 04.930 PIPE; VAC,ENG SIDE
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98058-596-0 01 1 1309-1408 ●
80 04.930 PIPE; VAC,ENG SIDE
(A) 		8-98058-596-0 01 1 1409- ●
80 04.930 PIPE; VAC,ENG SIDE
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98058-596-0 01 1 1409- ● ●
80 04.930 PIPE; VAC,ENG SIDE
(B) 		8-98220-580-0 01 1 1309-1408 ●
80 04.930 PIPE; VAC,ENG SIDE
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98220-580-0 01 1 1309-1408 ●
80 04.930 PIPE; VAC,ENG SIDE
(B) 		8-98220-580-0 01 1 1409- ●
80 04.930 PIPE; VAC,ENG SIDE
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98220-580-0 01 1 1409- ● ●
85 04.931 HOSE; VAC,ENG SIDE 8-97389-705-2 01 1 1309-1408 ●
85 04.931 HOSE; VAC,ENG SIDE
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97389-705-2 01 1 1309-1408 ●
85 04.931 HOSE; VAC,ENG SIDE 8-97389-705-2 01 1 1409- ●
85 04.931 HOSE; VAC,ENG SIDE
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97389-705-2 01 1 1409- ● ●
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP 8-98220-579-0 01 1 1309- ● ● ●
98 04.931 BOLT; VAC PIPE FIX
03.162 M6X12 FLANGE 		0-28050-612-0 01 1 1309- ● ● ●
108 04.931 GROMMET; PIPE
02.343 (B) ID=17 		8-94128-319-2 01 1 1309- ● ● ●
108 04.931 GROMMET; PIPE
EXC. POWER ASSIST CLUTCH(S2T) (A) 		9-09956-353-0 01 1 1309- ● ● ●
116 04.931 HOSE; VAC,M/VAC
(I) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 1309-1408 ●
116 04.931 HOSE; VAC,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ> (I) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 1309-1408 ●
116 04.931 HOSE; VAC,M/VAC
(I) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 1409- ●
116 04.931 HOSE; VAC,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ> (I) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 1409- ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (D) 		8-97389-689-3 01 1 1309- ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (H) 		8-98115-385-1 01 1 1309- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) EXC. BRAKE SYSTEM PA TYPE(8BX) (H) 		8-98115-385-1 01 1 1309- ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (C) 		8-97389-690-3 01 1 1309- ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (G) 		8-98115-399-1 01 1 1309- ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T),BRAKE SYSTEM PA TYPE(8BX) (G) 		8-98115-399-1 01 1 1309- ●
116 04.931 HOSE; VAC,M/VAC
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F) 		8-98212-894-0 01 1 1309-1310 ●
116 04.931 HOSE; VAC,M/VAC
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (F) 		8-98212-894-0 01 1 1311-1408 ●
116 04.931 HOSE; VAC,M/VAC
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (F) 		8-98212-894-0 01 1 1409- ● ●
116 04.931 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (E) L=140 SERVICED BY L=3000 		0-08158-300-0 02 1 1309-1408 ●
116 04.931 HOSE; VAC,M/VAC
(E) L=140 SERVICED BY L=3000 		0-08158-300-0 02 1 1309-1408 ●
116 04.931 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (E) L=140 SERVICED BY L=3000 		0-08158-300-0 02 1 1409- ● ●
116 04.931 HOSE; VAC,M/VAC
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (F) 		8-98158-378-0 01 1 1309-1408 ●
116 04.931 HOSE; VAC,M/VAC
(F) 		8-98158-378-0 01 1 1309-1408 ●
116 04.931 HOSE; VAC,M/VAC
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (F) 		8-98158-378-0 01 1 1409- ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) BRAKE SYSTEM PA TYPE(8BX) (B) 		8-98115-387-2 01 1 1309- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (B) 		8-98115-387-2 01 1 1309- ●
116 04.931 HOSE; VAC,M/VAC
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98115-401-2 01 1 1309- ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98115-401-2 01 1 1309- ●
235 04.931 RUBBER; SUPPORT,PIPE
03.162 OD=16.5 L=50 		8-97214-235-0 01 1 1309- ● ● ●
çizim 373871
122 136 136 136 136 106 78 106 106 136 44 136 78
BalonParca AdiParca NoAdetTipApplied Date A B C
44 04.930 PIPE; VAC,MAG VLV
WHEEL BASE 2700MM(27W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) (E) 		8-98260-530-0 01 1 1401- ●
44 04.930 PIPE; VAC,MAG VLV
CATALYSIS CONTROL WITH DPD(8JM) (C) 		8-98227-112-0 01 1 1311- ●
44 04.930 PIPE; VAC,MAG VLV
CATALYSIS CONTROL WITH DPD(8JM) (D) 		8-98227-113-0 01 1 1311- ●
44 04.930 PIPE; VAC,MAG VLV
(B) 		8-98063-777-0 01 1 1309-1310 ●
44 04.930 PIPE; VAC,MAG VLV
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98063-777-0 01 1 1309-1310 ●
44 04.930 PIPE; VAC,MAG VLV
CATALYSIS CONTROL WITH DPD & SCR(JCQ) (B) 		8-98063-777-0 01 1 1311-1312 ●
44 04.930 PIPE; VAC,MAG VLV
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98063-777-0 01 1 1311-1312 ●
44 04.930 PIPE; VAC,MAG VLV
WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) (B) 		8-98063-777-0 01 1 1401-1408 ●
44 04.930 PIPE; VAC,MAG VLV
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98063-777-0 01 1 1401-1408 ●
44 04.930 PIPE; VAC,MAG VLV
WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) (B) 		8-98063-777-0 01 1 1409- ●
44 04.930 PIPE; VAC,MAG VLV
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98063-777-0 01 1 1409- ● ●
44 04.930 PIPE; VAC,MAG VLV
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98109-719-0 01 1 1309-1408 ●
44 04.930 PIPE; VAC,MAG VLV
(A) 		8-98109-719-0 01 1 1309-1408 ●
44 04.930 PIPE; VAC,MAG VLV
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98109-719-0 01 1 1409- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(D) 		8-98220-704-0 01 1 1309-1408 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-98220-704-0 01 1 1309-1408 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(D) 		8-98220-704-0 01 1 1409- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-98220-704-0 01 1 1409- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (C) 		8-98109-826-0 01 1 1309- ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98080-833-1 01 1 1309-1408 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(A) 		8-98080-833-1 01 1 1309-1408 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98080-833-1 01 1 1409- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (B) 		8-98109-825-2 01 1 1309-1408 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(B) 		8-98109-825-2 01 1 1309-1408 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> (B) 		8-98109-825-2 01 1 1409- ● ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (C) 		8-98207-456-0 01 1 1309-1408 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
(C) 		8-98207-456-0 01 1 1309-1408 ●
78 04.931 HOSE; VAC,PIPE TO PIPE
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (C) 		8-98207-456-0 01 1 1409- ● ●
106 04.930 CLIP; PIPE
FRAME STRAIGHT TYPE<7KJ> ID=10 H=40 		8-94462-219-0 03 1 1309-1408 ●
106 04.930 CLIP; PIPE
ID=10 H=40 		8-94462-219-0 03 1 1309-1408 ●
106 04.930 CLIP; PIPE
FRAME STRAIGHT TYPE<7KJ> ID=10 H=40 		8-94462-219-0 03 1 1409- ● ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
FRAME STRAIGHT TYPE<7KJ> 		8-98155-961-1 01 1 1309-1408 ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE 8-98155-961-1 01 1 1309-1408 ●
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE
FRAME STRAIGHT TYPE<7KJ> 		8-98155-961-1 01 1 1409- ● ●
136 04.681 CLIP; VAC HOSE
FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16 		8-98008-098-0 06 1 1309-1408 ●
136 04.681 CLIP; VAC HOSE
03.162 ID=16 		8-98008-098-0 06 1 1309-1408 ●
136 04.681 CLIP; VAC HOSE
FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16 		8-98008-098-0 06 1 1409- ● ●
çizim 373891
236 12 12 237 198 12 12 12 12 237 12 44 44
BalonParca AdiParca NoAdetTipApplied Date A B C
12 04.681 CLIP; HOSE
CATALYSIS CONTROL WITH DPD(8JM) 03.162 (C) ID=16 		8-98008-098-0 08 1 1311- ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 1309- ● ● ●
12 04.681 CLIP; HOSE
04.930 (A) ID=15.5 		8-98008-097-0 02 1 1309- ● ● ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 12 1 1309- ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) EXC. BRAKE SYSTEM PA TYPE(8BX) 04.930 (A) ID=15.5 		8-98008-097-0 12 1 1309- ●
12 04.681 CLIP; HOSE
02.559 (D) ID=14-20 		8-97061-603-0 01 1 1309-1310 ●
12 04.681 CLIP; HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (D) ID=14-20 		8-97061-603-0 01 1 1309-1310 ●
12 04.681 CLIP; HOSE
CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) 02.559 (D) ID=14-20 		8-97061-603-0 01 1 1311-1312 ●
12 04.681 CLIP; HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (D) ID=14-20 		8-97061-603-0 01 1 1311-1312 ●
12 04.681 CLIP; HOSE
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) 02.559 (D) ID=14-20 		8-97061-603-0 01 1 1401-1408 ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (D) ID=14-20 		8-97061-603-0 01 1 1401-1408 ●
12 04.681 CLIP; HOSE
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) 02.559 (D) ID=14-20 		8-97061-603-0 01 1 1409- ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (D) ID=14-20 		8-97061-603-0 01 1 1409- ● ●
12 04.681 CLIP; HOSE
03.162 (C) ID=16 		8-98008-098-0 06 1 1309-1310 ●
12 04.681 CLIP; HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) ID=16 		8-98008-098-0 06 1 1309-1310 ●
12 04.681 CLIP; HOSE
CATALYSIS CONTROL WITH DPD & SCR(JCQ) 03.162 (C) ID=16 		8-98008-098-0 06 1 1311-1312 ●
12 04.681 CLIP; HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) ID=16 		8-98008-098-0 06 1 1311-1312 ●
12 04.681 CLIP; HOSE
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) 03.162 (C) ID=16 		8-98008-098-0 06 1 1401-1408 ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) ID=16 		8-98008-098-0 06 1 1401-1408 ●
12 04.681 CLIP; HOSE
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) 03.162 (C) ID=16 		8-98008-098-0 06 1 1409- ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) ID=16 		8-98008-098-0 06 1 1409- ● ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 04 1 1309- ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T),BRAKE SYSTEM PA TYPE(8BX) 04.930 (A) ID=15.5 		8-98008-097-0 04 1 1309- ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) BRAKE SYSTEM PA TYPE(8BX) 04.930 (A) ID=15.5 		8-98008-097-0 16 1 1309- ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 16 1 1309- ●
12 04.681 CLIP; HOSE
BRAKE SYSTEM PA TYPE(8BX) (B) 		8-98060-842-0 12 1 1309- ●
12 04.681 CLIP; HOSE
(B) 		8-98060-842-0 12 1 1309- ●
12 04.681 CLIP; HOSE
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 08 1 1309- ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 08 1 1309- ●
44 04.930 PIPE; VAC,MAG VLV
WHEEL BASE 2700MM(27W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) (E) 		8-98260-530-0 01 1 1401- ●
44 04.930 PIPE; VAC,MAG VLV
CATALYSIS CONTROL WITH DPD(8JM) (C) 		8-98227-112-0 01 1 1311- ●
44 04.930 PIPE; VAC,MAG VLV
CATALYSIS CONTROL WITH DPD(8JM) (D) 		8-98227-113-0 01 1 1311- ●
44 04.930 PIPE; VAC,MAG VLV
(B) 		8-98063-777-0 01 1 1309-1310 ●
44 04.930 PIPE; VAC,MAG VLV
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98063-777-0 01 1 1309-1310 ●
44 04.930 PIPE; VAC,MAG VLV
CATALYSIS CONTROL WITH DPD & SCR(JCQ) (B) 		8-98063-777-0 01 1 1311-1312 ●
44 04.930 PIPE; VAC,MAG VLV
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98063-777-0 01 1 1311-1312 ●
44 04.930 PIPE; VAC,MAG VLV
WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) (B) 		8-98063-777-0 01 1 1401-1408 ●
44 04.930 PIPE; VAC,MAG VLV
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98063-777-0 01 1 1401-1408 ●
44 04.930 PIPE; VAC,MAG VLV
WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) (B) 		8-98063-777-0 01 1 1409- ●
44 04.930 PIPE; VAC,MAG VLV
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98063-777-0 01 1 1409- ● ●
44 04.930 PIPE; VAC,MAG VLV
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98109-719-0 01 1 1309-1408 ●
44 04.930 PIPE; VAC,MAG VLV
(A) 		8-98109-719-0 01 1 1309-1408 ●
44 04.930 PIPE; VAC,MAG VLV
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98109-719-0 01 1 1409- ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV 8-98092-677-0 01 1 1309-1310 ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98092-677-0 01 1 1309-1310 ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) 		8-98092-677-0 01 1 1311-1312 ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98092-677-0 01 1 1311-1312 ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) 		8-98092-677-0 01 1 1401-1408 ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98092-677-0 01 1 1401-1408 ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) 		8-98092-677-0 01 1 1409- ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98092-677-0 01 1 1409- ● ●
236 04.930 BOLT; PIPE
CATALYSIS CONTROL WITH DPD(8JM) 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 1311- ●
236 04.930 BOLT; PIPE
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1309- ● ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 2700MM(27W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) (B) 		8-98260-531-0 01 1 1401- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
CATALYSIS CONTROL WITH DPD(8JM) 03.630 (D) L=260 SERVICED BY L=3000 		0-08258-300-0 01 1 1311- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
CATALYSIS CONTROL WITH DPD(8JM) (C) 		8-98207-022-0 01 1 1311- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
(B) 		8-98106-711-0 01 1 1309-1310 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98106-711-0 01 1 1309-1310 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
CATALYSIS CONTROL WITH DPD & SCR(JCQ) (B) 		8-98106-711-0 01 1 1311-1312 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98106-711-0 01 1 1311-1312 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) (B) 		8-98106-711-0 01 1 1401-1408 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98106-711-0 01 1 1401-1408 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) (B) 		8-98106-711-0 01 1 1409- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98106-711-0 01 1 1409- ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
(A) 		8-98171-288-0 01 1 1309-1310 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98171-288-0 01 1 1309-1310 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-98171-288-0 01 1 1311-1312 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98171-288-0 01 1 1311-1312 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-98171-288-0 01 1 1401-1408 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98171-288-0 01 1 1401-1408 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-98171-288-0 01 1 1409- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98171-288-0 01 1 1409- ● ●
çizim 374475
116 39 39 165 184 116 184 184 157 12 12 157 157 13 157 13 12 12 13 12 12 12 157 157 157 12 12 13 12 247 246 247 246 248 116 39 39 39
BalonParca AdiParca NoAdetTipApplied Date A B C
12 04.681 CLIP; HOSE
CATALYSIS CONTROL WITH DPD(8JM) 03.162 (C) ID=16 		8-98008-098-0 08 1 1311- ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 1309- ● ● ●
12 04.681 CLIP; HOSE
04.930 (A) ID=15.5 		8-98008-097-0 02 1 1309- ● ● ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 12 1 1309- ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) EXC. BRAKE SYSTEM PA TYPE(8BX) 04.930 (A) ID=15.5 		8-98008-097-0 12 1 1309- ●
12 04.681 CLIP; HOSE
02.559 (D) ID=14-20 		8-97061-603-0 01 1 1309-1310 ●
12 04.681 CLIP; HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (D) ID=14-20 		8-97061-603-0 01 1 1309-1310 ●
12 04.681 CLIP; HOSE
CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) 02.559 (D) ID=14-20 		8-97061-603-0 01 1 1311-1312 ●
12 04.681 CLIP; HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (D) ID=14-20 		8-97061-603-0 01 1 1311-1312 ●
12 04.681 CLIP; HOSE
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) 02.559 (D) ID=14-20 		8-97061-603-0 01 1 1401-1408 ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (D) ID=14-20 		8-97061-603-0 01 1 1401-1408 ●
12 04.681 CLIP; HOSE
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) 02.559 (D) ID=14-20 		8-97061-603-0 01 1 1409- ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (D) ID=14-20 		8-97061-603-0 01 1 1409- ● ●
12 04.681 CLIP; HOSE
03.162 (C) ID=16 		8-98008-098-0 06 1 1309-1310 ●
12 04.681 CLIP; HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) ID=16 		8-98008-098-0 06 1 1309-1310 ●
12 04.681 CLIP; HOSE
CATALYSIS CONTROL WITH DPD & SCR(JCQ) 03.162 (C) ID=16 		8-98008-098-0 06 1 1311-1312 ●
12 04.681 CLIP; HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) ID=16 		8-98008-098-0 06 1 1311-1312 ●
12 04.681 CLIP; HOSE
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) 03.162 (C) ID=16 		8-98008-098-0 06 1 1401-1408 ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) ID=16 		8-98008-098-0 06 1 1401-1408 ●
12 04.681 CLIP; HOSE
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) 03.162 (C) ID=16 		8-98008-098-0 06 1 1409- ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) ID=16 		8-98008-098-0 06 1 1409- ● ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 04 1 1309- ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T),BRAKE SYSTEM PA TYPE(8BX) 04.930 (A) ID=15.5 		8-98008-097-0 04 1 1309- ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) BRAKE SYSTEM PA TYPE(8BX) 04.930 (A) ID=15.5 		8-98008-097-0 16 1 1309- ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 16 1 1309- ●
12 04.681 CLIP; HOSE
BRAKE SYSTEM PA TYPE(8BX) (B) 		8-98060-842-0 12 1 1309- ●
12 04.681 CLIP; HOSE
(B) 		8-98060-842-0 12 1 1309- ●
12 04.681 CLIP; HOSE
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 08 1 1309- ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 08 1 1309- ●
13 04.681 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) (B) 		8-98035-106-0 02 1 1309- ● ● ●
13 04.681 JOINT; HOSE,VAC
(B) 		8-98035-106-0 01 1 1309- ● ● ●
13 04.681 JOINT; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98048-075-0 01 1 1309- ● ● ●
13 04.681 JOINT; HOSE,VAC
BRAKE SYSTEM PA TYPE(8BX) 04.931 (C) 		8-98119-530-0 01 1 1309- ●
13 04.681 JOINT; HOSE,VAC
04.931 (C) 		8-98119-530-0 01 1 1309- ●
13 04.681 JOINT; HOSE,VAC
BRAKE SYSTEM PA TYPE(8BX) (D) 		8-98172-020-0 02 1 1309- ●
13 04.681 JOINT; HOSE,VAC
(D) 		8-98172-020-0 02 1 1309- ●
39 04.681 CLIP; HOSE,VAC
01.097 (C) ID=16 		8-97329-628-0 02 1 1309- ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 04 1 1309- ● ● ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 1309- ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 1309- ● ● ●
39 04.681 CLIP; HOSE,VAC
BRAKE SYSTEM PA TYPE(8BX) (D) ID=11X2 L=16 		0-95325-025-0 01 1 1309- ●
39 04.681 CLIP; HOSE,VAC
(D) ID=11X2 L=16 		0-95325-025-0 01 1 1309- ●
39 04.681 CLIP; HOSE,VAC
BRAKE SYSTEM PA TYPE(8BX) (F) 		8-98060-842-0 02 1 1309- ●
39 04.681 CLIP; HOSE,VAC
(F) 		8-98060-842-0 02 1 1309- ●
39 04.681 CLIP; HOSE,VAC
BRAKE SYSTEM PA TYPE(8BX) (E) 		8-98182-203-0 01 1 1309- ●
39 04.681 CLIP; HOSE,VAC
(E) 		8-98182-203-0 01 1 1309- ●
116 04.931 HOSE; VAC,M/VAC
(I) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 1309-1408 ●
116 04.931 HOSE; VAC,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ> (I) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 1309-1408 ●
116 04.931 HOSE; VAC,M/VAC
(I) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 1409- ●
116 04.931 HOSE; VAC,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ> (I) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 1409- ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (D) 		8-97389-689-3 01 1 1309- ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (H) 		8-98115-385-1 01 1 1309- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) EXC. BRAKE SYSTEM PA TYPE(8BX) (H) 		8-98115-385-1 01 1 1309- ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (C) 		8-97389-690-3 01 1 1309- ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (G) 		8-98115-399-1 01 1 1309- ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T),BRAKE SYSTEM PA TYPE(8BX) (G) 		8-98115-399-1 01 1 1309- ●
116 04.931 HOSE; VAC,M/VAC
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F) 		8-98212-894-0 01 1 1309-1310 ●
116 04.931 HOSE; VAC,M/VAC
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (F) 		8-98212-894-0 01 1 1311-1408 ●
116 04.931 HOSE; VAC,M/VAC
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (F) 		8-98212-894-0 01 1 1409- ● ●
116 04.931 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (E) L=140 SERVICED BY L=3000 		0-08158-300-0 02 1 1309-1408 ●
116 04.931 HOSE; VAC,M/VAC
(E) L=140 SERVICED BY L=3000 		0-08158-300-0 02 1 1309-1408 ●
116 04.931 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (E) L=140 SERVICED BY L=3000 		0-08158-300-0 02 1 1409- ● ●
116 04.931 HOSE; VAC,M/VAC
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (F) 		8-98158-378-0 01 1 1309-1408 ●
116 04.931 HOSE; VAC,M/VAC
(F) 		8-98158-378-0 01 1 1309-1408 ●
116 04.931 HOSE; VAC,M/VAC
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (F) 		8-98158-378-0 01 1 1409- ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) BRAKE SYSTEM PA TYPE(8BX) (B) 		8-98115-387-2 01 1 1309- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (B) 		8-98115-387-2 01 1 1309- ●
116 04.931 HOSE; VAC,M/VAC
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98115-401-2 01 1 1309- ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98115-401-2 01 1 1309- ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (B) 		8-98017-168-3 01 1 1309- ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (C) 		8-98027-351-3 01 1 1309- ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (E) 		8-98027-354-2 01 1 1309- ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (D) 		8-98125-532-1 01 1 1309- ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (N) 		8-98027-353-3 01 1 1309- ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. BRAKE SYSTEM PA TYPE(8BX) (N) 		8-98027-353-3 01 1 1309- ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98022-868-3 01 1 1309- ● ● ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T) (H) 		8-98125-849-1 01 1 1309- ● ● ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T) (O) 		8-97389-671-3 01 1 1309- ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T),BRAKE SYSTEM PA TYPE(8BX) (O) 		8-97389-671-3 01 1 1309- ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) BRAKE SYSTEM PA TYPE(8BX) (F) 		8-98118-477-0 01 1 1309- ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (F) 		8-98118-477-0 01 1 1309- ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) (I) 		8-98118-478-1 01 1 1309- ●
157 04.931 HOSE; JOINT
(I) 		8-98118-478-1 01 1 1309- ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) (J) 		8-98118-479-1 01 1 1309- ●
157 04.931 HOSE; JOINT
(J) 		8-98118-479-1 01 1 1309- ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) (K) 		8-98118-480-0 01 1 1309- ●
157 04.931 HOSE; JOINT
(K) 		8-98118-480-0 01 1 1309- ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) (L) 		8-98158-475-1 01 1 1309- ●
157 04.931 HOSE; JOINT
(L) 		8-98158-475-1 01 1 1309- ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) (M) 		8-98172-652-0 01 1 1309- ●
157 04.931 HOSE; JOINT
(M) 		8-98172-652-0 01 1 1309- ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) (G) 		8-98118-481-0 01 1 1309- ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T) (G) 		8-98118-481-0 01 1 1309- ●
165 04.686 BOLT; BRKT
02.762 (A) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 1309- ● ● ●
165 04.686 BOLT; BRKT
EXC. KD PREPARATORY PACK VAR.4<7TV> 02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 1309- ●
165 04.686 BOLT; BRKT
KD PREPARATORY PACK VAR.4<7TV> BRAKE SYSTEM PA TYPE(8BX) 02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 1309- ●
165 04.686 BOLT; BRKT
EXC. KD PREPARATORY PACK VAR.4<7TV>, BRAKE SYSTEM PA TYPE(8BX) 02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 1309- ●
165 04.686 BOLT; BRKT
KD PREPARATORY PACK VAR.4<7TV> 02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 1309- ●
165 04.686 BOLT; BRKT
BRAKE SYSTEM PA TYPE(8BX) EXC. KD PREPARATORY PACK VAR.4<7TV> 02.343 (B) M6X16 FLANGE 		0-28650-616-0 02 1 1309- ●
165 04.686 BOLT; BRKT
EXC. KD PREPARATORY PACK VAR.4<7TV> 02.343 (B) M6X16 FLANGE 		0-28650-616-0 02 1 1309- ●
184 04.685 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (D) 		8-98255-548-0 01 1 1312- ● ● ●
184 04.685 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> (A) 		8-98183-467-1 01 1 1309- ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. PTO MANUAL CONTROL(6WC) (B) 		8-98017-628-1 01 1 1309- ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (A) 		8-98183-462-1 01 1 1309-1311 ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98255-535-0 01 1 1312- ● ● ●
246 01.150 SENSOR; VAC
BRAKE SYSTEM PA TYPE(8BX) 		8-98111-750-1 02 1 1309- ●
246 01.150 SENSOR; VAC 8-98111-750-1 02 1 1309- ●
247 00.010 NUT; SENSOR VAC
BRAKE SYSTEM PA TYPE(8BX) 01.062 M6 FLANGE 		0-91180-106-0 04 1 1309- ●
247 00.010 NUT; SENSOR VAC
01.062 M6 FLANGE 		0-91180-106-0 04 1 1309- ●
248 06.672 BRACKET; SENSOR VAC
BRAKE SYSTEM PA TYPE(8BX) 		8-98111-751-1 01 1 1309- ●
248 06.672 BRACKET; SENSOR VAC 8-98111-751-1 01 1 1309- ●
çizim 374660
116 39 184 184 165 39 39 39 184 116 120 12 203 12 13 157 12 157 157 157 13 12 12 12 12 157 39 39 39 246 247 247 246 248 116 13 12 13 12 157 157 12 157 12 12 13 12 157 12
BalonParca AdiParca NoAdetTipApplied Date A B C
12 04.681 CLIP; HOSE
CATALYSIS CONTROL WITH DPD(8JM) 03.162 (C) ID=16 		8-98008-098-0 08 1 1311- ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 1309- ● ● ●
12 04.681 CLIP; HOSE
04.930 (A) ID=15.5 		8-98008-097-0 02 1 1309- ● ● ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 12 1 1309- ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) EXC. BRAKE SYSTEM PA TYPE(8BX) 04.930 (A) ID=15.5 		8-98008-097-0 12 1 1309- ●
12 04.681 CLIP; HOSE
02.559 (D) ID=14-20 		8-97061-603-0 01 1 1309-1310 ●
12 04.681 CLIP; HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (D) ID=14-20 		8-97061-603-0 01 1 1309-1310 ●
12 04.681 CLIP; HOSE
CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) 02.559 (D) ID=14-20 		8-97061-603-0 01 1 1311-1312 ●
12 04.681 CLIP; HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (D) ID=14-20 		8-97061-603-0 01 1 1311-1312 ●
12 04.681 CLIP; HOSE
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) 02.559 (D) ID=14-20 		8-97061-603-0 01 1 1401-1408 ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (D) ID=14-20 		8-97061-603-0 01 1 1401-1408 ●
12 04.681 CLIP; HOSE
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) 02.559 (D) ID=14-20 		8-97061-603-0 01 1 1409- ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (D) ID=14-20 		8-97061-603-0 01 1 1409- ● ●
12 04.681 CLIP; HOSE
03.162 (C) ID=16 		8-98008-098-0 06 1 1309-1310 ●
12 04.681 CLIP; HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) ID=16 		8-98008-098-0 06 1 1309-1310 ●
12 04.681 CLIP; HOSE
CATALYSIS CONTROL WITH DPD & SCR(JCQ) 03.162 (C) ID=16 		8-98008-098-0 06 1 1311-1312 ●
12 04.681 CLIP; HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) ID=16 		8-98008-098-0 06 1 1311-1312 ●
12 04.681 CLIP; HOSE
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) 03.162 (C) ID=16 		8-98008-098-0 06 1 1401-1408 ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) ID=16 		8-98008-098-0 06 1 1401-1408 ●
12 04.681 CLIP; HOSE
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) 03.162 (C) ID=16 		8-98008-098-0 06 1 1409- ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) ID=16 		8-98008-098-0 06 1 1409- ● ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 04 1 1309- ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T),BRAKE SYSTEM PA TYPE(8BX) 04.930 (A) ID=15.5 		8-98008-097-0 04 1 1309- ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) BRAKE SYSTEM PA TYPE(8BX) 04.930 (A) ID=15.5 		8-98008-097-0 16 1 1309- ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 16 1 1309- ●
12 04.681 CLIP; HOSE
BRAKE SYSTEM PA TYPE(8BX) (B) 		8-98060-842-0 12 1 1309- ●
12 04.681 CLIP; HOSE
(B) 		8-98060-842-0 12 1 1309- ●
12 04.681 CLIP; HOSE
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 08 1 1309- ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 08 1 1309- ●
13 04.681 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) (B) 		8-98035-106-0 02 1 1309- ● ● ●
13 04.681 JOINT; HOSE,VAC
(B) 		8-98035-106-0 01 1 1309- ● ● ●
13 04.681 JOINT; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98048-075-0 01 1 1309- ● ● ●
13 04.681 JOINT; HOSE,VAC
BRAKE SYSTEM PA TYPE(8BX) 04.931 (C) 		8-98119-530-0 01 1 1309- ●
13 04.681 JOINT; HOSE,VAC
04.931 (C) 		8-98119-530-0 01 1 1309- ●
13 04.681 JOINT; HOSE,VAC
BRAKE SYSTEM PA TYPE(8BX) (D) 		8-98172-020-0 02 1 1309- ●
13 04.681 JOINT; HOSE,VAC
(D) 		8-98172-020-0 02 1 1309- ●
39 04.681 CLIP; HOSE,VAC
01.097 (C) ID=16 		8-97329-628-0 02 1 1309- ● ● ●
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 04 1 1309- ● ● ●
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 1309- ● ● ●
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 		8-94238-568-0 02 1 1309- ● ● ●
39 04.681 CLIP; HOSE,VAC
BRAKE SYSTEM PA TYPE(8BX) (D) ID=11X2 L=16 		0-95325-025-0 01 1 1309- ●
39 04.681 CLIP; HOSE,VAC
(D) ID=11X2 L=16 		0-95325-025-0 01 1 1309- ●
39 04.681 CLIP; HOSE,VAC
BRAKE SYSTEM PA TYPE(8BX) (F) 		8-98060-842-0 02 1 1309- ●
39 04.681 CLIP; HOSE,VAC
(F) 		8-98060-842-0 02 1 1309- ●
39 04.681 CLIP; HOSE,VAC
BRAKE SYSTEM PA TYPE(8BX) (E) 		8-98182-203-0 01 1 1309- ●
39 04.681 CLIP; HOSE,VAC
(E) 		8-98182-203-0 01 1 1309- ●
116 04.931 HOSE; VAC,M/VAC
(I) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 1309-1408 ●
116 04.931 HOSE; VAC,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ> (I) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 1309-1408 ●
116 04.931 HOSE; VAC,M/VAC
(I) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 1409- ●
116 04.931 HOSE; VAC,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ> (I) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 1409- ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (D) 		8-97389-689-3 01 1 1309- ● ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (H) 		8-98115-385-1 01 1 1309- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) EXC. BRAKE SYSTEM PA TYPE(8BX) (H) 		8-98115-385-1 01 1 1309- ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (C) 		8-97389-690-3 01 1 1309- ● ● ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (G) 		8-98115-399-1 01 1 1309- ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T),BRAKE SYSTEM PA TYPE(8BX) (G) 		8-98115-399-1 01 1 1309- ●
116 04.931 HOSE; VAC,M/VAC
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F) 		8-98212-894-0 01 1 1309-1310 ●
116 04.931 HOSE; VAC,M/VAC
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (F) 		8-98212-894-0 01 1 1311-1408 ●
116 04.931 HOSE; VAC,M/VAC
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (F) 		8-98212-894-0 01 1 1409- ● ●
116 04.931 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (E) L=140 SERVICED BY L=3000 		0-08158-300-0 02 1 1309-1408 ●
116 04.931 HOSE; VAC,M/VAC
(E) L=140 SERVICED BY L=3000 		0-08158-300-0 02 1 1309-1408 ●
116 04.931 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (E) L=140 SERVICED BY L=3000 		0-08158-300-0 02 1 1409- ● ●
116 04.931 HOSE; VAC,M/VAC
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (F) 		8-98158-378-0 01 1 1309-1408 ●
116 04.931 HOSE; VAC,M/VAC
(F) 		8-98158-378-0 01 1 1309-1408 ●
116 04.931 HOSE; VAC,M/VAC
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (F) 		8-98158-378-0 01 1 1409- ● ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) BRAKE SYSTEM PA TYPE(8BX) (B) 		8-98115-387-2 01 1 1309- ●
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (B) 		8-98115-387-2 01 1 1309- ●
116 04.931 HOSE; VAC,M/VAC
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98115-401-2 01 1 1309- ●
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98115-401-2 01 1 1309- ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) (C) 		8-97389-695-2 01 1 1309- ● ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) (B) 		8-98027-352-3 01 1 1309- ● ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-97389-696-2 01 1 1309- ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (B) 		8-98017-168-3 01 1 1309- ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (C) 		8-98027-351-3 01 1 1309- ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (E) 		8-98027-354-2 01 1 1309- ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (D) 		8-98125-532-1 01 1 1309- ● ● ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (N) 		8-98027-353-3 01 1 1309- ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. BRAKE SYSTEM PA TYPE(8BX) (N) 		8-98027-353-3 01 1 1309- ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98022-868-3 01 1 1309- ● ● ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T) (H) 		8-98125-849-1 01 1 1309- ● ● ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T) (O) 		8-97389-671-3 01 1 1309- ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T),BRAKE SYSTEM PA TYPE(8BX) (O) 		8-97389-671-3 01 1 1309- ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) BRAKE SYSTEM PA TYPE(8BX) (F) 		8-98118-477-0 01 1 1309- ●
157 04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (F) 		8-98118-477-0 01 1 1309- ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) (I) 		8-98118-478-1 01 1 1309- ●
157 04.931 HOSE; JOINT
(I) 		8-98118-478-1 01 1 1309- ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) (J) 		8-98118-479-1 01 1 1309- ●
157 04.931 HOSE; JOINT
(J) 		8-98118-479-1 01 1 1309- ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) (K) 		8-98118-480-0 01 1 1309- ●
157 04.931 HOSE; JOINT
(K) 		8-98118-480-0 01 1 1309- ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) (L) 		8-98158-475-1 01 1 1309- ●
157 04.931 HOSE; JOINT
(L) 		8-98158-475-1 01 1 1309- ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) (M) 		8-98172-652-0 01 1 1309- ●
157 04.931 HOSE; JOINT
(M) 		8-98172-652-0 01 1 1309- ●
157 04.931 HOSE; JOINT
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) (G) 		8-98118-481-0 01 1 1309- ●
157 04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T) (G) 		8-98118-481-0 01 1 1309- ●
165 04.686 BOLT; BRKT
02.762 (A) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 1309- ● ● ●
165 04.686 BOLT; BRKT
EXC. KD PREPARATORY PACK VAR.4<7TV> 02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 1309- ●
165 04.686 BOLT; BRKT
KD PREPARATORY PACK VAR.4<7TV> BRAKE SYSTEM PA TYPE(8BX) 02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 1309- ●
165 04.686 BOLT; BRKT
EXC. KD PREPARATORY PACK VAR.4<7TV>, BRAKE SYSTEM PA TYPE(8BX) 02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 1309- ●
165 04.686 BOLT; BRKT
KD PREPARATORY PACK VAR.4<7TV> 02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 1309- ●
165 04.686 BOLT; BRKT
BRAKE SYSTEM PA TYPE(8BX) EXC. KD PREPARATORY PACK VAR.4<7TV> 02.343 (B) M6X16 FLANGE 		0-28650-616-0 02 1 1309- ●
165 04.686 BOLT; BRKT
EXC. KD PREPARATORY PACK VAR.4<7TV> 02.343 (B) M6X16 FLANGE 		0-28650-616-0 02 1 1309- ●
184 04.685 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (D) 		8-98255-548-0 01 1 1312- ● ● ●
184 04.685 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> (A) 		8-98183-467-1 01 1 1309- ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. PTO MANUAL CONTROL(6WC) (B) 		8-98017-628-1 01 1 1309- ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (A) 		8-98183-462-1 01 1 1309-1311 ● ● ●
184 04.685 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98255-535-0 01 1 1312- ● ● ●
203 04.690 VALVE; CHECK
POWER ASSIST CLUTCH(S2T) (B) 		8-94104-021-0 01 1 1309- ● ● ●
203 04.690 VALVE; CHECK
(A) 		8-94386-540-0 01 1 1309- ● ● ●
246 01.150 SENSOR; VAC
BRAKE SYSTEM PA TYPE(8BX) 		8-98111-750-1 02 1 1309- ●
246 01.150 SENSOR; VAC 8-98111-750-1 02 1 1309- ●
247 00.010 NUT; SENSOR VAC
BRAKE SYSTEM PA TYPE(8BX) 01.062 M6 FLANGE 		0-91180-106-0 04 1 1309- ●
247 00.010 NUT; SENSOR VAC
01.062 M6 FLANGE 		0-91180-106-0 04 1 1309- ●
248 06.672 BRACKET; SENSOR VAC
BRAKE SYSTEM PA TYPE(8BX) 		8-98111-751-1 01 1 1309- ●
248 06.672 BRACKET; SENSOR VAC 8-98111-751-1 01 1 1309- ●
çizim 388575
236 12 237 12 12 12 12 237 12 12 44 237 12 44 198 12 236 228
BalonParca AdiParca NoAdetTipApplied Date A B C
12 04.681 CLIP; HOSE
CATALYSIS CONTROL WITH DPD(8JM) 03.162 (C) ID=16 		8-98008-098-0 08 1 1311- ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 02 1 1309- ● ● ●
12 04.681 CLIP; HOSE
04.930 (A) ID=15.5 		8-98008-097-0 02 1 1309- ● ● ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 12 1 1309- ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) EXC. BRAKE SYSTEM PA TYPE(8BX) 04.930 (A) ID=15.5 		8-98008-097-0 12 1 1309- ●
12 04.681 CLIP; HOSE
02.559 (D) ID=14-20 		8-97061-603-0 01 1 1309-1310 ●
12 04.681 CLIP; HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (D) ID=14-20 		8-97061-603-0 01 1 1309-1310 ●
12 04.681 CLIP; HOSE
CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) 02.559 (D) ID=14-20 		8-97061-603-0 01 1 1311-1312 ●
12 04.681 CLIP; HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (D) ID=14-20 		8-97061-603-0 01 1 1311-1312 ●
12 04.681 CLIP; HOSE
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) 02.559 (D) ID=14-20 		8-97061-603-0 01 1 1401-1408 ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (D) ID=14-20 		8-97061-603-0 01 1 1401-1408 ●
12 04.681 CLIP; HOSE
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) 02.559 (D) ID=14-20 		8-97061-603-0 01 1 1409- ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (D) ID=14-20 		8-97061-603-0 01 1 1409- ● ●
12 04.681 CLIP; HOSE
03.162 (C) ID=16 		8-98008-098-0 06 1 1309-1310 ●
12 04.681 CLIP; HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) ID=16 		8-98008-098-0 06 1 1309-1310 ●
12 04.681 CLIP; HOSE
CATALYSIS CONTROL WITH DPD & SCR(JCQ) 03.162 (C) ID=16 		8-98008-098-0 06 1 1311-1312 ●
12 04.681 CLIP; HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) ID=16 		8-98008-098-0 06 1 1311-1312 ●
12 04.681 CLIP; HOSE
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) 03.162 (C) ID=16 		8-98008-098-0 06 1 1401-1408 ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) ID=16 		8-98008-098-0 06 1 1401-1408 ●
12 04.681 CLIP; HOSE
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) 03.162 (C) ID=16 		8-98008-098-0 06 1 1409- ●
12 04.681 CLIP; HOSE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) ID=16 		8-98008-098-0 06 1 1409- ● ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 04 1 1309- ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T),BRAKE SYSTEM PA TYPE(8BX) 04.930 (A) ID=15.5 		8-98008-097-0 04 1 1309- ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) BRAKE SYSTEM PA TYPE(8BX) 04.930 (A) ID=15.5 		8-98008-097-0 16 1 1309- ●
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 16 1 1309- ●
12 04.681 CLIP; HOSE
BRAKE SYSTEM PA TYPE(8BX) (B) 		8-98060-842-0 12 1 1309- ●
12 04.681 CLIP; HOSE
(B) 		8-98060-842-0 12 1 1309- ●
12 04.681 CLIP; HOSE
BRAKE SYSTEM PA TYPE(8BX) EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 08 1 1309- ●
12 04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5 		8-98008-097-0 08 1 1309- ●
44 04.930 PIPE; VAC,MAG VLV
WHEEL BASE 2700MM(27W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) (E) 		8-98260-530-0 01 1 1401- ●
44 04.930 PIPE; VAC,MAG VLV
CATALYSIS CONTROL WITH DPD(8JM) (C) 		8-98227-112-0 01 1 1311- ●
44 04.930 PIPE; VAC,MAG VLV
CATALYSIS CONTROL WITH DPD(8JM) (D) 		8-98227-113-0 01 1 1311- ●
44 04.930 PIPE; VAC,MAG VLV
(B) 		8-98063-777-0 01 1 1309-1310 ●
44 04.930 PIPE; VAC,MAG VLV
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98063-777-0 01 1 1309-1310 ●
44 04.930 PIPE; VAC,MAG VLV
CATALYSIS CONTROL WITH DPD & SCR(JCQ) (B) 		8-98063-777-0 01 1 1311-1312 ●
44 04.930 PIPE; VAC,MAG VLV
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98063-777-0 01 1 1311-1312 ●
44 04.930 PIPE; VAC,MAG VLV
WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) (B) 		8-98063-777-0 01 1 1401-1408 ●
44 04.930 PIPE; VAC,MAG VLV
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98063-777-0 01 1 1401-1408 ●
44 04.930 PIPE; VAC,MAG VLV
WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) (B) 		8-98063-777-0 01 1 1409- ●
44 04.930 PIPE; VAC,MAG VLV
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98063-777-0 01 1 1409- ● ●
44 04.930 PIPE; VAC,MAG VLV
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98109-719-0 01 1 1309-1408 ●
44 04.930 PIPE; VAC,MAG VLV
(A) 		8-98109-719-0 01 1 1309-1408 ●
44 04.930 PIPE; VAC,MAG VLV
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98109-719-0 01 1 1409- ● ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV 8-98092-677-0 01 1 1309-1310 ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98092-677-0 01 1 1309-1310 ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) 		8-98092-677-0 01 1 1311-1312 ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98092-677-0 01 1 1311-1312 ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) 		8-98092-677-0 01 1 1401-1408 ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98092-677-0 01 1 1401-1408 ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) 		8-98092-677-0 01 1 1409- ●
198 04.931 HOSE; VAC,PIPE TO MAG VLV
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98092-677-0 01 1 1409- ● ●
228 04.930 NUT; PIPE
CATALYSIS CONTROL WITH DPD(8JM) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1311-1312 ●
228 04.930 NUT; PIPE
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1401- ●
236 04.930 BOLT; PIPE
CATALYSIS CONTROL WITH DPD(8JM) 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 1311- ●
236 04.930 BOLT; PIPE
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1309- ● ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 2700MM(27W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) (B) 		8-98260-531-0 01 1 1401- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
CATALYSIS CONTROL WITH DPD(8JM) 03.630 (D) L=260 SERVICED BY L=3000 		0-08258-300-0 01 1 1311- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
CATALYSIS CONTROL WITH DPD(8JM) (C) 		8-98207-022-0 01 1 1311- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
(B) 		8-98106-711-0 01 1 1309-1310 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98106-711-0 01 1 1309-1310 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
CATALYSIS CONTROL WITH DPD & SCR(JCQ) (B) 		8-98106-711-0 01 1 1311-1312 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98106-711-0 01 1 1311-1312 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) (B) 		8-98106-711-0 01 1 1401-1408 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98106-711-0 01 1 1401-1408 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) (B) 		8-98106-711-0 01 1 1409- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98106-711-0 01 1 1409- ● ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
(A) 		8-98171-288-0 01 1 1309-1310 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98171-288-0 01 1 1309-1310 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-98171-288-0 01 1 1311-1312 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98171-288-0 01 1 1311-1312 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-98171-288-0 01 1 1401-1408 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98171-288-0 01 1 1401-1408 ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-98171-288-0 01 1 1409- ●
237 04.931 HOSE; VAC,M/VAC TO EXH THROTTLE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98171-288-0 01 1 1409- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
